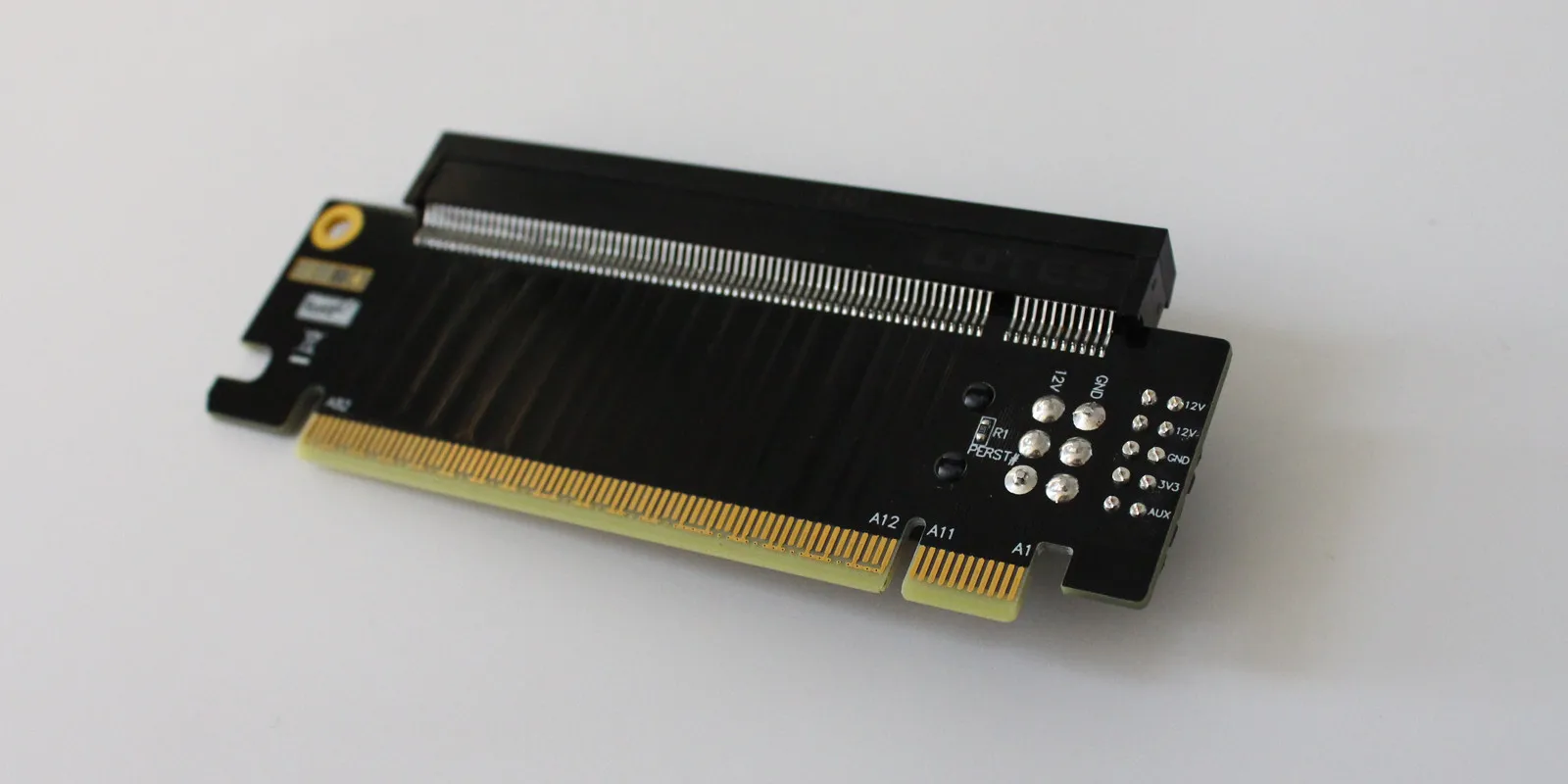

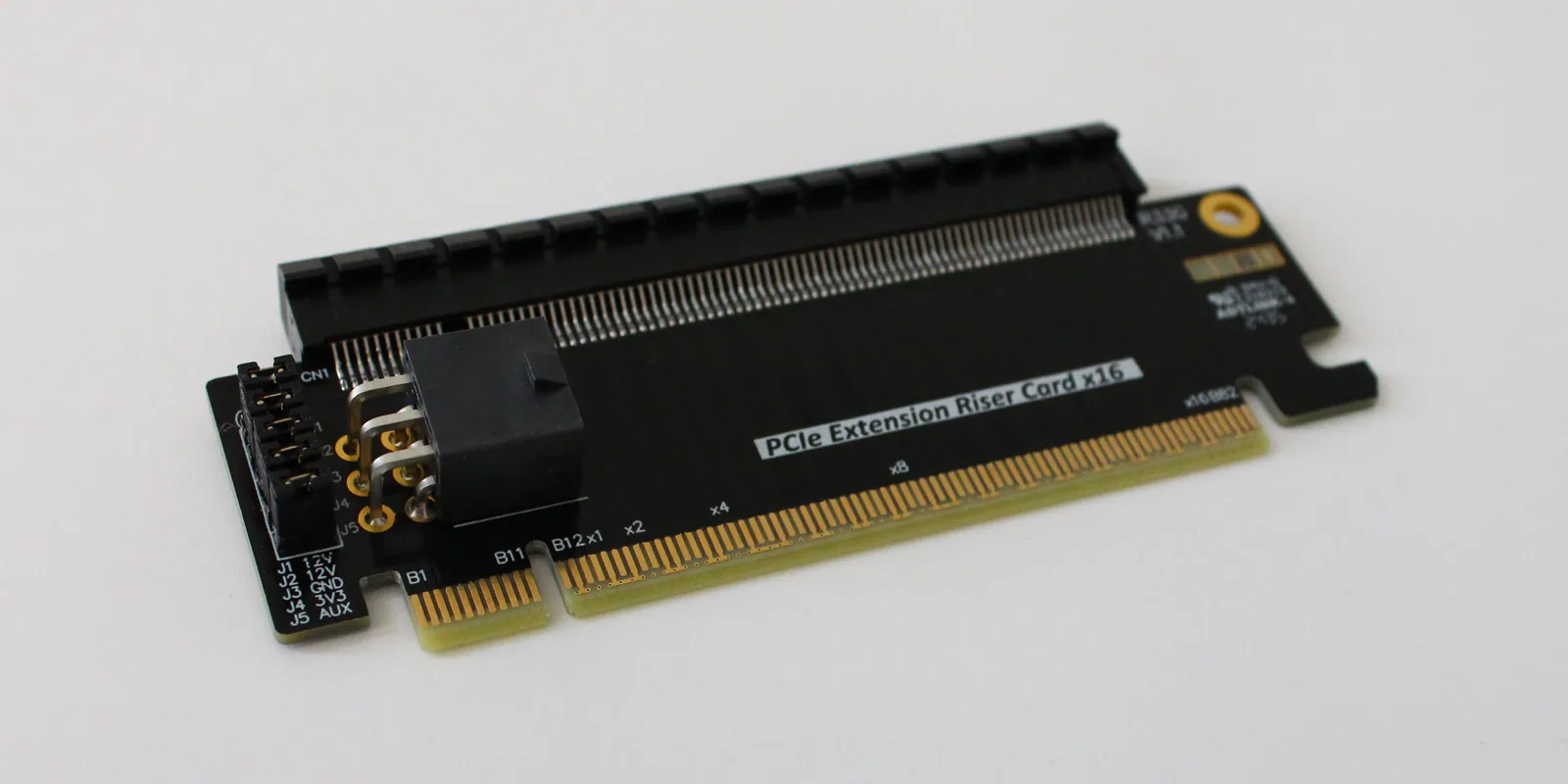

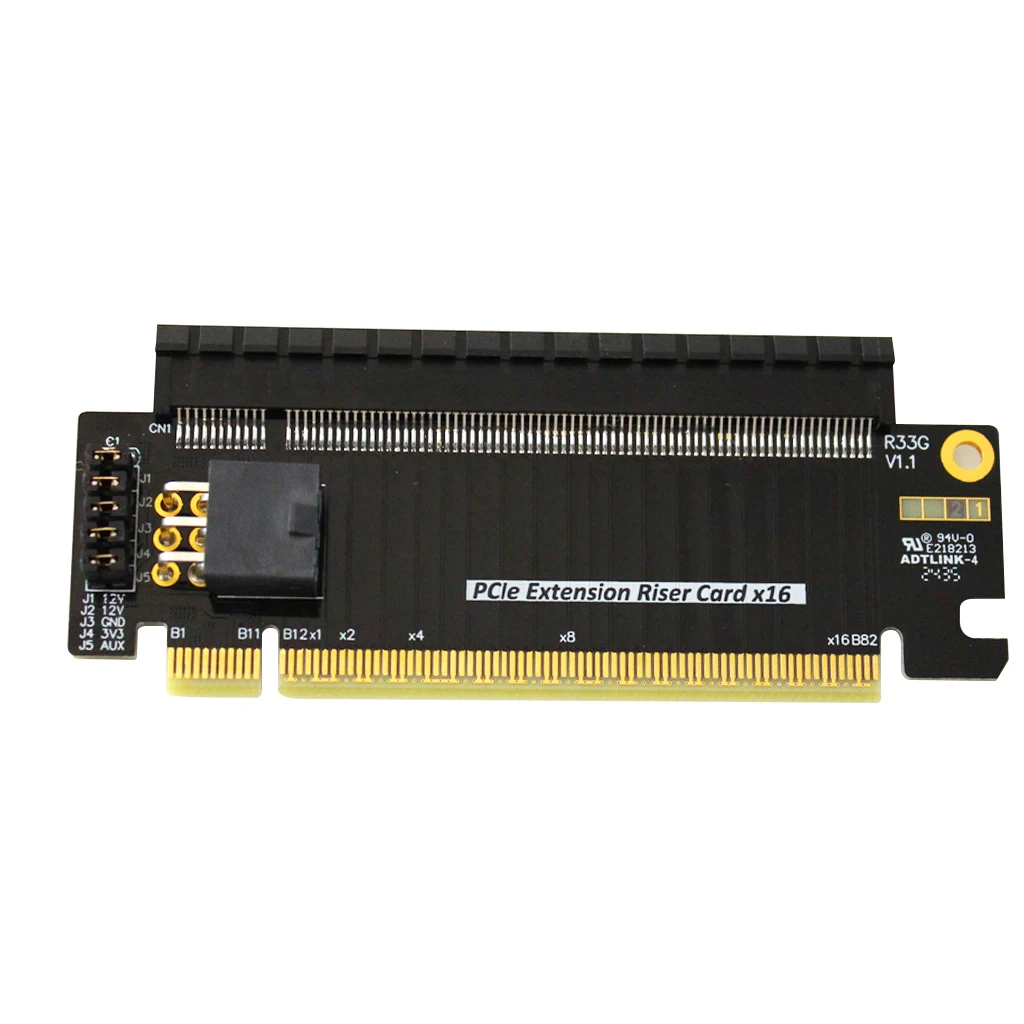

PCI-E x16 Half Height to Full Height Extension Riser Card PCIe 5.0 x16 Test Adapter Protector Card Support External Power Supply

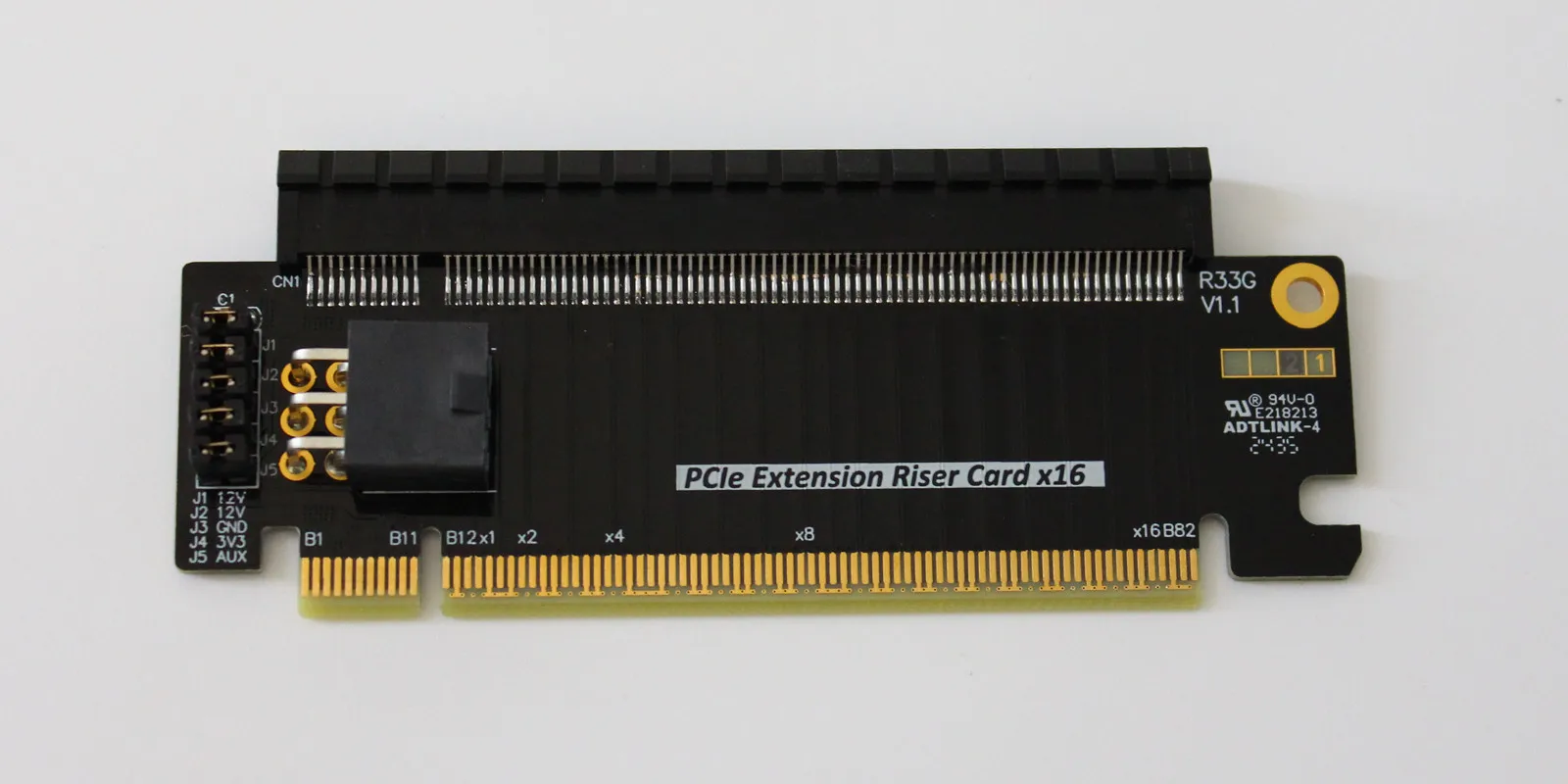

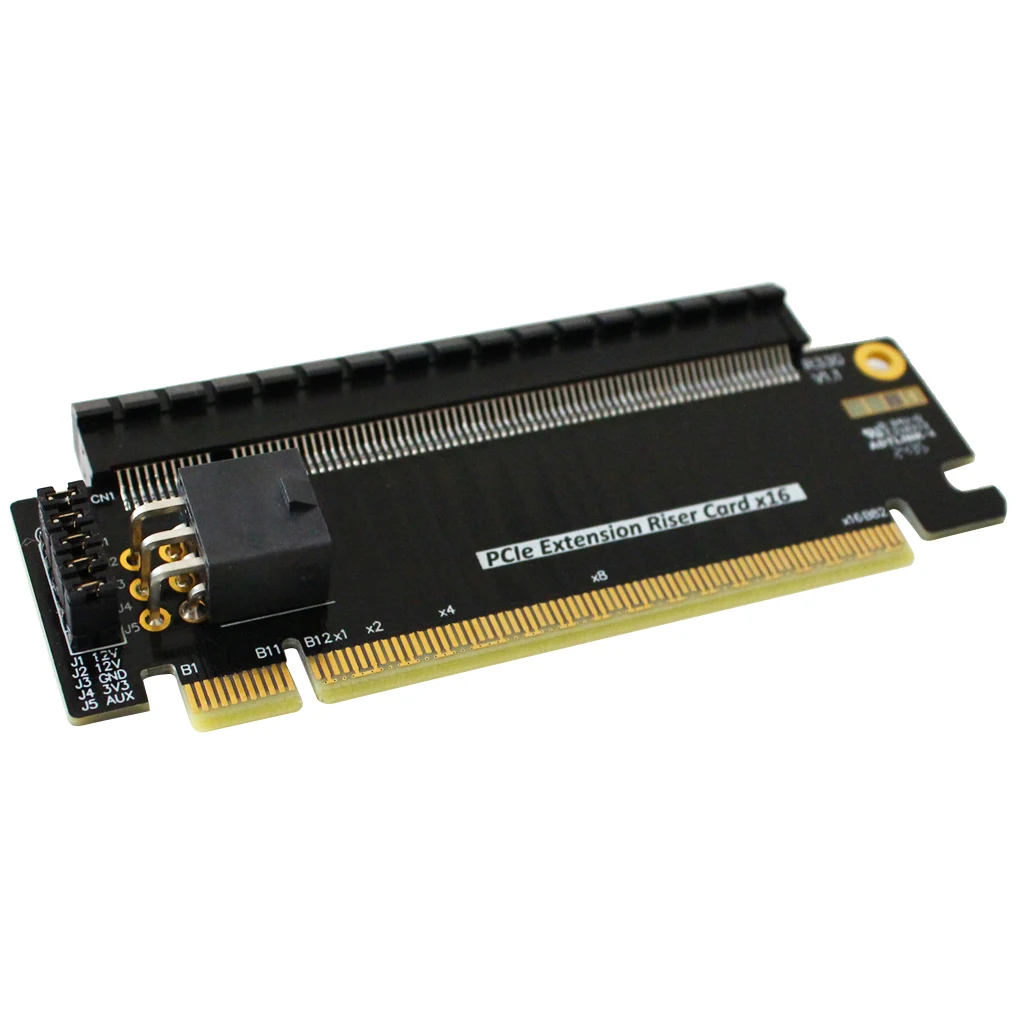

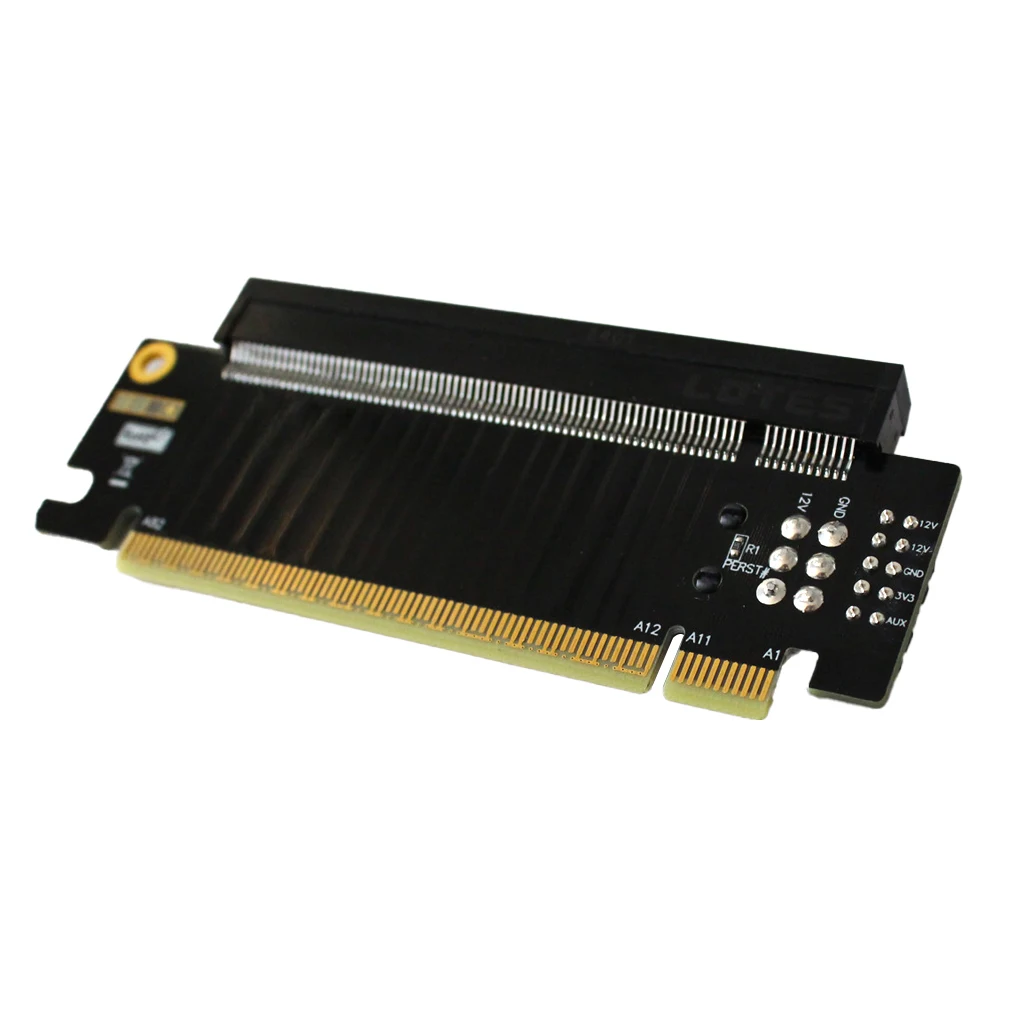

Product Name：PCI-E x16 half-height to full-height Riser card
Speed bandwidth: PCIe 5.0 x16
Purchase Tips: Be sure to buy 1~2 samples to test and verify
that there is no error before purchasing large quantities.
Product Benefits.
1. Support PCIe 5.0 X16 compatible with gen3/gen4/gen5.
2. Supports half-height to full-height cards that meet the official PCIe size standard.
3. Support external power supply, external power supply protection,
effectively avoid reverse current problems, to ensure the safety of the
motherboard power supply.

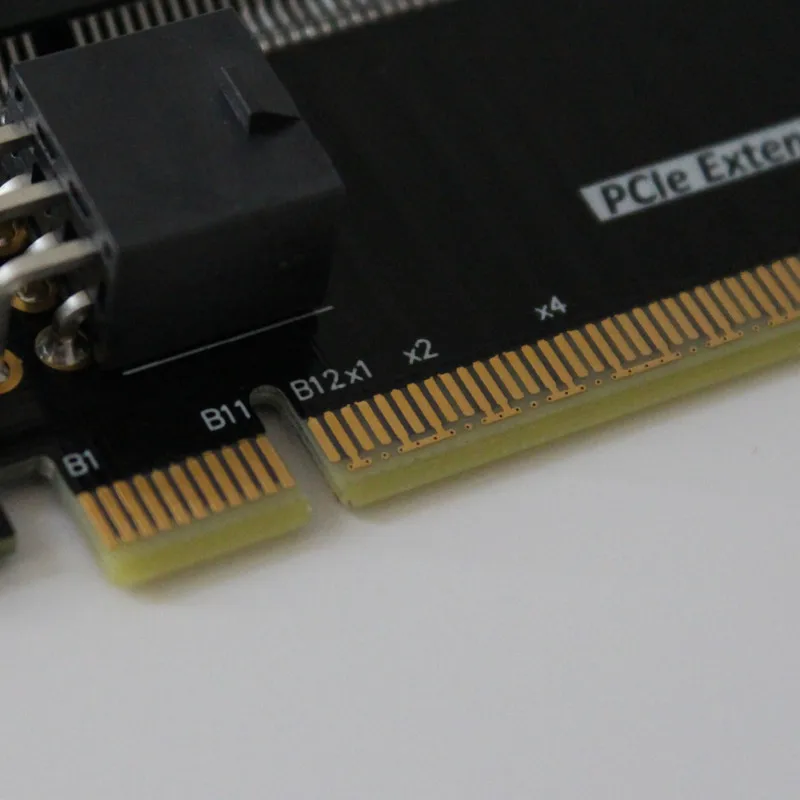

4. gold-plated gold fingers, gold thickness up to 10U,
in line with IPC level 1 international standards.

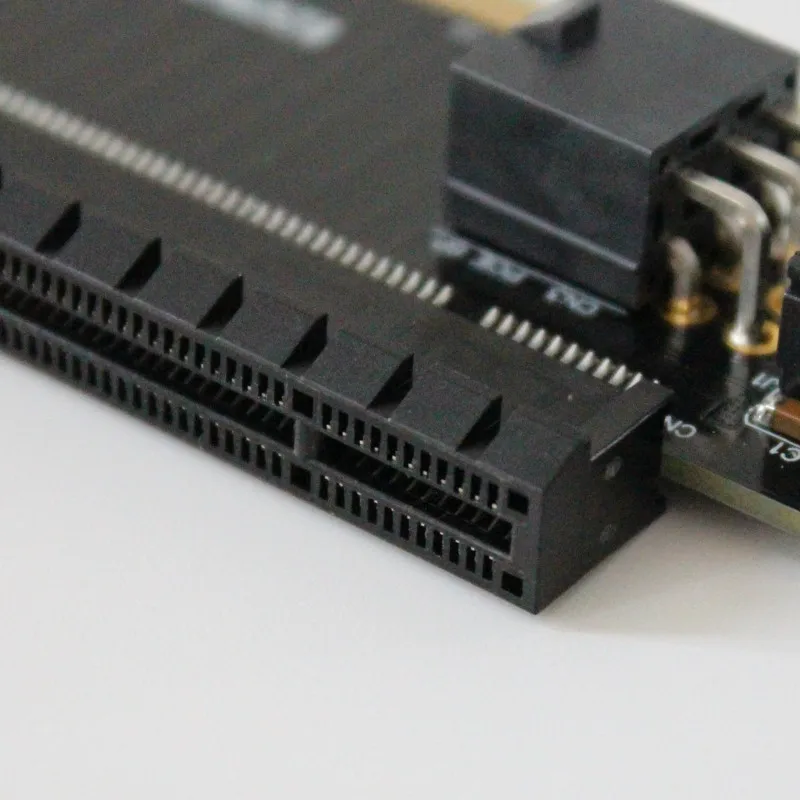

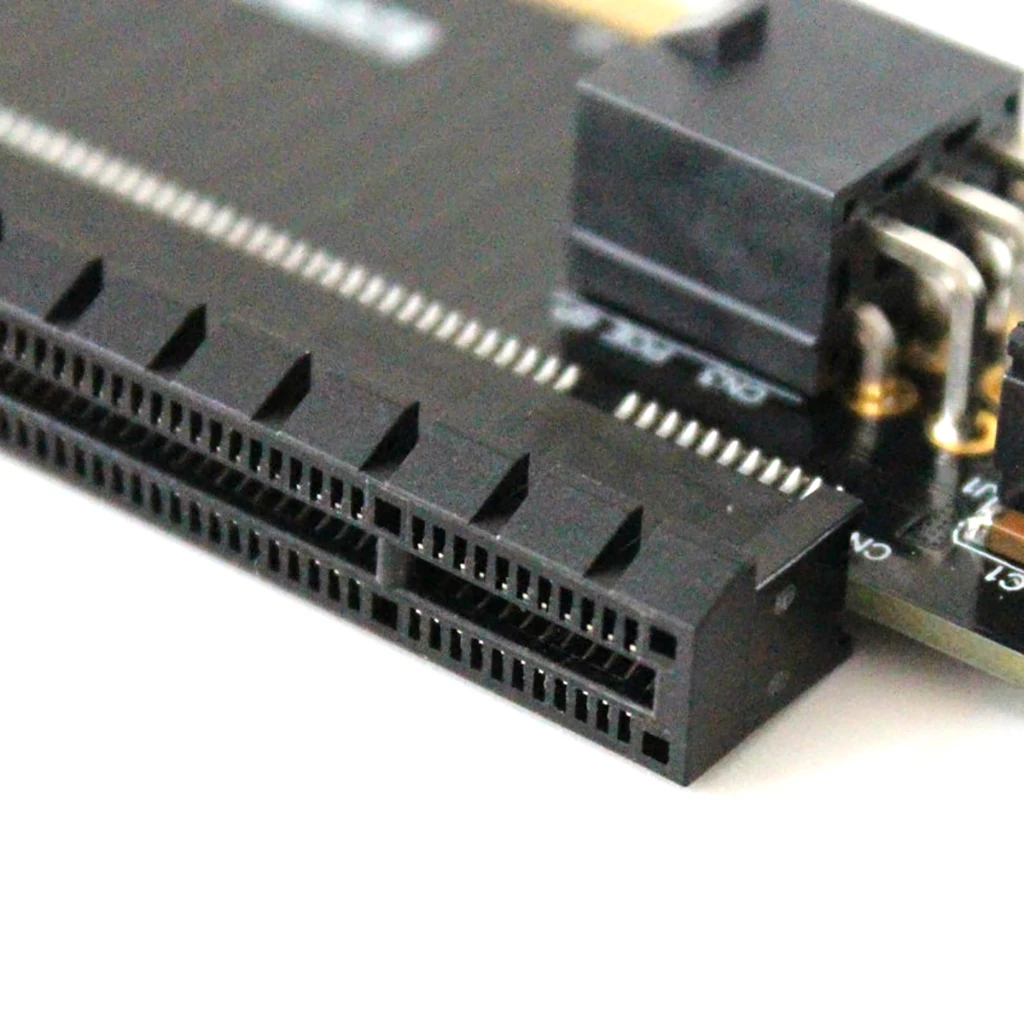

5. LOTES connector, LCP flame retardant high temperature resistant plastic material.
6. high-frequency, low resistance, high-temperature resistant and anti-oxidation
PCB board, non-deformation of the colour yellow crystal semi-transparent
non-white non-black.
Summary of technical issues:

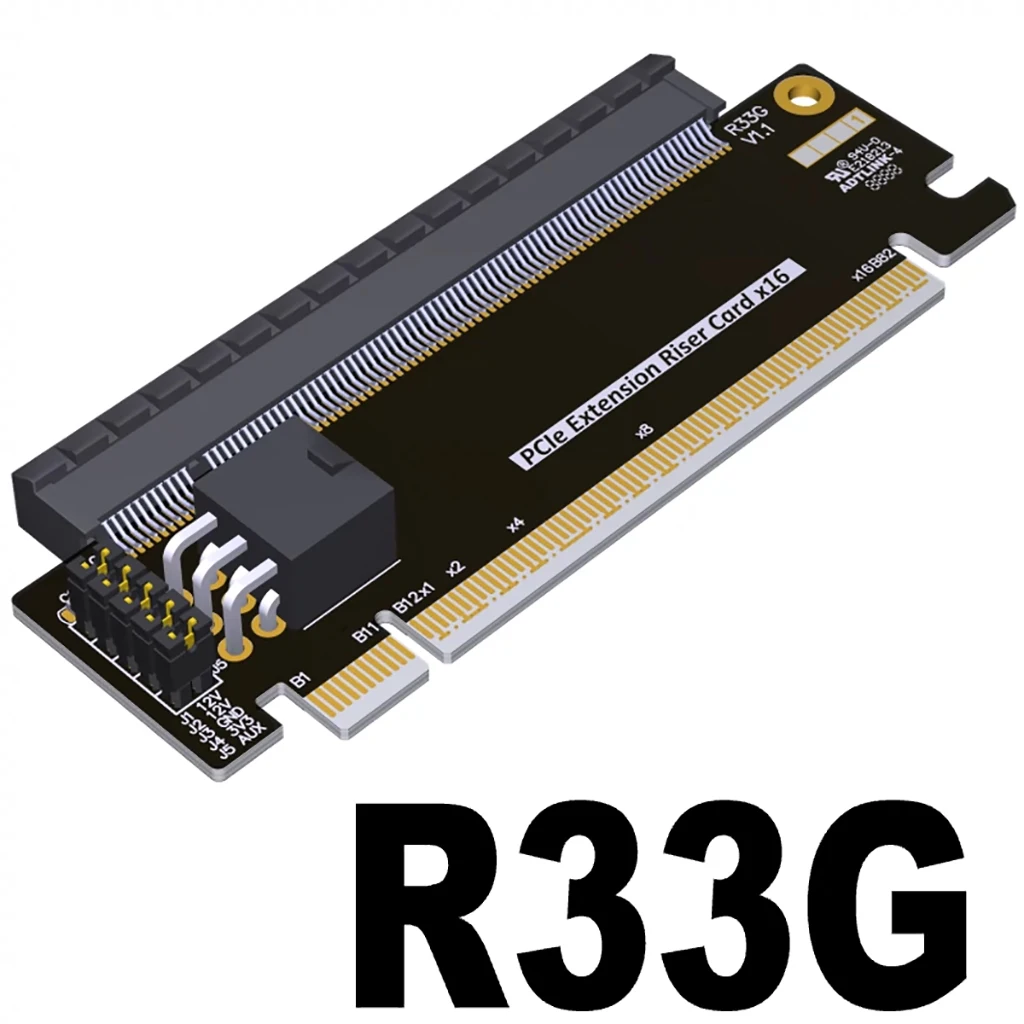

What is the height increase of model R33G?

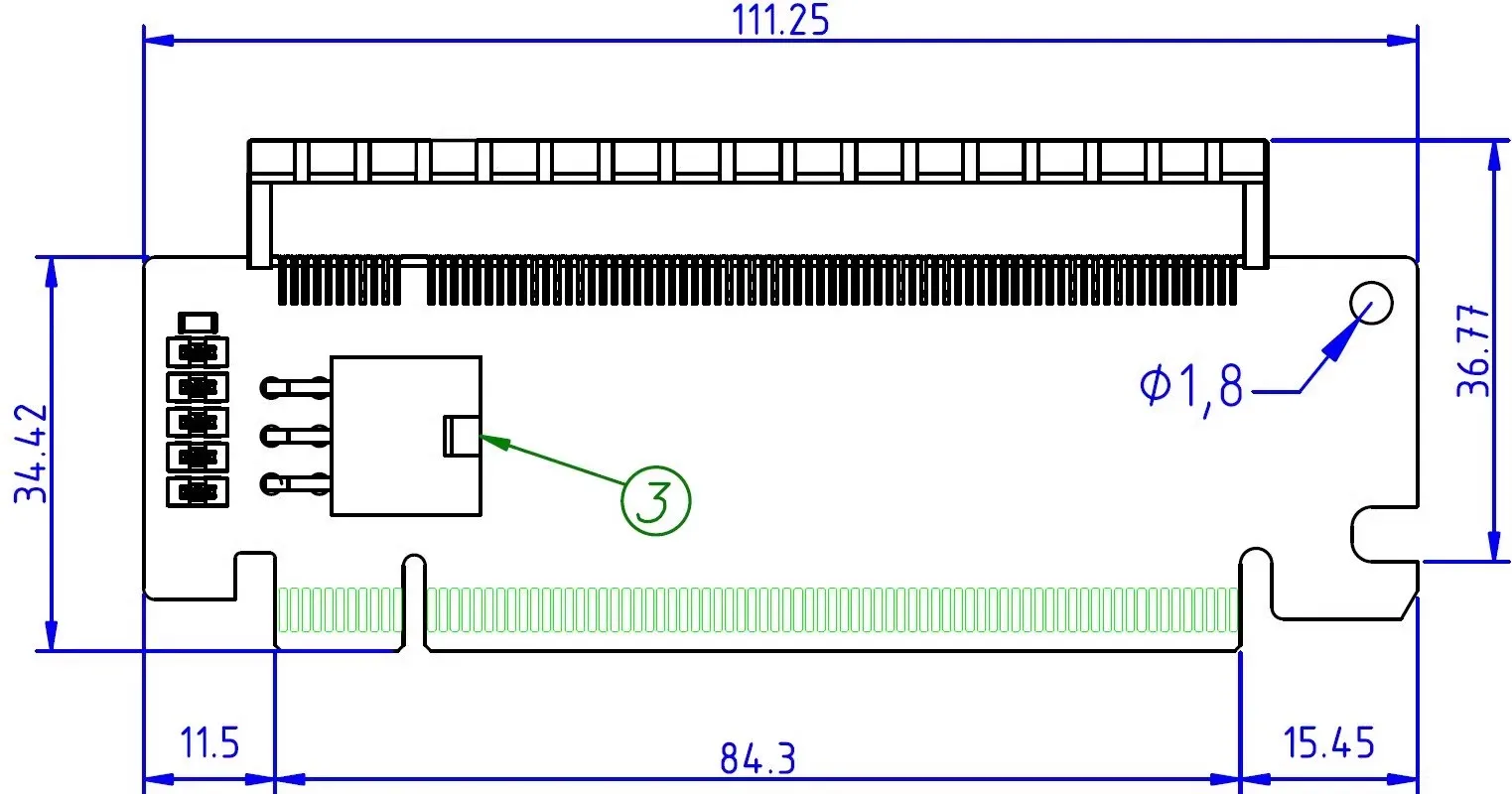

The following figure R33G height increase 36.77mm
How to choose external power supply when using R33G?

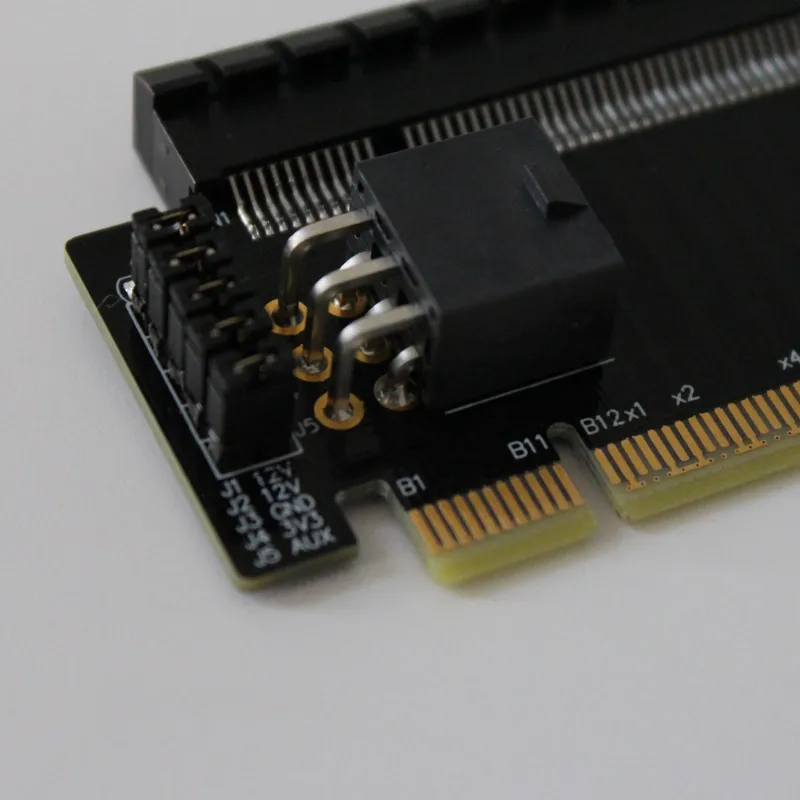

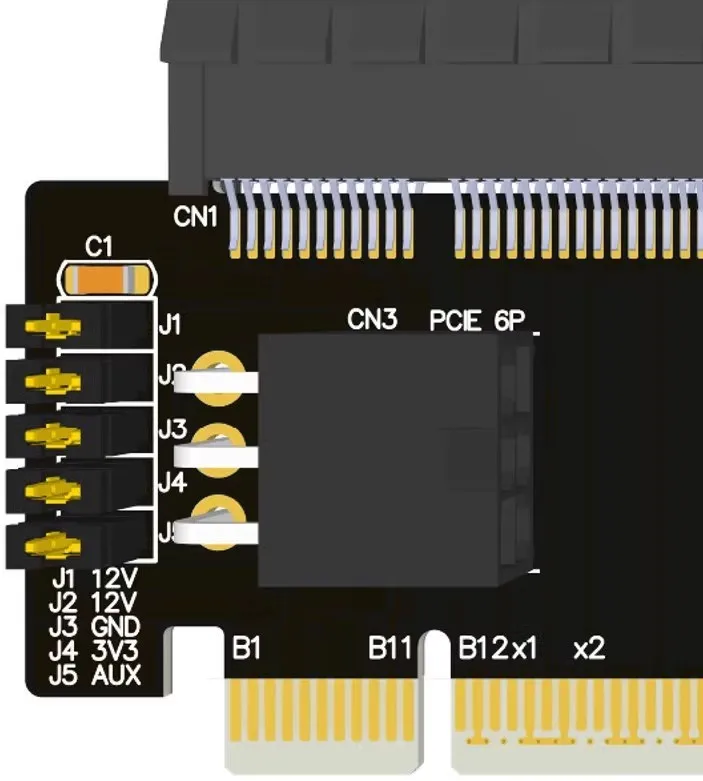

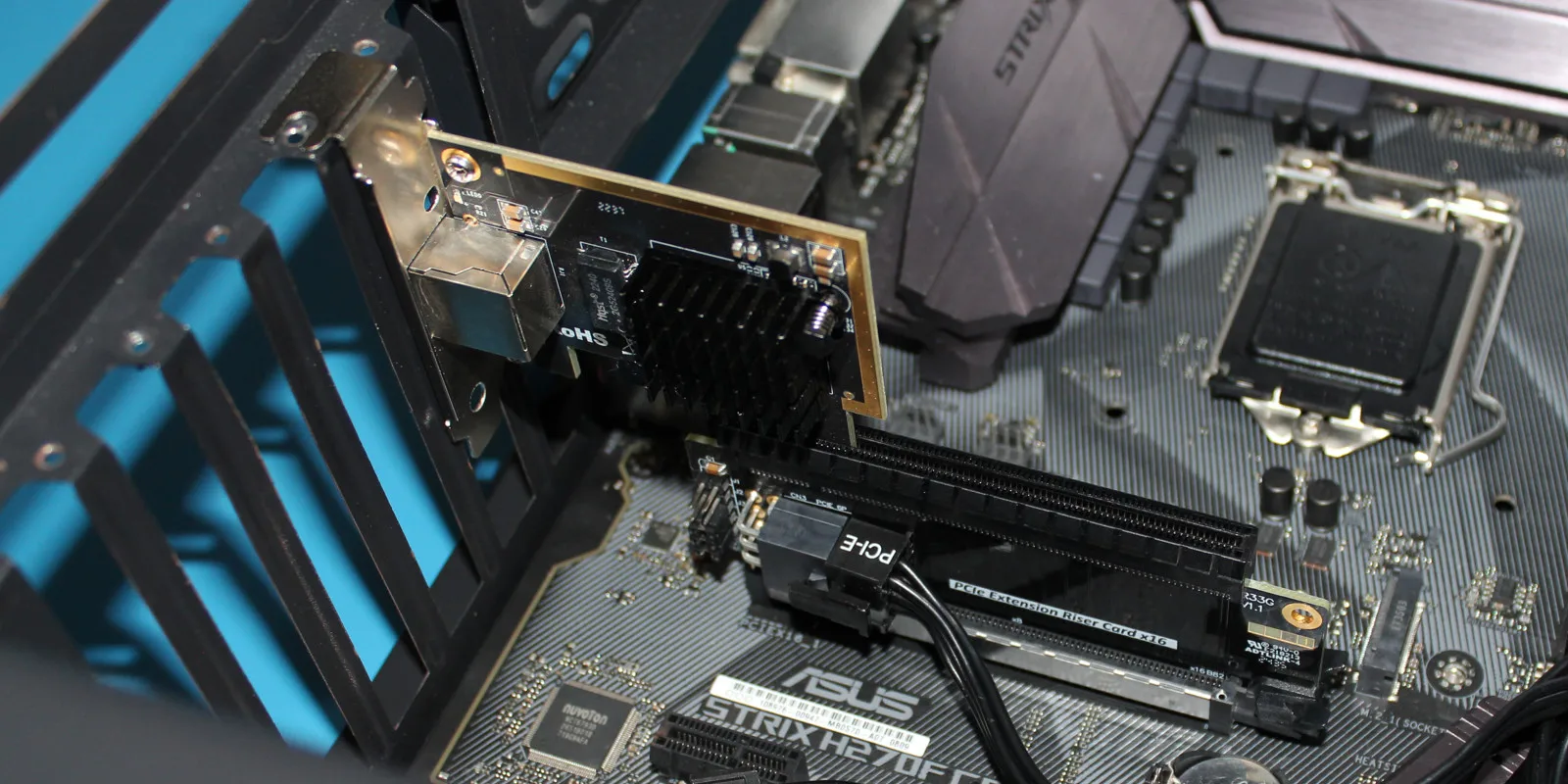

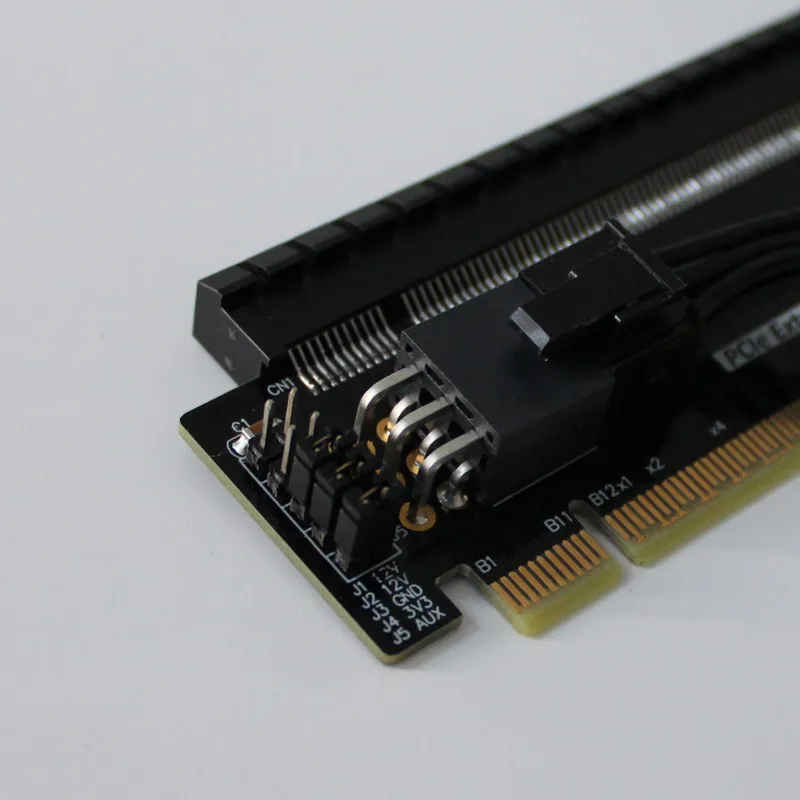

If you need to use external power supply, insert the PCIe power supply into the power supply
holder and unplug J1 and J2, then you can use it normally;
when you don't use external power supply, insert all jumper caps.
Does Model R33G support 5.0?
Lab test can reach PCIe 5.0.
