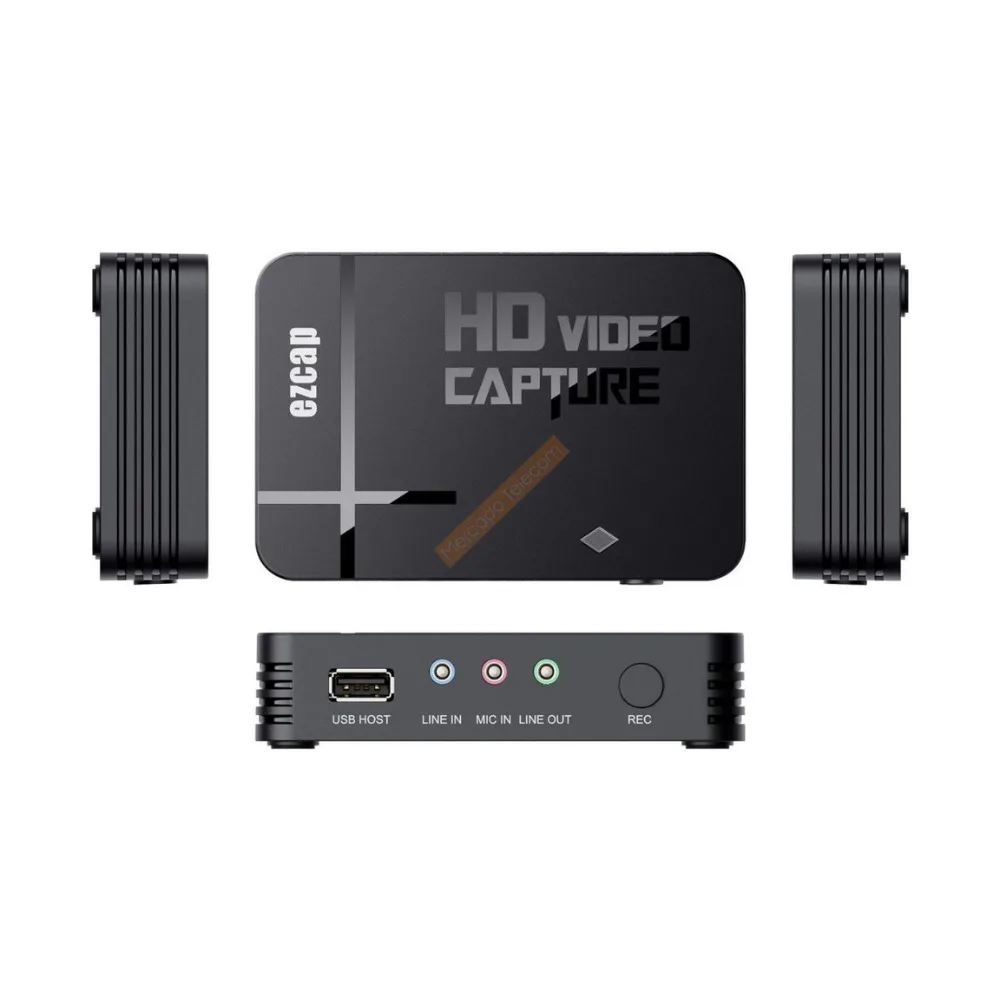

1080P HDMI Video Capture

1. Plug and Play, drive-free, no need to go through the computer, one-click recording.

2. Support SD/HD video signals with a resolution of 1080 P.

3. Equipped with HDMI and color difference ports and wires, 3.5 audio interface.

4. Equipped with professional video editing software, you can edit and upload videos.

5. With microphone, you can record Naruto, play games, record games, and explain.

6. The back cover is mesh to facilitate heat dissipation.

7. Power supply can be equipped according to customer needs. (British/American/European)

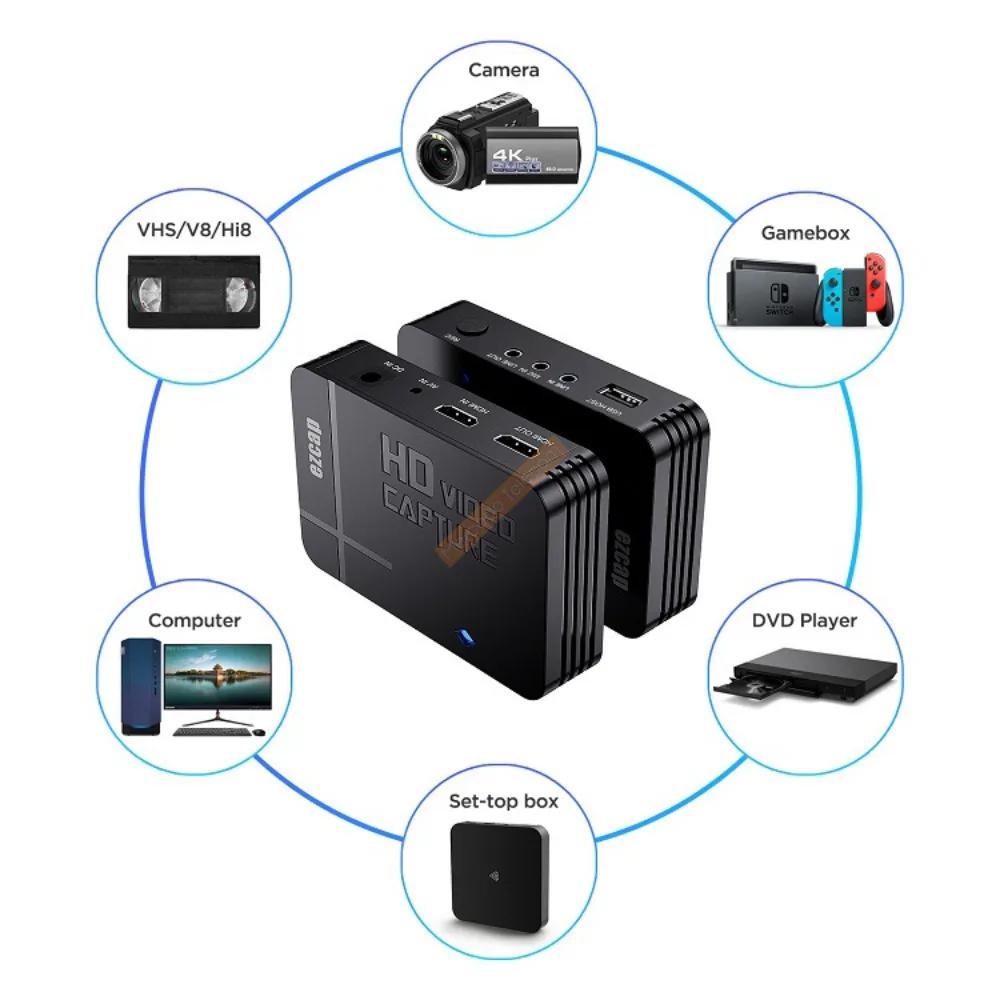

collects various videos from DVD/Camera/HD player/set-top box/computer/XBOX/PS3/PS3 game console, etc, stored in a U disk or mobile hard disk plugged into ezcap280. No computer required, one-click recording.

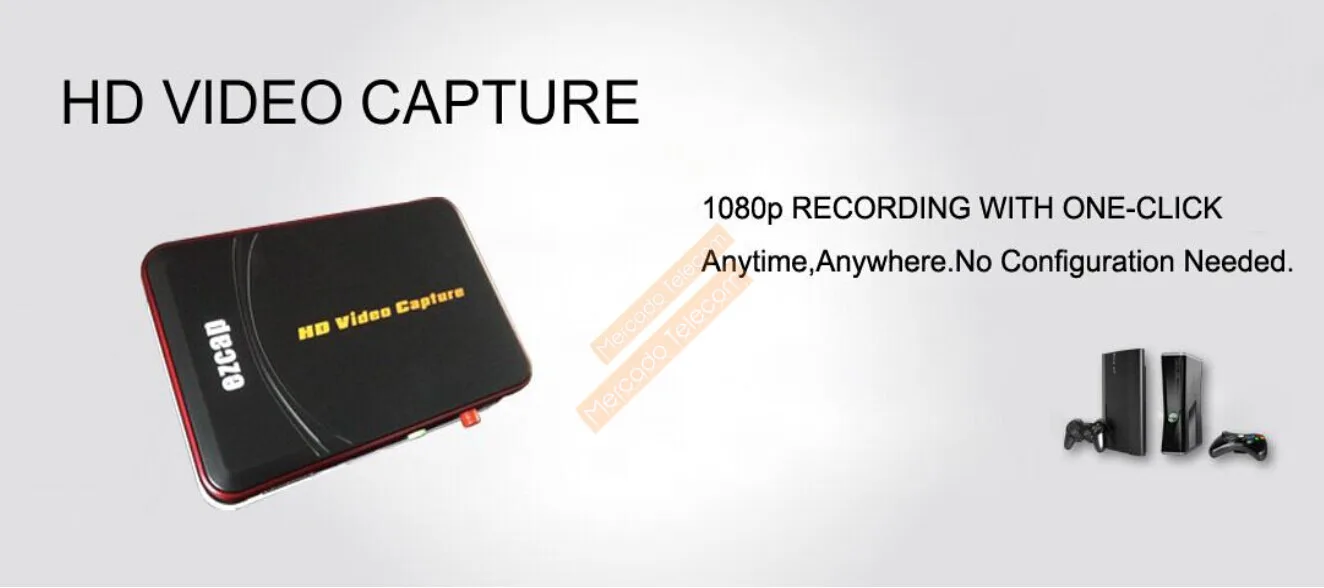

HD video capture card, no computer required, key operation, HD, Resolution 1080P -- 2014 latest product

the best HD video capture box.

no computer is required. After connecting HDMI video source (DVD/DC/X-BOX/HSP, etc.), connect U disk to the capture card and press the key to start collecting HD video, the resolution is as high as 1080 P.

supports HDMI and COMPONENT video input methods.
at the same time, we also provide editing software for users to edit recorded videos.

Features:
- 1080P recording with one click, no PC enquired. You only simple insert one USB Flash disk to get it anywhere,anytime.
- Bring it out of your room and share the gameplay and fun with your friends anywhere.
- Easy to use, no any set-up. You just click RECORD button to record your gameplay,and re-click to stop recording.
- With 1080P HDMI by through, you can play HD gameplay when you're recording it.
- With extral audio input, allows you record your own live voice from microphone with gameplay video together.

Specifications:

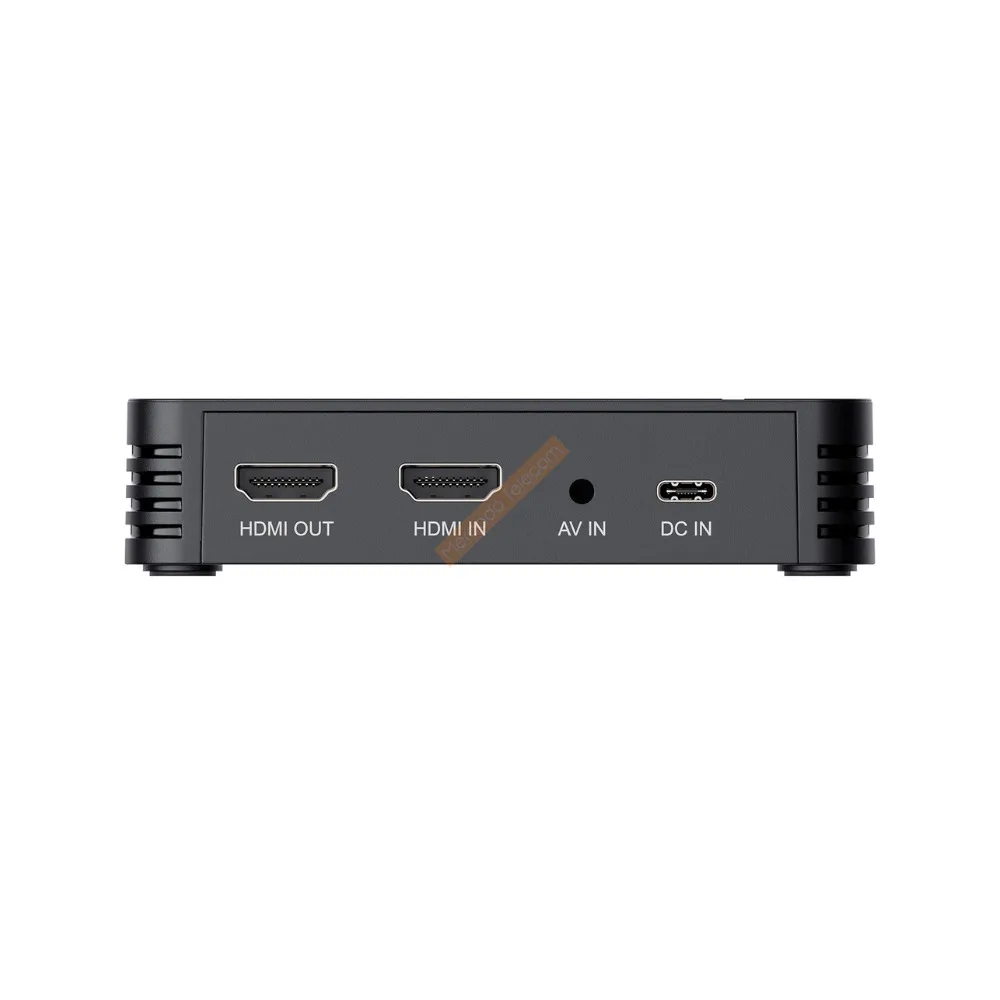

Connection

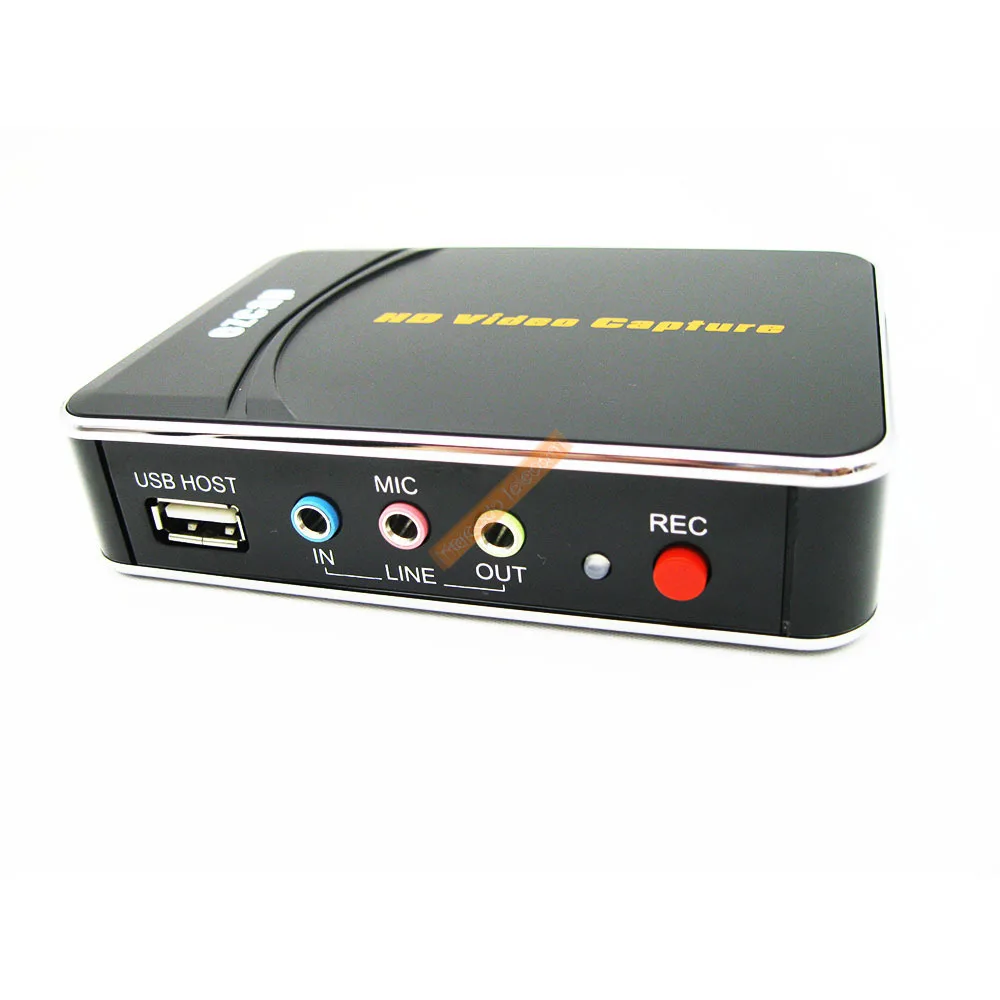

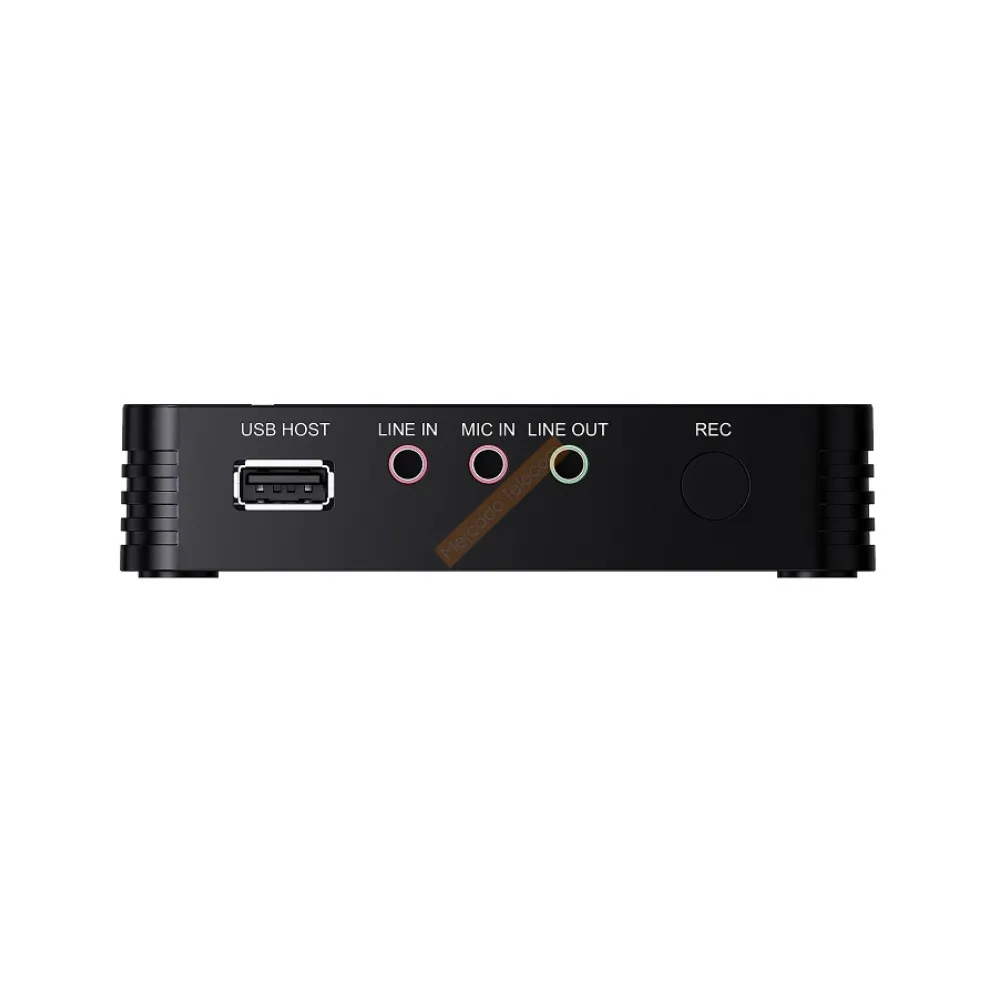

- Interface: USB 2.0 host for USB Flash disk or USB hard disk

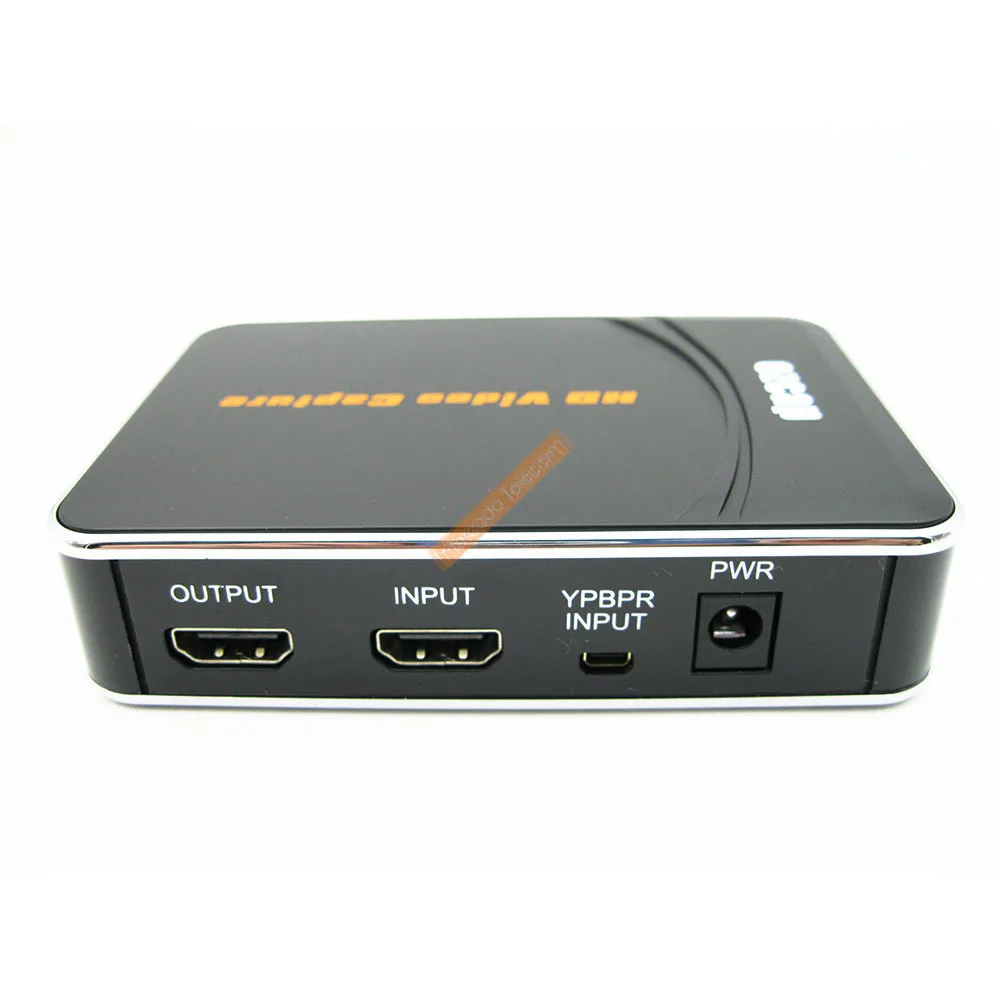

- Video Input: Digital/HDMI, Analog/Component Video.
- Audio Input: Digital/HDMI,Analog/RCA Audio L/R,3.5mm Line In,3.5mm Microphone In.(Mic In and Line In only can use for component video input,don't support HDMI input)
- Video Output: Digital/HDMI (Pass-through from HDMI or Component).
- Audio Output: Digital/HDMI(Pass-through from HDMI or Audio RCA L/R Input), Analog/3.5mm Stereo (Pass-through from HDMI or Audio RCA L/R Input)

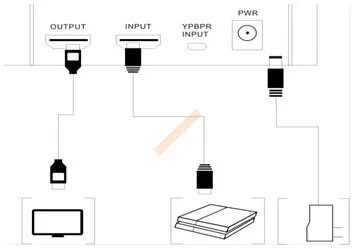

Application Connections with Game Consoles
- HDMI: WiiU, Xbox 360, Xbox One, PS4
- Component: WiiU, Xbox 360, PS3

Hardware Extra
- Codec: Hardware MPEG4 encoder
- User Interface: On-board Hot Button for one-click recording/streaming, LED indicator for working sratus.
- Dimension: 110*75*27 mm
- Weight: 135g

Standards
- Storage Media: USB Flash Disk, Portable Hard Disk (exFAT format is not supported)
- Input Resolution/Pass-through:
720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i),
1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
- Capture Resolution:
720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i),
1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
- Record Format: Video/AVI MPEG4, Audio/AAC Stereo
- Record Quality: Max 18Mbps@1080P 30fps
- Record File: Max 2GB/per file
- Record Place: Max 140MB/minute, 8.4GB/hour
- Power Supply: DC 5V 2A

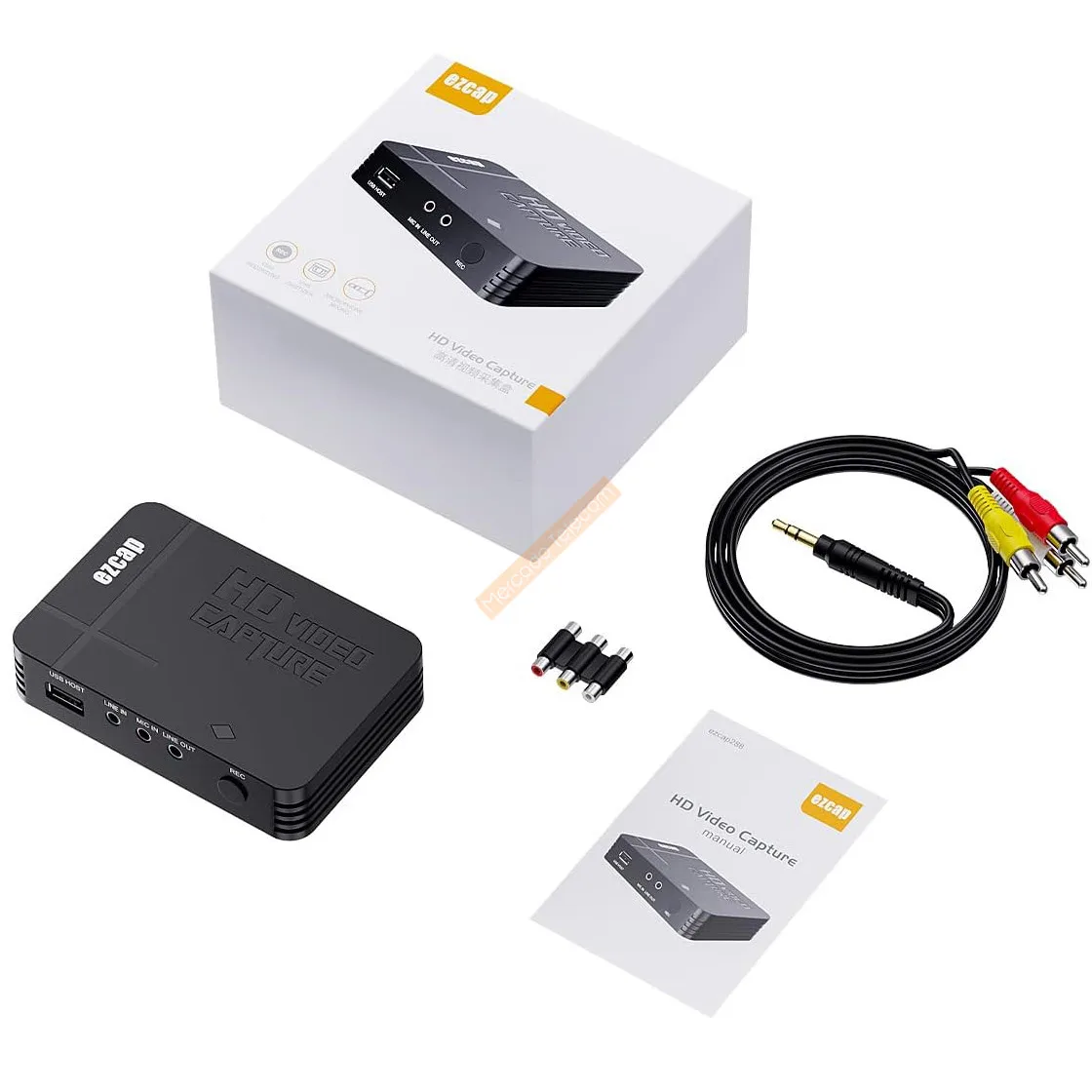

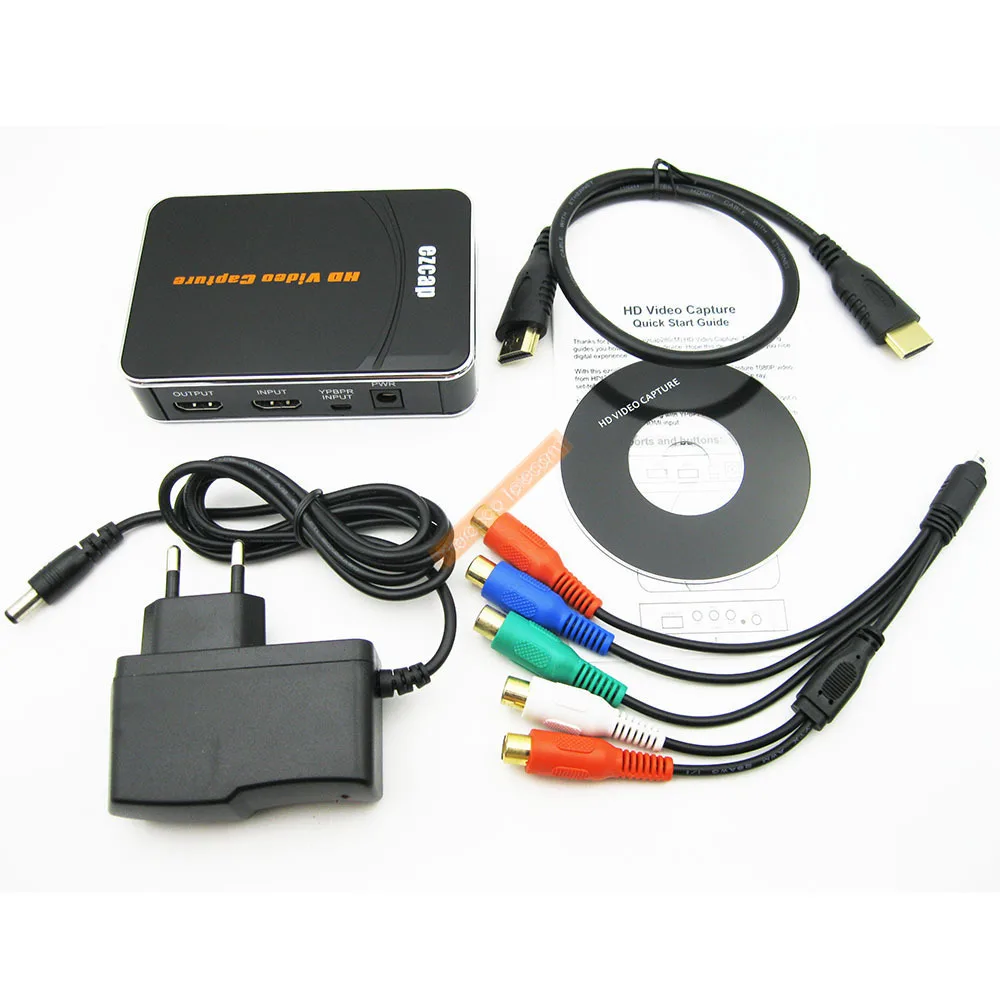

Package Contents:
- ezcap280 1080P HDMI/YPbPr Recorder

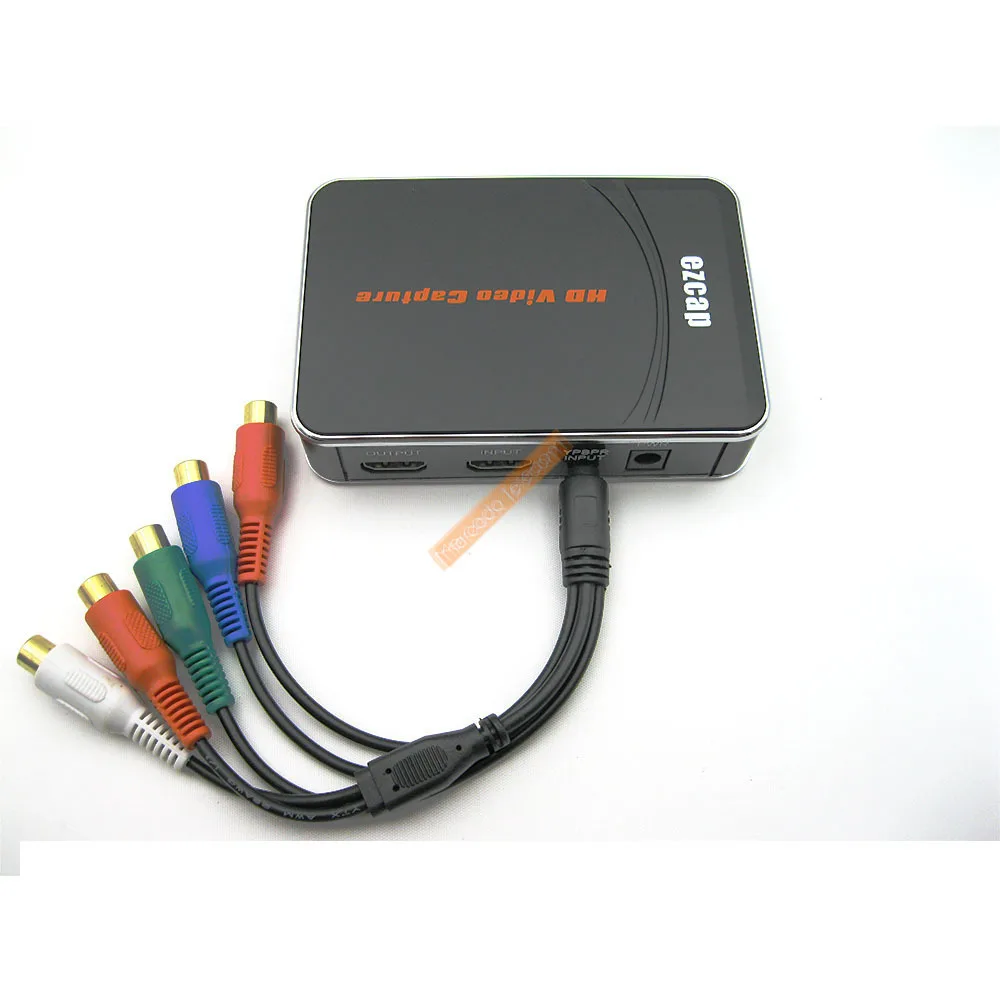

- Component video audio connection cable
- HDMI cable
- Power supply
- Manual
- Video editing software CD

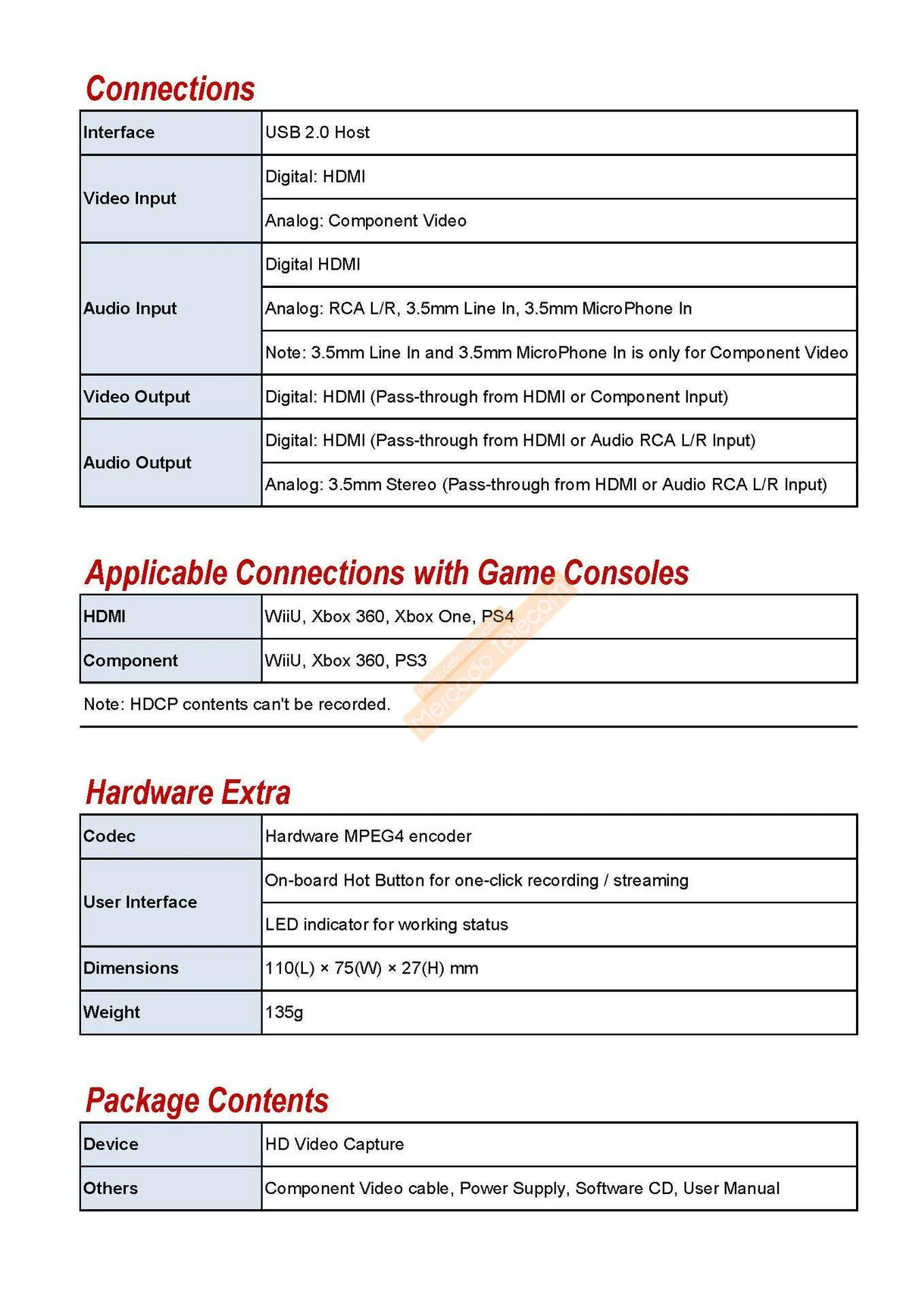

Specifications:

Connections

interface

USB 2.0 Host

video input

Digital: HDMI

Analog: Component Video

audio input

Digital HDMI

Analog: RCA L/R, 3.5mm Line In, 3.5mm Micro Phone In

Note: 3.5mm Line In and 3.5mm Micro Phone In is only for Component Video

video output

Digital: HDMI (Pass-through from HDMI or Component Input)

audio output

Digital: HDMI (Pass-through from HDMI or Audio RCA L/R Input)

Analog: 3.5mm Stereo (Pass-through from HDMI or Audio RCA L/R Input)

accessories include:

equipment

HD Video Capture

Other

Component Video cable, HDMI cable, DC adapter, Software CD, User Manual

HD capture box information

Decoding

Hardware MPEG4 encoder

User Interface

On-board Hot Button for one-click recording/streaming

LED indicator for working status

size

110(L) × 75(W) × 27(H) mm

weight

135g

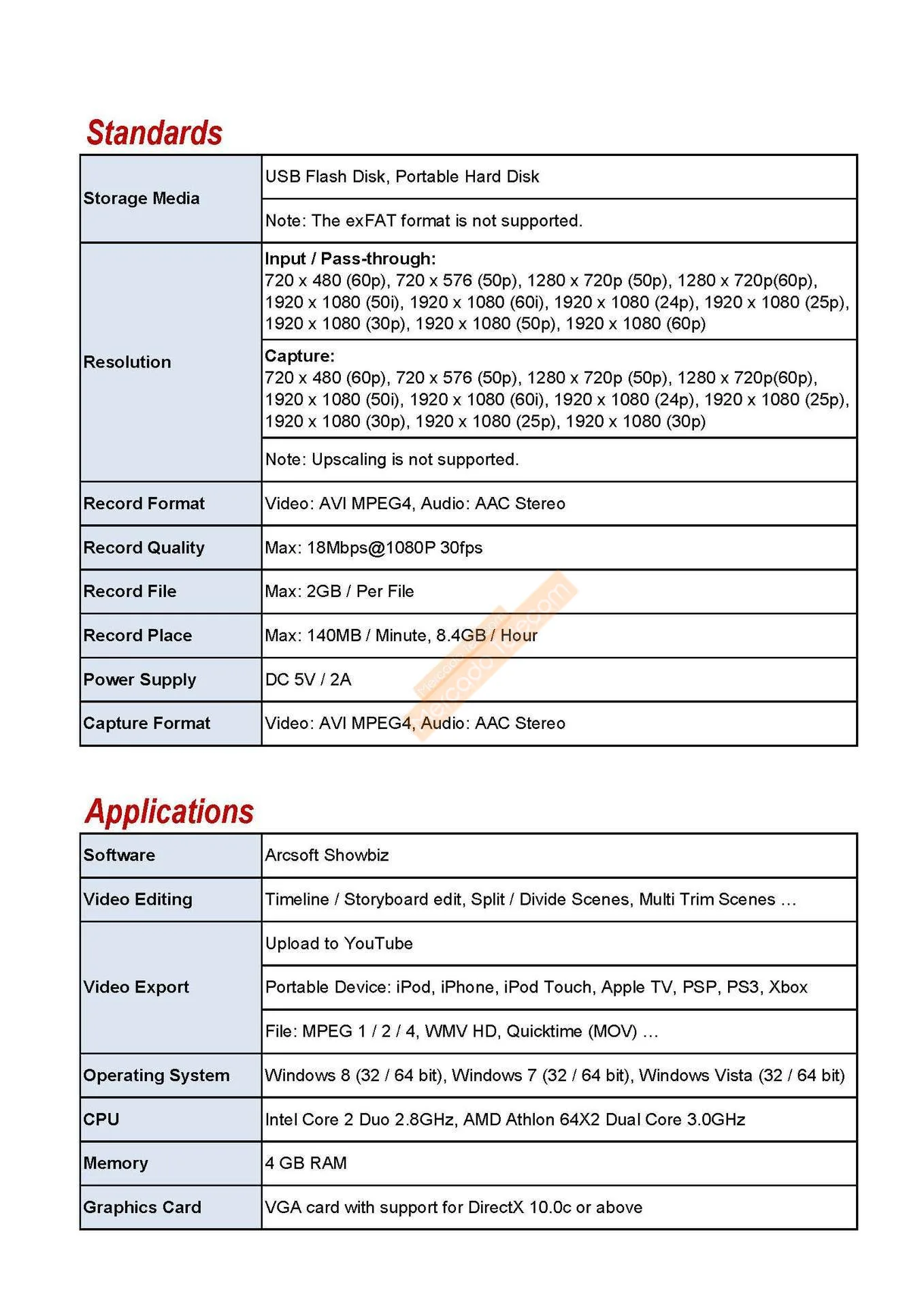

standard:

Storage Media

USB Flash Disk, Portable Hard Disk

Note: The exFAT format is not supported.

resolution

Note: Upscaling is not supported.

recording format

Video: AVI MPEG4, Audio: AAC Stereo

recording quality

Max: 18Mbps@1080P 30fps

recording file

Max: 2GB/Per File

recording capacity

Max: 140MB/Minute, 8.4GB/Hour

power supply mode

DC 5V/2A

collection format

Video: AVI MPEG4, Audio: AAC Stereo

software used:

software

Arcsoft Showbiz

File editing

Timeline/Storyboard edit, Split/Divide Scenes, Multi Trim Scenes…

video output

Upload to YouTube

Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox

File: MPEG 1/2/4, WMV HD, QuickTime (MOV)…

Operating System

Windows 8 (32/64 bit), Windows 7 (32/64 bit), Windows Vista (32/64 bit)

CPU

Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz

Memory

4 GB RAM

Graphics Card

VGA card with support for DirectX 10.0c or above

Capture up to 1080p HD video by HDMI or YPBPR

1080P recording with one click, no PC required. You only simple insert one USB Flashdisk to get it anywhere,anytime.

Portable design, bring it out of your room and share the gameplay and fun with yourfriends anywhere.

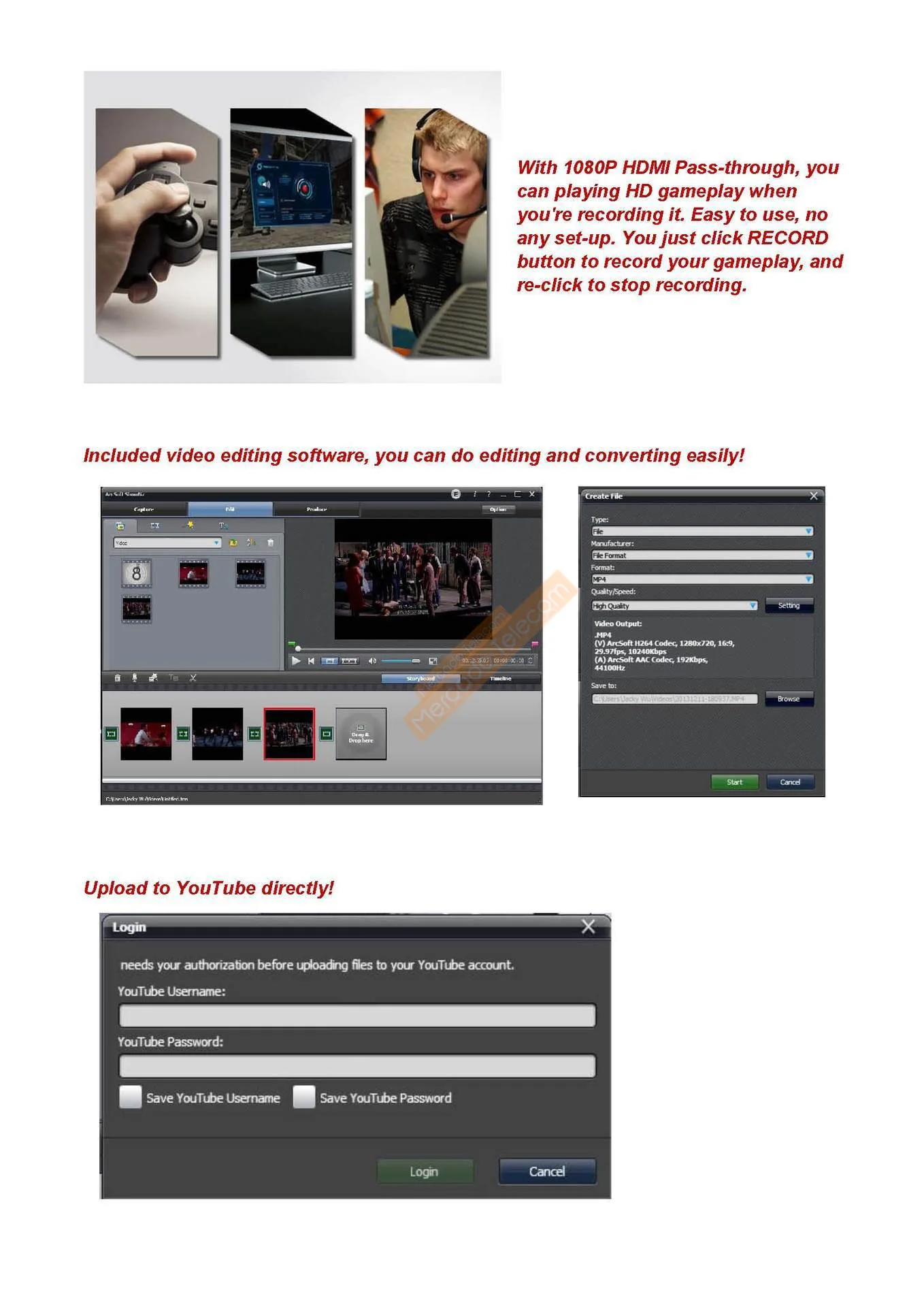

With 1080P HDMI Pass-through, youcan playing HD gameplay whenyou're recording it. Easy to use, noany set-up. You just click RECORDbutton to record your gameplay,andre-click to stop recording.

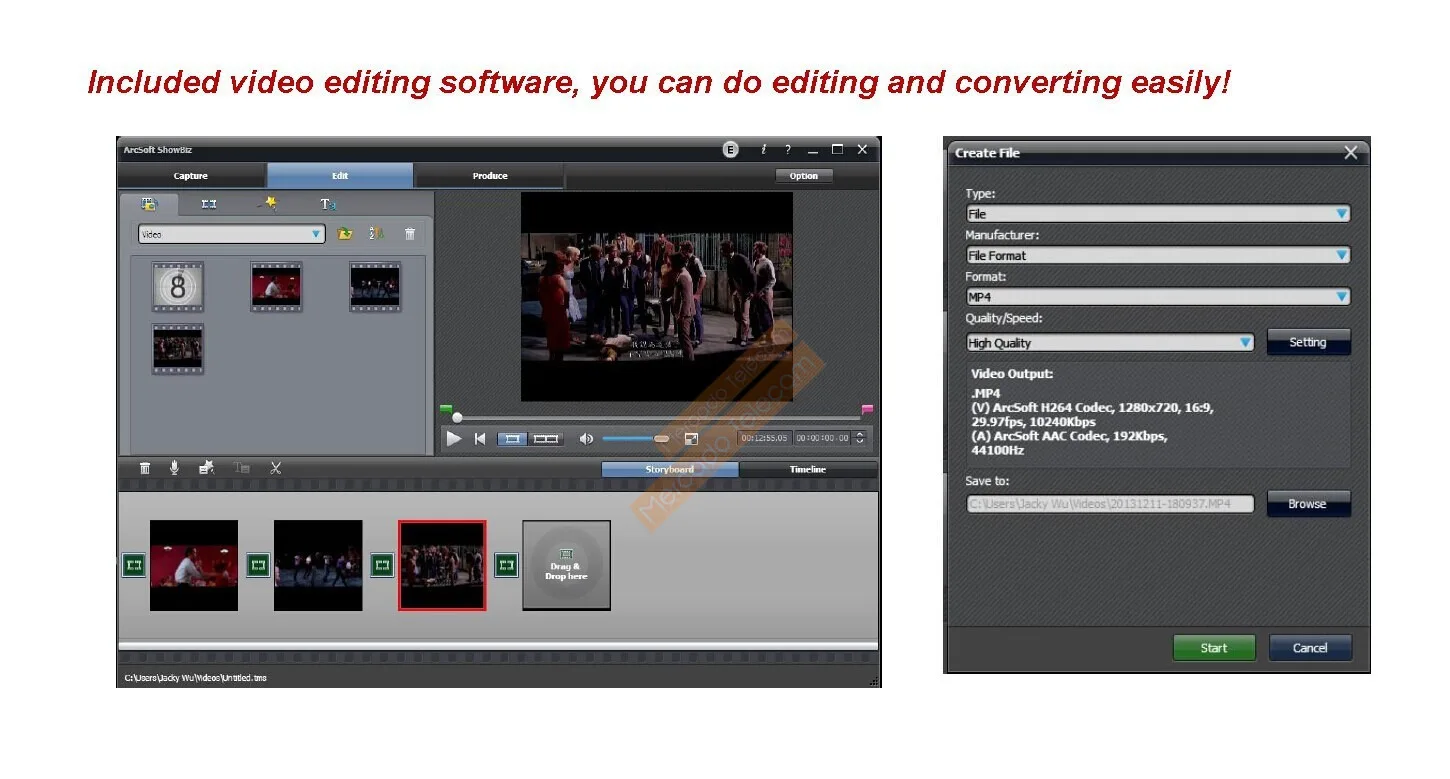

Included video editing software, you can do editing and converting easily!

Included video editing software, you can do editing and converting easily!

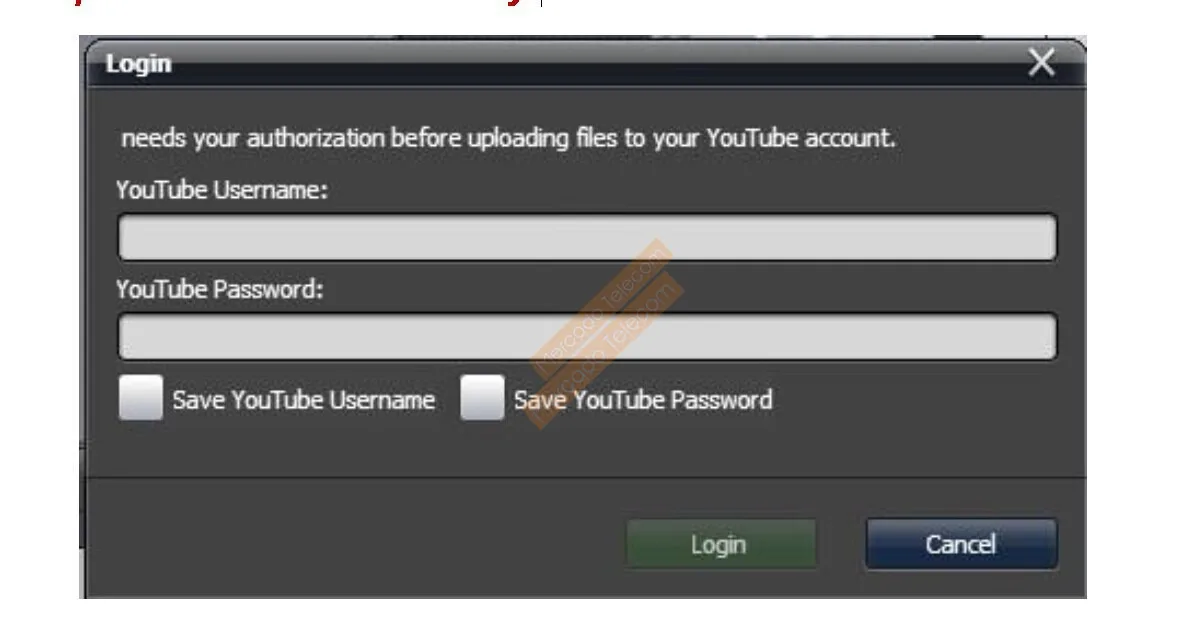

Upload to YouTube directly!

280 HD capture FAQ:

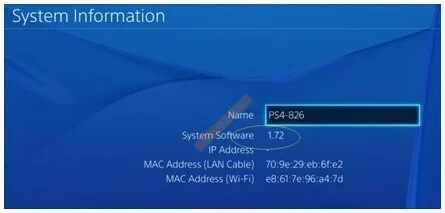

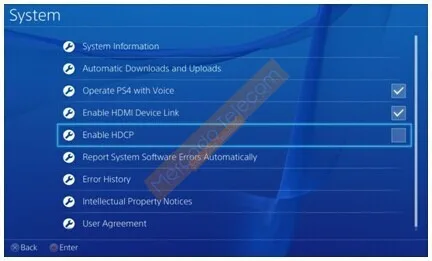

1, Working with PS4:
PS4 has disabled HDCP for firmware 1.7 or later,so use can easily record game play with ezcap hd video CAPTURE.

Update firmware to 1.7 or later:





2, Working with PS3 through Component connection:

Because the HDMI out of PS3 has HDCP protection, so there is no way to connect it directly to ezcap280 with HDMI cable, so the first suggestion is to use component cable connection:

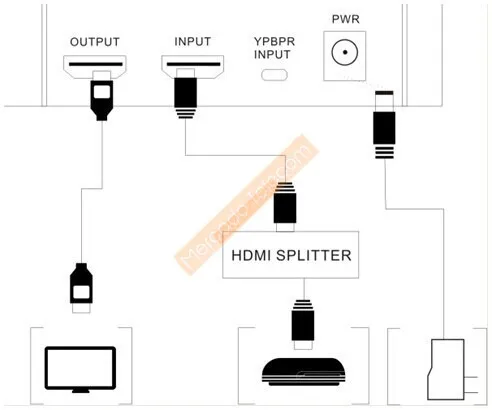

SomeHDMI Splitter, hdmi to AV/HDMI, HDMI/AV TO HDMI, hdmi to hdmi +AUDIO,

scart/HDMI to HDMI, etc, this device can cancel HDCP protection.

4, Updating program for automatical stopping recording-oct, 2014:

If your device stop recording automatically when YOU'RE recording video,please update your program of your device following guide.

Download the program at first: --Please ask the seller for the latest firmware.

Then move into your USB disk.

Unconnect power with device, and plug the USB disk into USB port of device, then connect power with device.

The LED should flash afte few seconds,then become green,it means you finish the updating already.

Please check your recording again.
