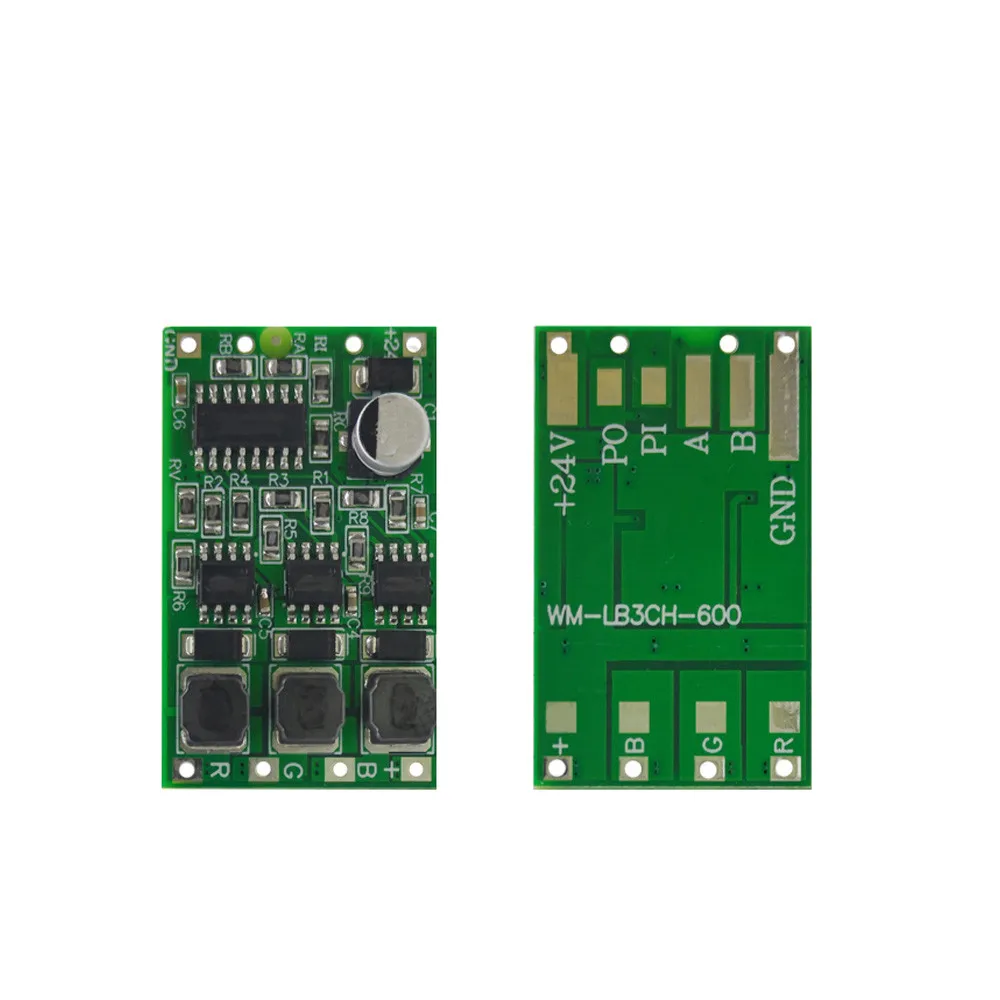

Taidacent 12V 24V 3CH 600mA Constant Current Led Driver RGB LED Strip Dimmer 3 Channel DMX Decoder DMX512 Led Controller

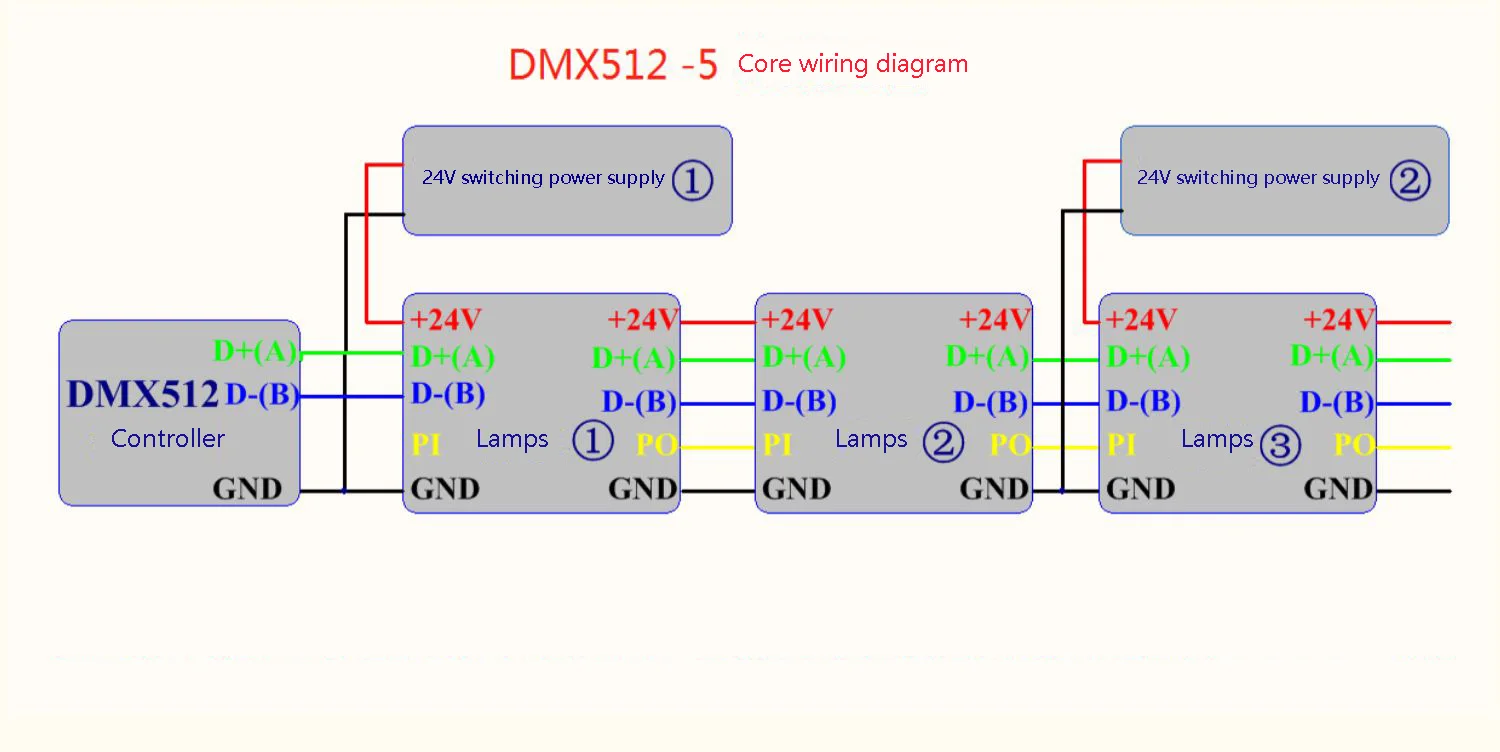

Write code: After the PI PO is connected in series, the address will be automatically written in parallel.
Protocol: using the international standard DMX512 protocol (1990), strong modesty; constant current: high precision (within 3%)
Grayscale: 0-100% dimming, 65536*65536*65536 grayscale;
Parameters
Output Power 14.4W
Output Type Triple
Input Voltage 12V to 24V
Output Frequency 500hz
Output Current 600 mA

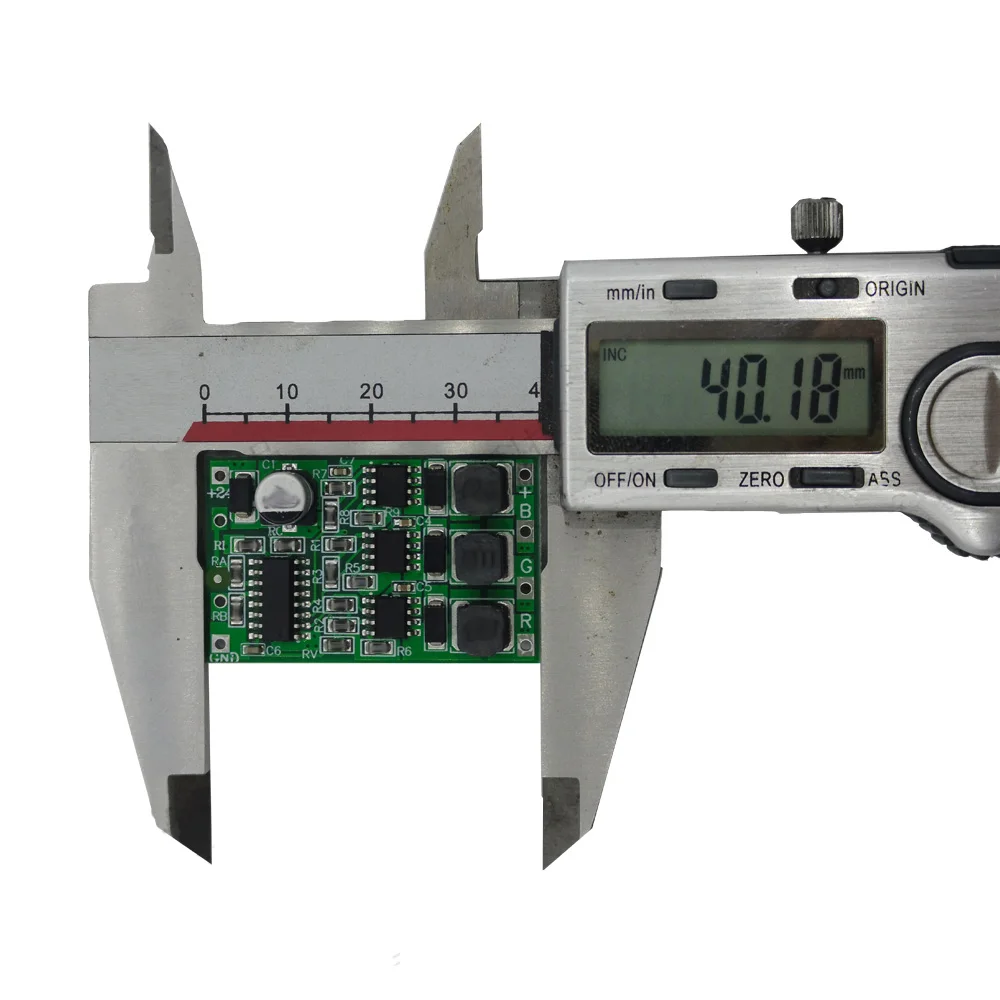

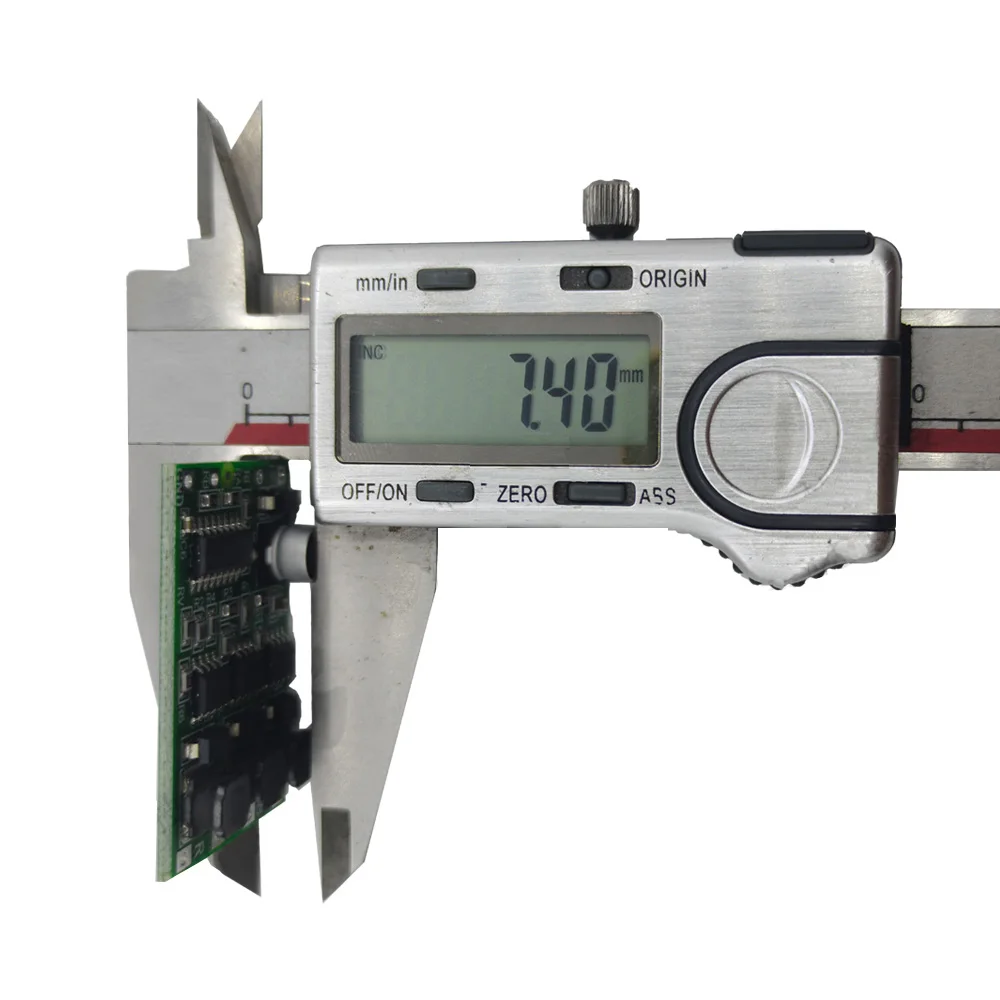

Size L40.5*W25.5*H7.5mm
Input voltage 12V to 24V DC
Grayscale 65536
Output current 600mA
Output channel 3 channels
Input reverse polarity protection Yes
Output short circuit protection Yes
Over temperature protection Yes
Working temperature -30C to 85C
Storage temperature -10C to 65C
Driver description
1) Compatible and extended DMX512 (1990) signal protocol

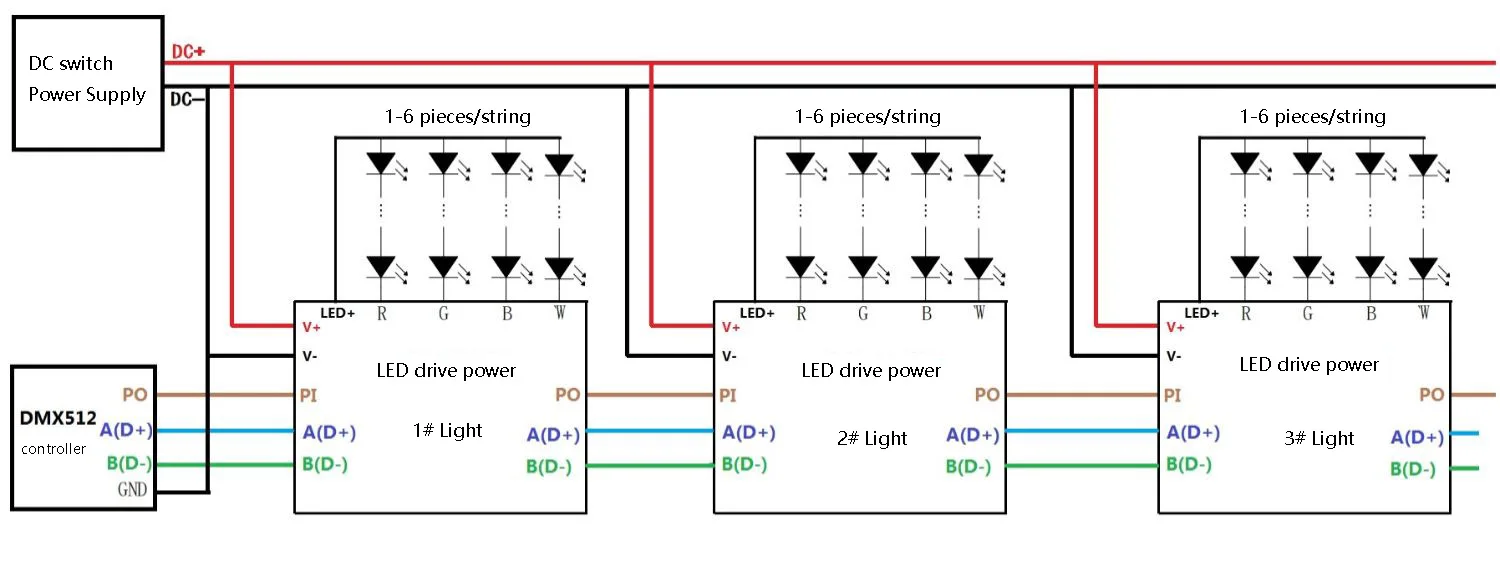

2) Control mode: differential parallel connection, maximum support 4096 channel addressing
3) High-speed DMX512 supplementary algorithm patent, fully adaptive decoding of DMX512 signals with transmission rate of 200Kbps ~ 1000Kbps
4) The built-in 485 module has the advantages of high differential signal resolution and high differential input impedance, which can greatly enhance the load capacity
5) AB line write code online, can write code automatically at one time, support the method of writing code after installation
6) E2 address code double backup mode, some E2 damage will not affect the address code reading
7) Output port 16-bit grayscale control, using gamma correction 2.2 enhanced, more suitable for human visual perception
8) Picture refresh rate up to 2KHz
9)) The power-on self-checking light will turn on blue. After the code is written successfully, the first address will turn on red, and the rest of the addresses will turn on white, which is used for breakpoint identification.
10) No need to re-power on the new address to take effect
Application
Mainly used in high-power full-color wall washers, flood lights, buried lights, underwater lights, stage lights, tunnel lights, etc.
