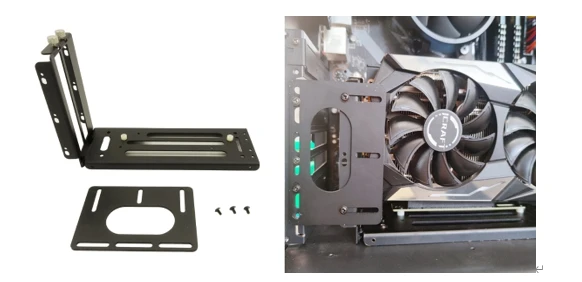

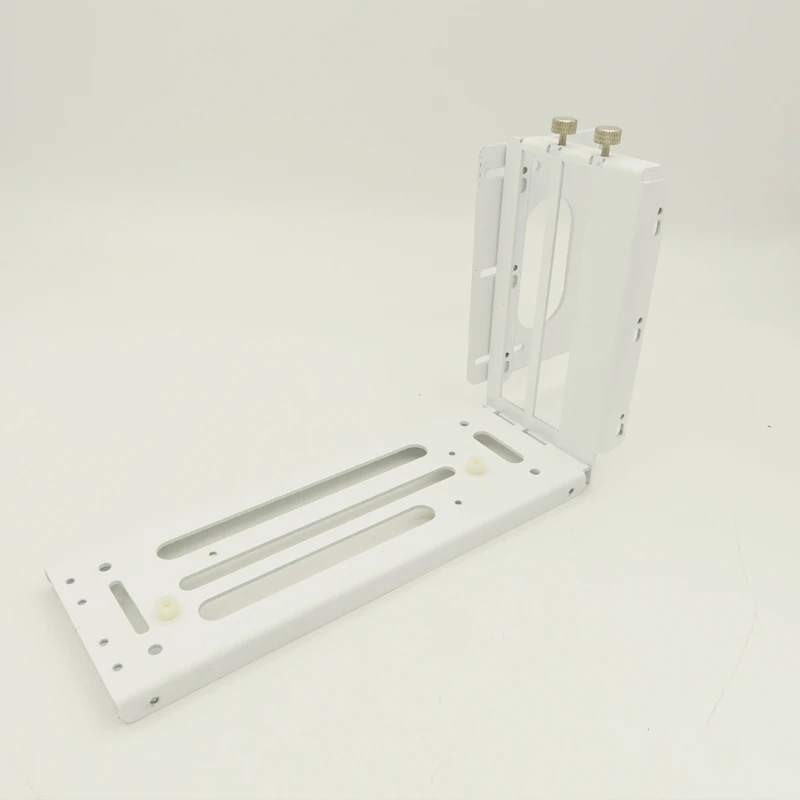

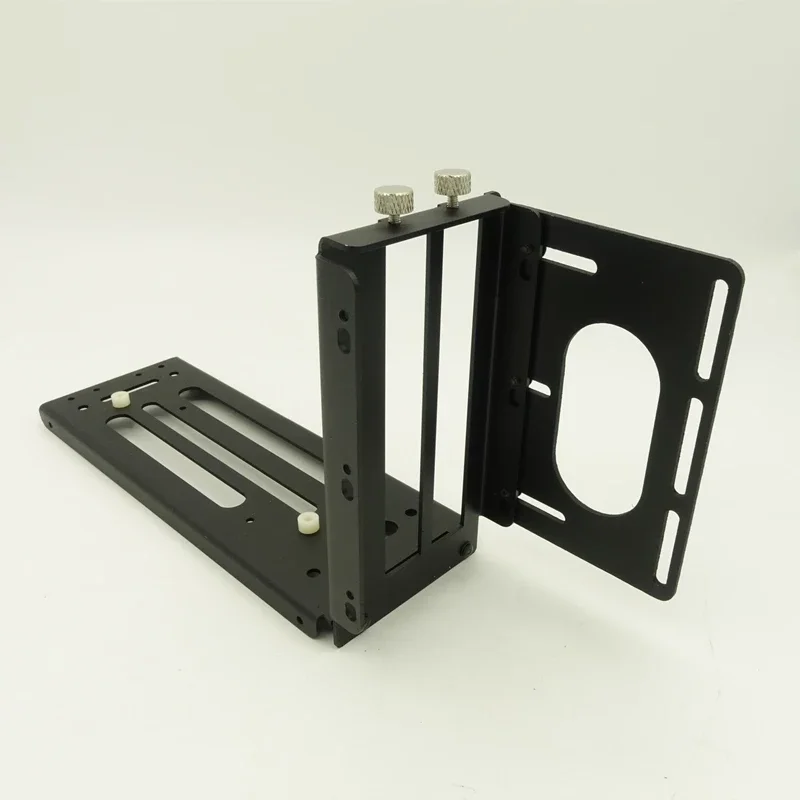

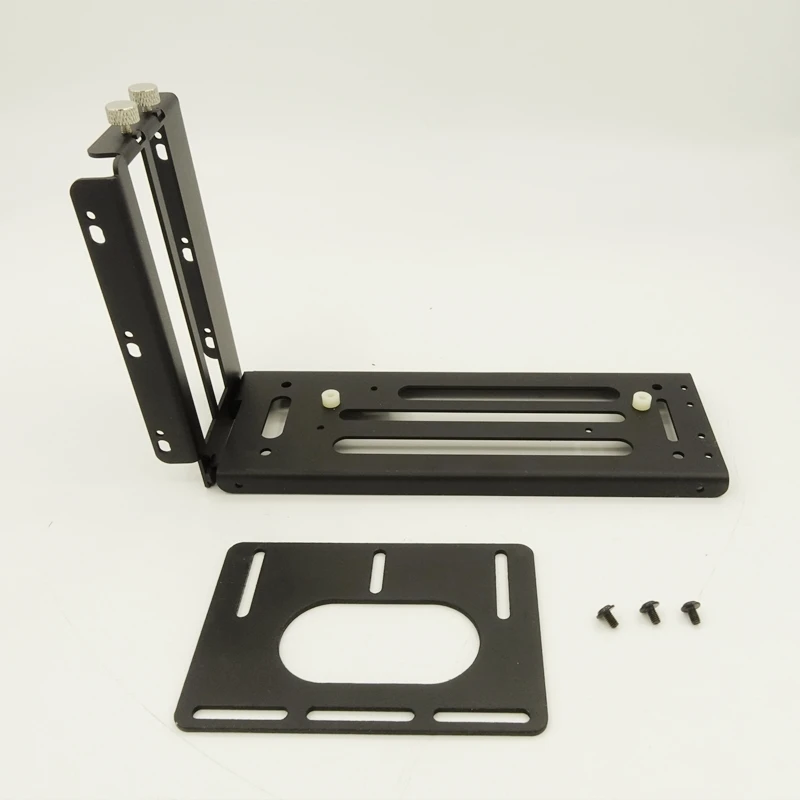

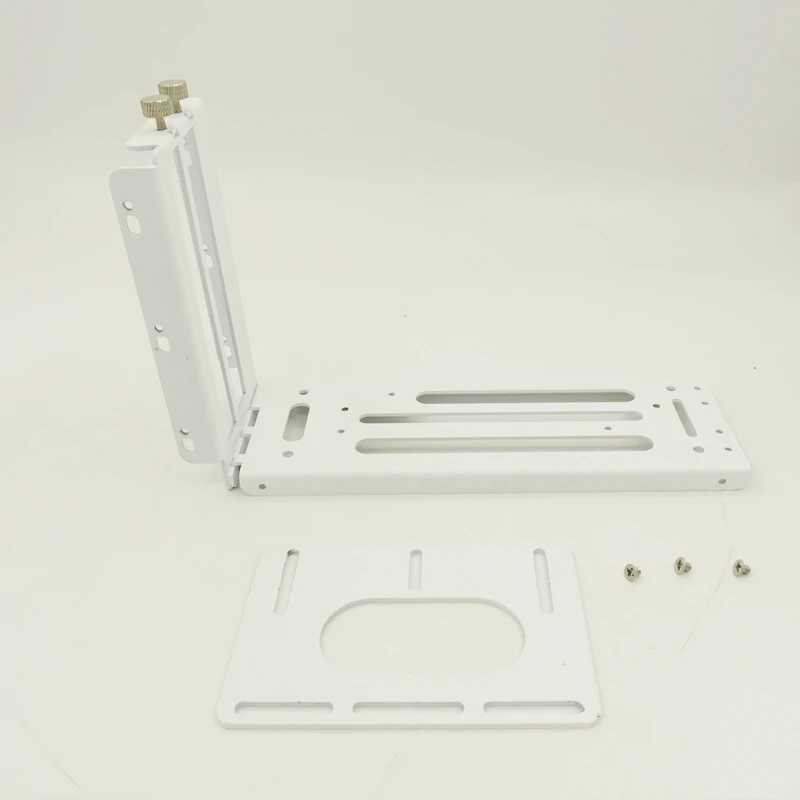

Bracket Instructions

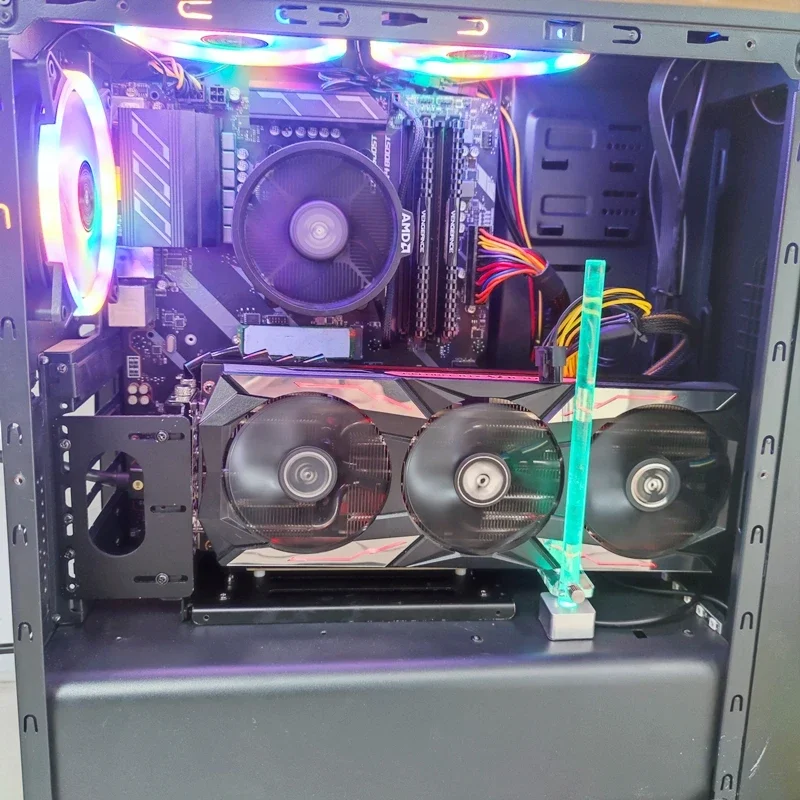

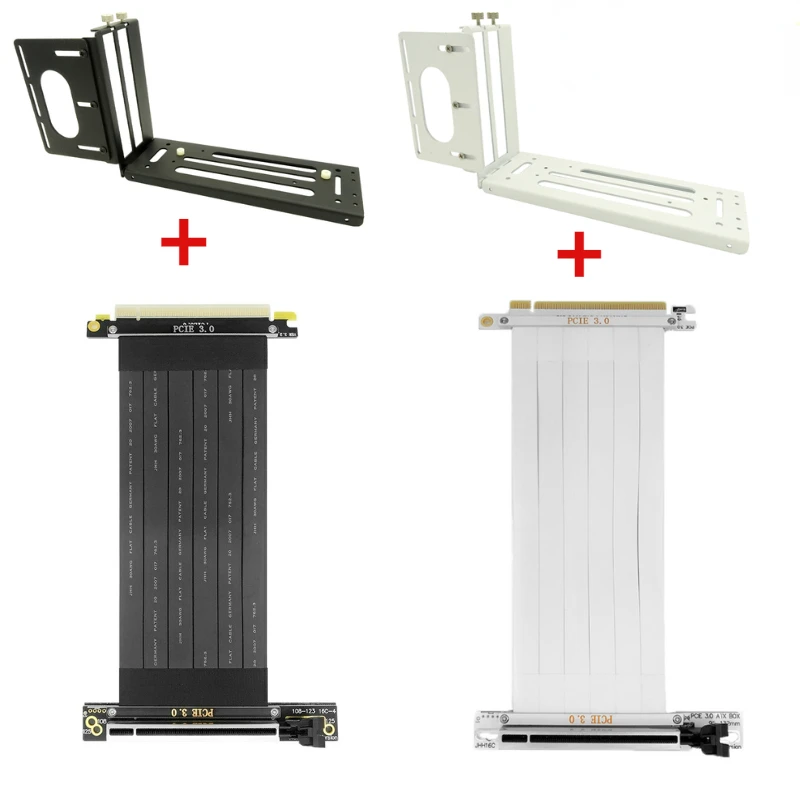

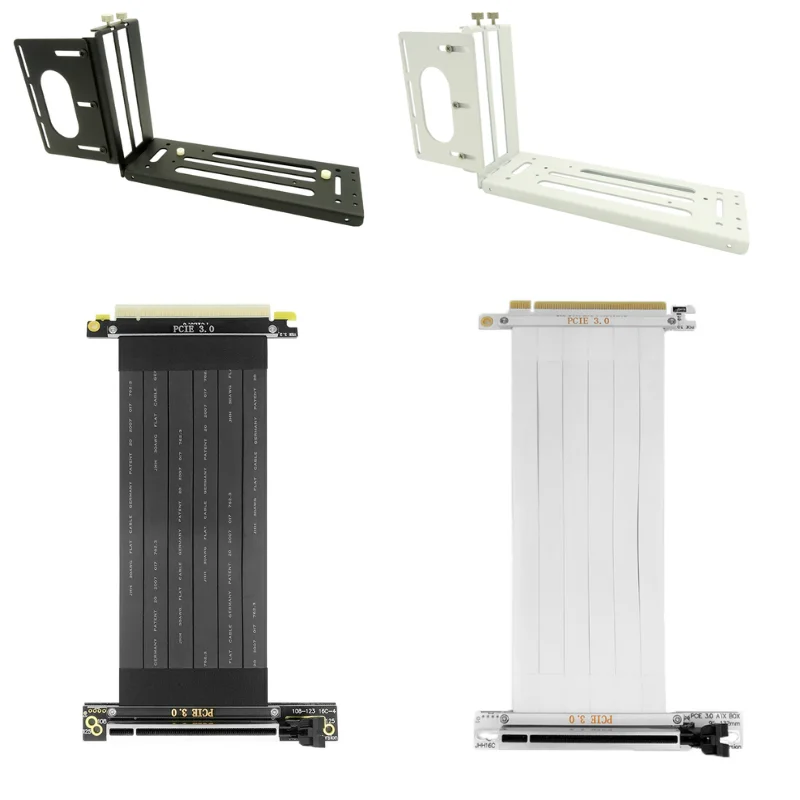

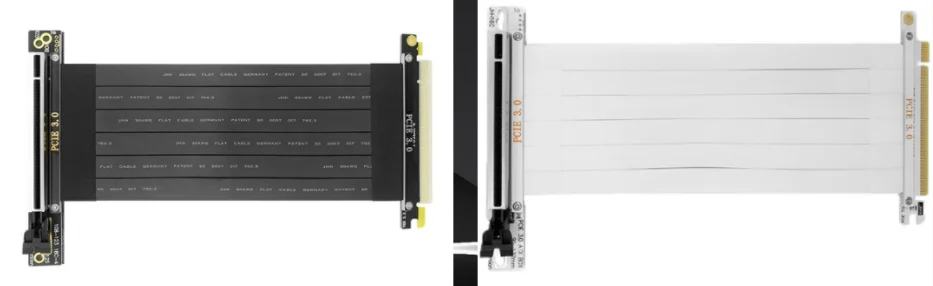

Application: The mid-tower chassis modified graphics card is erected to fix the graphics card, it needs to be used with the graphics card extension cable, and the graphics card is external
Scope: Chassis that supports more than 6 side bezels, or the chassis space is enough for the graphics card to be placed upright

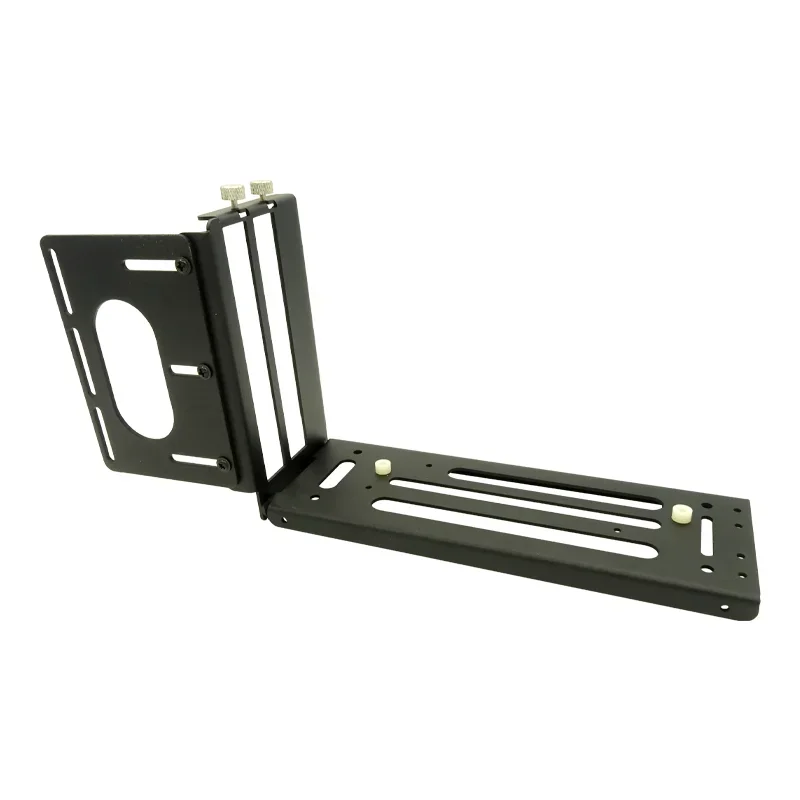

Features: With magnetic suction, it can be attached to the chassis, the side baffles can be adjusted left and right, enough space for HDMI, DP, VGA cable installation, support chassis with fully removable graphics card baffles
installation steps

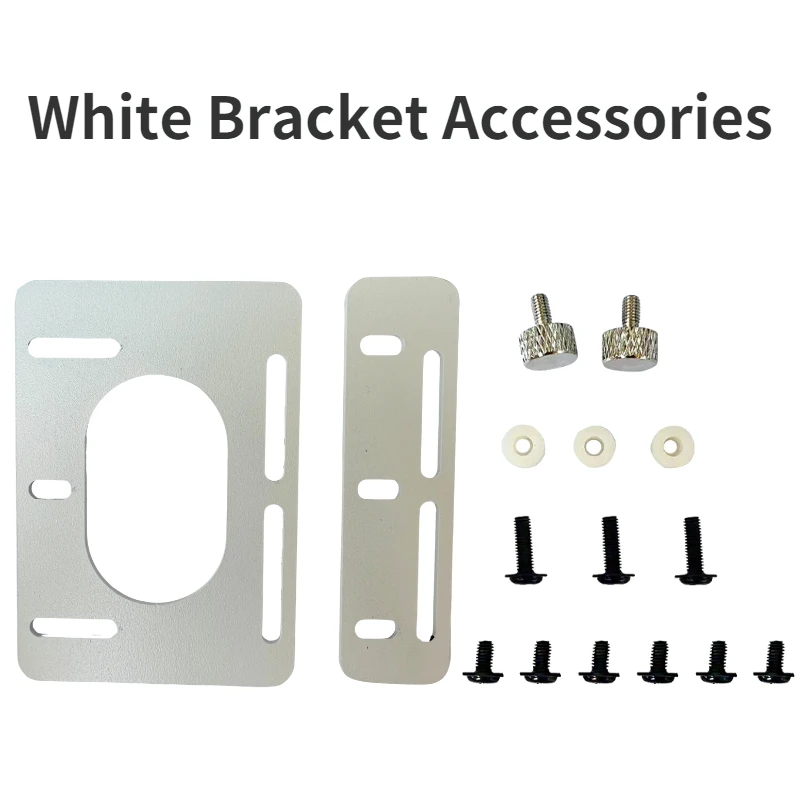

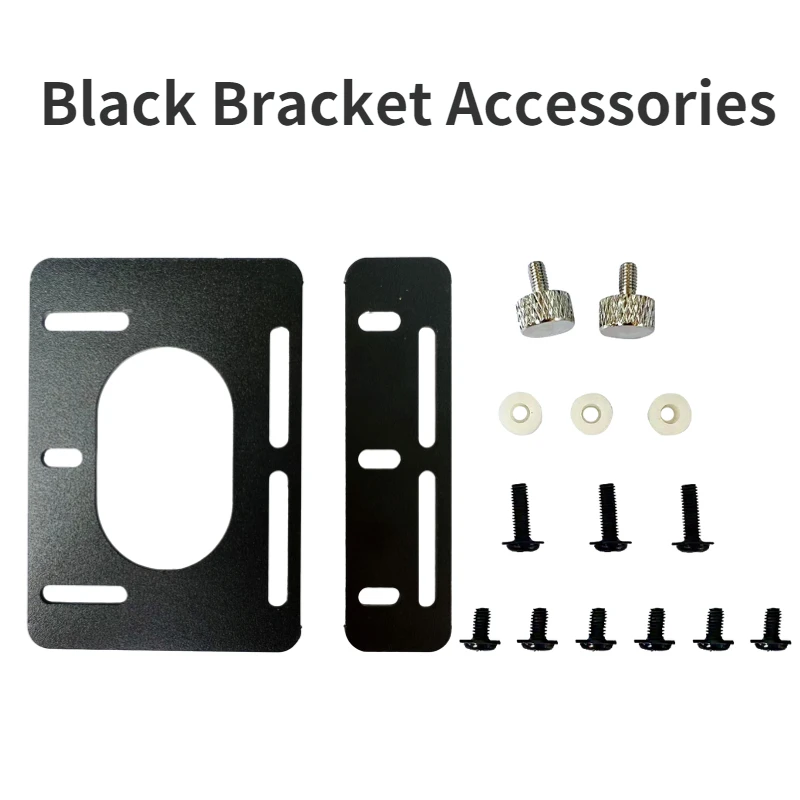

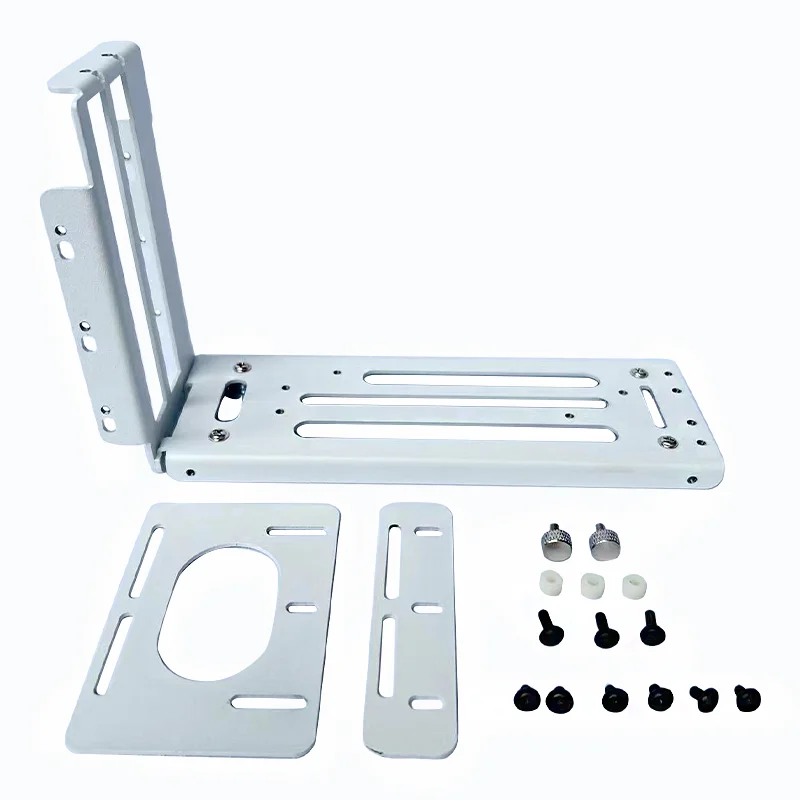

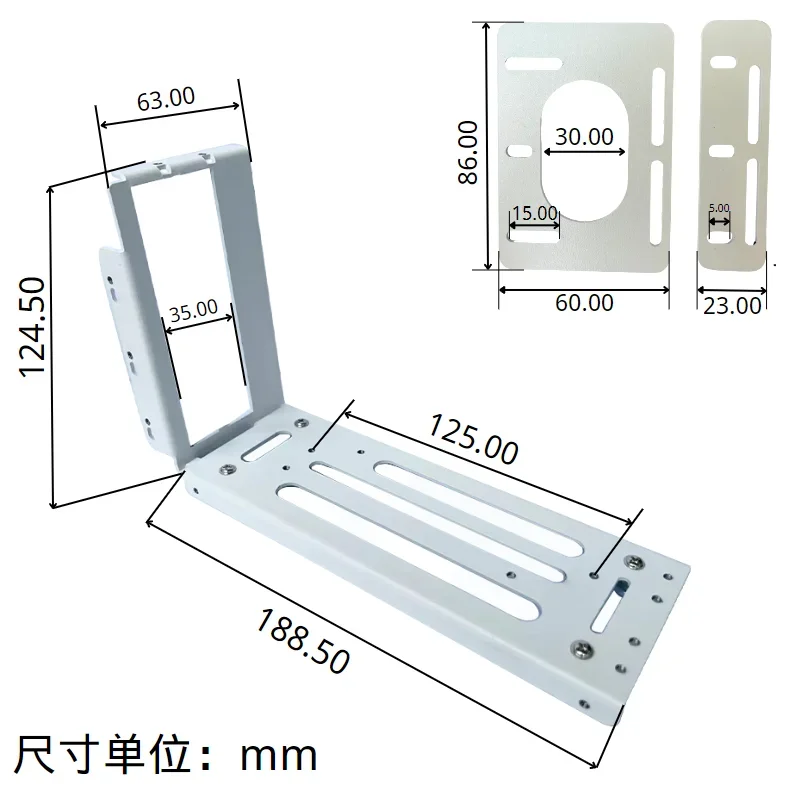

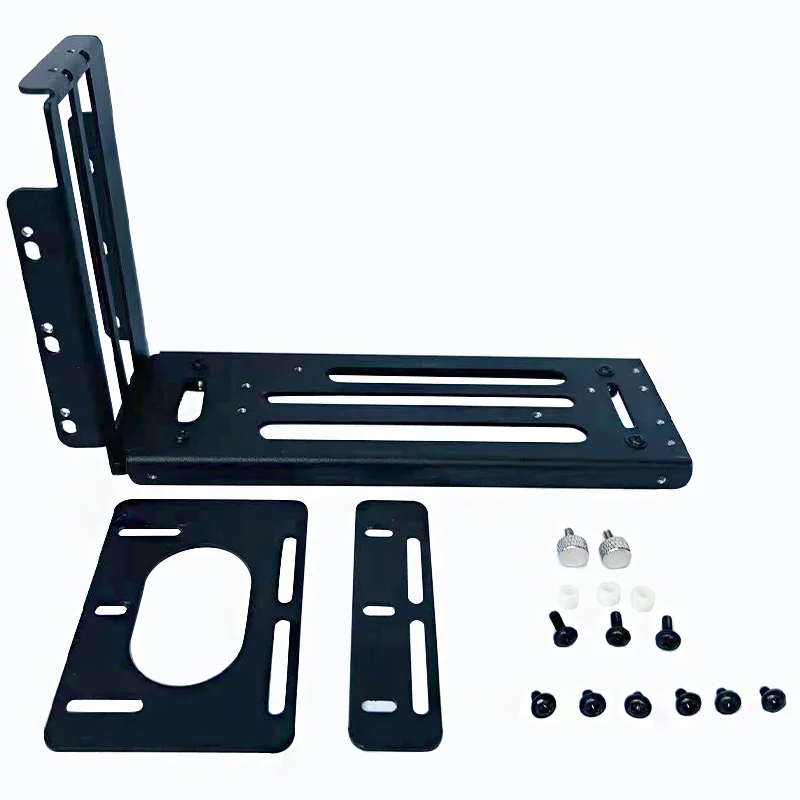

1. Place the two white washers of the accessory package on the 12.5CM holes of the base respectively

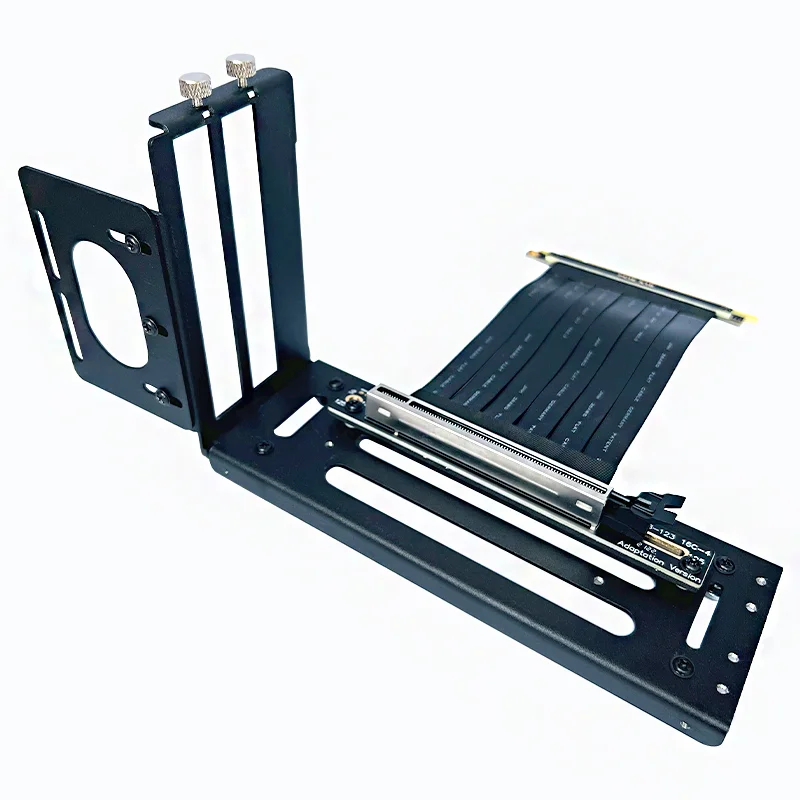

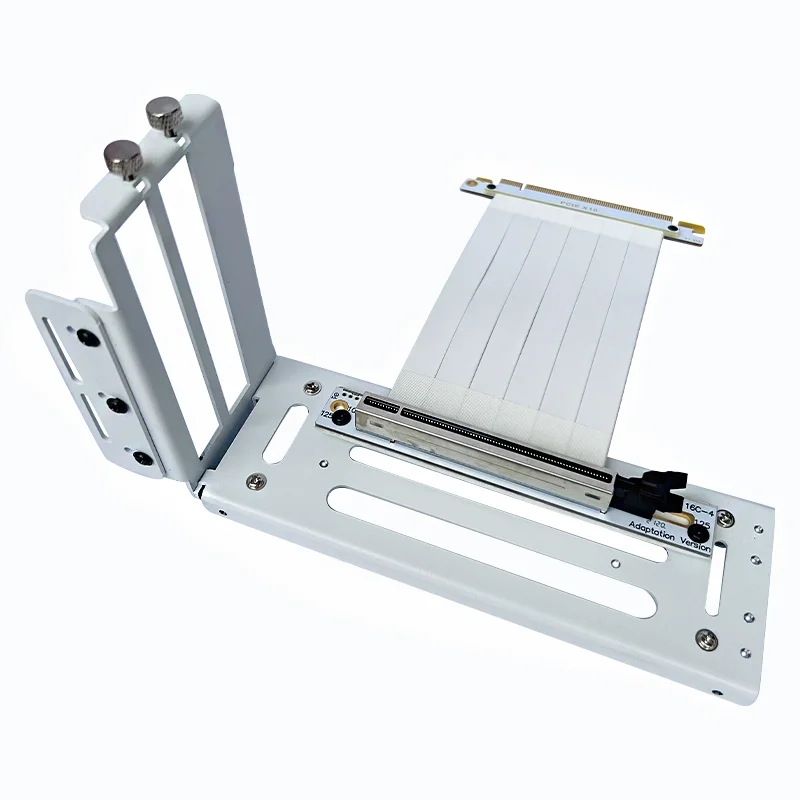

2. Place the right-angle graphics card extension cable on the white spacer and lock it on the base with screws

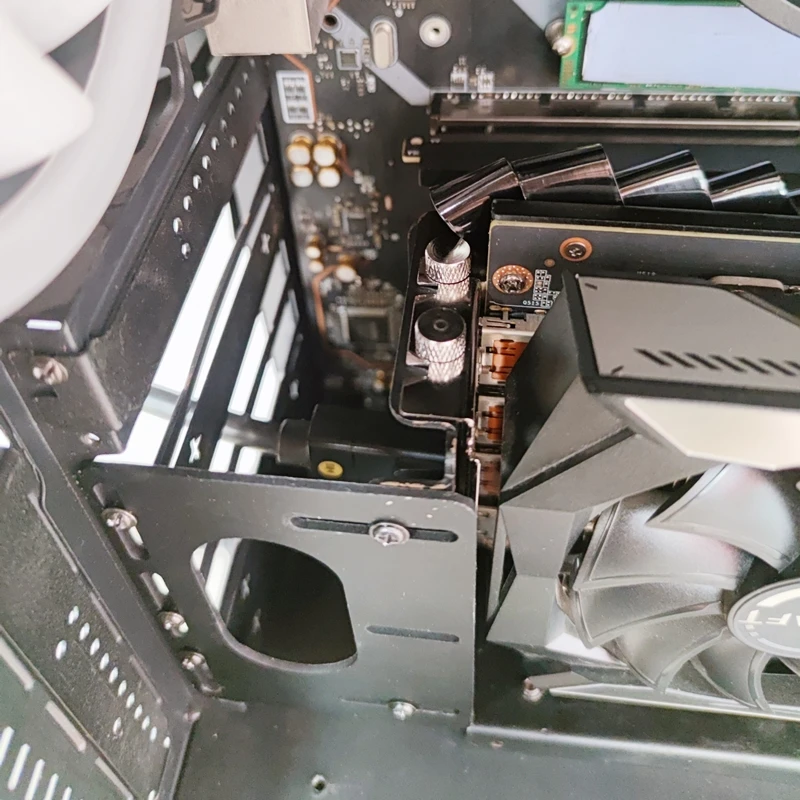

3. Lock the side cover, place it in the chassis, and fix the bracket side cover to the side cover of the chassis

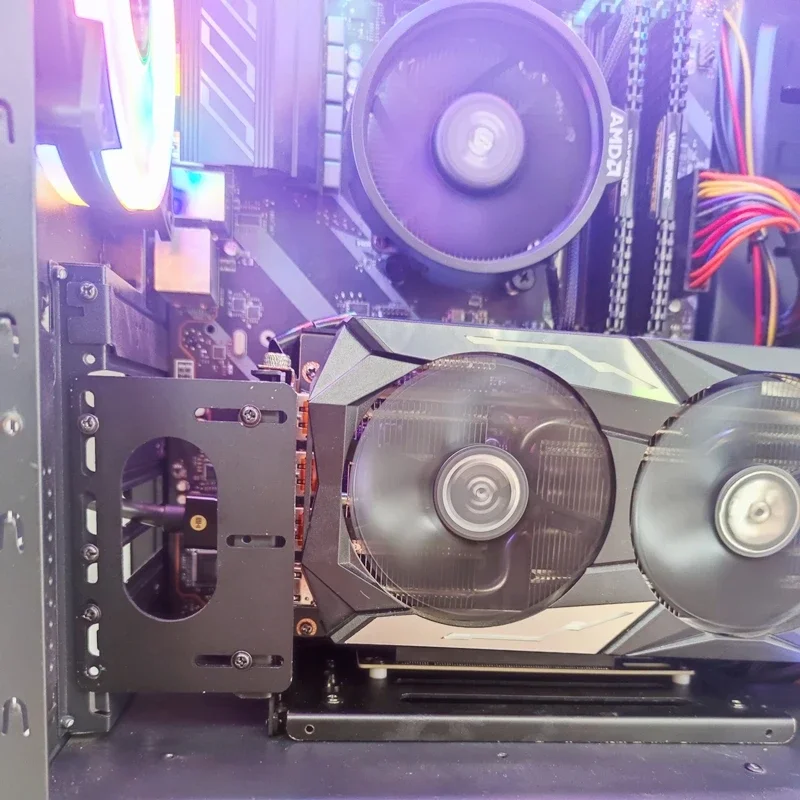

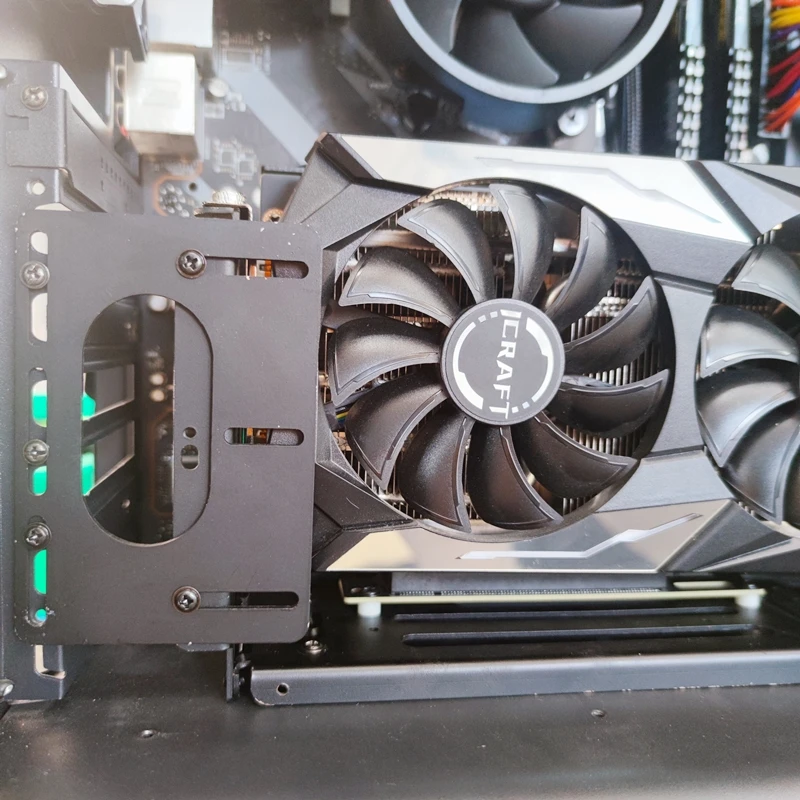

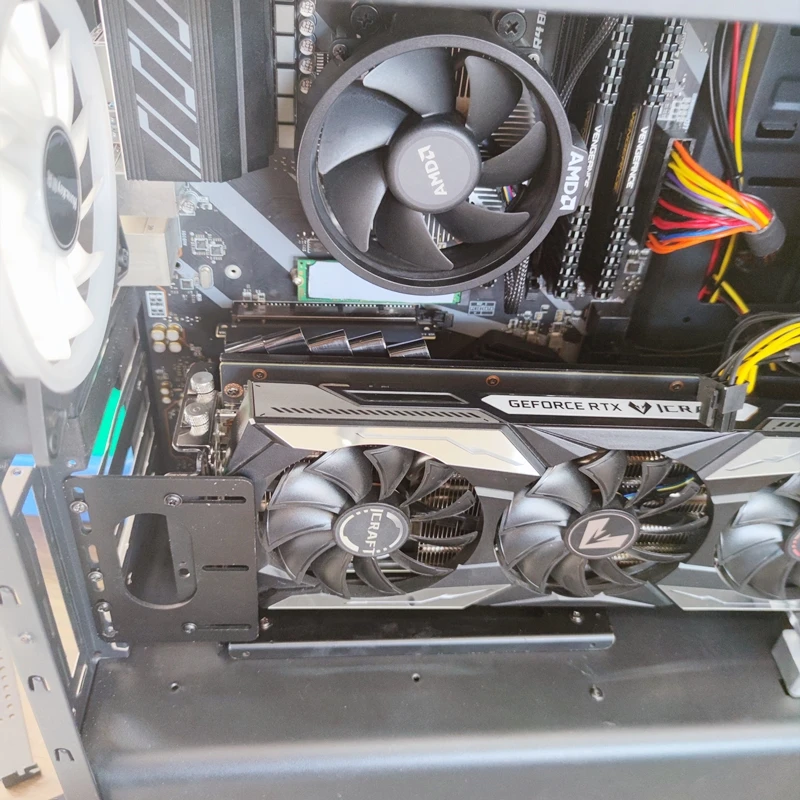

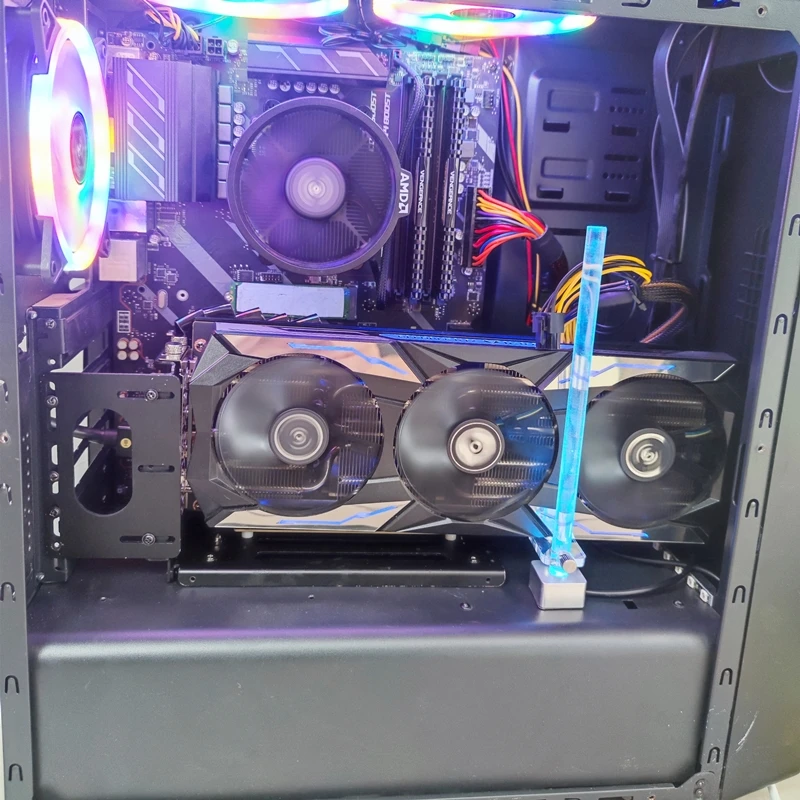

4. Plug in the graphics card, plug in the video cable, and adjust the position
