ADT F43SG F43SG-TR F43SG-TU-BK7 PCIe 5.0 M.2 NVMe to x16 eGPU Adapter Gen5 M Key Laptop Notebook External Graphics Card GPU Dock

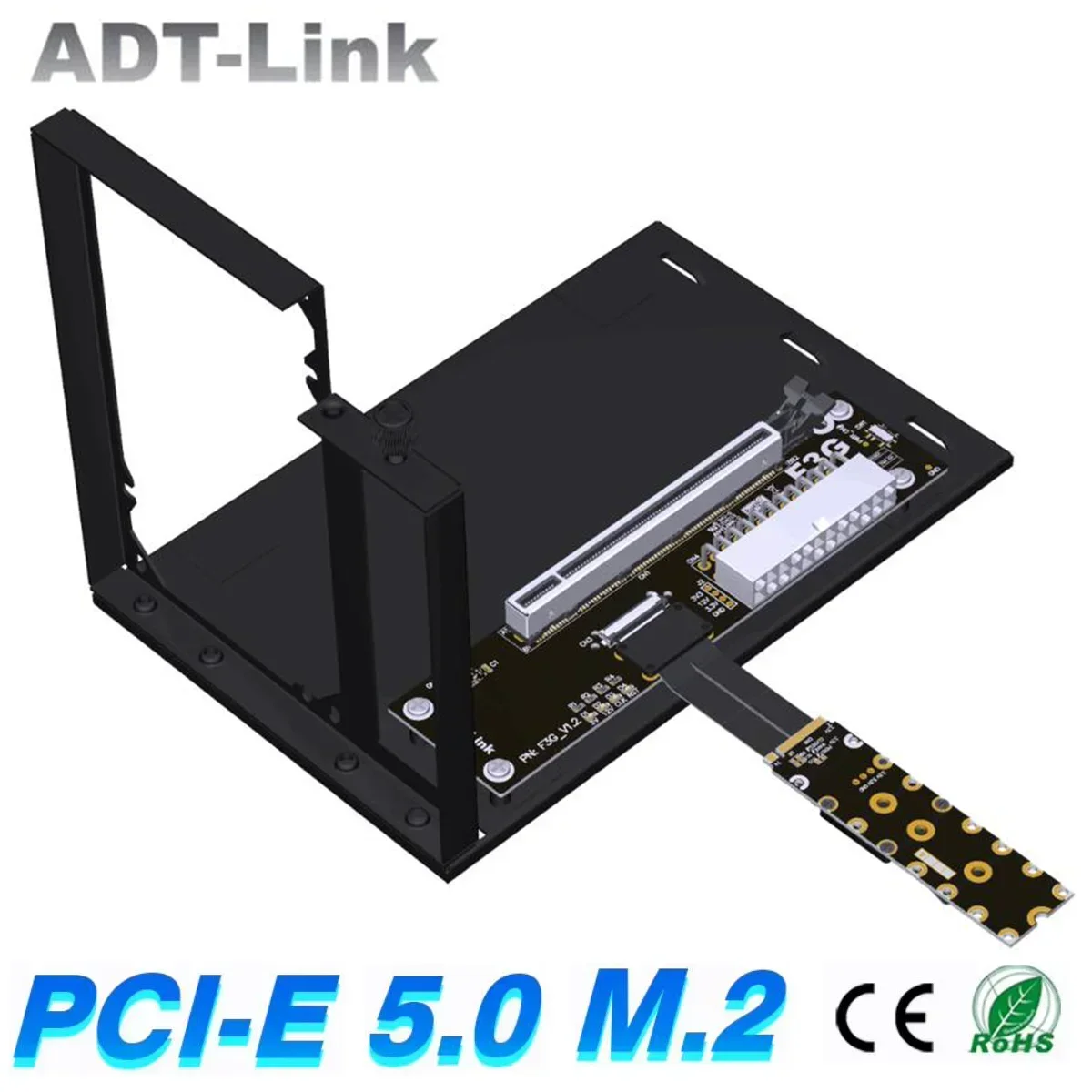

ADT-Link PCIe 5.0 x16 to M.2 NVMe M Key eGPU Adapter
Brand name: ADT-LINK
Product name:M.2 NVMe to PCIe x16 eGPU Adapter
Product model: F43SG, F43SG-TR, F43SG-TL, F43SG-TU
Transferspeed:PCIe 5.0 x4, gen5, 128G/bps (Max.)
Wire length: 25cm,50cm
Application: eGPU for NUC / ITX / STX / Notebook PC
Application: eGPU for Intel NUC / ITX / STX / Notebook PC(Only supports M.2 NVMe interface, does not support M.2 SATA / M.2 WiFi / M.2 WWAN / USB interface)
Graphics card compatibility:
Motherboard compatibility:
Power Description:

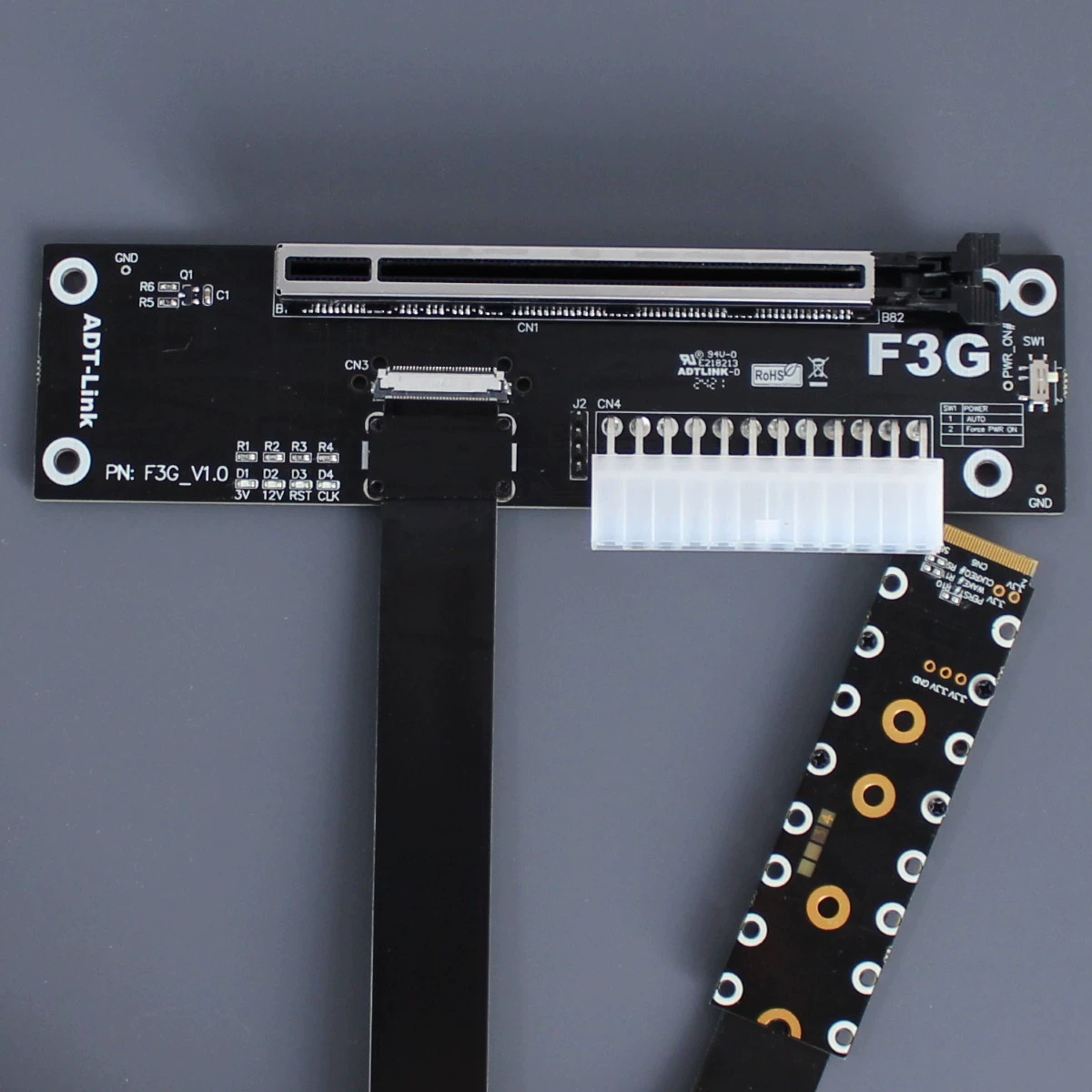

ADT F43SG series Part-Number Description:
P/N
Description
Bandwidth
F43SG
M.2 NVMe to PCIe x16, connector turn 90°extension cable
PCIe 5.0 x4 (128G/bps)
F43SG-TU
M.2 NVMe edge daughter board cable turn up to PCIe x16 connector
PCIe 5.0 x4 (128G/bps)
F43SG-TL
M.2 NVMe to PCIe x16, cable turn left, connector turn 90°extension cable
PCIe 5.0 x4 (128G/bps)
F43SG-TR
M.2 NVMe to PCIe x16, cable turn right, connector turn 90°extension cable
PCIe 5.0 x4 (128G/bps)
F43SG-BK7
M.2 NVMe to PCIe x16, connector turn 90° extension cable+Bracket
PCIe 5.0 x4 (128G/bps)
F43SG-TU-BK7
M.2 NVMe edge daughter board cable turn up to PCIe x16 connector+Bracket
PCIe 5.0 x4 (128G/bps)
F43SG-TL-BK7
M.2 NVMe to PCIe x16, cable turn left, connector turn 90°extension cable+Bracket
PCIe 5.0 x4 (128G/bps)
F43SG-TR-BK7
M.2 NVMe to PCIe x16, cable turn right, connector turn 90° extension cable+Bracket
PCIe 5.0 x4 (128G/bps)
Cable Length Description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.
应用场景图:

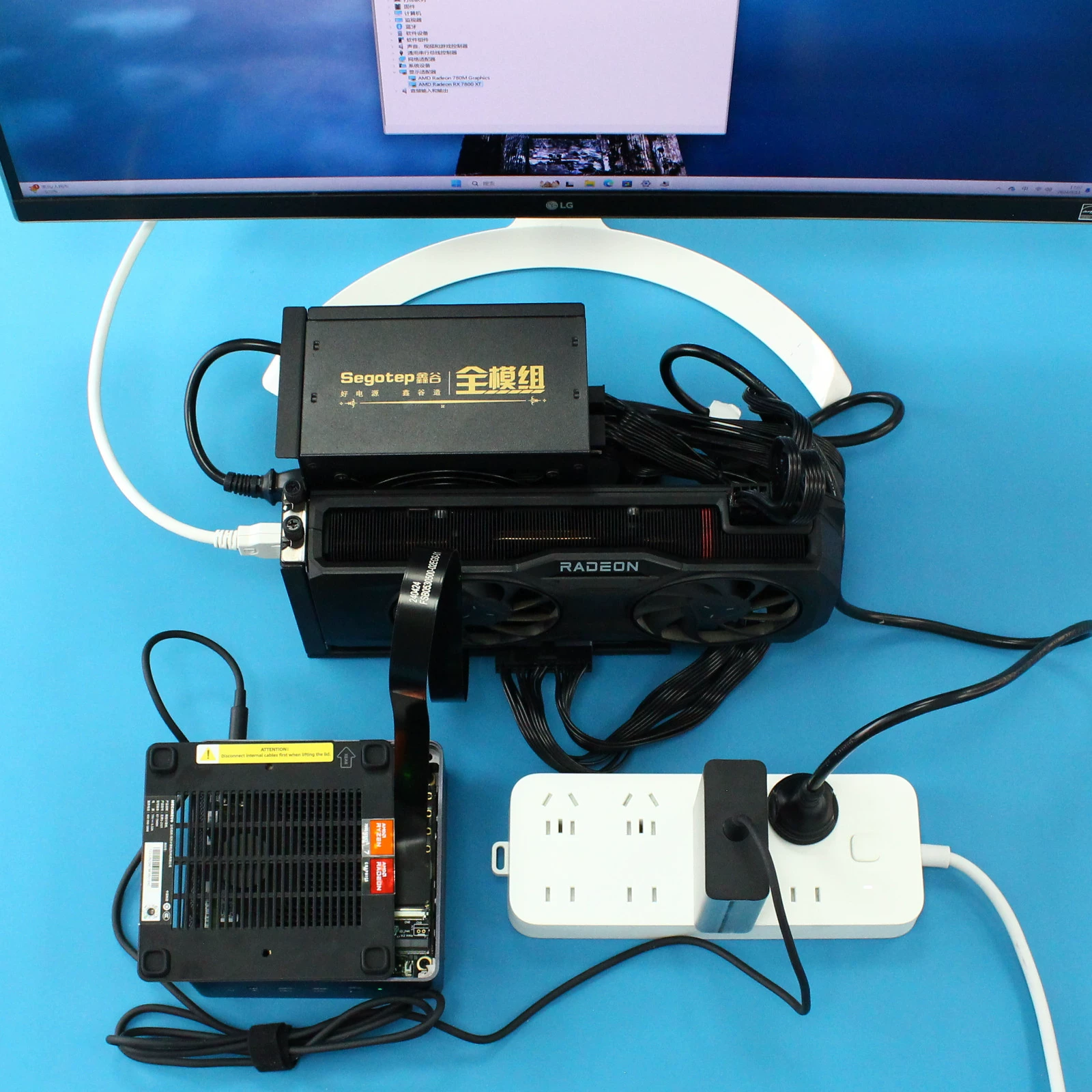

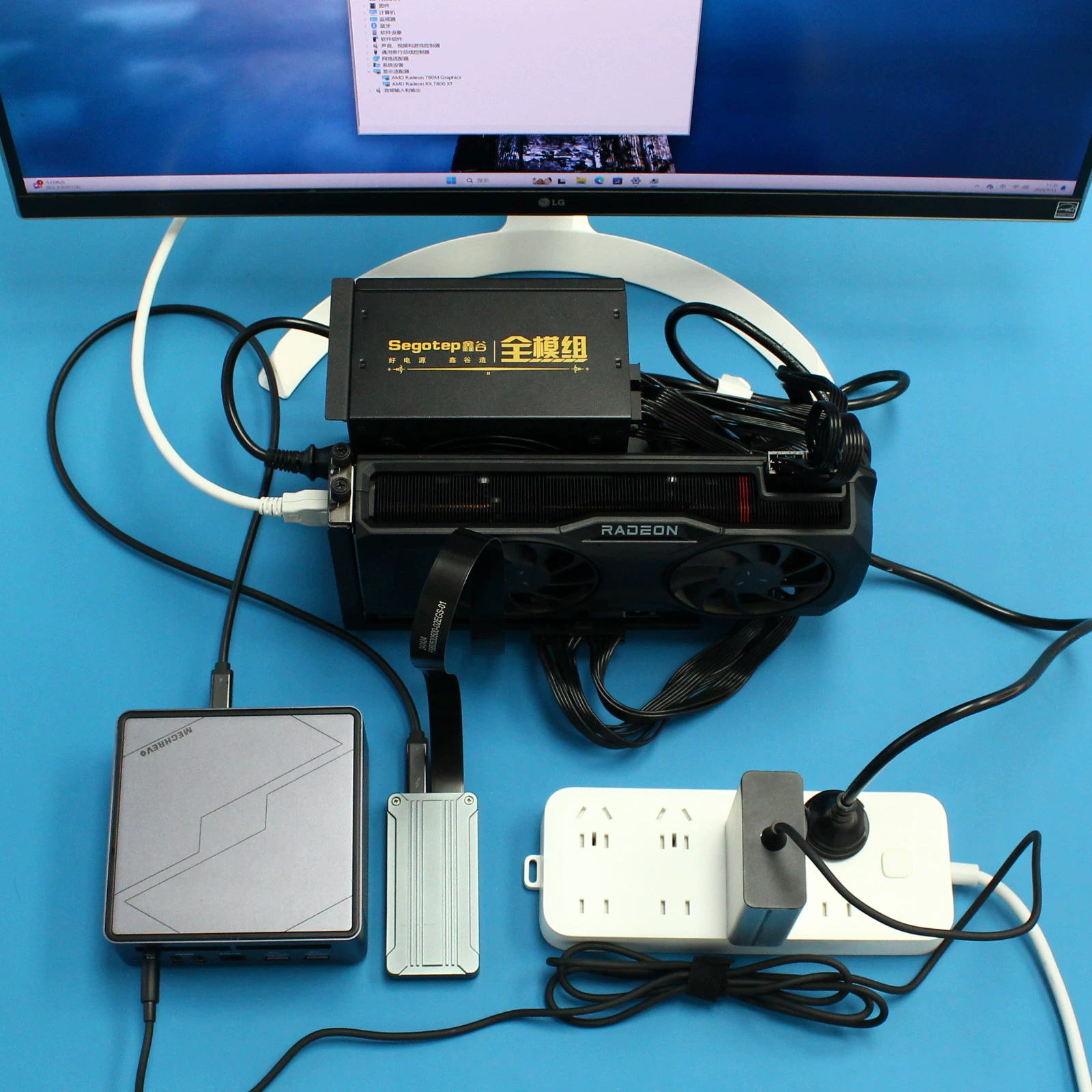

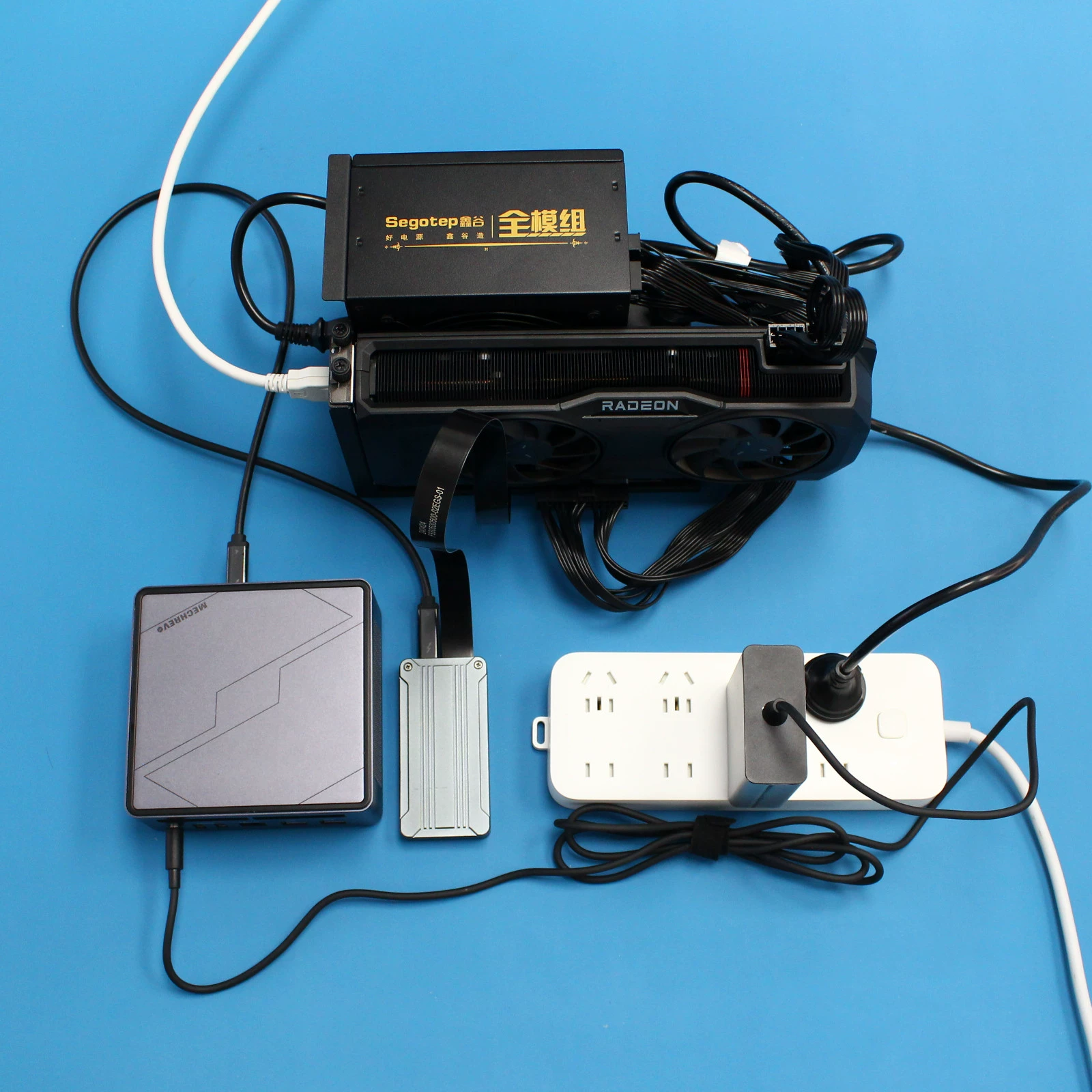

无界S R7-7840H+RX7800XT+F43SG-BK7+鑫谷全模650W电源,展示如下:
无界S R7-7840H+RX7800XT+F43SG-BK7+USB4盒子+鑫谷全模650W电源,展示如下:

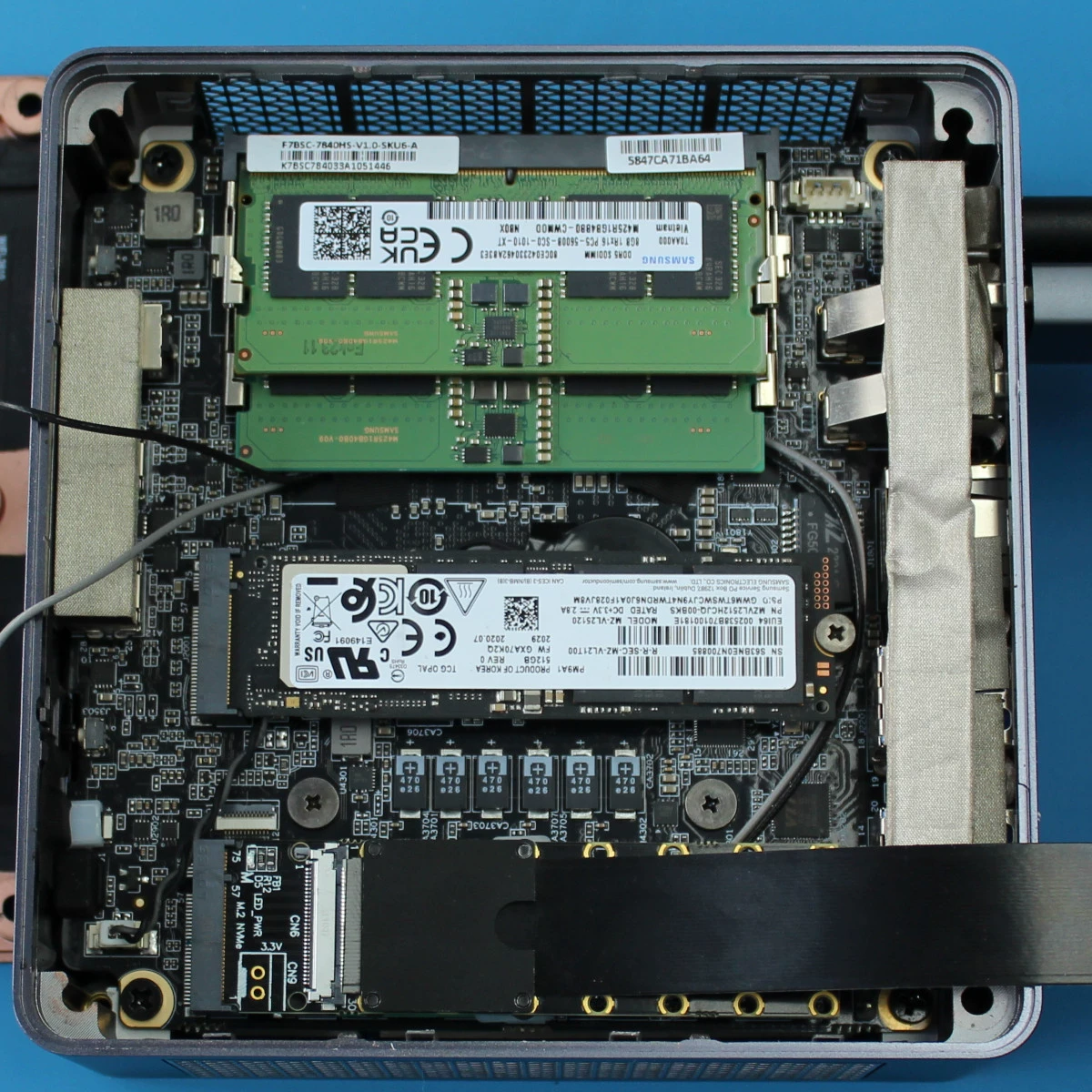

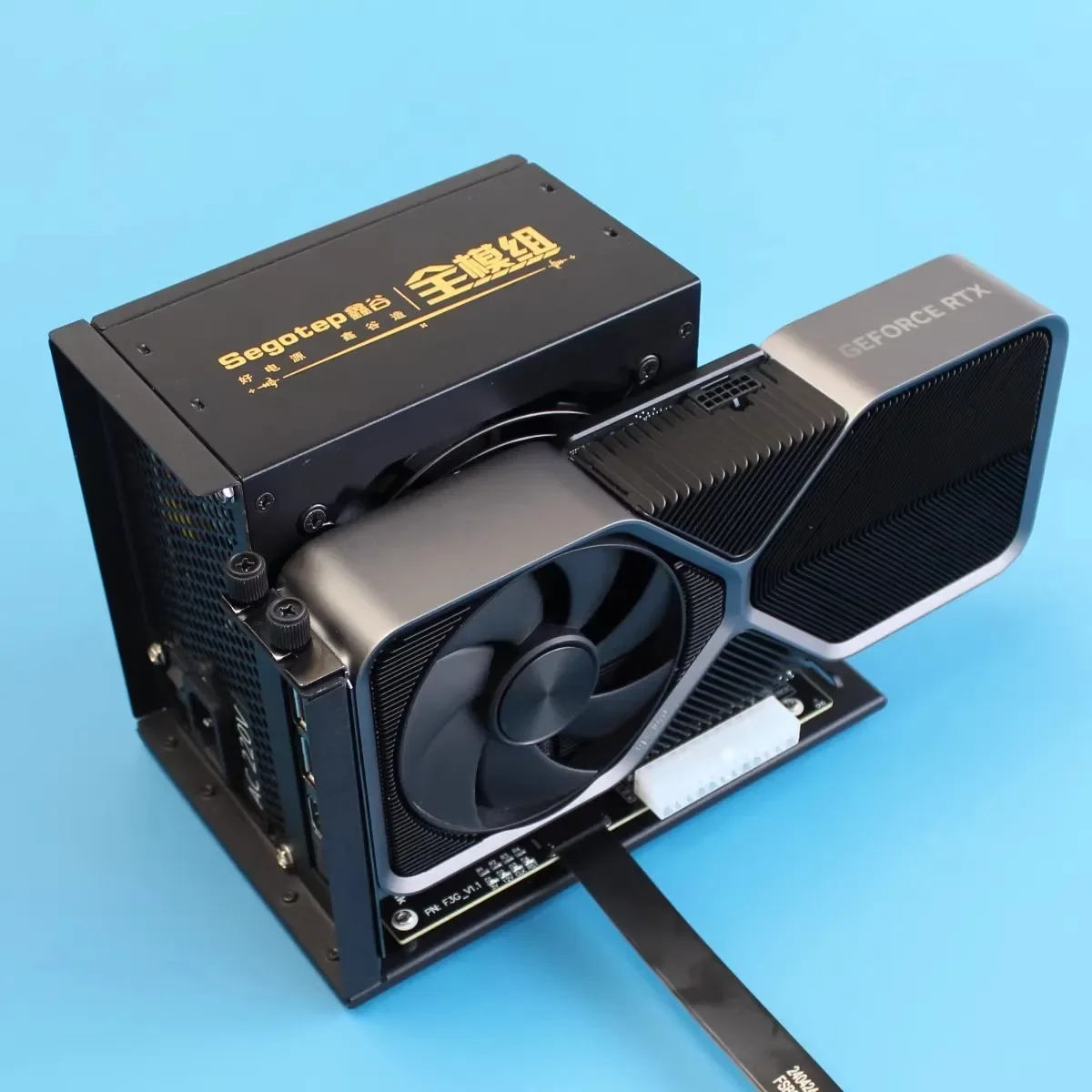

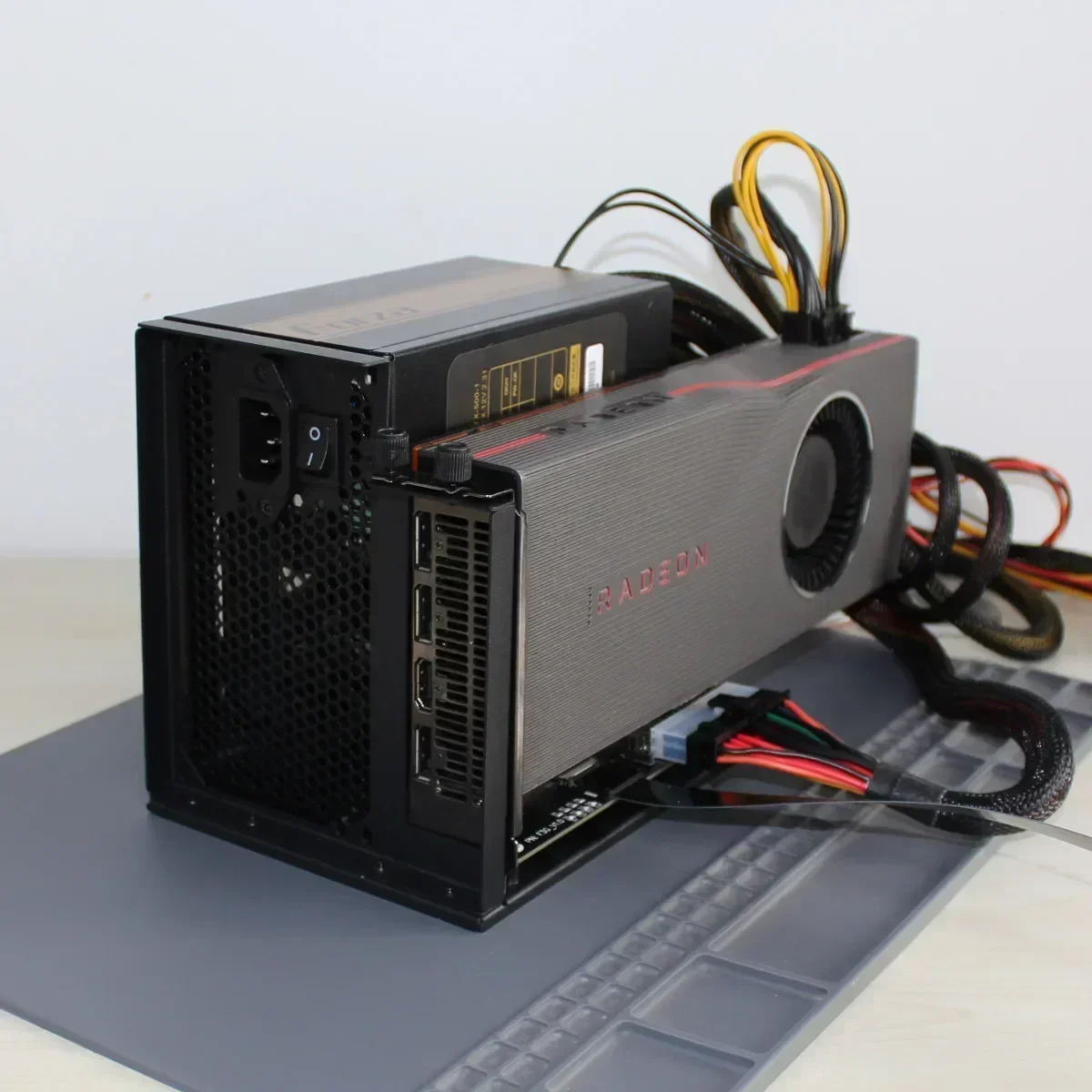

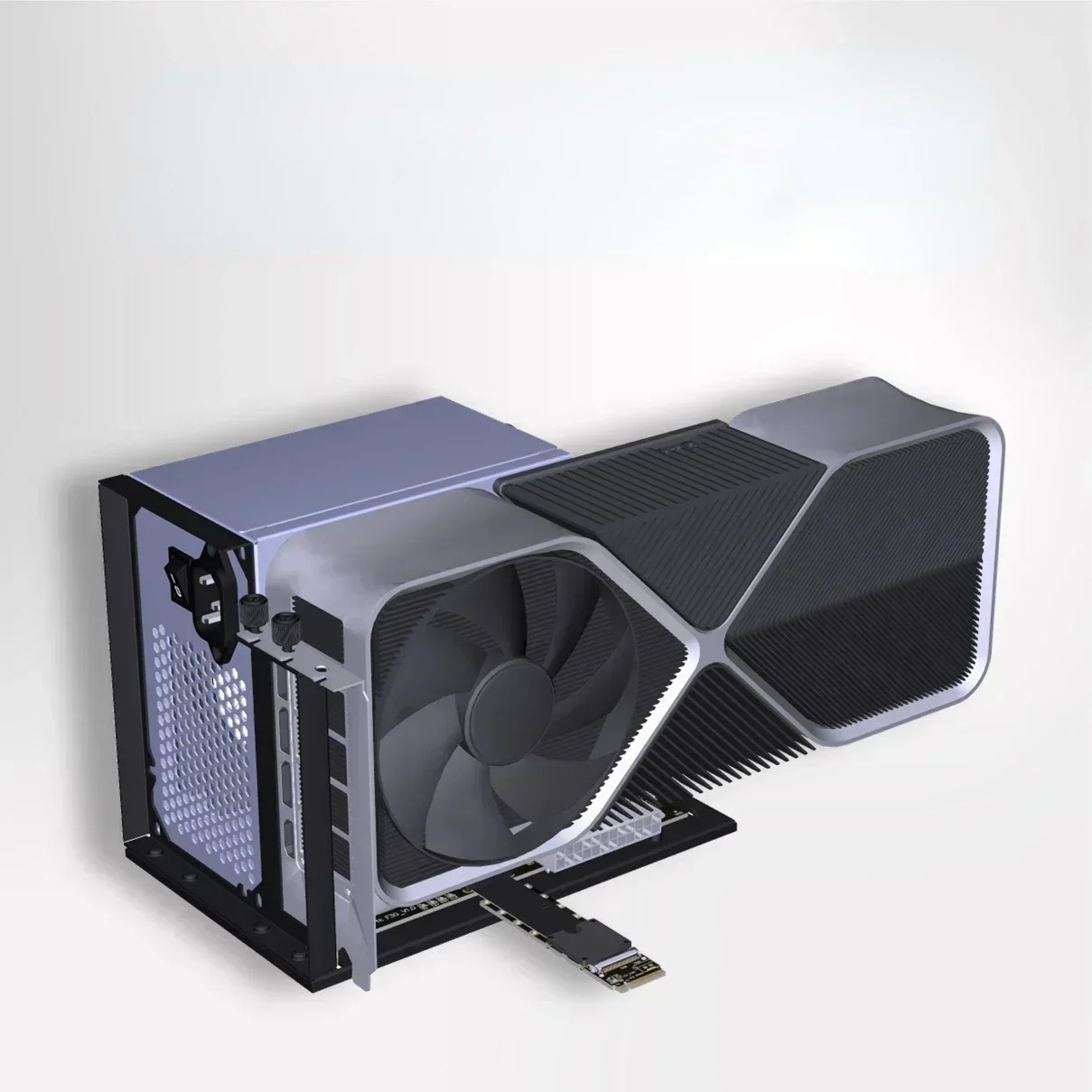

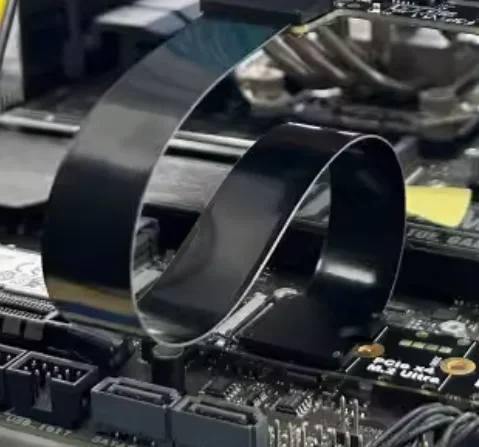

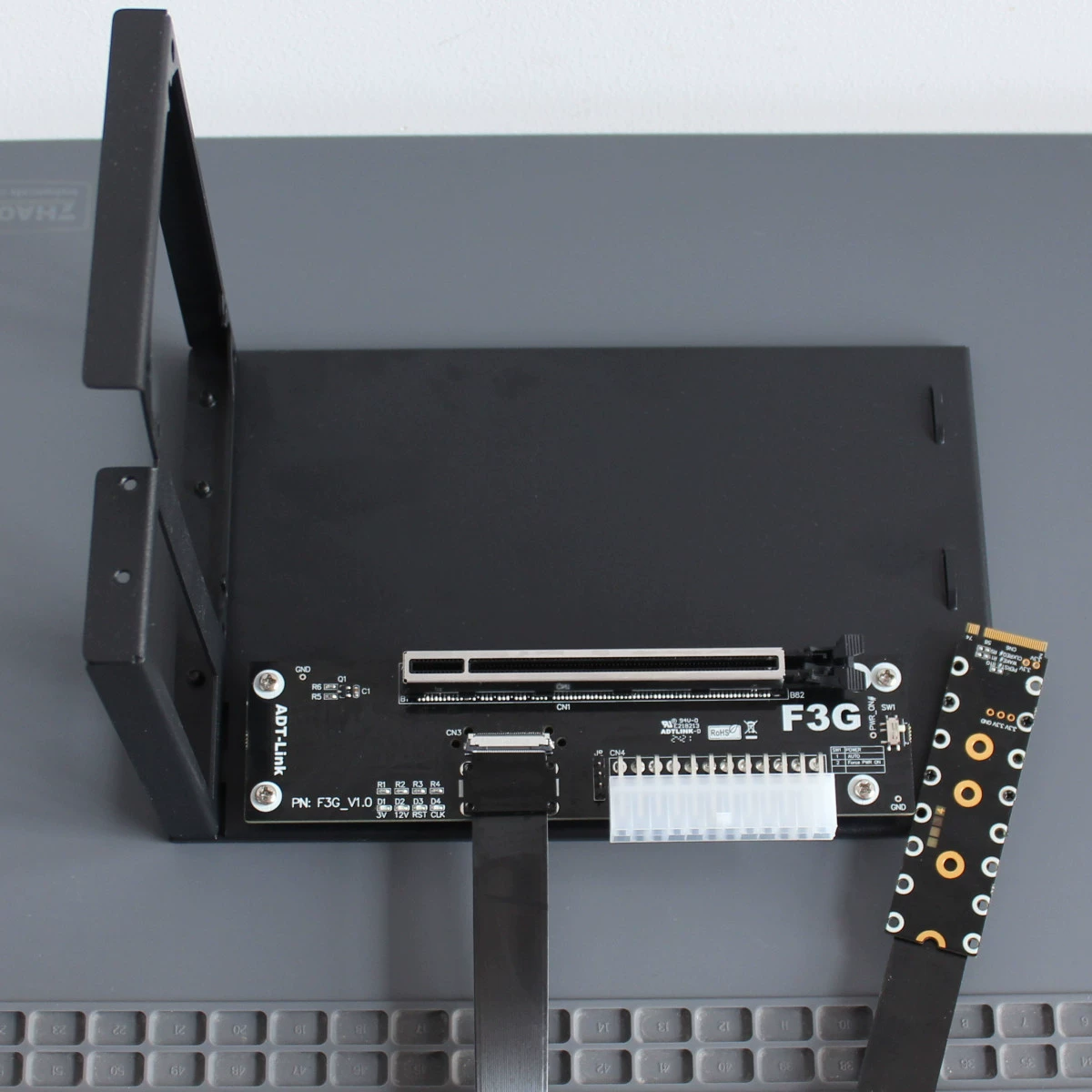

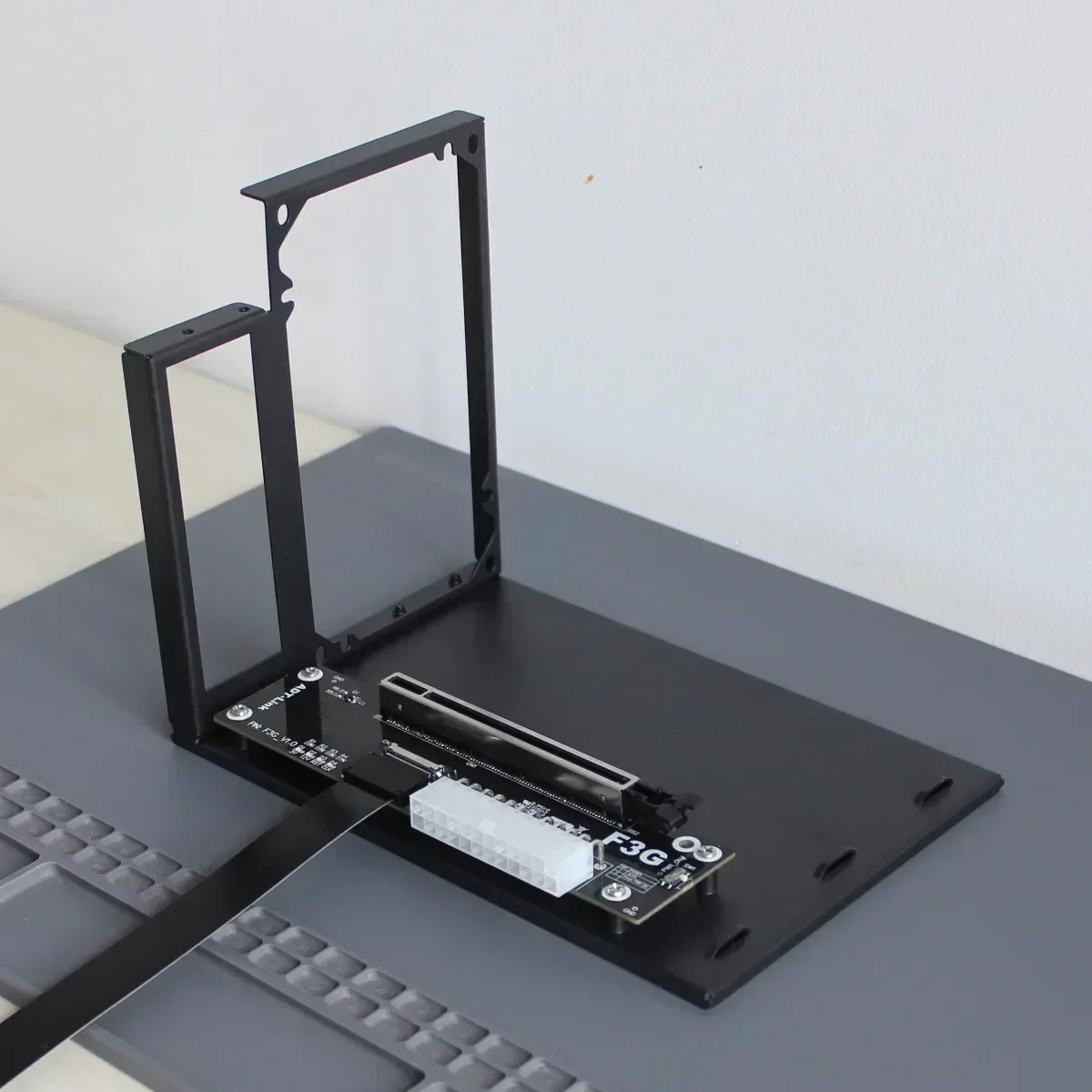

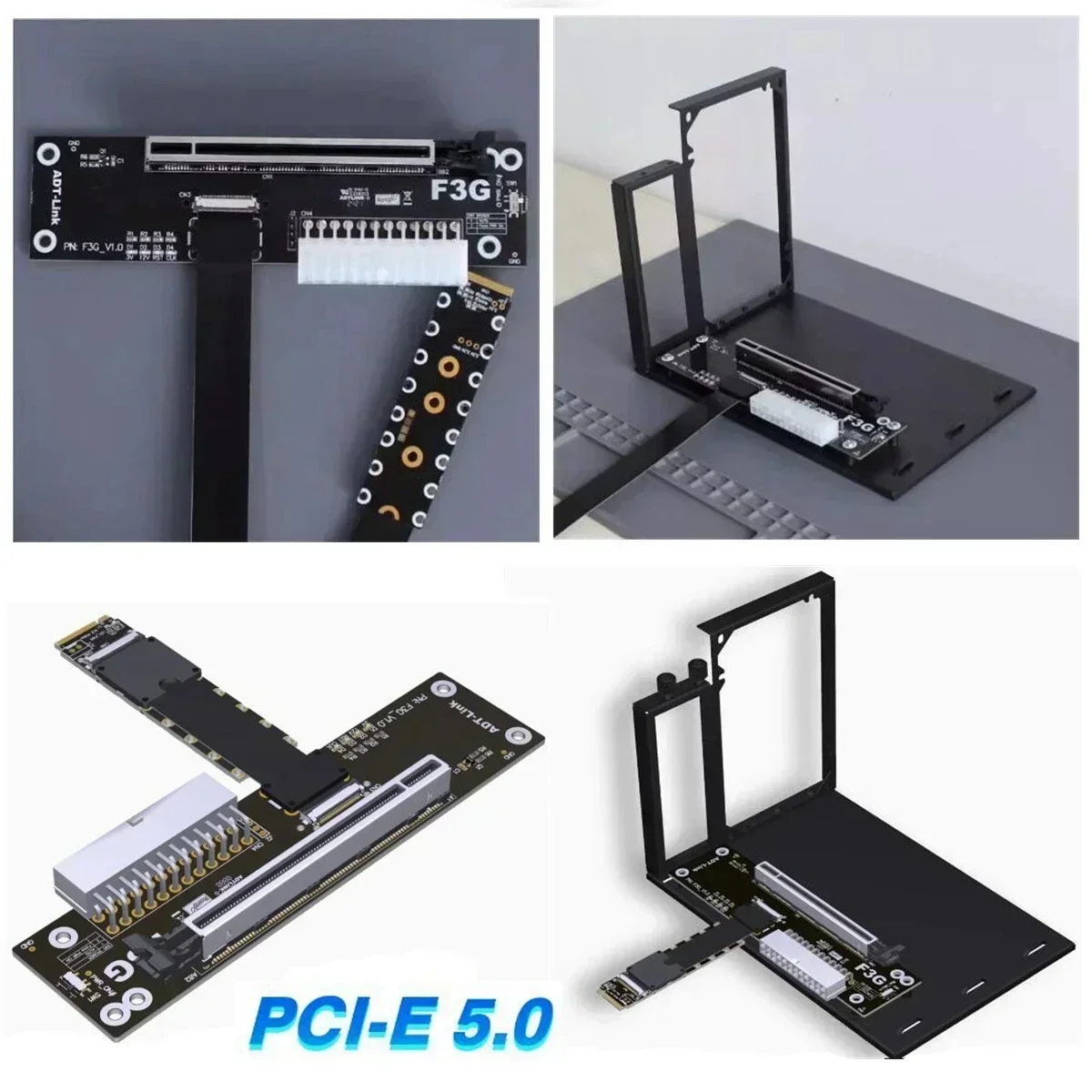

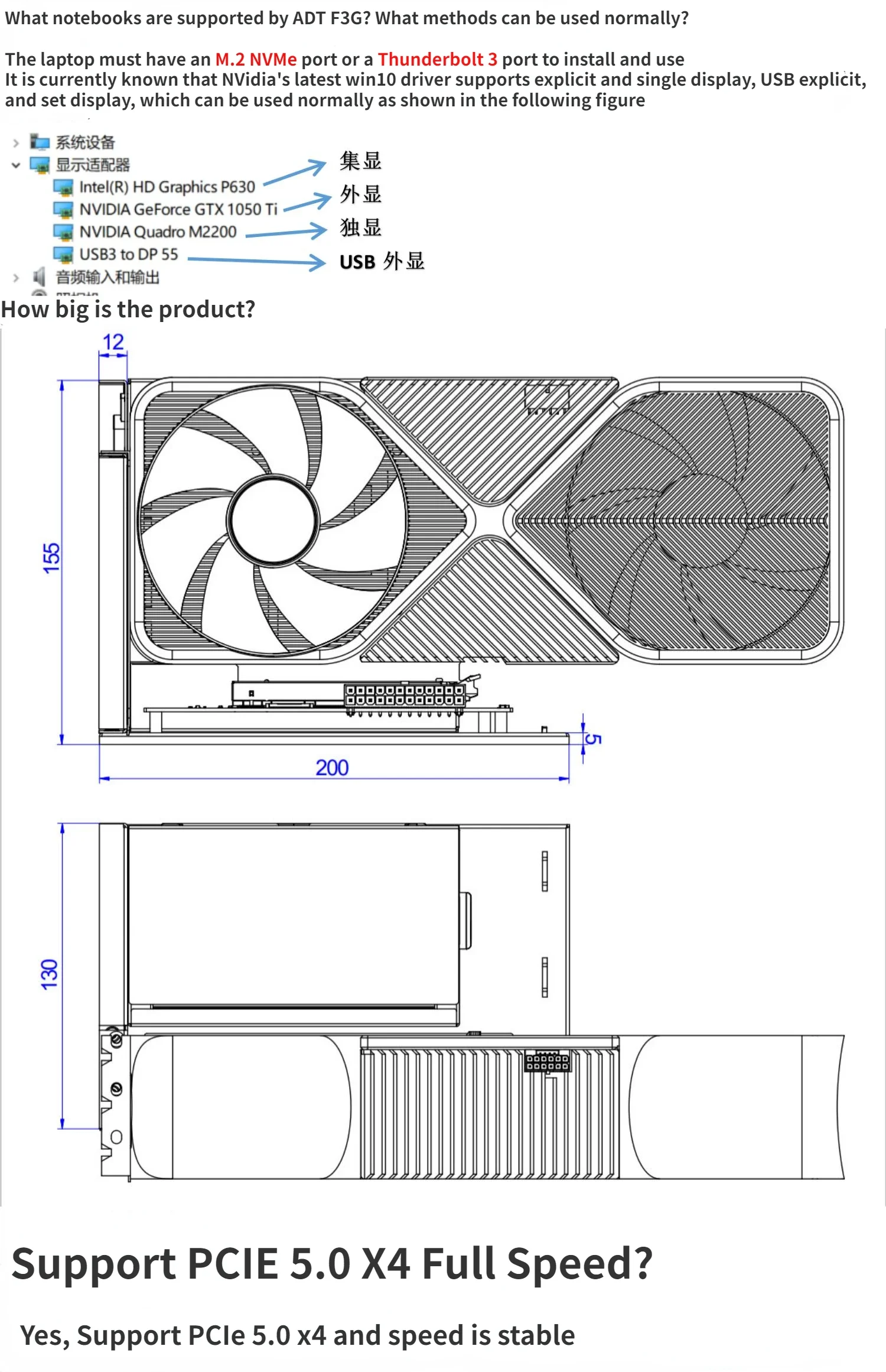

Installation renderings

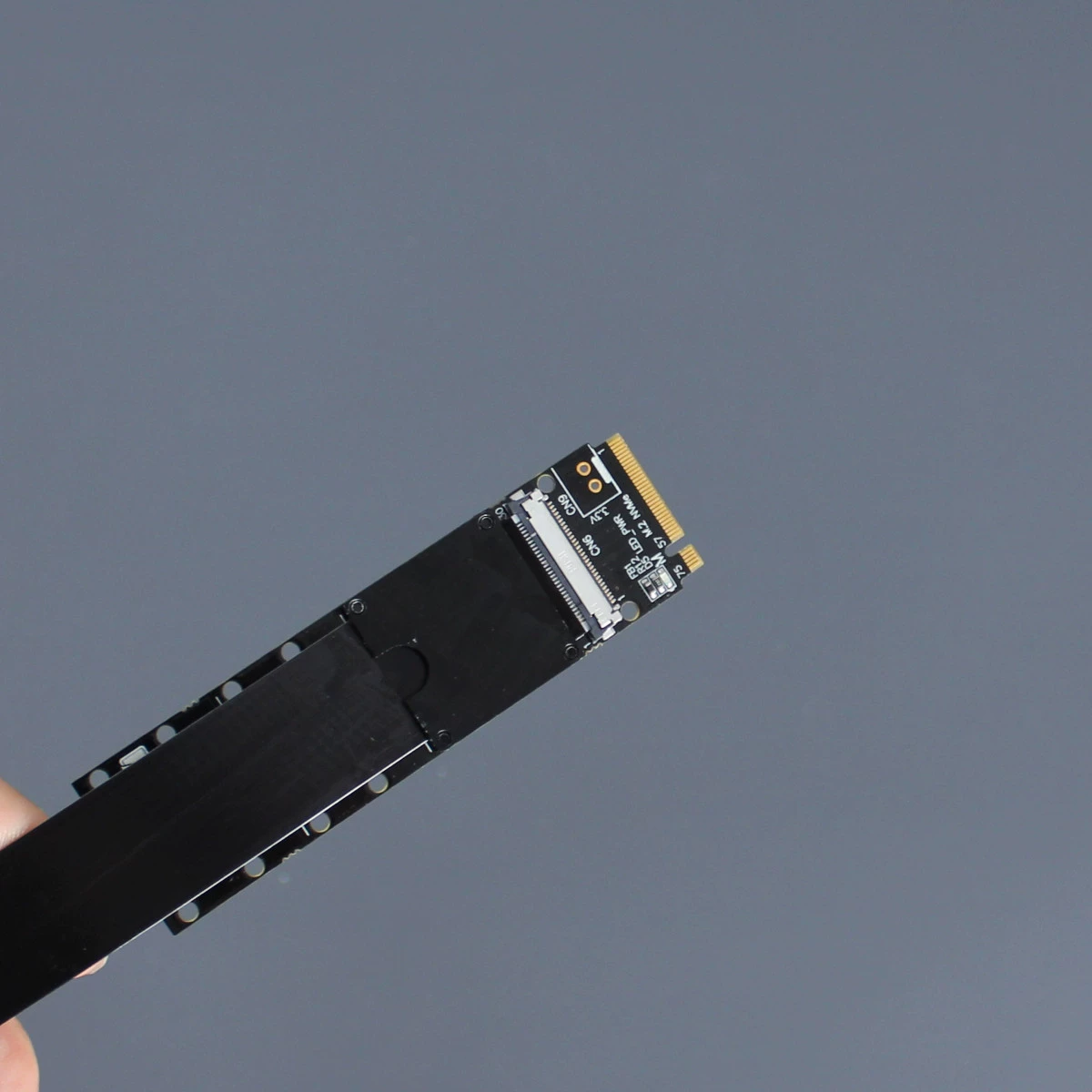

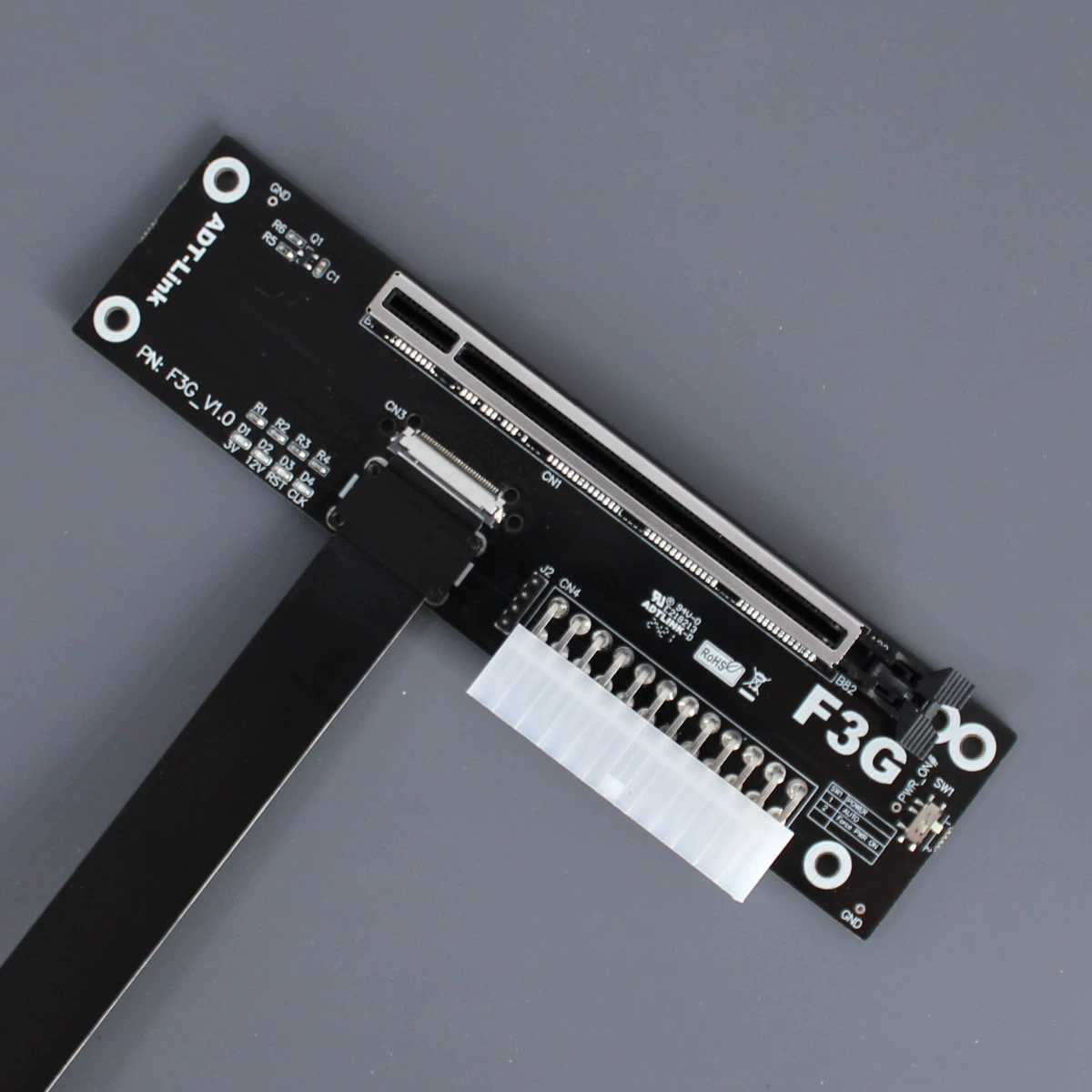

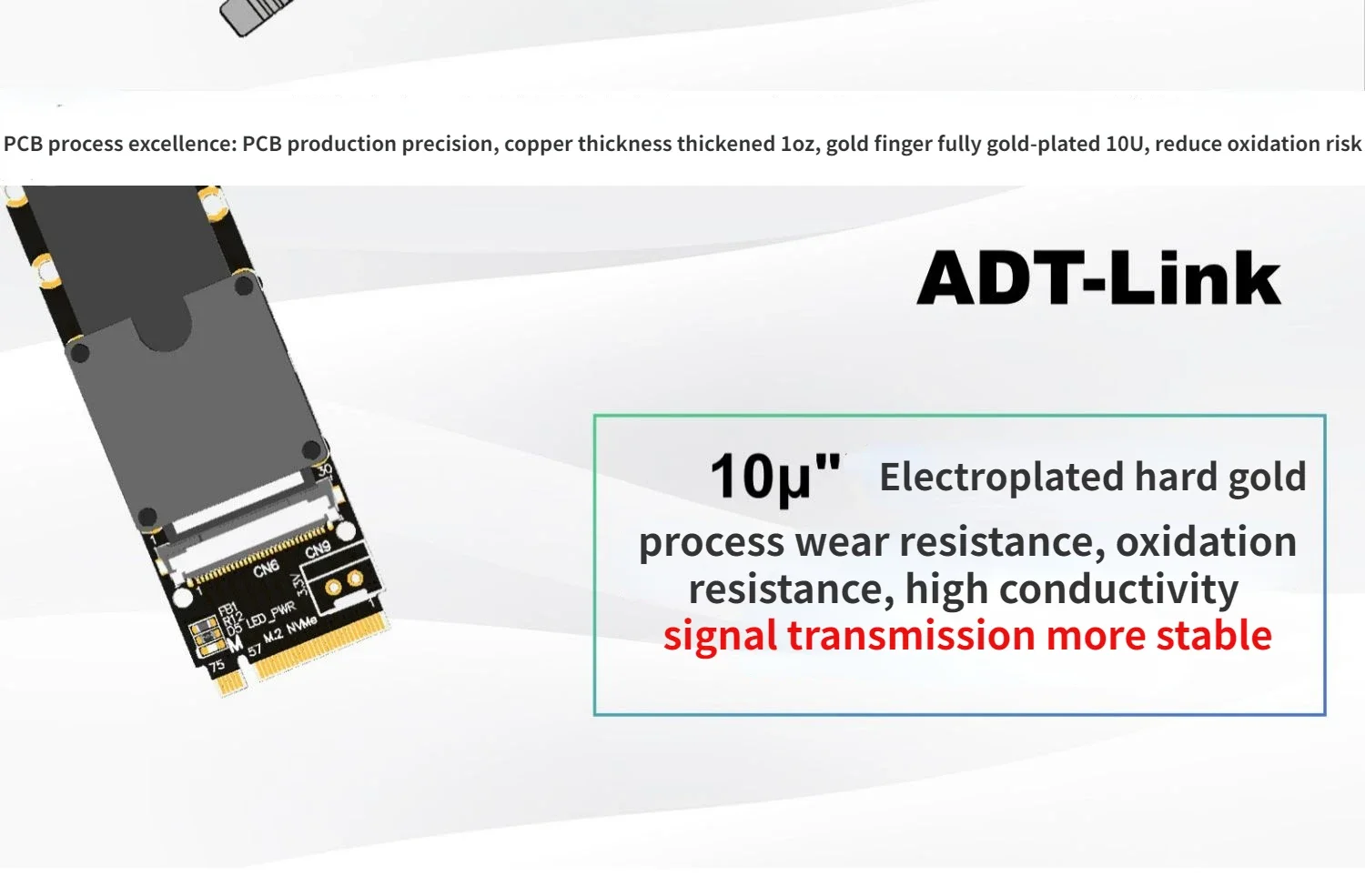

What is the thickness of the cable? Is it soft? Can it be bent?

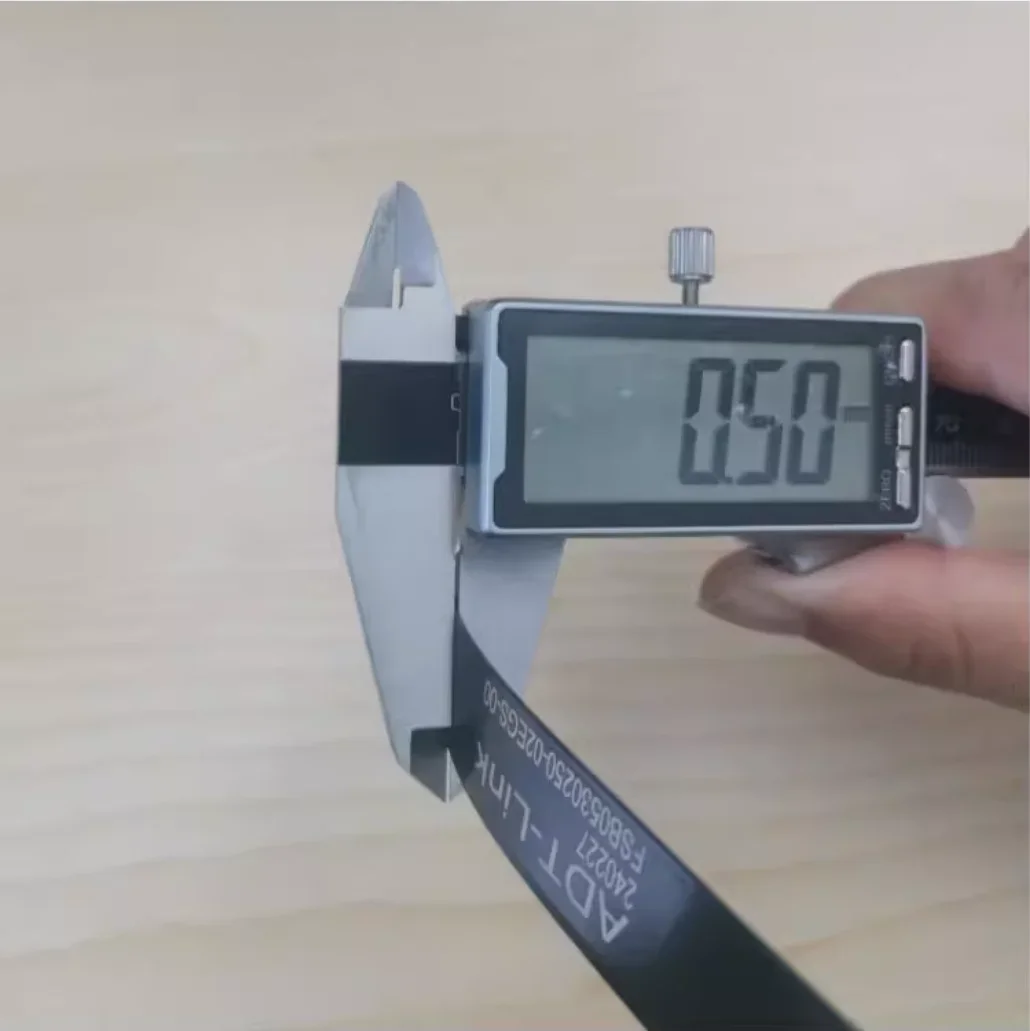

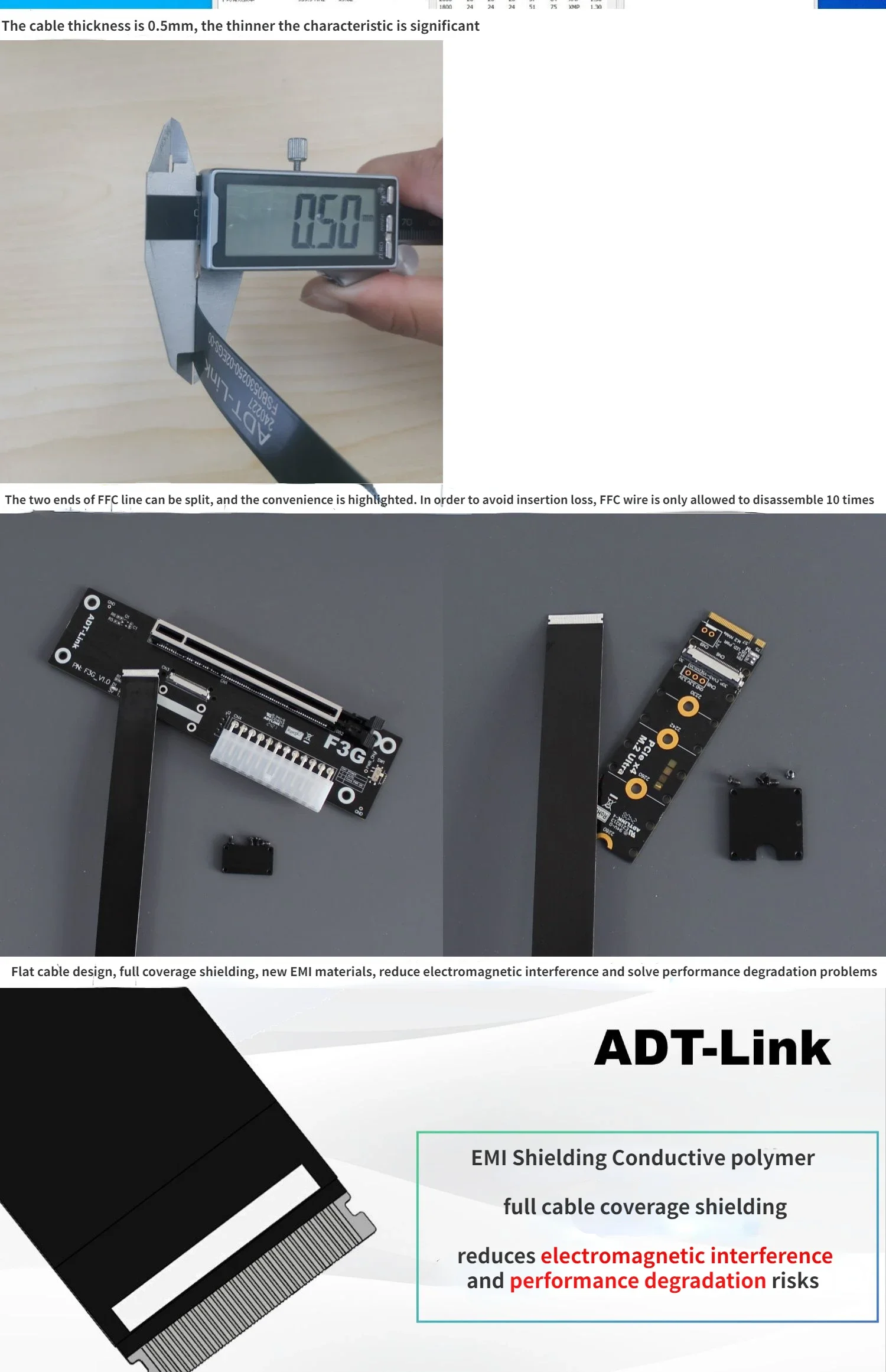

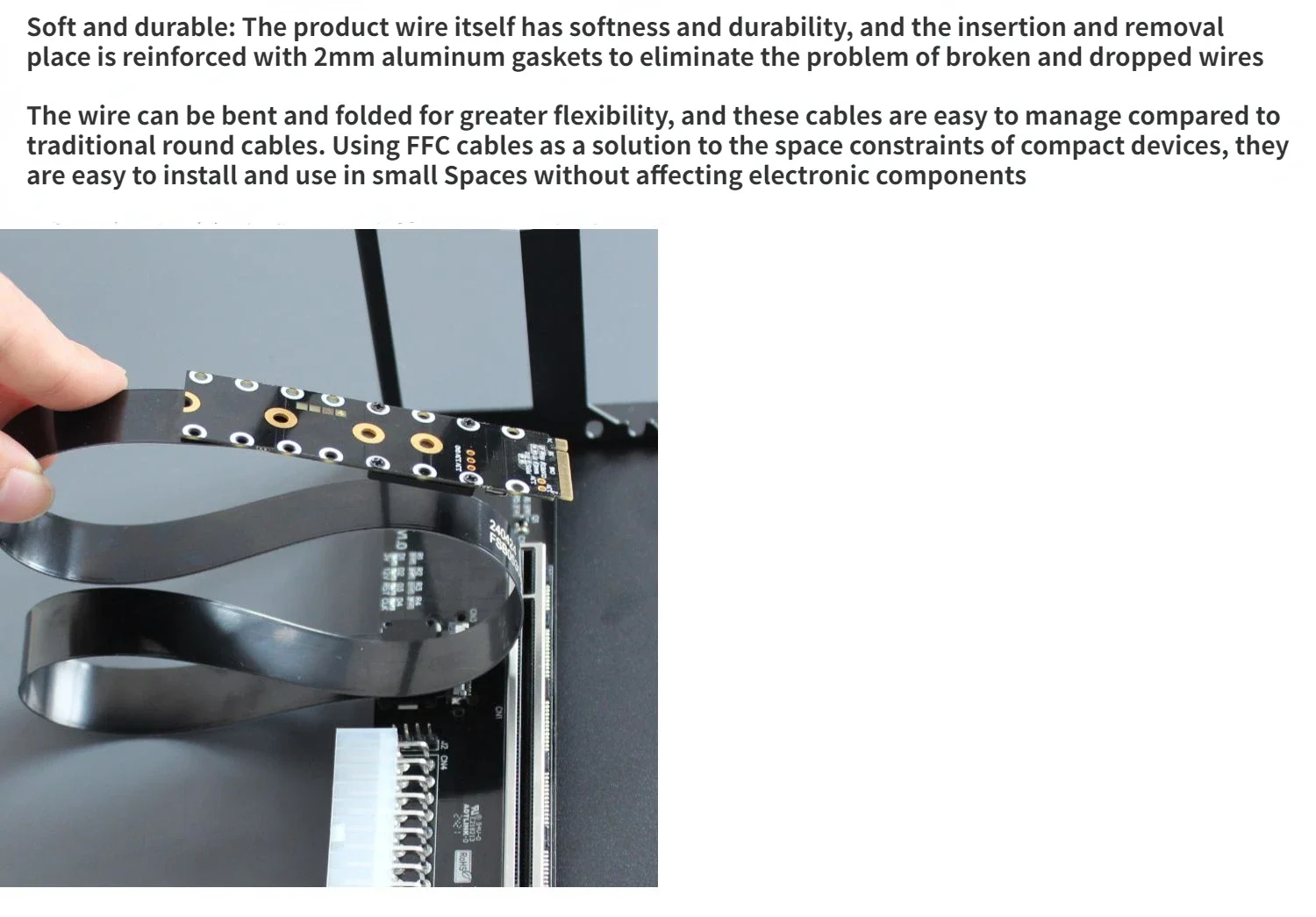

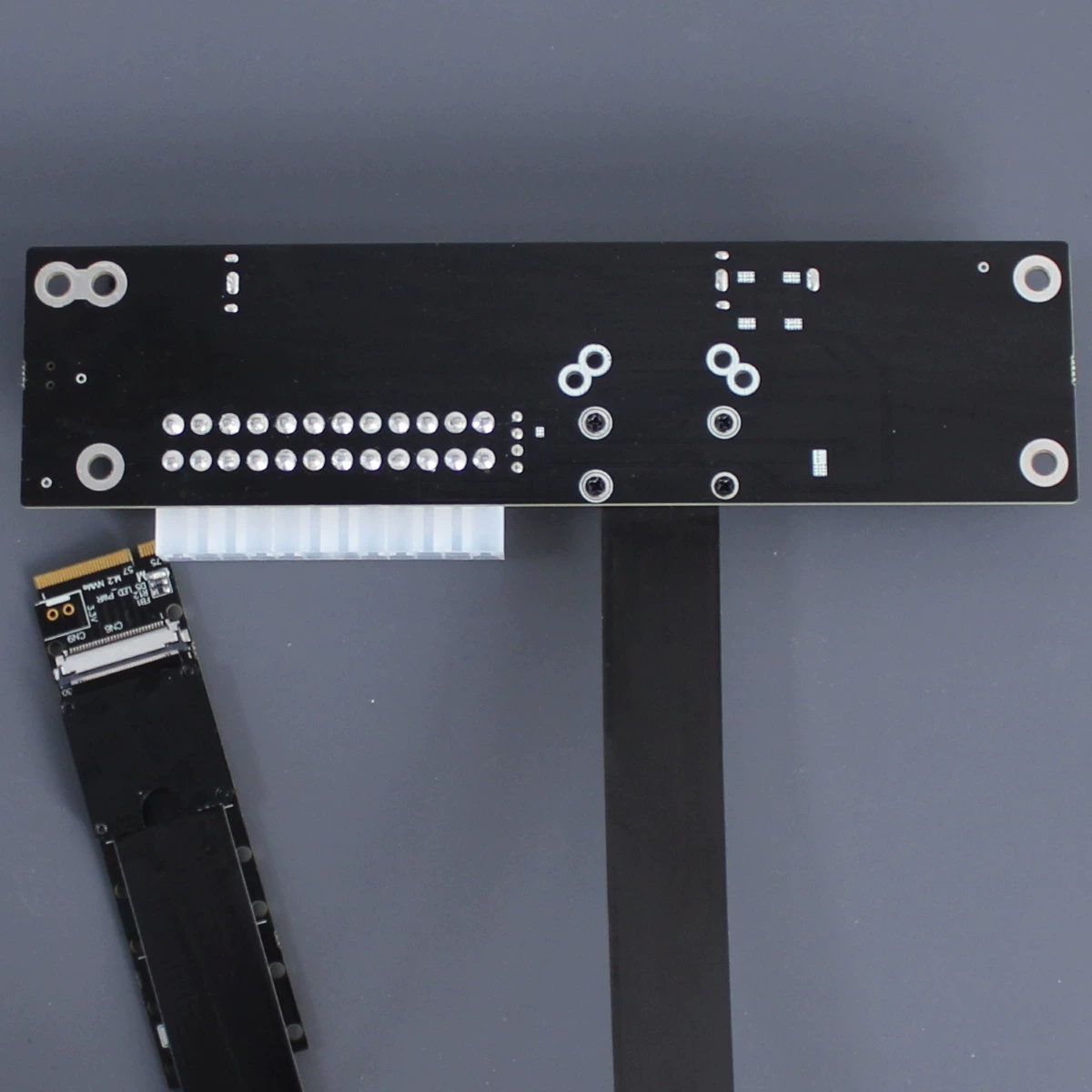

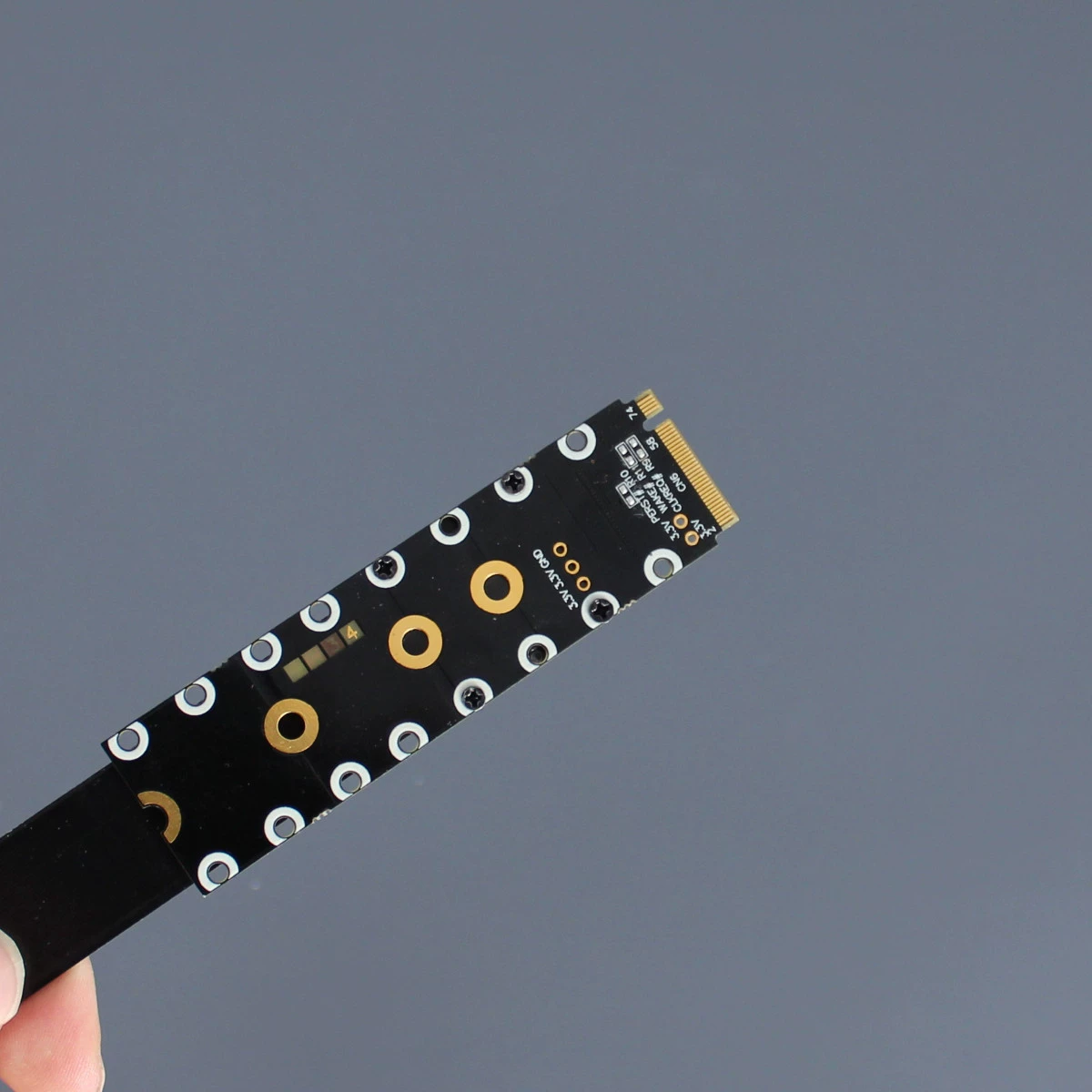

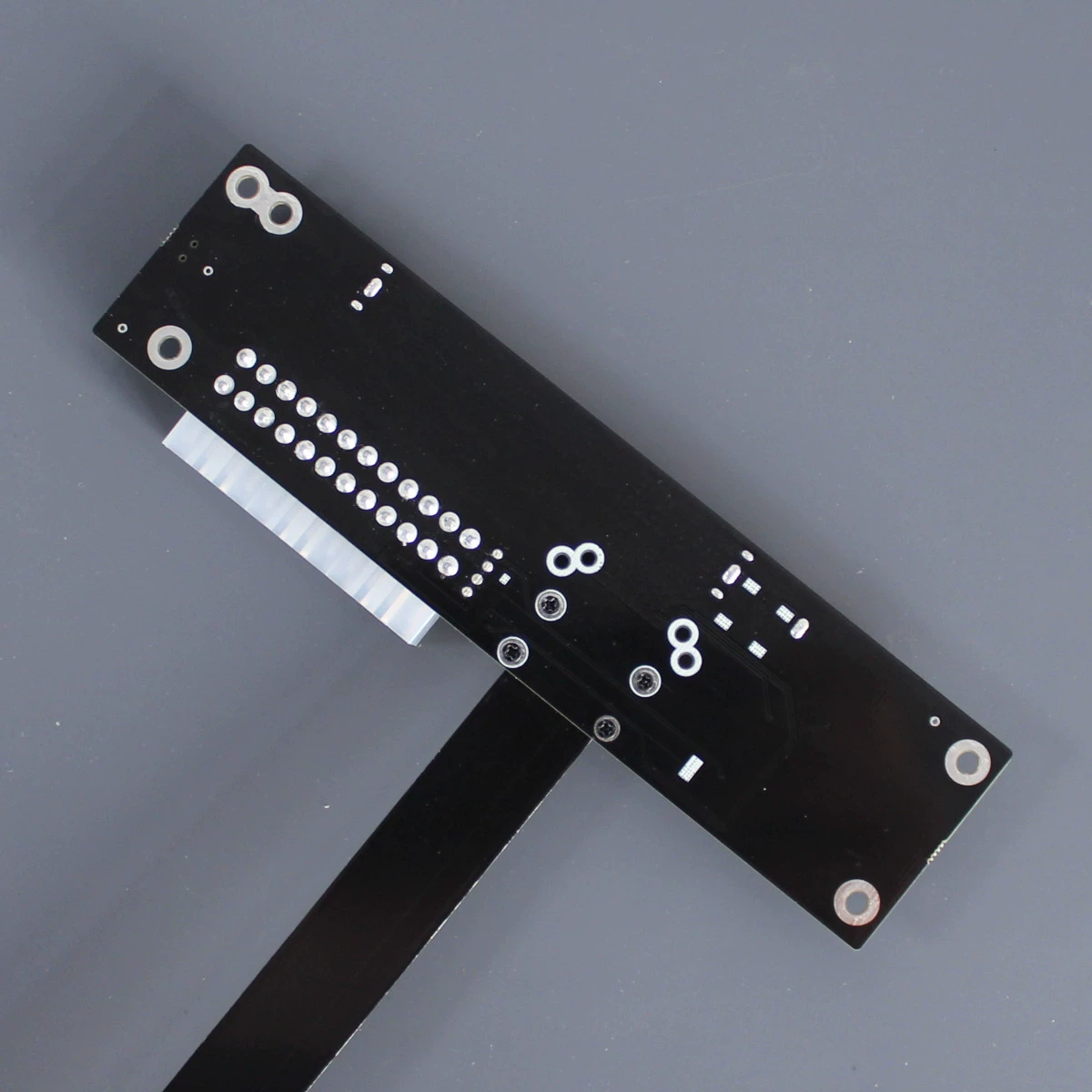

The thickness of the cable wire is 0.5mm, so the wire is softer and can be bent or folded.

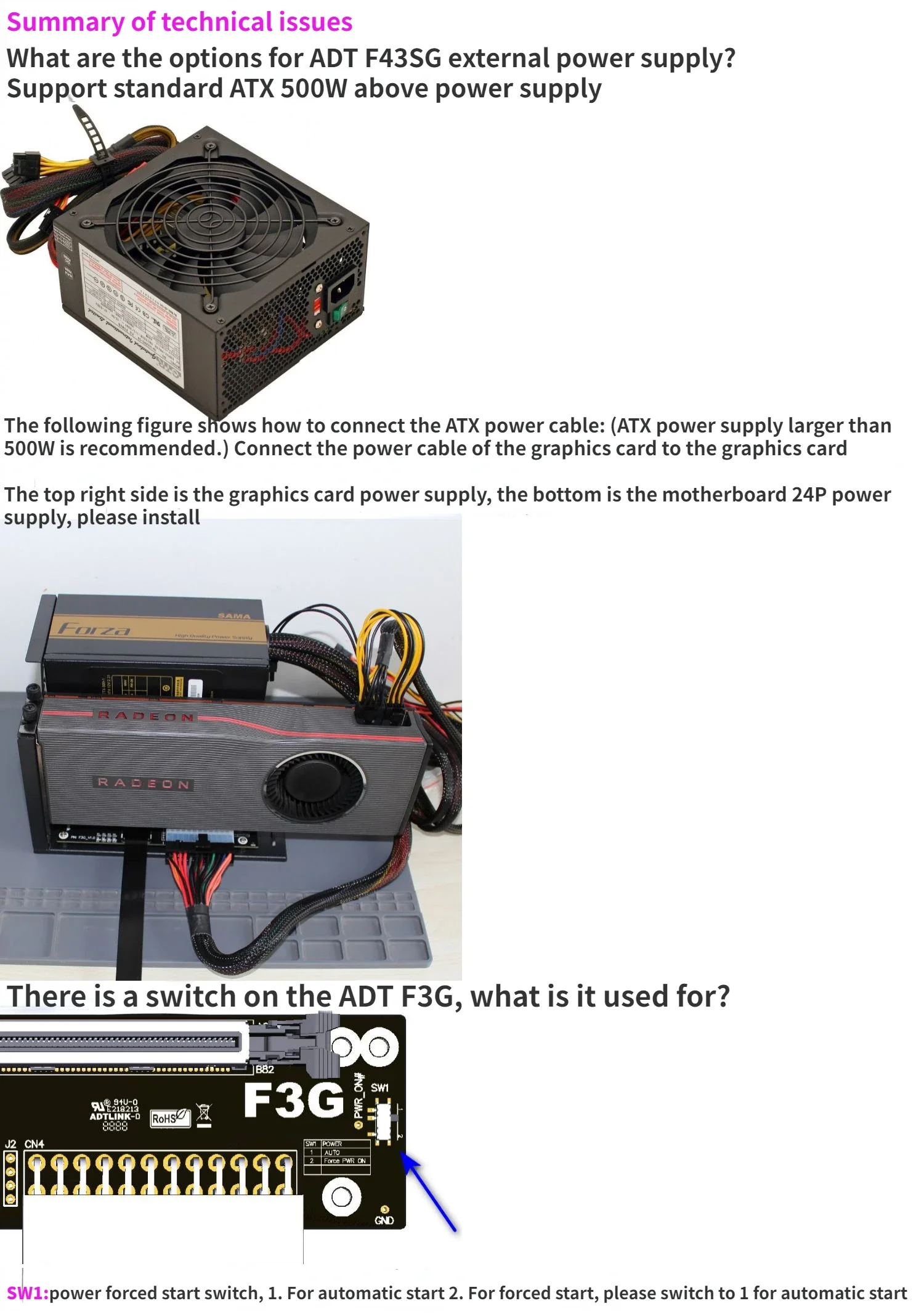

How to solve the problem that the CLKREQ signal light of ADT F3G is not on?
This is because there is a problem with the hardware design of the graphics card. Some parts of the graphics card 5 years ago do not support CLKREQ signals. If the CLKREQ signal light is not on, you can turn off the PCIE power saving function in the system or BIOS.
Can F43SG Support PCIe 5.0?

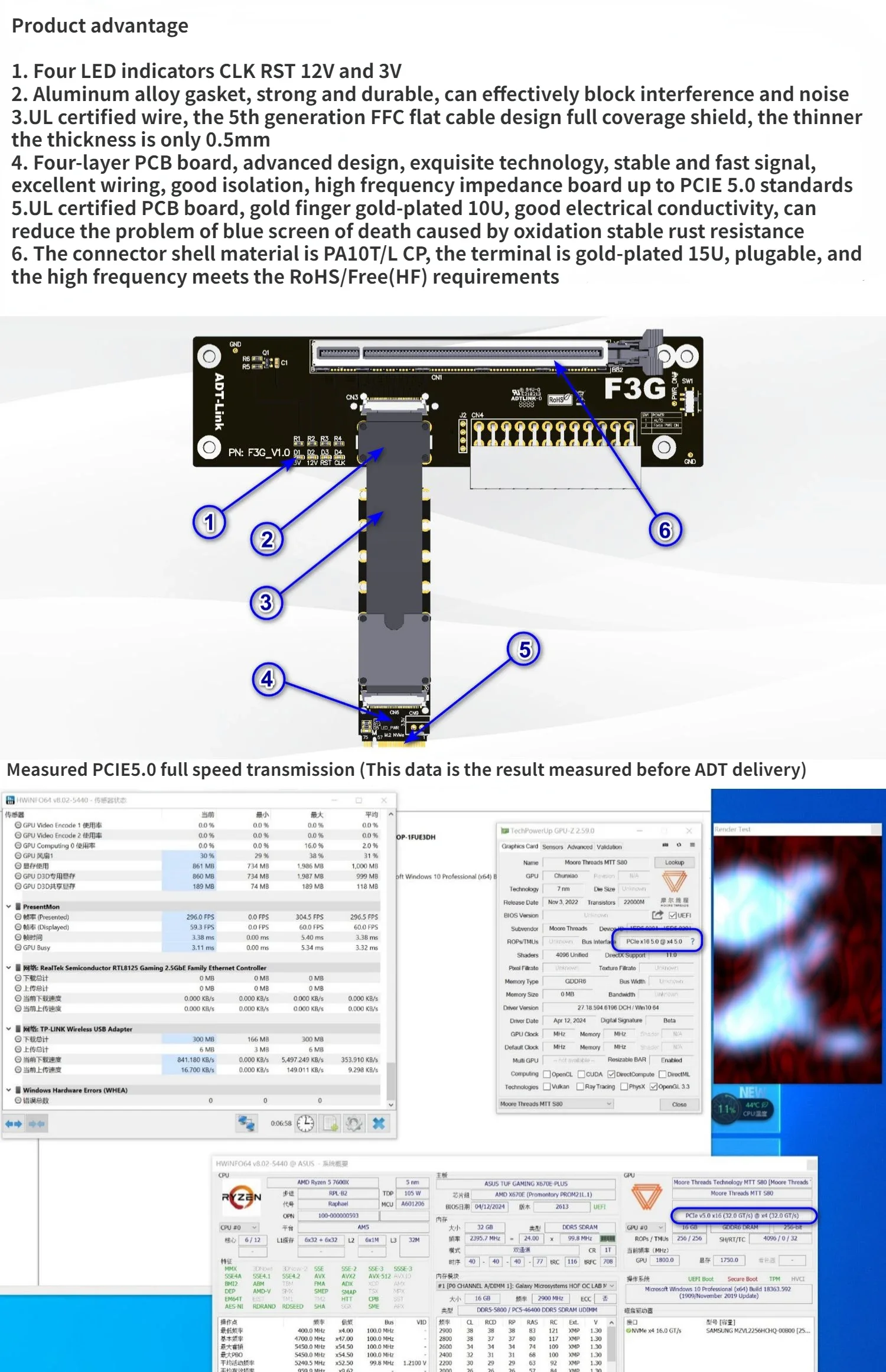

The laboratory measurement can achieve full speed of PCIe 5.0,The picture below is the test result of F43SG-50cm
Download:
To open 3D PDF files. Please usesoftware.
FTP: Los Angeles
3D Step & 3D PDF files download
Installation Tutorial file download
FTP: Hong Kong
3D Step & 3D PDF files download
Installation Tutorial files download
