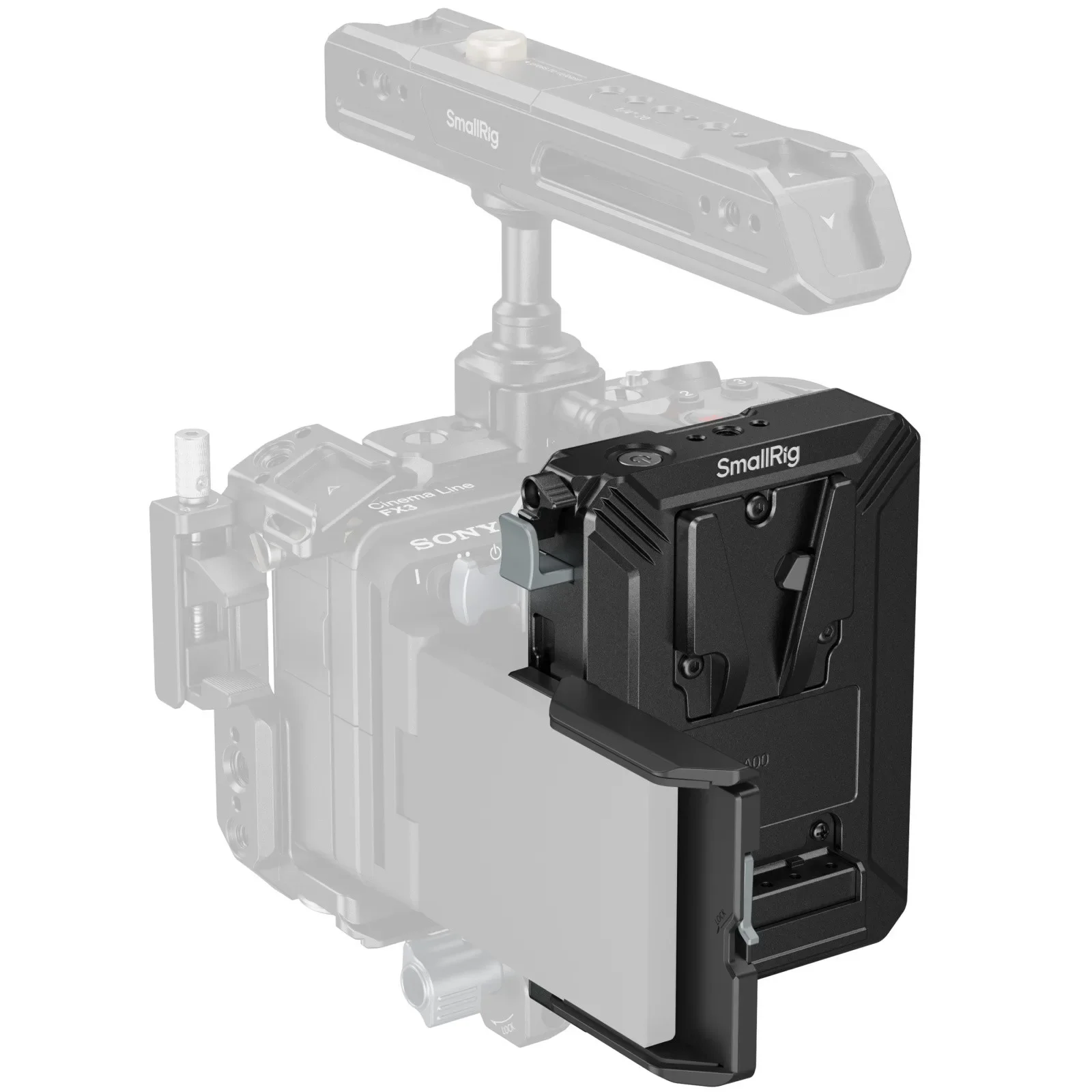

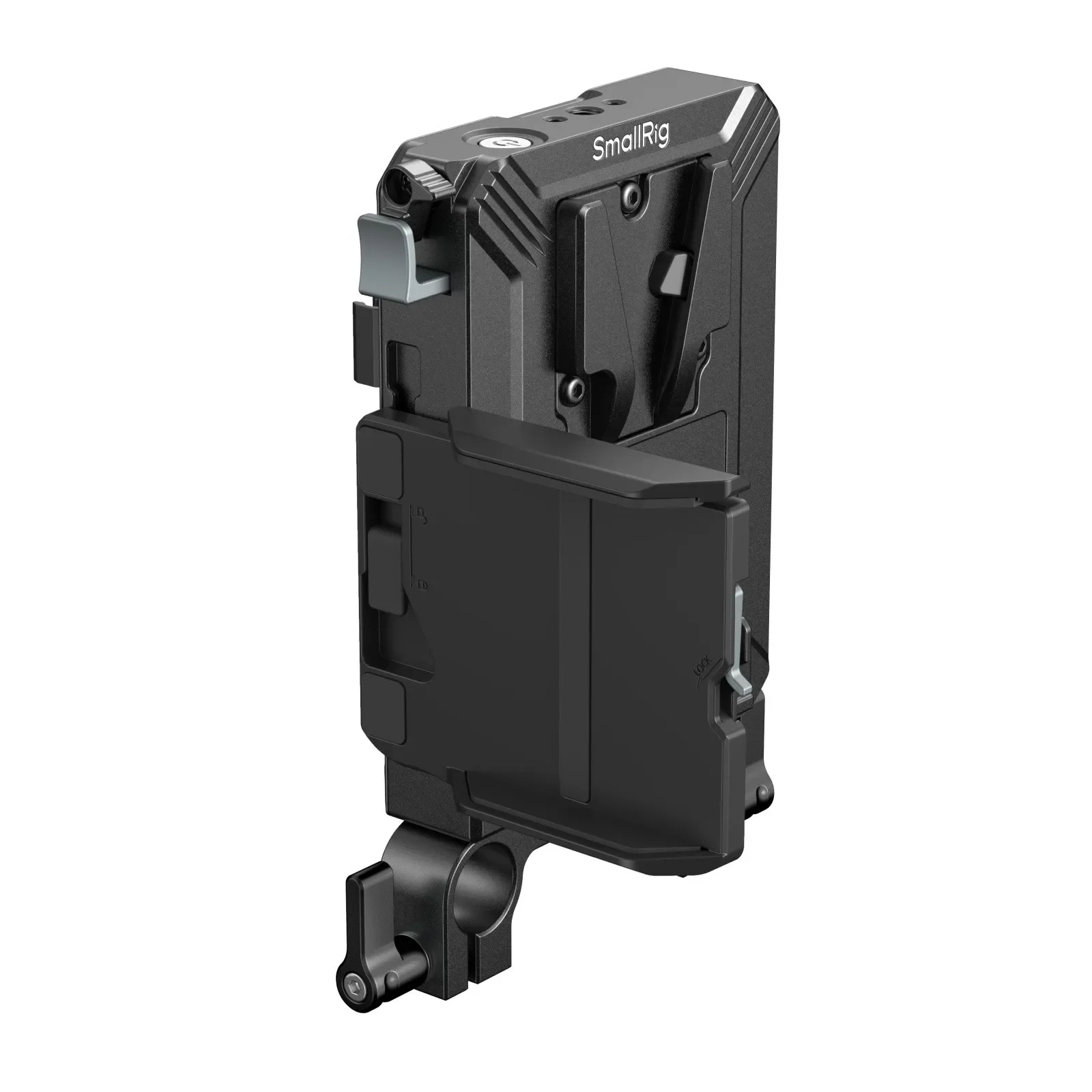

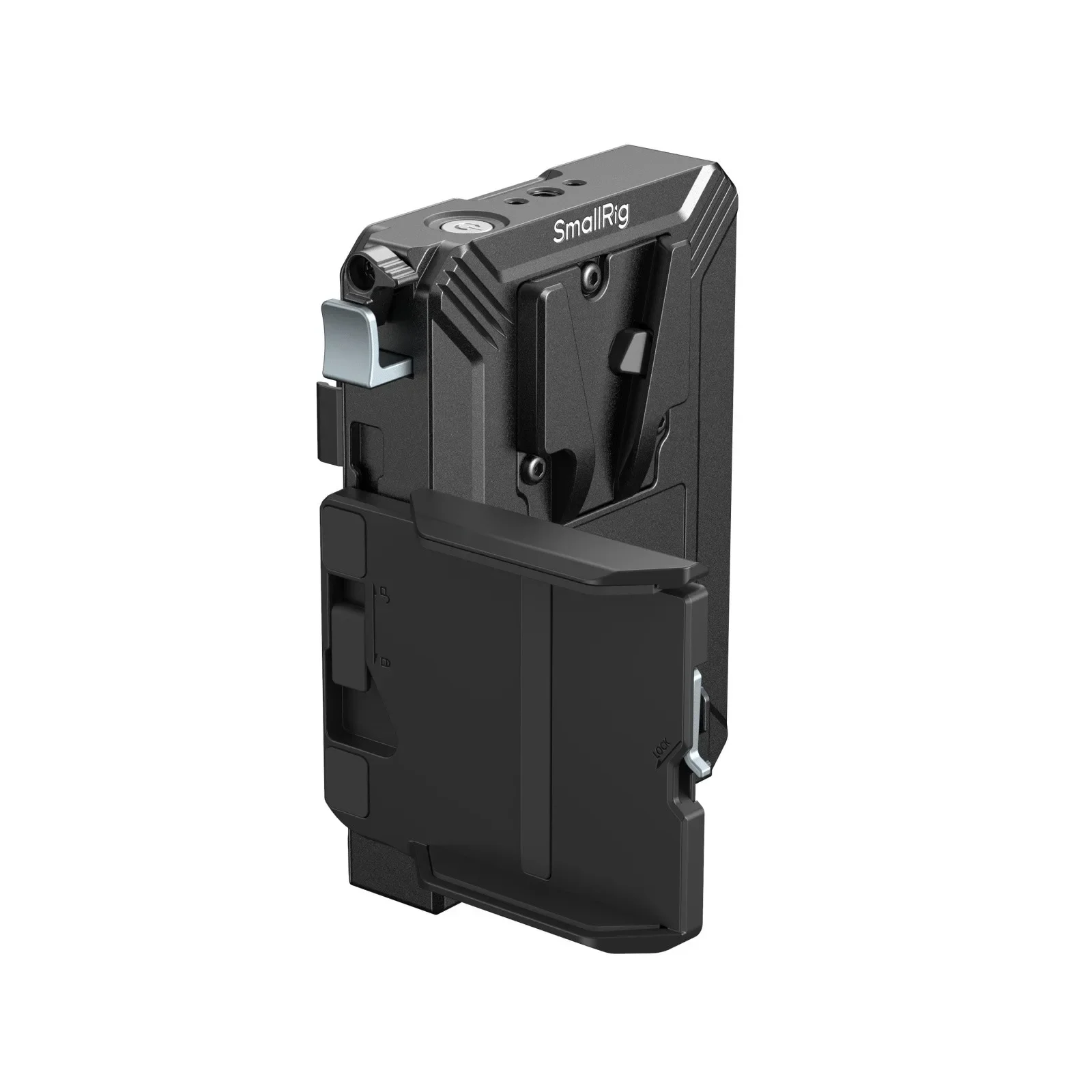

SmallRig-placa colgante de batería con puerto V, Protector de pantalla, versión de 15mm, conducto adecuado para piezas de cámara Sony, Canon, Fuji, Nikon

Welcome to X 3C Store , we will serve you wholeheartedly, follow our mall and enjoy more discounts!

Note:
1. When using both the included Arca-Swiss plate and LCD screen protection bracket, press the bottom anti-drop pin and slide the plate sideways until the LCD screen fits into the bracket.
2. When using the LCD screen protection bracket, the battery plate can accommodate V-mount batteries up to 80 mm / 3.1″ in width. Compatible SmallRig V-mount batteries: 3579B / 4871 / 4872 / 3580B / 4929 / 4930 / 4292 / 4974 / 4608 / 4984 / 3581B / 4293.
3. Arca-Swiss clamp compatibility: Compatible with most Arca-Swiss plates. Please refer to the accompanying guide or manual for adjustment instructions.

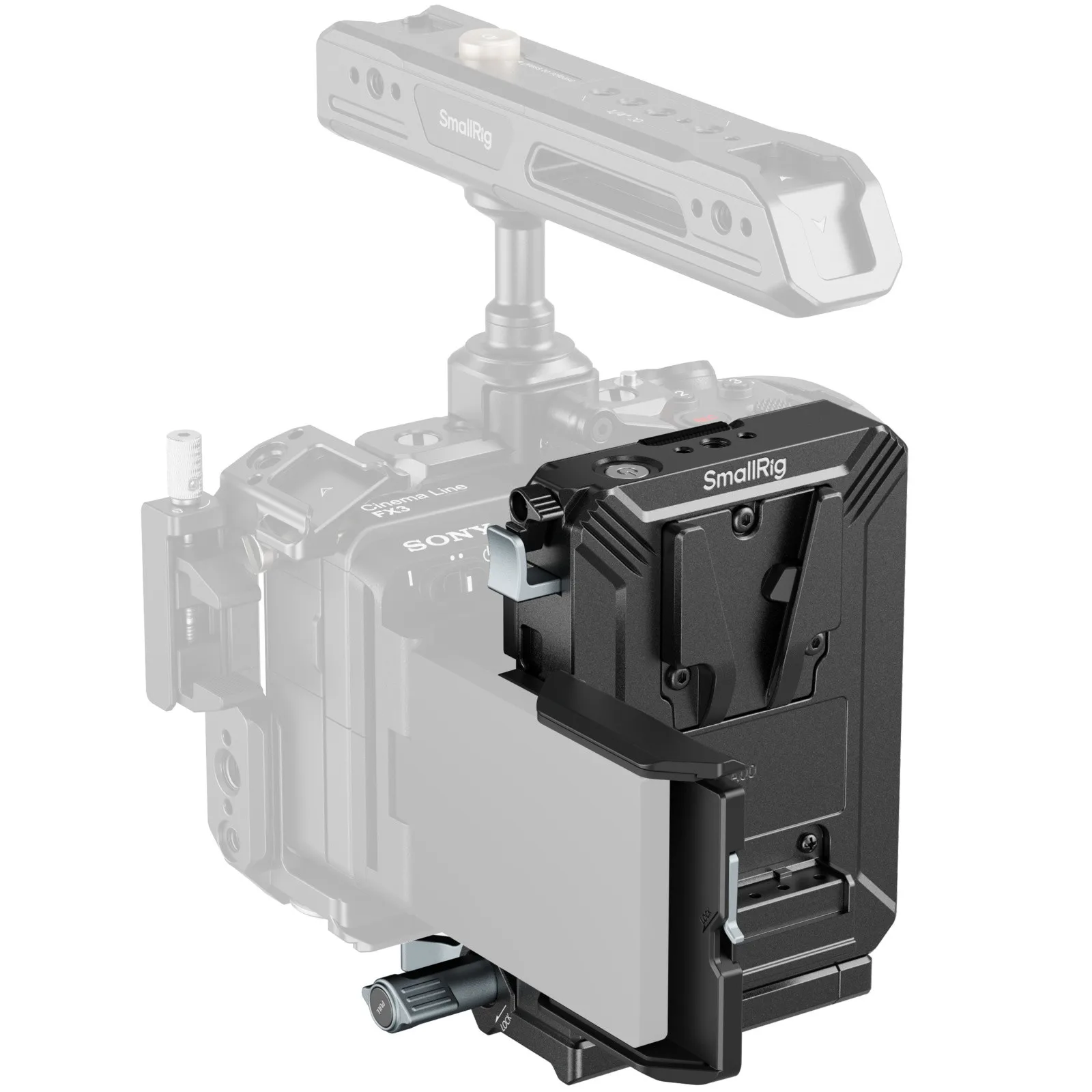

SmallRig Compact V-Mount Battery Mounting System

Engineered to Endure

Swift Mounting | Screen Protection | Compact Storage

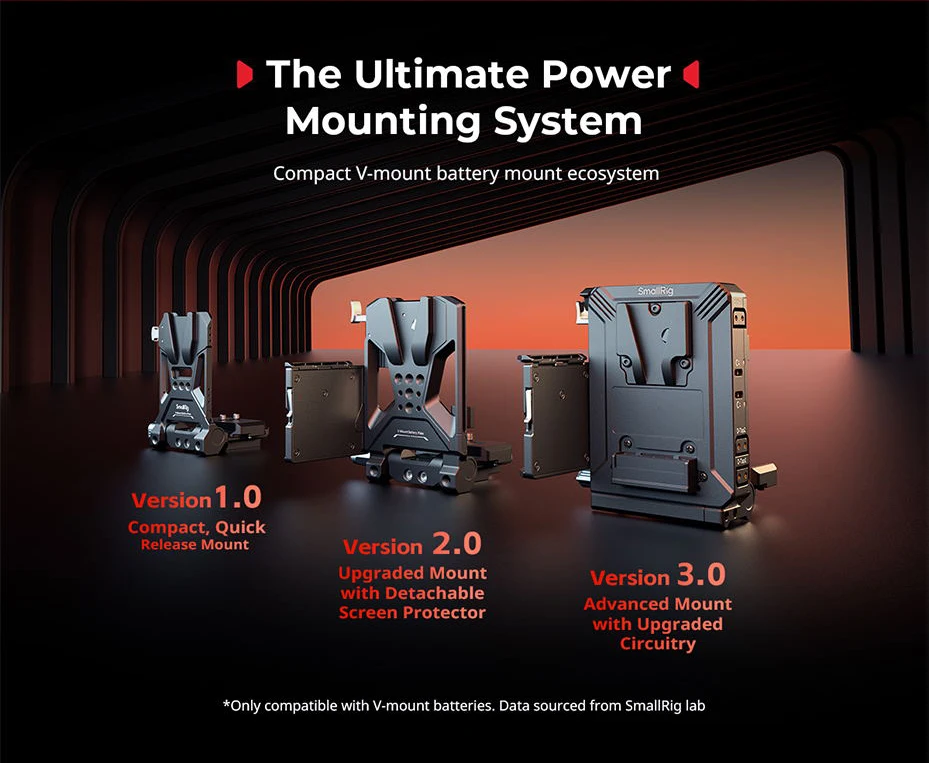

The Ultimate Power Mounting System

Compact V-mount battery mount ecosystem

·Version 1.0: Compact, Quick Release Mount

·Version 2.0: Upgraded Mount with Detachable Screen Protector

·Version 3.0: Advanced Mount with Upgraded Circuitry

*Only compatible with V-mount batteries. Data sourced from SmallRig lab

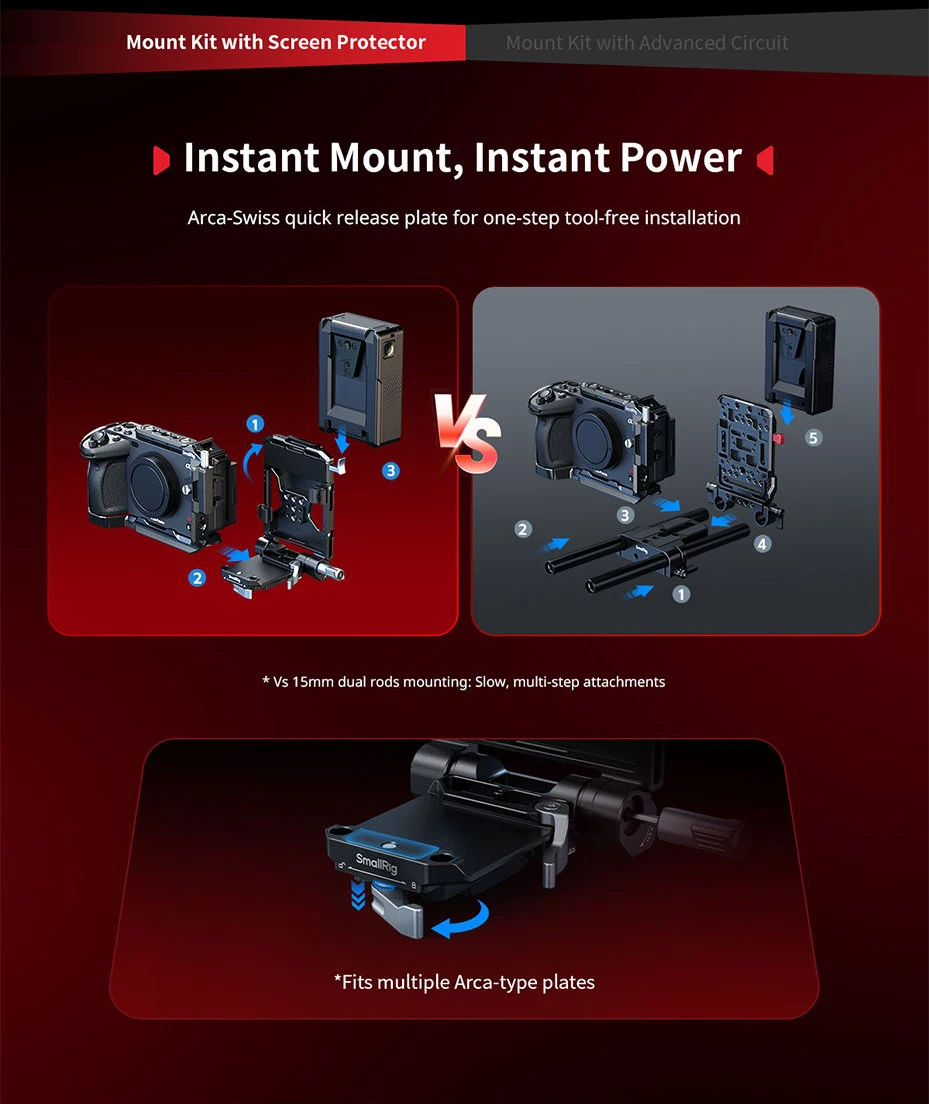

Instant Mount, Instant Power

Arca-Swiss quick release plate for one-step tool-free installation

*Fits multiple Arca-type plates

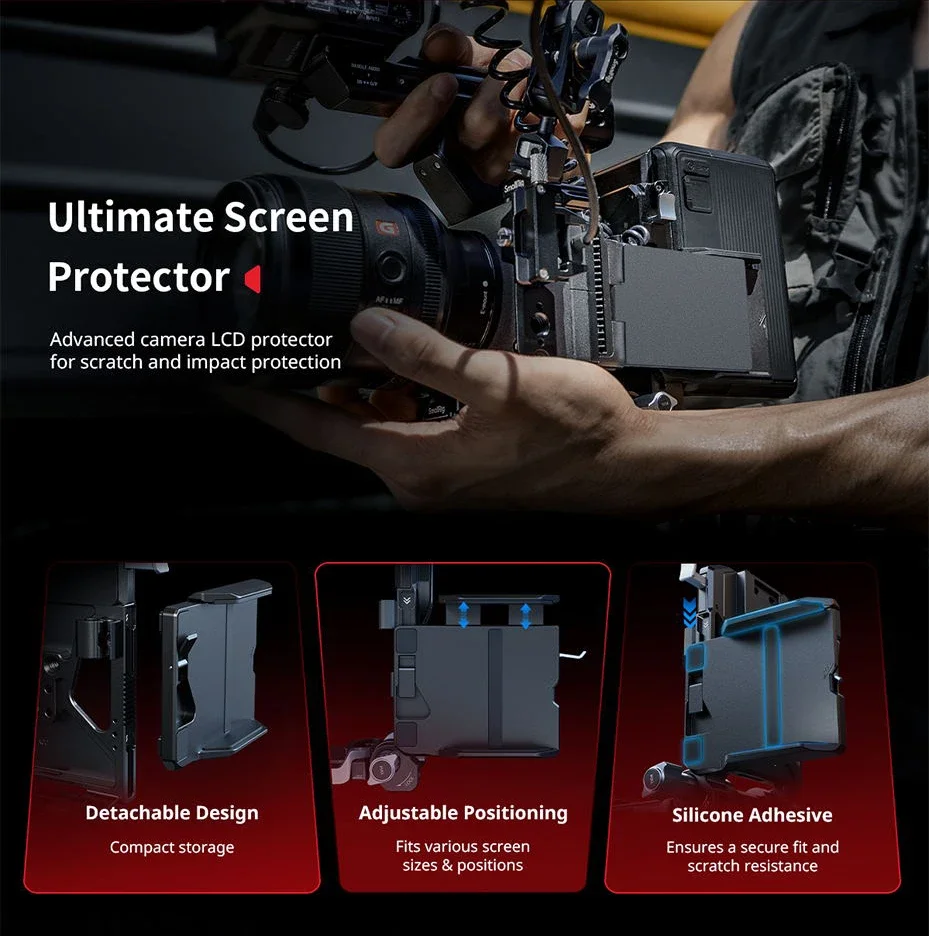

Ultimate Screen Protector

Advanced camera LCD protector for scratch and impact protection

·Detachable Design: Compact storage

·Adjustable Positioning: Fits various screen sizes & positions

·Silicone Adhesive: Ensures a secure fit and scratch resistance

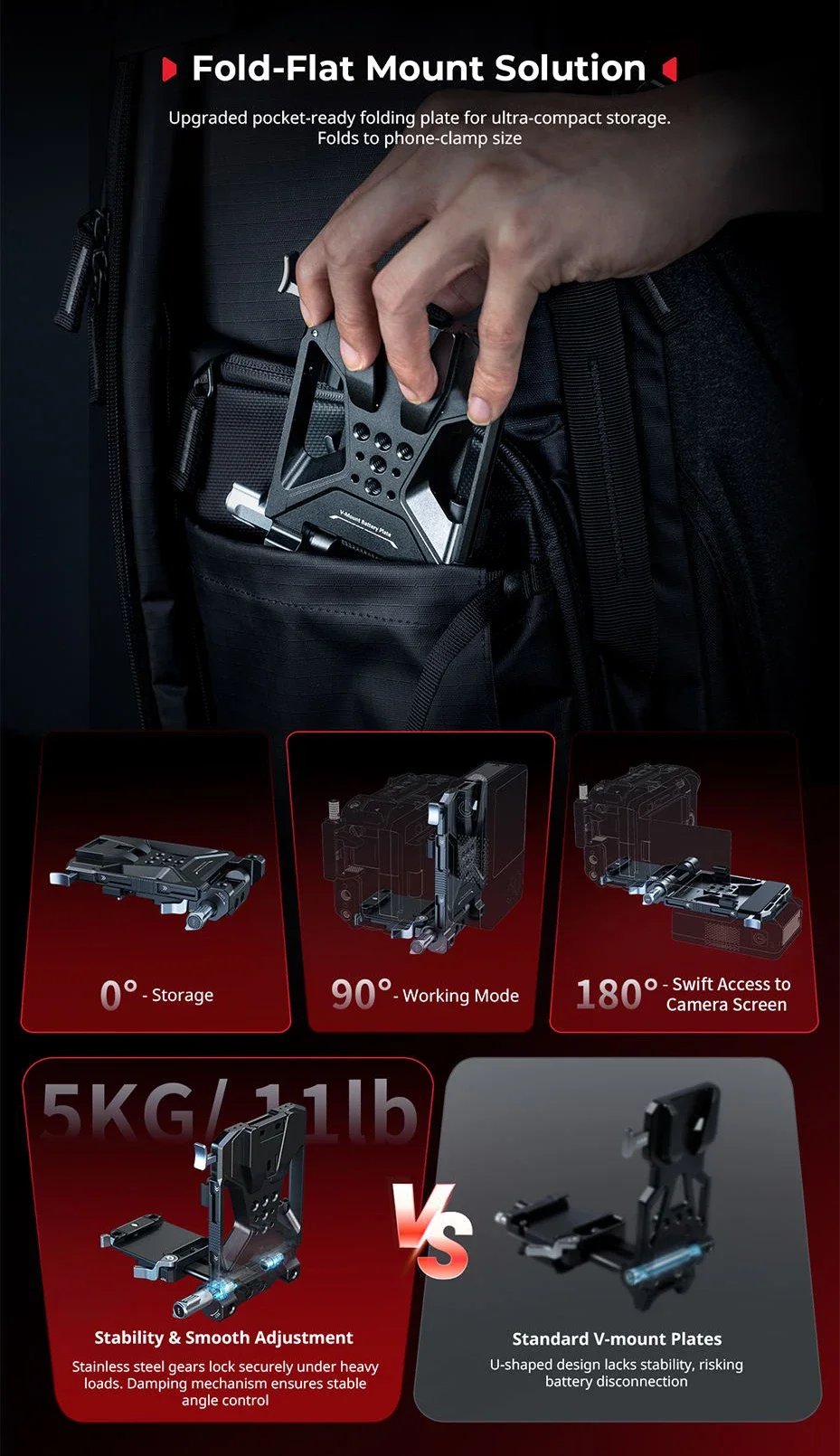

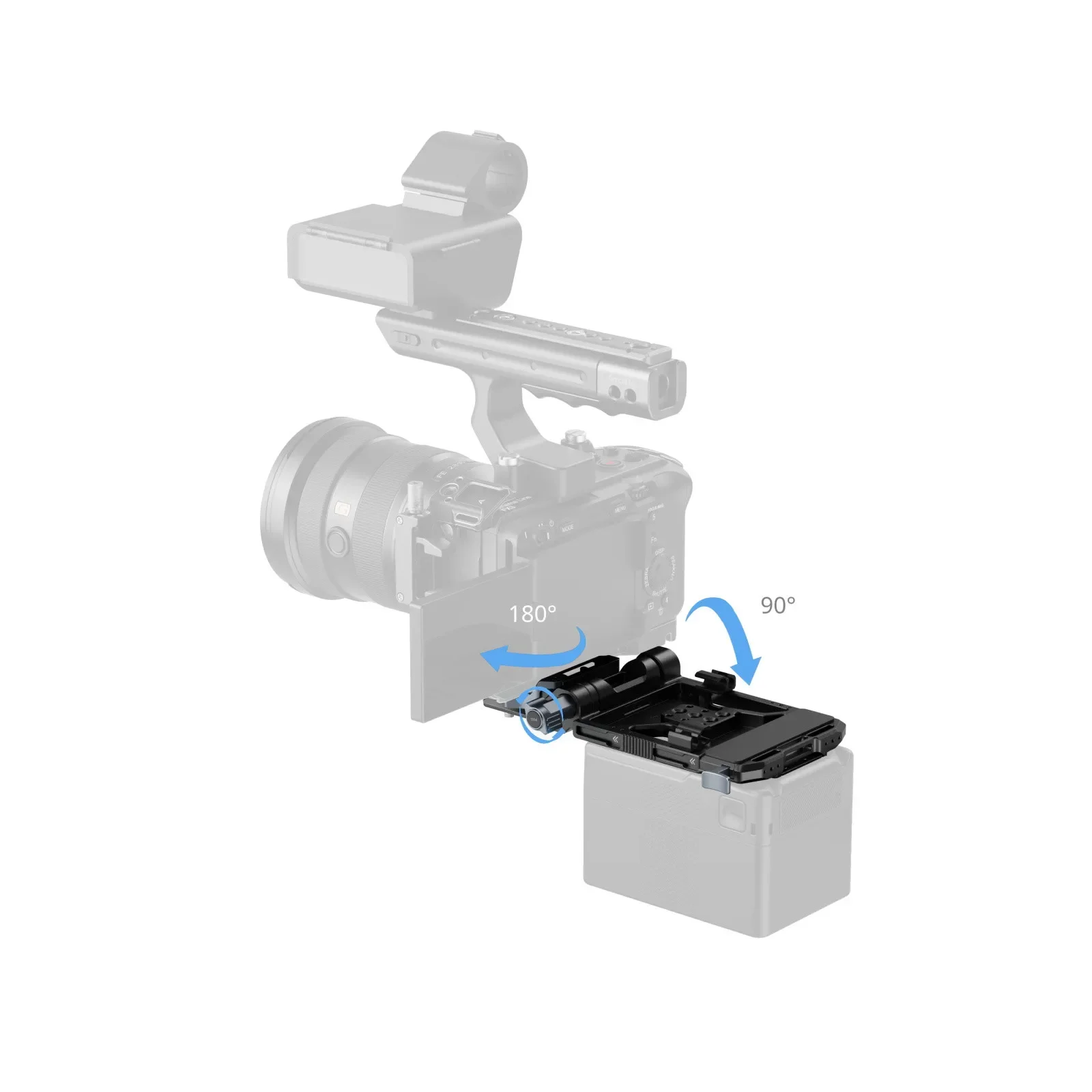

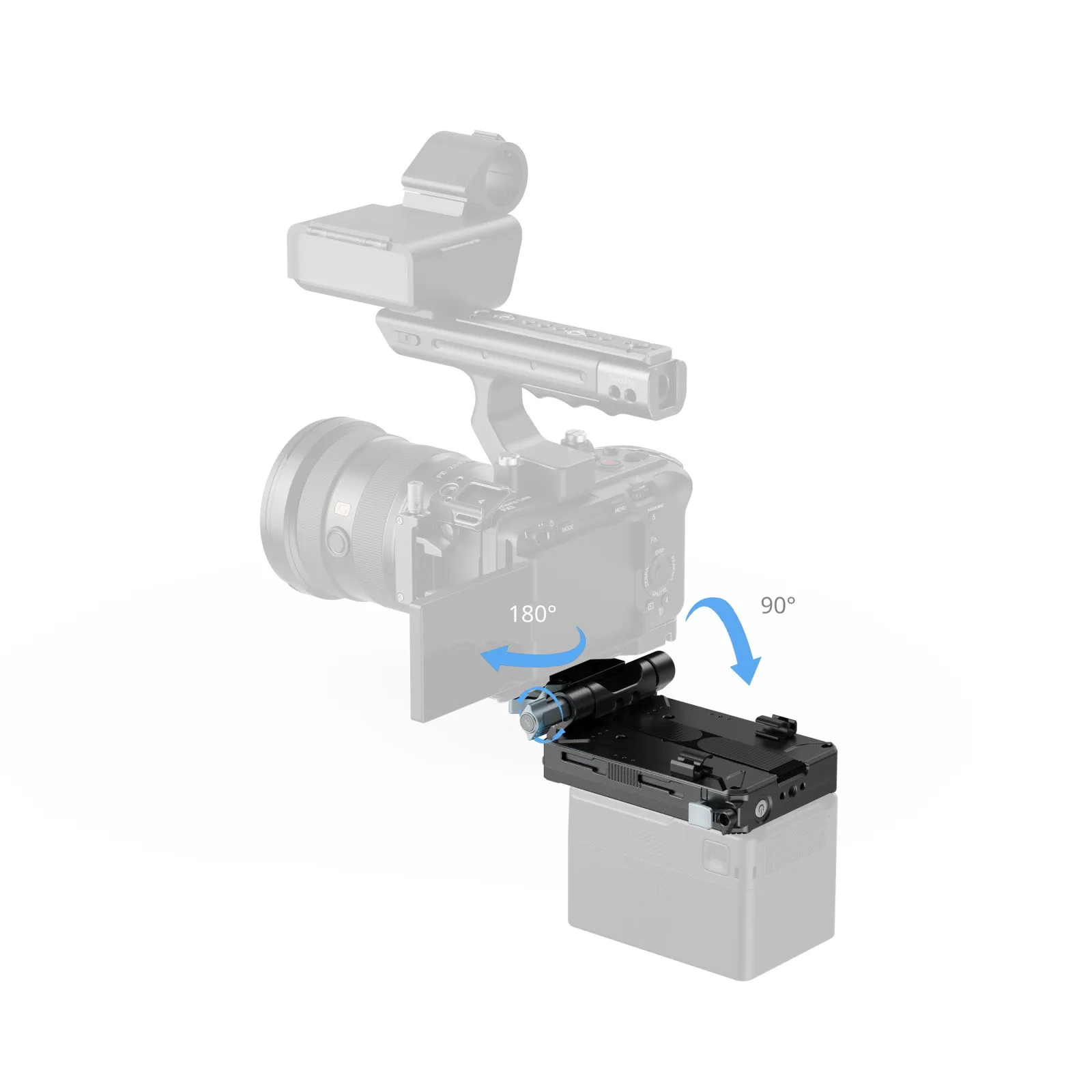

Fold-Flat Mount Solution

Upgraded pocket-ready folding plate for ultra-compact storage. Folds to phone-clamp size. Stainless steel gears lock securely under heavy loads. Damping mechanism ensures stable angle control

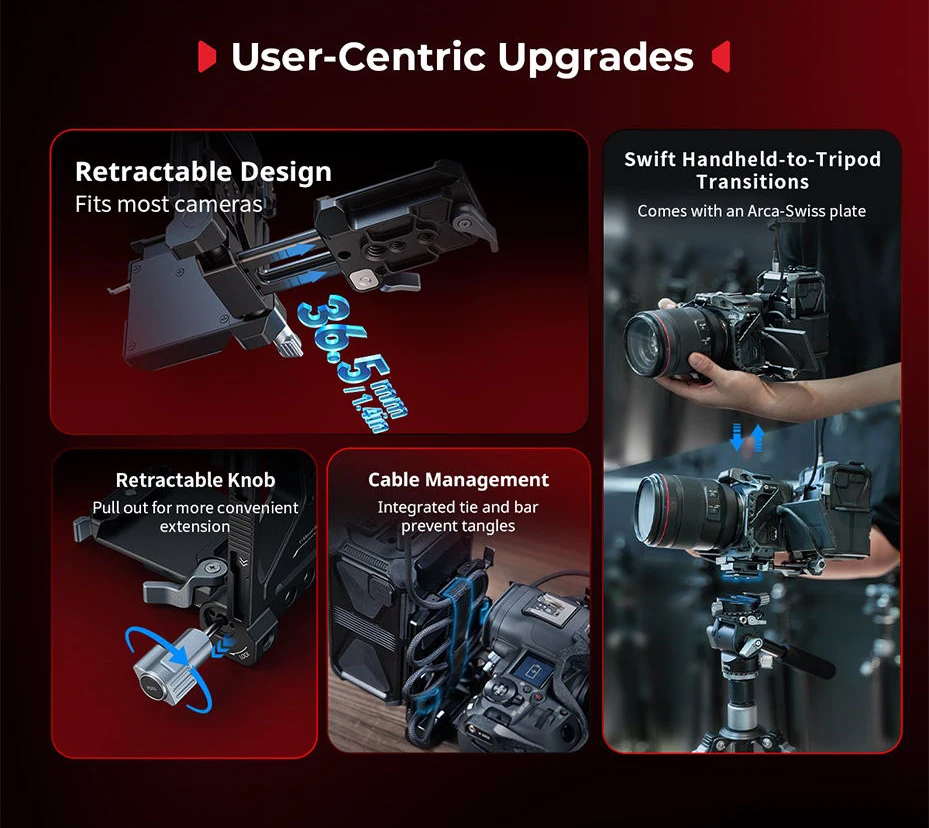

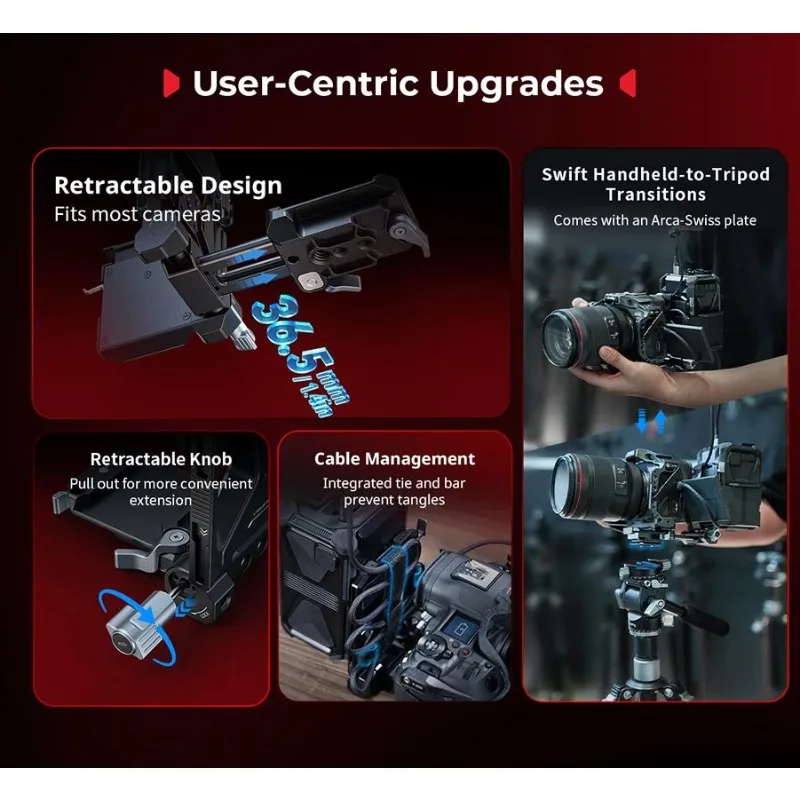

User-Centric Upgrades

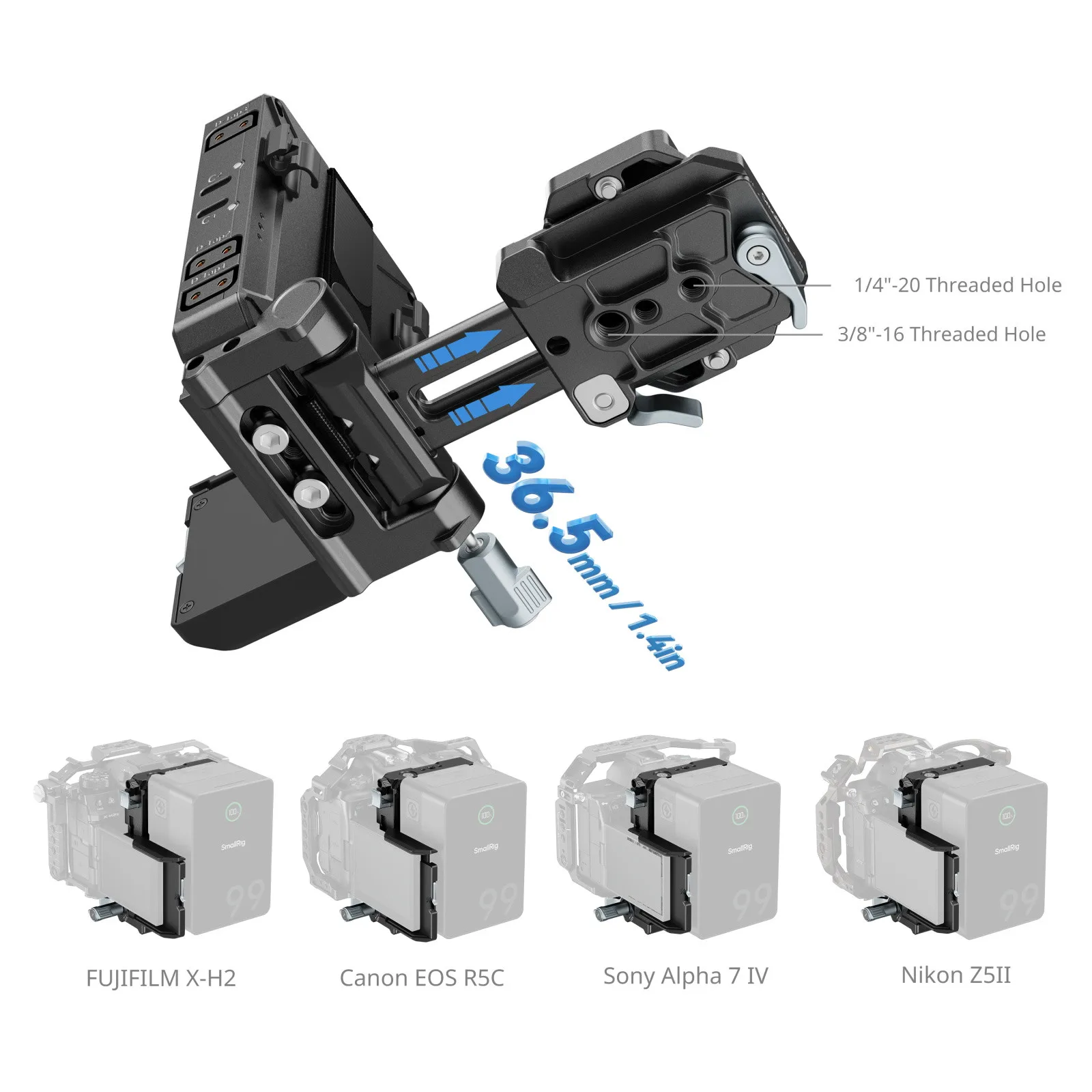

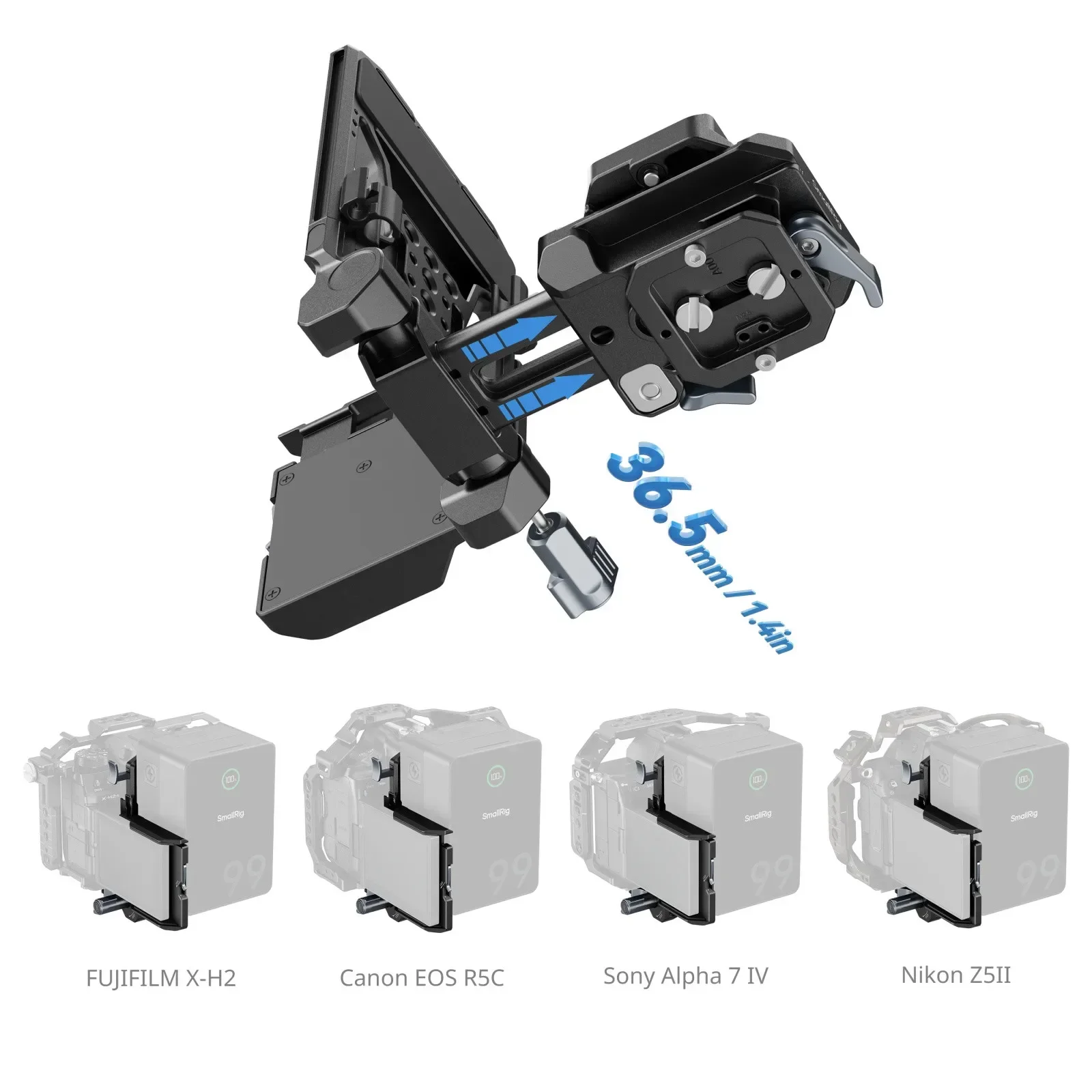

·Retractable Design: Fits most cameras

·Retractable Knob: Pull out for more convenient extension

·Cable Management: Integrated tie and bar prevent tangles

·Swift Handheld-to-Tripod Transitions: Comes with an Arca-Swiss plate

Seamless Battery Swap

Hot-swap circuit design. Replace batteries without unplugging, maintaining full power

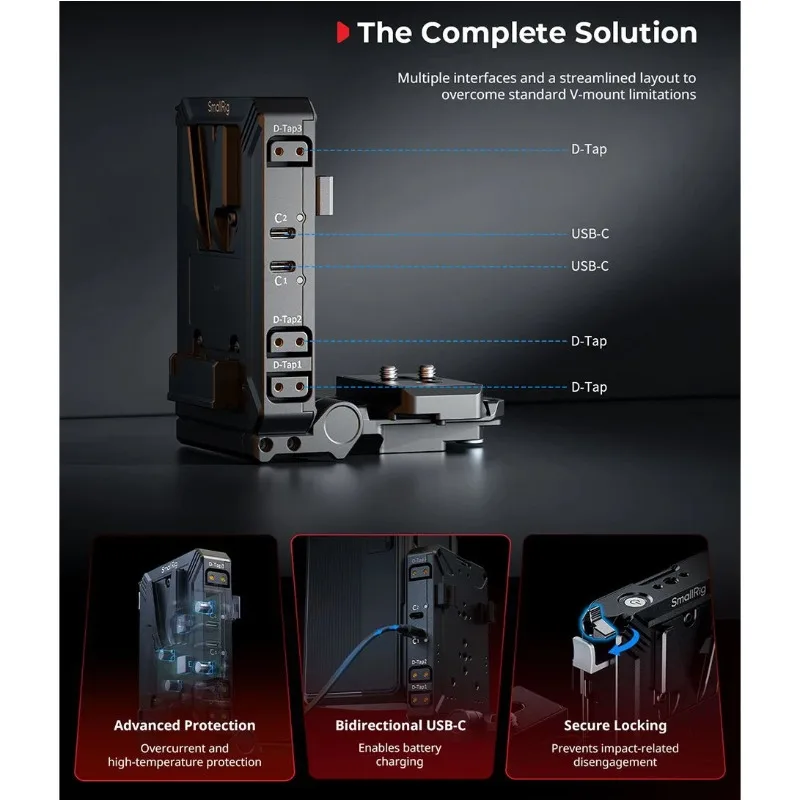

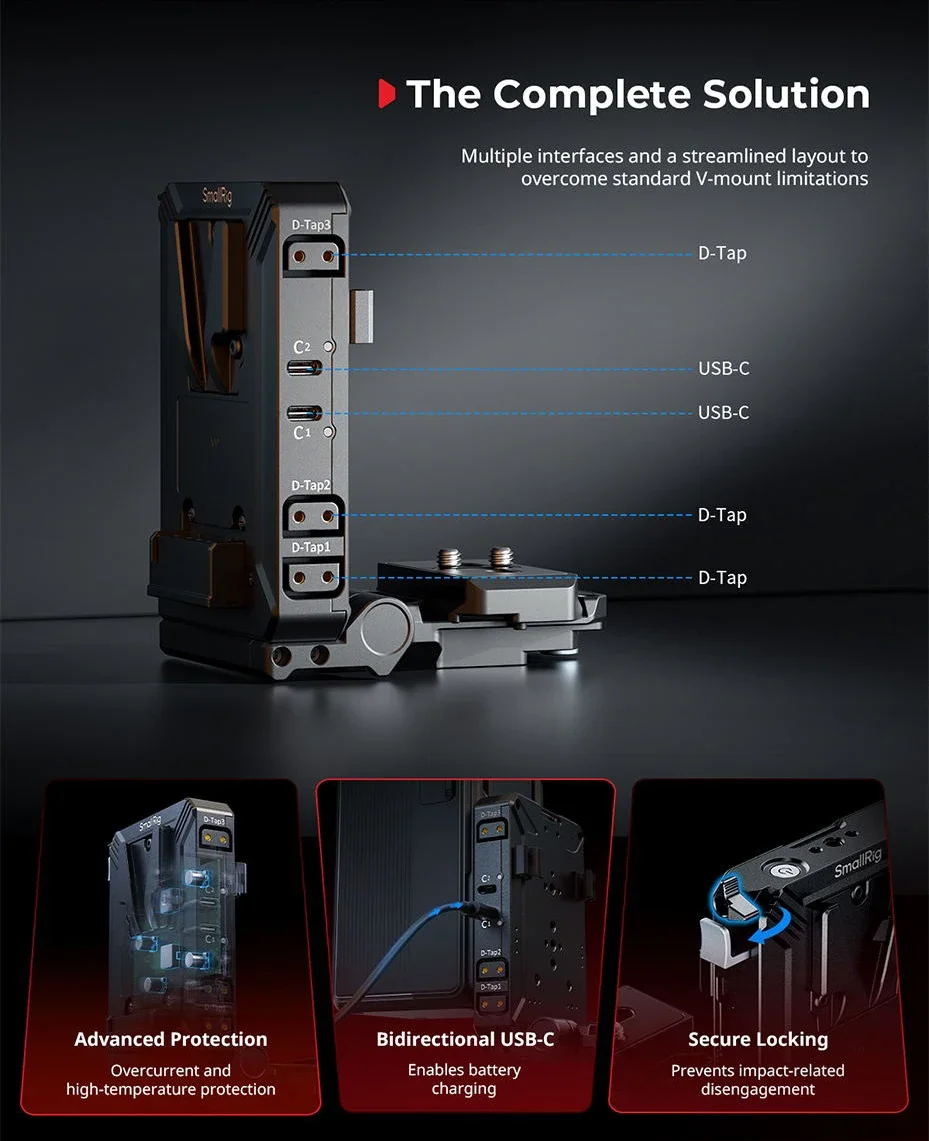

The Complete Solution

Multiple interfaces and a streamlined layout to overcome standard V-mount limitations

·Advanced Protection: Overcurrent and high-temperature protection

·Bidirectional UsB-C: Enables battery charging

·Secure Locking: Prevents impact-related disengagement

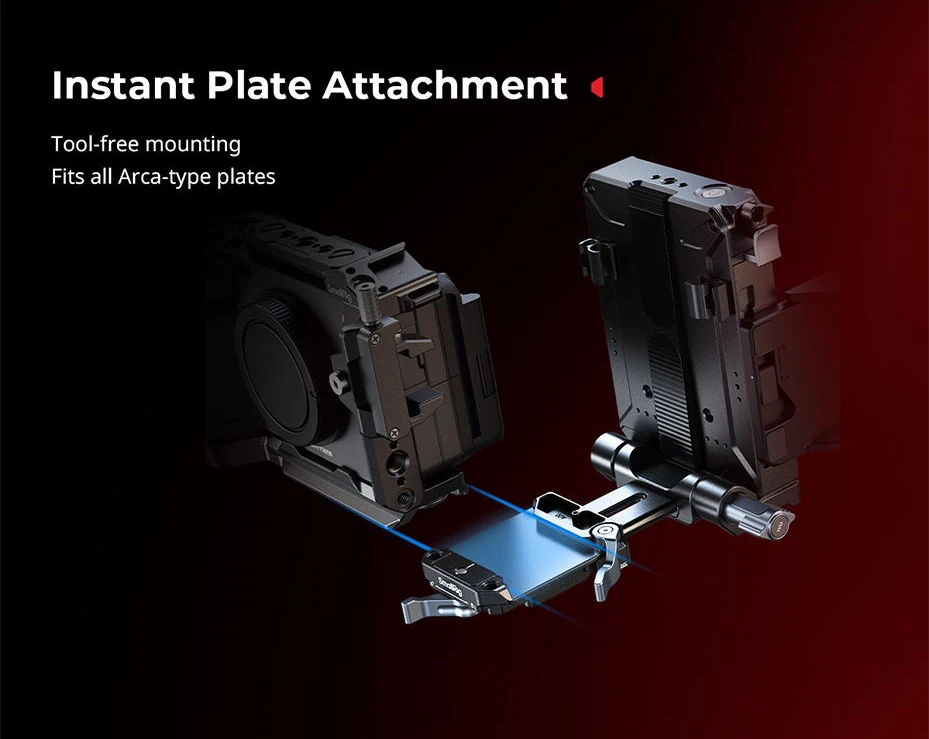

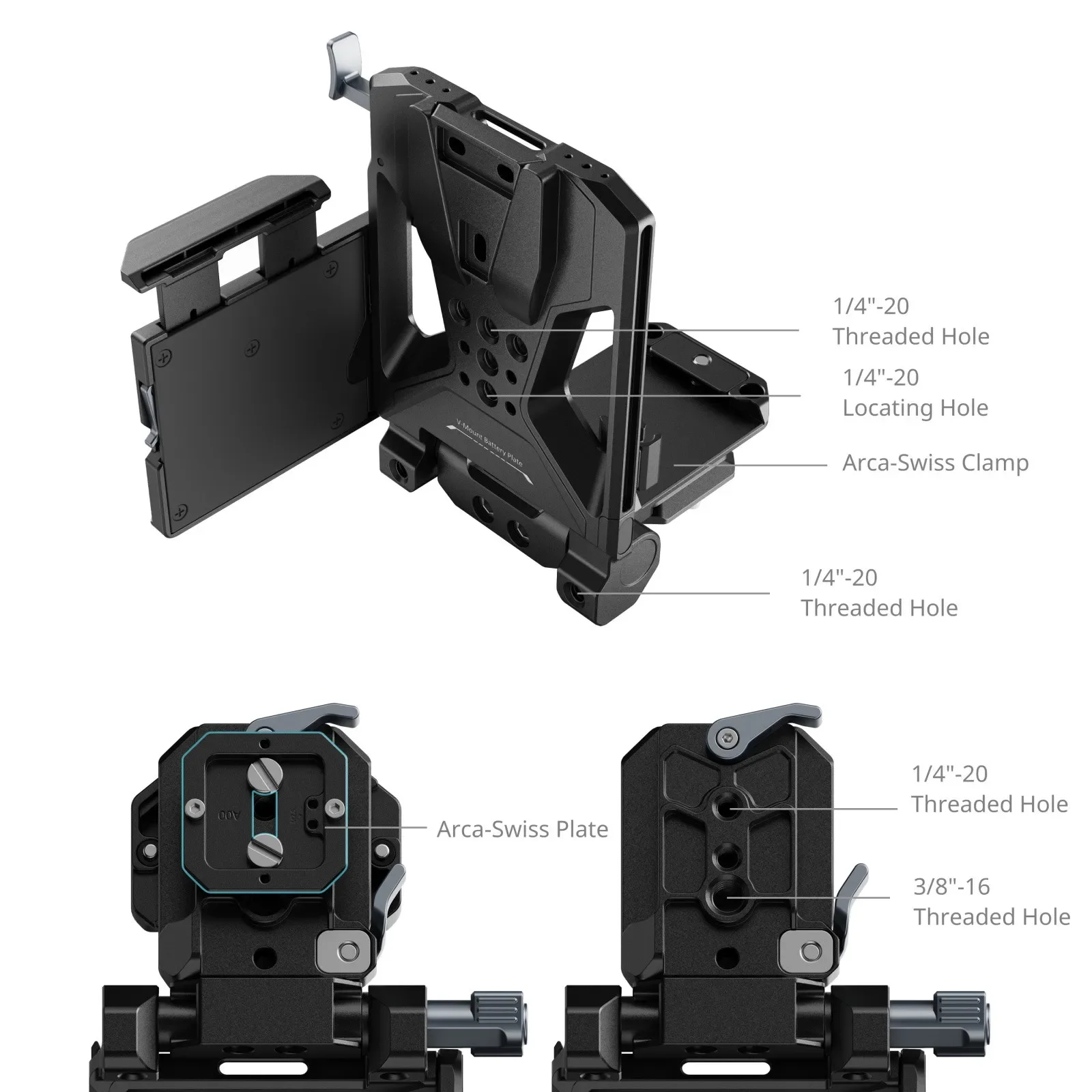

Instant Plate Attachment

Tool-free mounting Fits all Arca-type plates

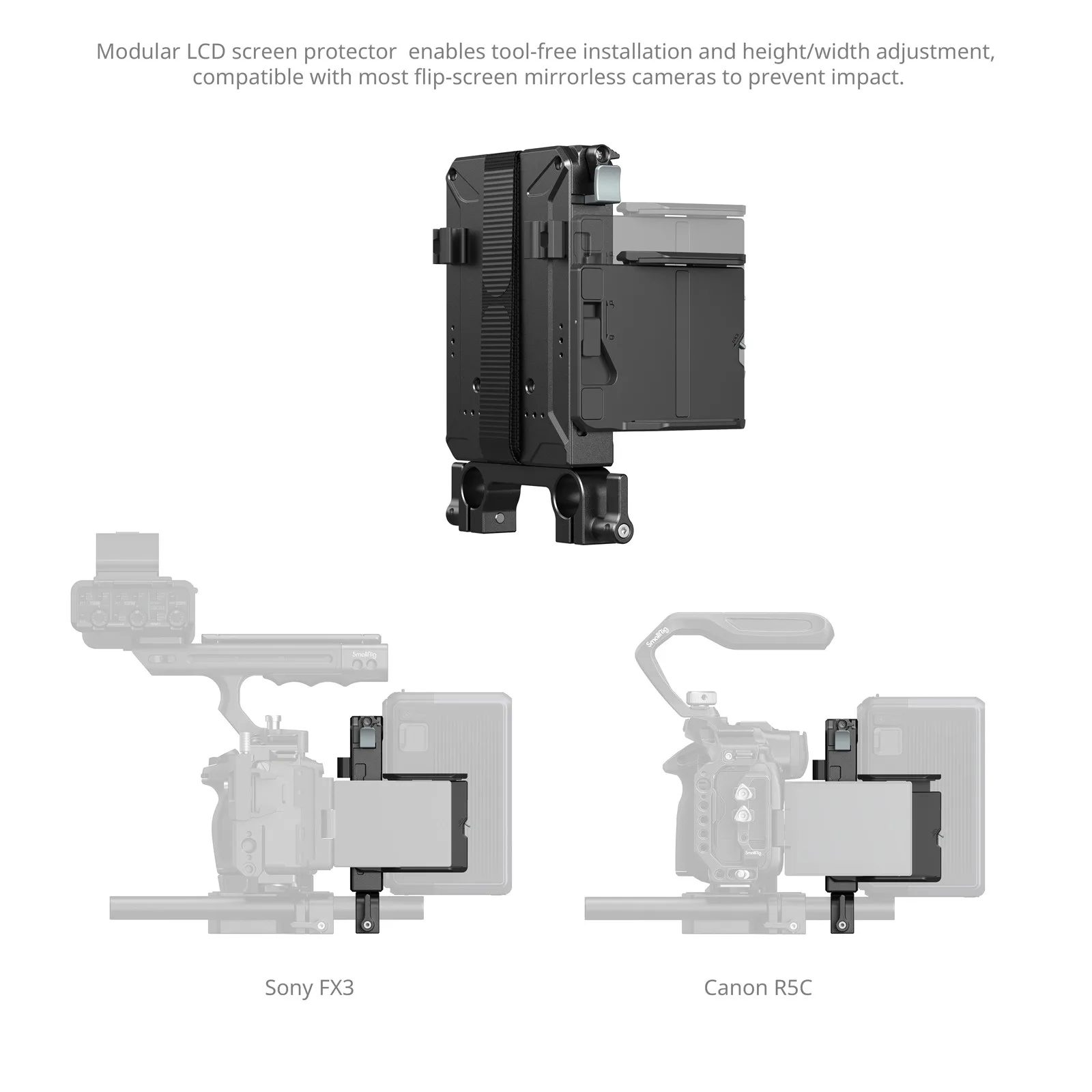

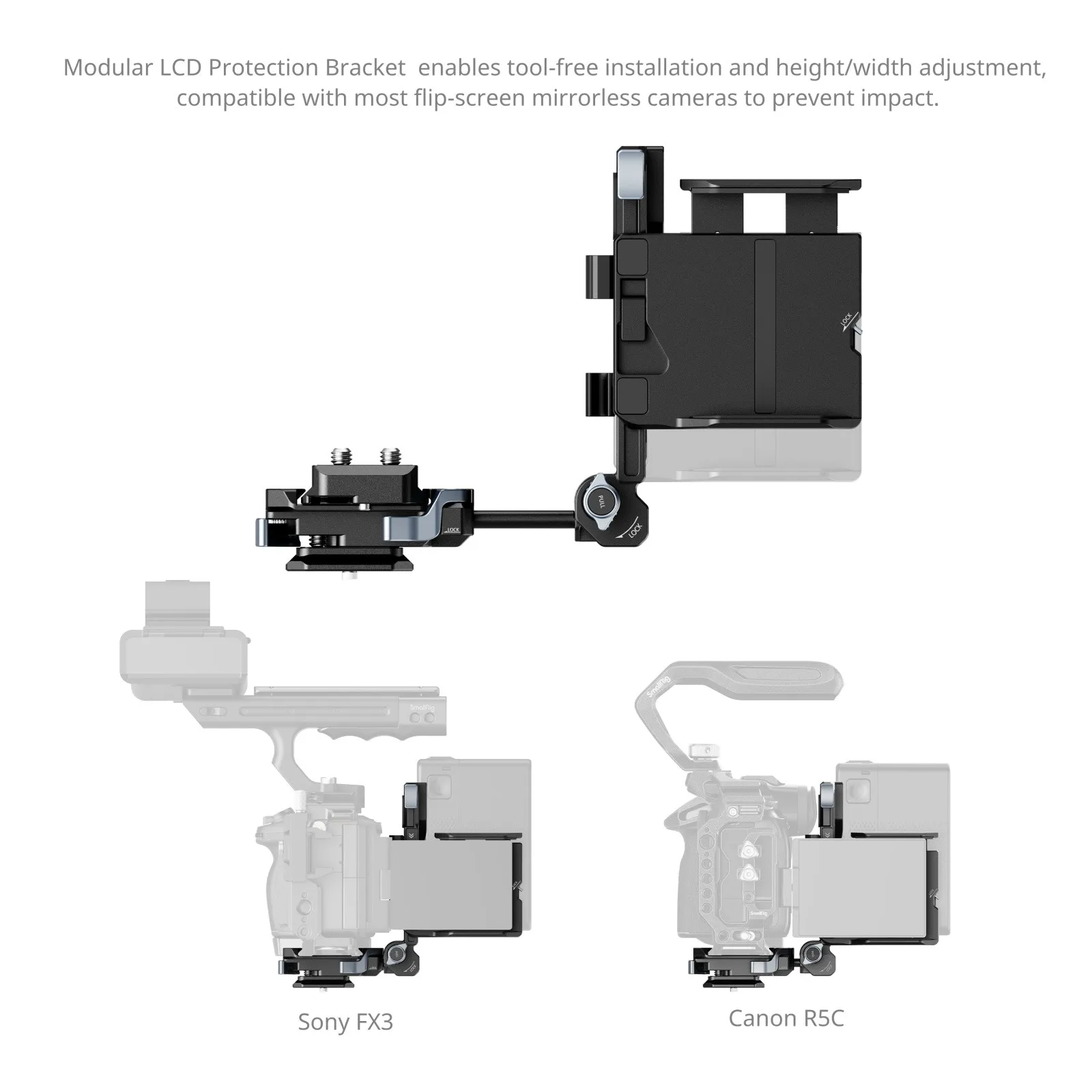

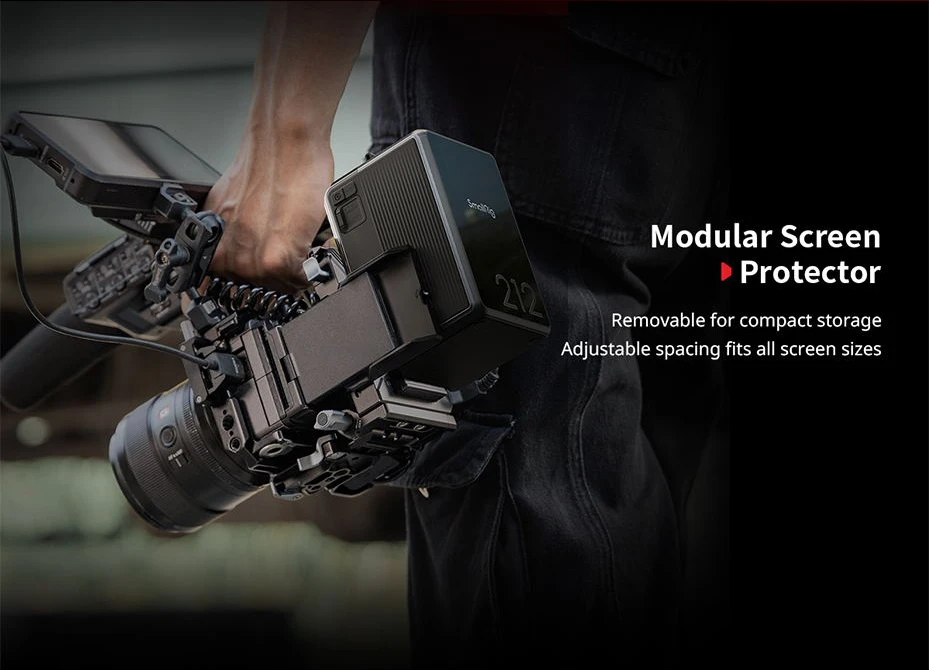

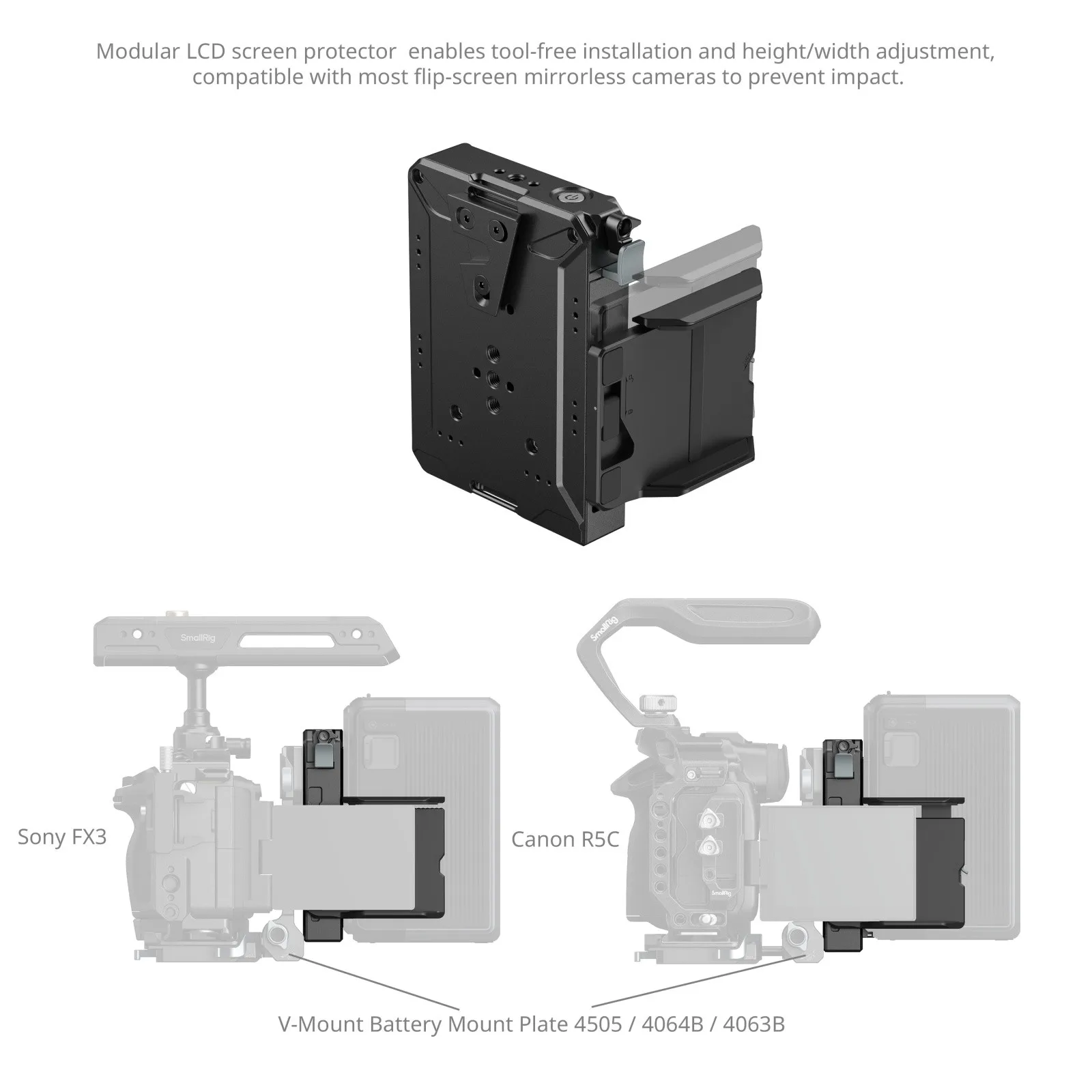

Modular Screen Protector

Removable for compact storage. Adjustable spacing fits all screen sizes

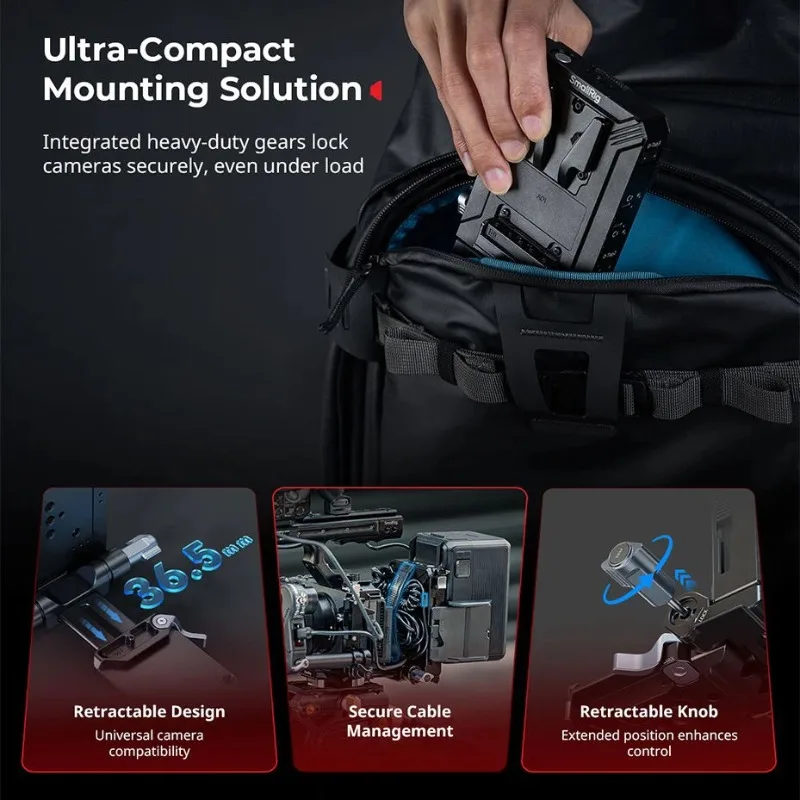

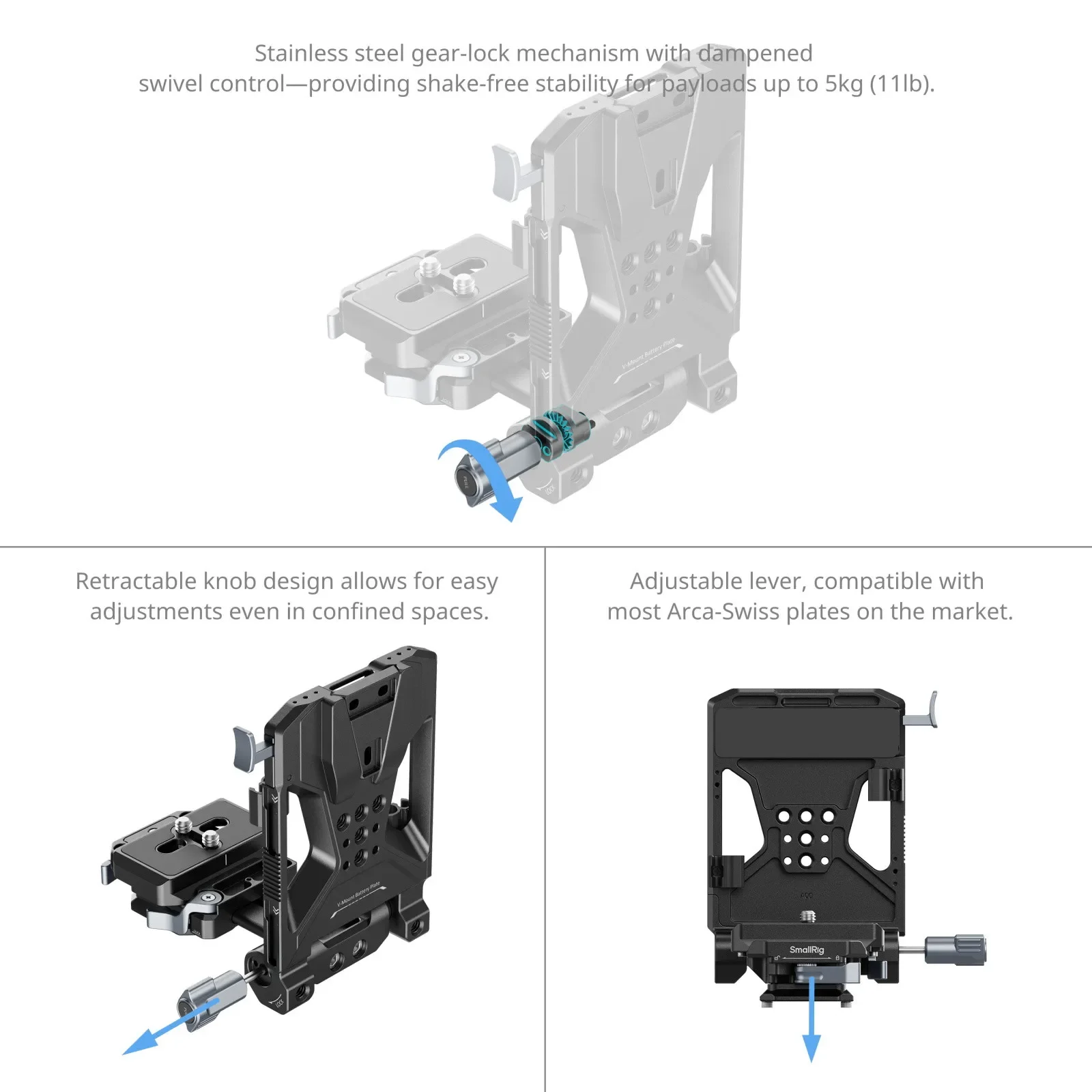

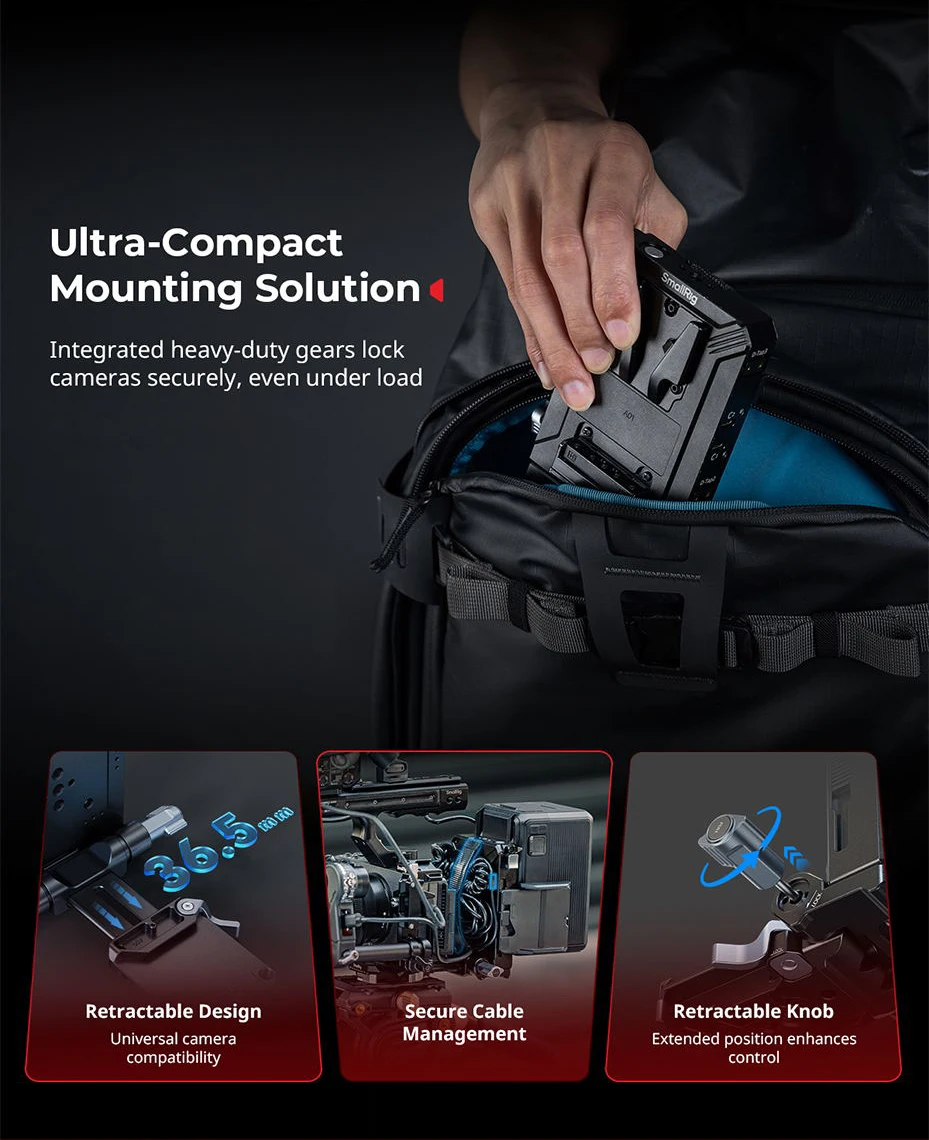

Ultra-Compact Mounting Solution

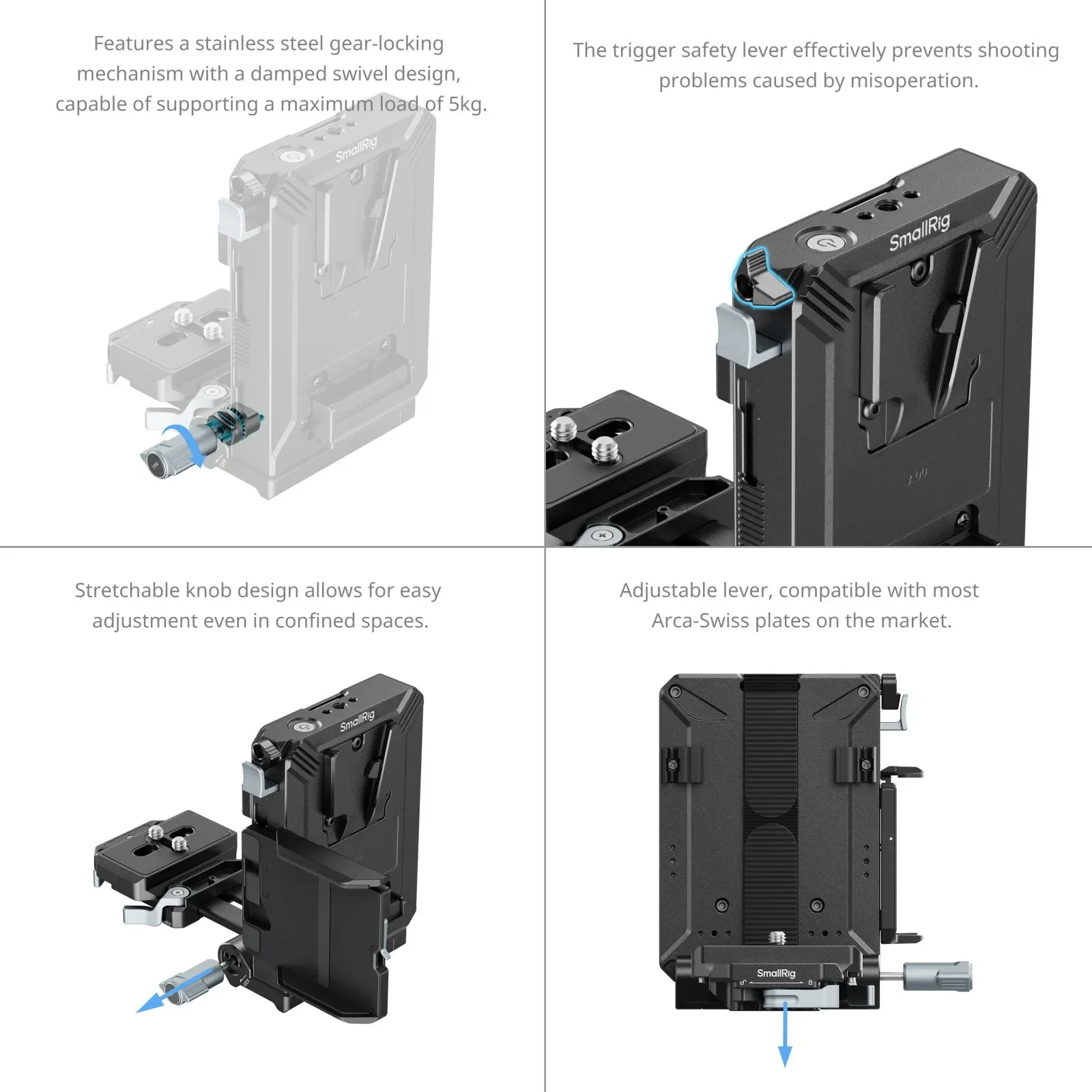

Integrated heavy-duty gears lock cameras securely, even under load

·Retractable Design: Universal camera compatibility

·Secure Cable Management

·Retractable Knob: Extended position enhances control

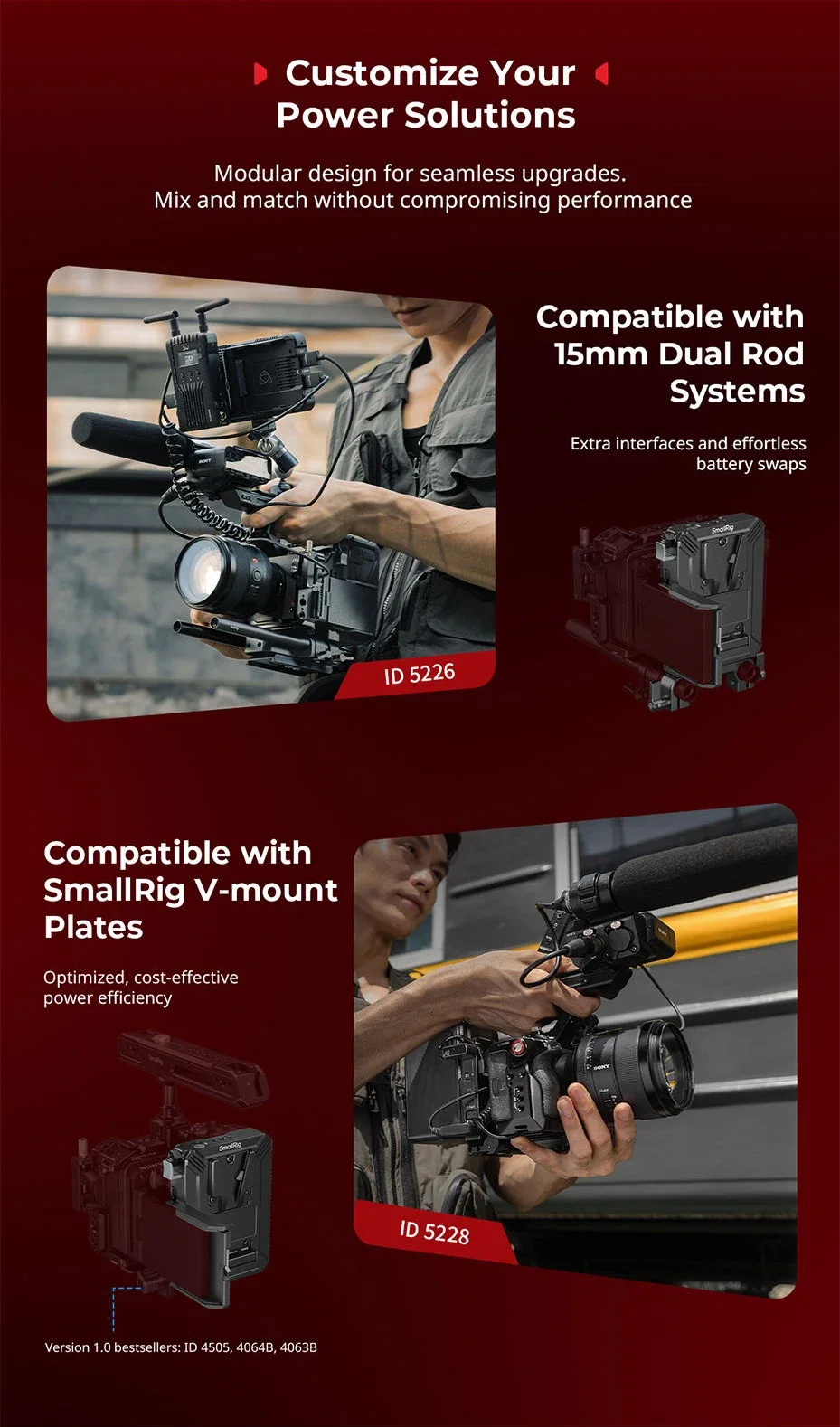

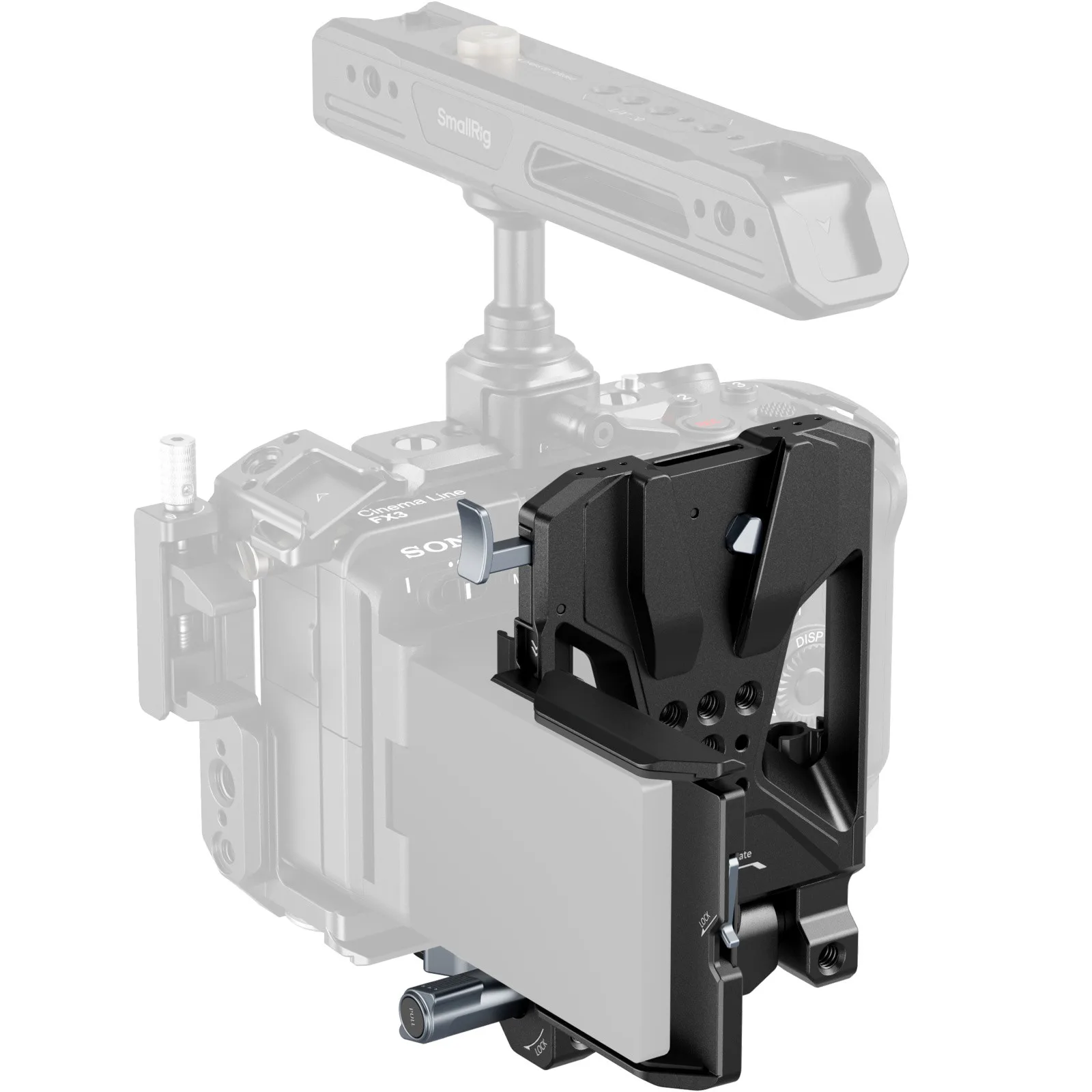

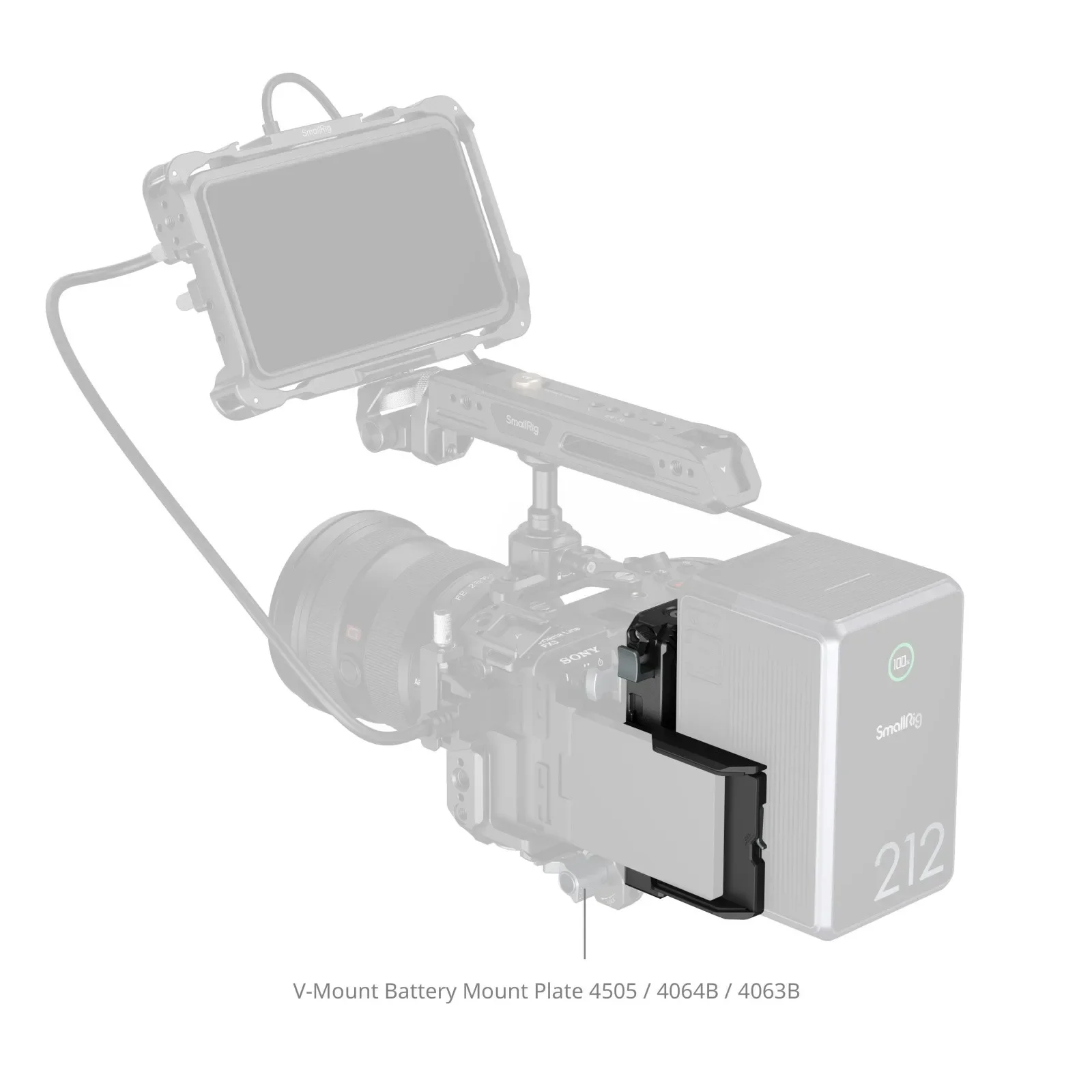

Customize Your Power Solutions

Modular design for seamless upgrades. Mix and match without compromising performance

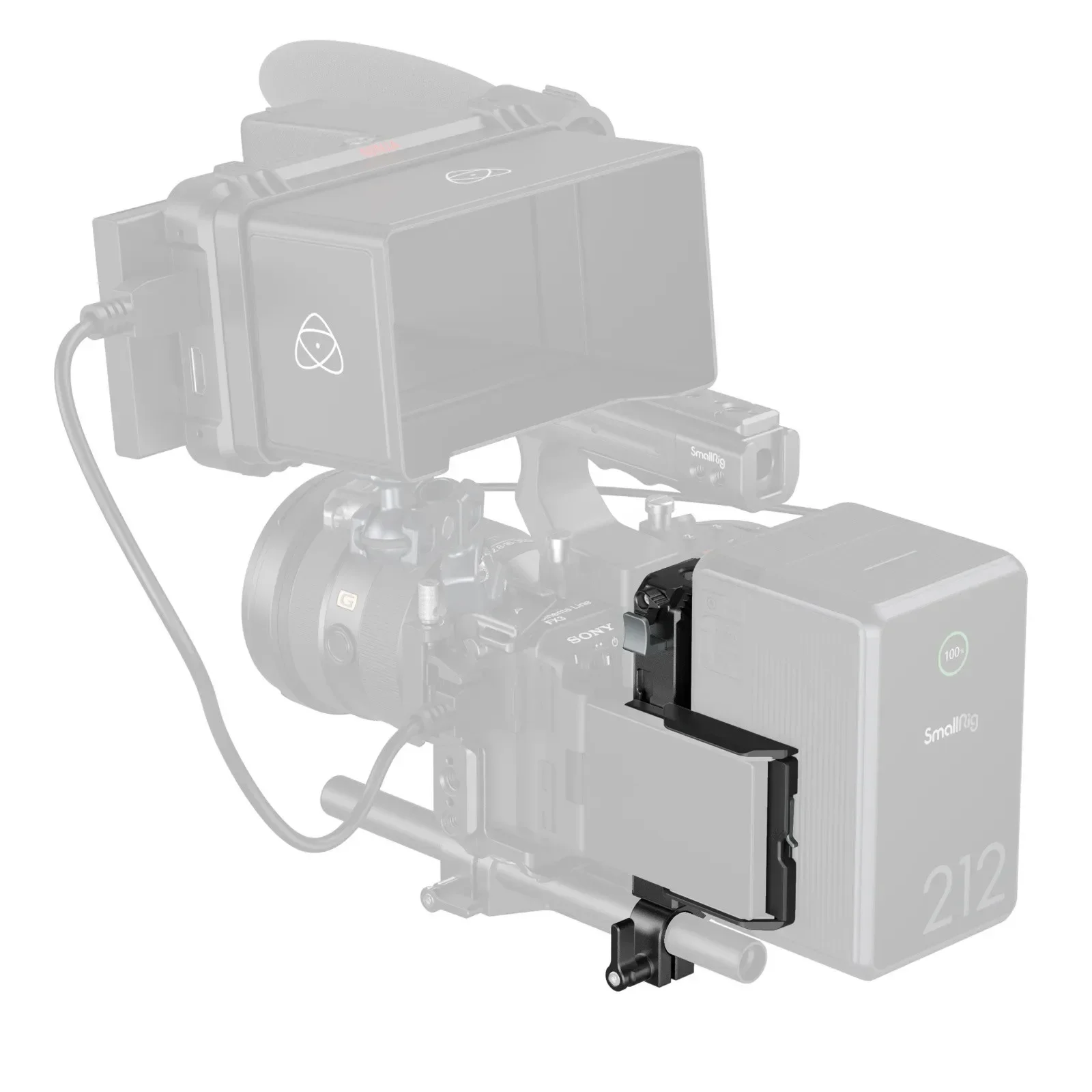

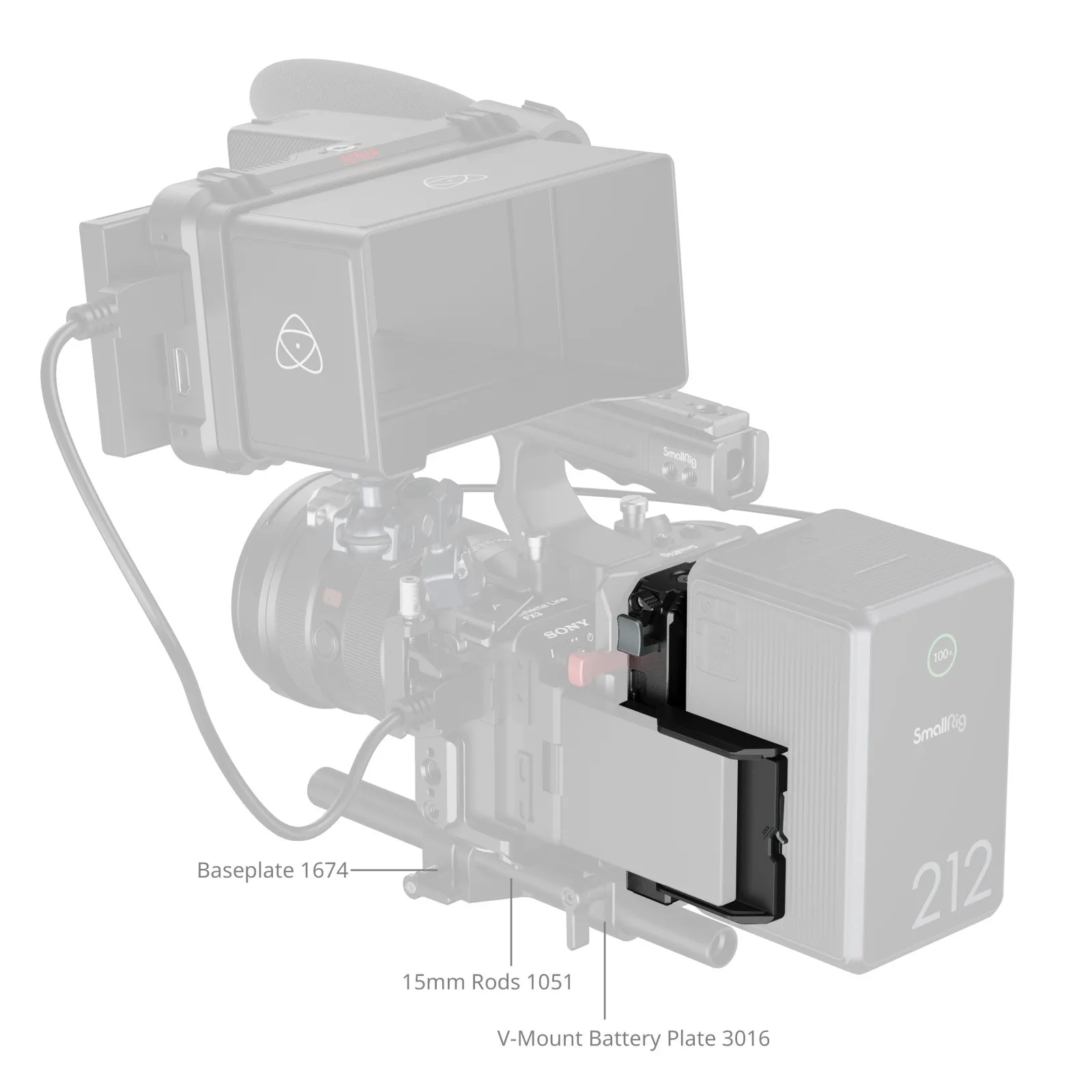

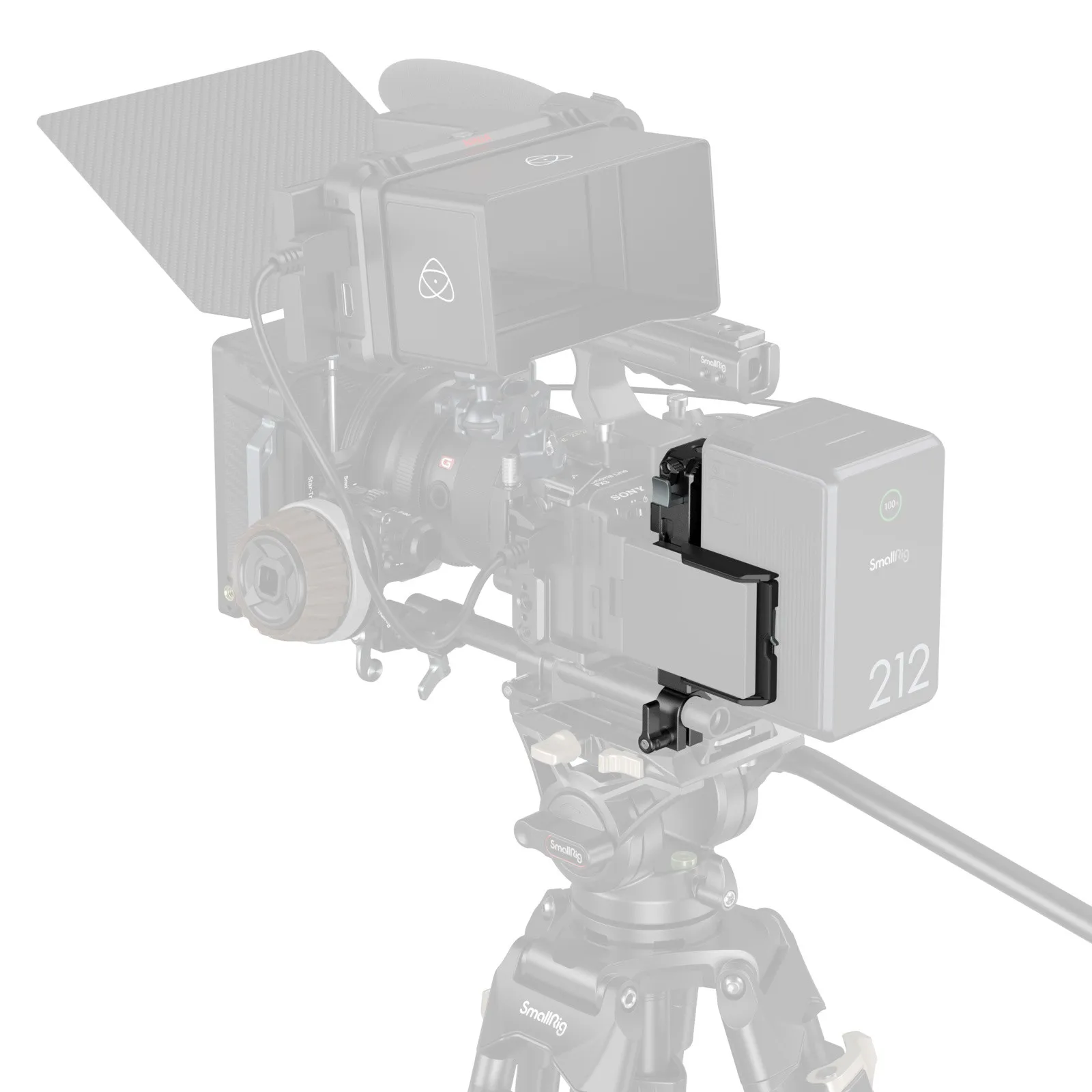

·Compatible with 15mm Dual Rod Systems: Extra interfaces and effortless battery swaps

·Compatible with SmallRig V-mount Plates:Optimized, cost-effective power efficiency

Precision in Power

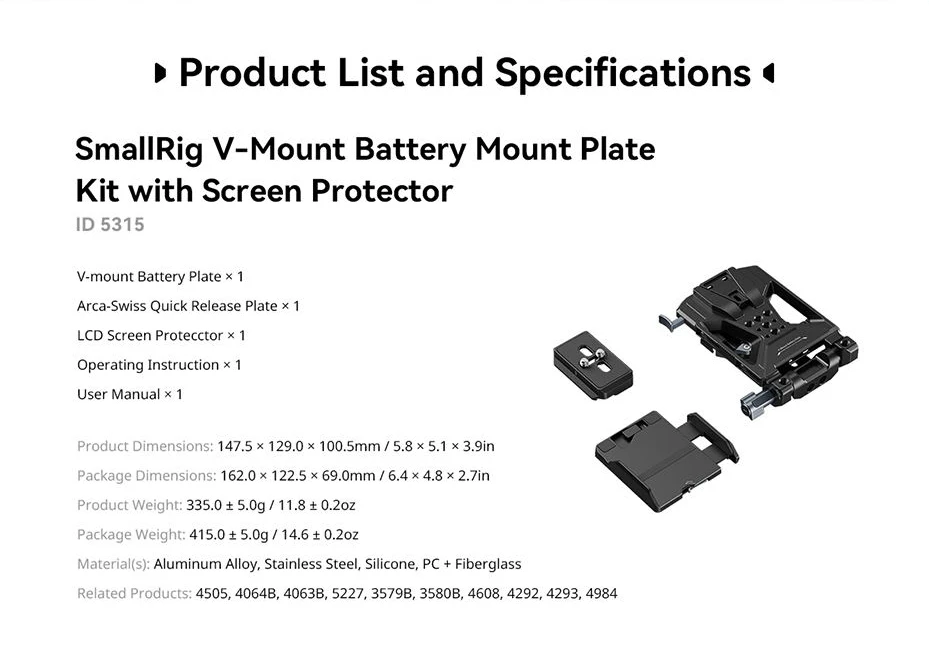

Product List and Specifications

(There are four packages to choose from. Please confirm the package you want to purchase before purchasing.)

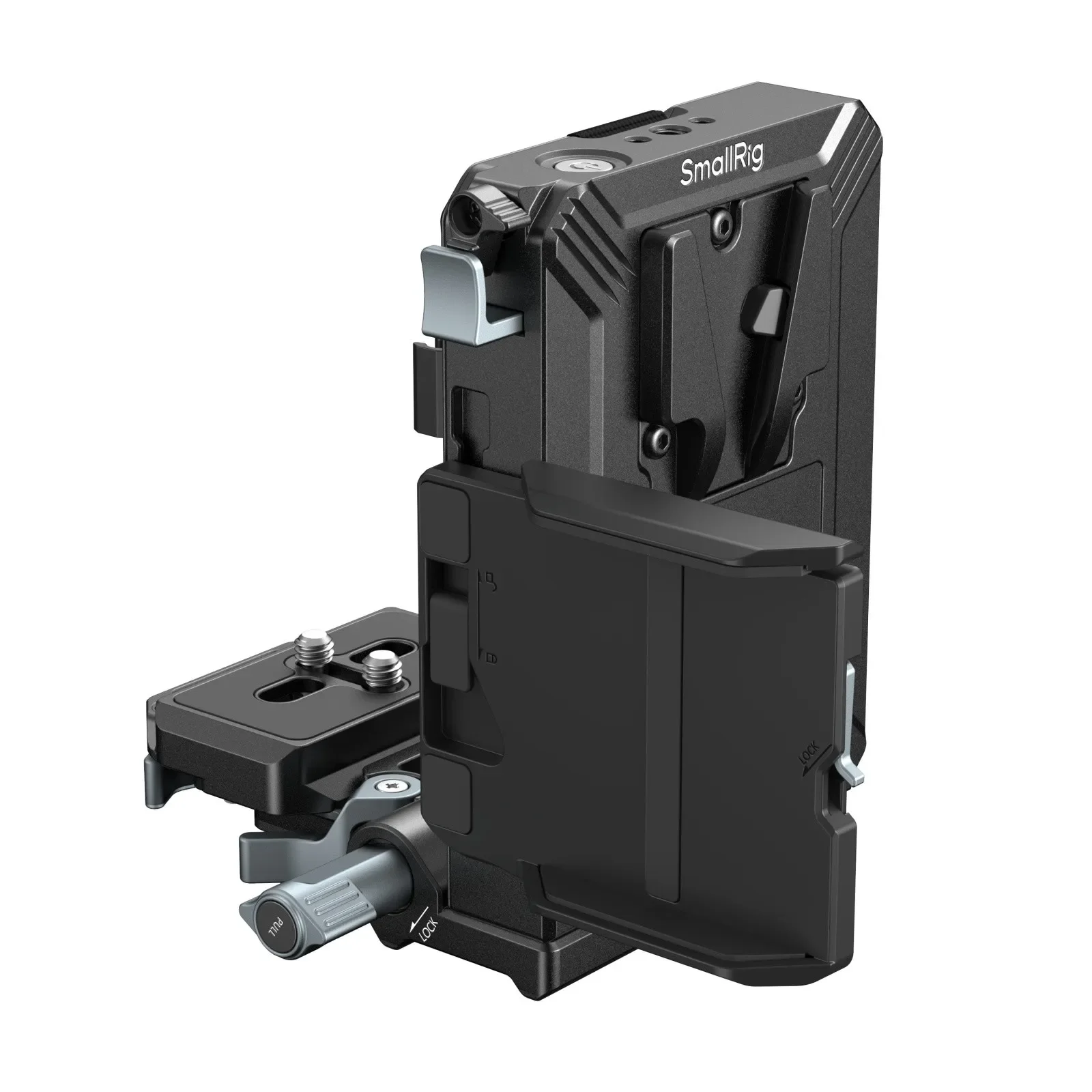

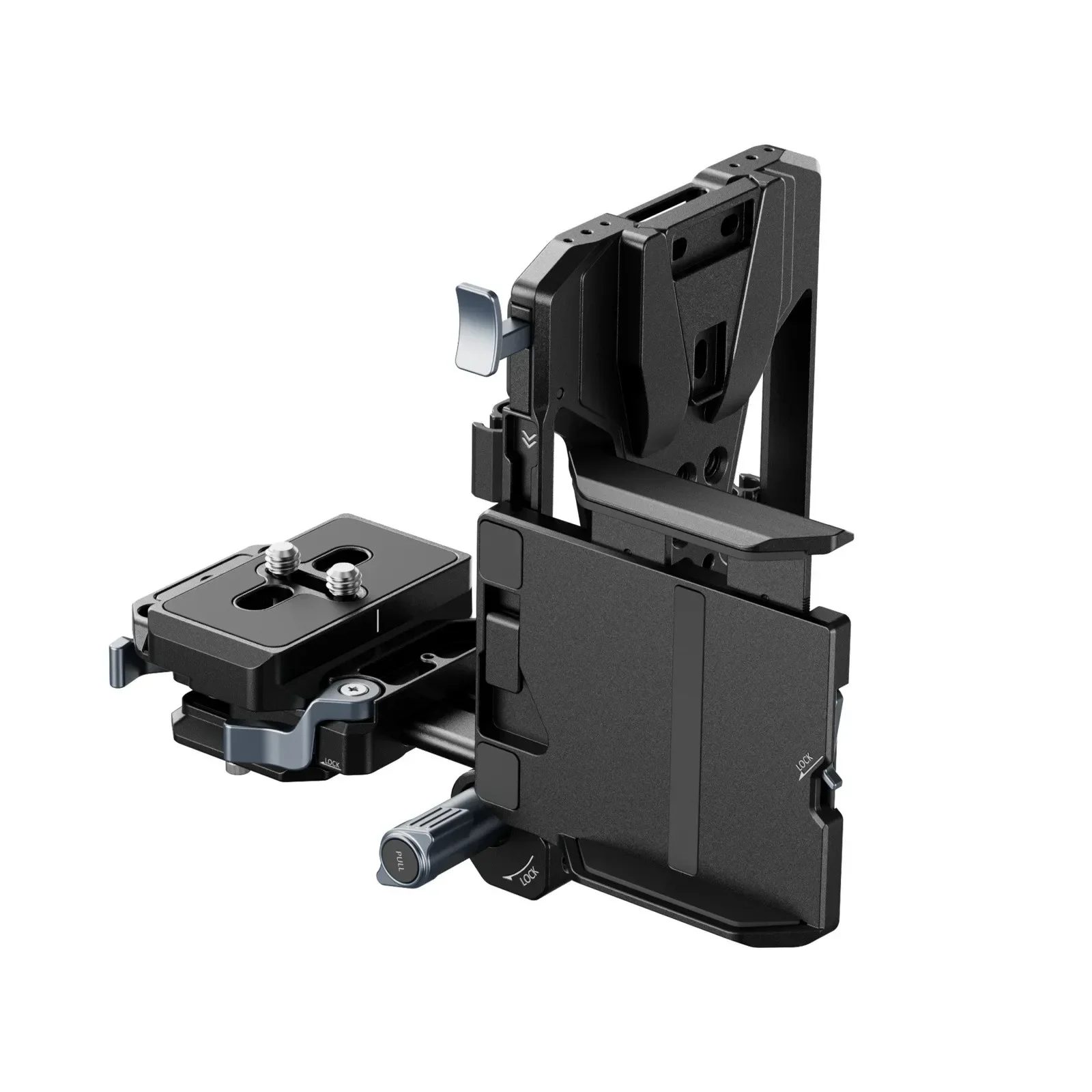

V-Mount Battery Mount Plate Kit with Screen Protector (ID 5315)

Packing List
1x V-Mount Battery Mount Plate
1x Arca-Swiss Plate
1x LCD Screen Protection Bracket
1x Operating Instruction
1x User Manual
Technical Data

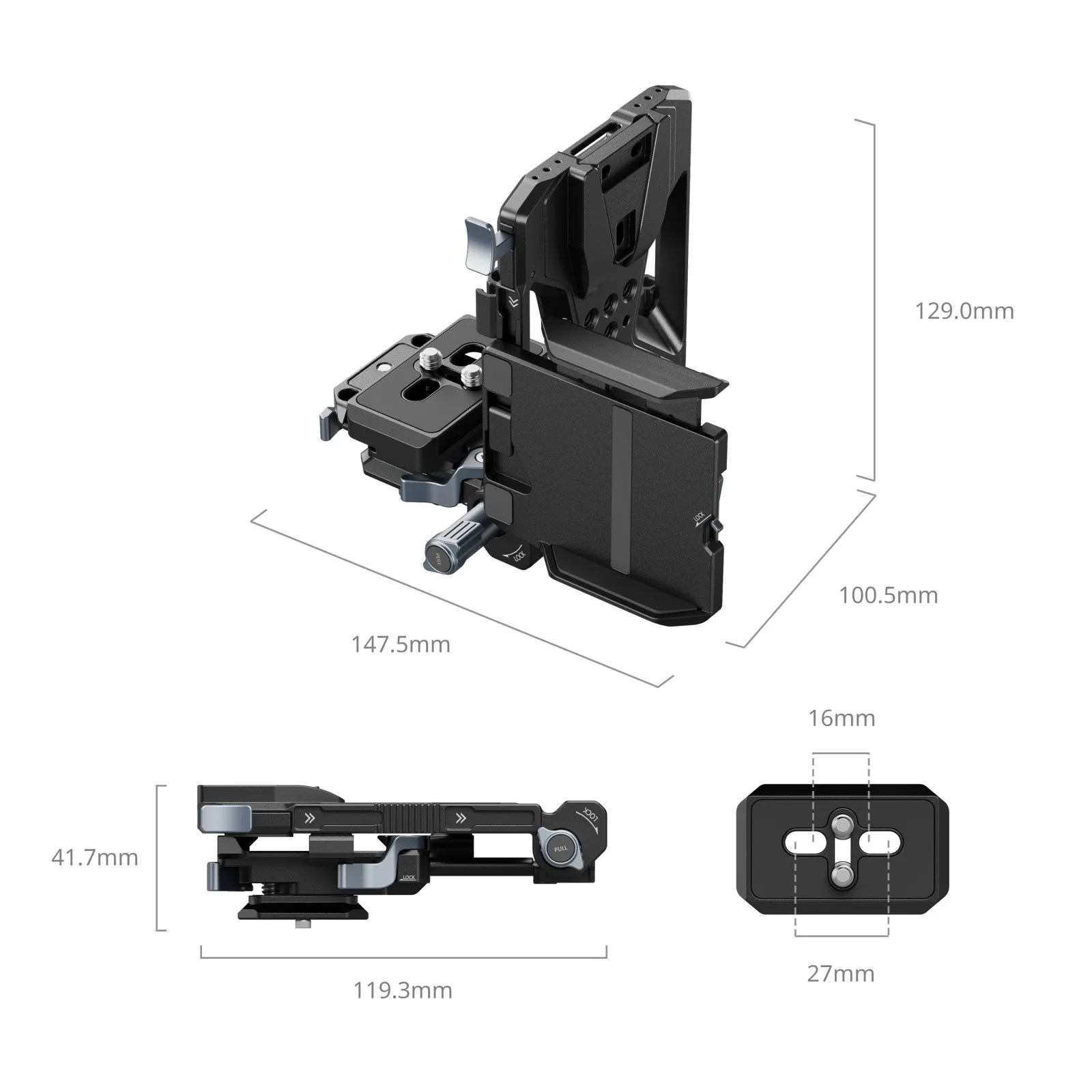

·Product Dimensions: 147.5 x 129.0 x 100.5mm / 5.8 x 5.1 x 3.9in
·Package Dimensions: 162.0 x 122.5 x 69.0mm / 6.4 x 4.8 x 2.7in
·Product Weight: 335.0 ± 5.0g / 11.8 ± 0.2oz
·Package Weight: 415.0 ± 5.0g / 14.6 ± 0.2oz
·Material(s): Aluminum Alloy, Stainless Steel, Silicone, PC+Fiberglass

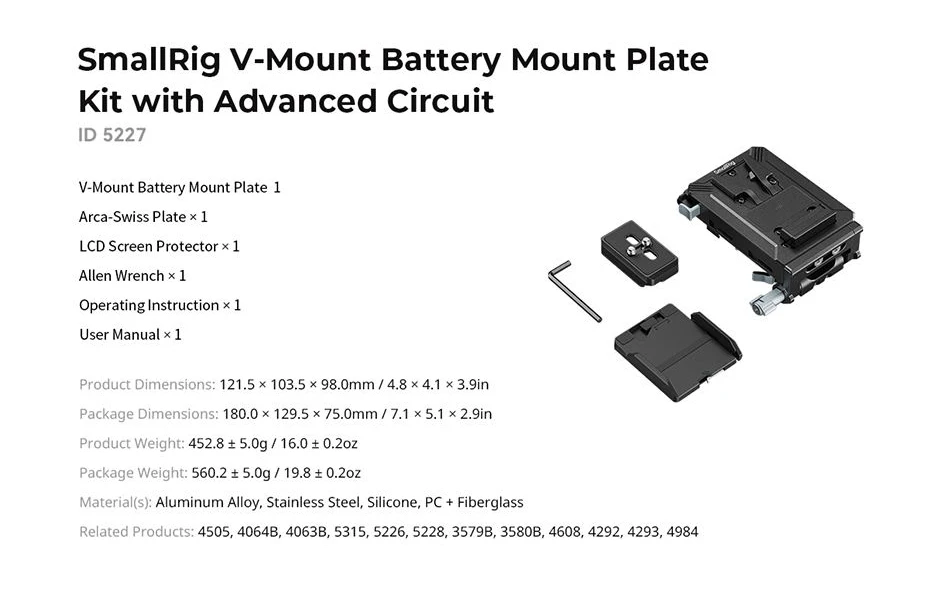

V-Mount Battery Mount Plate Kit with Advanced Circuit (ID 5227)

Packing List
1x V-Mount Battery Mount Plate
1x Arca-Swiss Plate
1x LCD Screen Protector
1x Allen Wrench
1x Operating Instruction
1x User Manual
Technical Data
·External V-Mount Battery Voltage: 11.0V–16.8V
·Recommended Battery Rated Capacity: 3500mAh–20000mAh / 14.8V (Nominal)
·D-Tap (Output Only): 11.2V–16.8V / 8A (Max). (Per D-Tap Port: 8A Max; Three-Port Combined: 18A Max)
·USB-C Input / Output:
USB-C1 Output / Input: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A; 65W (Max)
USB-C2 Output / Input: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A; 65W (Max)
PD3.0: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A
QC2.0 / AFC: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A
QC3.0: 5–12V ⎓ 3A
DCP 1.5A: 5V ⎓ 0.5–1.5A
PPS: 3.3–20V ⎓ 5A
APPLE 2.4A: 5V ⎓ 2.4A
·Discharge Cut-off Voltage: 11.2V. (Prioritize battery's own cutoff voltage for protection to avoid over-discharge)
·Operating Temperature: Charging: 0°C–45°C / 32℉–113℉
·Discharging: -15°C–60°C / 5℉–140℉
·Storage Temperature & Humidity:
Stored for one month: -20°C–60°C / -4℉–140℉
Stored for three month: -20°C–45°C / -4℉–113℉
Stored for one year: -20°C–20°C / -4℉–68℉
(Humid environment)
·Product Dimensions: 121.5 x 103.5 x 98.0mm / 4.8 x 4.1 x 3.9in
·Package Dimensions: 180.0 x 129.5 x 75.0mm / 7.1 x 5.1 x 3.0in
·Product Weight: 452.8 ± 5.0g / 16.0 ± 0.2oz
·Package Weight: 560.2 ± 5.0g / 19.8 ± 0.2oz
·Material(s): Aluminum Alloy, Stainless Steel, Silicone, PC+Fiberglass

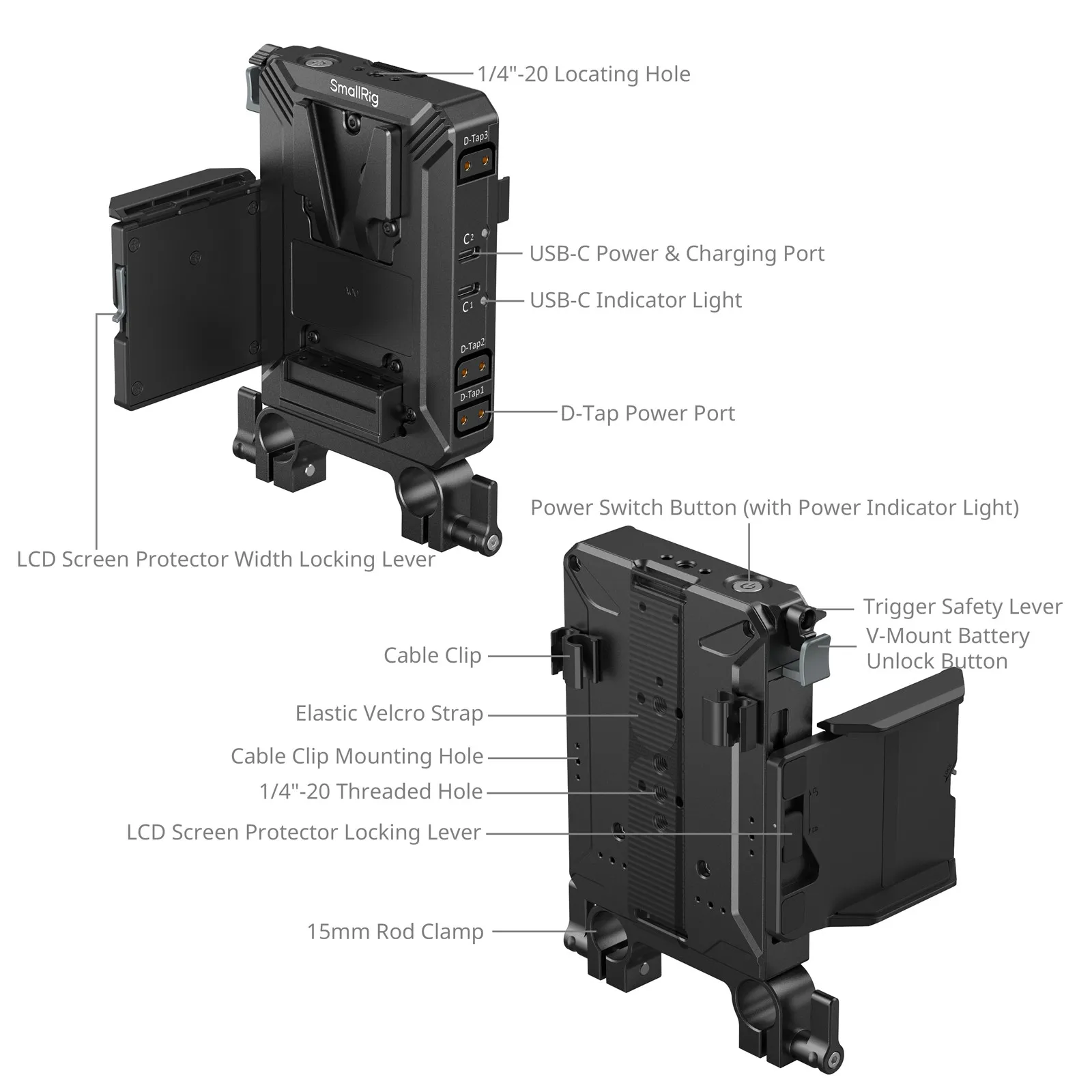

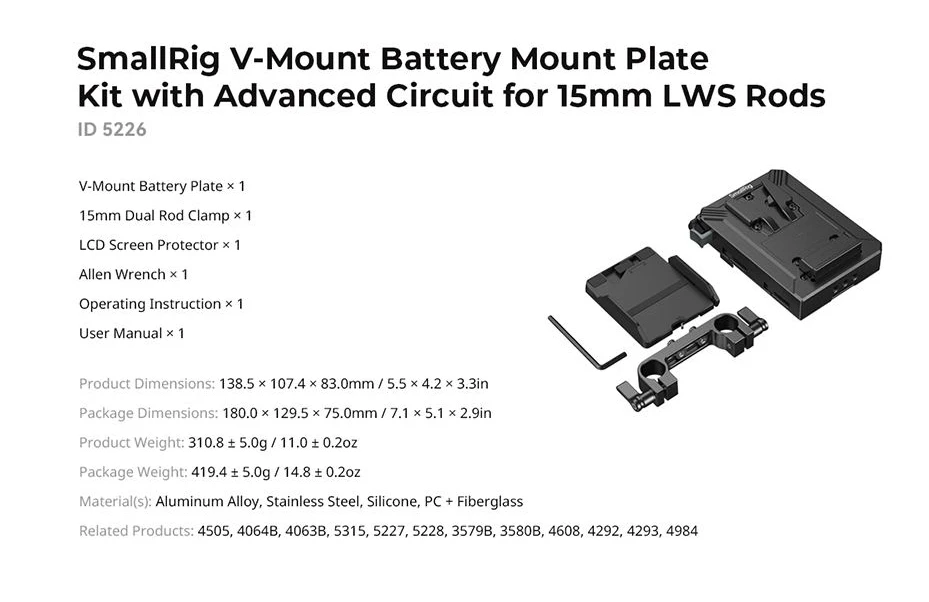

V-Mount Battery Mount Plate Kit with Advanced Circuit for 15mm LWS Rods (ID 5226)

Packing List
1x V-Mount Battery Plate
1x 15mm Dual Rod Clamp
1x LCD Screen Protector
1x Allen Wrench
1x Operating Instruction
1x User Manual
Technical Data
·External V-Mount Battery Voltage: 11.0V–16.8V
·Recommended Battery Rated Capacity: 3500mAh–20000mAh / 14.8V (Nominal)
·D-Tap (Output Only): 11.2V–16.8V / 8A (Max). (Per D-Tap Port: 8A Max; Three-Port Combined: 18A Max)
·USB-C Input / Output:
USB-C1 Output / Input: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A; 65W (Max)
USB-C2 Output / Input: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A; 65W (Max)
PD3.0: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A
QC2.0 / AFC: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A
QC3.0: 5–12V ⎓ 3A
DCP 1.5A: 5V ⎓ 0.5–1.5A
PPS: 3.3–20V ⎓ 5A
APPLE 2.4A: 5V ⎓ 2.4A
·Discharge Cut-off Voltage: 11.2V (Prioritize battery's own cutoff voltage for protection to avoid over-discharge)
·Operating Temperature:
Charging: 0°C–45°C / 32℉–113℉
Discharging: -15°C–60°C / 5℉–140℉
·Storage Temperature & Humidity:
Stored for one month: -20°C–60°C / -4℉–140℉
Stored for three month: -20°C–45°C / -4℉–113℉
Stored for one year: -20°C–20°C / -4℉–68℉
(Humid environment)
·Product Dimensions: 138.5 x 107.4 x 83.0mm / 5.5 x 4.2 x 3.3in
·Package Dimensions: 180.0 x 129.5 x 75.0mm / 7.1 x 5.1 x 3.0in
·Product Weight: 310.8 ± 5.0g / 11.0 ± 0.2oz
·Package Weight: 419.4 ± 5.0g / 14.8 ± 0.2oz
·Material(s): Aluminum Alloy, Stainless Steel, Silicone, PC+Fiberglass

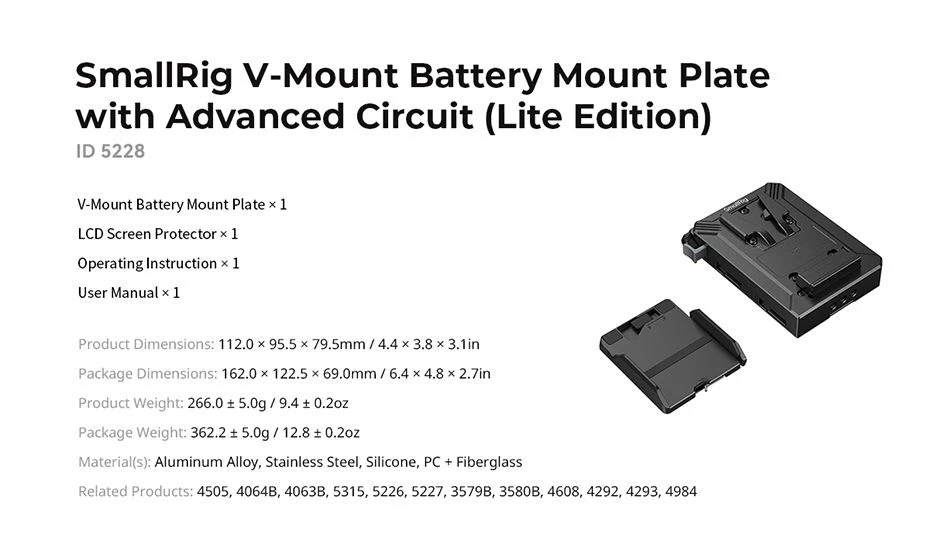

V-Mount Battery Mount Plate with Advanced Circuit (Lite Edition) (ID 5228)

Packing List
1x V-Mount Battery Mount Plate
1x LCD Screen Protector
1x Operating Instruction
1x User Manual
Technical Data
·External V-Mount Battery Voltage: 11.0V–16.8V
·Recommended Battery Rated Capacity: 3500mAh–20000mAh / 14.8V (Nominal)
·D-Tap (Output Only): 11.2V–16.8V / 8A (Max) . (Per D-Tap Port: 8A Max; Three-Port Combined: 18A Max)
·USB-C Input / Output:
USB-C1 Output / Input: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A; 65W (Max)
USB-C2 Output / Input: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A; 65W (Max)
PD3.0: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A, 15V ⎓ 3A, 20V ⎓ 3.25A
QC2.0 / AFC: 5V ⎓ 3A, 9V ⎓ 3A, 12V ⎓ 3A
QC3.0: 5–12V ⎓ 3A
DCP 1.5A: 5V ⎓ 0.5–1.5A
PPS: 3.3–20V ⎓ 5A
APPLE 2.4A: 5V ⎓ 2.4A
·Discharge Cut-off Voltage: 11.2V (Prioritize battery's own cutoff voltage for protection to avoid over-discharge)
·Operating Temperature:
Charging: 0°C–45°C / 32℉–113℉
Discharging: -15°C–60°C / 5℉–140℉
·Storage Temperature & Humidity:
Stored for one month: -20°C–60°C / -4℉–140℉
Stored for three month: -20°C–45°C / -4℉–113℉
Stored for one year: -20°C–20°C / -4℉–68℉
(Humid environment)

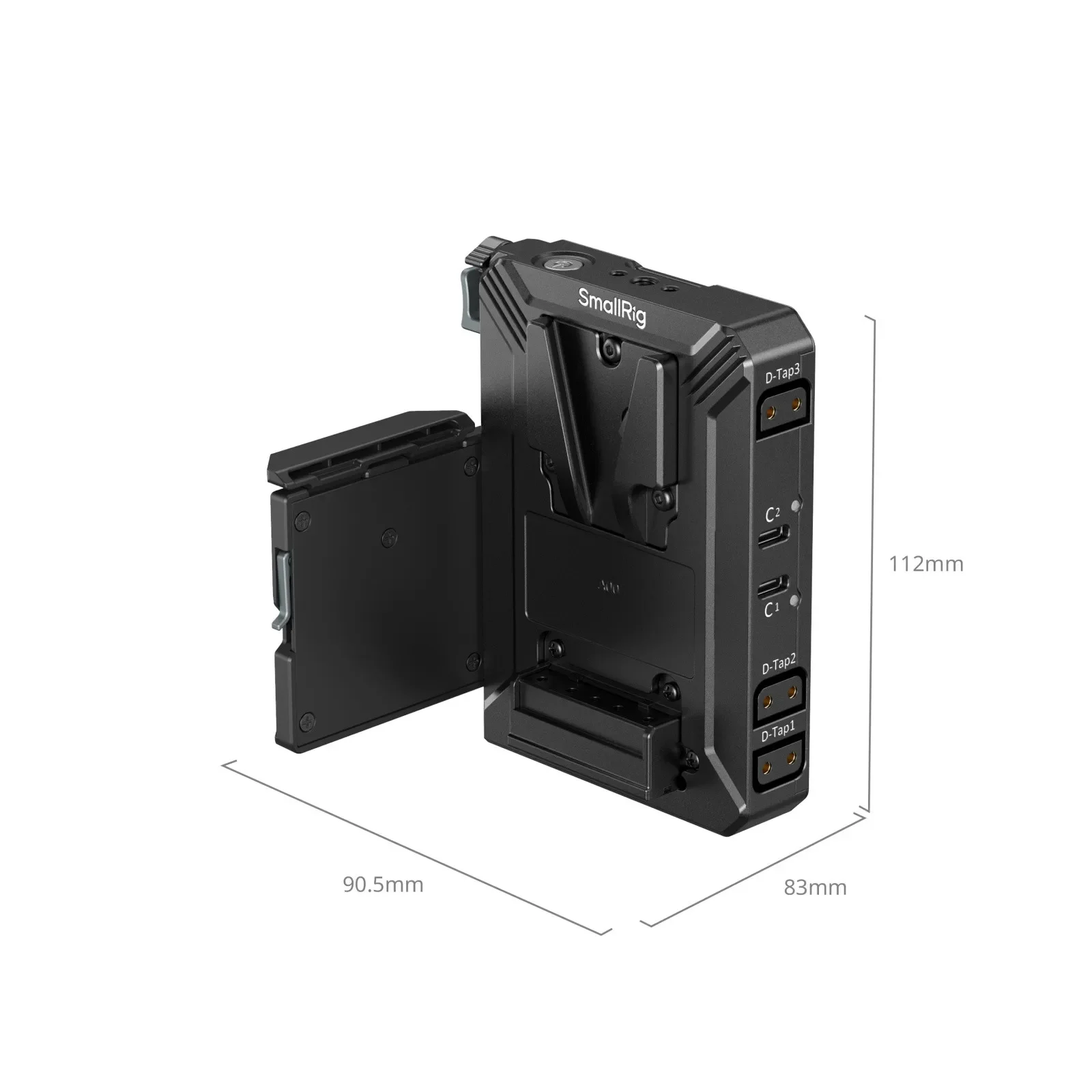

·Product Dimensions: 112.0 x 95.5 x 79.5mm / 4.4 x 3.8 x 3.1in
·Package Dimensions: 162.0 x 122.5 x 69.0mm / 6.4 x 4.8 x 2.7in
·Product Weight: 266.0 ± 5.0g / 9.4 ± 0.2oz
·Package Weight: 362.2 ± 5.0g / 12.8 ± 0.2oz
·Material(s): Aluminum Alloy, Stainless Steel, Silicone, PC+Fiberglass
