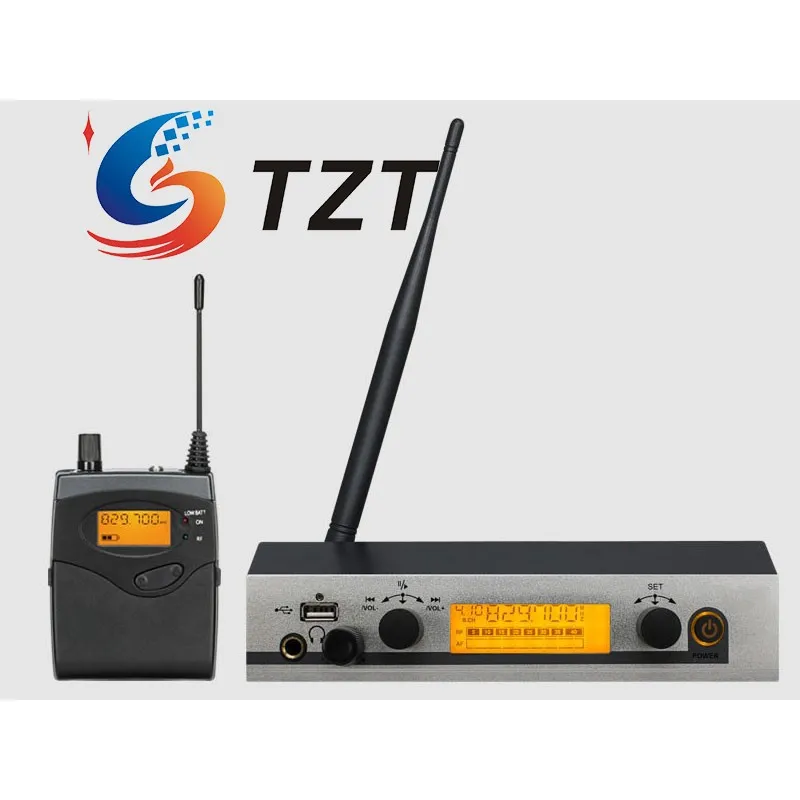

TZT 530 Mono Professional In Ear Monitor System UHF IEM System (Silver & Black Transmitter + 1 Receiver)
Description:
This wireless in ear monitor system is used in stage performance and sound broadcast. It can replace traditional complex sound monitoring equipment, achieving an admirable listening effect.
Using the latest high frequency transmission and audio signal dynamic processing technology, the IEM system improves the signal-to-noise ratio of the dynamic range so that the system has the best anti-interference to show the perfect original sound again.
Features:
- With one transmitter and one receiver
- LCD display shows working status in a clear way
- Strong signal and UHF frequency
- 40 preset channels can be set in 4 groups
- Audio output: mono
Technical Indicators:
Transmitter:
- Oscillation mode: PLL frequency synthesis
- RF stability: ±0.005%
- Bandwidth: UHF 798.200-829.700MHz; UHF 572.000-603.500MHz; UHF606.000-613.800MHz
- Preset channels: 40 preset channels can be set in 4 groups
- Comprehensive frequency response: 50Hz-15KHz±3dB
- TX output power: 100mW (50Ω)
- Audio inputs: XLR and 6.3mm composite socket
- Earphone output : 6.3mm stereo socket and adjustable volume
- Earphone load impedance: ≥ 16Ω
- Current consumption: DC 12V/300mA
Receiver:
- Oscillation mode: PLL frequency synthesis
- RF stability: ±0.005%
- Bandwidth: UHF 798.200-829.700MHz; UHF 572.000-603.500MHz; UHF 606.000-613.800MHz
- Preset channels: 40 preset channels can be set in 4 groups
- Comprehensive frequency response: 80Hz-15KHz±3dB
- Output power (32Ω): 2x35mW at 1KHz
- Earphone load impedance: ≥ 16Ω
- Current consumption: DC 3V/120mA (at moderate volume use)
- Antenna: SMA antenna can be detached
Package Included:
- 1 x Transmitter main unit
- 1 x Receiver
- 1 x Earphones
- 2 x Ear Hooks
- 1 x Antenna
- 1 x Power supply
- 2 x Cables
