Descripción

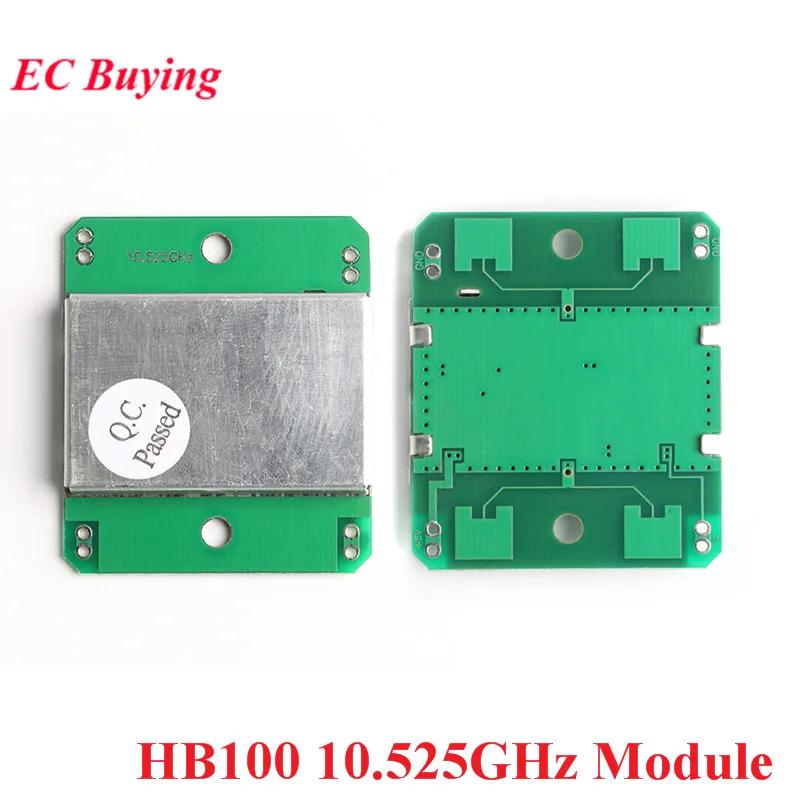

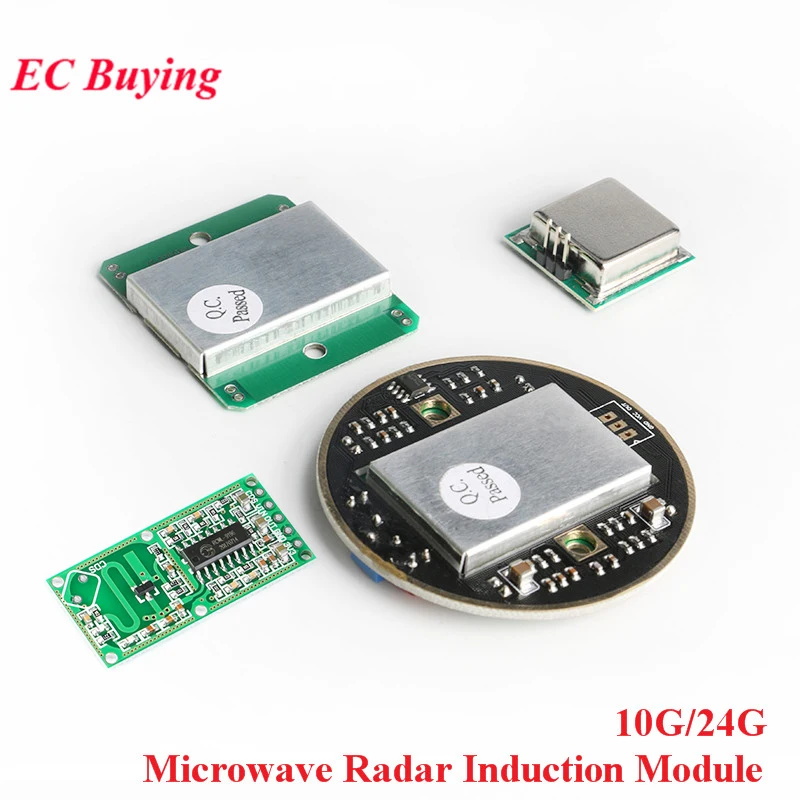

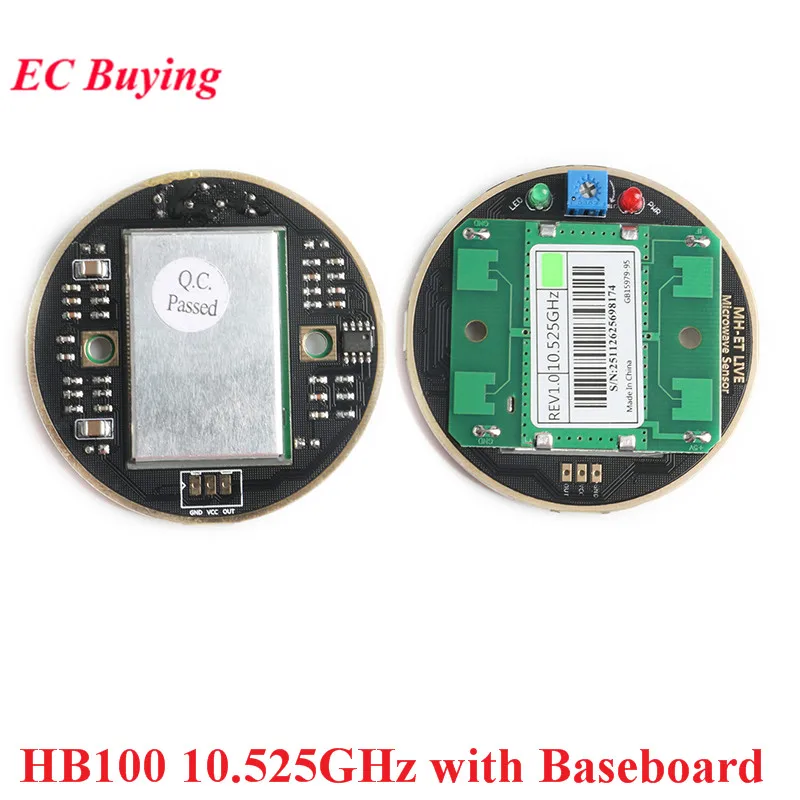

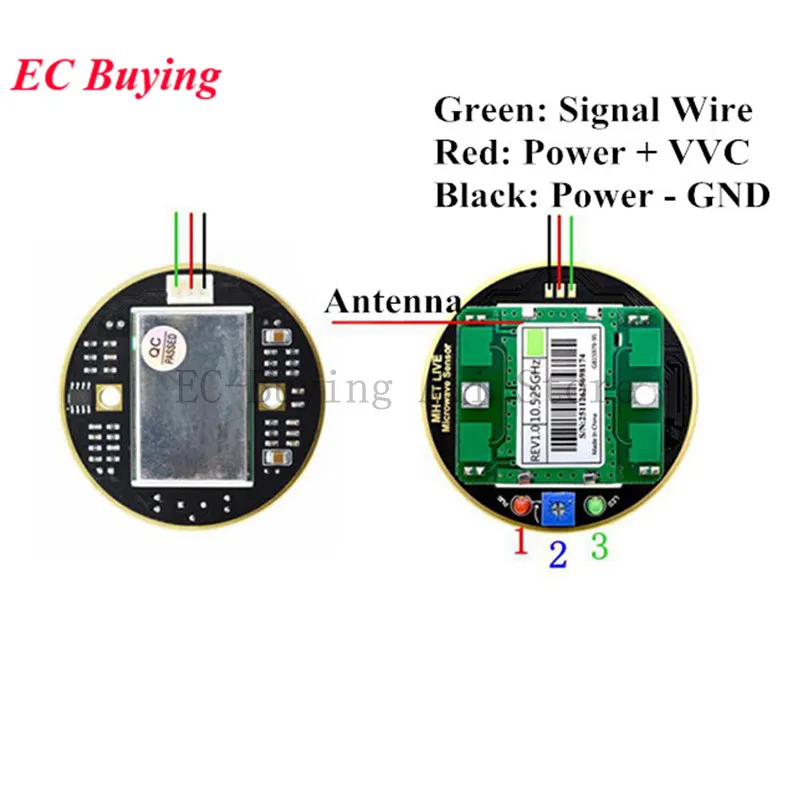

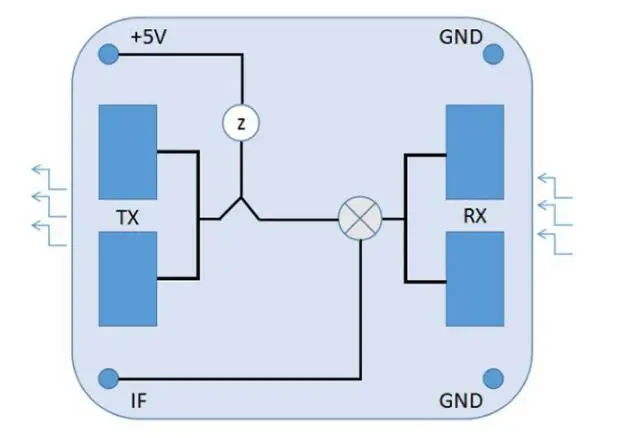

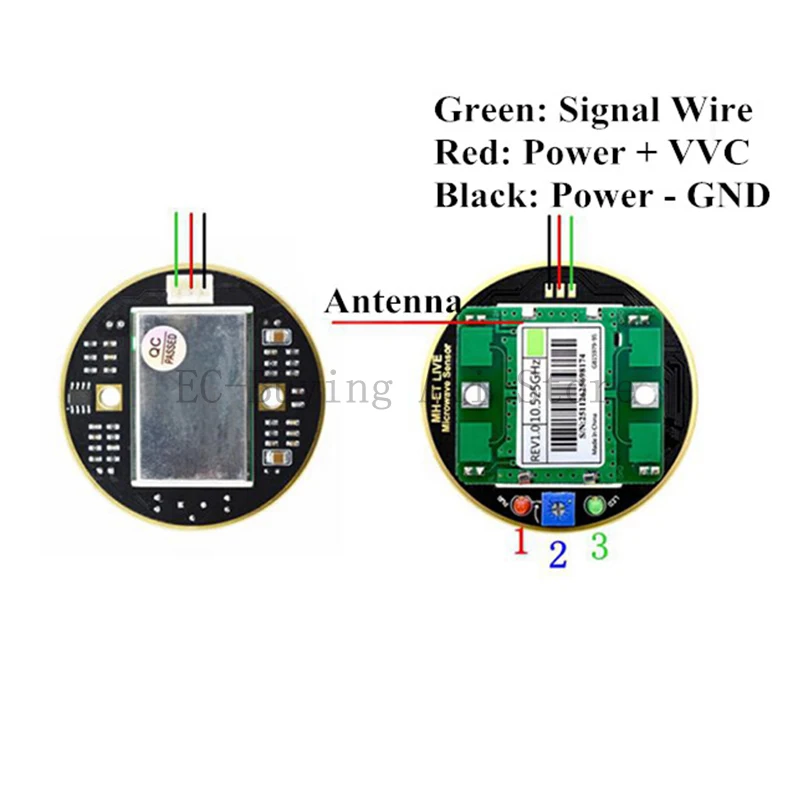

HB100 Microwave Radar Induction Sensor Module 24GHZ 10.525GHz CDM324 Human Body Switch Module Wireless Motion Detector For Arduino The HB100 microwave module is a 10.525GHz microwave moving object detector designed using the principle of Doppler radar. Compared with other detection methods, this detection method has the advantage of not being affected by temperature, humidity, noise, airflow, dust, light, etc., and is suitable for harsh Environment; This product is mainly used in automatic sensor lights, automatic door control switches, security systems, automatic video control systems for ATM cash dispensers, etc., and it can also expand its application fields, such as cooperating with image monitoring, identifying drive alarm systems It is widely used in prison monitoring, airport monitoring, important storage sites, hospital ICU and other important places. Has a wide range of applications and market prospects.TW20-2400S is a low-cost 24GHZ band single-channel radar transceiver. It uses a planar microstrip antenna structure with a beam angle of 80 ° X32 °. It has independent transmit and receive channels and a single intermediate frequency output. Product detection.HB100 10GHZ/10G ModuleParameter:Operating frequency: 10.525 GHzWorking voltage: DC 5V ± 5%Maximum working current: 45mATypical working current: 35mAAverage power consumption: 50mWAntenna gain: 8dBiDetection range: horizontal 85 ° (maximum adjustable 160 °); vertical 40 °Detection distance: 10 metersWorking temperature: -30 ℃ ～ + 70 ℃Working humidity 93% RH

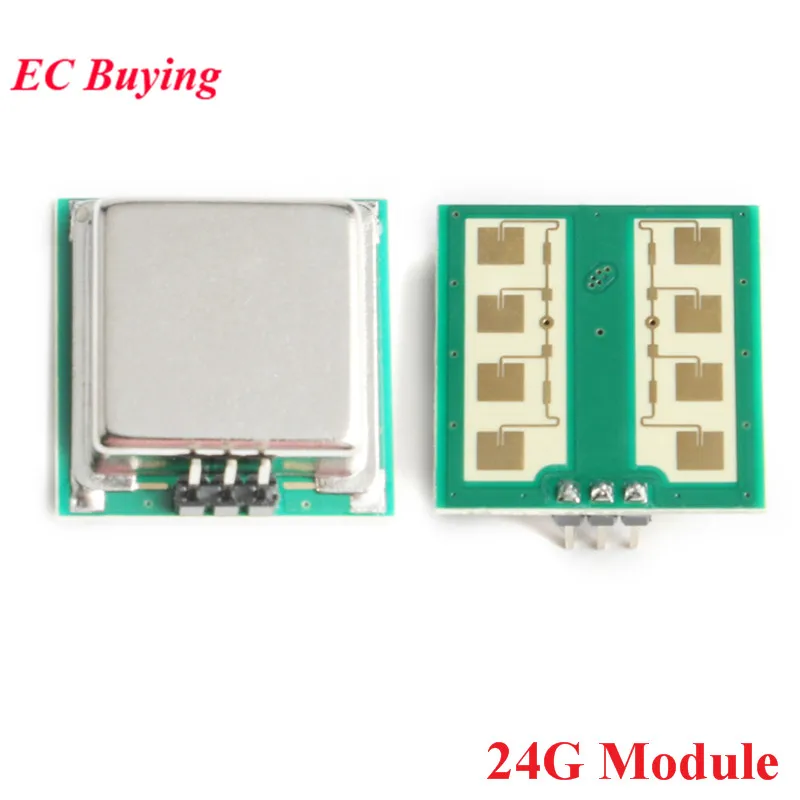

24GHZ/24G Module1.Transmitting Frequrency: min:24GHz typ:24.125GHz max:24.25GHz2.Output Power:16dbm (tpy) 3.Operating Temperature:-20--60℃4.Operating Current: tpy:30MA, max:40MA5.Operating Voltage: tpy:5.5V6.Pulse Width: tpy:10US7.IF Output:-300--300MV8.Appearance Size:25*25*7mmFunction Features:1.Noncontact detection,moving object detecting2.Transmitting frequency:24GHZ,can be widely applied in business,industries,word controlling etc3.Provide various frequency range standards:-UK,-F.advanced low consumption PHEMT oscillator4.Independent transmitting and receiving route, can get the biggest gain,single channel operation5.High sensibility,high flexibility,low cost,operating distance:15m6.Not influenced by temperature,humidity,noise,air flow,dust,ray etc,adaptive to terrible environment7.Strong radio frequency interference resistance,stable performance,swift response,high sensibility8.Out put power is 5mW,does no harm to human bodies9.Long distance detection range:15m10.Small volume,easy to install11.Radar wave can penetrate through non metallic object,such as board,glass,plastics,fabric textile etc,unless there are concrete wall or metal board to obstruct12.Human beings or objects facing the sensor to move wil receive the best detection resultNotice:1.Don't operate during the power on in case of maloperation,wrong circuit or electric shock2.Avoid installing the product in exposed place to prevent damage or affecting using longevity3.Install the product far away from magnetic field in case of maloperation4.Install the product far waay from moving conductors in case of maloperation

Overview:

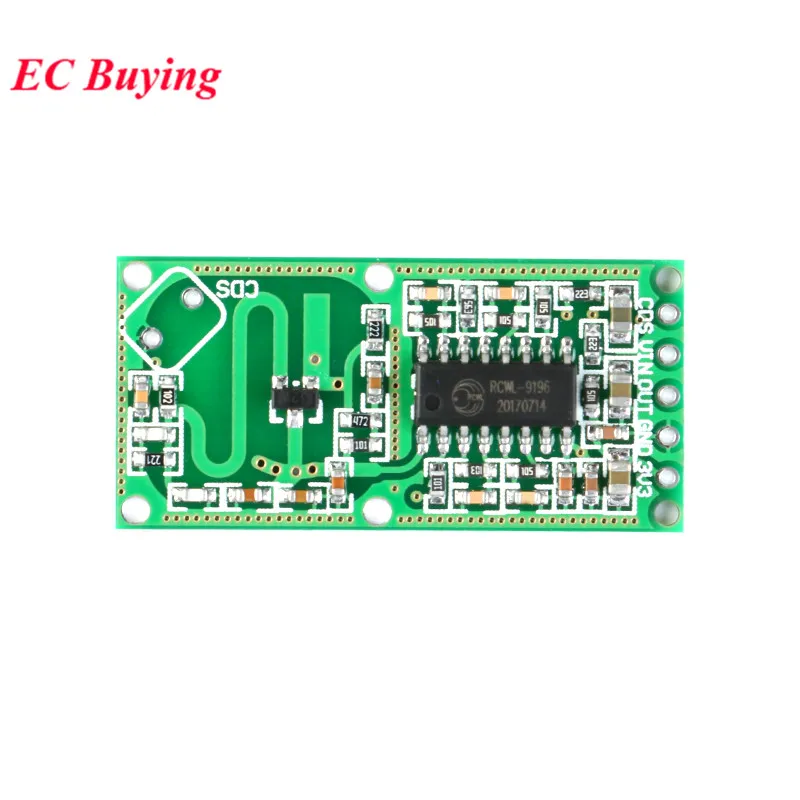

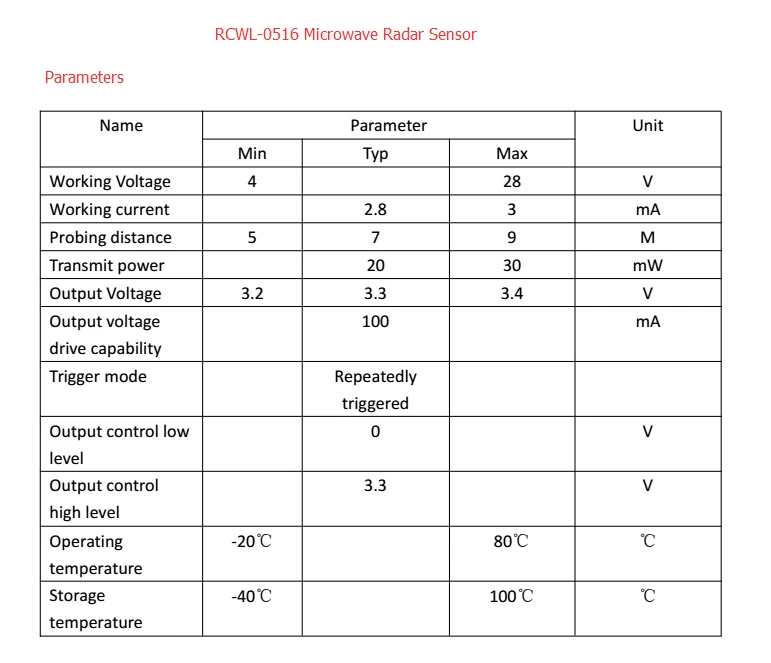

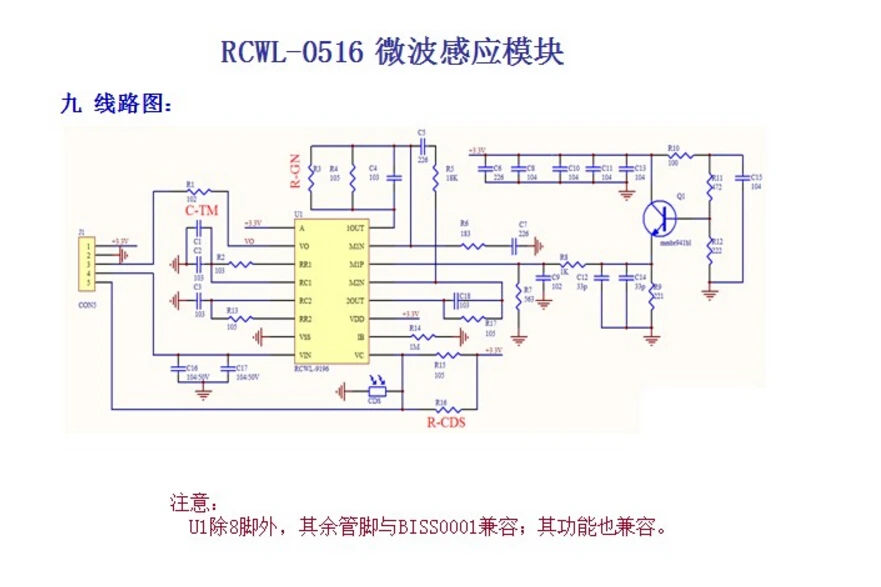

The RCWL-0516S is a microwave sensing module that uses Doppler radar technology to specifically detect object movement. The module has the characteristics of high sensitivity, long sensing distance, high reliability, large sensing angle and wide range of supply voltage. Widely used with a variety of human-induced lighting and burglar alarm and other occasions.RCWL-0516 Microwave Radar Sensor Switch Module Human Sensor Module Smart Sensor Sensor Sensing distance of about 5-7 meters

Features:

Using a dedicated signal processing control chip RCWL-9196
Working voltage: 4 ~ 28V
Compared with the traditional infrared sensor PIR, with penetration detection capability
Blocking time, adjustable distance
It could output 3.3V power

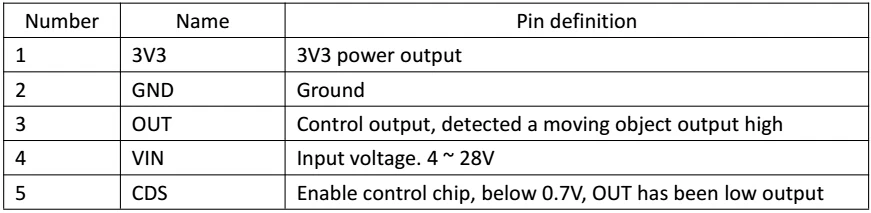

Pin Function Description

3V3:3.3V output voltage, drive current 100mA

GND:ground

OUT:the control signal is output. When there is an object moving in the detection area, the OUT output is high. C-TM can set the repeat trigger time. If there is a trigger signal (with object moving) within the repeat trigger time, If there is no moving object in the detection area, output low level.

VIN:module power input, 4 ~ 28V

CDS:trigger control signal; less than 0.7V, OUT has been low; greater than 0.7V, the detection of normal work.

CDS pin external phototransistor, you can turn off the module detection function at night.

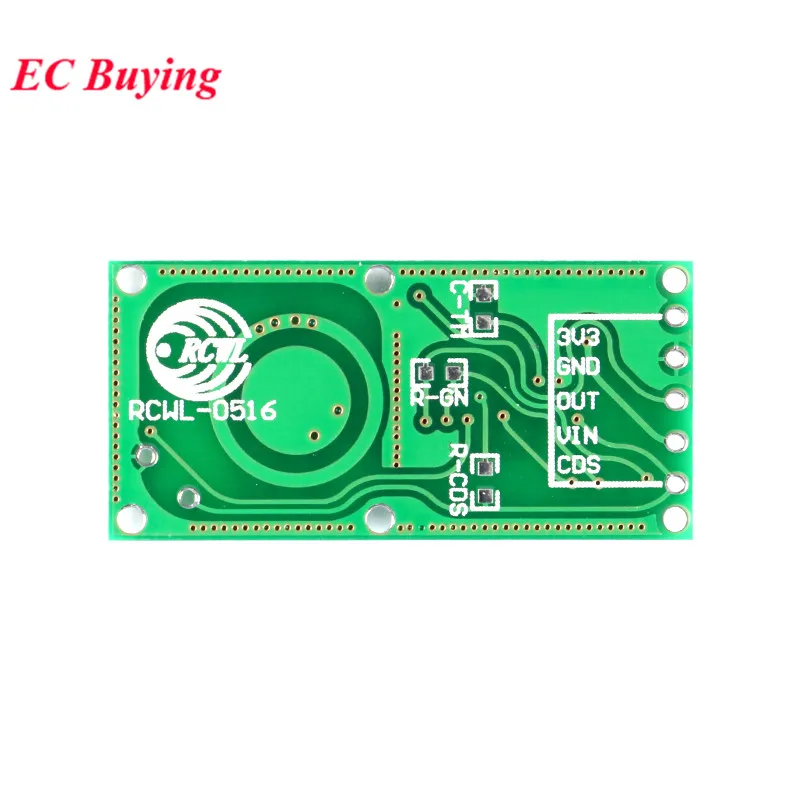

Adjustment section description

C-TM:adjust the repeat trigger time, mask human trigger time 2S. Increase the capacitance will increase the repeat trigger time, the actual calculation of the repeat trigger time can be as follows:

C-TM Department affixed to the capacitor, test the frequency of 3 feet 9196 f, repeated trigger time T=(1 / f) * 32768

R-GN:detection distance adjustment, then resistance, detection distance smaller. Missed, the detection range of about 7M, then 1M resistance, detection range of 5M. Customers can adjust according to the actual situation.

R-CDS:The internal VCC is connected in parallel to the CDS pin (9-pin 9196) via the R-CDS and the internal 1M resistor. The CDS is connected to the photoresistor to turn off the module detection function at night. The R-CDS value can be set according to the actual ambient brightness.

Application Notes:

the sensing surface in front of any metal can not be blocked.
before and after the induction surface to reserve more than 1CM space.
the module and installation of carrier plane as possible parallel.
a certain detection area effective application.
the module has a sensor surface is positive, the negative side of the negative sensing surface. Negative sensing surface effect is slightly less sensitive.
microwave module can not be applied in the same area of large-scale, otherwise there will be mutual interference, a single body spacing greater than 1M.
