Description
Designed for short-distance and short-range distance measurements, the VL53L4CD enables highly accurate distance measurements with a range from just 1 mm to 1300 mm. The new-generation laser emitter features an 18° field of view, offering improved performance under ambient light conditions, with a measurement rate up to 100 kHz.
Thanks to its autonomous mode and programmable distance threshold, the VL53L4CD has very low power consumption, making it ideal for battery-powered devices. Its fully integrated on-chip processing helps reduce design complexity and lower component costs by enabling the use of lower-power and more cost-effective microcontrollers.
Like other ST FlightSense time-of-flight (ToF) sensors, the VL53L4CD records absolute distance measurements regardless of target color or reflectivity.
The VL53L4CD is packaged in a micro-molded package containing an SPAD (single-photon avalanche diode) array. This device delivers optimal performance under various environmental lighting conditions and across a wide range of glass materials.
All ST ToF sensors integrate VCSEL (Vertical-Cavity Surface-Emitting Laser) technology. It emits completely invisible 940 nm infrared light, which is eye-safe (Class 1 certified).
Functional Features
High-Precision Proximity and Distance Measurement
High-performance proximity sensor
Range from 0 to 1300 mm with full field of view (FoV)
Short-range linearity up to 1 mm
Field of view: 18°
Autonomous low-power mode with programmable interrupt thresholds for host wake-up
Fast ranging frequency up to 100 kHz
Fully Integrated Miniature Module
940 nm invisible laser emitter (VCSEL) and analog driver
Ultra-low-power microcontroller running high-performance digital firmware
Size: 4.4 × 2.4 × 1 mm
Fully pin-to-pin compatible with VL53L0X, VL53L1X, VL53L1CB, VL53L3CX, and VL53L4CX
Easy Integration
Re-flow solderable
Single-supply operation at 2.8V
Can be hidden behind cover glass
I²C interface (up to 1 MHz)
Full C software driver (Linux-compatible) for plug-and-play ranging
Let me know if you need this formatted for a datasheet or presentation!
Applications
Proximity measurement applications, such as:
Robot obstacle avoidance and cliff detection
System activation and presence detection
Touchless switches
Very low-power applications for battery-powered devices, including:
Access control
Sanitary fixtures (e.g., faucets, soap dispensers)
Home appliances (e.g., thermostats, lighting controls)
Fast ranging applications, such as:
Barcode readers
Biometric distance sensing applications
Virtual barriers

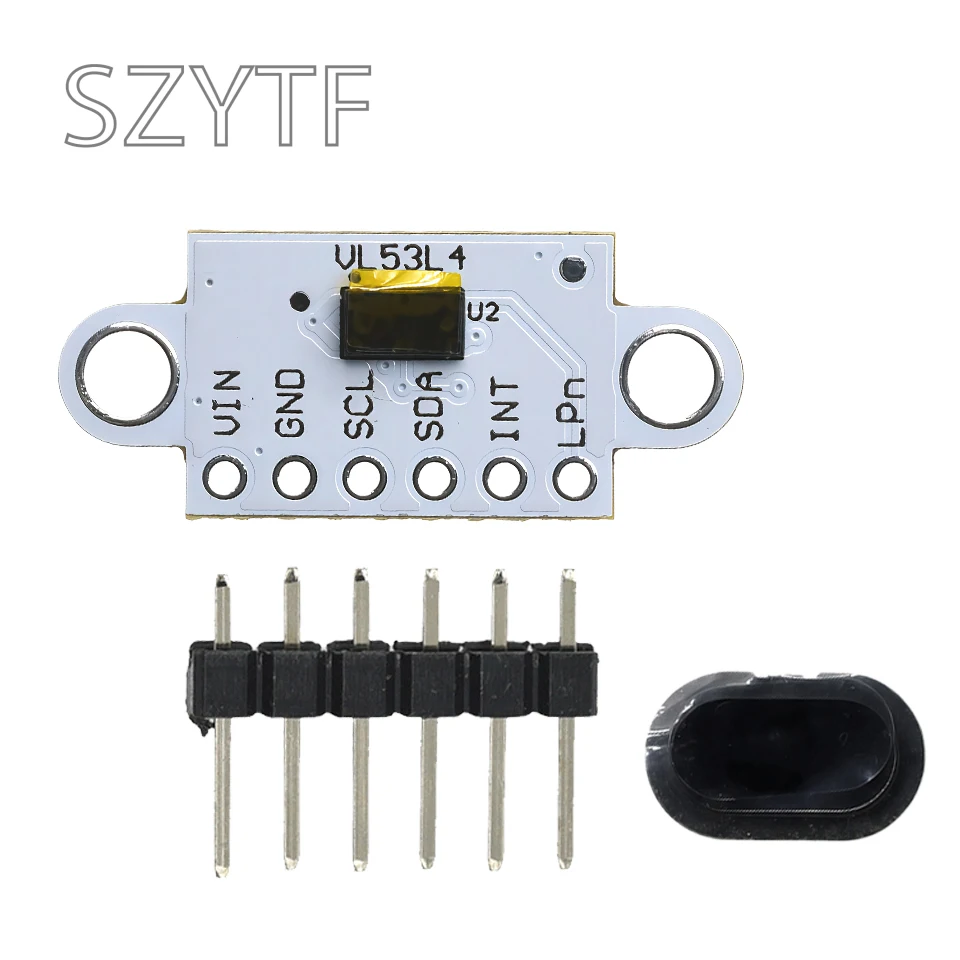

Shipping list:

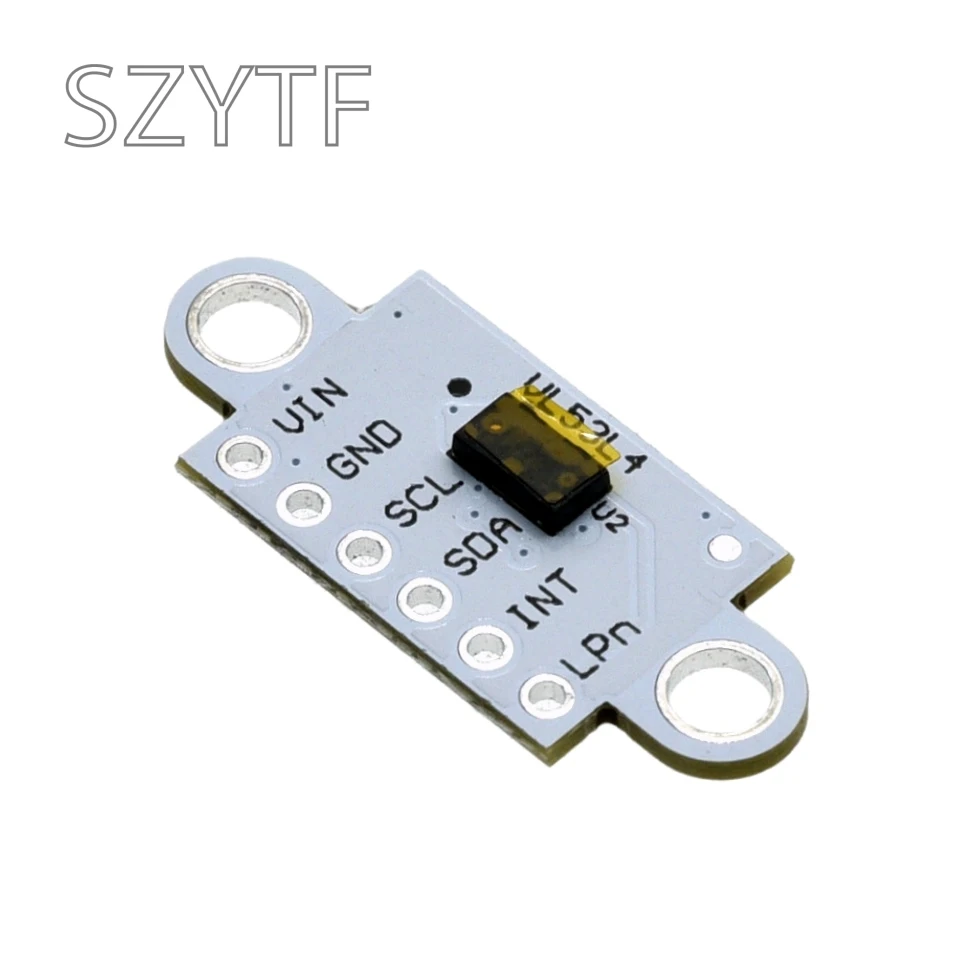

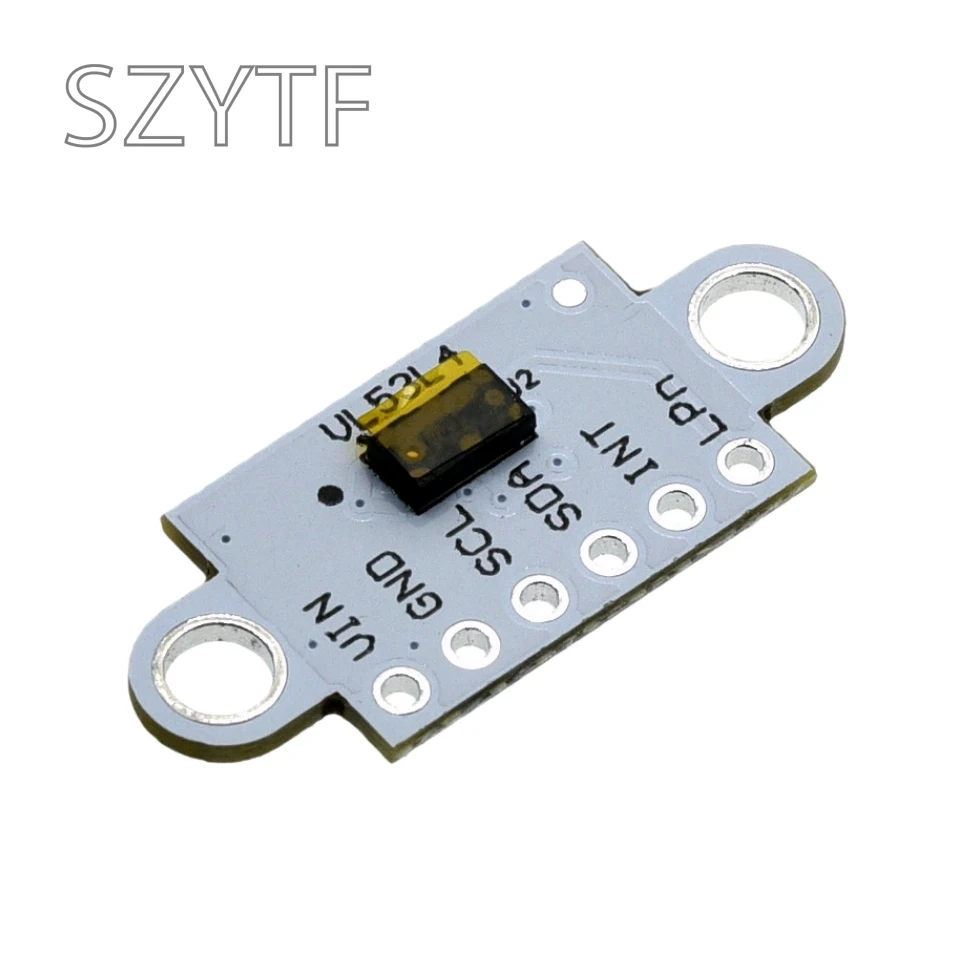

VL53L4 sensor module, 1 piece

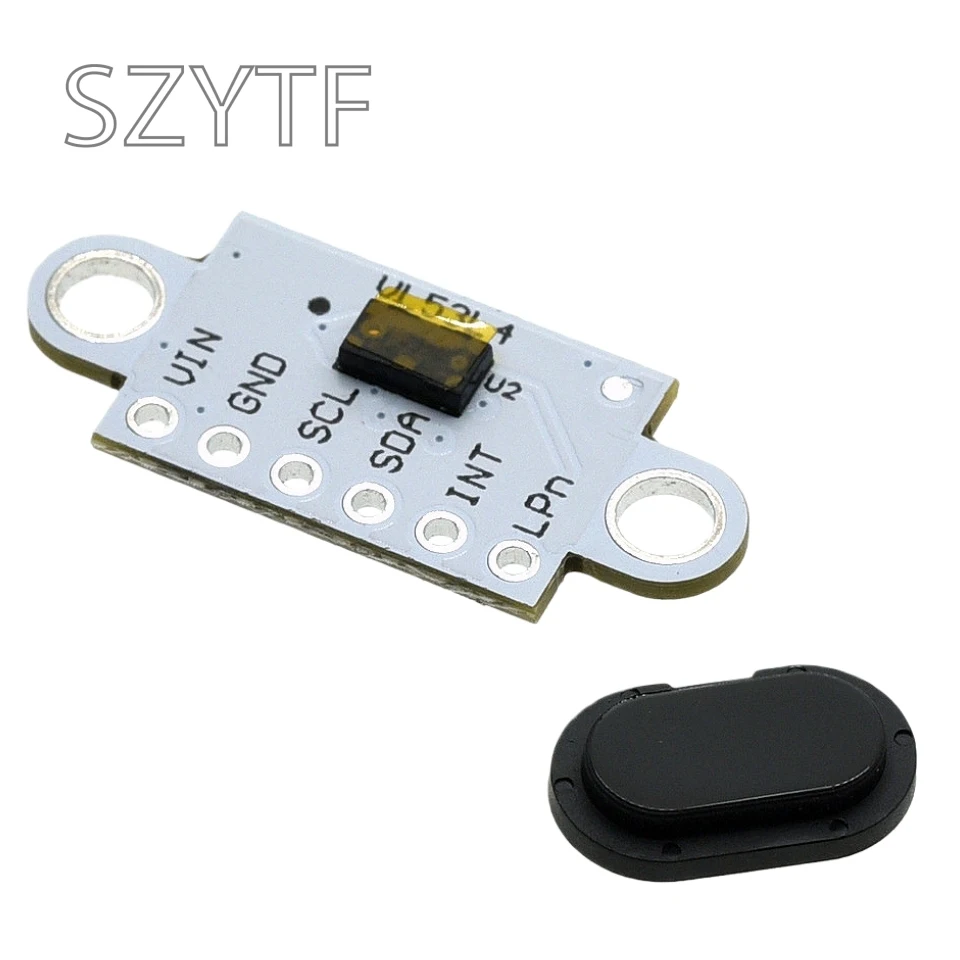

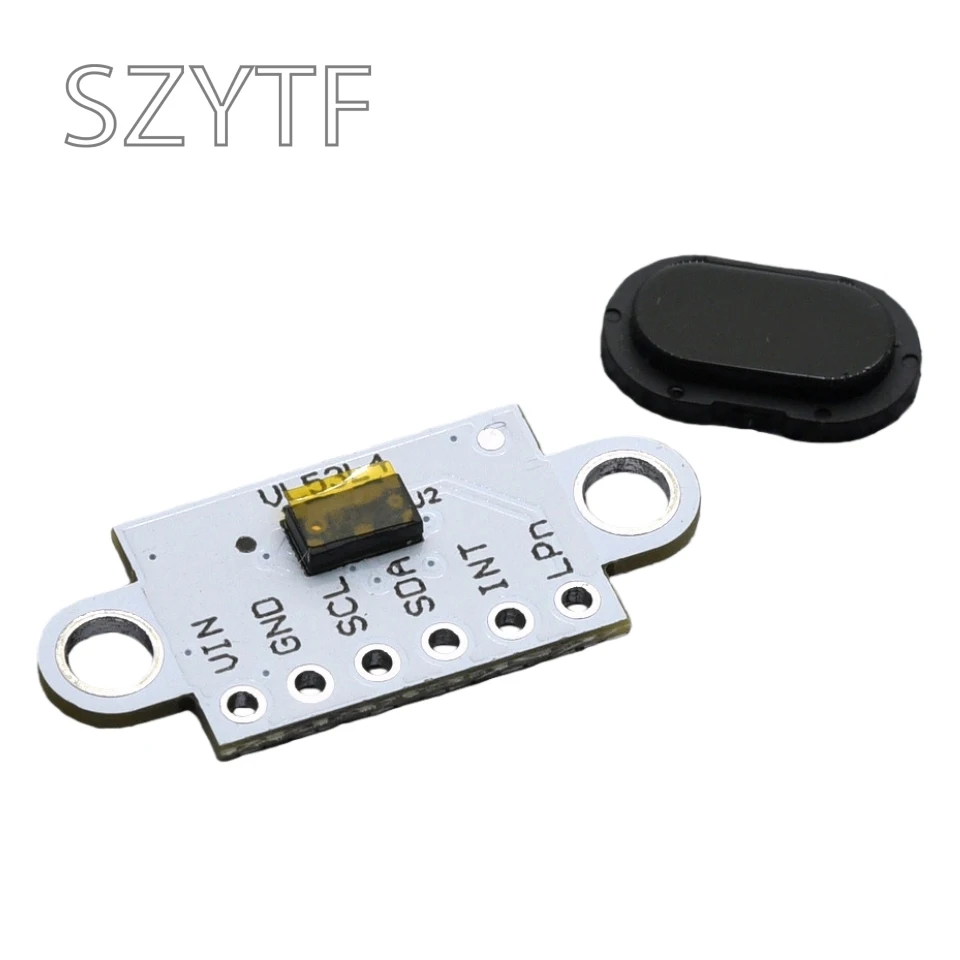

Matching cover piece, 1 piece
6P row needle, 1 piece
