Descripción

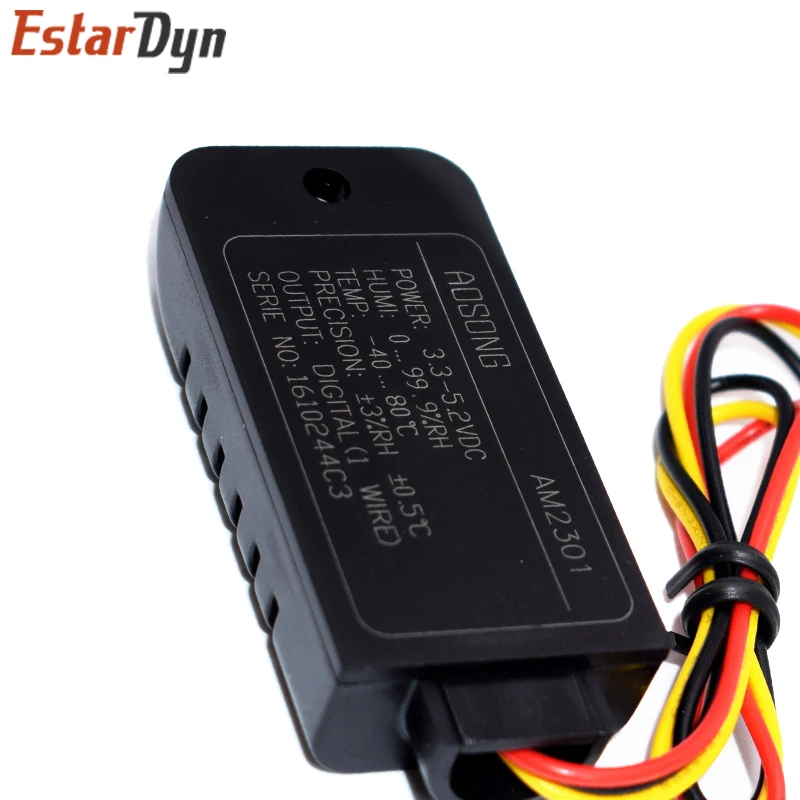

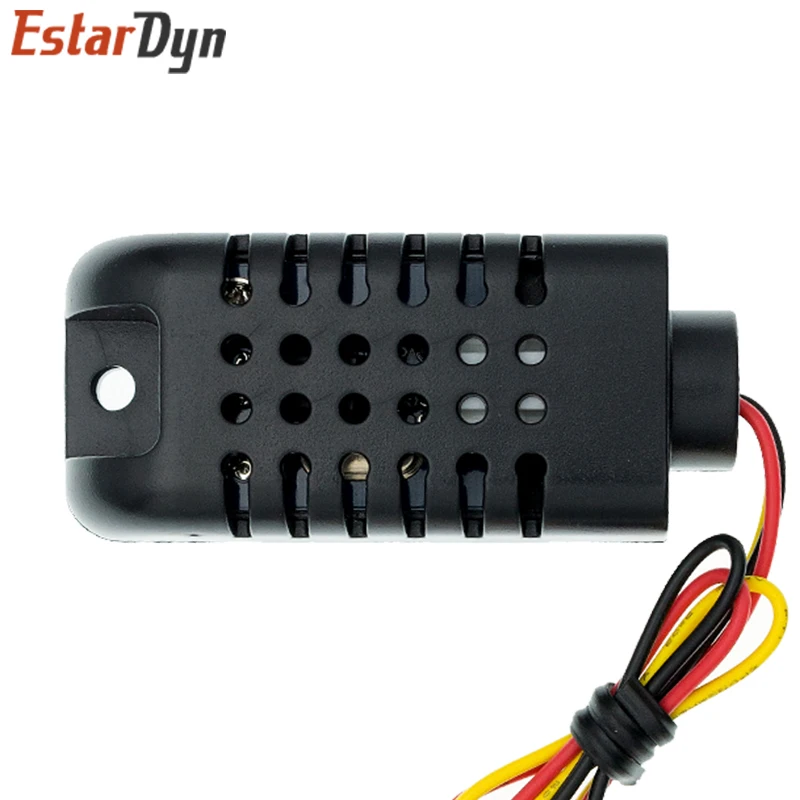

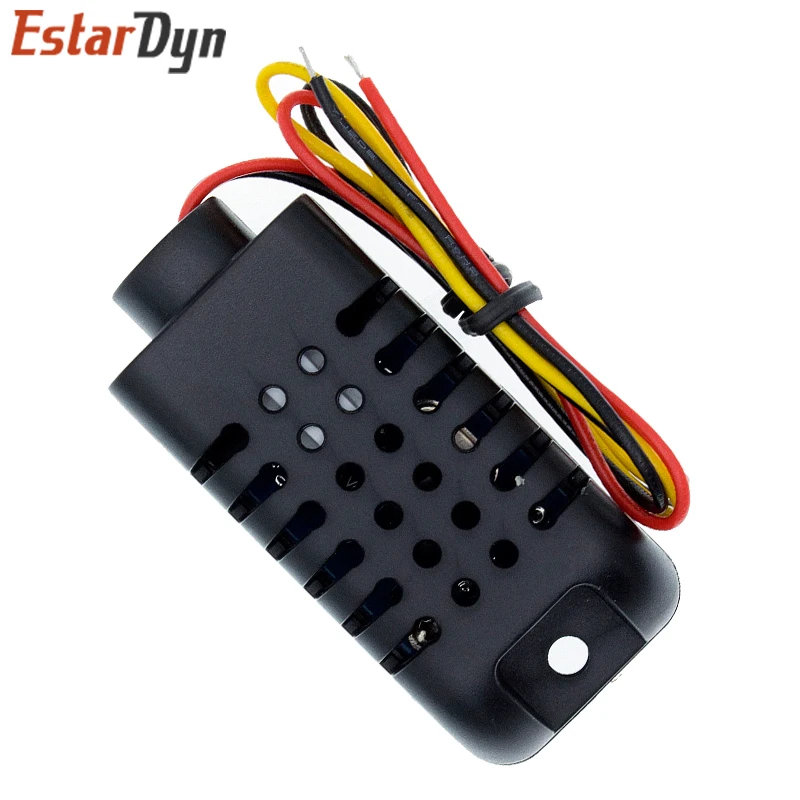

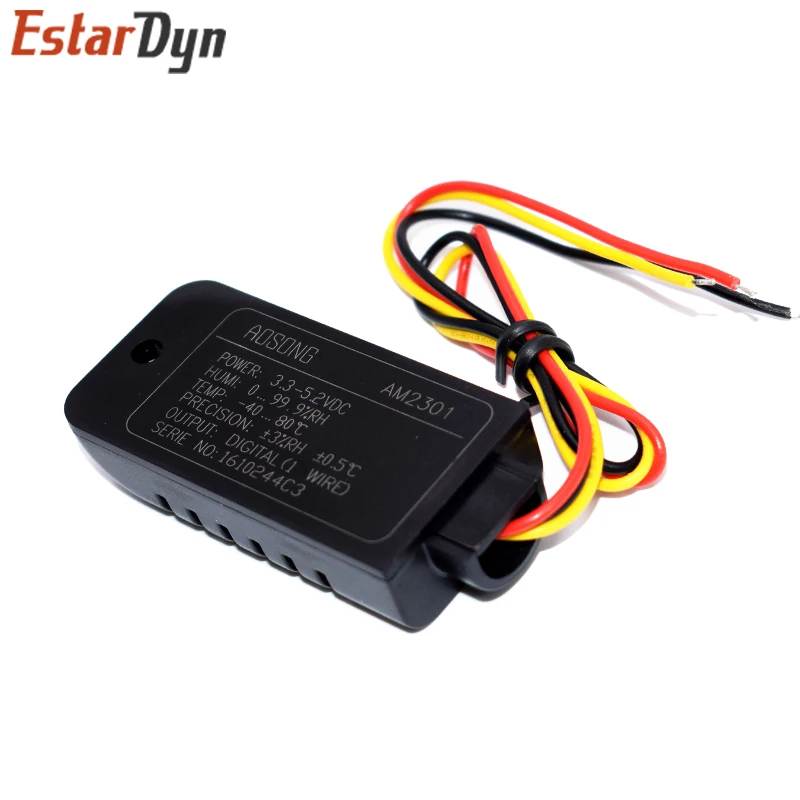

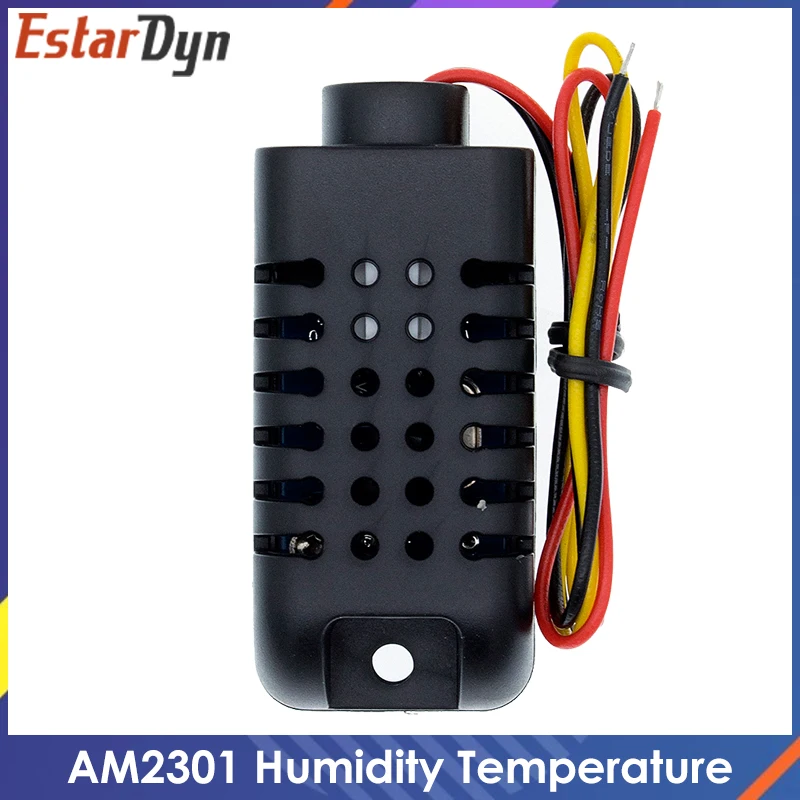

AM2301:
Product Features:The AM2301 Humidity Capacitance Digital Temperature and Humidity Sensor is a temperature and humidity composite sensor with a calibrated digital signal output. It uses dedicated digital module acquisition technology and temperature and humidity sensing technology to ensure high reliability and excellent long-term stability. Therefore, the product has the advantages of excellent quality, fast response, strong anti-interference ability and high cost performance. Each sensor is calibrated in a precision humidity calibration chamber. The calibration coefficients are stored in the OTP memory as a program, and these calibration coefficients are called internally during the processing of the detection signal. The sensor consists of a capacitive sensing element and an NTC temperature measuring element connected to a high performance 8-bit microcontroller. Communication with the microprocessor via a single bus requires only one line, 40 bits of data at a time, high first out. Small size, low power consumption, long communication distance, can be used in demanding applications.Product parameters:Humidity measurement range: 0% to 99.9% (0°C-50°C range)
Humidity measurement error: ±3%
Temperature measurement range: -40 ° C ~ 80 ° C
Temperature measurement error: ±0.3 °C
Resolution: 16 bits
Sampling period: 2s
