Features:

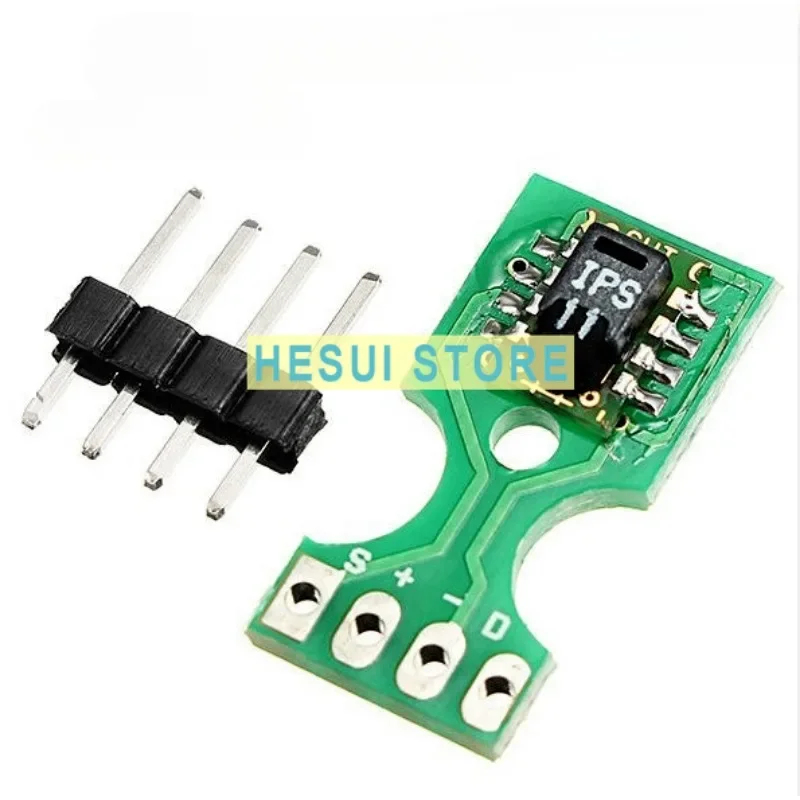

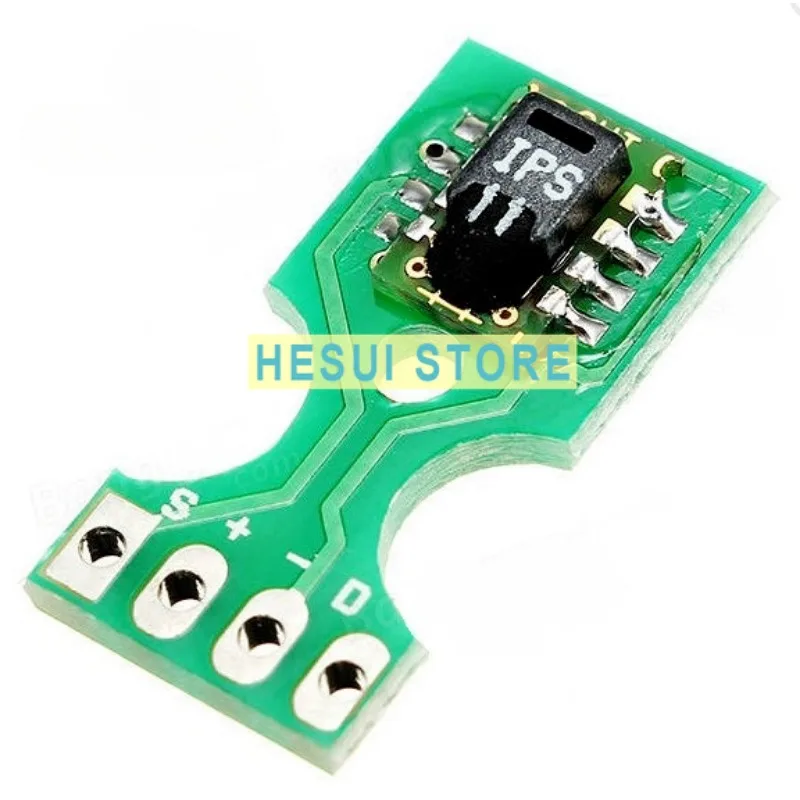

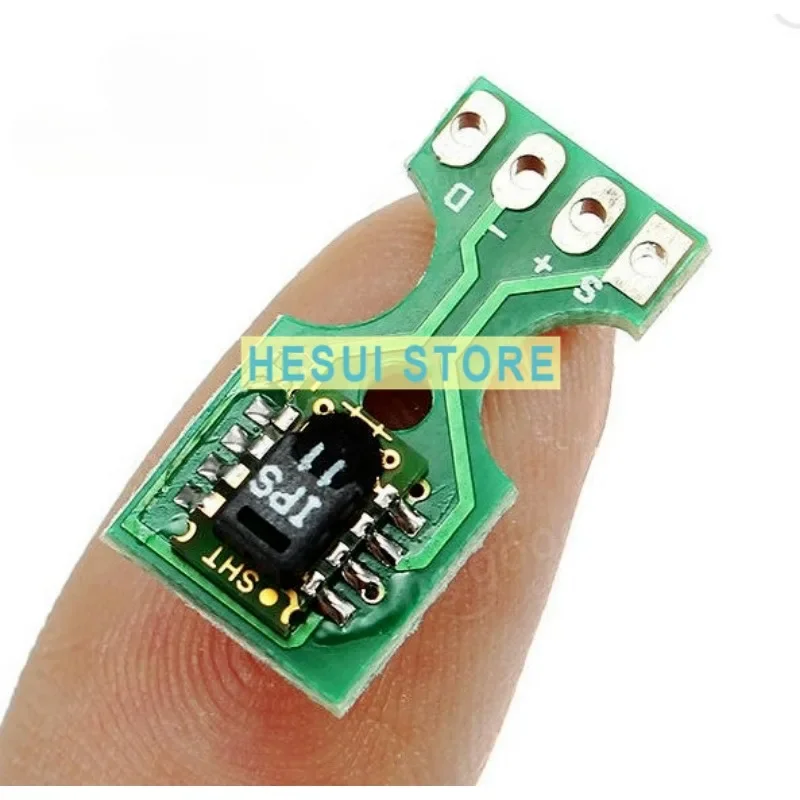

This series of plug type temperature and humidity sensor adopts temperature and humidity sensor chip, and the pin is standard 2.54mm pin. The sensor has excellent quality, corresponding ultra-fast, strong anti-interference ability and high cost performance. - Suitable for OEM users, no welding, no water treatment, shorten the development time, improve the development efficiency; Accurate measurement of relative humidity, temperature, dew point; Complete calibration output, no recalibration required for use; Excellent long-term stability; High precision bidirectional interface, directly connected to the microcontroller; Required measurement, super energy consumption; No other external components; Automatic sleep.
Technical parameters:
Measuring range: 0 ~ 100% RH
Temperature range: -40-120°
Corresponding time: Humidity: 8s, Temperature:
Resolution: Humidity: 0.03%RH, temperature: 0.01°
Repeatability: Humidity: 0.1% RH, temperature: 0.1°C
Measurement accuracy: ± 4.5%RH, temperature accuracy: ±0.5° (other accuracy is optional)
Output: digital signal output
PCB size: 21MM*12MM*20MM
Working voltage: DC 2.2-5.5V
