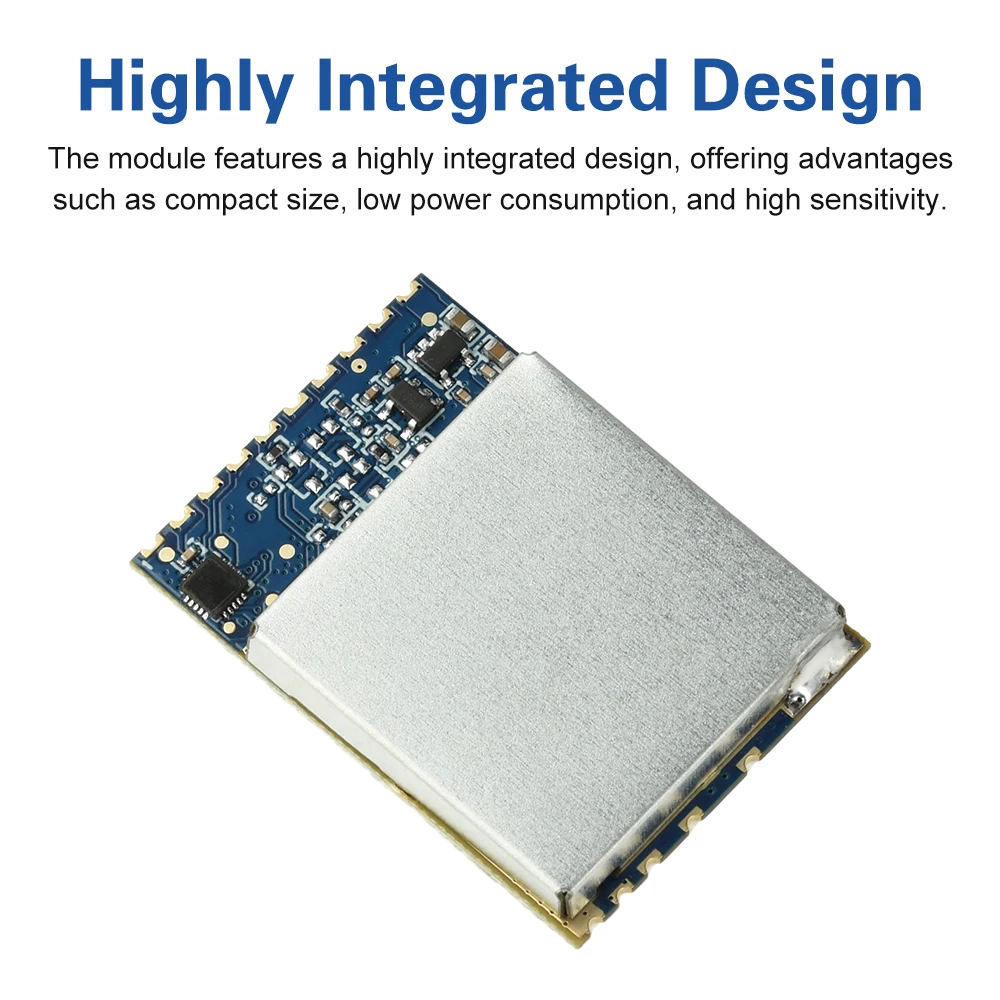

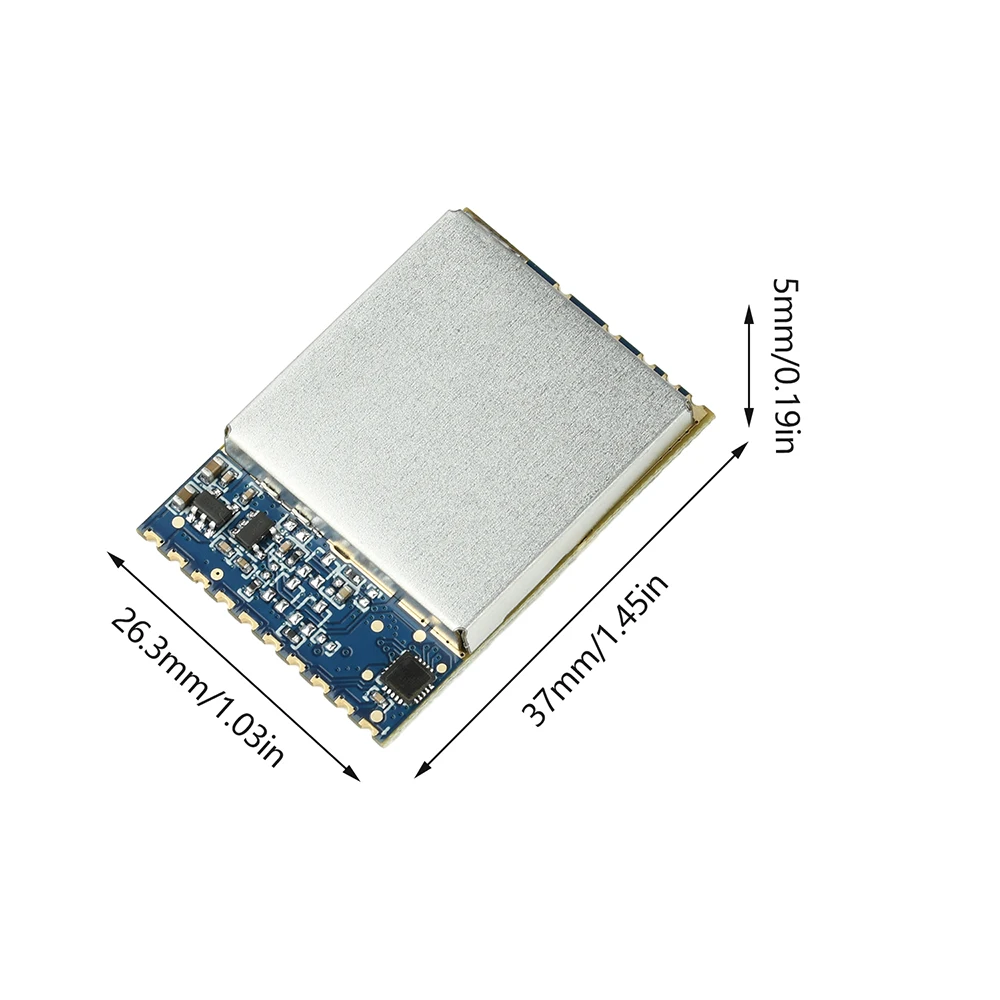

1. High integration design: The module adopts a high integration design, which has the advantages of small size, low power consumption, and high sensitivity.

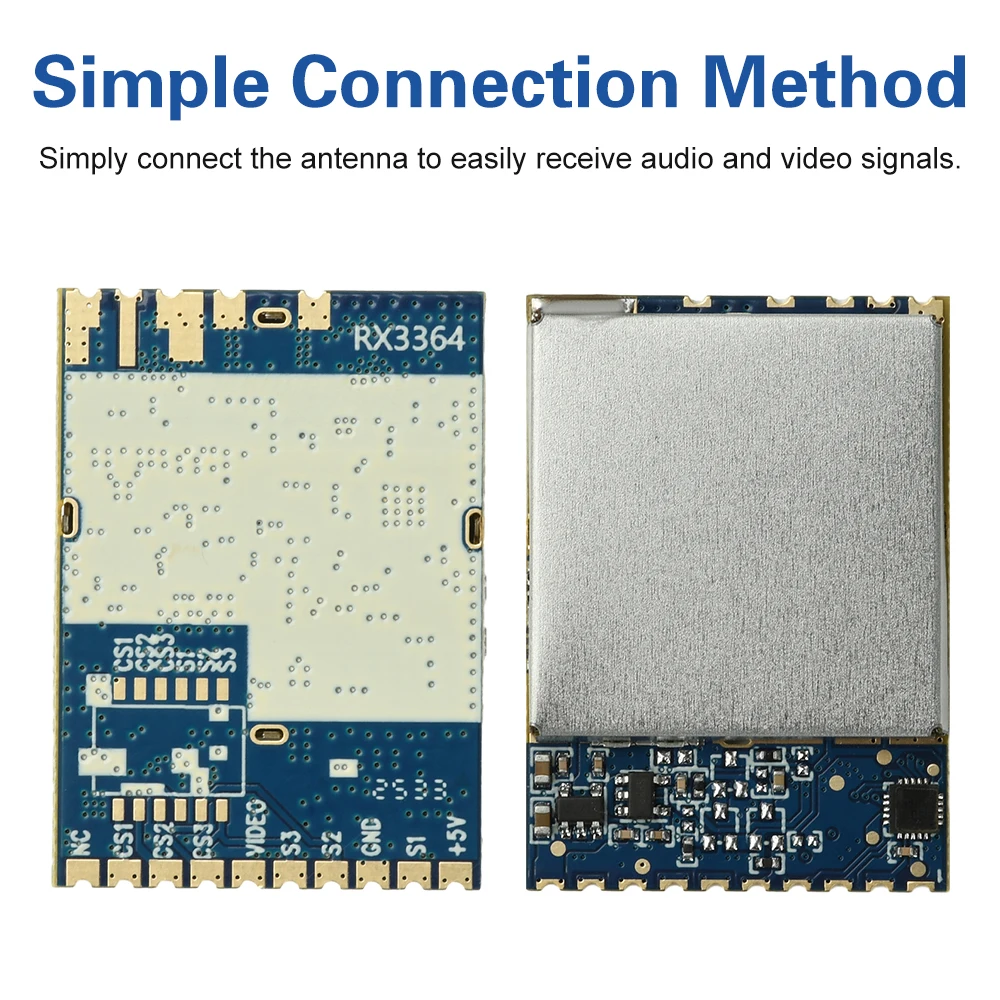

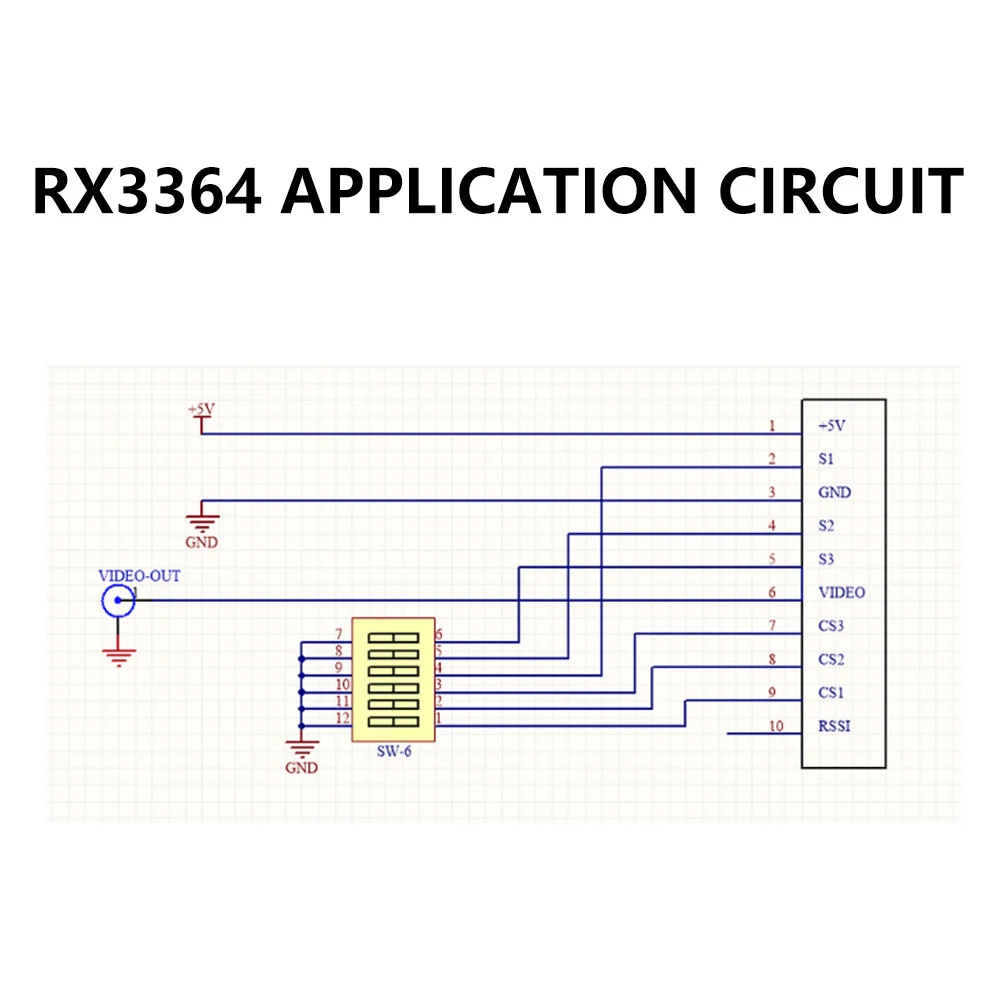

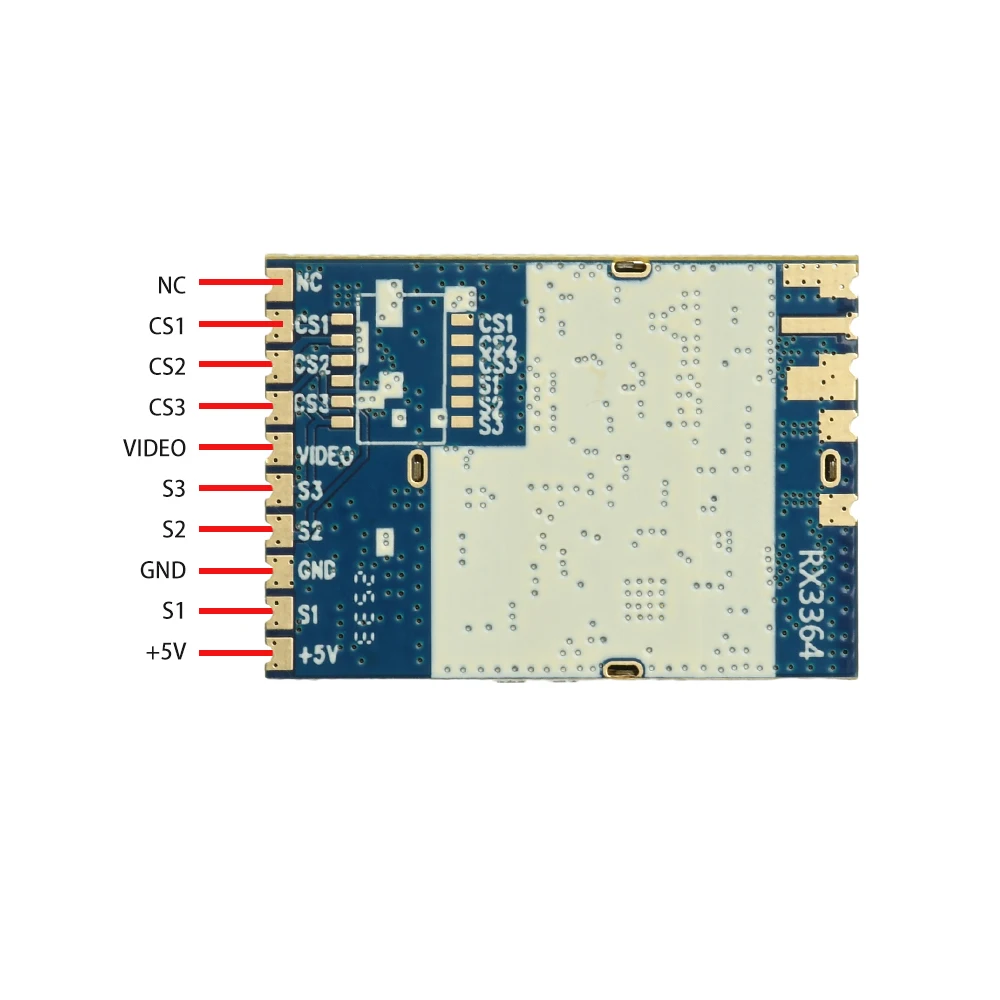

2. Simple and easy-to-use connection method: Simply connect the antenna to easily receive sound and image signals, with easy operation.

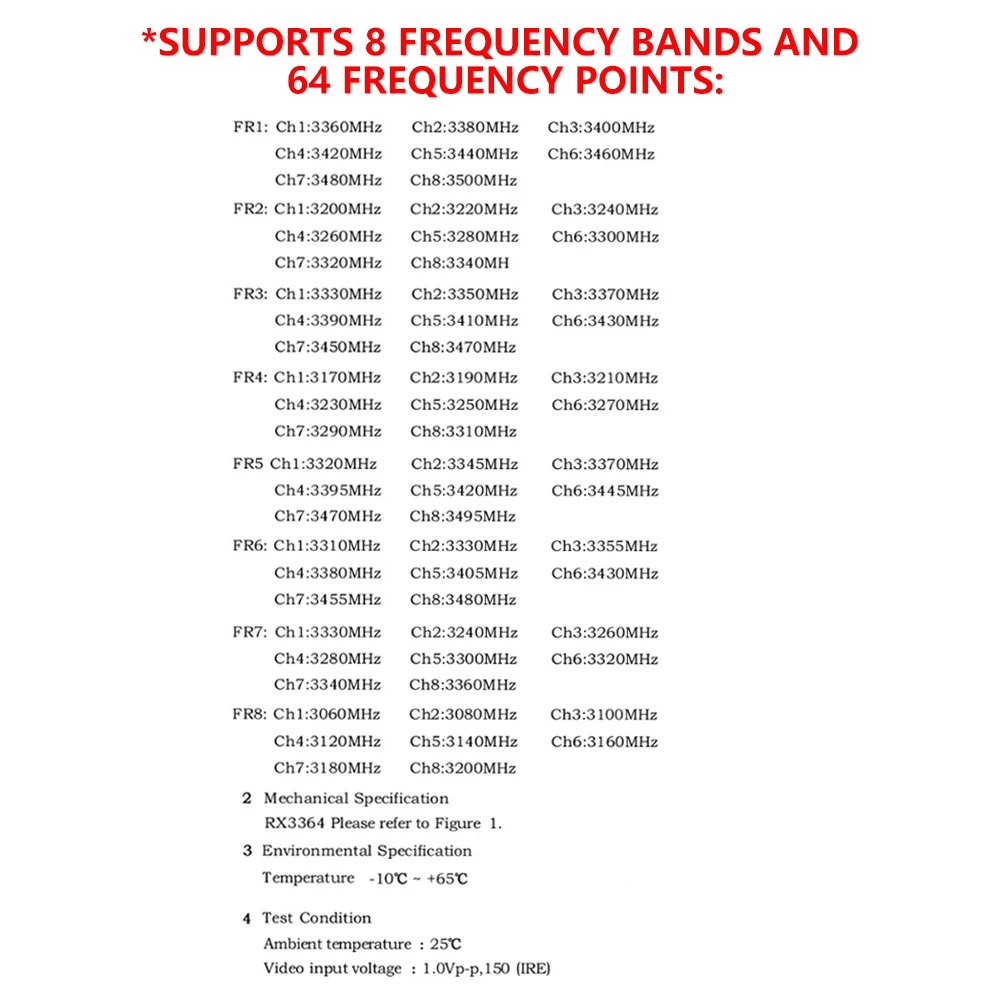

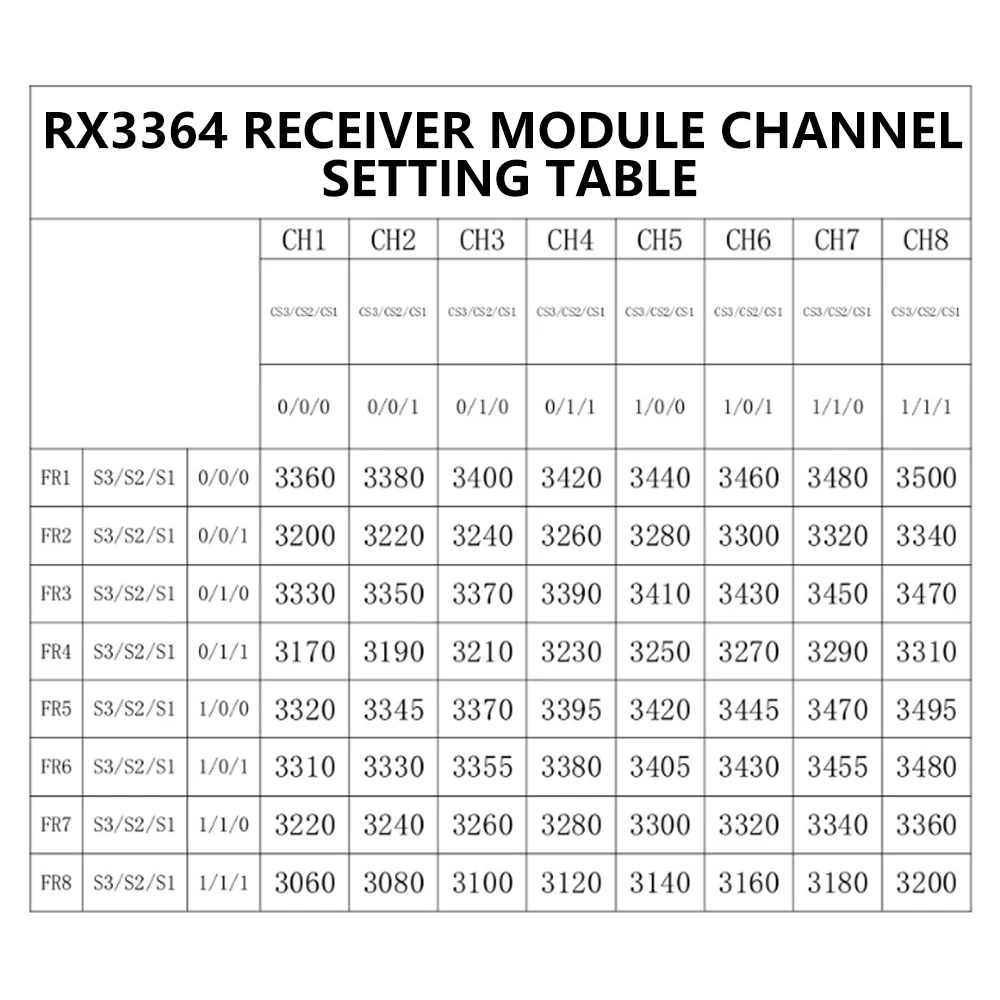

3. Broadband reception capability: Supports a reception frequency range of 3060-3500MHz to ensure stable and reliable signals.

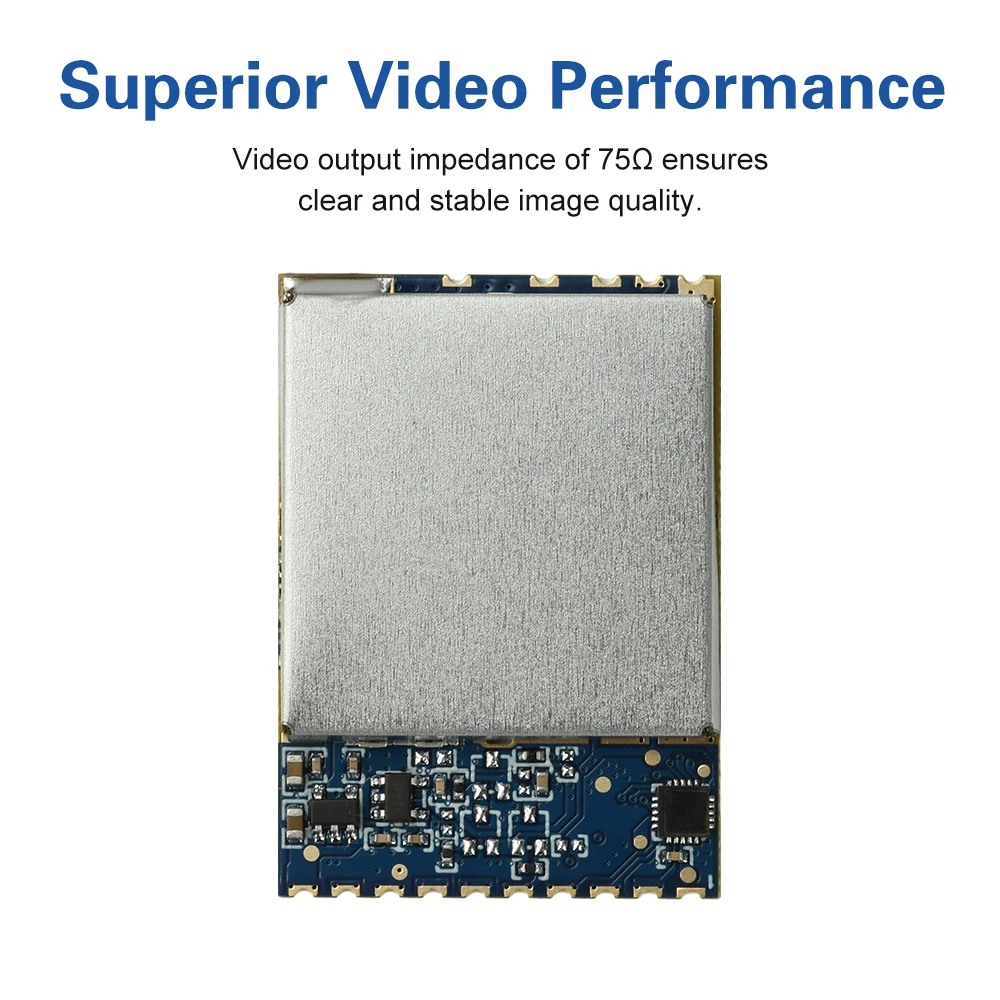

4. Excellent video performance: The video output impedance is 75 Ω, providing clear and stable image quality.

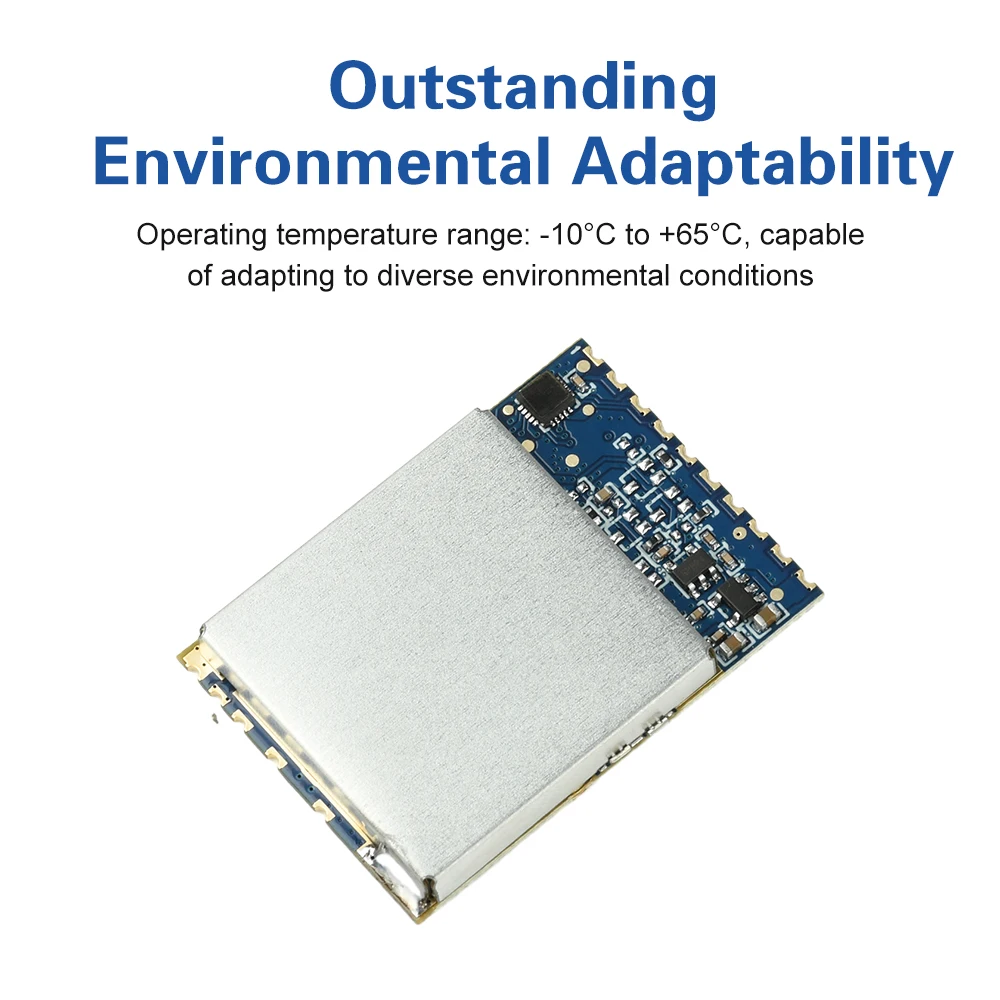

5. Excellent environmental adaptability: The working temperature range is -10 ° C to+65 ° C, which can adapt to the usage needs of various environmental conditions.

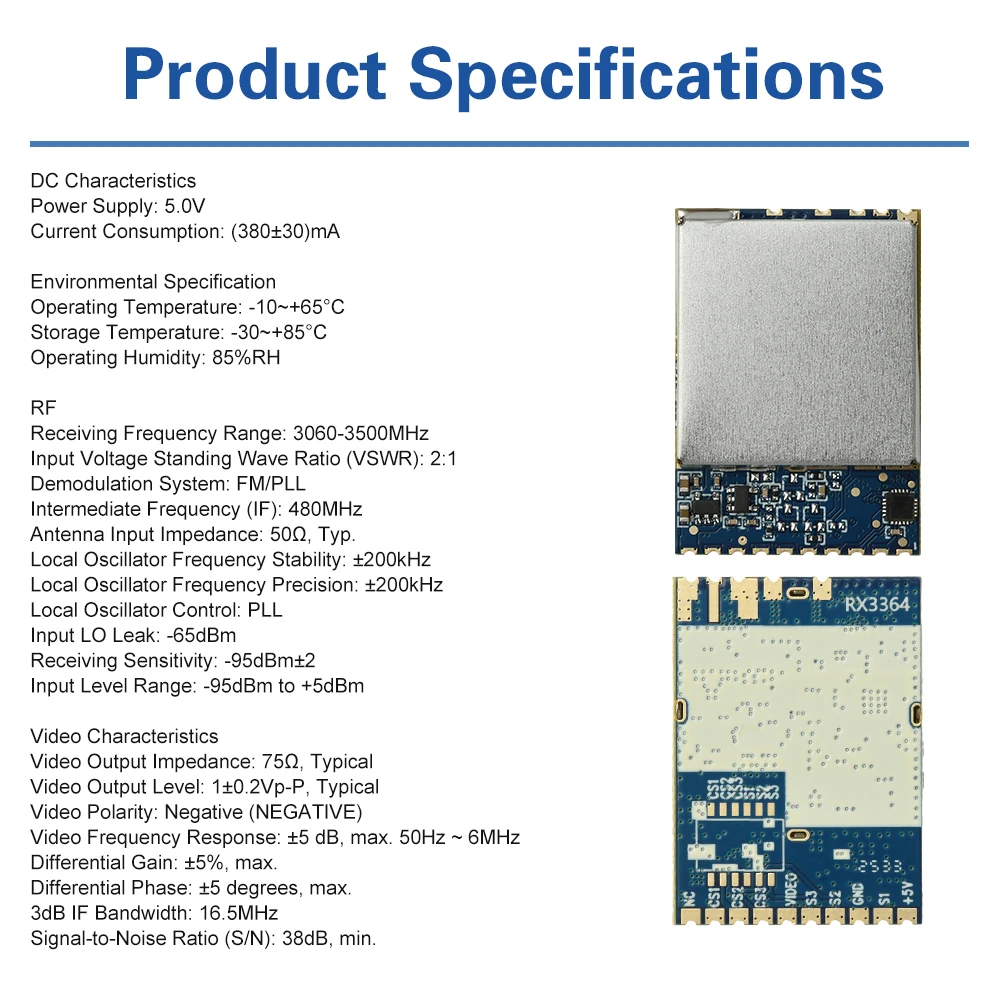

Parameter:
DC Characteristics
POWER SUPPLY：5.0V
Current Consumption：(380 30)mA
Environmental Specification
Operating Temperature：-10~+65°C
Storing Temperature：-30~+85°C
Operating humidity：85%RH
RF:
Receiving frequency range：3060-3500MHZ
Voltage Standing Wave Ratio：2:1
Demodulation system：FM/PLL
Intermediate frequency IF: 480MHz
ANT.inputimpedance：50Ω, TyP.
LO Frequency stabilization：±200kHz
LO Frequency Precision：±200kHz
LO Control：PLL
lnput LO Leak：-65dBm
Receiving Sensitivity：-95dBm±2
InputLevel Range：-95dBm~+5dBm
Video Characteristics)
Video Outputimpedance：75Ω, TyP.
Video Output Level)：1±0.2Vp-P. TyP.
Video Polarity：NEGATIVE
Video Frequency Respone：±5 dB, Max.50Hz ~ 6MHz
Differential Gain：±5 %, Max
Differential Phase：±5 Deg, Max
3DbIFWIDEBAND：16.5MHz
Signal to Noise Ratio (S/N): 38dB, Min
