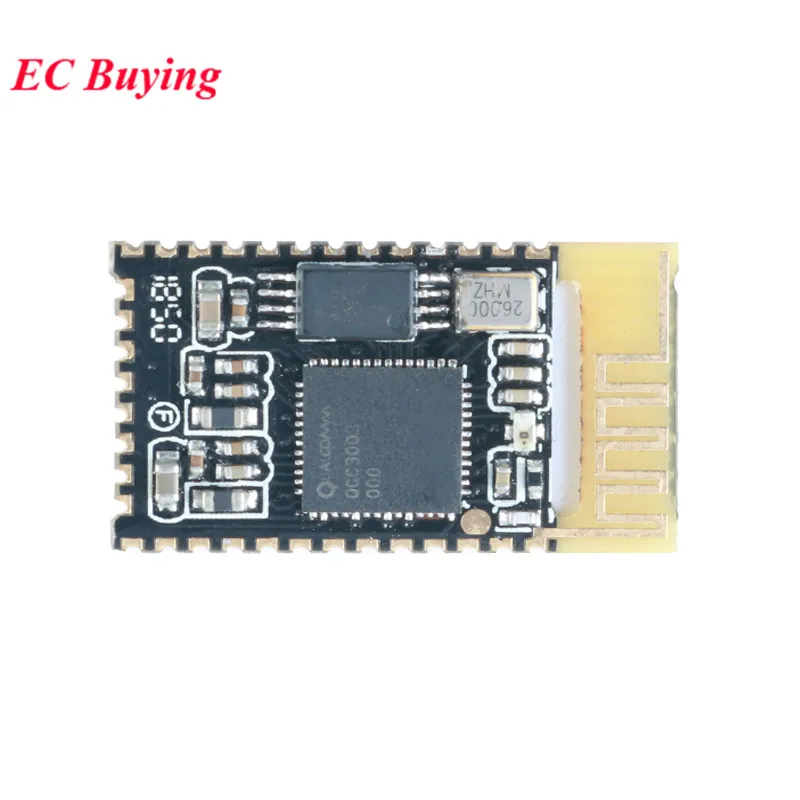

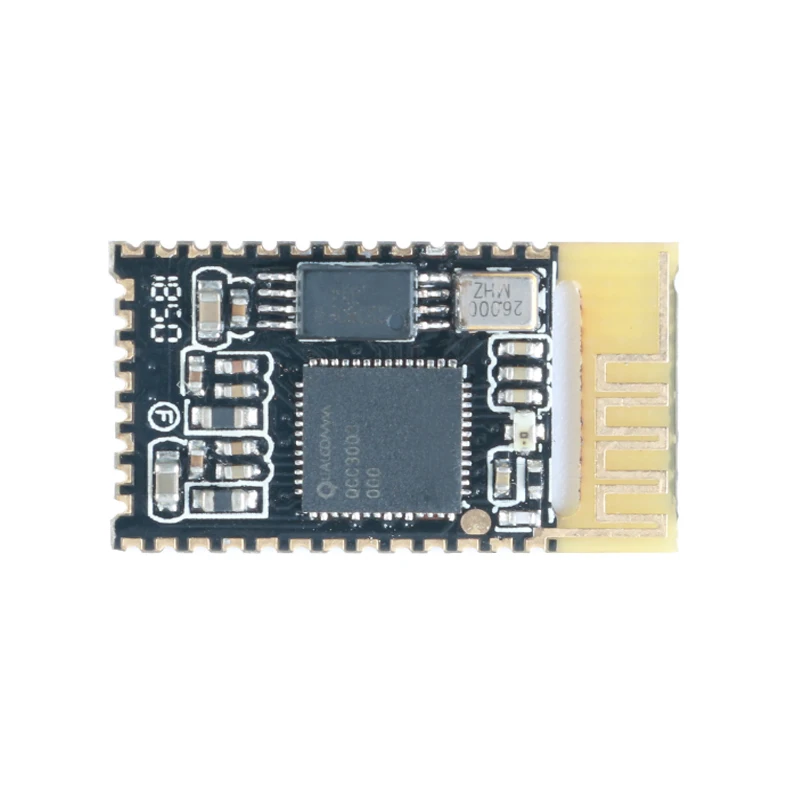

Module hardware version: RRD-303 V 1 .0
Bluetooth specification: Bluetooth V5.0 π/4 DQPSK 8DPSK
Supply voltage: DC3.3V-4.2V
Support Bluetooth protocol: HFPV1.7 A2DPV1.3.1, AVRCPV1.6 HSP1.2
Current: ≤22mA during working playback
Connection does not play 30S after ≤ 5mA Shutdown: ≤ 30uA
Temperature range: -40 to +80 degree
Wireless transmission range ≥10M
Transmission power: CLASS2 0dBm
Sensitivity: -80dBm 0.1% BER
Frequency range: 2.402GHz-2.480GHz
External interface: Audio IN/OUT PIO SPI USB2.0
Audio performance: SBC, AAC, MP3 Stereo
Signal to noise ratio: ≥80dB
Module size: 17X12.7X2MM

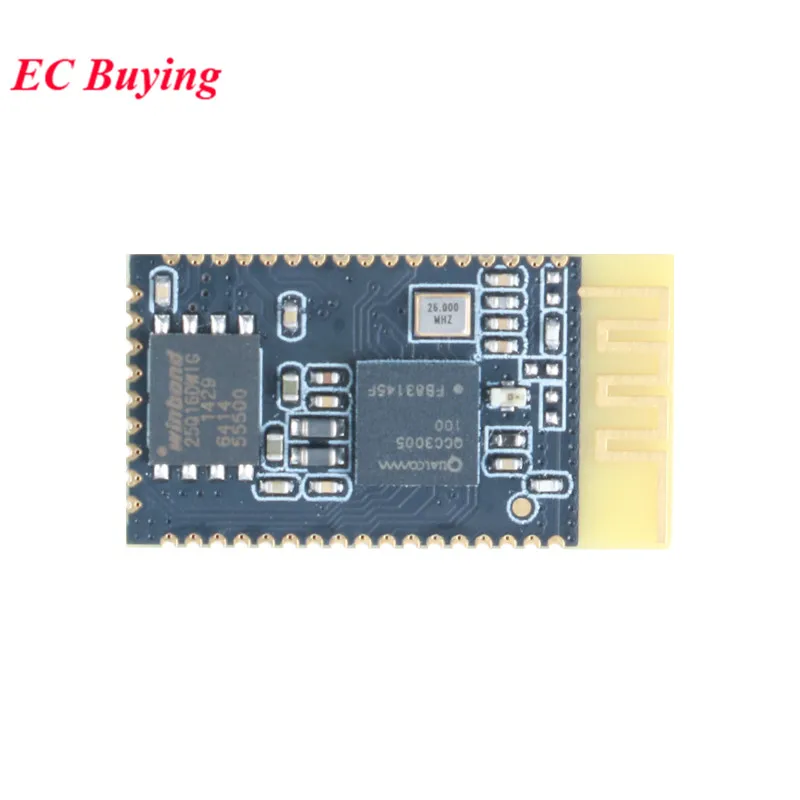

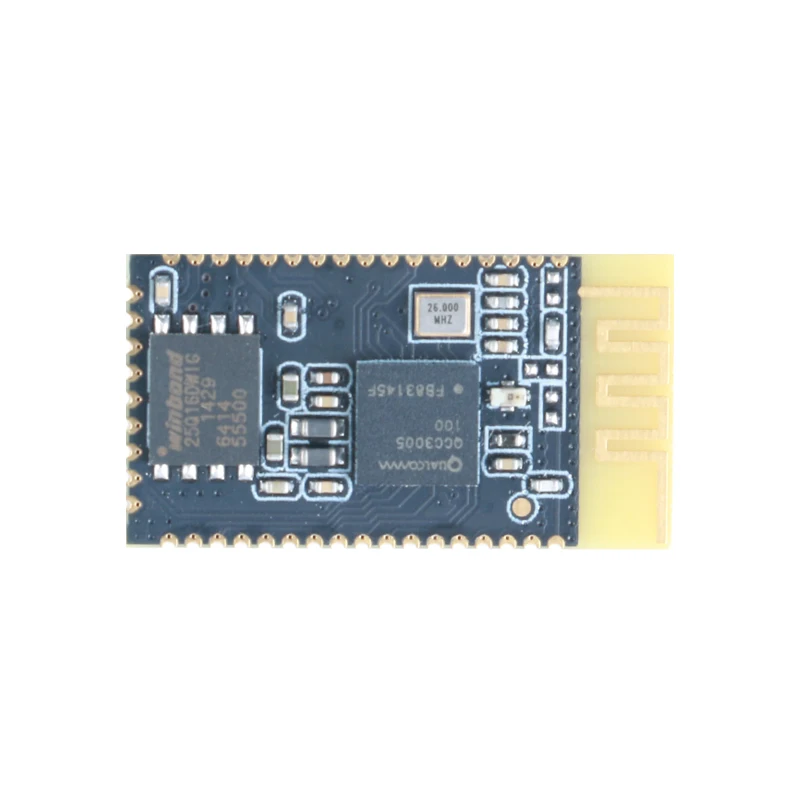

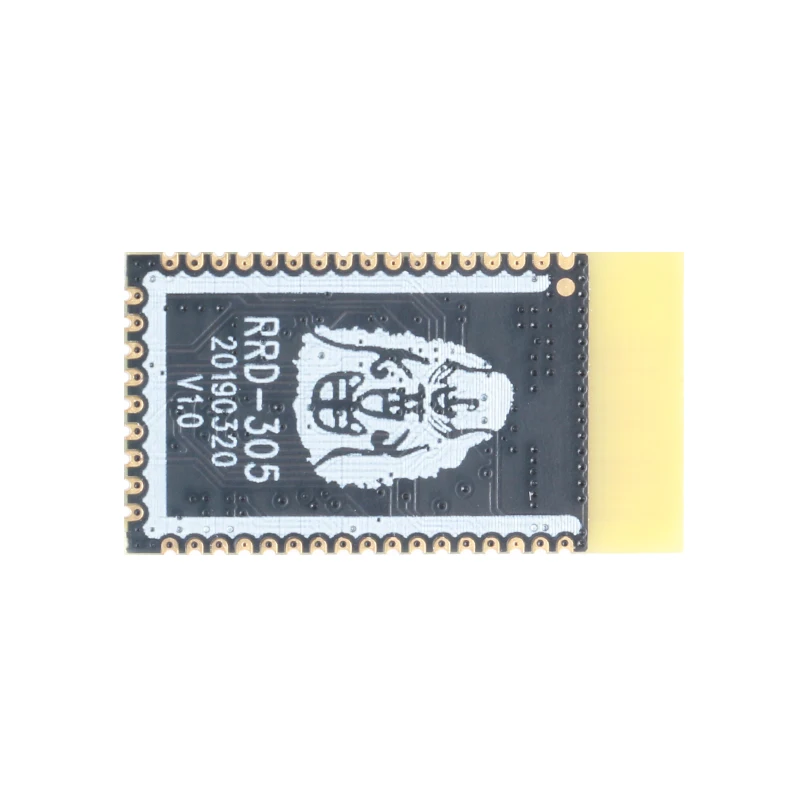

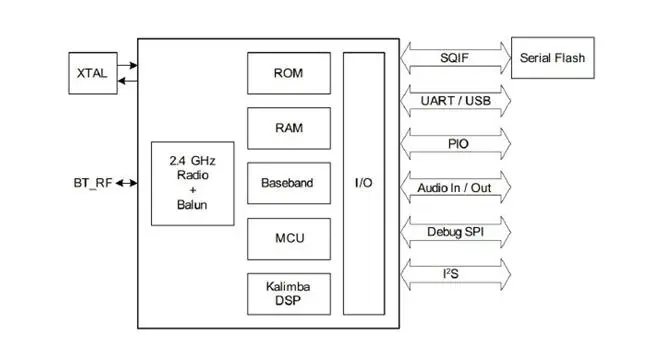

The RRD-305：The RRD-305 Bluetooth-compatible module is a multi-functional wireless audio transmission product. It is a cost-effective and cost-effective stereo wireless transmission solution. The module uses the QCC3005 chip to provide high-quality sound quality and compatibility for the module, and the overall performance is superior.Second, the application area:This module is mainly used for short-distance music transmission. It can be easily connected with Bluetooth-compatible devices of digital products such as laptops, mobile phones, PDAs, etc. to realize music line transmission and control. Applications in Bluetooth-compatible audio, Bluetooth-compatible stereo headset, speakerphone, wireless Transmission audio equipmentBasic characteristics:Module hardware version RRD-305V1.0
Bluetooth specification Bluetooth V5.0 π/4 DQPSK 8DPSK
Supply voltage DC3.3V-4.2V
Support Bluetooth protocol HFPV1.7 A2DPV13.1, AVRCPV1.6 HSP1.2
Current working playback ≤22mA
After the connection does not play 30S: ≤ 5mA
Shutdown: ≤30uA
Temperature range -40°C to +80%C
Wireless transmission range ≥10M
Transmission power CLASS2 0dBm
Sensitivity -80dBm 0.1% BER
Frequency range 2.402GHz-2.480GHz
External interface Audio IN/OUT PIO UART USB2.0 SPI
Audio performance SBC, AAC, MP3 Stereo
Signal to noise ratio ≥ 80dB

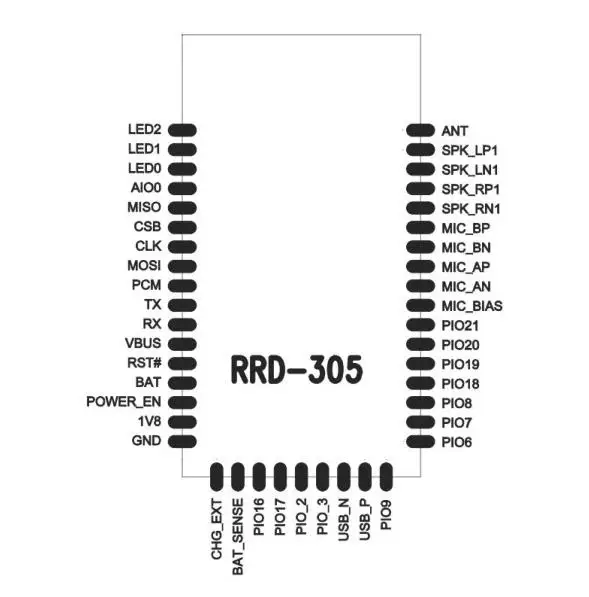

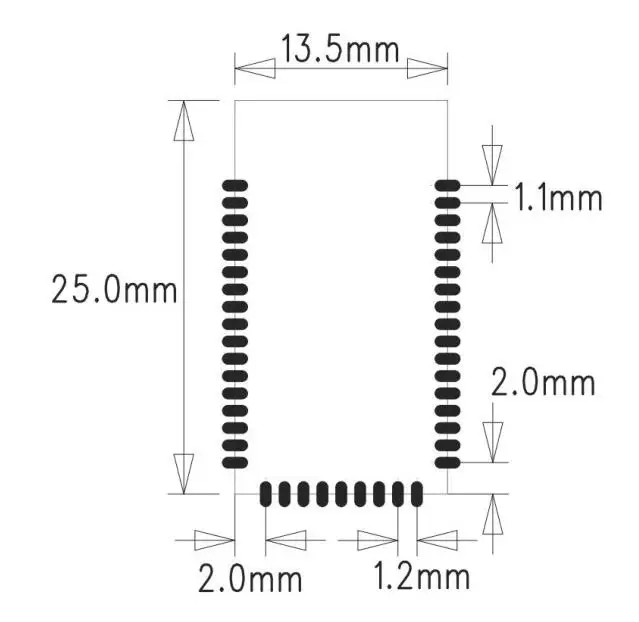

Module size 25x13.5x2mm

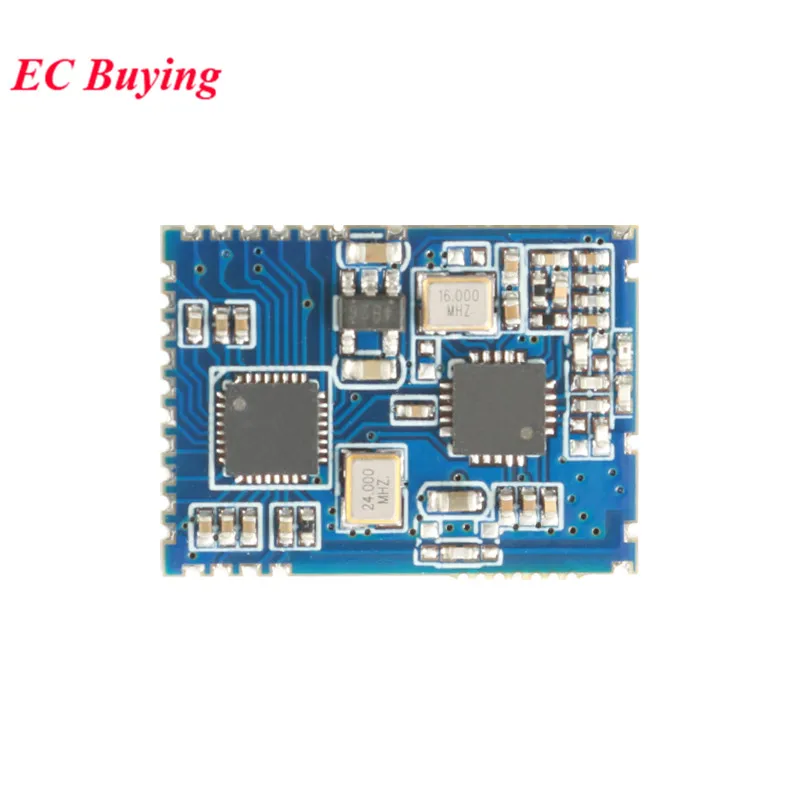

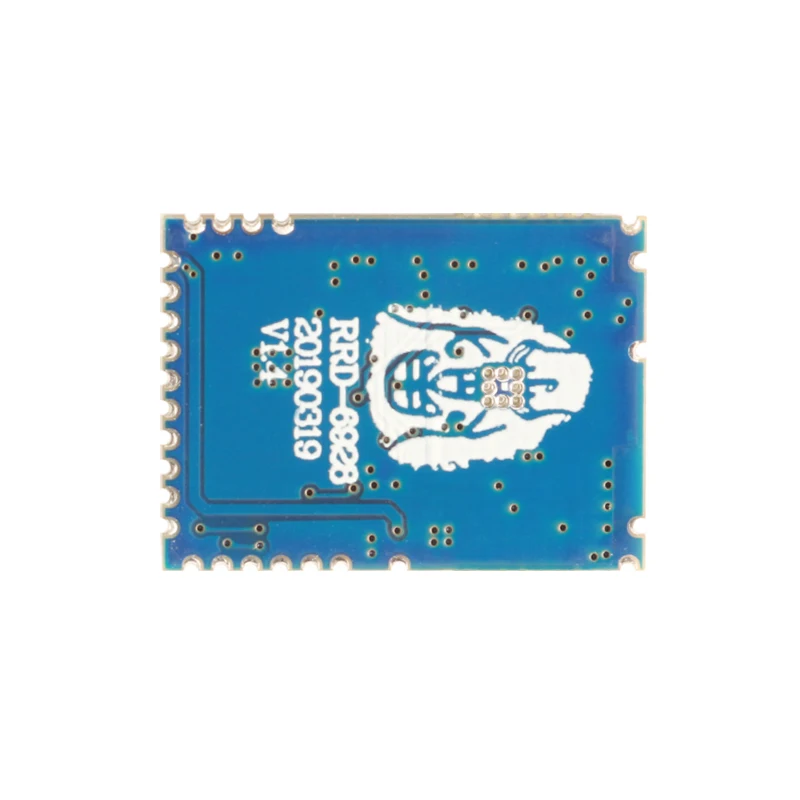

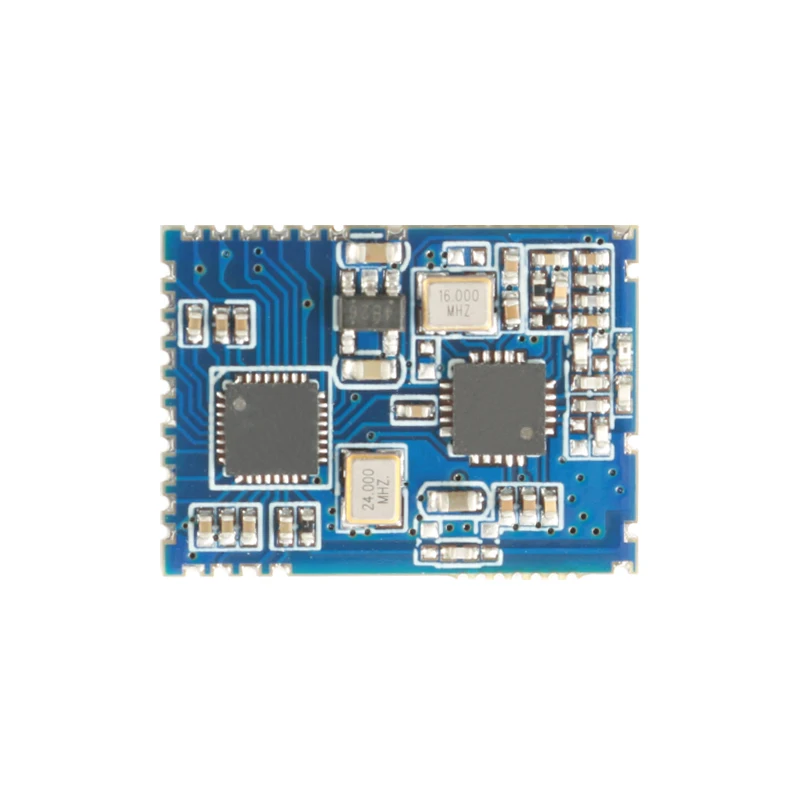

RRD-5190L：
Module hardware version RRD-5190L V1.0
Bluetooth-compatible Specifications Bluetooth-compatible V5.0 GFSK π/4 DQPSK 8DPSK
Supply voltage DC3.3V-5.0V
Support Bluetooth-compatible protocol A2DP V1.2
Current ≤122mA during operation
Shutdown: ≤30uA
Temperature range -40°C to +80°C
Wireless transmission range ≥10M between Bluetooth-compatible and mobile phone, ≥20M between main and auxiliary machines
Transmission power CLASS2 0dBm
Sensitivity -80dBm 0.1%BER
Frequency range 2.402GHz-2.480GHz
External interface Audio IN/OUT PIO USB2.0
Audio performance SBC, MP3 Stereo MONO
Signal to noise ratio 2 80dB
Module size 21X15.24X2MM
Regarding the use environment of wireless Bluetooth-compatible, wireless signals, including Bluetooth-compatible applications, are greatly affected by the surrounding environment. Obstacles such as trees and metals will absorb wireless signals. In practical applications, the distance of data transmission is limited. influences.
The Bluetooth-compatible module must be equipped with an existing system and placed in the housing. Because the metal casing is shielded from the radio frequency signal. Therefore, it is not recommended to install it in a metal case.
PCB layout: The antenna part of the Bluetooth-compatible module is a built-in antenna. Since the metal will weaken the function of the antenna, when the module is laid, the bottom of the module is preferably hollowed out.
