Main parameters.
1. Nominal voltage, current: 125V/1. 5A max
2. Contact resistance: 40 milliohms Max
Initial state 100 milliohm Max Final state
3. Insulation resistance: 500 milliohms Min
4. Test condition: AC1000V/0.5mA for 1 minute
5. Salt spray test: 8 Shi 0.5H
6.Soldering temperature: 260℃ 3℃ 0.5s
Other requirements
1. The product should be free of misassembly. Missing parts and other phenomena.
2. The surface of the parts should be free of cracks, missing material, flying edge, etc., and the surface plating should be bright and beautiful

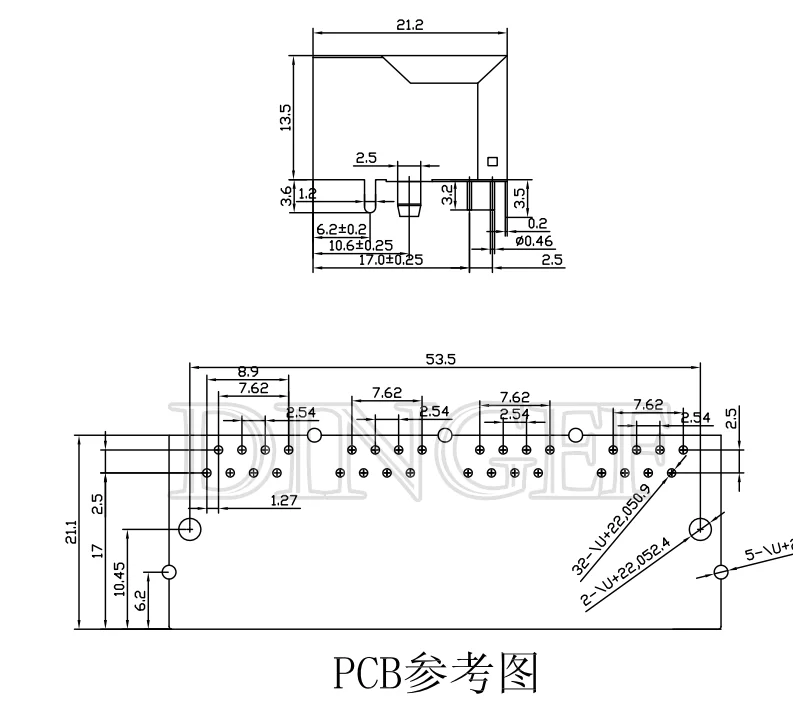

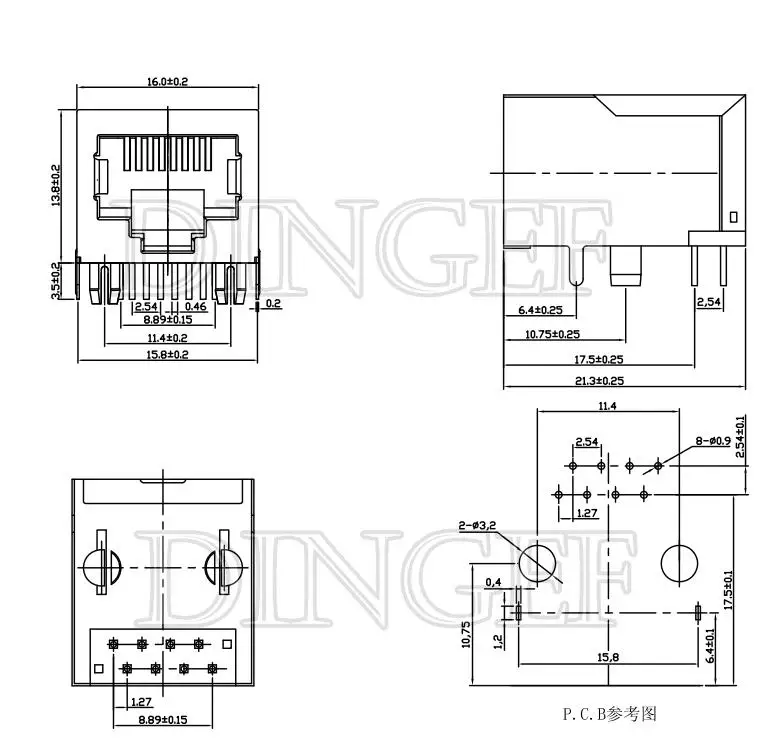

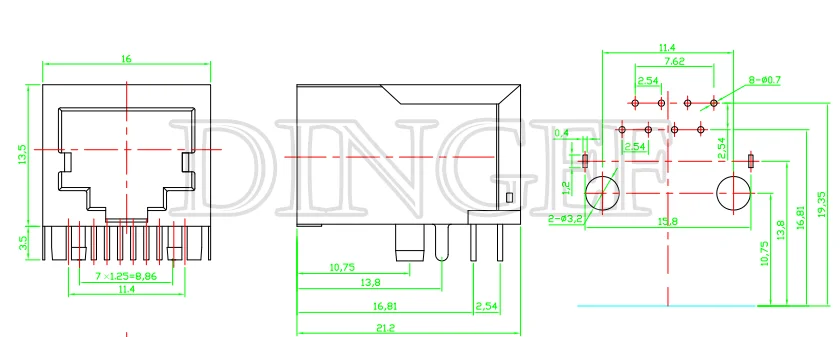

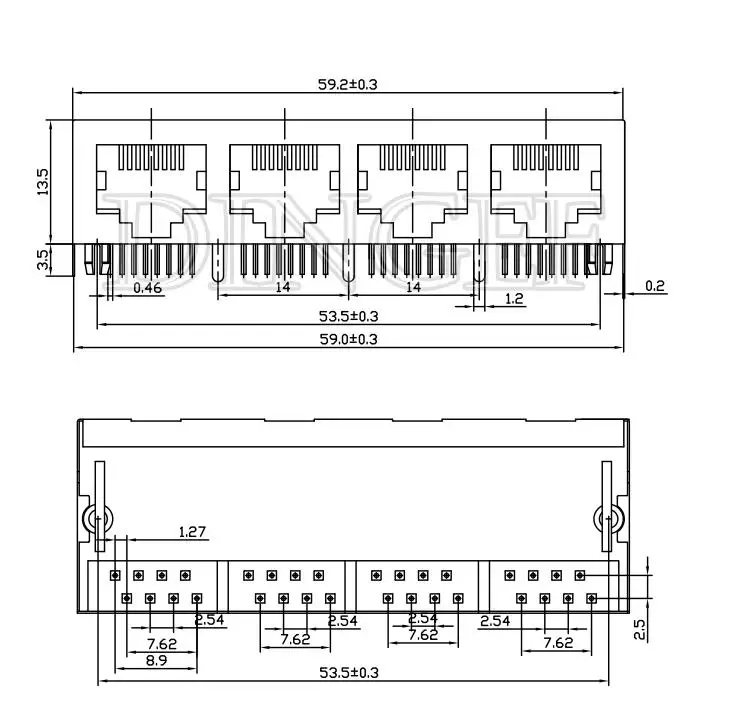

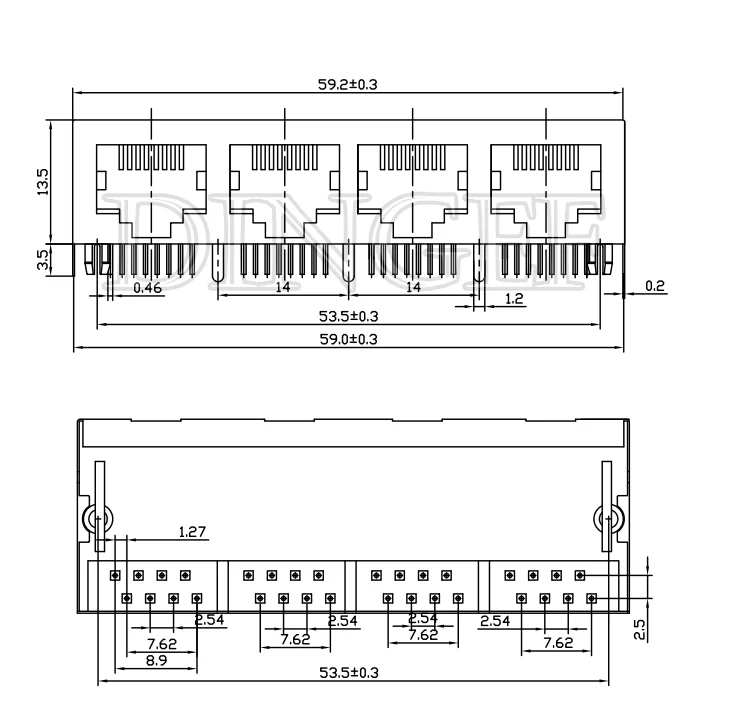

3. Unannotated dimensional tolerance is +0.15mm
Main parameters.
1. Nominal voltage, current: 125V/1. 5A max
2. Contact resistance: 40 milliohms Max
Initial state 100 milliohm Max Final state
3. Insulation resistance: 500 milliohms Min
4. Test condition: AC1000V/0.5mA for 1 minute
5. Salt spray test: 8 Shi 0.5H
6.Soldering temperature: 260℃ 3℃ 0.5s
Other requirements
1. The product should be free of misassembly. Missing parts and other phenomena.
2. The surface of the parts should be free of cracks, missing material, flying edge, etc., and the surface plating should be bright and beautiful
3. Unannotated dimensional tolerance is +0.15mm
Opiniones de clientes
4 opinionesExcelente producto, sin duda volvería a comprar.
producto perfecto, pide reparar un equipo y funciona perfecto
Exactamente como se describe, las medidas son correctas. Diseñé una placa de circuito para ellos a partir de las medidas indicadas y encajan perfectamente.
