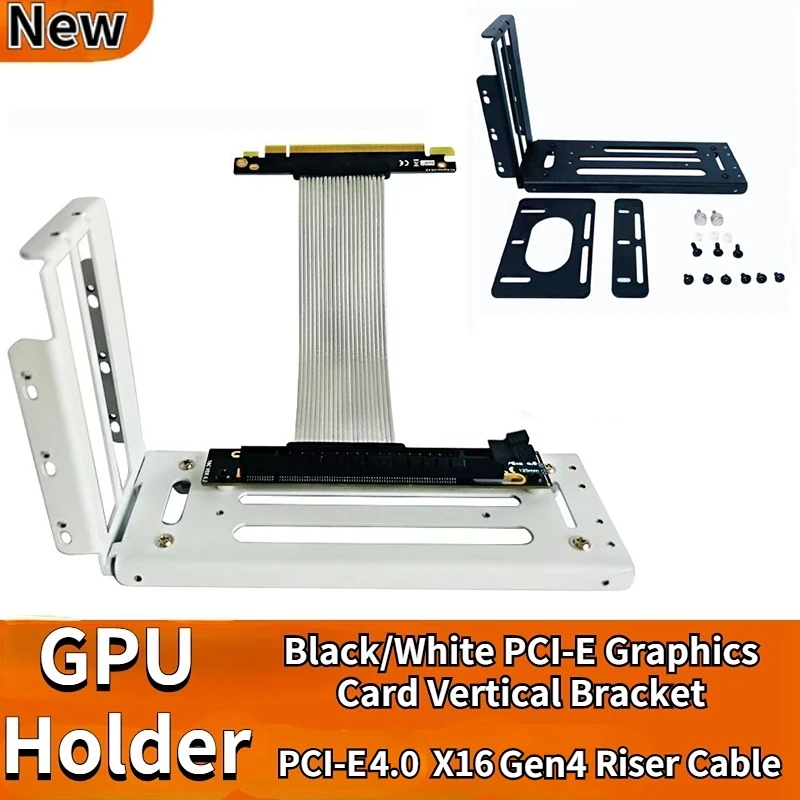

Riser Silver White & Black PCI-E 4.0 x16 ATX 4090 3090 Graphics Card Vertical Base GPU Holder+GEN4 PCI-E 16X Riser Extender Cord

2023 New Riser Silver White & Black PCI-E 4.0 x16 ATX 4090 3090 Graphics Card Vertical Base GPU Holder+GEN4 PCI-E 16X Riser Extender Cord

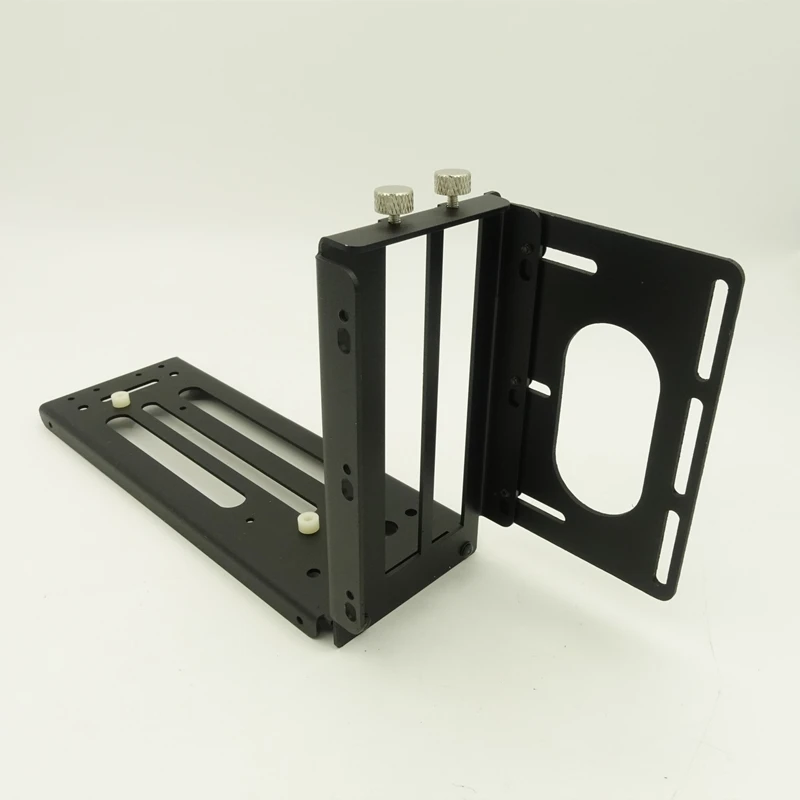

Bracket Instructions

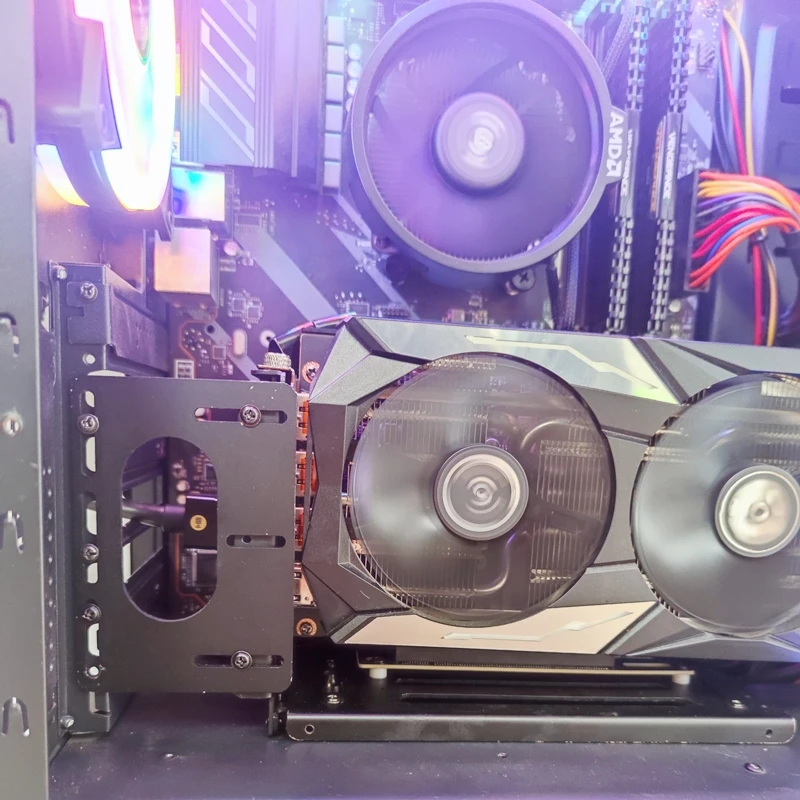

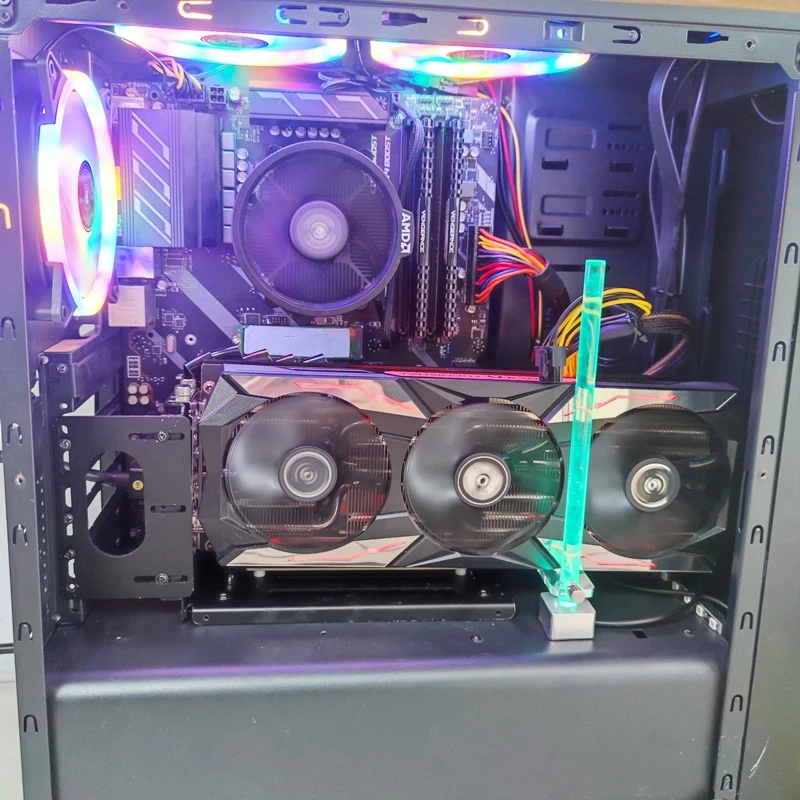

Application: The mid-tower chassis modified graphics card is erected, used to fix the graphics card, it needs to be used with the graphics card extension cable, the graphics card is external
Scope; a chassis that supports more than 6 side panels, or the chassis has enough space for the graphics card to stand upright
Features: With magnetic suction, it can be attached to the chassis. The side baffles are adjustable from left to right, enough space for the installation of HDMI DP VGA cables. Chassis that supports fully removable graphics card blanks

Installation steps

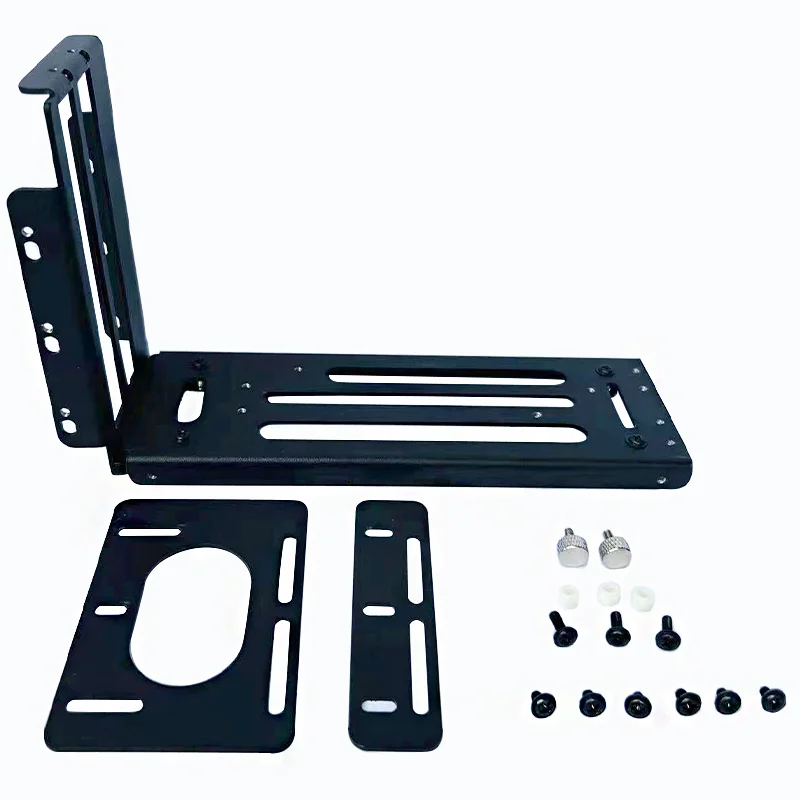

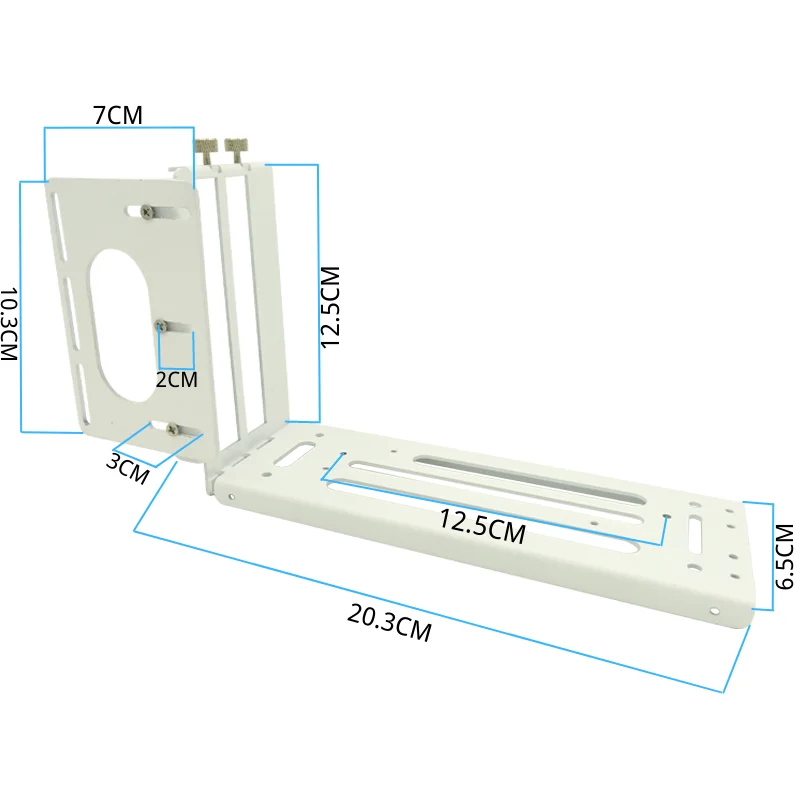

1. Place the two white washers of the accessory package on the 12.5CM holes of the base respectively
2. Place the right-angle graphics card extension cable on the white washer and lock it on the base with screws
3. Lock the side cover, place it in the chassis, and fix the bracket side cover to the side cover of the chassis
4. Plug in the graphics card, plug in the video cable, and adjust the position


PCI-E 3.0 X16 Cable

♦ FULL-SPEED PCI-E 3.0 x16 128Gbp/s BANDWIDTH - Deliver all the performance of PCIe 3.0 to your GPU. Support GTX1080, GTX1080Ti, RTX2060, RTX2070, RTX2080, RTX2080Ti, RX570, RX580, RX590, RX5700 XT, RX VEGA 56, RX VEGA 64 etc, support for all graphics cards produced after 2015.

♦ EXTENDED & ANGLED - A generous of cable length and a 90° female PCIe connector minimizes cable strain making it easy to install your GPU vertically in compatible cases.

♦ EMI SHIELDED - Electromagnetic interference (EMI) shielding ensures maximum performance because of the shield is made of TPE plastic sleeve and PE insulation layer. Otherwise, imported wire( 28/30 AWG) and the core is made of pure copper tinning process, which ensures the signal is full speed, stable and almost no attenuation transmission.

♦ FULLY FLEXIBLE - Six-wire banded construction allows for full flexibility to reach through even the tightest gaps. After numerous design improvements, the end result is: the six-wire design is far better than the five-wire and seven-wire designs in terms of transmission, shielding, and attenuation.

♦ 100% Money-back Guarantee: We want you to be absolutely pleased with our items. If you're not satisfied, return them to us for a fast, no-hassle refund or product replacement.

♦PCB 95mm-132mm

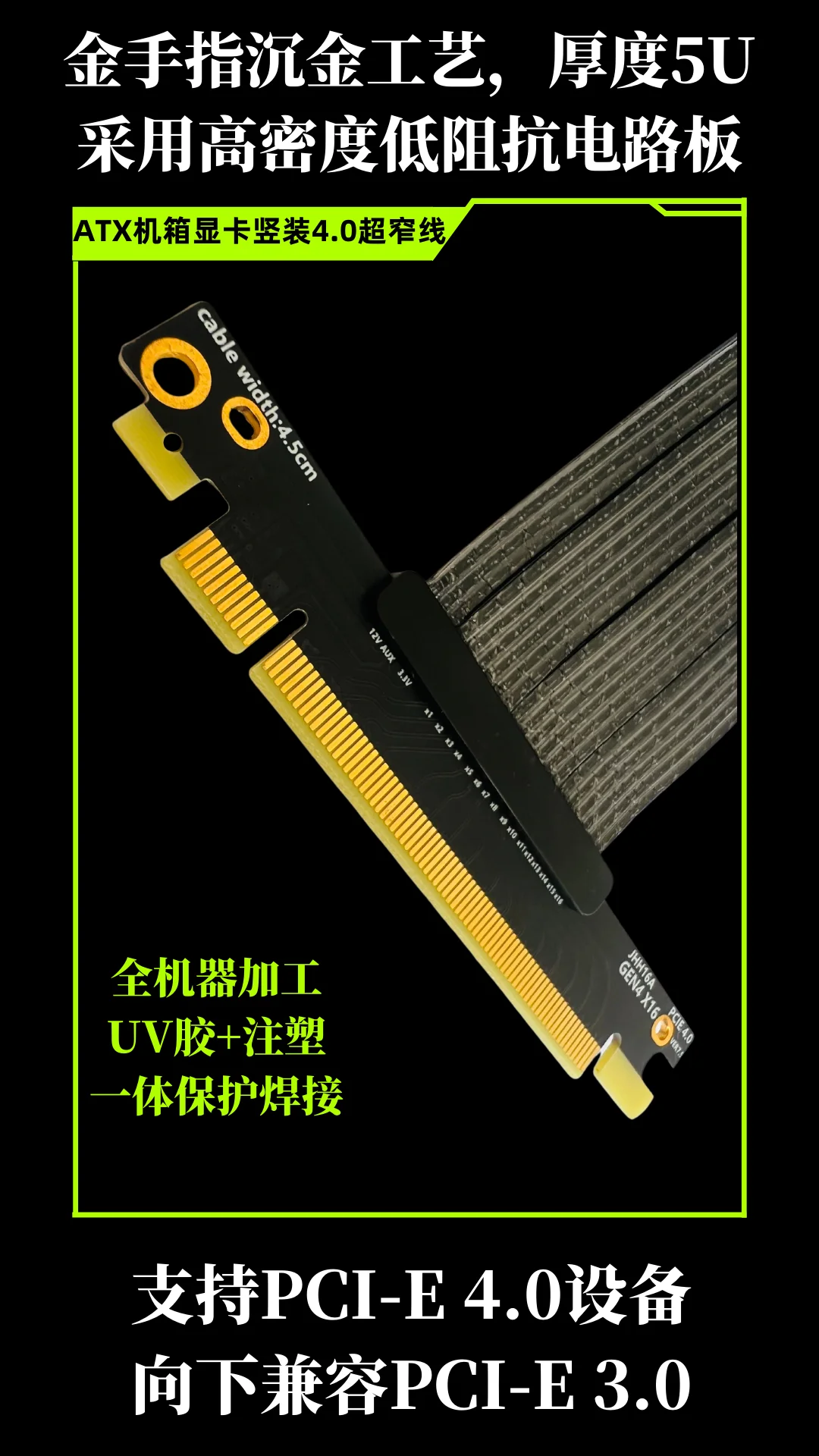

PCI-E 4.0 X16 Cable

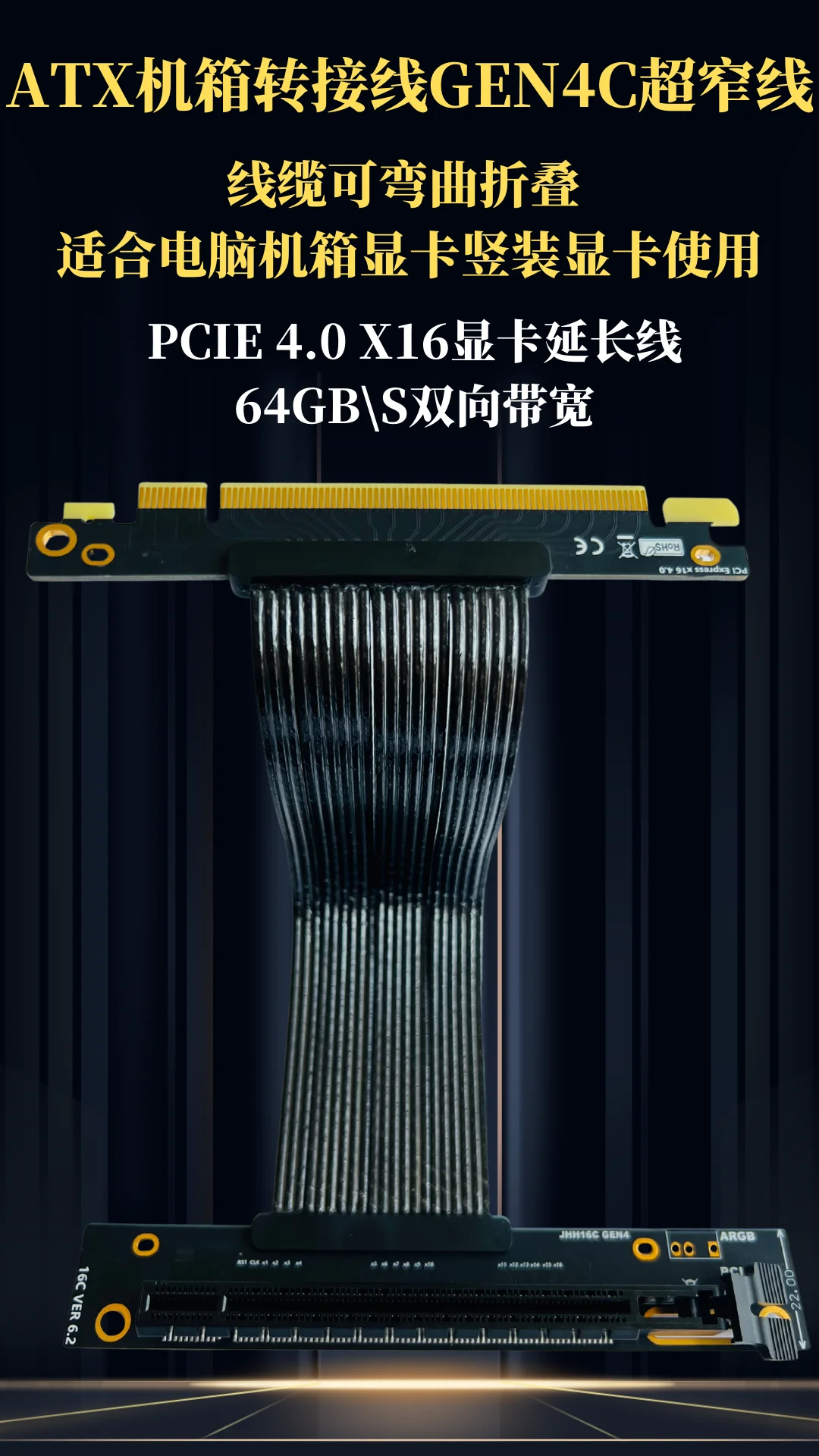

1. PCIE 4.0 X16 graphics card extension cable, 64GBS dual-way bandwidth.

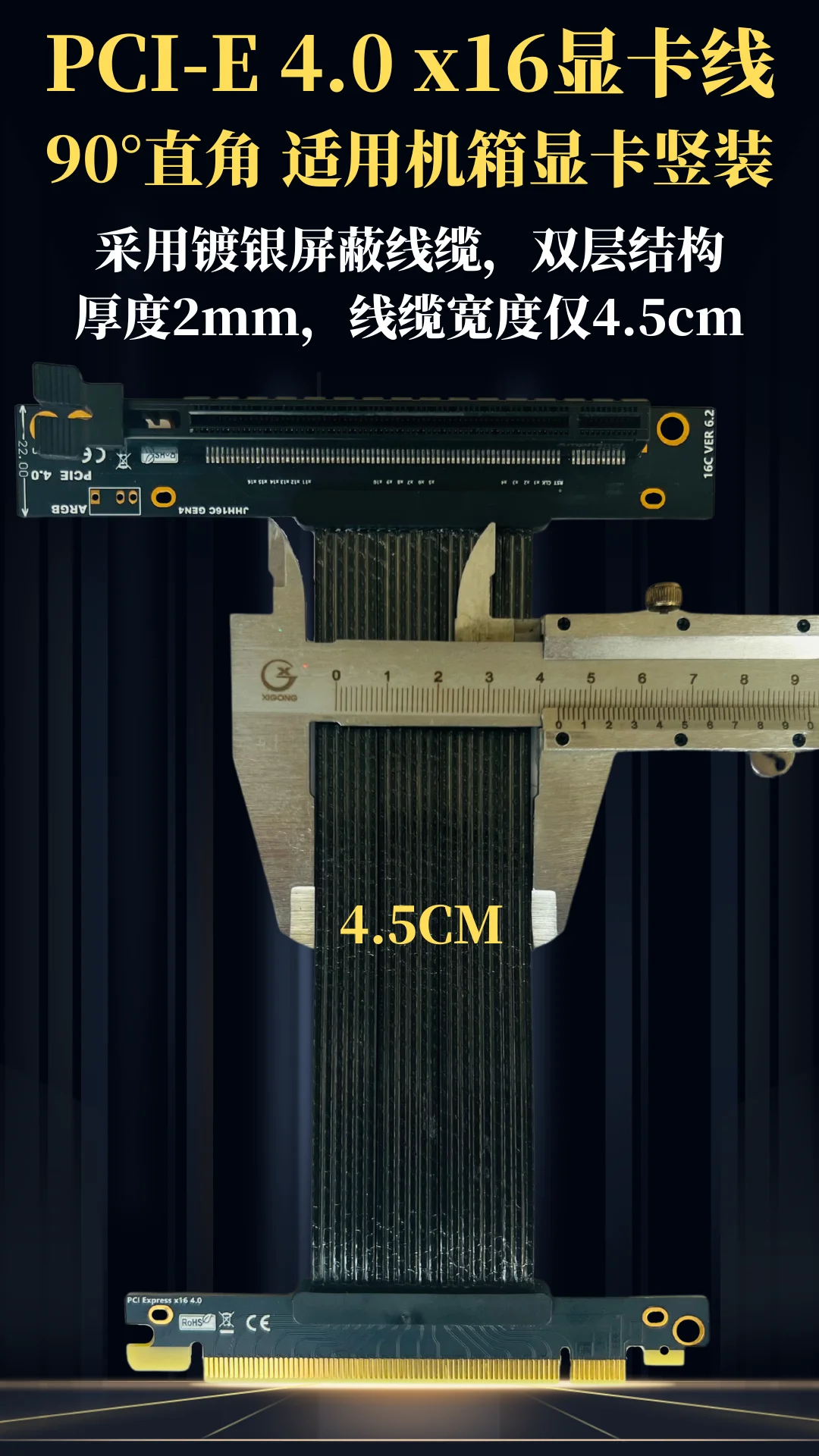

2. It adopts silver-plated shielded cable, double-layer structure, thickness 2mm, and cable width is only 4.5cm.

3. Support PCIE 4.0 devices, backward compatible with PCIE 3.0.

4. Gold finger immersion gold process, thickness 5U, using high-density low-impedance circuit board.

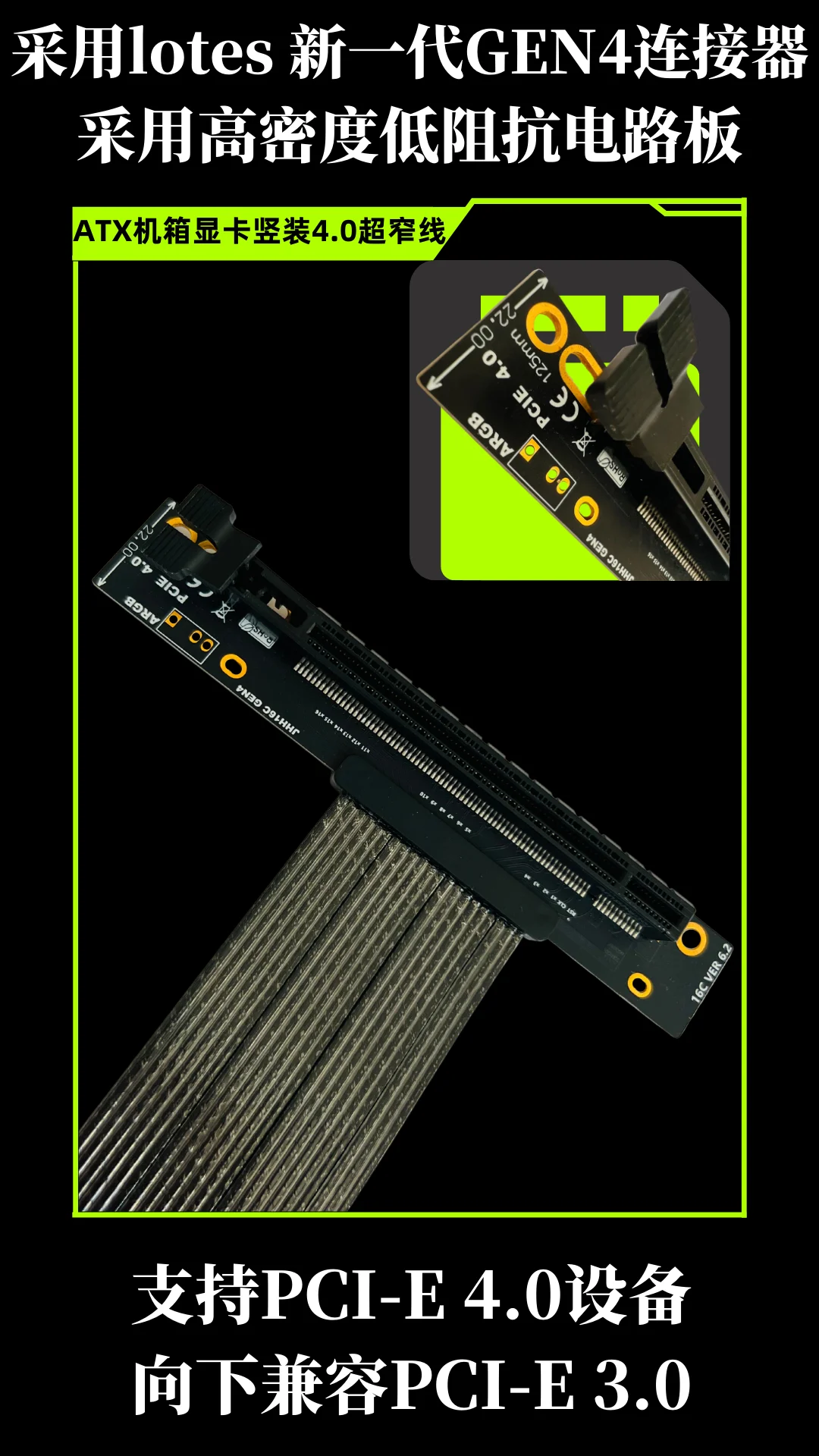

5, using the lotes new generation GEN4 connector.

6. The cable can be bent and folded, which is suitable for the vertical installation of the graphics card in the computer case.

7. Support graphics card, network card, solid-state hard drive, capture card, display cards....
