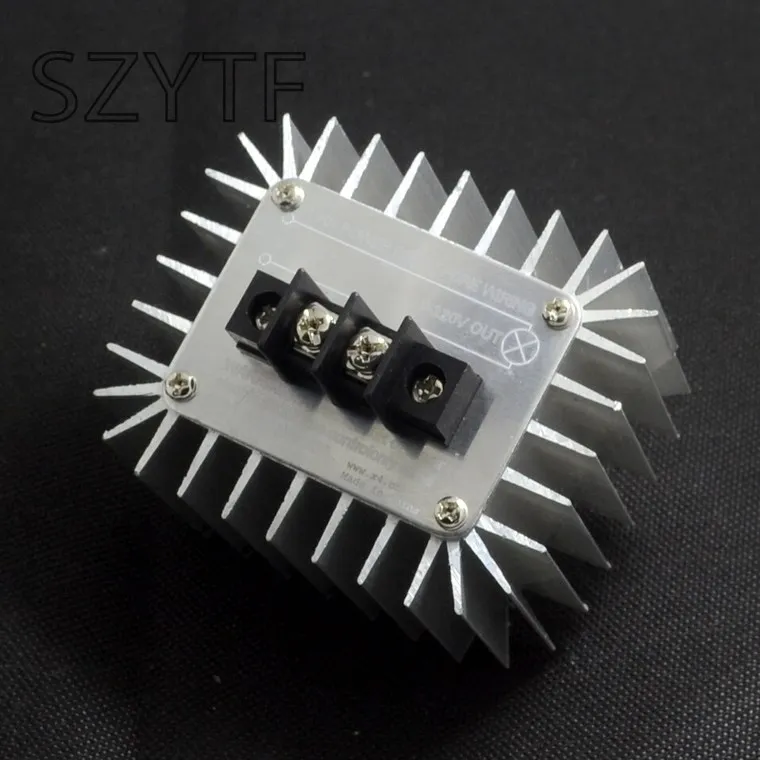

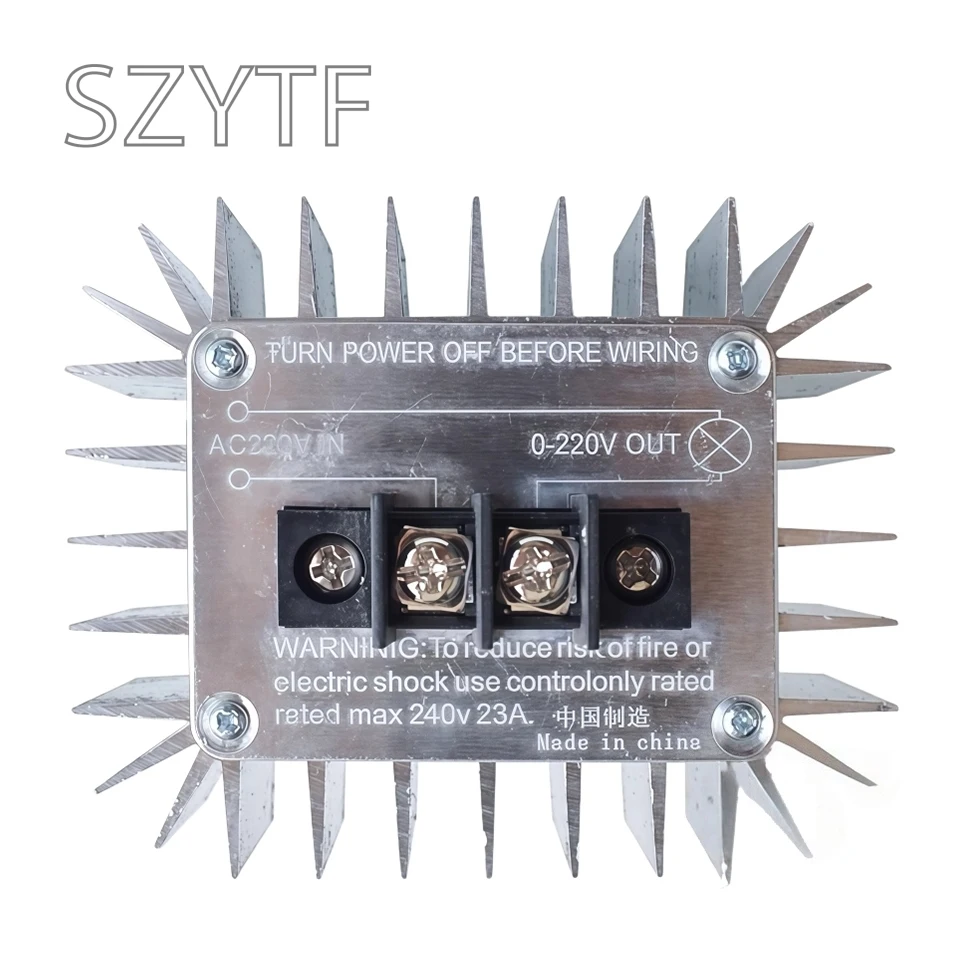

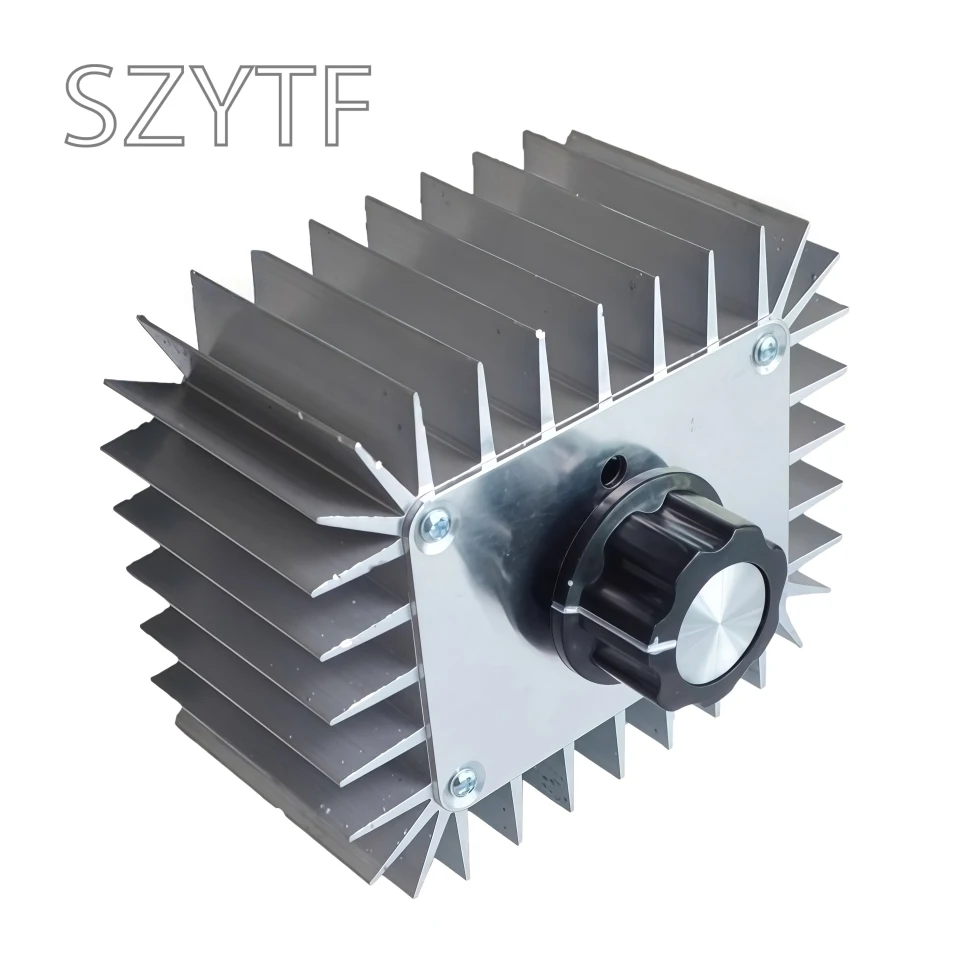

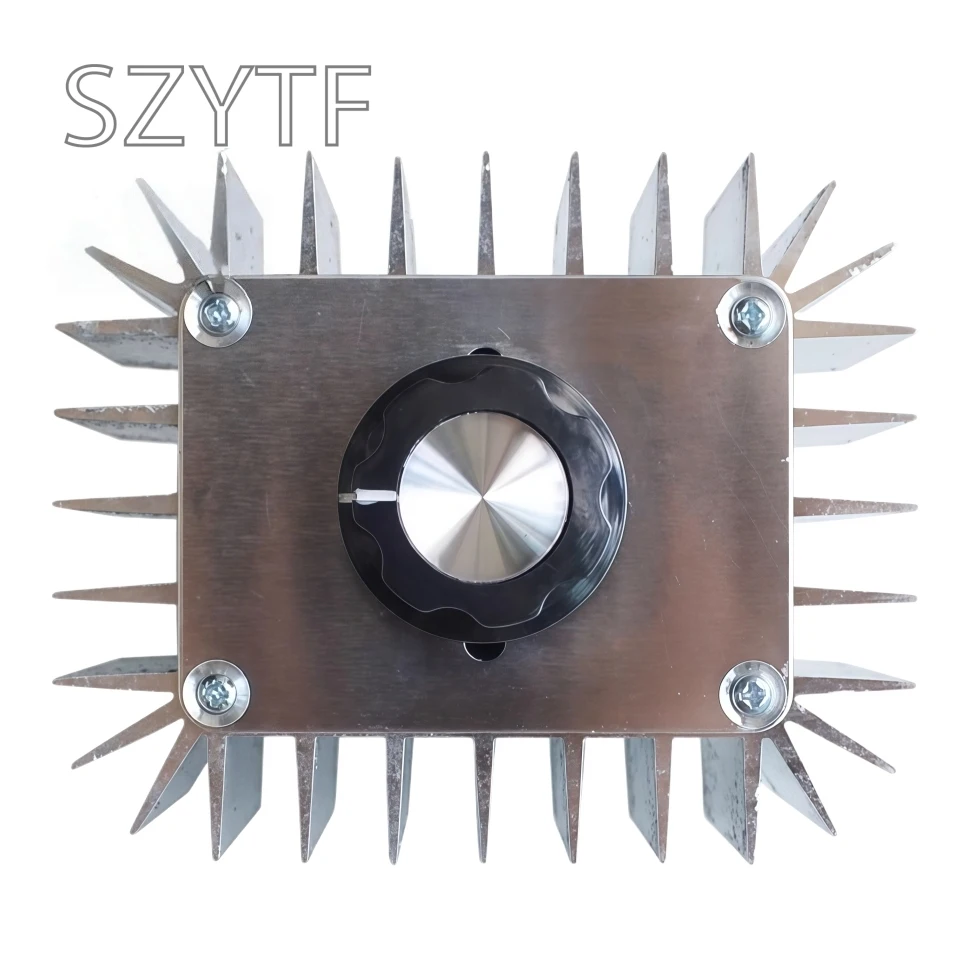

Regulador de voltaje SCR de 5000W, módulo de temperatura de regulación de velocidad de atenuación de voltaje electrónico de alta potencia

High-power electronic voltage regulator 5000W 220V regulator SCR dimming thermostat regulator

Product Name : 5000W AC Regulator

Size : length 84.8 * W 70 * H 40mm, without protruding knobs and connectors.

Maximum power : 5000W ( resistive load limit power ) for a long time should reduce power use , we recommend using an ambient temperature resistive load 2500W.

Efficiency : 90%

Operating voltage: 220V AC

Adjustment voltage : AC 0-220V ( high to low can go to 0 , from low to high is around 20V from the transfer )

Note that you must be connected to the load regulator .

SCR is mainly used for resistive loads ( incandescent electric wire , etc. ) , most of the single-phase AC motor can be, there is no guarantee can be other types of loads buyer to confirm their own .
