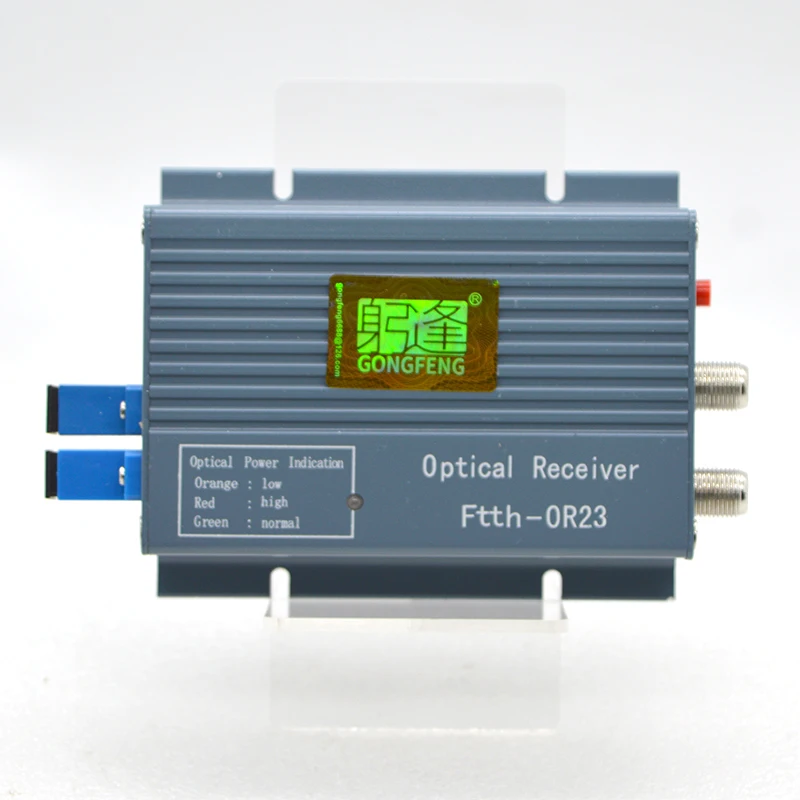

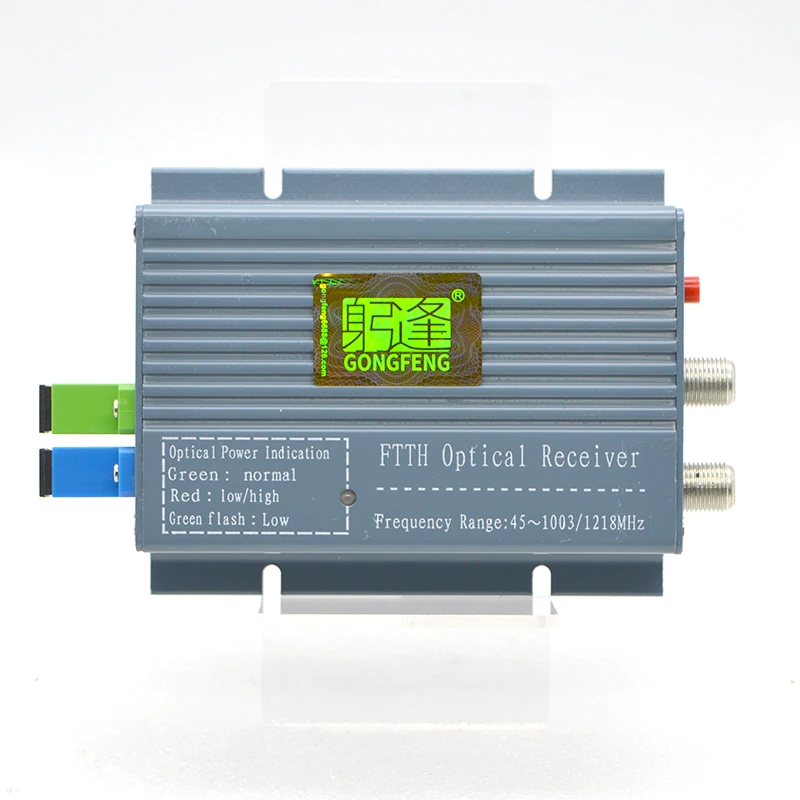

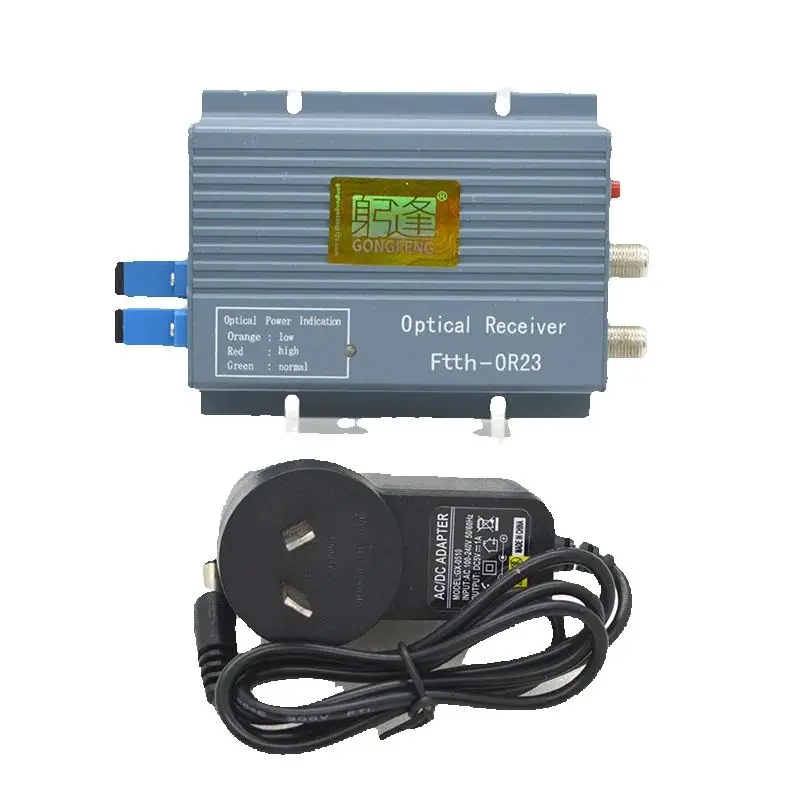

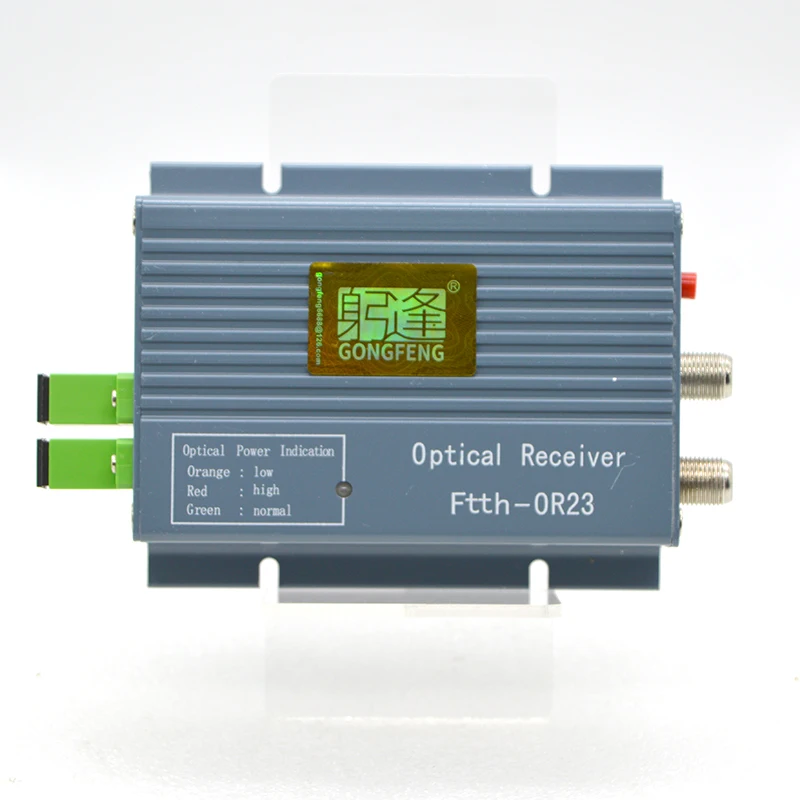

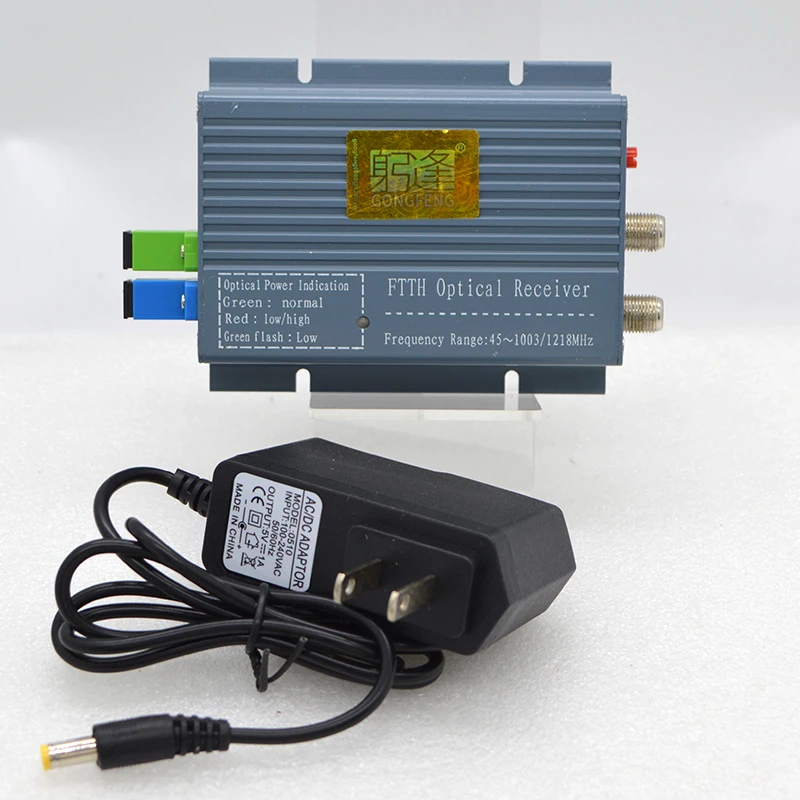

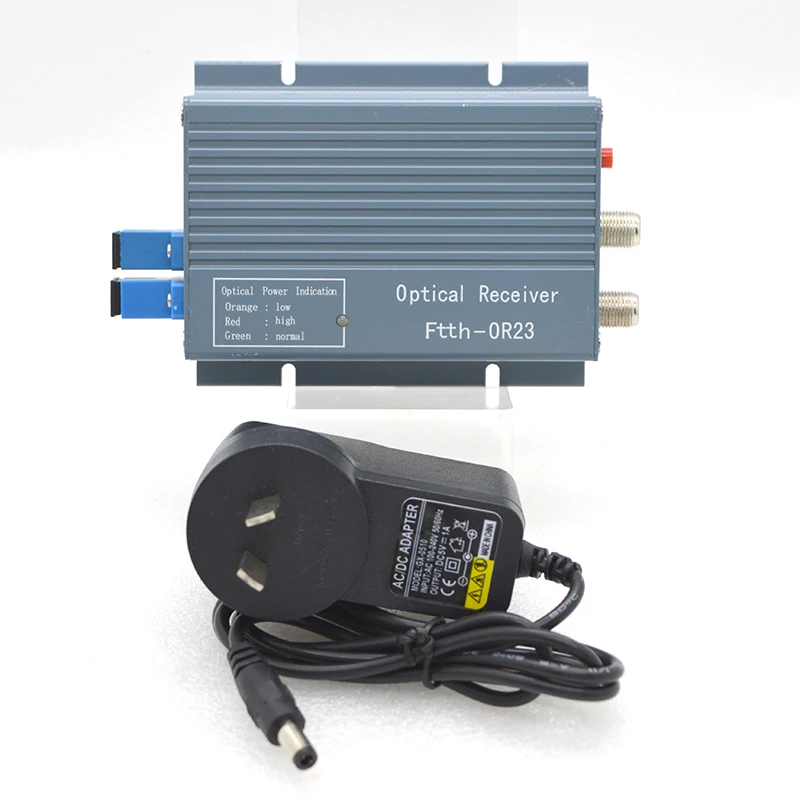

Receptor óptico de nodo FTTH WDM 82dBuV, salida de alto nivel 1550/1490/1310nm CATV PON, equipo de transmisión de red, 8 Uds., venta al por mayor

8PCS FTTH Node Optical Receiver WDM 82dBuV High Level Output 1550/1490/1310nm CATV PON Network Transmission Equipment Wholesale

Model: FTTH-GF OR23WD

Receiver output level: 82 (dBm)

Wavelength: 1100-1600 (nm)

Input optical power: - 18 ~ + 2 (DBM)

RF output impedance : 75（Ω）

Output reflection loss : 45（dB）

Power consumption: 0.5 (W)

Weight: 400 (g)

Ftth-1000m optically controlled receiver

Input: - 15dBm ~ + 2dbm

Output: 65 ~ 82db μ V(±1dB μ V)

Applicable to: GEPON Network

Red: ＜ - 9dbm;

Green: ＞ - 9dbm

Orange: ＞ + 2dbm

performance parameter

AGC control range: - 10 ~ 0 dBm

Optical emission loss: ＞ 45dB

Light receiving wavelength: 1100 ~ 1600nm

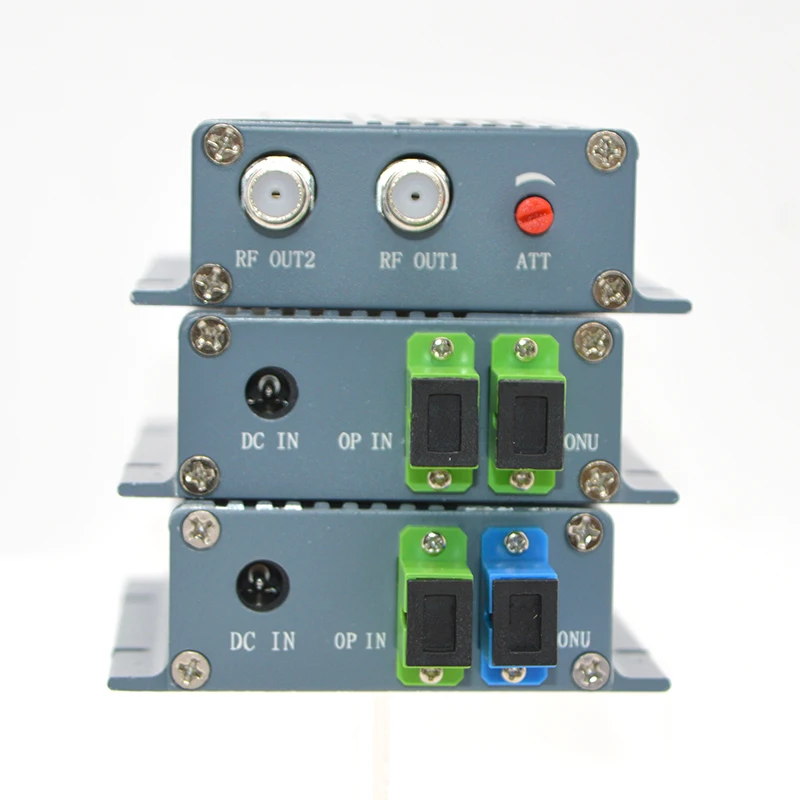

Optical connector type : SC/APC,SC/PC

Carrier noise ratio (C / N): ≥ 50dB

Carrier combined third-order beat ratio (C / CTB): ≥ 65dB

Carrier combined second-order beat ratio (C / CSO): ≥ 63dB

Frequency range: 45 ~ 100MHz

In band Flatness: ± 0.5 (45 ~ 550MHz); ±0.75(550~750/862/1000MHz)

Output level: 65 ~ 82db μ V（±1dB μ V）

WDM wavelength: 1550 / 1490 / 1310nm
