Descripción
Notice:Rd-03E is a radar module equipped with Silicon Microelectronics' S3KM111L chip. The S3KM111L is an integrated microcontroller millimeter wave sensor SoC based on FMCW radar transceiver technology that operates in the 24 GHz K-band with a modulation bandwidth of up to 1 GHz per single frequency scan. This module uses the FMCW waveform and S3 series chip's proprietary advanced signal processing technology, combined with the MCU's proprietary radar signal processing and built-in intelligent presence sensing algorithm, to achieve accurate human body sensing ranging and gesture recognition. Developers can display distance information and gesture information in real time through the host computer tool.The Rd-03E module can detect and identify moving and micro-moving human bodies, and report real-time distances. It can detect targets and gestures in designated areas and report results in real time. It is widely used in various AloT scenarios. This module has the characteristics of strong real-time performance, high ranging accuracy, large ranging range, and flexible configuration of algorithm parameters.
Rd-03E gesture recognition firmware mainly refers to recognizing the up and down movements of hands, and is mainly used in scenarios such as opening the lid/opening the toilet seat of smart toilets. It doesn't mean recognizing gestures such as "OK", "Yeah" and "Good".
Rd-03E gesture recognition firmware mainly refers to recognizing the up and down movements of hands, and is mainly used in scenarios such as opening the lid/opening the toilet seat of smart toilets. It doesn't mean recognizing gestures such as "OK", "Yeah" and "Good".
Rd-03DNotice:

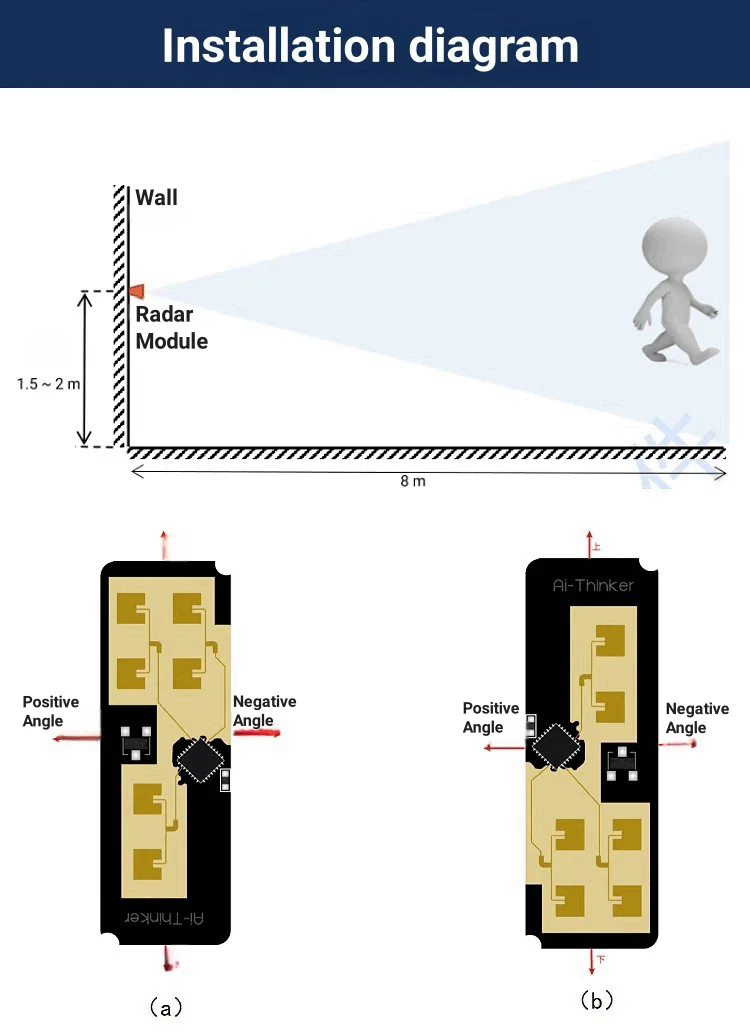

1. The recommended radar installation orientation is (a) or (b), the positive and negative directions are azimuth angles, the upand down directions are pitch angles, and the normal direction of the radar antenna plane is 0
2. The detection range has an azimuth angle of ±60°, a pitch angle of ±30°, and a detection distance in the normal direction of up to 8m.
1. The recommended radar installation orientation is (a) or (b), the positive and negative directions are azimuth angles, the upand down directions are pitch angles, and the normal direction of the radar antenna plane is 0
2. The detection range has an azimuth angle of ±60°, a pitch angle of ±30°, and a detection distance in the normal direction of up to 8m.
Characteristic:1. Adopts standard 1*4P-1.25mm socket connector2. Radar supports 24 GHz ISM frequency band3. High performance 1T2R antenna4. Accurate target positioning and tracking5. MAX sensing distance is 8m6. The range resolution is 0.75m, the ranging accuracy is 0.15m7. Detection range azimuth Angle ±60°, pitch Angle ±30° Wall mounting8. Provides a visual tool to configure the tracking detection range, data reporting interval, and target retention time9. Ultra-small module size: 15*44mm10. Automatically loads default configuration, plug and play11. Support UART, you can use the serial port to realize radar intelligent parameter adjustment, convenient and fast12. 5V single power supply13. Typical application scenarios:1*Smart home2*Smart business3*Bathroom4*Smart lighting

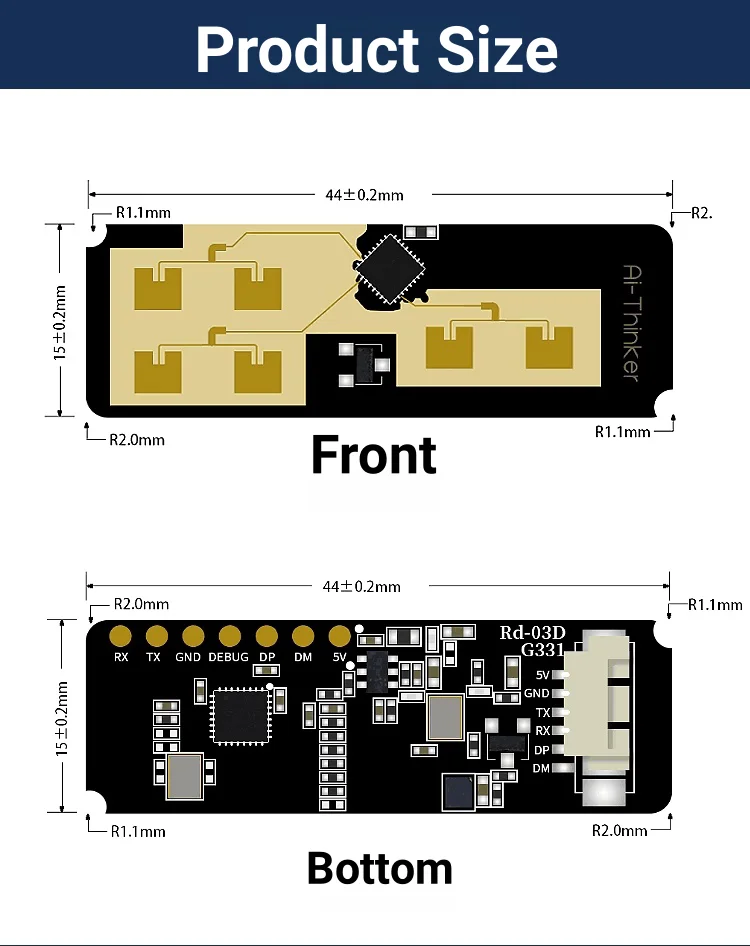

SpecificationModel Rd-03D Package Standard 1*4P-1.25mm socket connector Size 15.0*44.0(±0.2)mm Antenna on-board PCB antenna Frequency 24G ~24.25GHz Working temperature -40℃ ~ 85℃ Storage temperature -40℃ ~ 125℃, 90%RH Power supply Support voltage 5V, supply current ≥200mA Interface UART UART rate Default 256000 bps
Rd-03D is a radar module equipped with Silicon Microelectronics' S5KM312CL chip. S5KM312CL is an integrated microcontroller millimeter wave sensor SoC based on FMCW radar transceiver technology. It operates in the 24 GHz K-band with a maximum sweep bandwidth of 0.25GHz. This module uses FMCW waveform and S5 series chip's proprietary advanced signal processing technology, combined with MCU's proprietary radar signal processing and built-in intelligent positioning and tracking algorithm, to detect multiple targets in a designated area and report the results in real time. Users can quickly Develop corresponding targeting tracking products.The Rd-03D module accurately senses the motion status of the human body and the area. It is equipped with an intelligent algorithm to realize motion trajectory recognition and tracking, and can measure the speed and distance of targets in the area. The recognition speed is faster and the power consumption is lower. The module can be quickly configured and is suitable for various publicity facilities. It can intelligently distinguish the human body in motion, micro-motion and stillness, and control the switch of the equipment. This module has good resistance to external interference and is not affected by wireless signals such as WIFI.
