Raspberry Pi Zero PoE Power over Ethernet/USB HUB HAT RTL8152B Chip 3 puertos USB 2,0 802.3af-Compatible para RPi Zero W / WH

Suitable For Raspberry Pi Zero / Zero W / Zero WH, 802.3af-Compliant

ThePoE/ETH/USB HUB HATis a PoE (Power over Ethernet) USB HUB HAT designed forRaspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with3x extended USB ports.

• Designed for Raspberry Pi Zero, compatible with Zero series boards

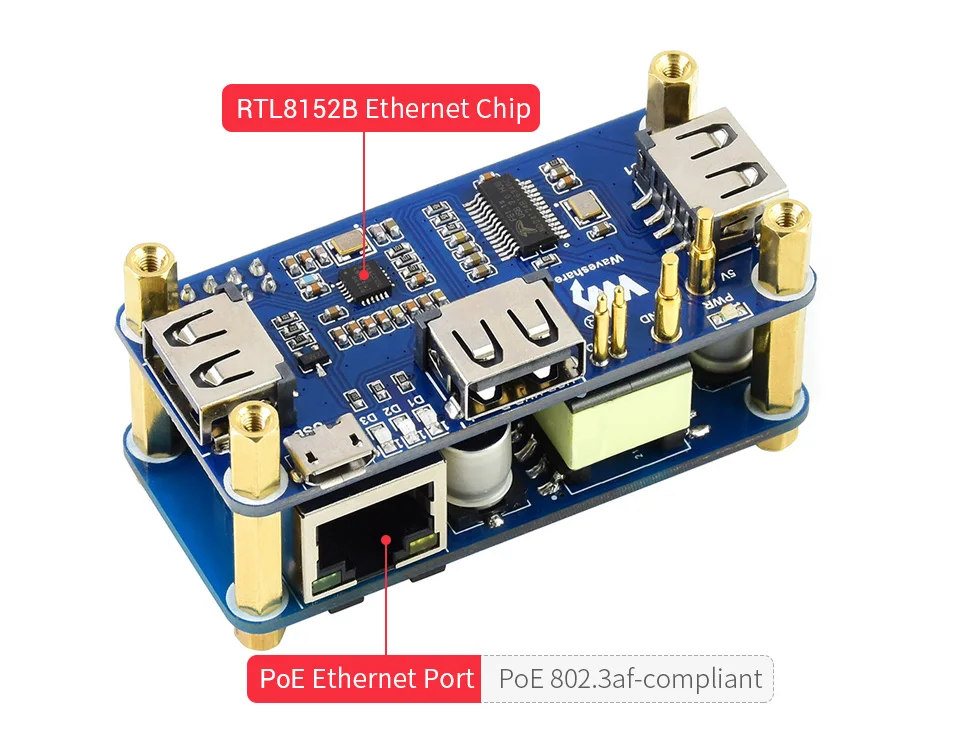

• Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port

• PoE (Power over Ethernet) feature, 802.3af-compliant

• Fully isolated SMPS (Switch Mode Power Supply)

• 3x extended USB ports, compatible with USB 2.0 / 1.1

POE POWER INPUT

37V ~ 57V DC in

POWER OUTPUT

5V 2.5A DC out

NETWORK STANDARD

IEEE 802.3af-compliant PoE

DIMENSIONS

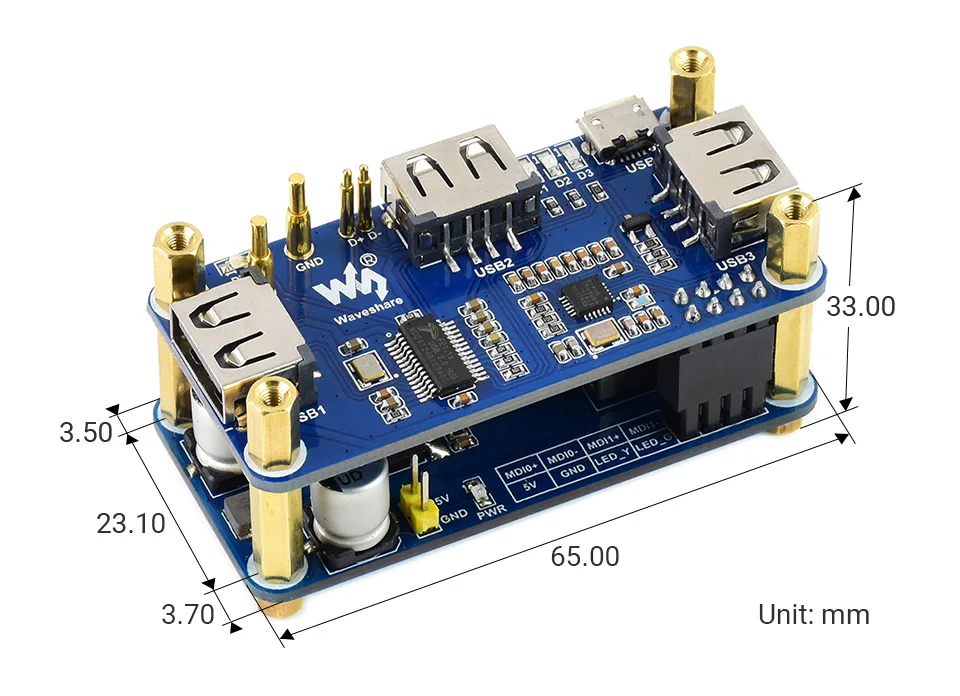

23.10 × 65.00 mm

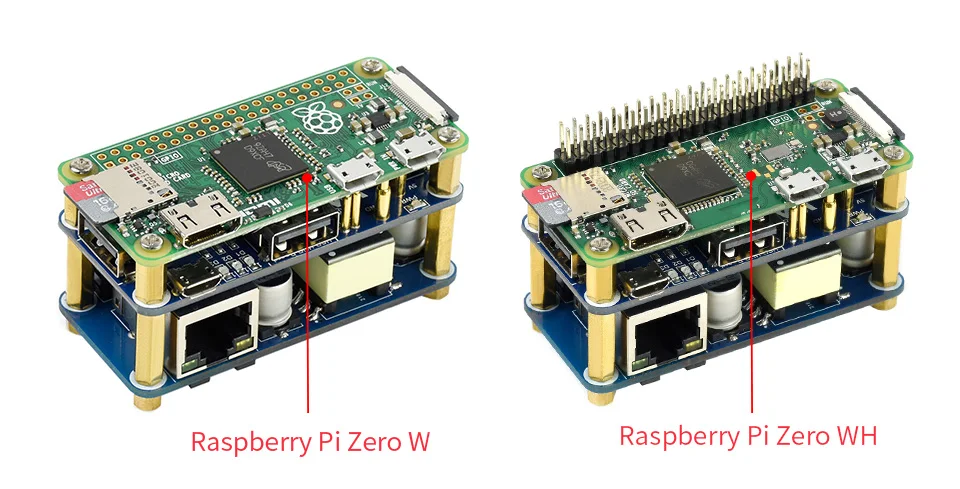

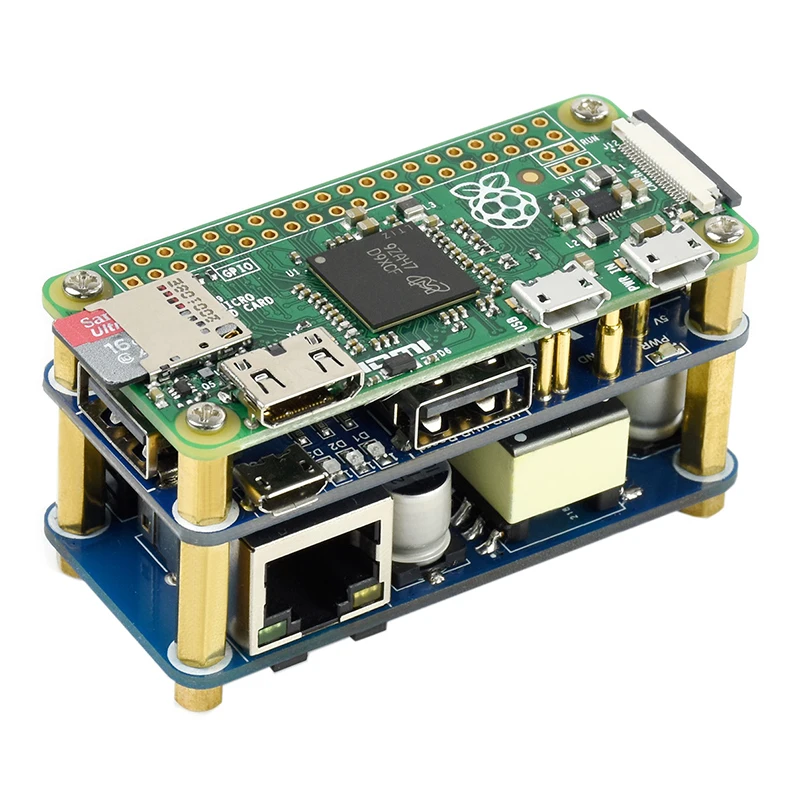

Designed For Raspberry Pi Zero, Compatible With Zero / Zero W / Zero WH

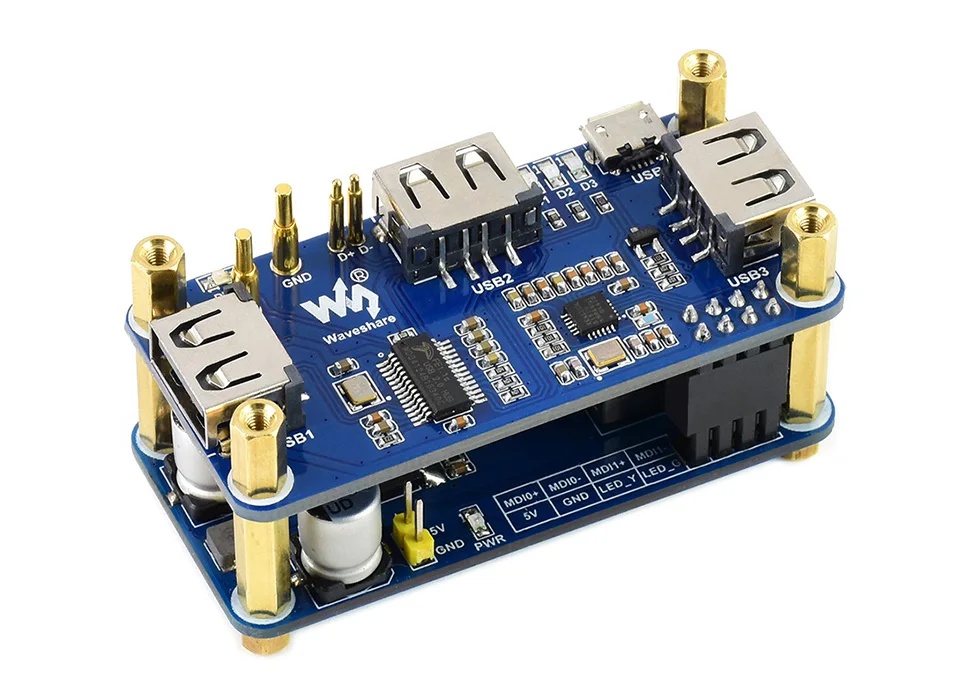

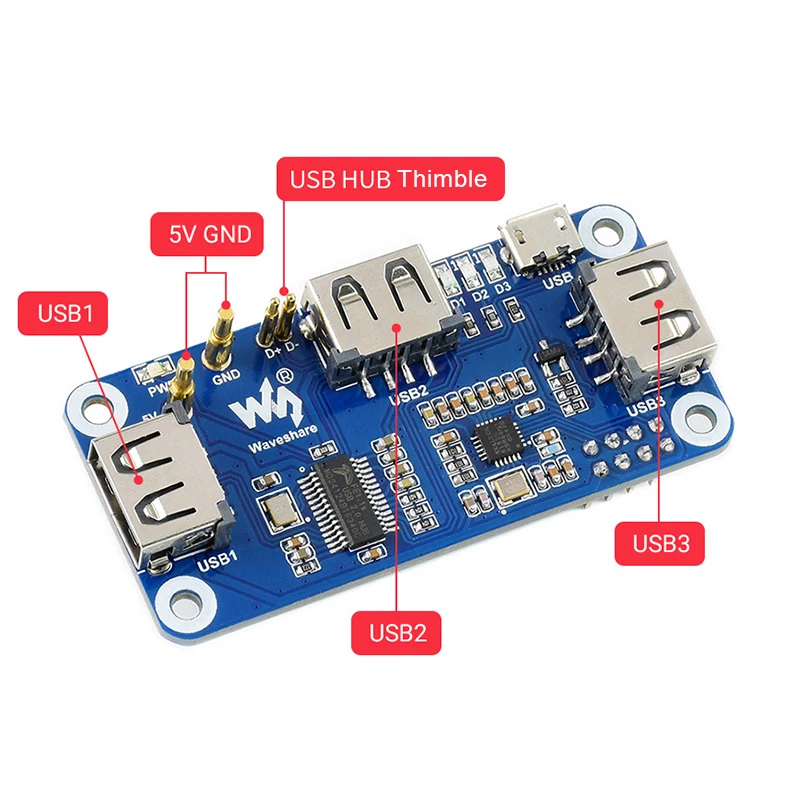

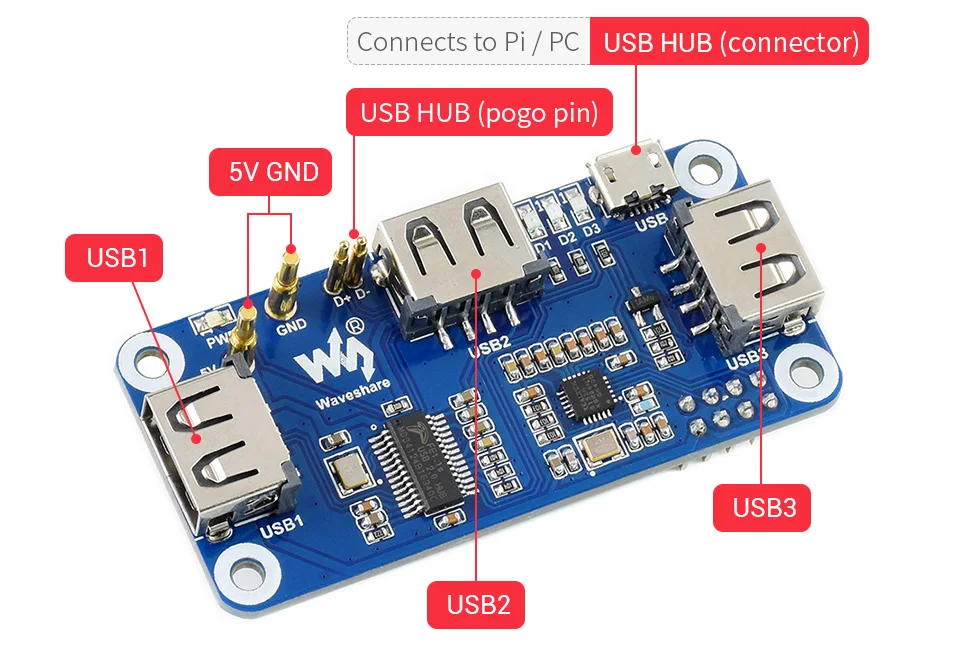

USB1 ~ USB3, Compatible With USB 2.0 / 1.1

USB To Ethernet Conversion By The RTL8152B Chip, 10M / 100M Auto-Negotiation

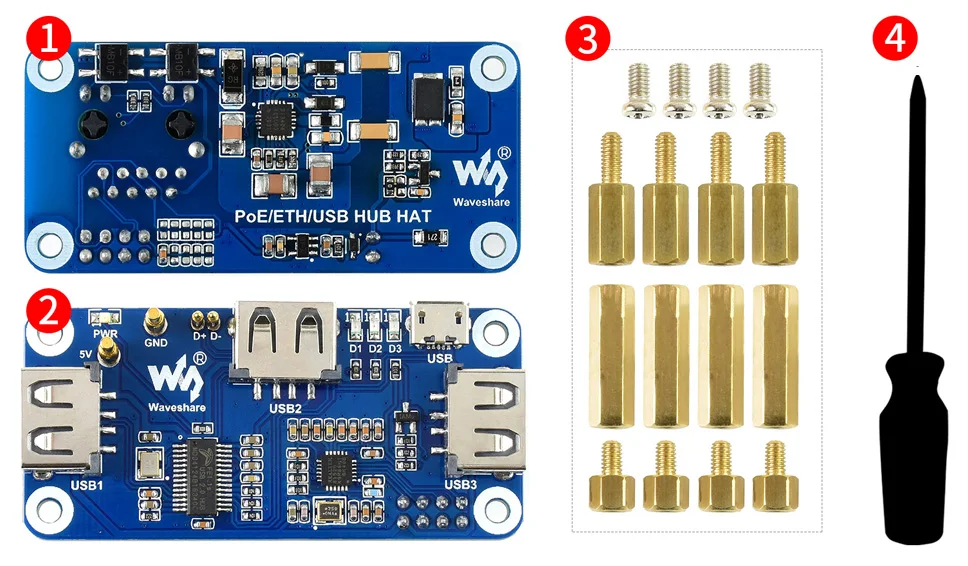

1. 1 × PoE/ETH/USB HUB HAT

2. 1 × USB HUB Board

3. 1 × Screws pack

4. 1 × Screwdriver
