DESCRIPTION

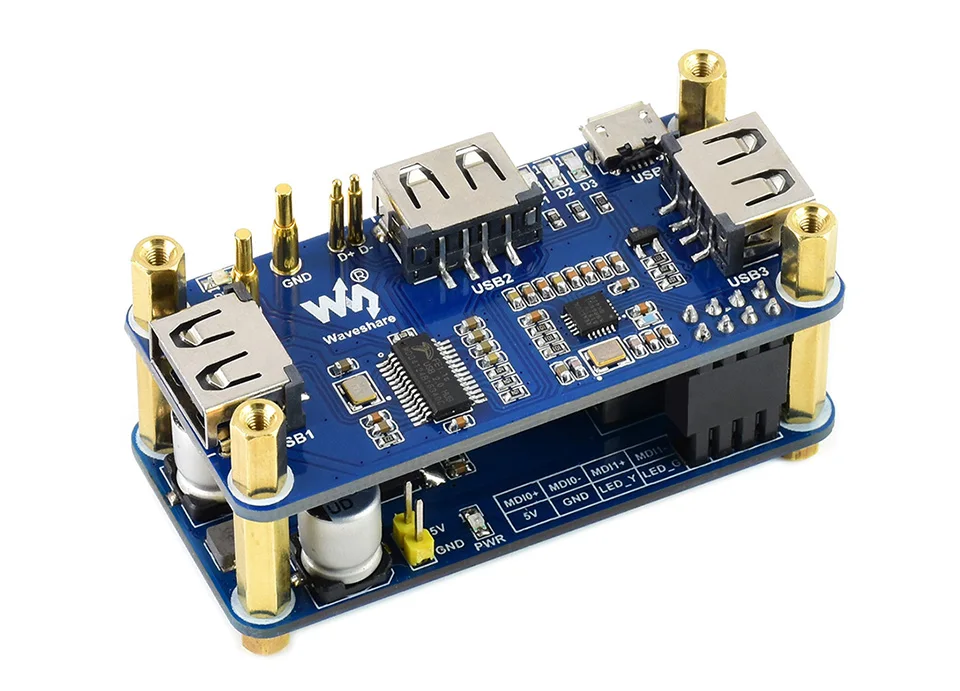

PoE Ethernet / USB HUB HAT For Raspberry Pi Zero, 3x USB 2.0 Ports, 802.3af-Compliant
Suitable For Raspberry Pi Zero / Zero W / Zero WH, 802.3af-Compliant
ThePoE/ETH/USB HUB HATis a PoE (Power over Ethernet) USB HUB HAT designed forRaspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with3x extended USB ports.
Designed for Raspberry Pi Zero, compatible with Zero series boards
Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
PoE (Power over Ethernet) feature, 802.3af-compliant
Fully isolated SMPS (Switch Mode Power Supply)
3x extended USB ports, compatible with USB 2.0 / 1.1
POE POWER INPUT
37V ~ 57V DC in
POWER OUTPUT
5V 2.5A DC out
NETWORK STANDARD
IEEE 802.3af-compliant PoE

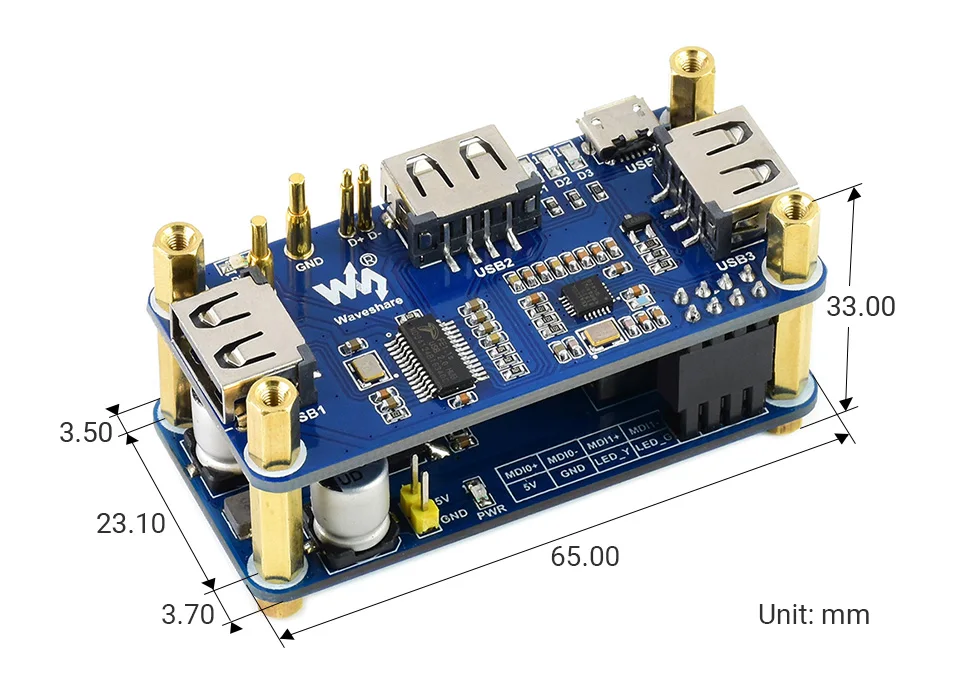

DIMENSIONS
23.10 × 65.00 mm

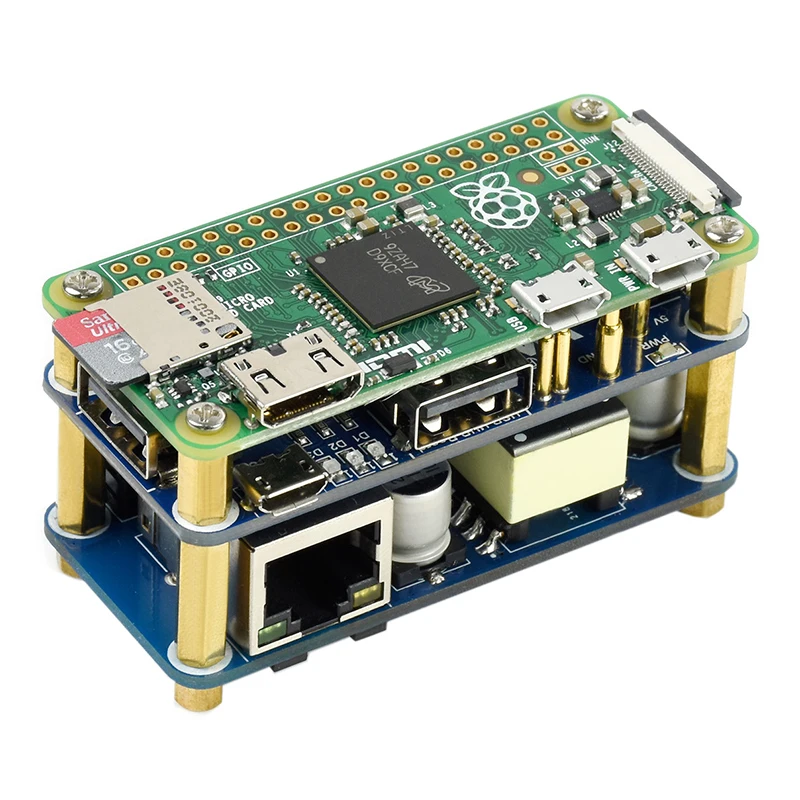

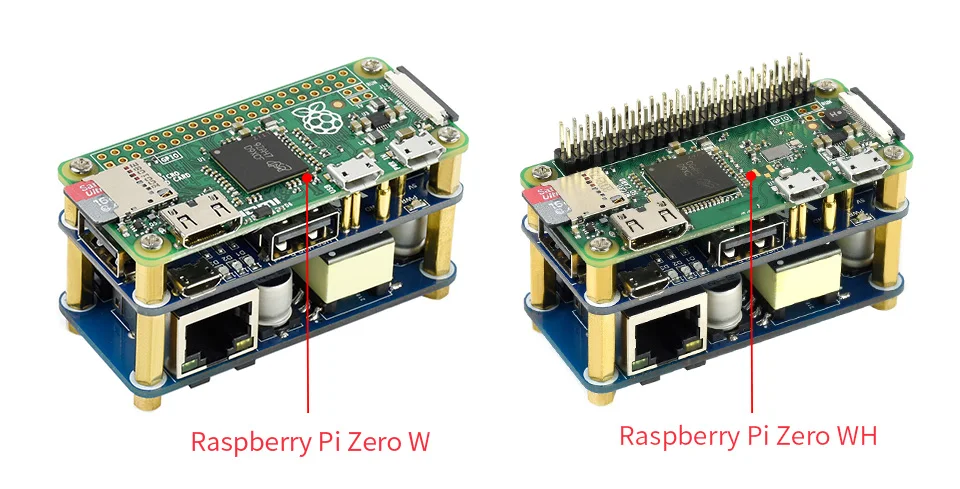

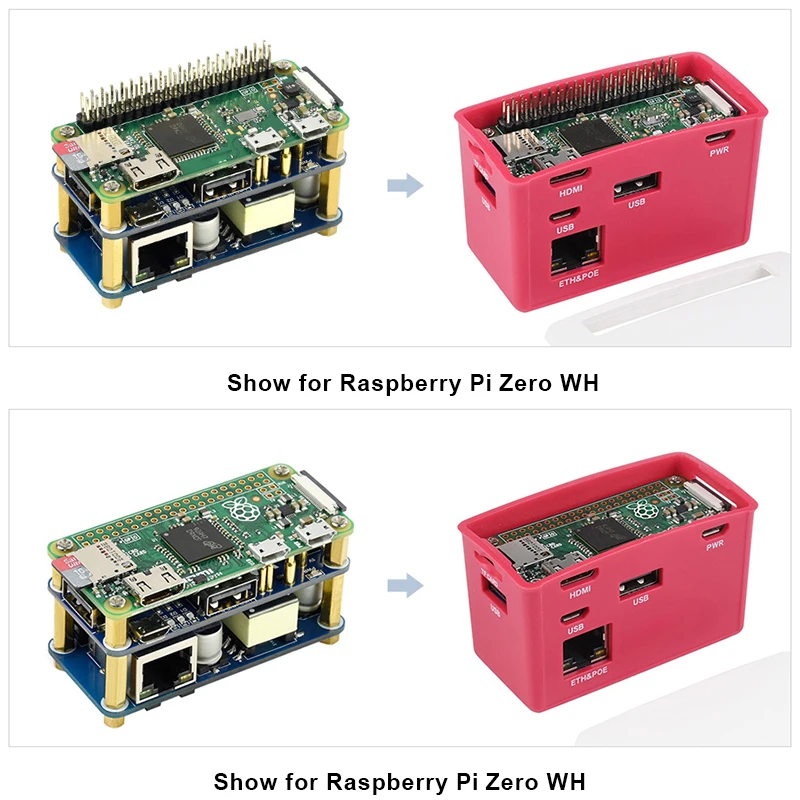

Designed For Raspberry Pi Zero, Compatible With Zero / Zero W / Zero WH

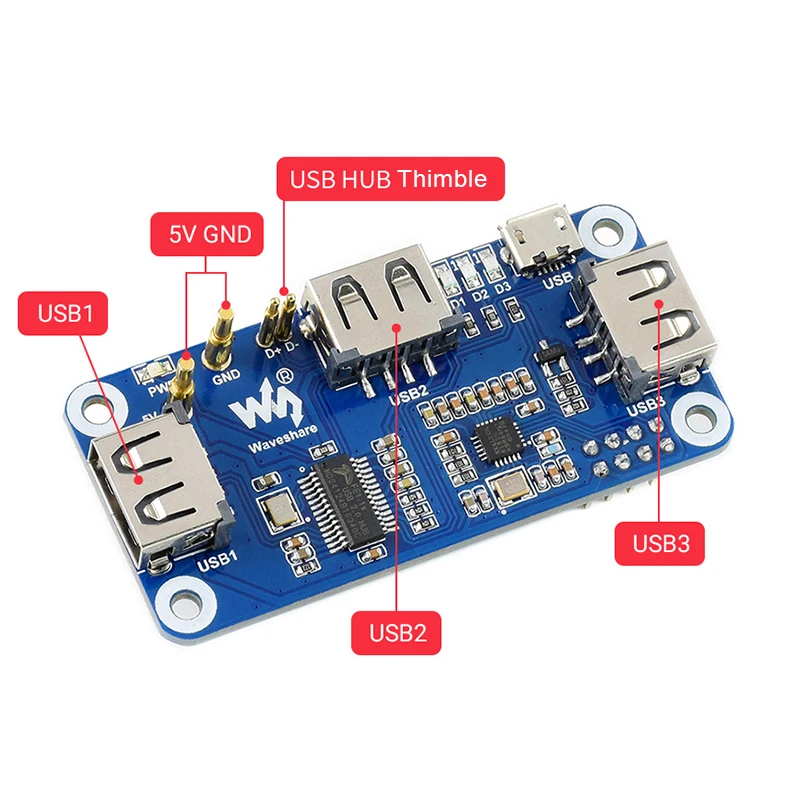

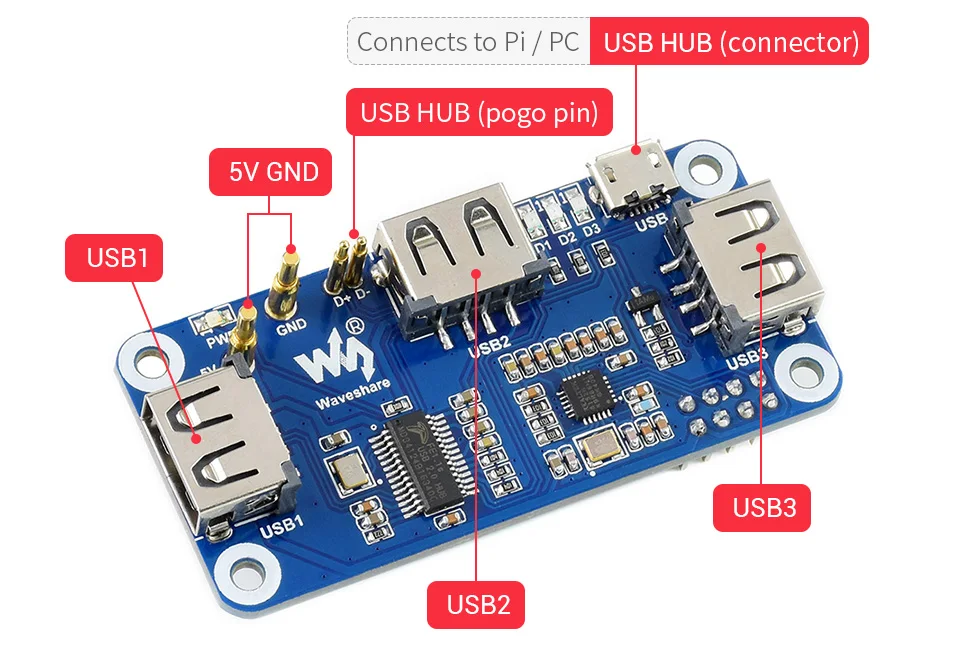

USB1 ~ USB3, Compatible With USB 2.0 / 1.1

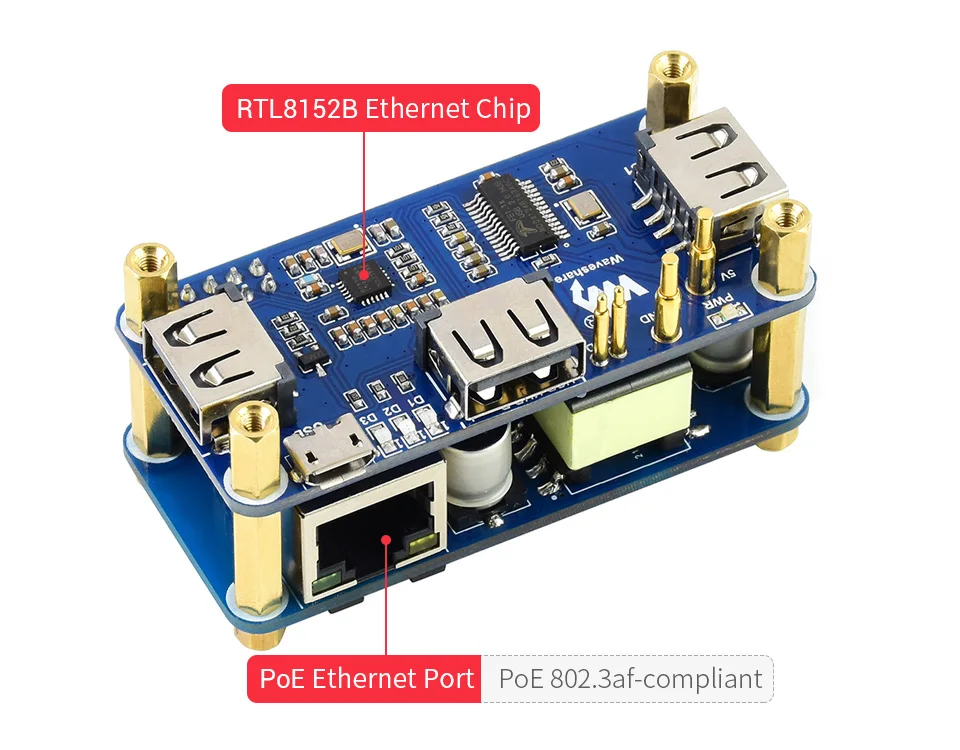

USB To Ethernet Conversion By The RTL8152B Chip, 10M / 100M Auto-Negotiation

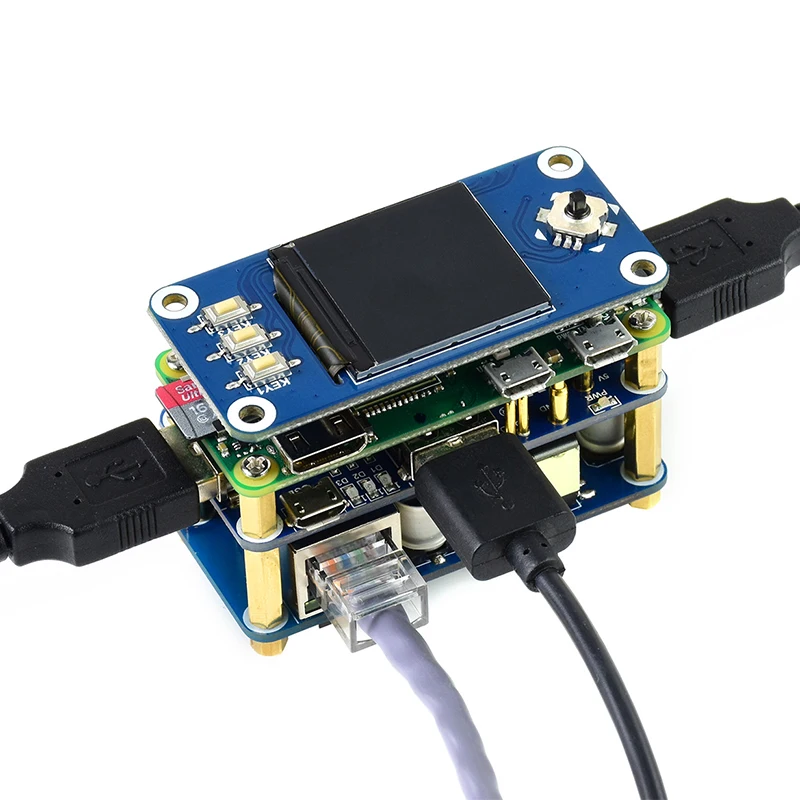

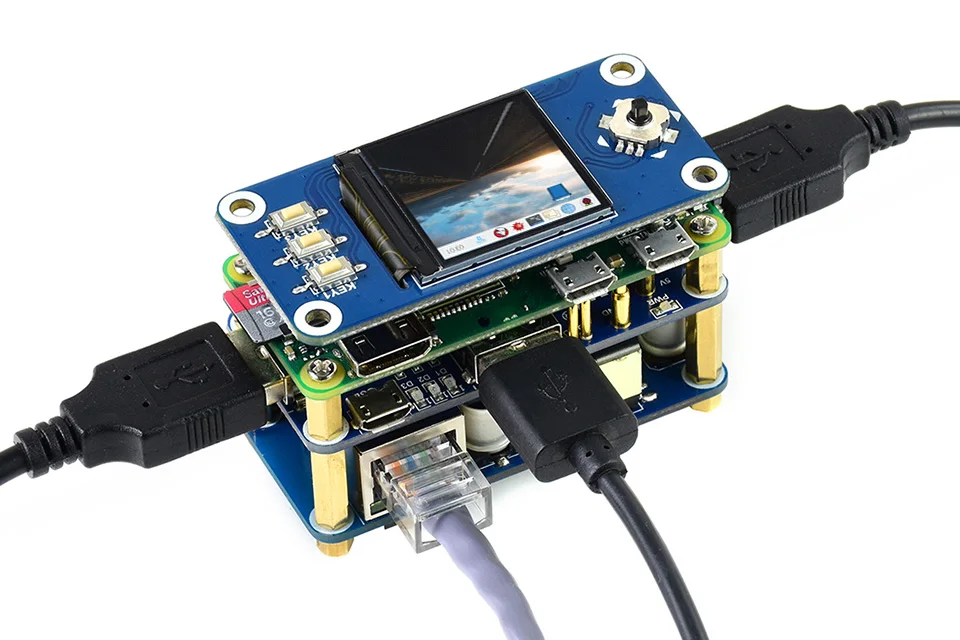

For reference ONLY, the Raspberry Pi Zero, LCD display, and MicroSD card are NOT included.
Wiki:www.waveshare.com/wiki/PoE/ETH/USB_HUB_HATPACKAGE CONTENT
Weight:0.063 kg

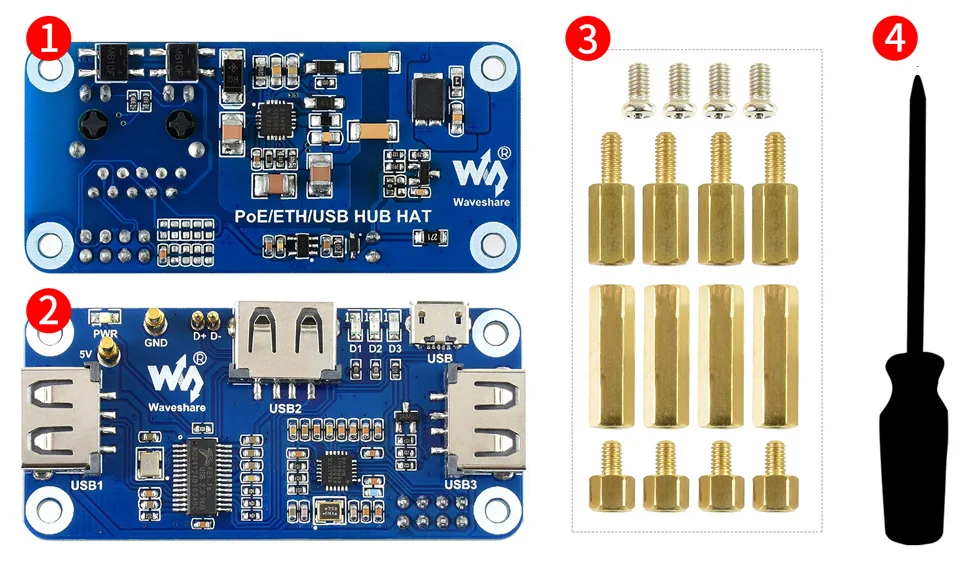

1 × PoE/ETH/USB HUB HAT
1 × USB HUB Board
1 × Screws pack
1 × Screwdriver
