The following is a tutorial on installing a chassis fan. The product in the video may be different from the one you purchased, but the installation method is the same.
Brand Name：QiuzAim
Size: 120 × 120 × 25mm
Speed: 1200RPM ± 10%
Airflow: 45CFM ± 10%
Wind pressure: 1.50mmH2O ± 10%
Noise: 25dBA
MTTF：50000 hours

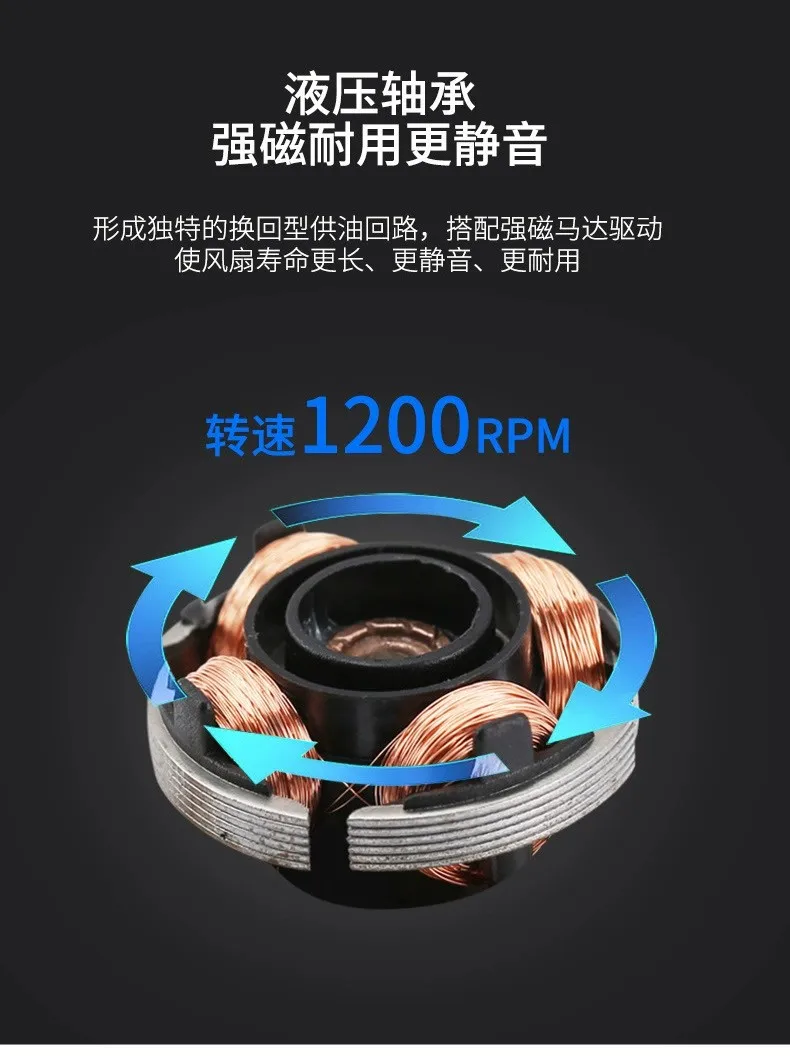

Bearing: Hydraulic
Interface: IDE (Big 4P)
Rated voltage: 12V DC
Rated current: 0.25A ± 10%
The parameters are subject to actual parameters and are subject to change without prior notice。
The following is the fan size hole spacing selection diagram
The following diagram is an installation schematic

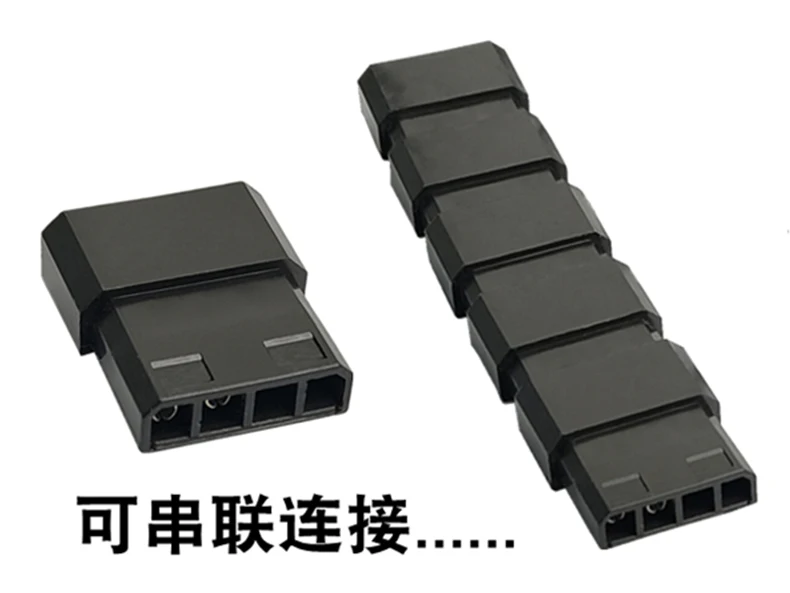

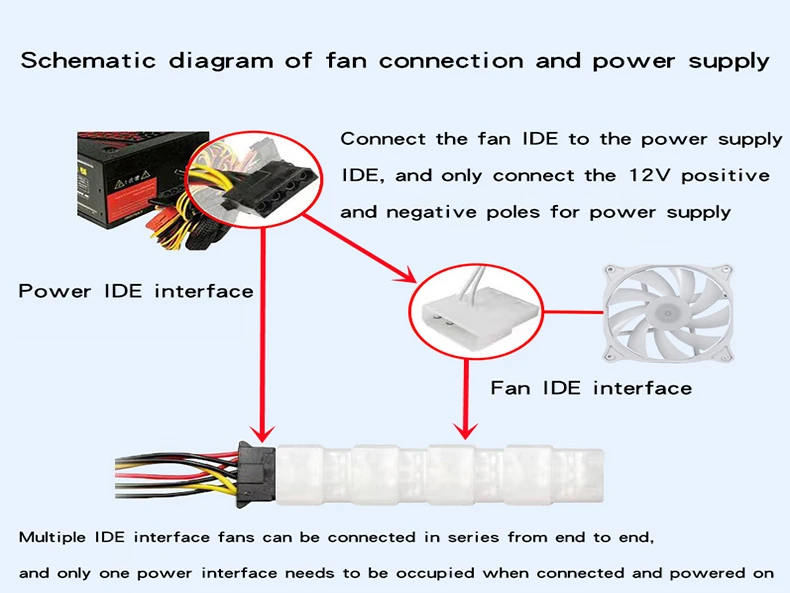

The following figure is a schematic diagram of the interface and the interface can be connected in series
Refer to the diagram for the installation method of the chassis fan
