Descripción
The following is a tutorial on installing a CPU cooling fan. The product in the picture may be different from the one you purchased, but the installation method is the same.
Brand Name：QiuzAim
Fan size: 90 × 90 × 25mm
3Pin speed: 2000 RPM ± 10%
4Pin speed: 800-2000 RPM ± 10%
Maximum air volume: 60CFM
Maximum noise: 25dBA
Fan interface: 3Pin (3-wire constant speed)/4Pin (4-wire temperature control)
Rated voltage: 12V DC
3Pin current: No light 0.18A with light 0.28A ± 10%
4Pin current: No light 0.1A with light 0.2A ± 10%
3Pin power: 2W without light, 3.5W with light ± 10%
4Pin power: 1W without light, 2.5W with light ± 10%
Fan cable length: 30CM ± 10%
Packaging method: boxed
The above data is for one fan, and if it is for multiple fans (air volume, noise, current, power), the data will increase in increments

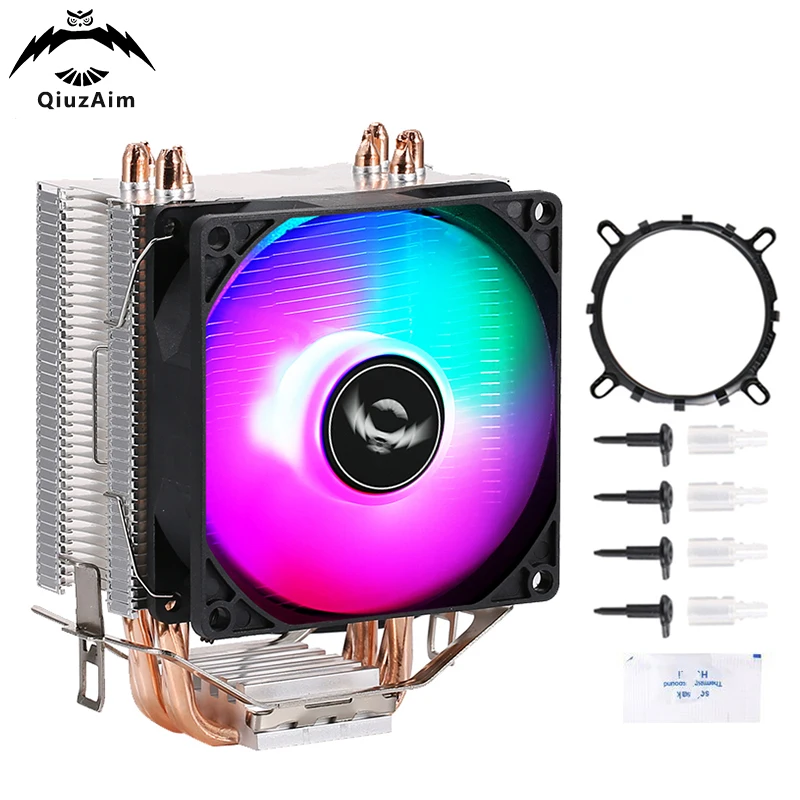

Package: Color Box (CPU cooler*1, fixing bracket*1 kit, silicone grease*1 )
Packing list（Sketch Map）：①②③
Product applicable platform
AMD full series of desktop universal：
AM5/AM4/AM3/AM3+/AM2/AM2+/FM1/FM2/FM2+/X2/X3/X4/A4/A6/A8/A10/FX...
(AMD series：Customers are required to keep the original bracket，If lost, please contact the Our customer service.)
LGA multi-platform universal：
LGA 775/1150/1151/1155/1156/1200/1356/1366/1700Celer series/Pen series/ Cor Dual
i3-i5-i7-i9 12th-14th Gen
Declaration:
The CPU cooler comes with an Intel fixed bracket, while the AMD bracket is an original accessory for the motherboard
and we will not deliver it. If you need AMD fasteners, please contact our customer service.
3Pin and 4Pin connectors are universally compatible;
installation is worry-free regardless of the interface type.
Product image display:
Statement:
As shown in the figure below, it is an inevitable production process, not a quality problem,
nor will it affect the product function and performance. Your successful purchase means
that you have approved the process. If there is any dispute or refund due to this process,
we will not accept it.
