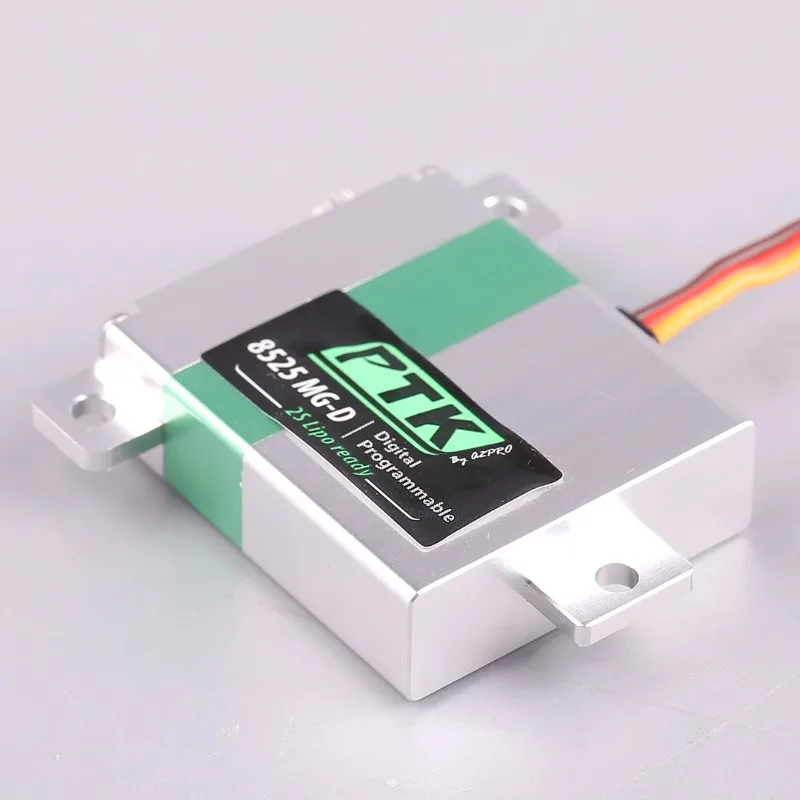

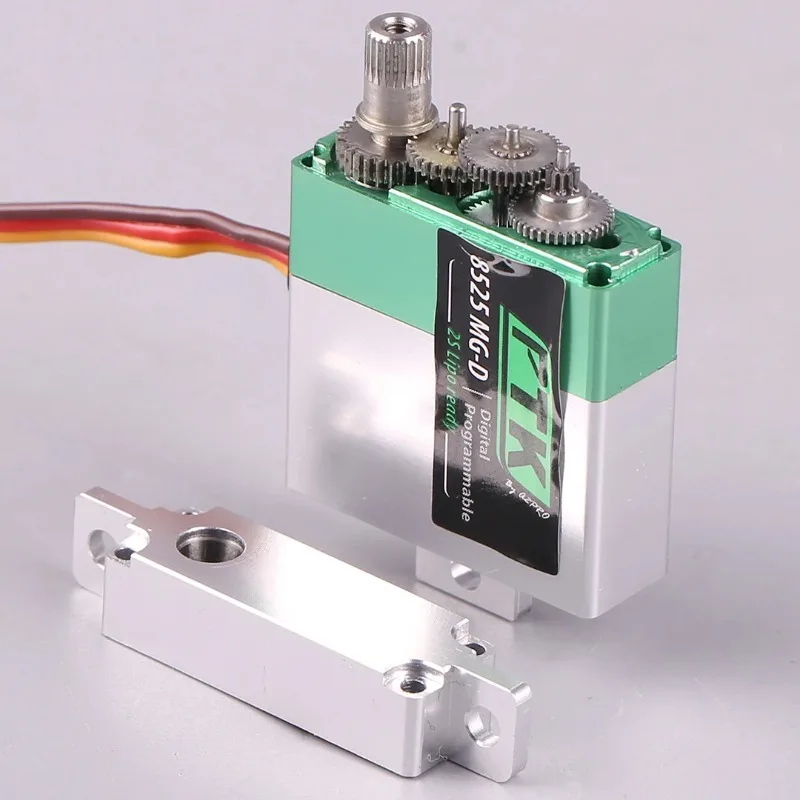

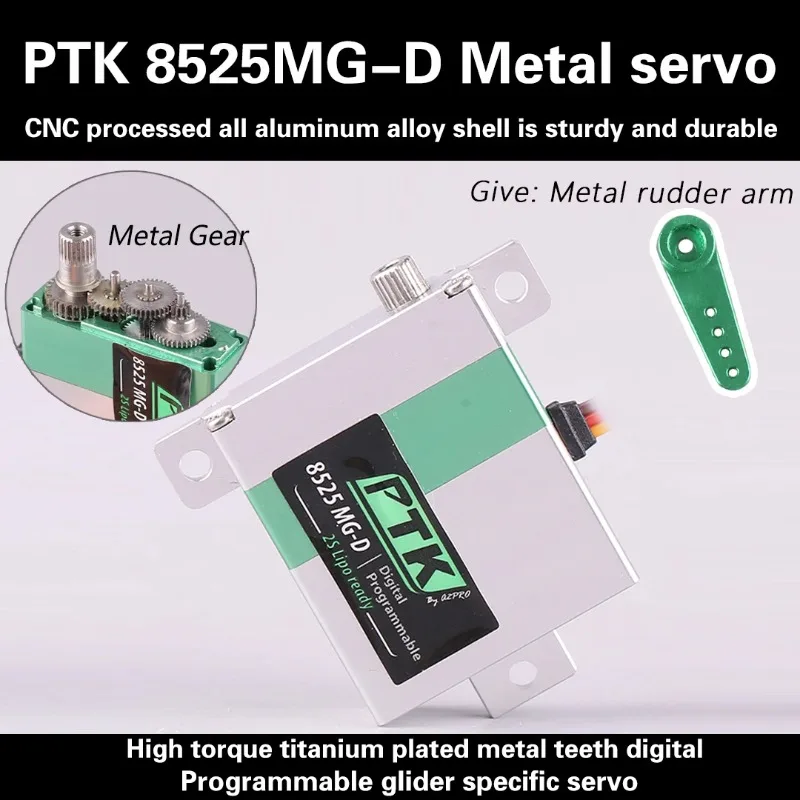

PTK 8525MG-D Servo digital programable engranaje de dirección todo planeador de metal KST DS125/135MG mismo nivel para modelos RC

Application Scenario

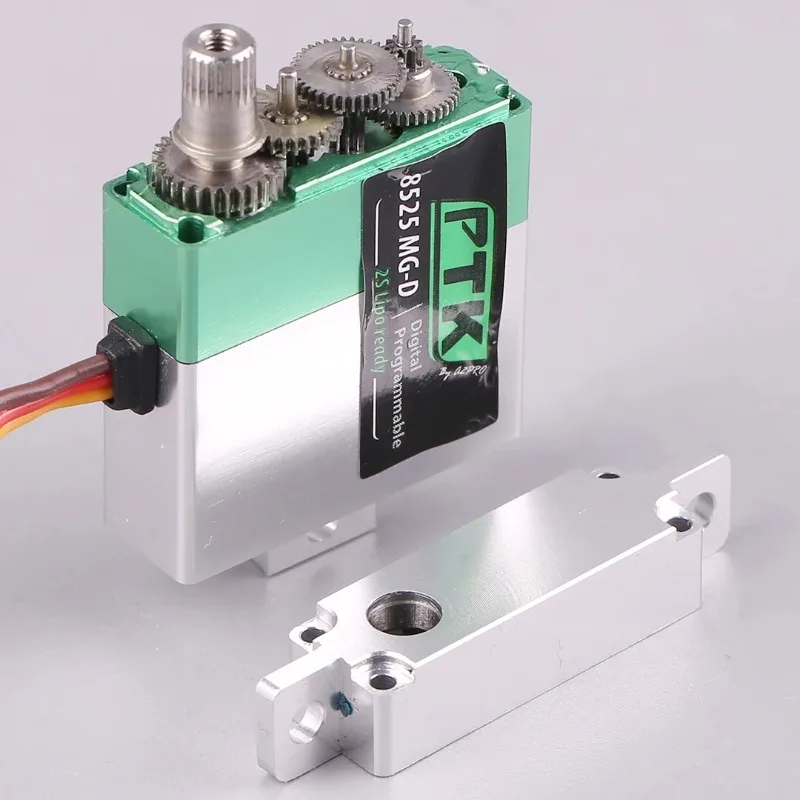

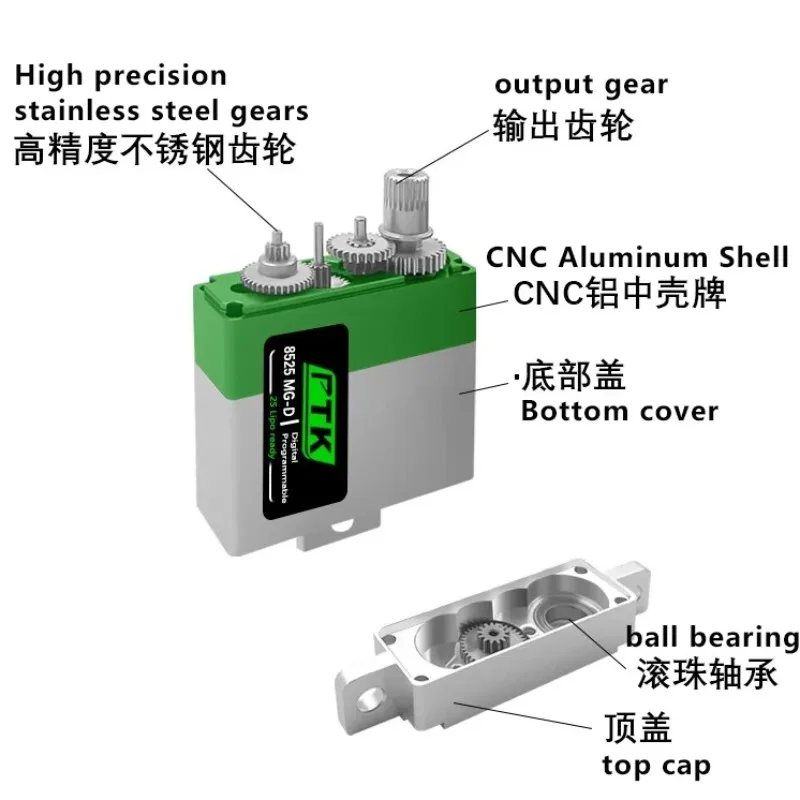

High torque titanium plated metal teeth digital programmable glider dedicated servo! Using titanium plated gears, Japanese Noble potentiometers, and programmable circuit boards, you can freely set torque and speed! Also supports 7.4V high voltage!

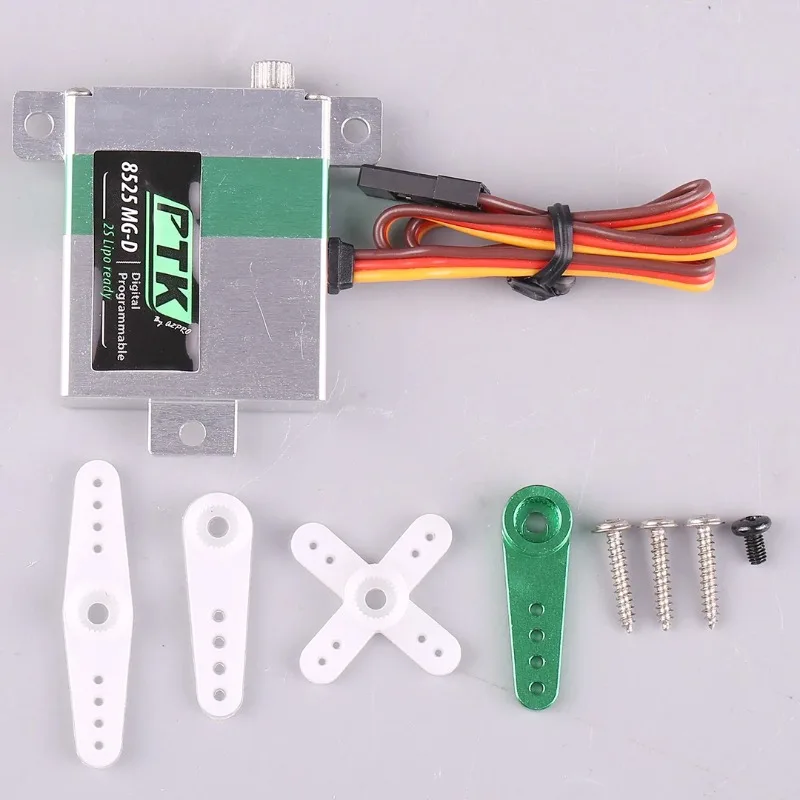

Packing list

• servo*1

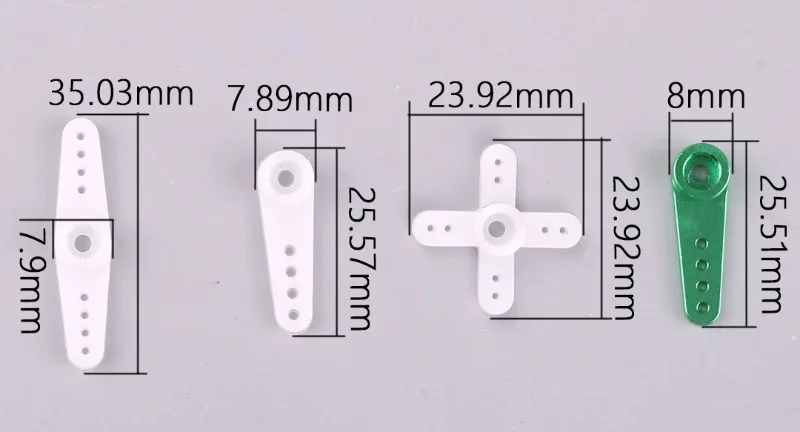

• rudder arm*4

• Screw*4

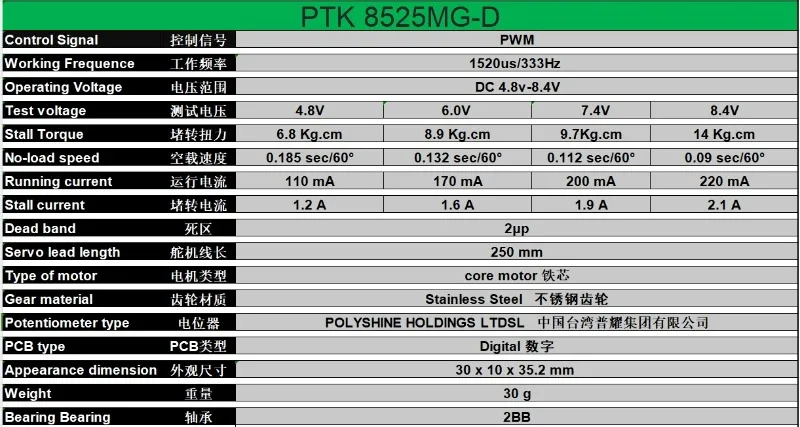

PTK 8525 Servo SPECS

8525MG-Dservo fitsparticularly wellwith wings ofglidersdue to its lowthicknessbutalsosuitable for alltypes ofruddersbecause of itshigh torque.

Itsseamless designwill appeal tothe most demandingdrivers, whetherin competition orleisure,thisservowill followyou longthanks toits robustness andreliability.

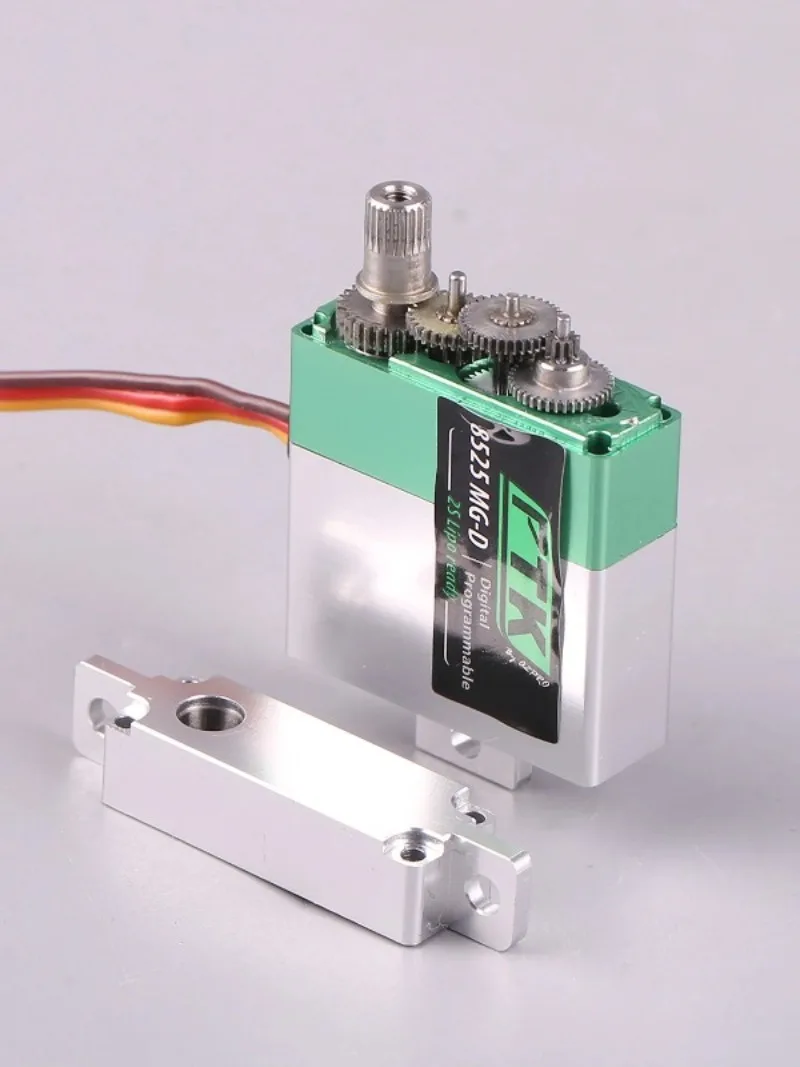

Gears : Metal

Ball bearings : 2pcs

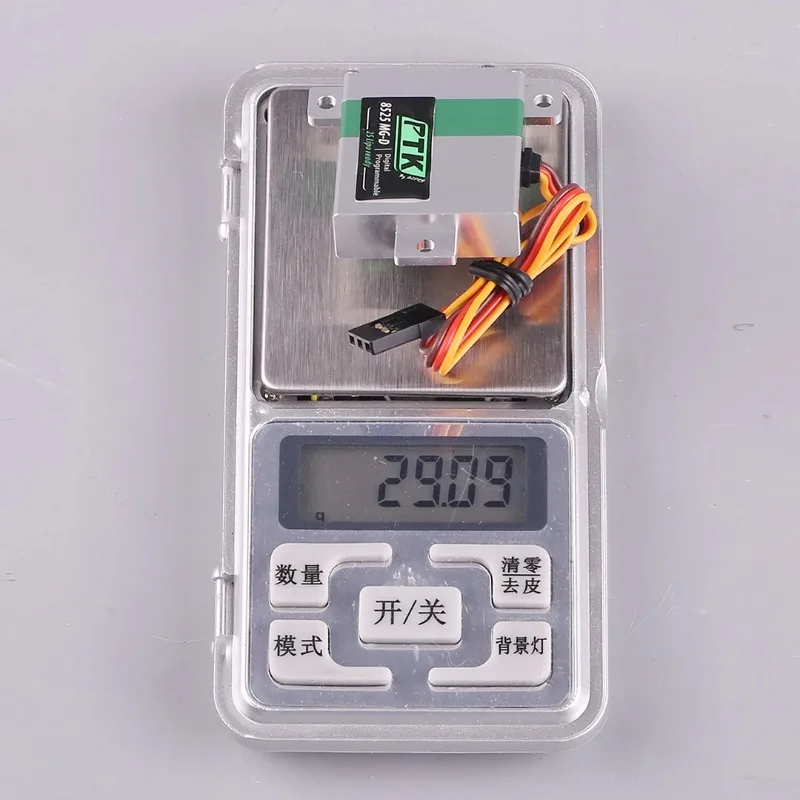

Weight : 28,7g

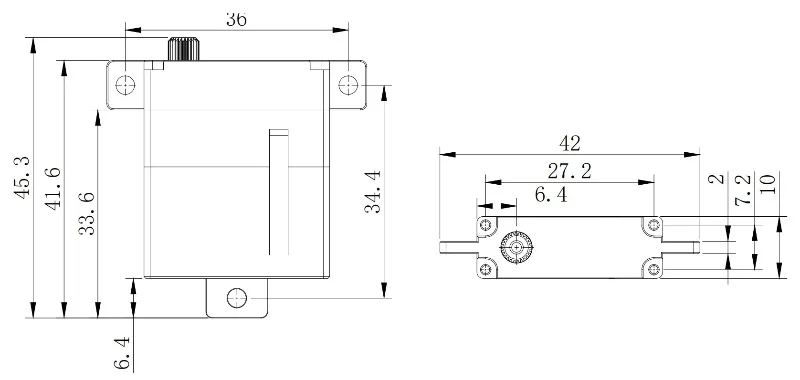

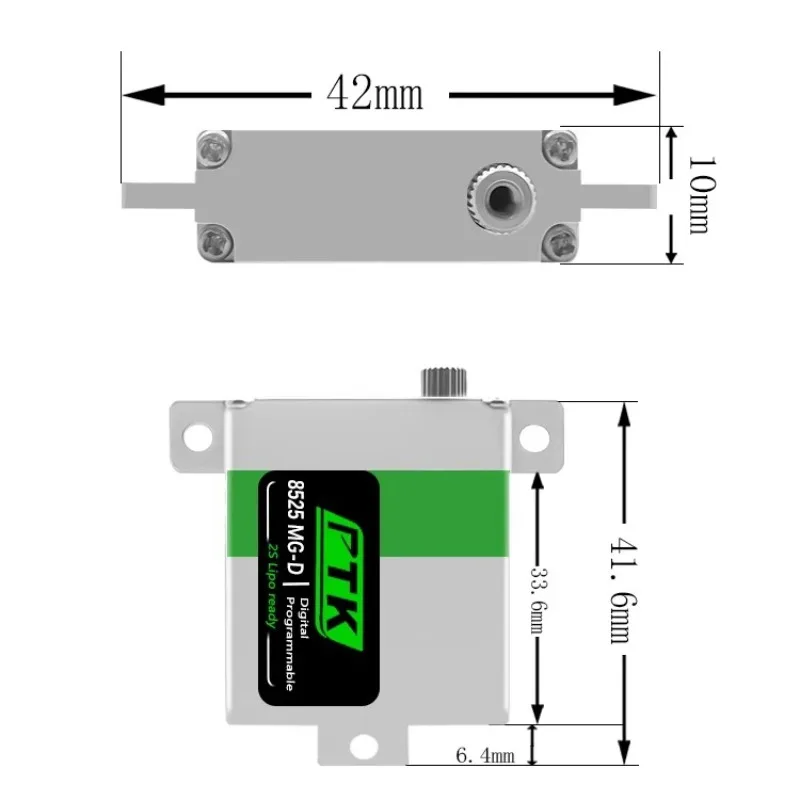

Dimensions : 35.9 x 32 x 10 mm

Speed/Torque@ 4,8V : 6.8kg/cm - 0.185sec/60°

Speed/Torque@ 6.0V :8.9kg/cm - 0.132 sec/60°

Speed/Torque@ 7.4V : 9.7kg/cm - 0.112 sec/60°

Input Voltage : 4.8V - 8.4V

Harness length : 220mm

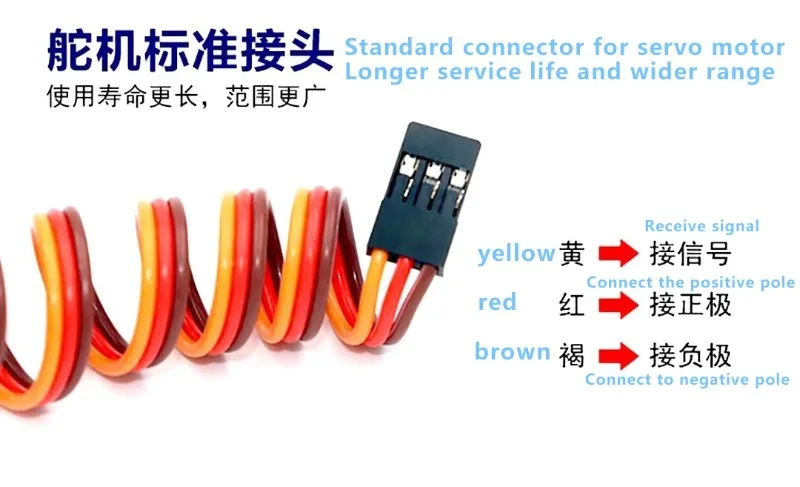

Compatibility : Universal connector

Dead band : 2μs (adjustable)
