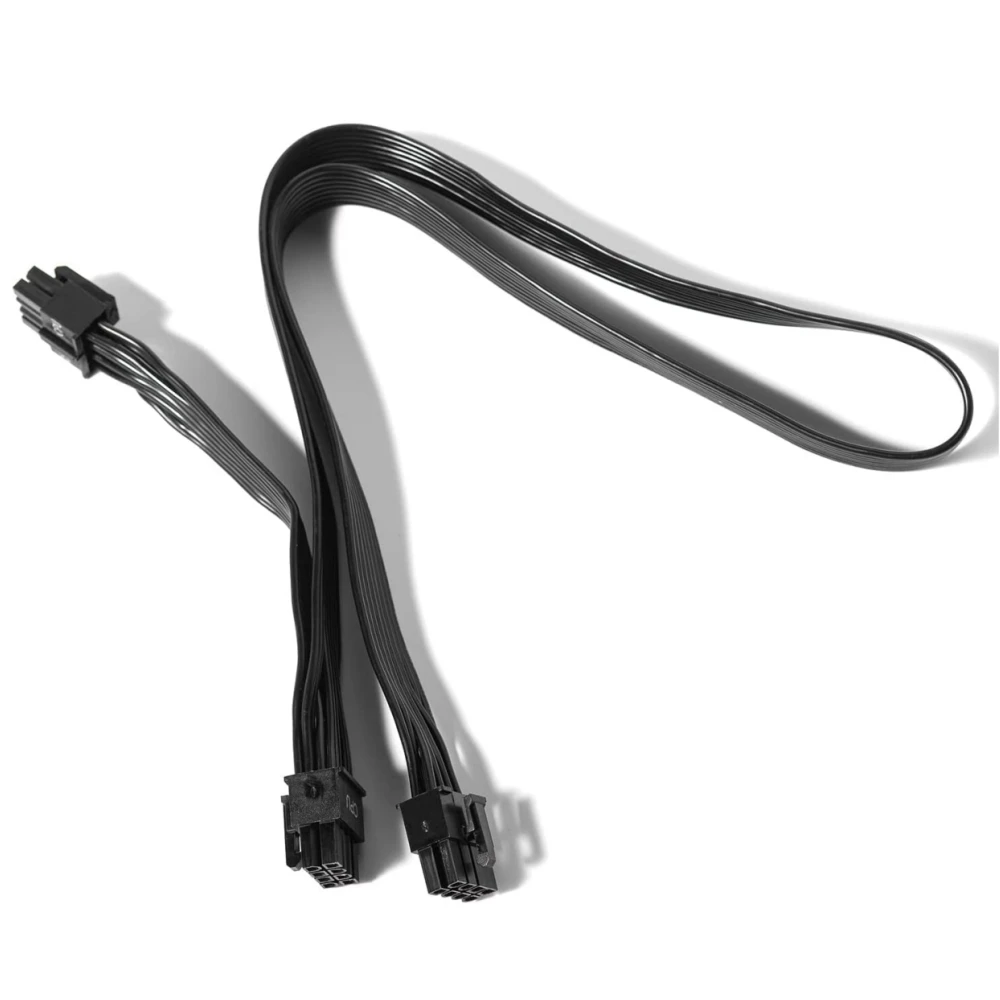

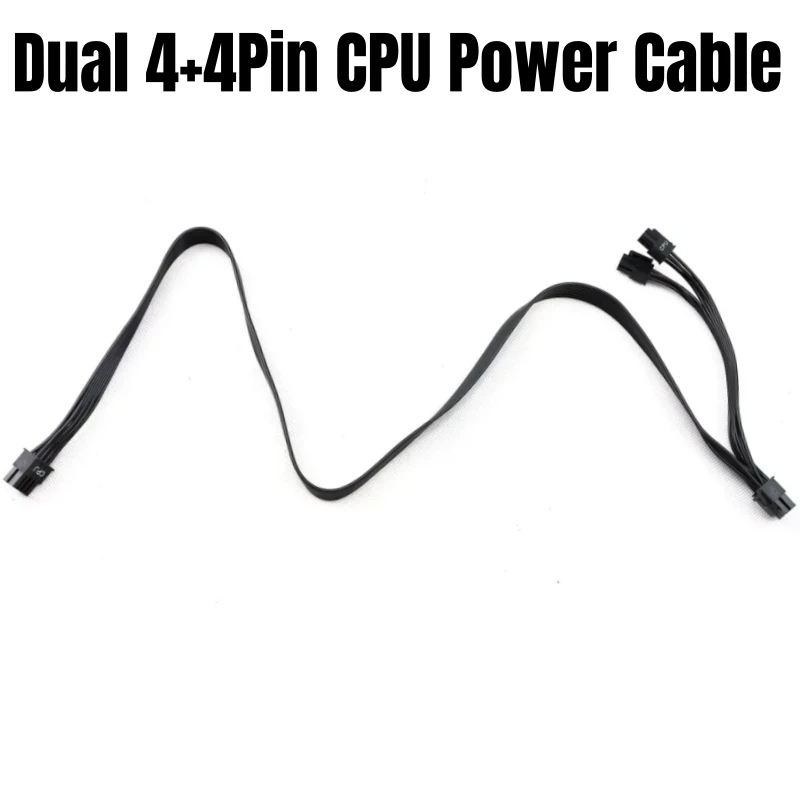

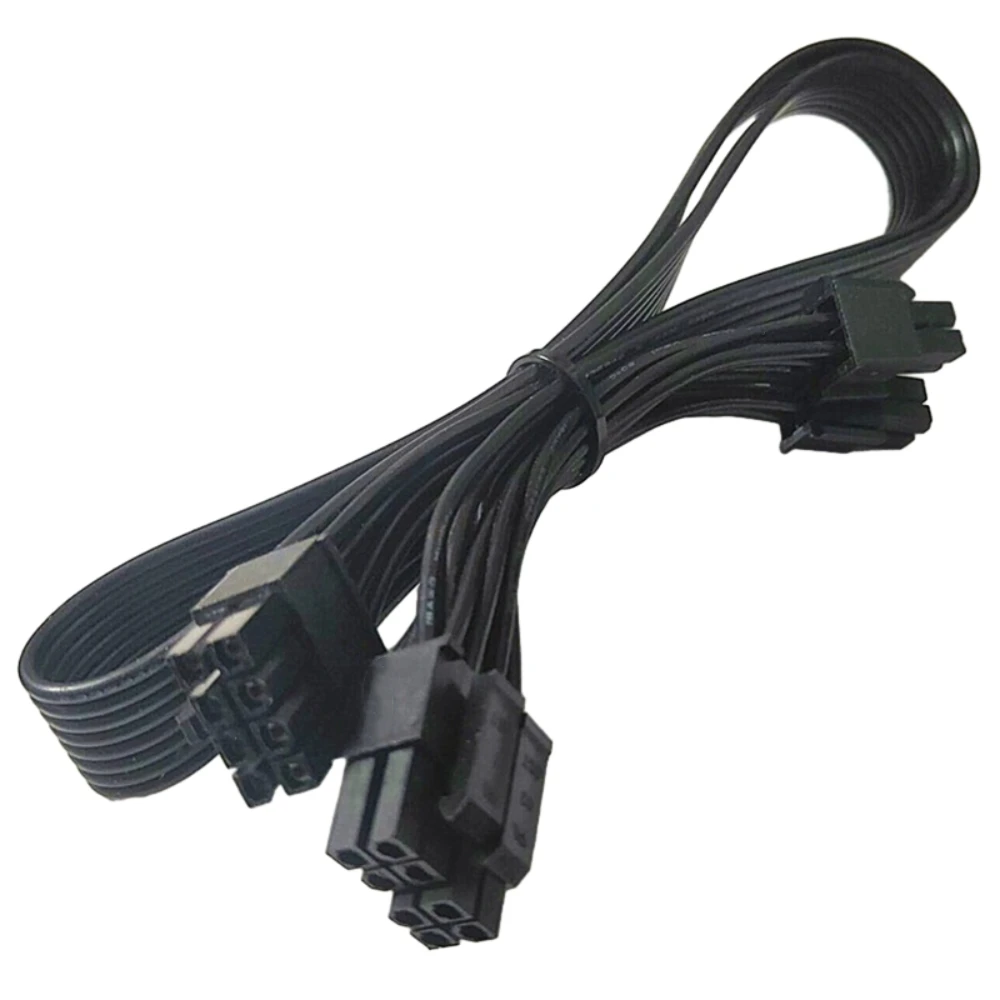

PSU 8Pin to Dual 8Pin 4+4Pin CPU Power Cable for Corsair AX760i, AX860i, AX1200i, AX1500i AX-i Type 3 Modular Power Supply Unit
*Mod Expert Store Pre-Purchase Notes:
1. All pictures are for reference only, please contact us for real photo if need.
2. Mix use cables may cause damage. Please check compatibility with us before you buy.

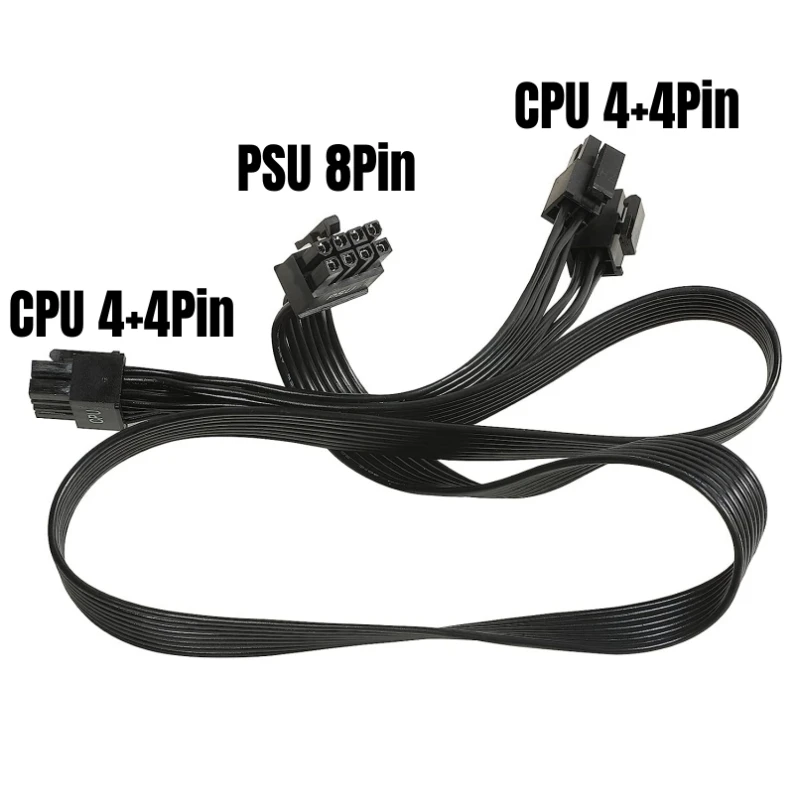

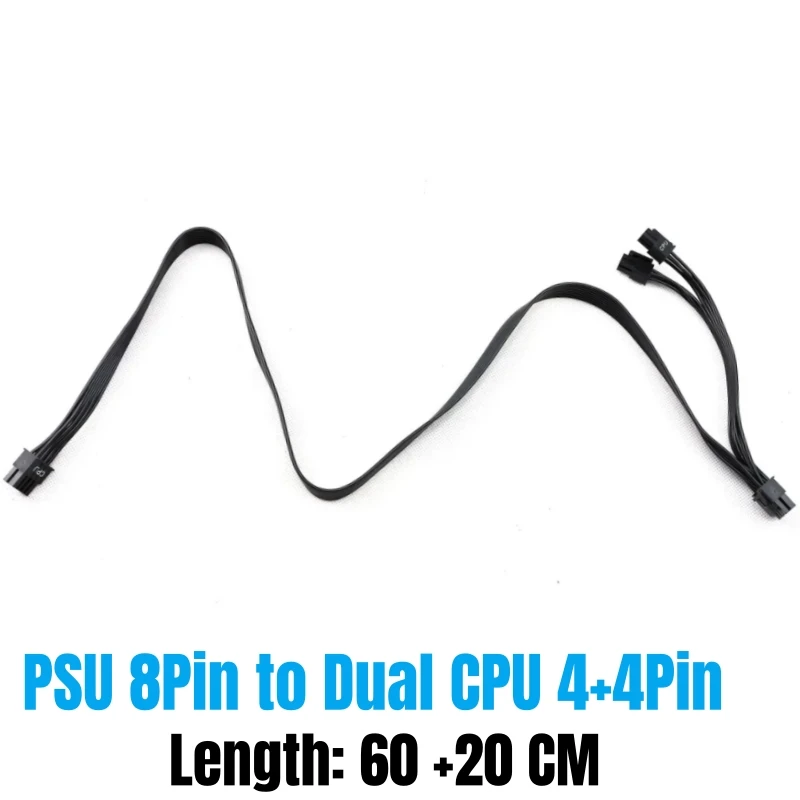

Interface: PSU 8Pin to Dual CPU 4+4Pin
Cable Gauge: UL1007 18AWG standard tin-coating copper wire.
The 4-pin CPU cable can supply up to 155 watts & the 8-pin CPU cable can supply up to 235 watts.
Advantages:
1. Suitable for chassis wiring.
2. High current terminal & up to 10A
3. Easy to bend with good cable management.

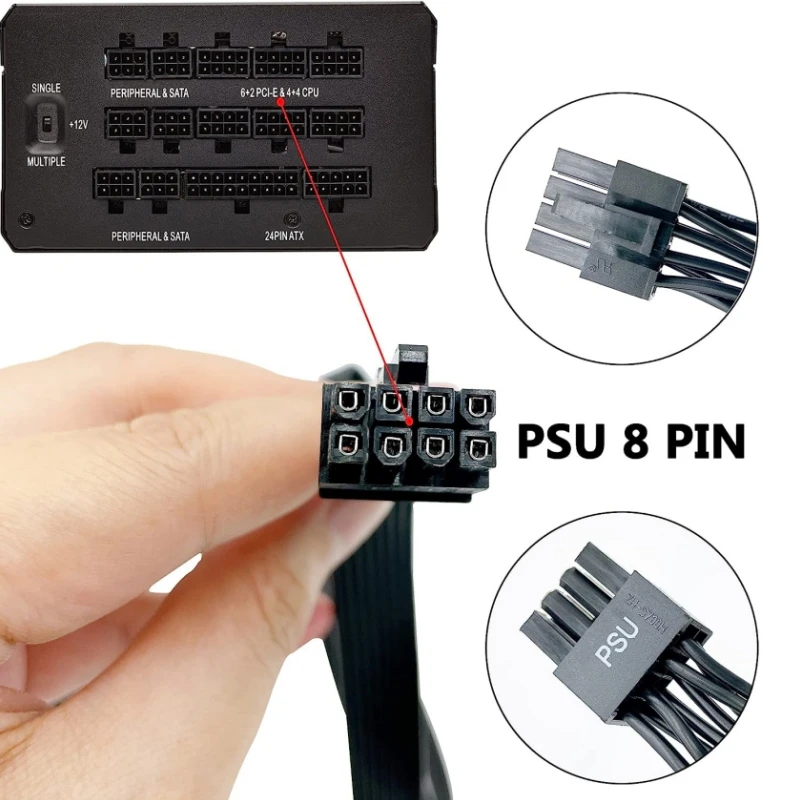

PSU 8Pin male end to plug into the power connector of power supply
(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin.)

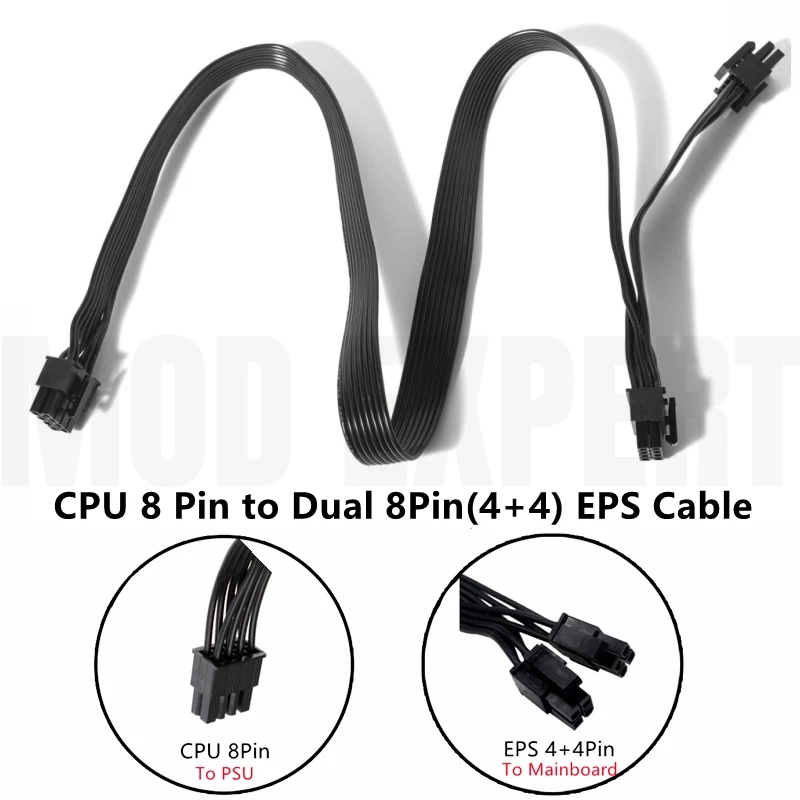

CPU 8Pin (4+4Pin) male end to plug into the Motherboard.
(NOTE: EPS8Pin(4+4Pin) could be used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin.)
Our power supply units (PSUs) use an 8-pin EPS12v. CPU cable that can be split into two 4-pin connectors. If you want to connect our PSU into a 4-pin EPS motherboard port, simply pull the two halves of the connector apart and connect one half into the motherboard port. PSU 8Pin and EPS 4+4Pin male cannot be used interchangeably!
The CPU cable does not work with GPU graphics card.

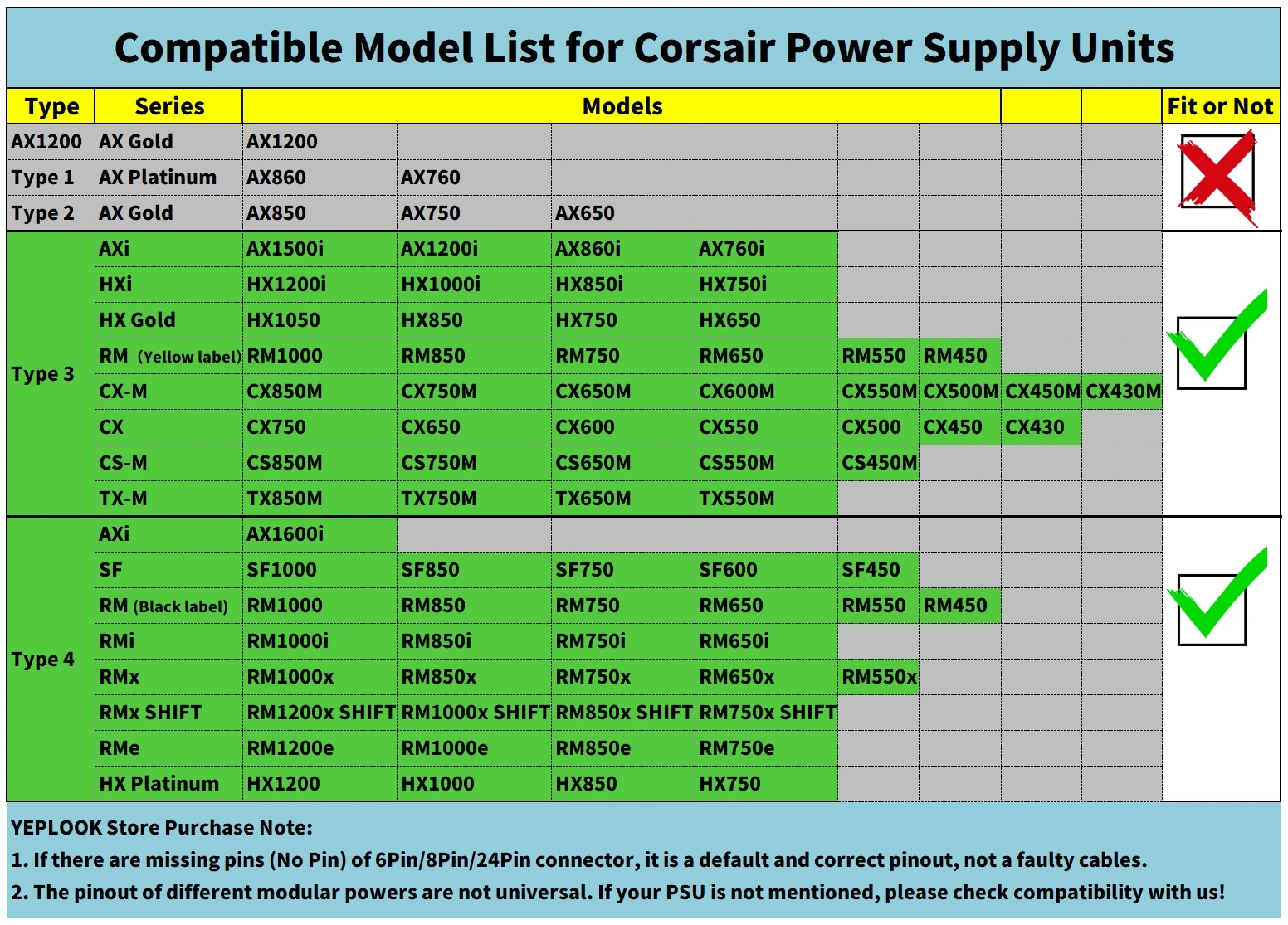

The Dual CPU Power Cable only Compatible with Corsair Powers below:
