Envíos desde
Color
Descripción

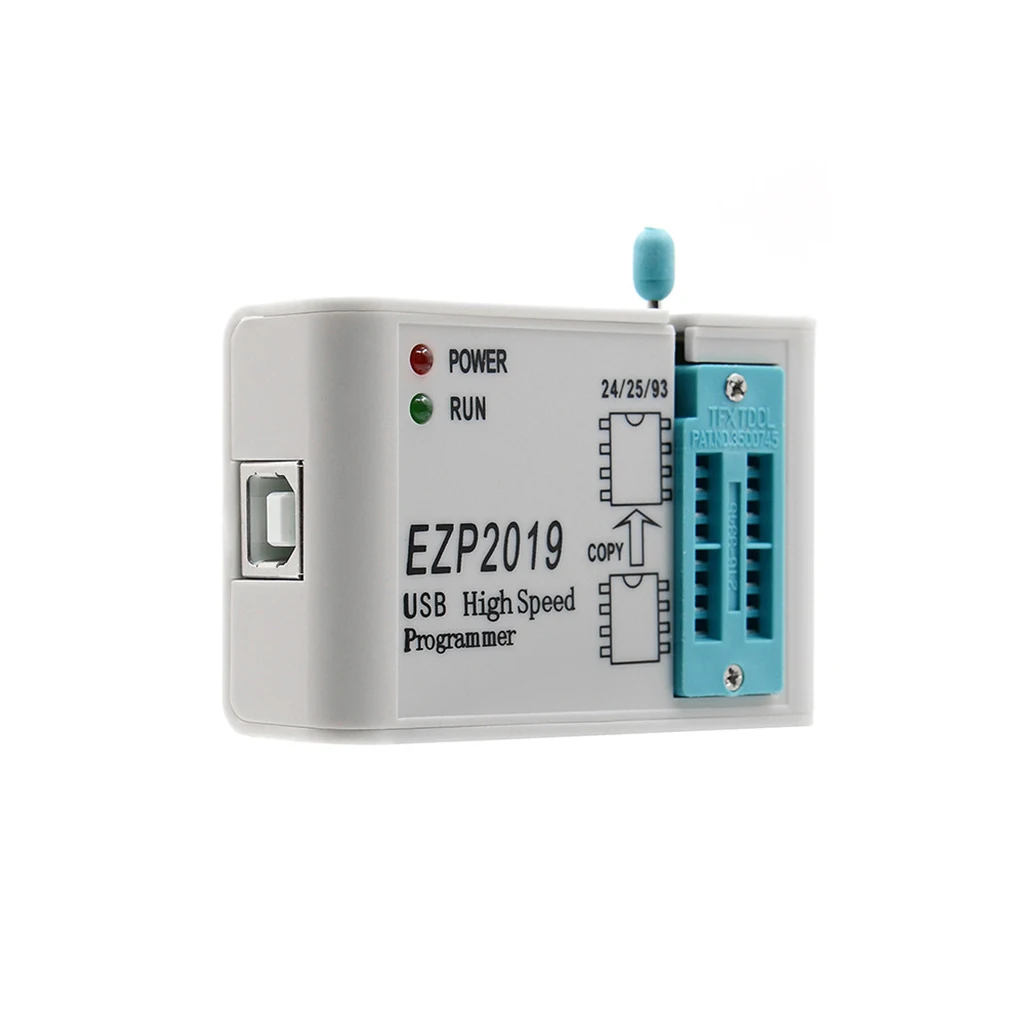

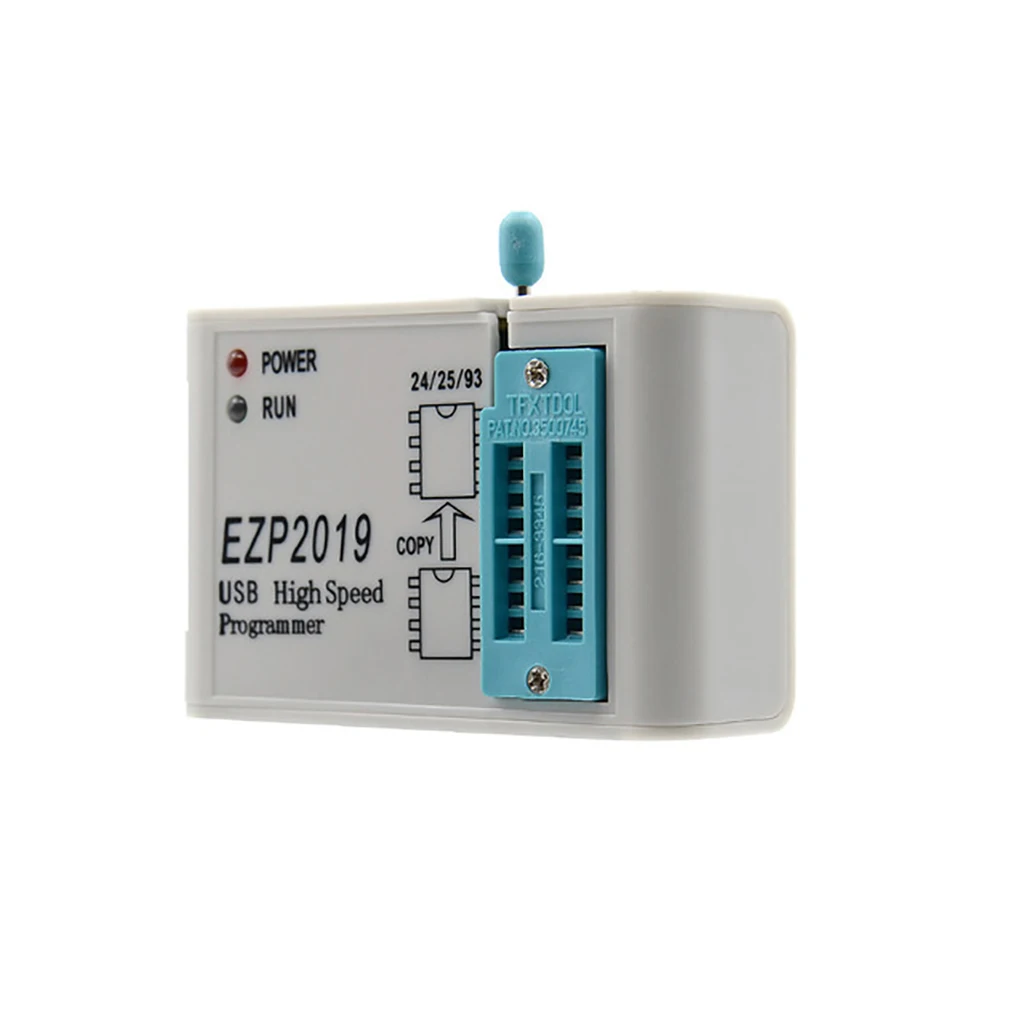

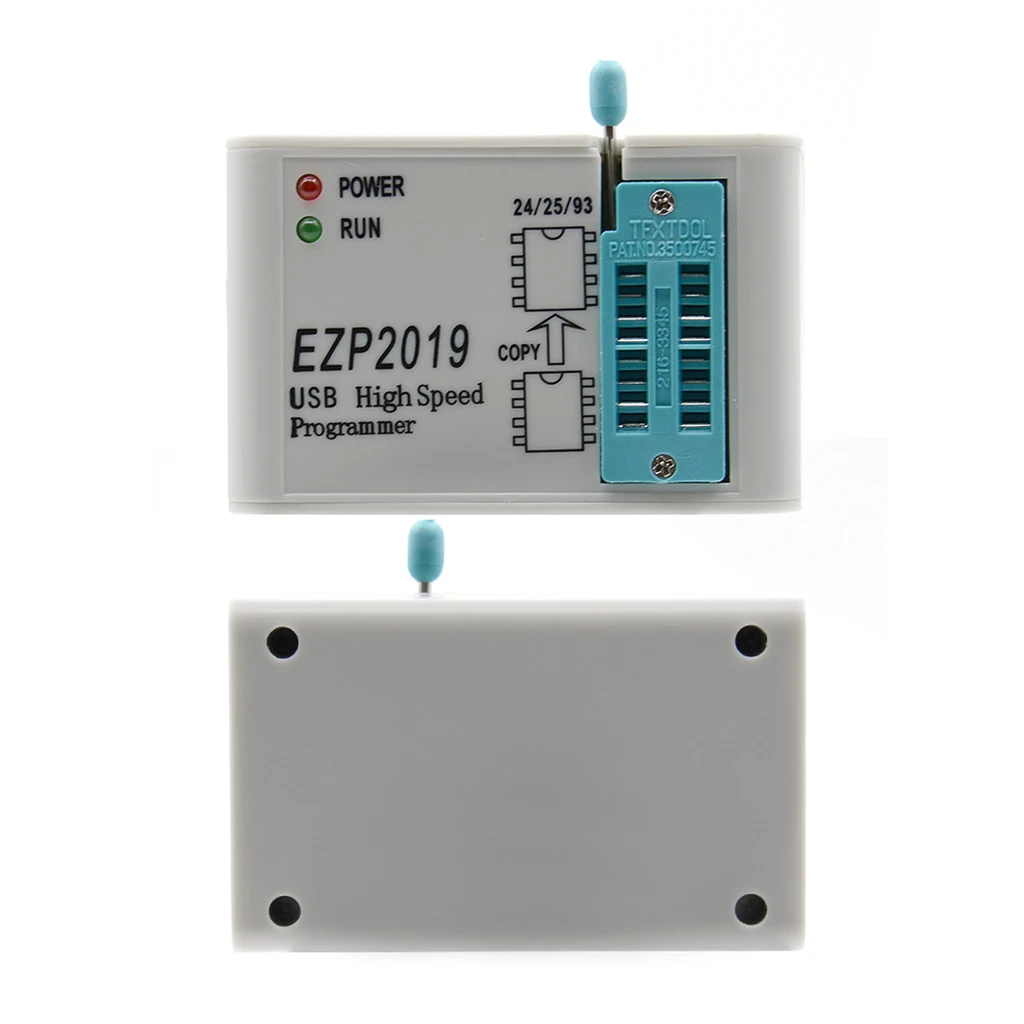

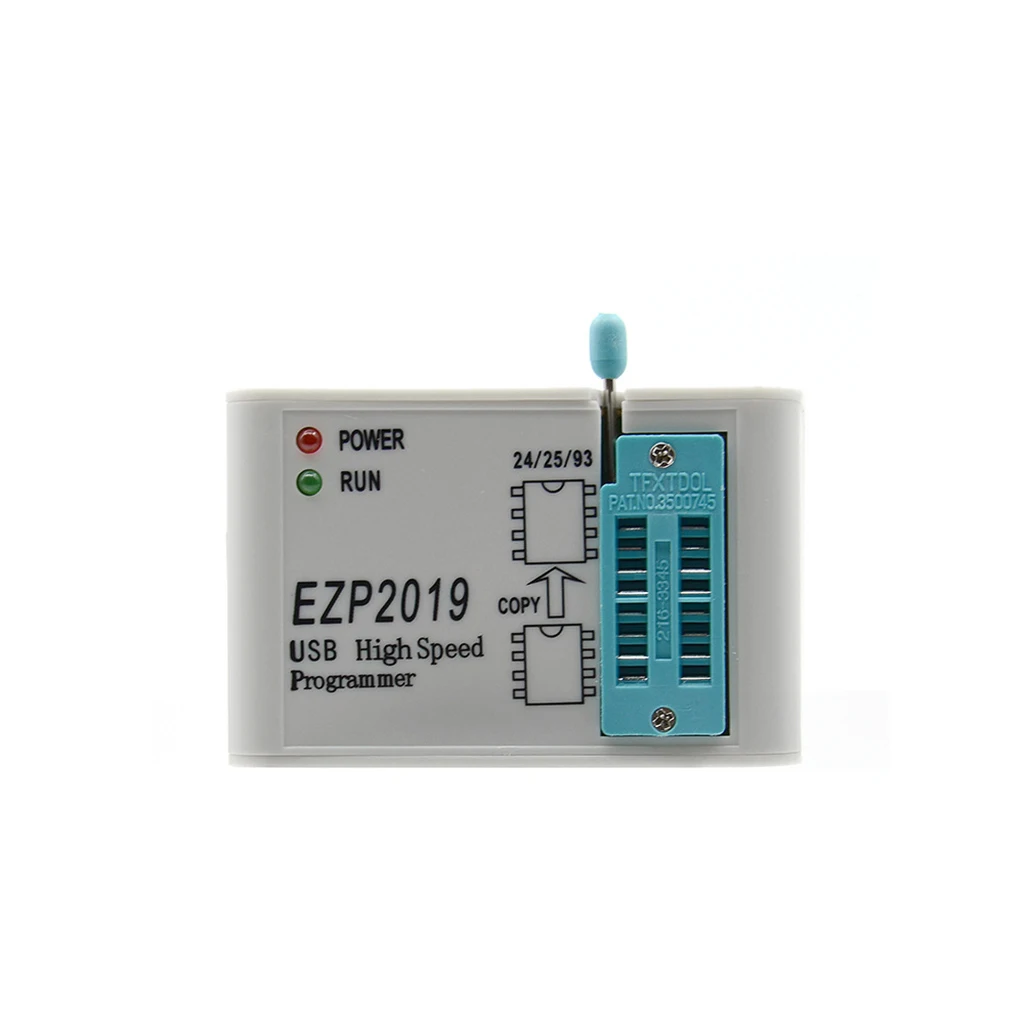

Programador SPI USB de alta velocidad EZP2023 + 2 adaptadores compatibles con 24 25 93 EEPROM 25 Chip Bios Flash
Función:
1.Reparación de electrodomésticos: adecuado para la industria de reparación de electrodomésticos para cepillar y escribir TV en color, DVD, placa base de computadora y disco duro en el chip de memoria.
2.Desarrollo de productos: el proceso de desarrollo de productos de la empresa para escribir el chip de prueba.
3.Producción en masa de fábrica: la función de copia fuera de línea completamente automática es especialmente adecuada para chips de memoria de grabación por lotes de fábrica.
Características:
1.Interfaz USB 2.0, velocidad de hasta 12Mbps.
2.Velocidad de lectura/escritura súper rápida, solo 3 segundos para leer EN25T80, solo 9 segundos para escribir EN25T80, que es la programación de chip BIOS más rápida del mercado.
Siempre que 9 segundos lea EN25T80 y escriba EN25T80, es el programador de chips BIOS más rápido del mercado.3.
3. reconoce automáticamente el modelo de chip.
4. Detecta automáticamente si el chip está colocado.5. Seleccione automáticamente el voltaje de la fuente de alimentación del chip.
5. Seleccione automáticamente el voltaje de la fuente de alimentación del chip
6. Copia automática sin conexión
7.Admite actualización de software de PC y firmware del programador.8.
8.Admite integralmente 25 FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM y otras series de chips de memoria.9.
9.Forma compacta, fácil de transportar, aproximadamente del mismo tamaño que una tarjeta de presentación normal.

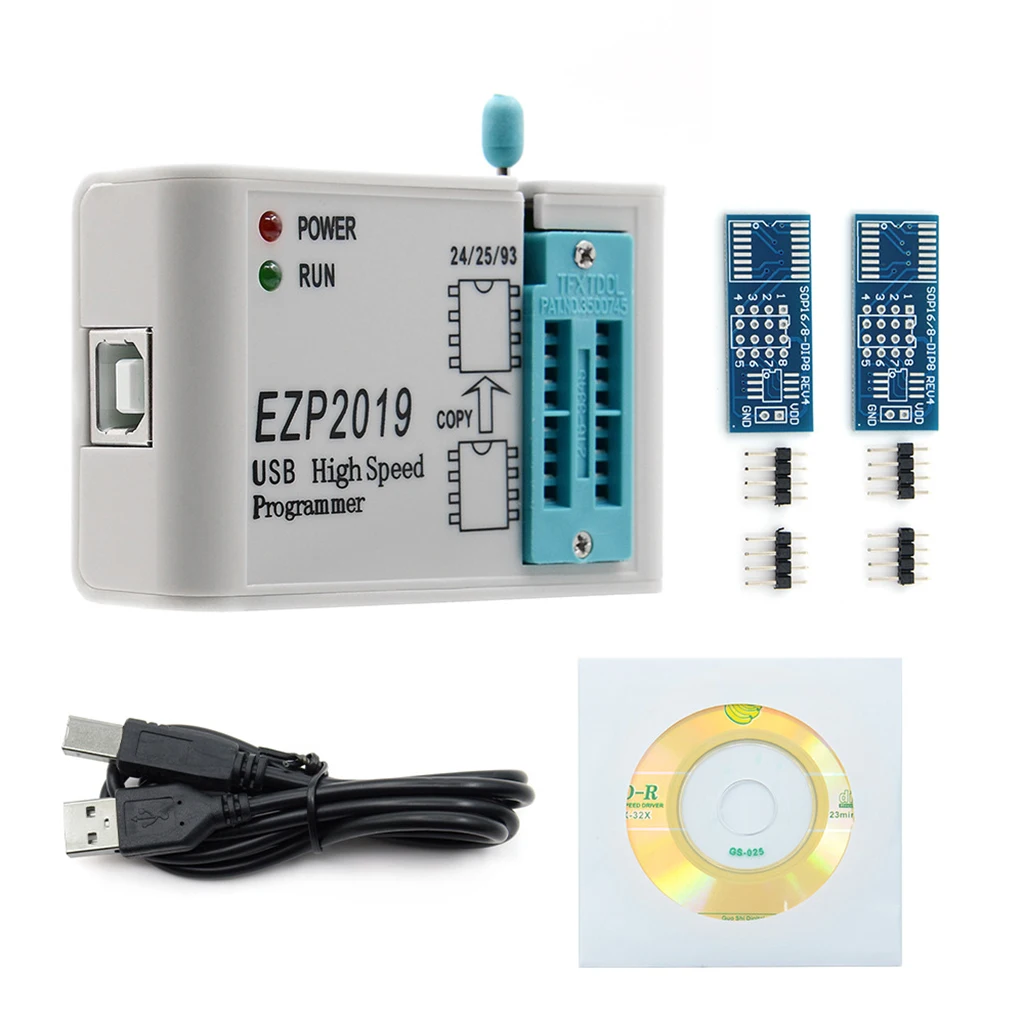

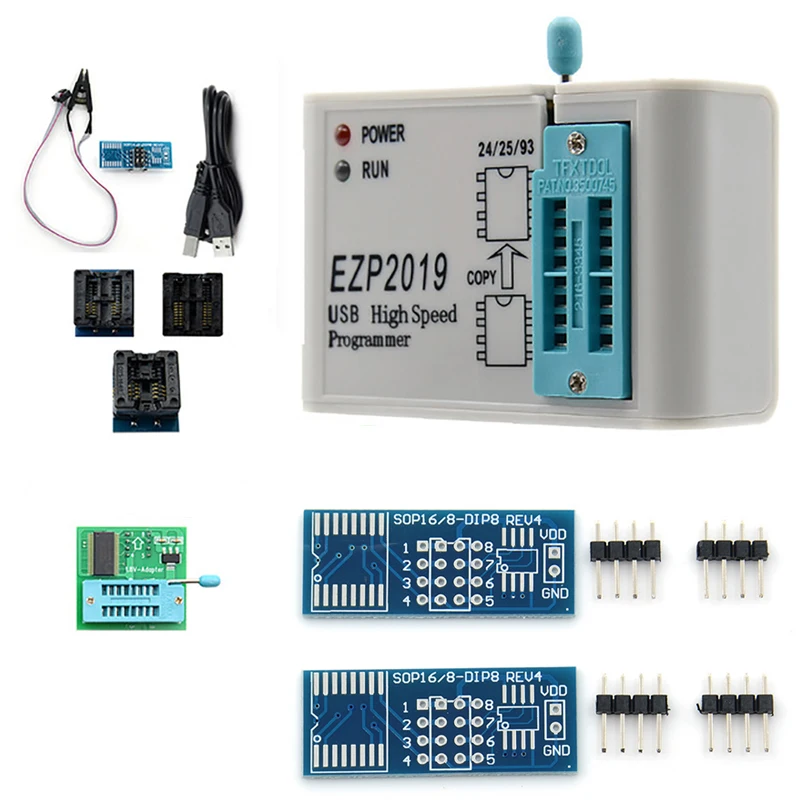

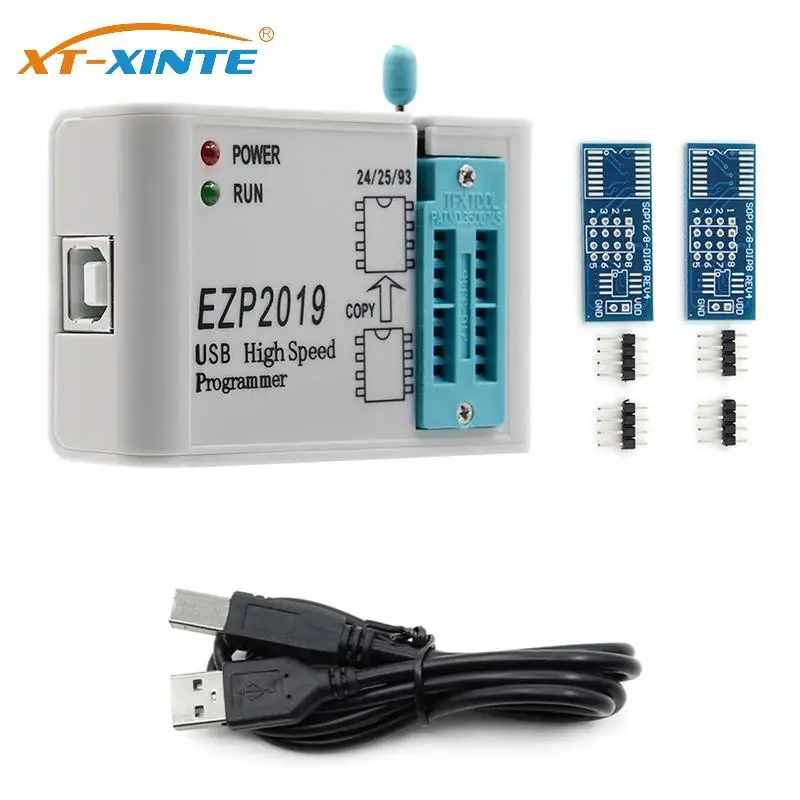

Lista de embalaje.
1 unidad principal del programador*
1 cable de comunicación USB blindado de alta velocidad.
1 X CD-ROM del producto
1 X Manual del producto (archivo CD-ROM)
1 X fuente de alimentación estabilizada de voltaje de copia sin conexión
2 X adaptador de parche simple
Lista de modelos de chips compatibles:
¡Admite chips de la serie 24, 25 y 93 de casi todos los fabricantes del mercado actual!
25 VELOCIDADES
AMICA:A25L05P, A25L512, A25L010, A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032
cajero automático:AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010, AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A, AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A, AT26DF321, AT25DF641
EON:EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10, EN25D20, EN25F20, EN25F40, EN25F40, EN25LF40, EN25D80, EN25F80, EN25Q80, EN25T80, EN25B16, EN25B16T, EN25D16, EN25F16, EN25Q16, EN25T16, EN25T16, EN25B32, EN25B32T, EN25F32, EN25F32, EN25F32, EN25
ES:ES25P10, ES25P20, ES25M40, ES25M40A, ES25P40, ES25M80, ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32
ESMT:F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA
MXIC:MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L4005A, MX25V4005, MX25L8005, MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25L3235D, MX25L3237D, MX25L6405D, MX25L12805D
NEXFLASH:NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32
PMC:PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B, PM25LV016B
SAIFUN:SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320
ESPANSION:S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A
SST:SST25VF512, SST25VF512A, SST25VF010, SST25VF010A, SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, SST25VF064C
ST:M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25P80, M25PE80, M25PX80, M25P16, M25PE16, M25PX16, M25P32, M25PX32, M25P64, M25PX64, M25P128
WINBOND:W25P10, W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20, W25X20A, W25X20AL, W25X20L, W25P40, W25X40A, W25X40AL, W25X40L, W25P80, W25X80, W25X80A, W25X80AL, W25X80L, W25P16, W25X16, W25P32, W25X32, W25X32, W25
24 EEPROM
cajero automático:AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C16B, AT24C32, AT24C32A, AT24C32B, AT24C64A, AT24C64A, AT24C64B, AT24C0A, AT24C125, AT24
CATALÍST:CAT24C01, CAT24WC01, CAT24C02, CAT24WC02, CAT24C04, CAT24WC04, CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24C64, CAT24WC64, CAT24C128, CAT24WC128, CAT24C256, CAT24WC256, CAT24C512, CAT24C512, CAT24C1024, CAT24WC1024
COMÚN:24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V, 24C04 3V, 24C04 5V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V, 24C64 5V, 24C128 3V, 24C128 5V, 24C256 3V, 24C256 3V, 24C256 5V,
LLAMADA:FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C256L, FM24C512L, FM24C1024L
HOLTEK:HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24C128, HT24LC128, HT24C256, HT24LC256, HT24C512, HT24C1024
ISSI:IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024
MICROCHIP:24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02, 24LC02B, 24AA024, 24AA025, 24AA04, 24C02C, 24LC024, 24LC025, 24LC04B, 24AA08, 24LC08B, 24AA16, 24LC16B, 24AA32, 24LC32, 24AA64, 24FC64, 24AA128, 24LC128, 24LC128, 24AAA256, 24FC12, 24
NSC:NSC24C02, NSC24C02L, NSC24C64
RAMTRÓN:FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512
ROHM:BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64
ST:ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64
XICOR:X24C01, X24C02, X24C04, X24C08, X24C16
93 EEPROM
AKM:AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV
ATC:ATC93C46, ATC93LC46(16 bits), ATC93LC46(16 bits)-SOP8, ATC93LC46(8 bits), ATC93LC46(8 bits)-SOP8, ATC93C56, ATC93LC56(16 bits), ATC93LC56(16 bits)-SOP8, ATC93LC56(8 bits), ATC93LC56(8 bits)-SOP8, ATC93C66, ATC93LC66(16 bits), ATC93LC66(16 bits)-SOP8, ATC
cajero automático:AT93C46(16 bits), AT93C46(16 bits)-SOP8, AT93C46(8 bits), AT93C46(8 bits)-SOP8, AT93C46A, AT93C56(16 bits), AT93C56(16 bits)-SOP8, AT93C56(8 bits) -SOP8, AT93C57(16 bits), AT93C57(16 bits)-SOP8, AT93C57(8 bits)-SOP8, AT93C57(8 bits)-SOP8, AT93C66", AT93C66
CATALÍST:CAT93C46(16 bits), CAT93C46(8 bits), CAT93C46A, CAT93C46I, CAT93C56(16 bits), CAT93C56(8 bits), CAT93C56A, CAT93C57(16 bits), CAT93C57(16 bits)-SOP8, CAT93C66(16 bits), CAT93C66(8 bits), CAT93C66A, CAT93C66(16 bits), CAT93C86(16 bits)
COMÚN:93C46(16 bits), 93C46(8 bits), 93C56(16 bits), 93C56(8 bits), 93C66(16 bits), 93C66(8 bits), 93C86(16 bits), 93C86(8 bits)
EXEL:XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56, XL93LC56, XL93C66, XL93LC66
LLAMADA:FM93C06AM8(16 bits), FM93C06AM8(8 bits), FM93C06M8, FM93C06N, FM93C46AM8(16 bits), FM93C46AM8(8 bits), FM93C46AN(16 bits), FM93C46AN(8 bits), FM93CS46(16 bits), FM93C56AN(16 bits), FM93C56AN(8 bits), FM93C46AM8(16 bits), FM93C66AM8(16 bits), FM93C66AM8(8 bits
FM93C66AN (8 bits), FM93C66B, FM93C66M8 (16 bits), FM93C66MT8 (16 bits), FM93C66N (16 bits), FM93CS66 (16 bits), FM93C86AM8 (16 bits), FM93C86AM8 (8 bits), FM93C86AN (16 bits), FM93C86AN (8 bits )
HOLTEK:HT93LC46A (16 bits), HT93LC46A (8 bits), HT93LC56A (16 bits), HT93LC56A (8 bits), HT93LC66A (16 bits), HT93LC66A (8 bits)
TIC:ICT93C46(16 bits), ICT93C46(8 bits), ICT93C56(16 bits), ICT93C56(8 bits), ICT93C66(16 bits), ICT93C66(8 bits)
ISSI:IS93C46(16 bits), IS93C56(16 bits), IS93C66(16 bits)
MICROCHIP:93C06(16 bits), 93C06(16 bits) -SOP8,66B), 9358(338), 93AA46(8 bits)SOP8, 93C46(16 bits), 93C46(16 bits)-SOP8, 93C46A, 93LC46B, 93LC46(16 bits), 93LC46(16 bits)-SOP8, 93LC46(8 bits) -SOP8, 93LC46A, 93LC46A, 93LC46B (SOP8-0,56 bits) -SOP (CAPLICROS
NSC:NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46, NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66, NSC93CS66, NSC93C86
ROHM:BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF, BR93LC66, BR93LC66RF
ST:ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R, M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56, M93S56-SOP8, M93S56R, M93S56R-SOP8, M93S56W, M93S56W-SOP8, ST93C56, M93S66-SOP8, M93S66-SOP8, M
25 EEPROM
cajero automático:AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT256, AT25512
CATALÍST:CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04U, CAT25C05S, CAT25C05U, CAT25C08S, CAT25C08S, CAT25C0U, CAT25C0U, CAT25C025P, CAT25C025P, CAT25C
COMÚN:25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256, 25512
MICROCHIP:25AA040, 25C040, 25LC040, 25AA080, 25C080, 25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25AA640, 25C640, 25LC640
RAMTRÓN:FM25C160, FM25640, FM25CL64
ST:ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16
TI:TI2532, TI2532A, TI2564
XICOR:XC25010, XC25020, XC25040, XC25080, XC25160, XC25320, XC25640, XC25128, XC25256, XC25512
