Probador de resistencia interna de voltaje DC5V TS457, voltímetro ajustable de 4 cables CA, herramienta analizadora de Detector de batería de voltaje

Features:

Voltage test range: 0.001V~45.00V Maximum resolution 0.001V

Internal resistance measurement range: 0.1mΩ~6.999Ω Maximum resolution 0.1mΩ

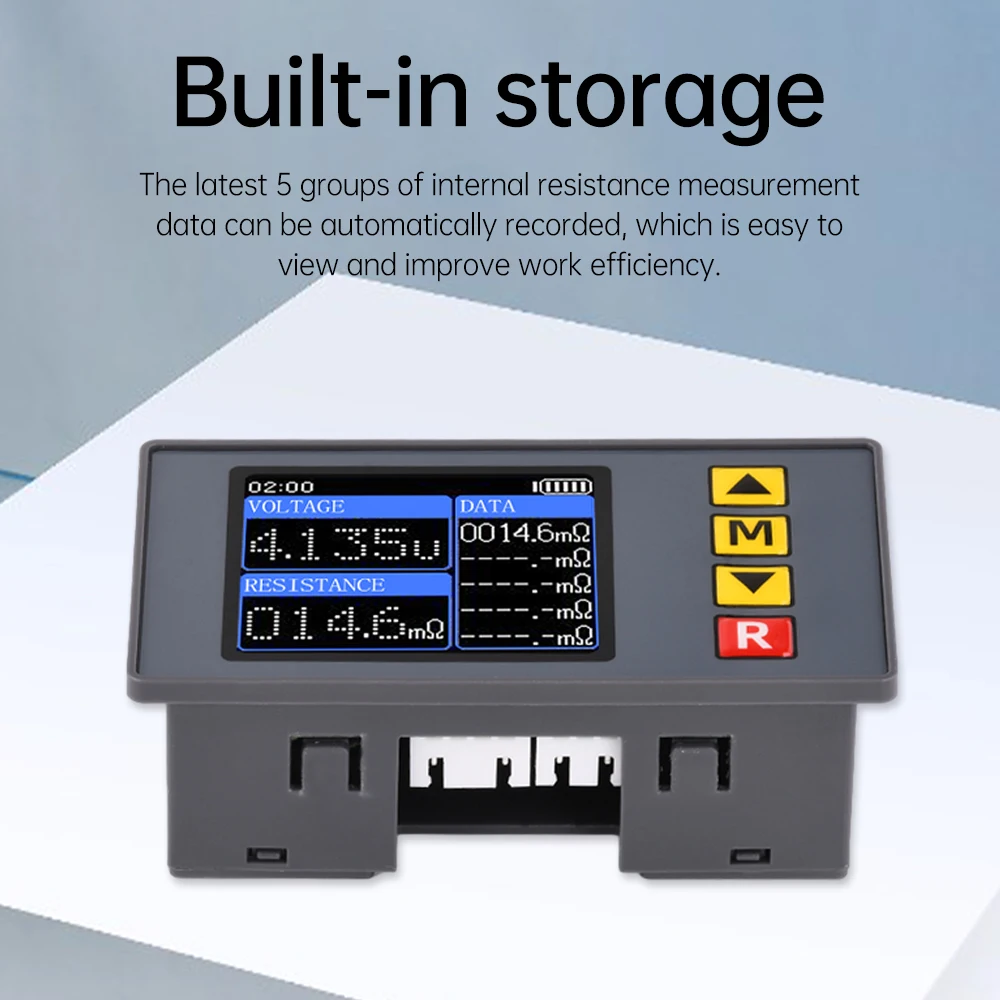

Data recording: Support to record 5 groups of internal resistance measurement data

Automatic shutdown: Support 1 to 9 minutes standby time adjustment

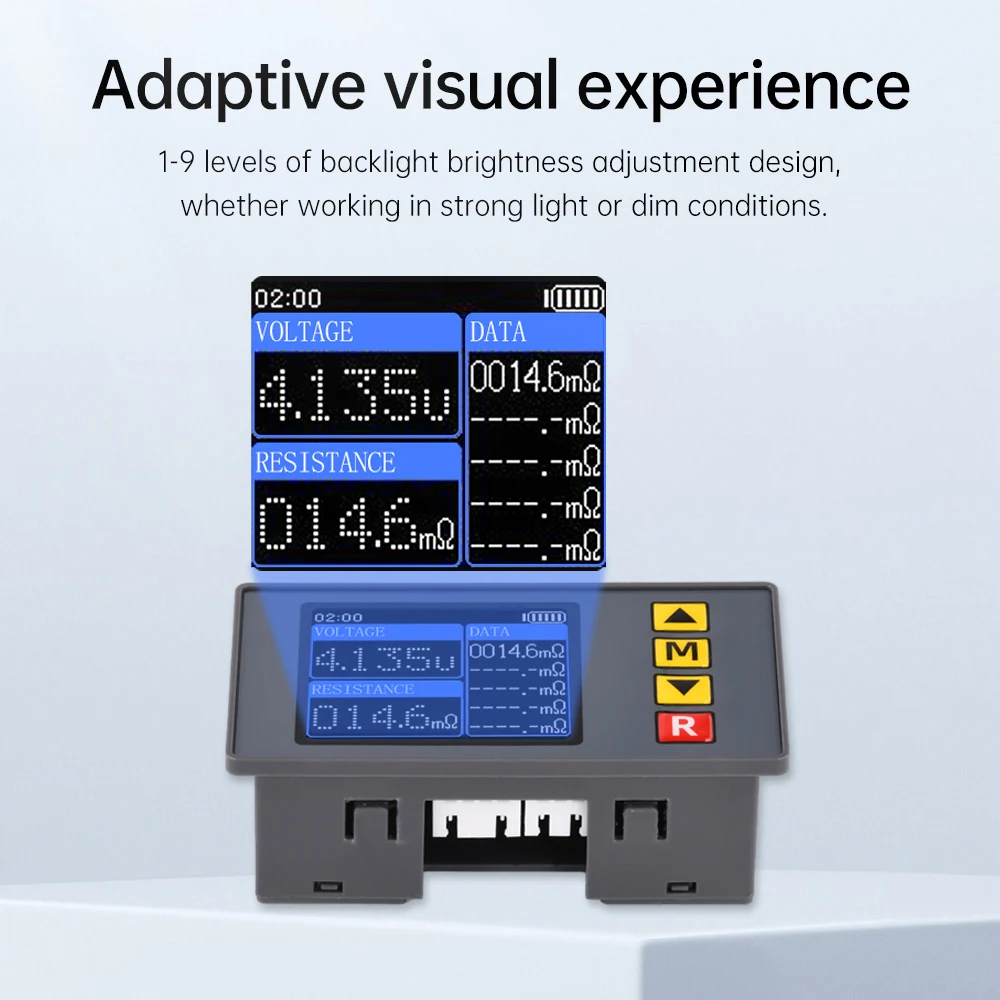

Backlight brightness: Support 1 to 9 display backlight brightness adjustment

Technical parameters:

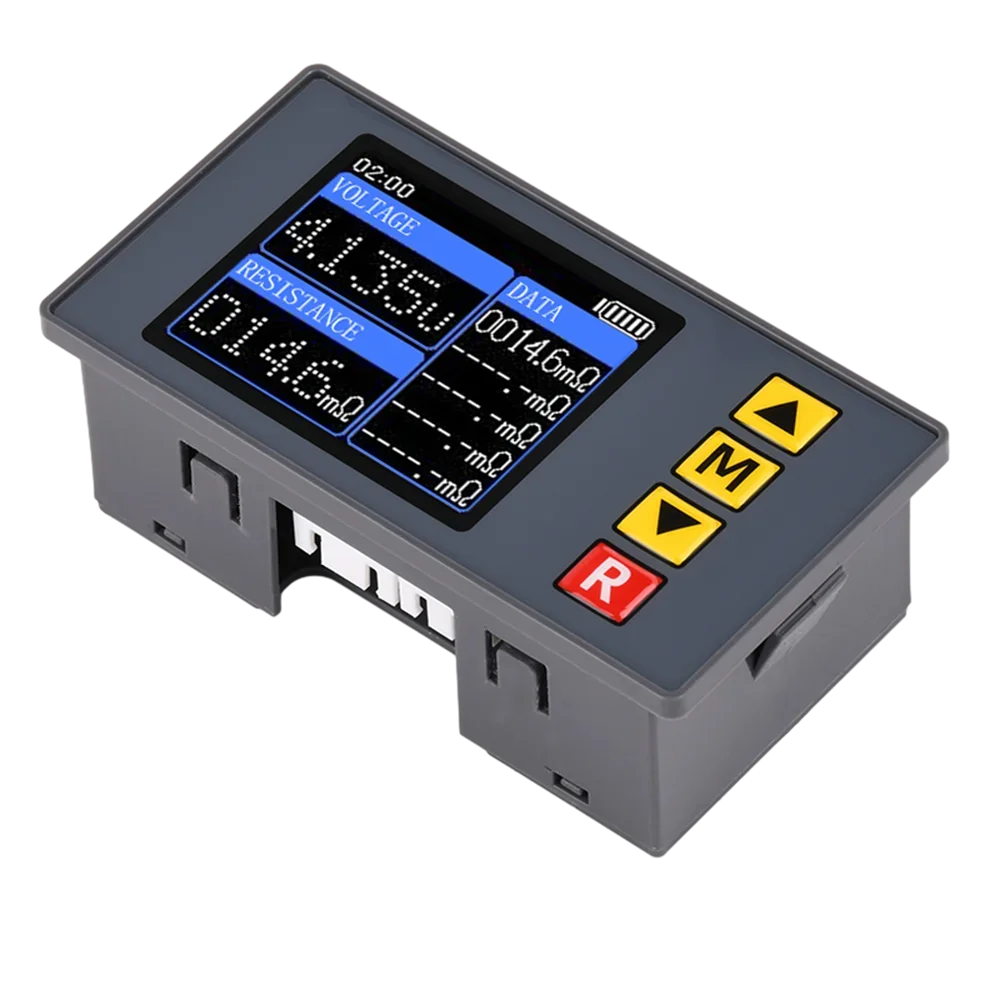

Product name: TS457 voltage internal resistance tester

Note: Do not test AC, do not test voltage above 45V

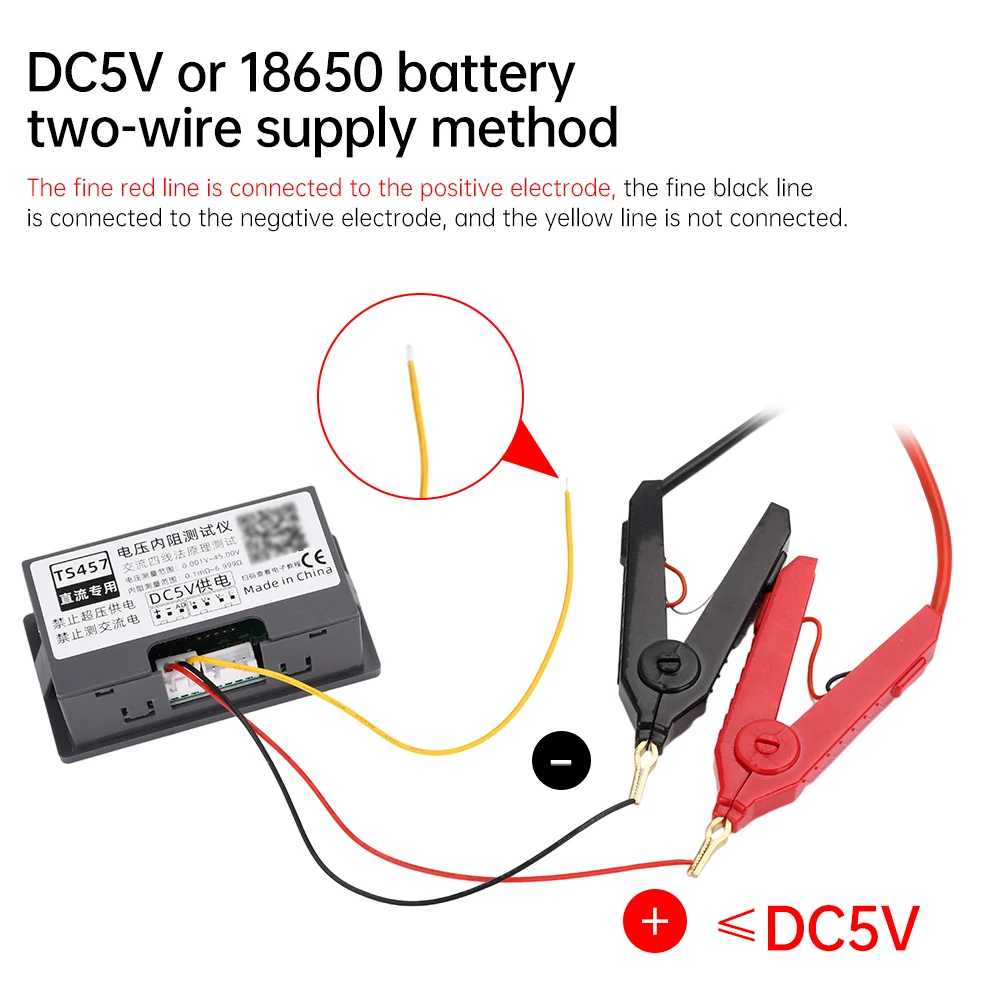

Working voltage: DC5V (do not overvoltage power supply)

Test principle: AC 4-wire method

Voltage test range: 0.001V~45.00V Maximum resolution 0.001V

Internal resistance measurement range: 0.1mΩ~6.999Ω Maximum resolution 0.1mΩ

Data recording: Support to record 5 groups of internal resistance measurement data

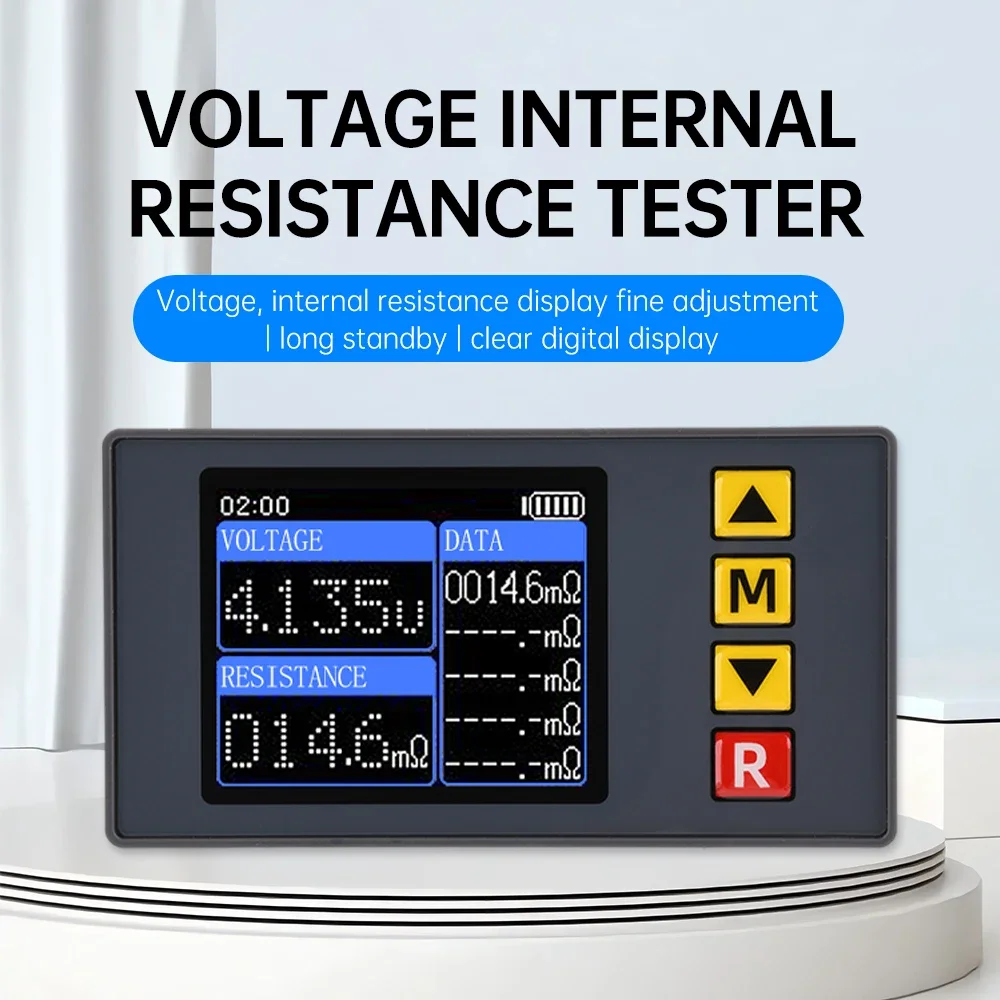

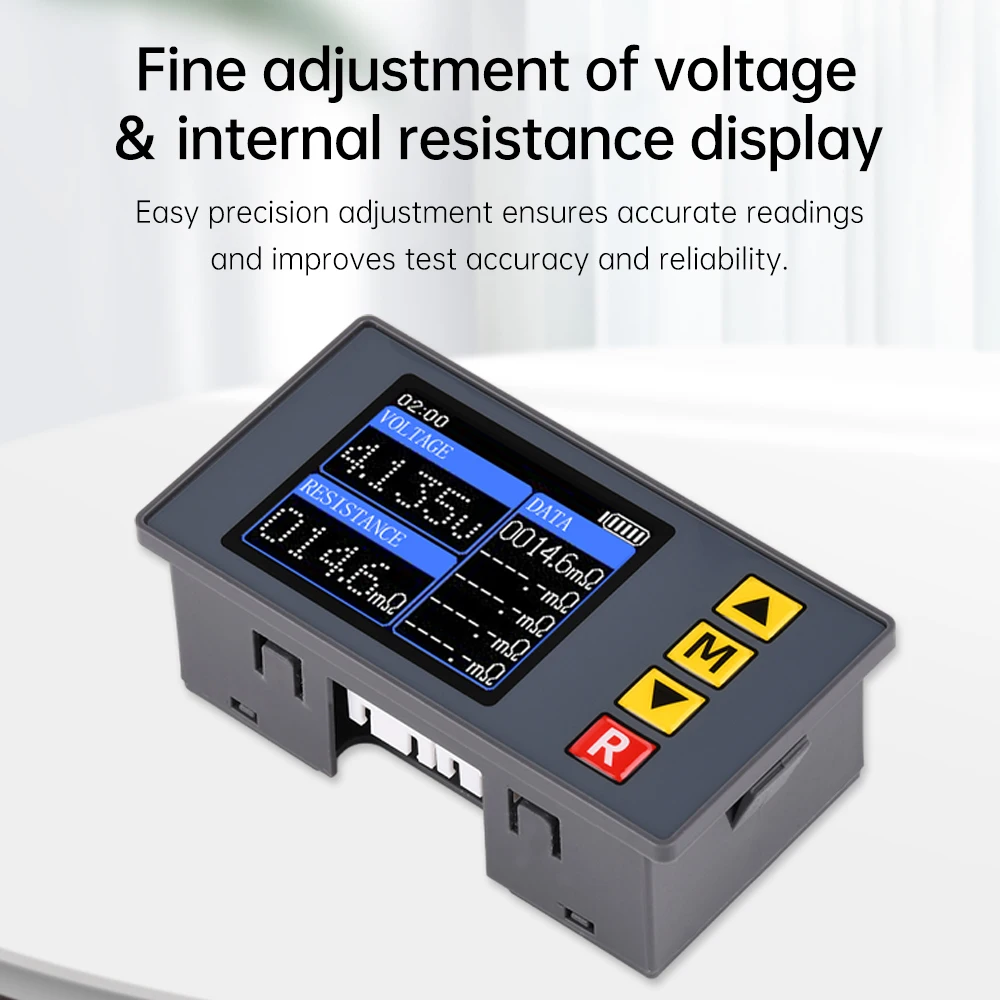

Voltage display fine-tuning: Supported

Internal resistance display fine-tuning: Supported

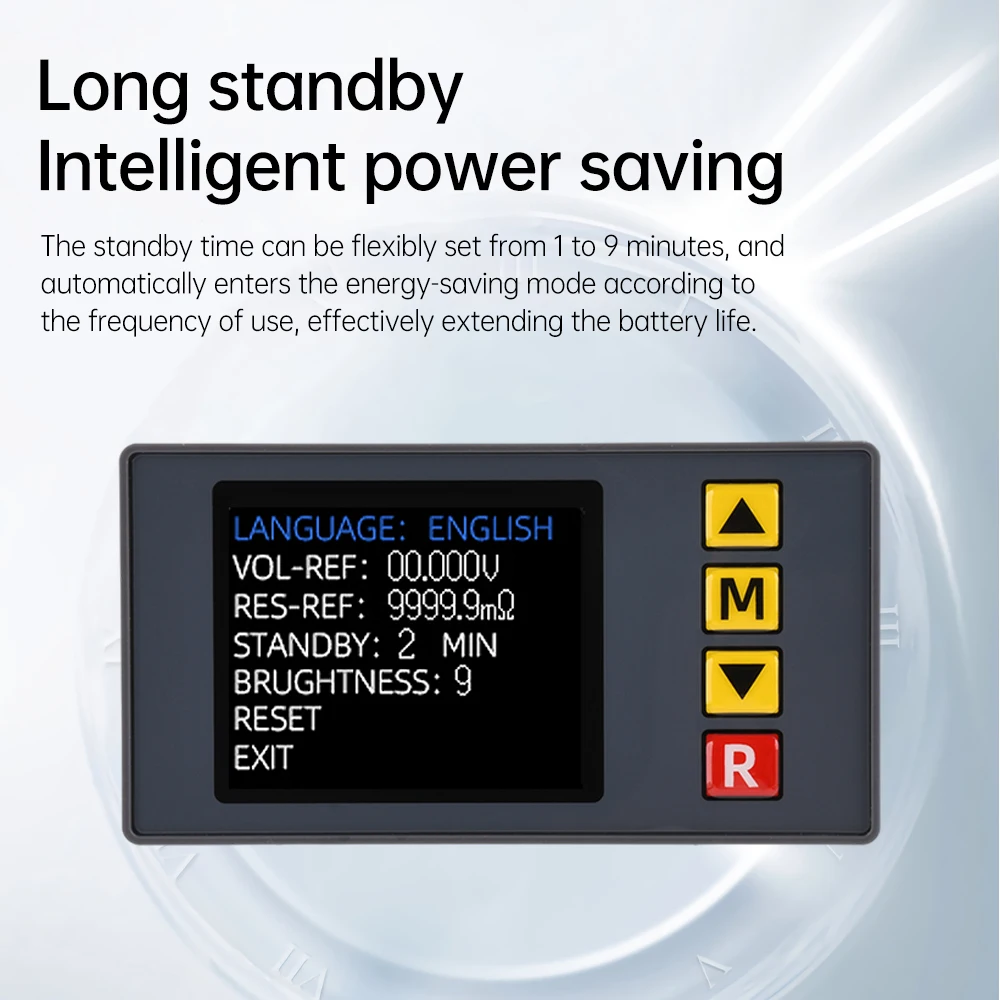

Automatic shutdown: Support 1 to 9 minutes standby time adjustment

Backlight brightness: Support 1 to 9 display backlight brightness adjustment

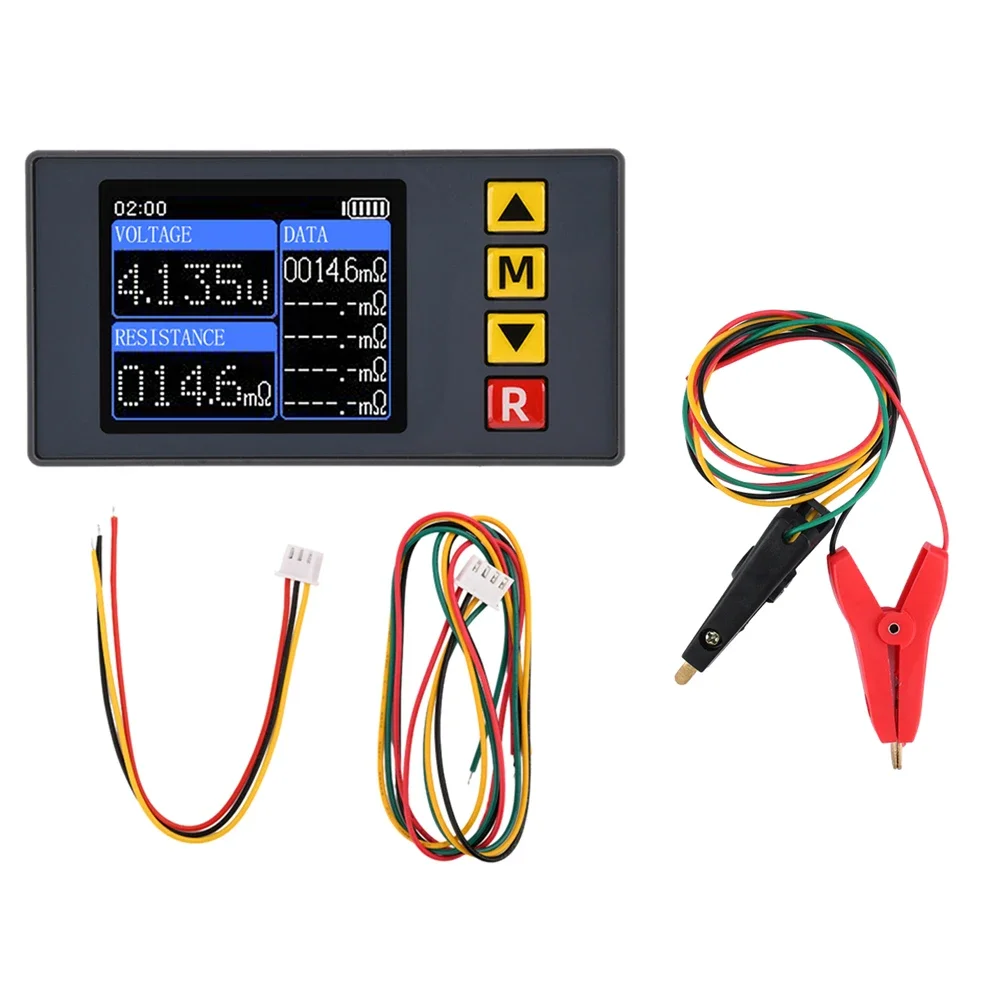

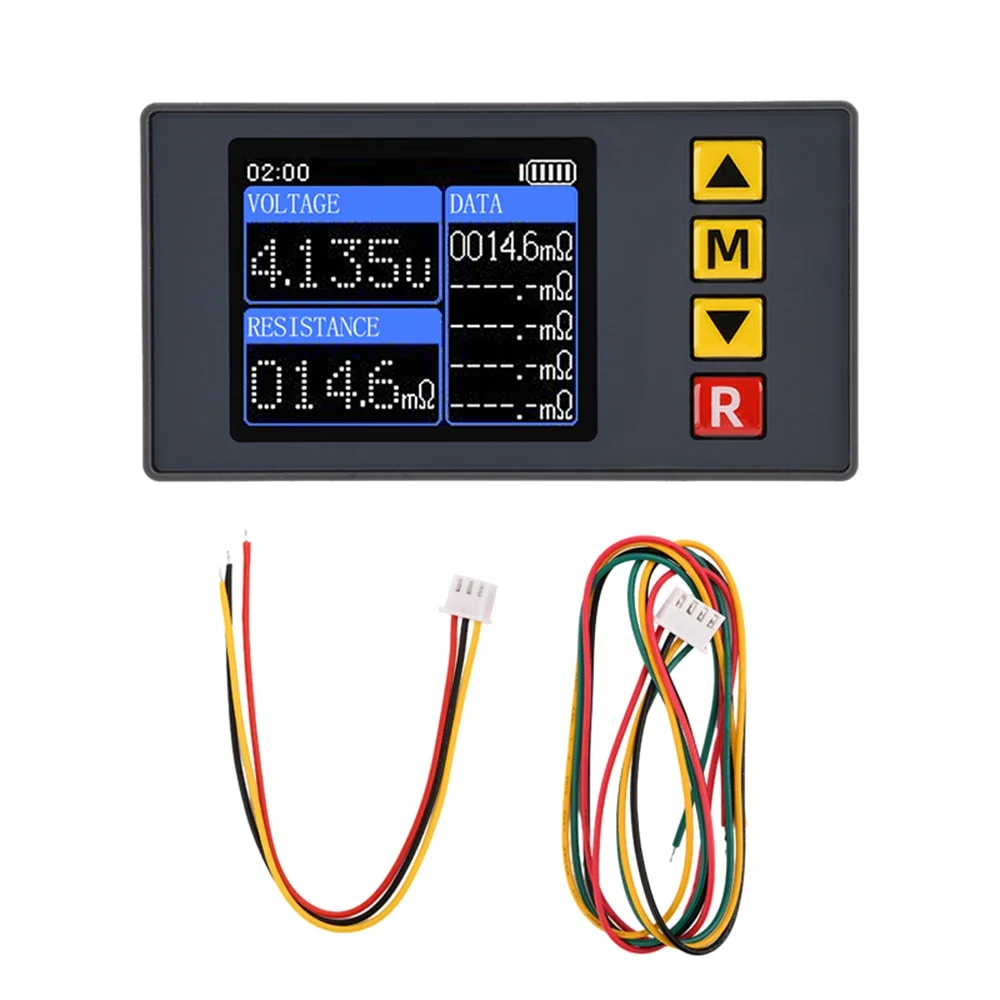

Accessory ① : XH-2.54-2P red and black power supply cable length 150mm

Accessory 2: XH-2.54-4P signal acquisition line length 400mm

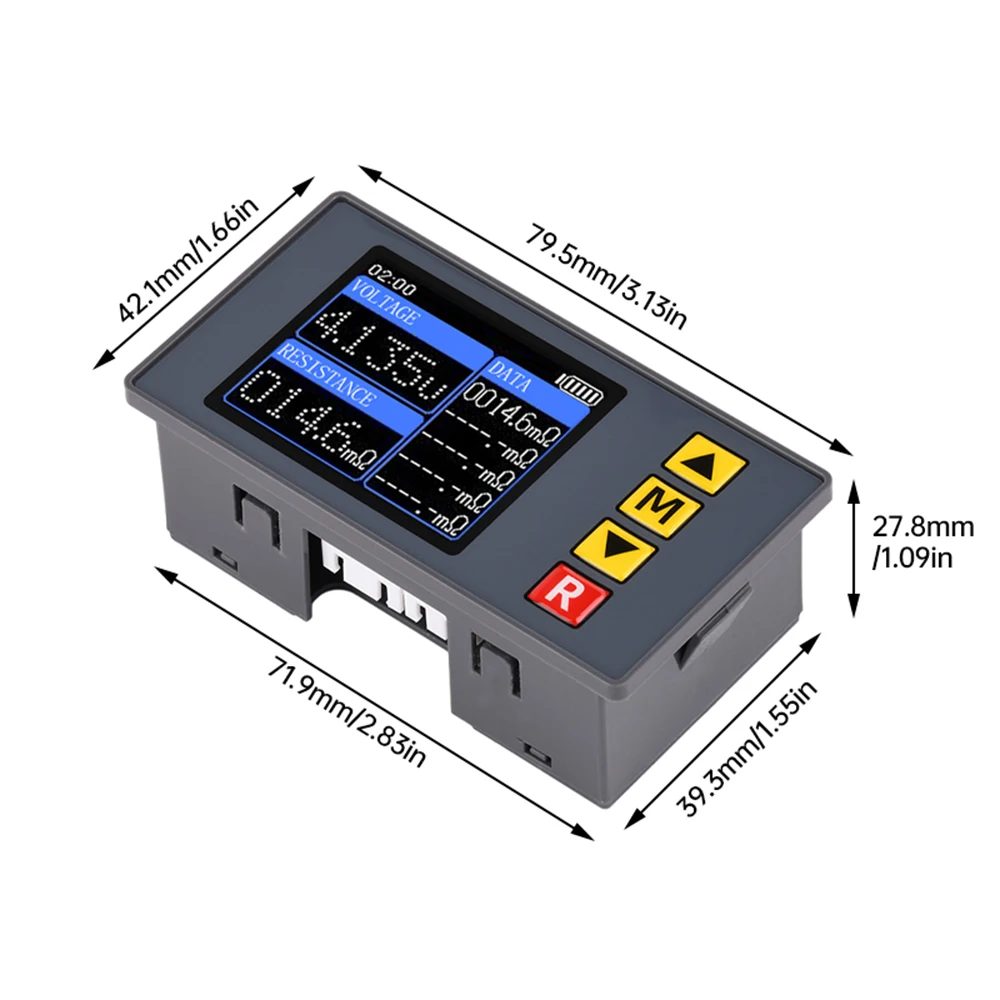

Product size: 79.5x42.1x27.8mm

Mounting hole: 77x39.3mm

Package included:

1 x Four-line TS457 DC5V High-precision Lithium Battery Internal Resistance Meter Voltage Tester Quality Detector 18650 Dry Battery
