Placa de señuelo PD/QC de carga rápida, módulo de señuelo PD de 9V, 12V, 15V, 20V, PD 2,0, Cable de disparo CC, conector macho USB tipo C, conector de carga QC4

Features:
1.Stable performance, high-quality materials with guaranteed module usage quality.
2. Exquisite and compact appearance, very small size, easy to carry, suitable for various DIY.
3. Easy to use, with connectors connected to PCB boards for easy welding and wiring.
4.The conversion head adopts a minimalist design of aluminum alloy metal, ensuring a longer service life.
5.Widely applicable, the module adopts Type - C male interface and is widely used in mobile phones, tablets, laptops, extended data cables, charging heads, mobile power supplies, and other digital accessories.

Parameters:

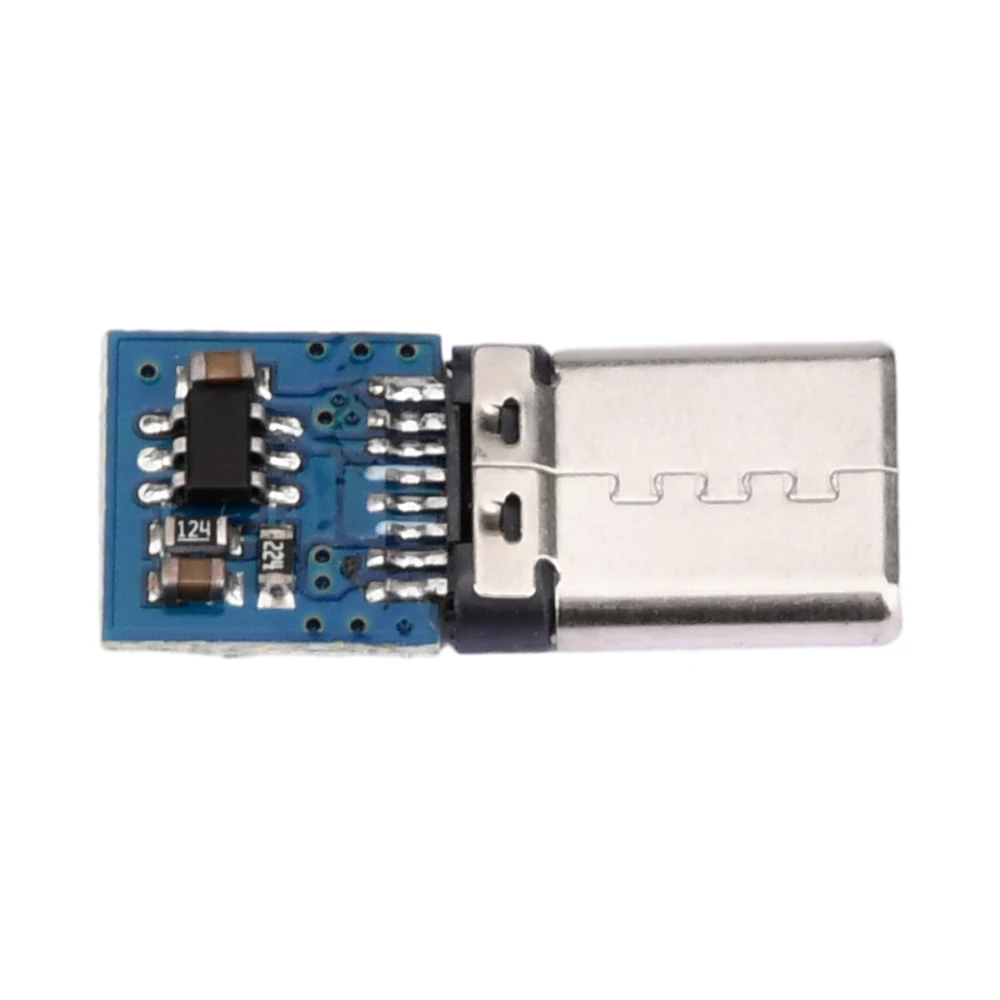

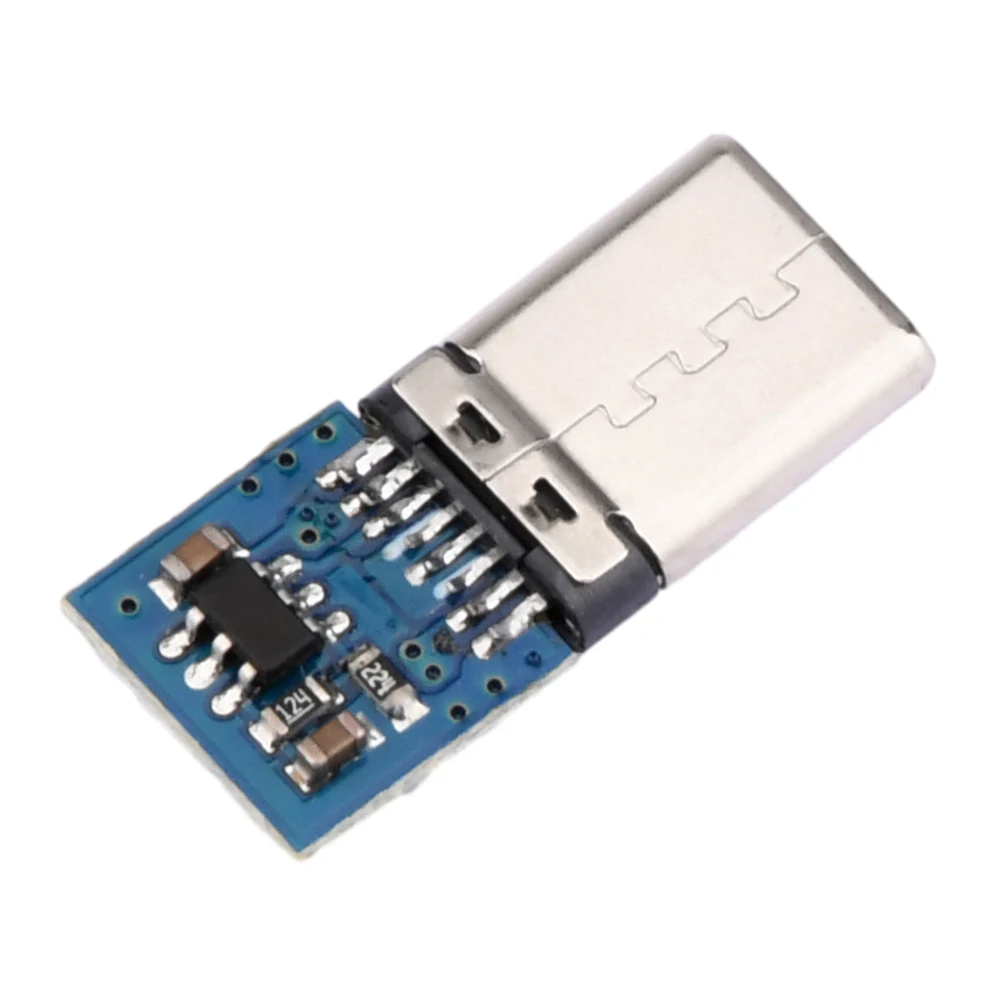

Style 1: Blue MINI Single PD Deception Head:
Color: Blue
Connector: Type - C male connector
Voltage: 9V/12V/15V/20V optional
Current: 3A
Support Protocol: PD
Size: Length 20MM * Width 9MM * Plate thickness 3MM (including C male head)
Product Description:
This product is suitable for power supplies with PD protocol, ensuring that the power supply supports the voltage you need, otherwise you will not be able to deceive the corresponding voltage. Note that this product only supports the PD protocol, and other protocols can only issue 5V.

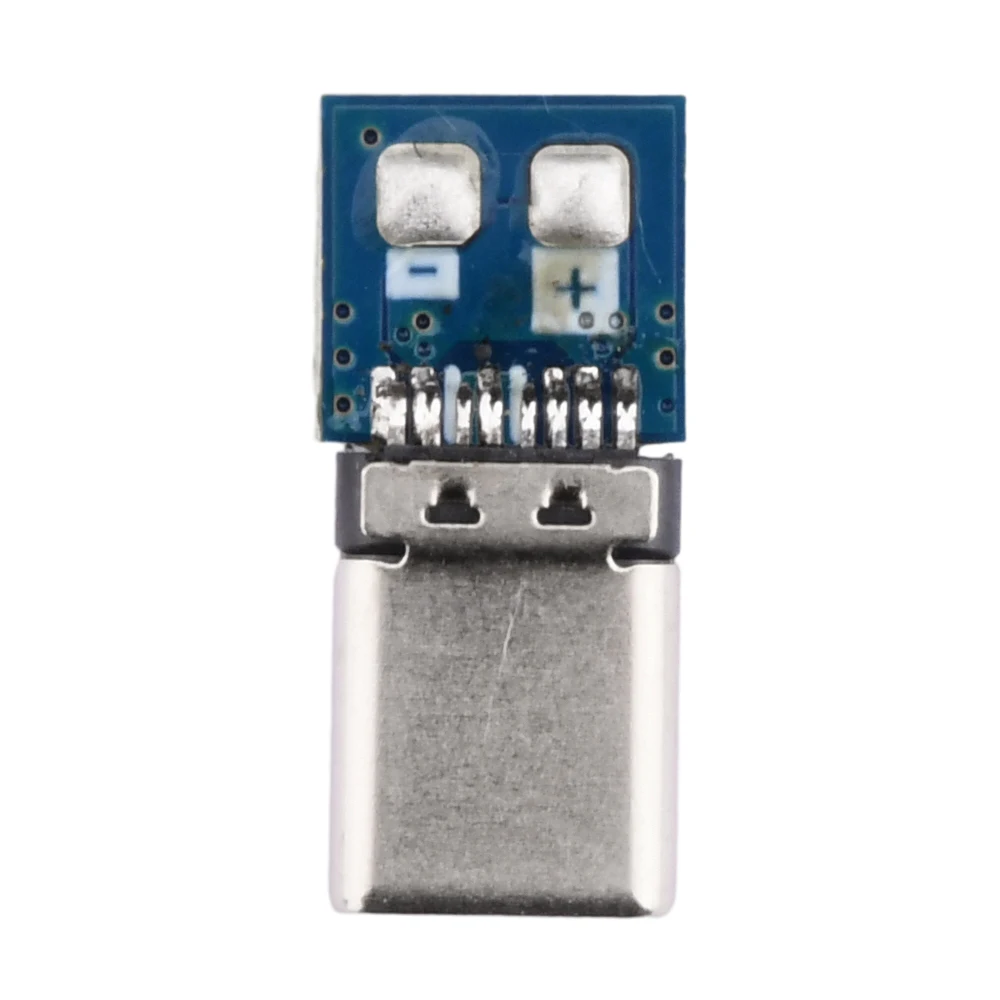

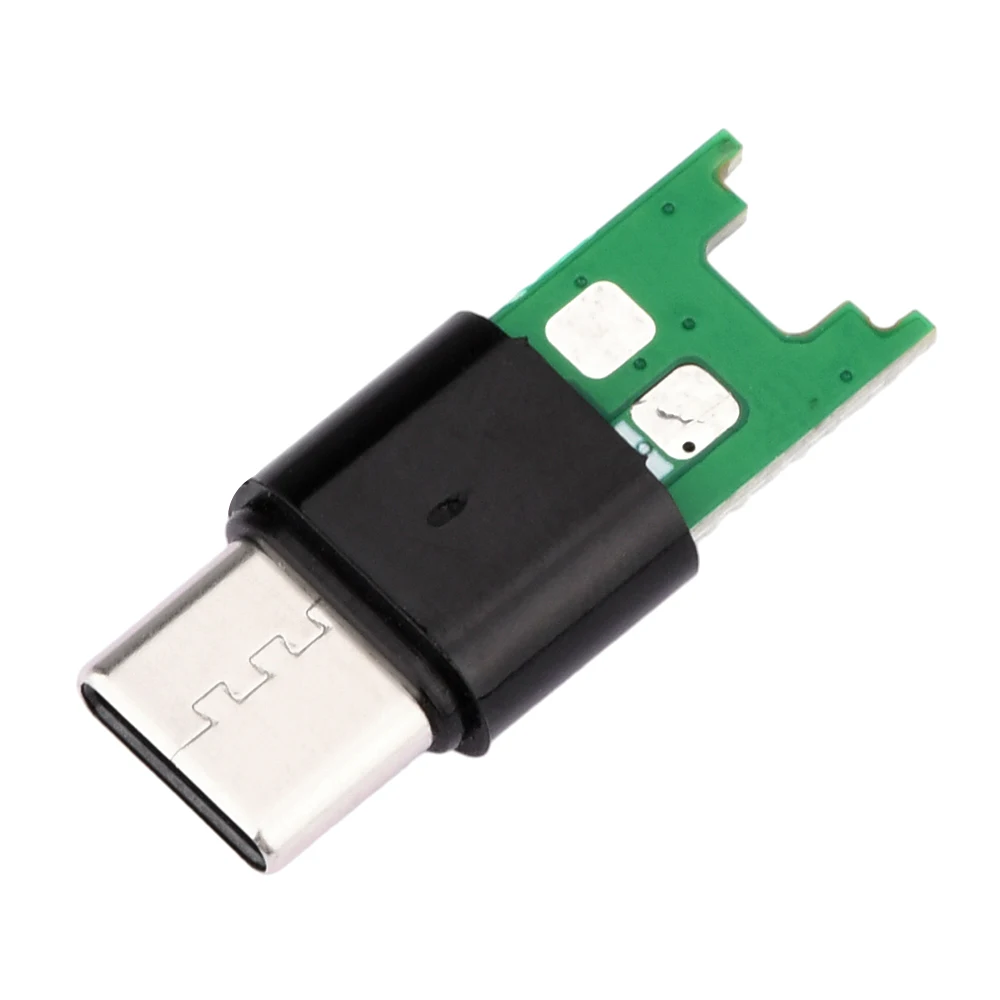

This product supports automatic downshifting to the voltage deception supported by the module if it detects that the power supply does not support the voltage set by the module. The two welding points on the back of the module are output positive and negative electrodes, and the module protocol outputs 3A current. The circuit design can withstand 5A current.
Note: This module is a decoy, not a boost module. The module only simulates the voltage requested by the phone.

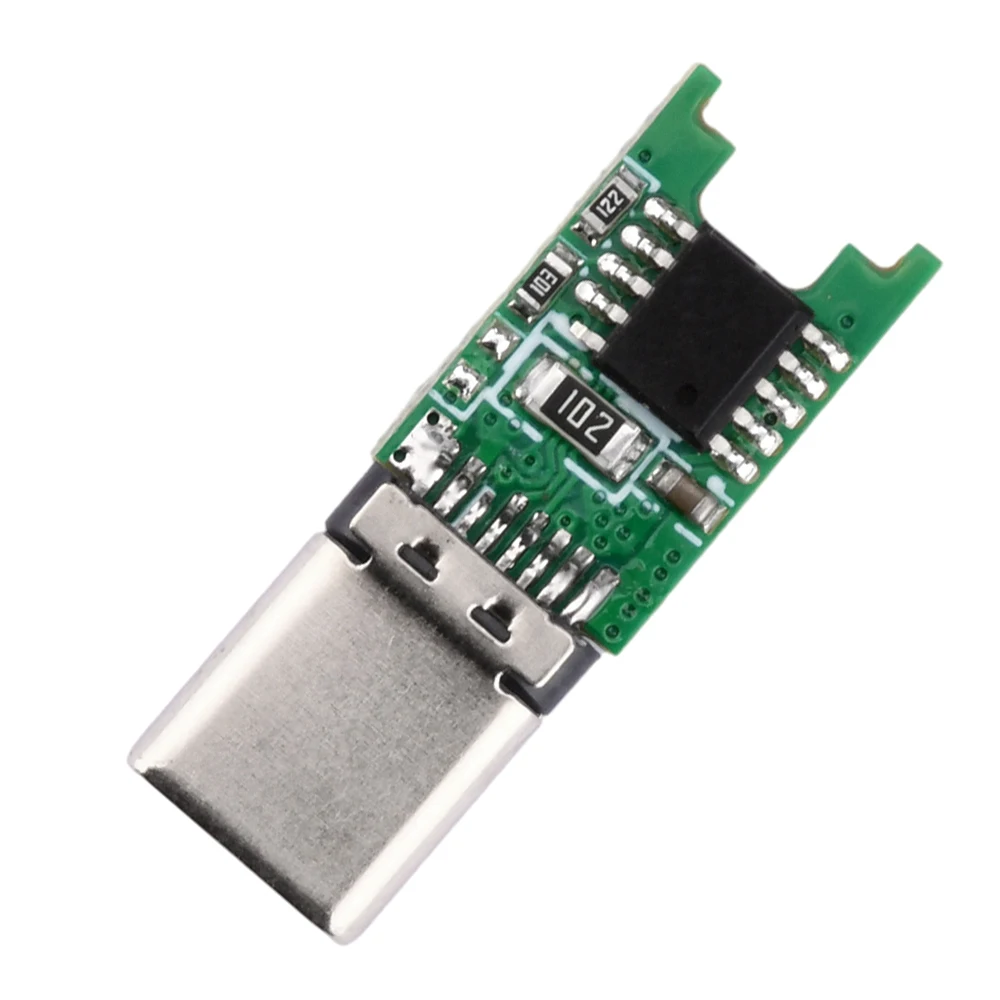

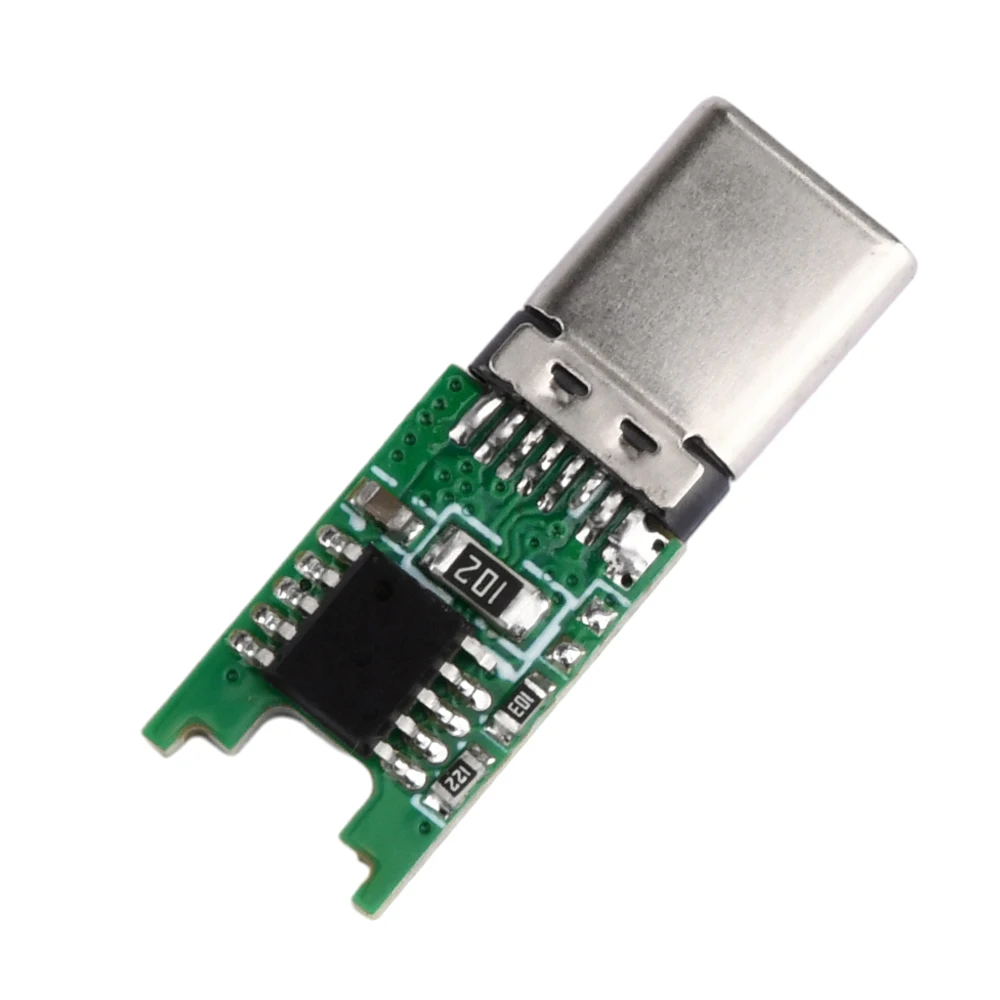

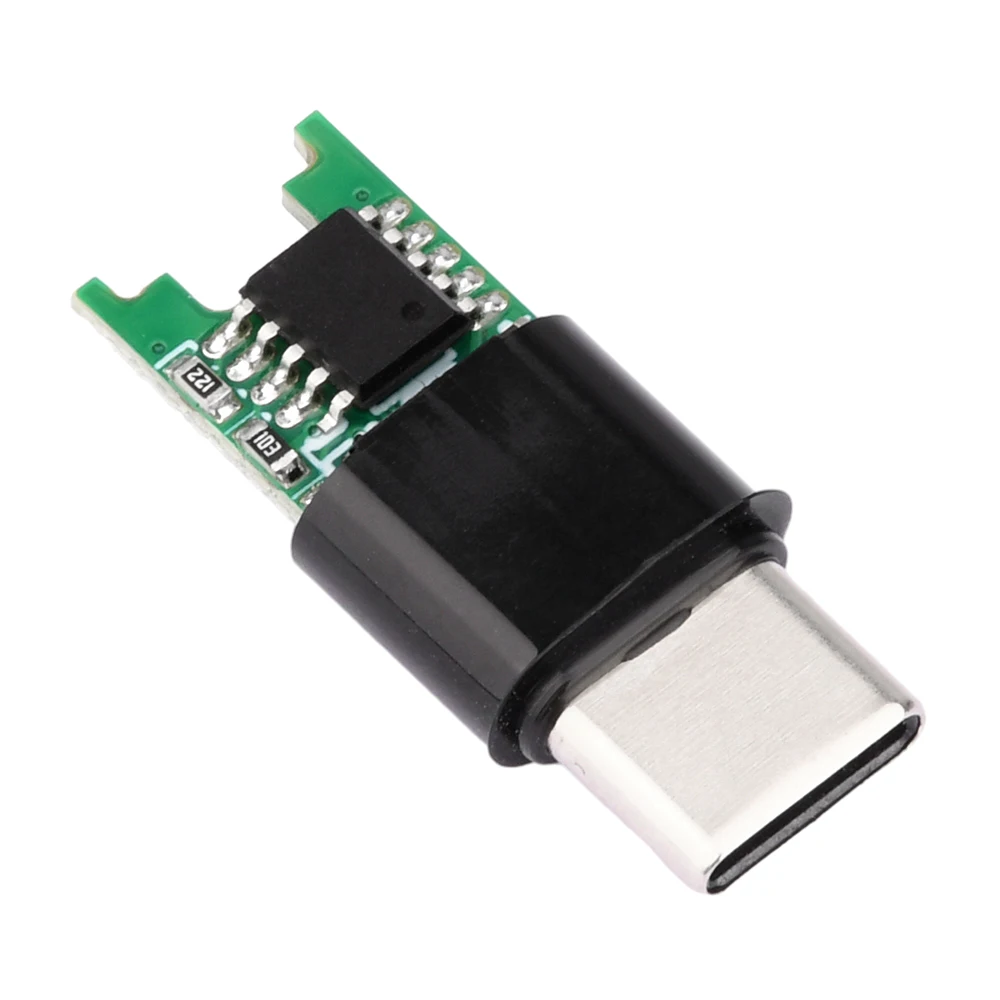

Color: Green
Connector: Type - C male connector
Voltage: 9V/12V/15V/20V optional
With EMAK
Current: 5A
Support protocol: PD/QC

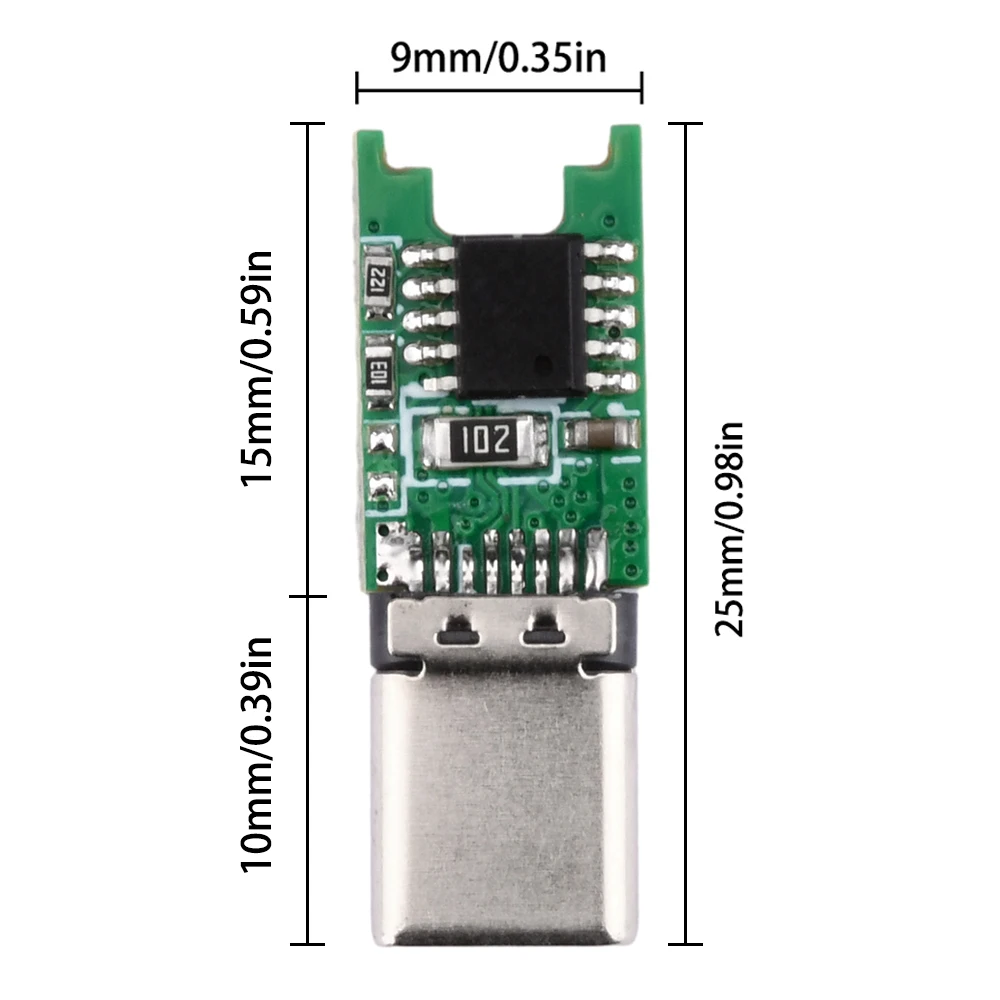

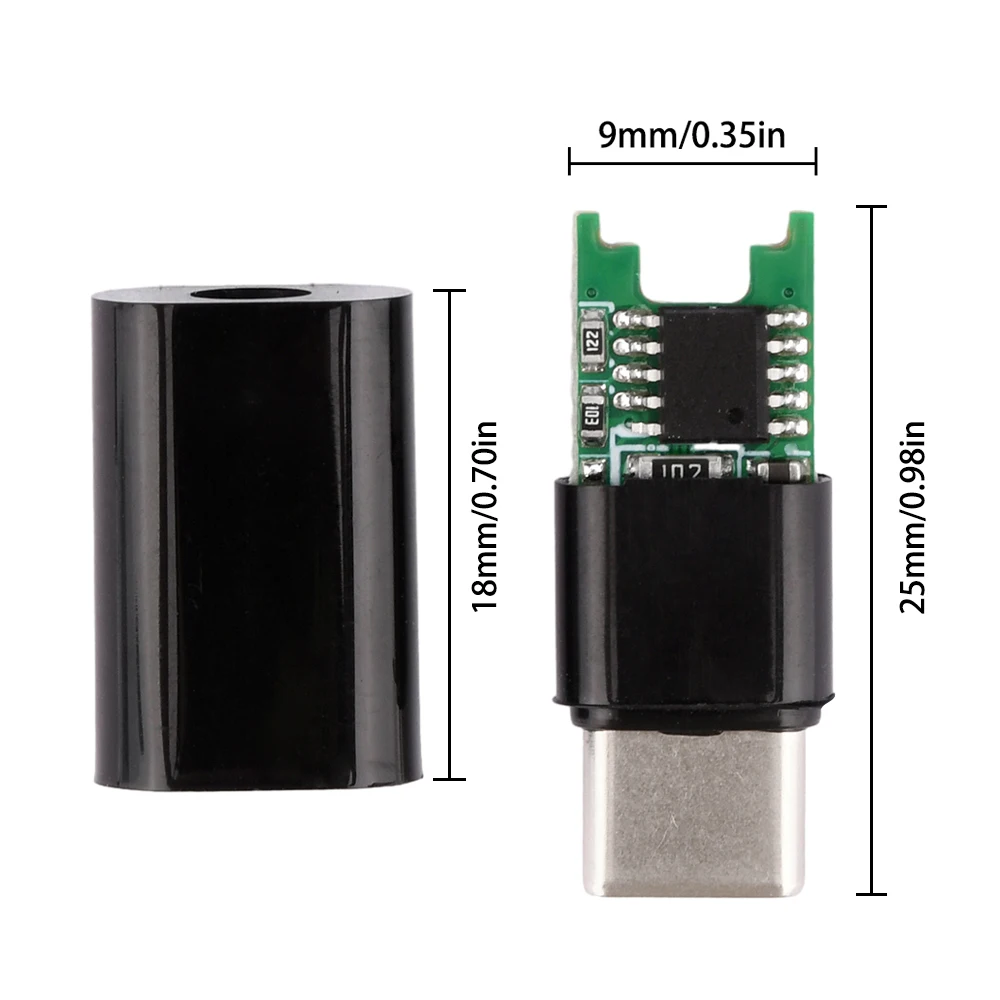

Size: Length 26MM * Width 9MM * Plate thickness 3MM (including C male head)
Product Description:
This product is suitable for power supply with PD/QC protocol, ensuring that the power supply supports the voltage you need, otherwise it will not be able to deceive the corresponding voltage. Unsupported protocols can only issue 5V.

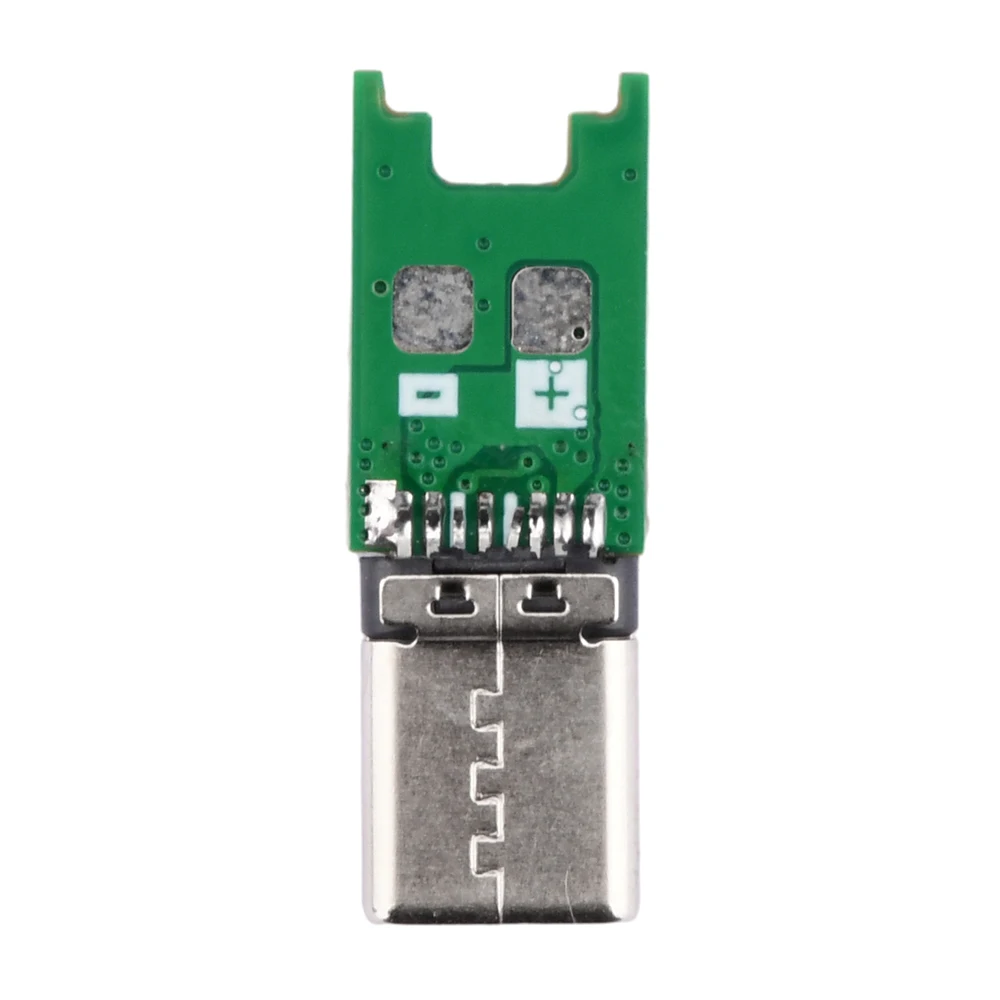

This product supports automatic downshifting to the voltage deception supported by the module if it detects that the power supply does not support the voltage set by the module. The two welding points on the back of the module are output positive and negative electrodes. The module comes with an EMAK, which can support up to 5A. The actual current is determined by the power supply. The circuit design can withstand a 5A current.

Color: Blue
Connector: Type - C male connector
Voltage: 5V
Current: 5A
Size: Length 20MM * Width 9MM * Plate thickness 3MM (including C male head)
Product Description:
This product can turn on the PD power supply with 5V output and does not have any other voltage deception.

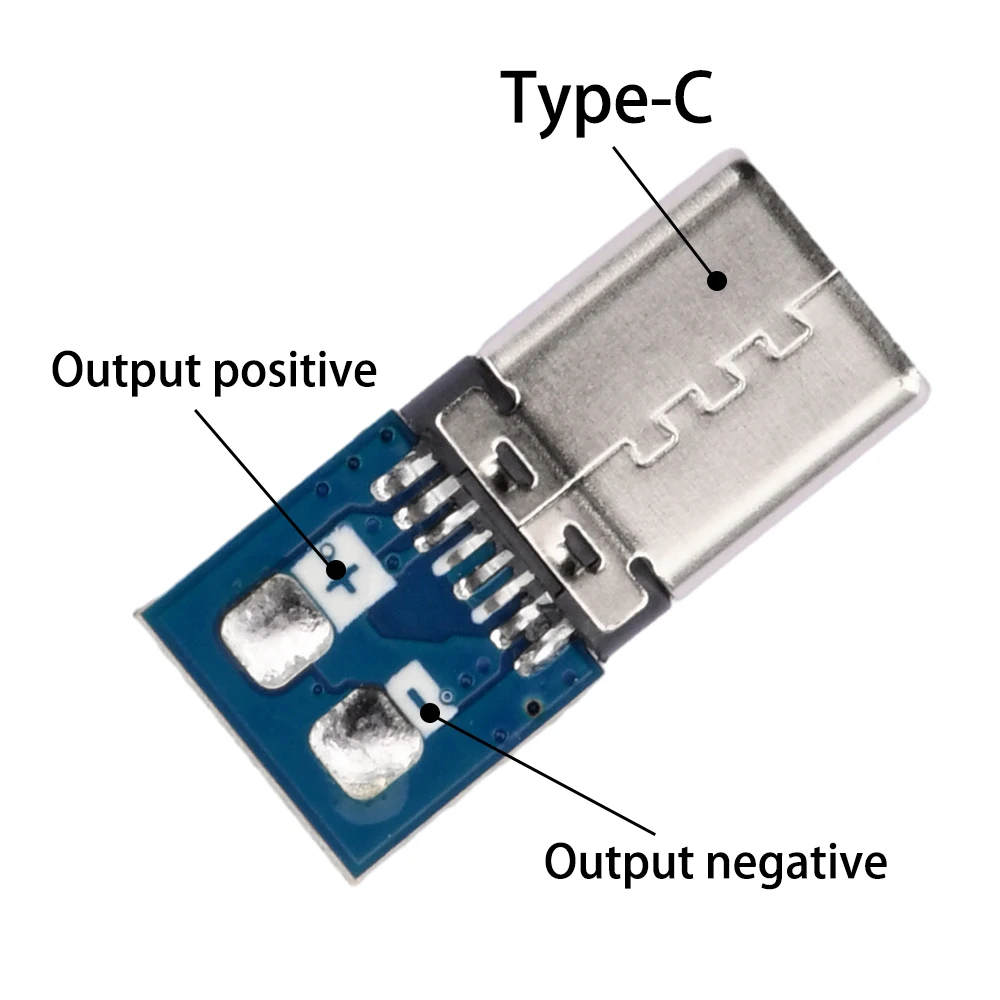

The two welding points on the back of the module are the output positive and negative poles. The module has no other function except to open the output, which is equivalent to a wire. Therefore, the output current is not related to the module, and the circuit design can withstand 5A current.
Module leads out CC1, CC2D+, and D+communication lines. Convenient to choose, CC1 defaults to adding a resistor and pulling it down to the negative electrode.
