Features:
1. The domestic version optimizes the replacement of LDO chips, and the pin functions are fully compatible with the original version.
2. Adopting RP2040 chip, the dual core Cortex MO+has a main frequency of up to 133MHz.
3. The chip is equipped with 264KB SRAM and 2MB onboard flash memory, which can be used for Micro Python program storage.
4. High performance full cross point bus architecture.

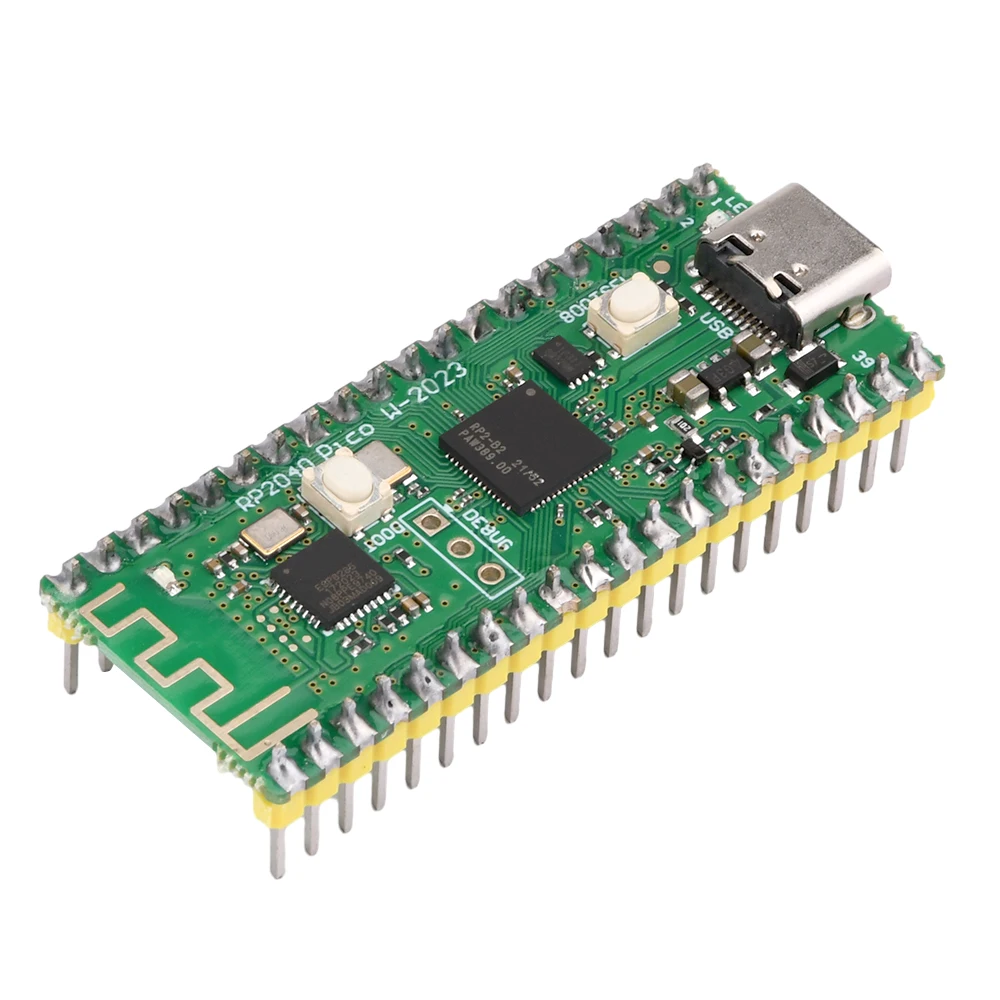

5. Multiple specifications are available, RP2040 Pico W adds a wireless WiFi module on top of RP2040 Pico, supporting TCP/UDP protocol communication, and can easily achieve networking through WiFi, making wireless network control and transmission very convenient.
Parameter:

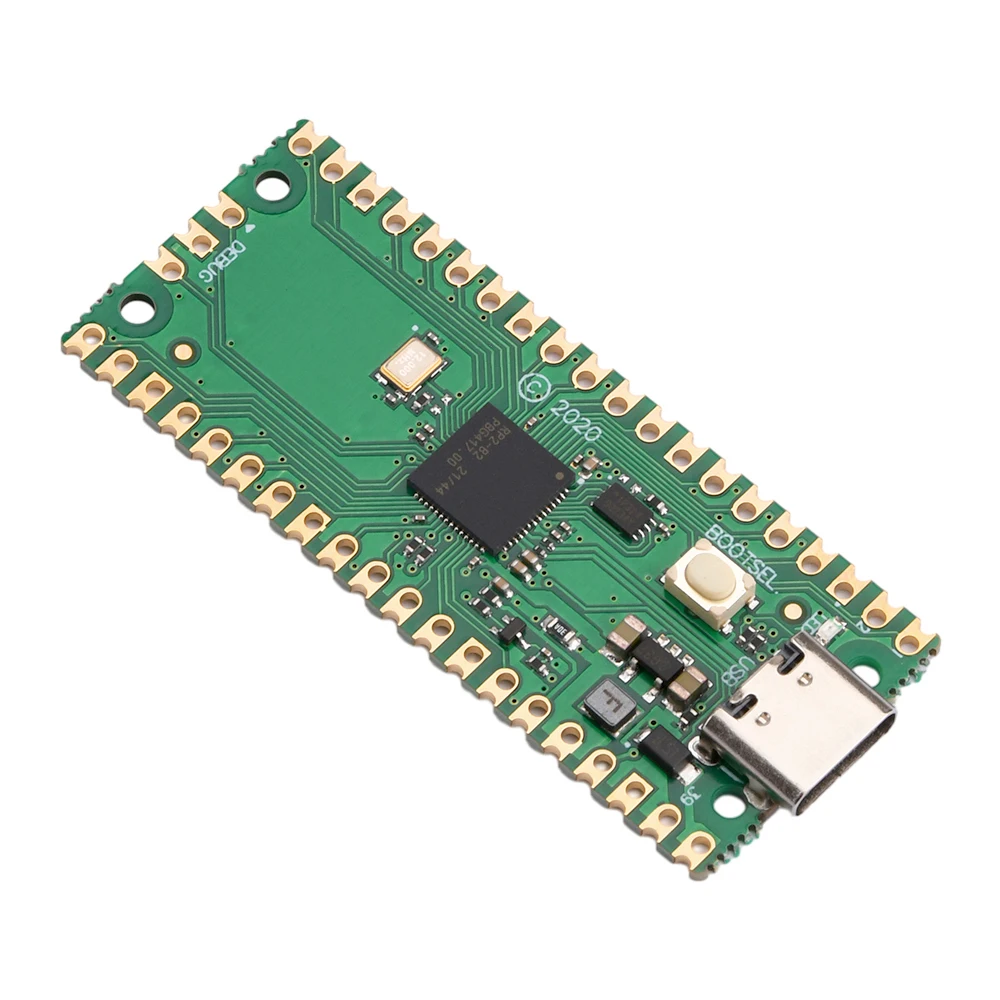

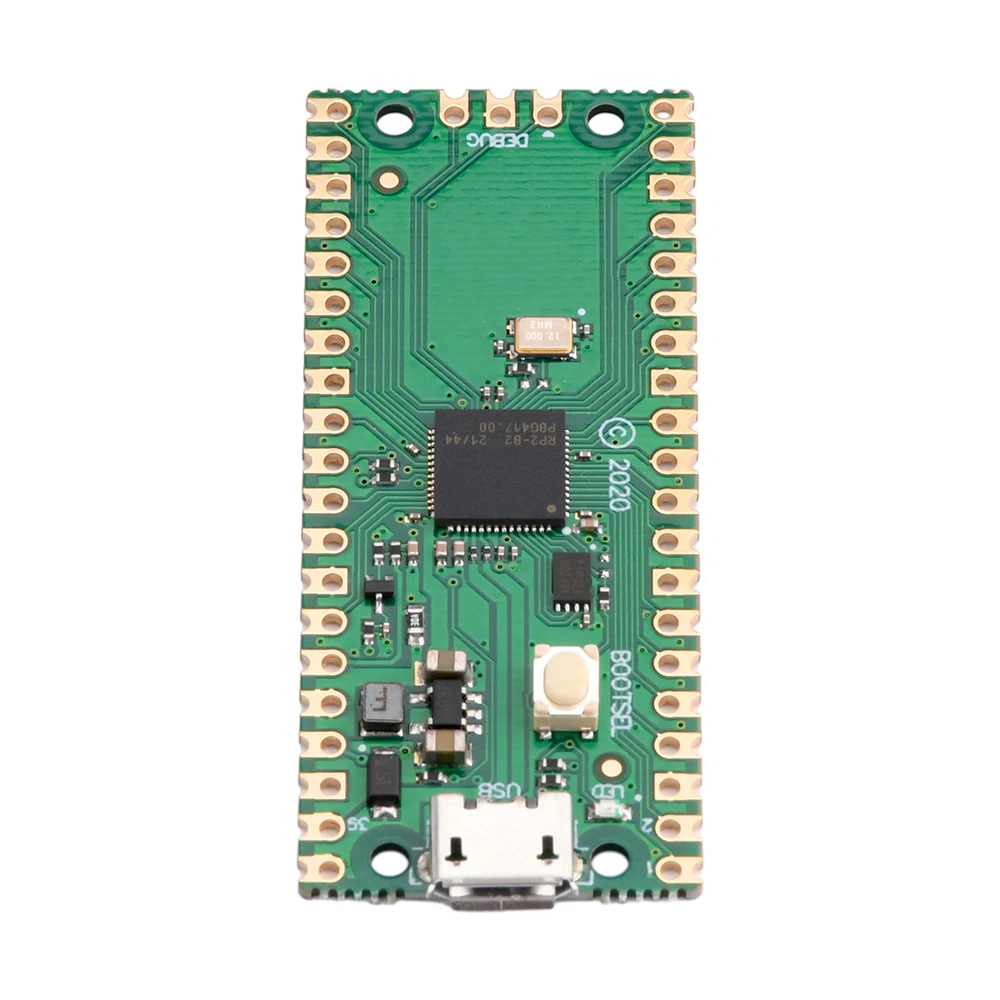

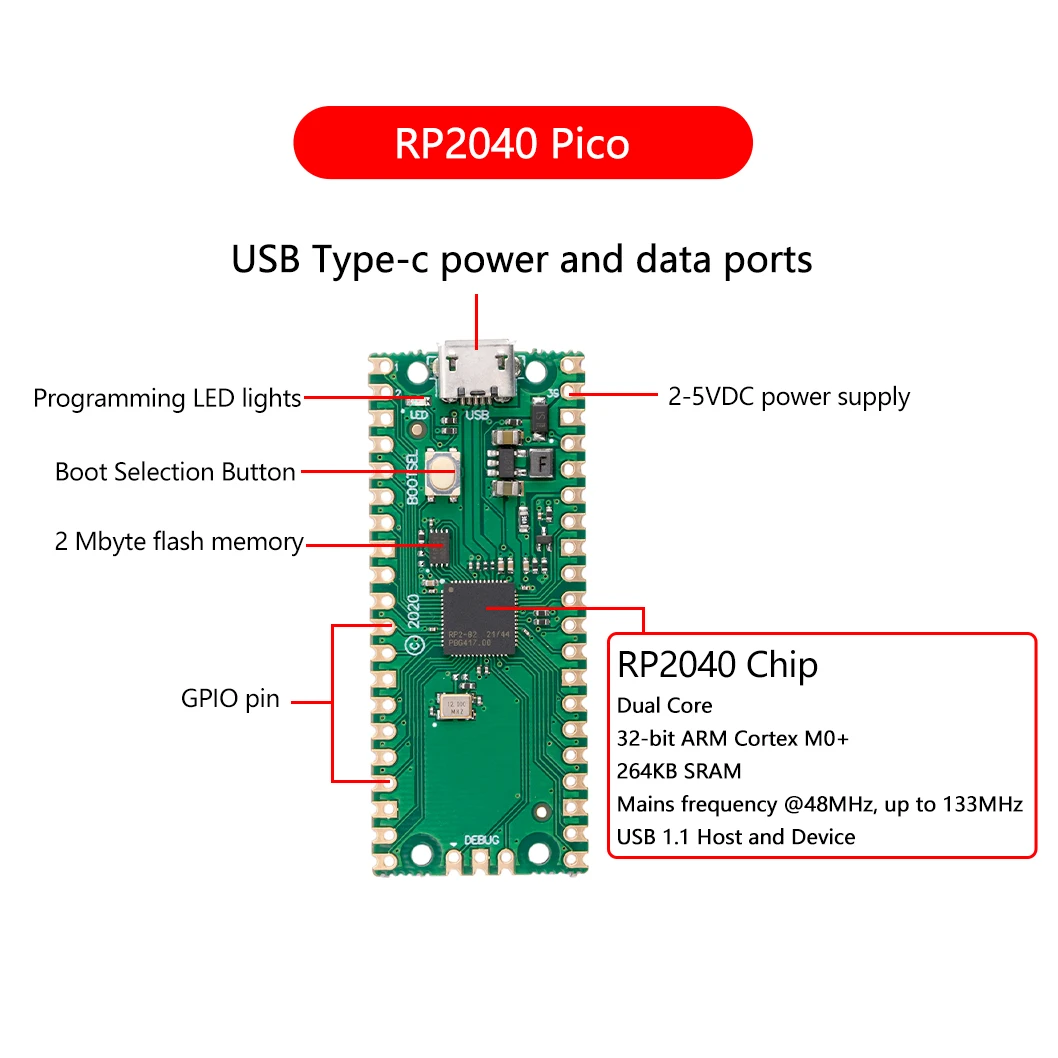

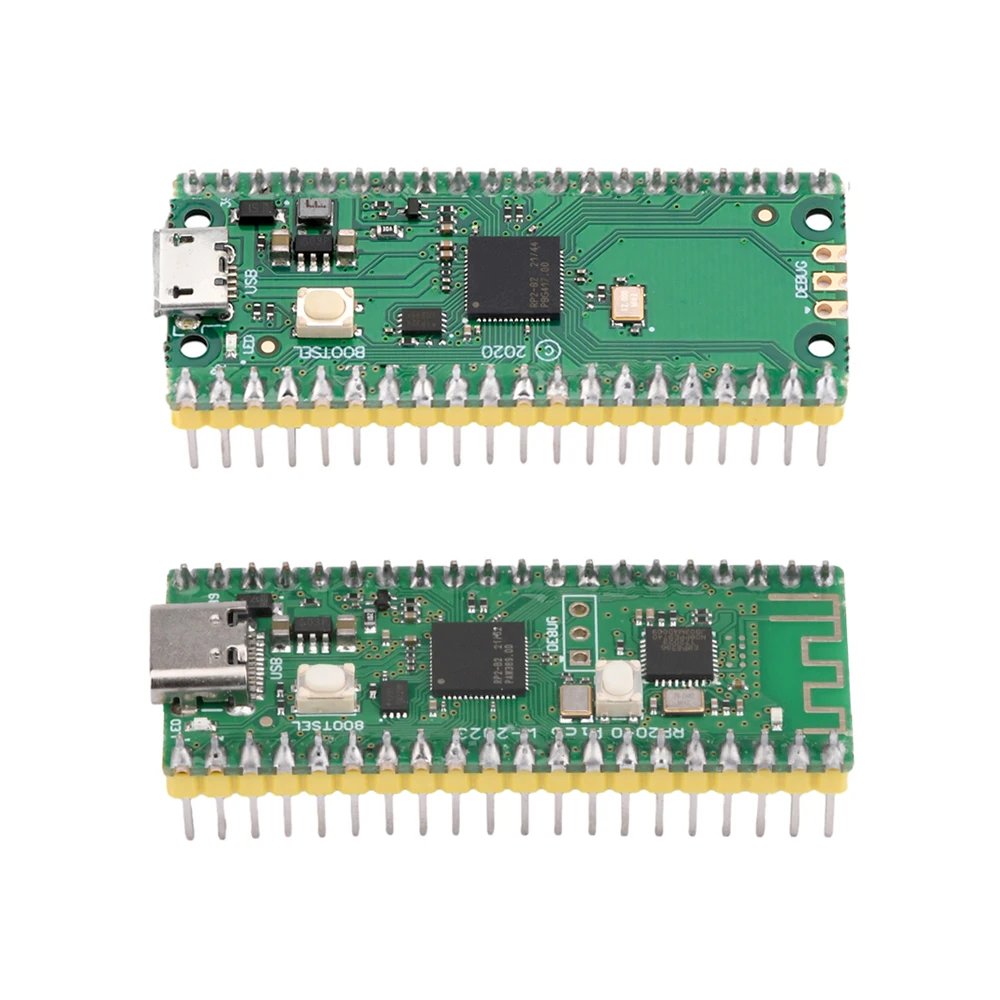

RP2040 Pico:
Interface: USB/Type-C interface

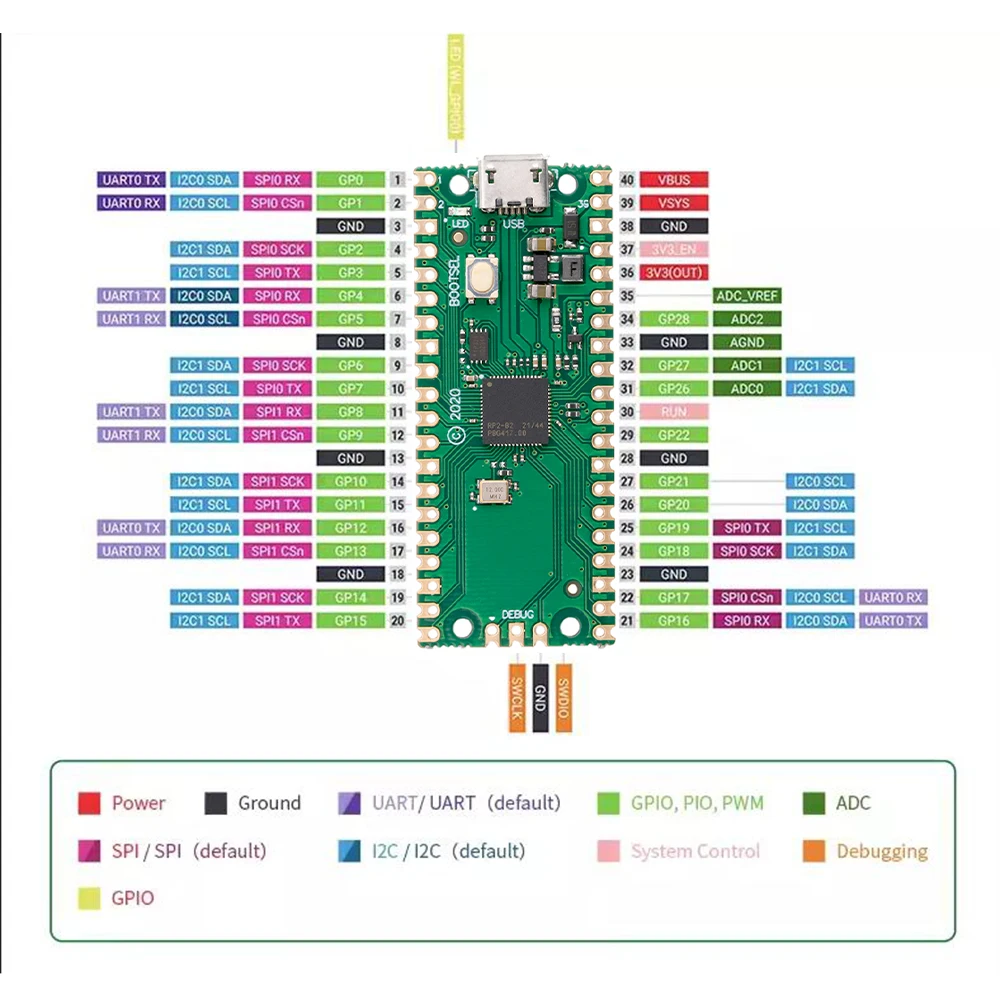

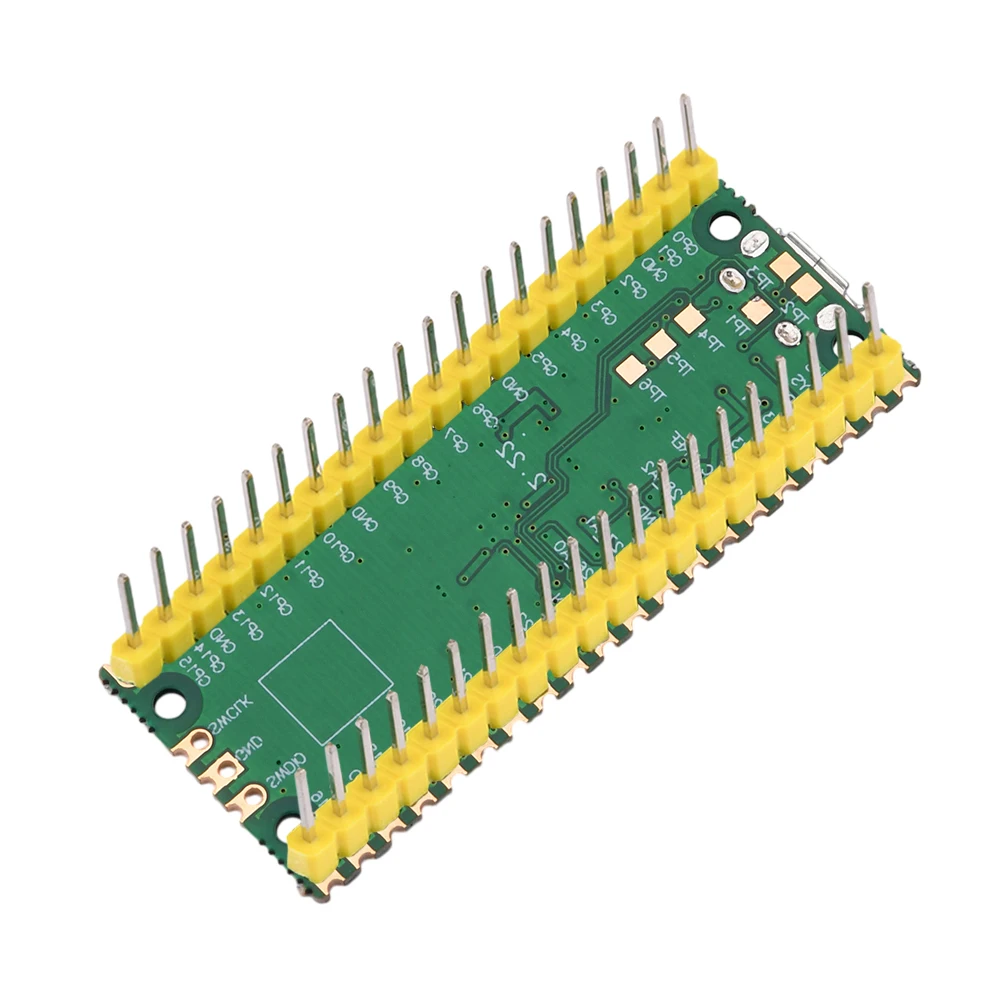

GPIO interface: 40PIN GPIO interface
Chip: Adopting Raspberry RP2040 chip, dual core Cortex MO+main frequency up to 133MHz
The chip is equipped with 264KB SRAM and 2MB onboard flash memory, which can be used for Micro Python program storage;
High Performance Full Intersection Bus Architecture
WiFi: None
USB/Type-C host and device support
DMA controller
30 GPIO pins, of which 4 can be used as analog inputs
2 UARTs, 2 SPI controllers, and 2 2C controllers
8 programmable I/ О (PIO) state machine for customizing peripheral device support
16 PWM channels
USB mass storage boot mode supporting UF2 for drag and drop programming

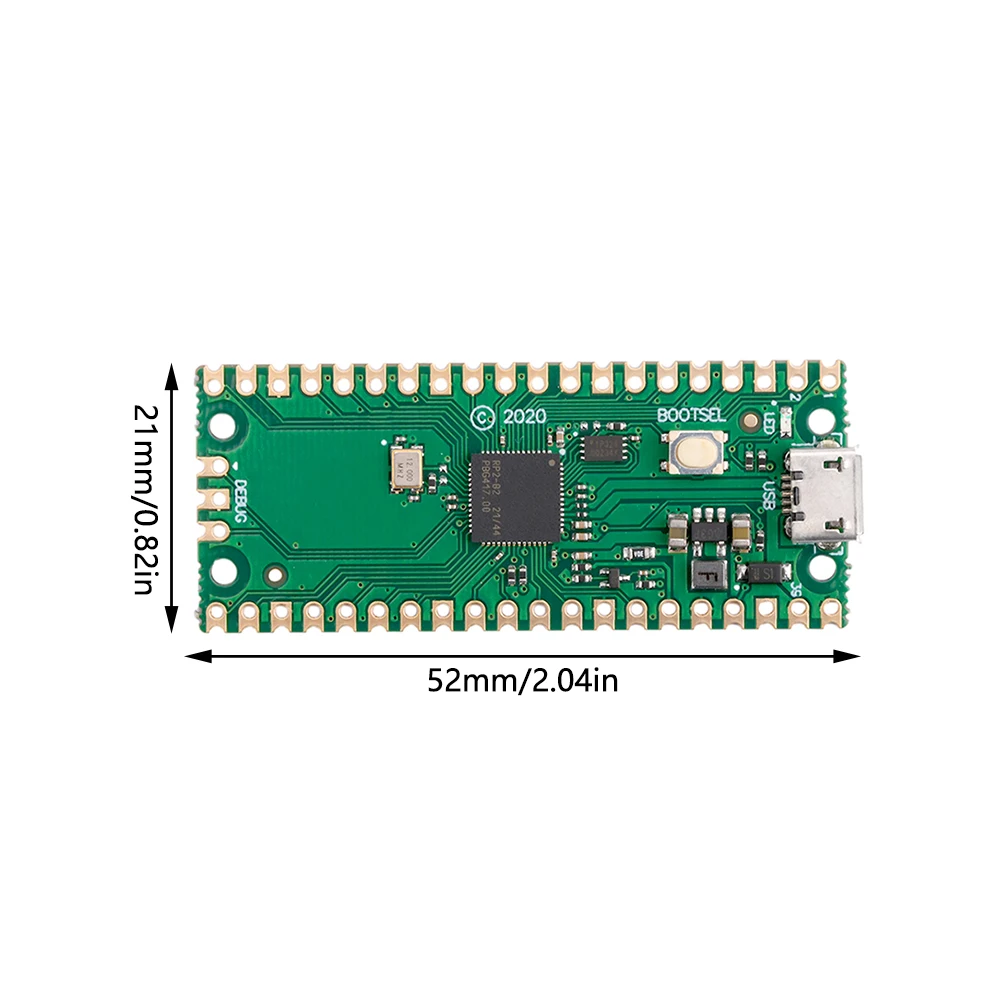

Size: 52 mm x 21 mm
Chip: Adopting RP2040 chip, dual core Cortex MO+main frequency up to 133MHz
Storage: Built-in 264KB SRAM and 2MB onboard flash memory on the chip
Interface: Type-C interface
GPIO interface: 40PIN GPIO interface
The chip is equipped with 264KB SRAM and 2MB onboard flash memory, which can be used for Micro Python program storage;
High Performance Full Intersection Bus Architecture
Type-C host and device support
DMA controller
30 GPIO pins, of which 4 can be used as analog inputs
2 UARTs, 2 SPI controllers, and 2 2C controllers
8 programmable I/ О (PIO) state machine for customizing peripheral device support
16 PWM channels
USB mass storage boot mode supporting UF2 for drag and drop programming

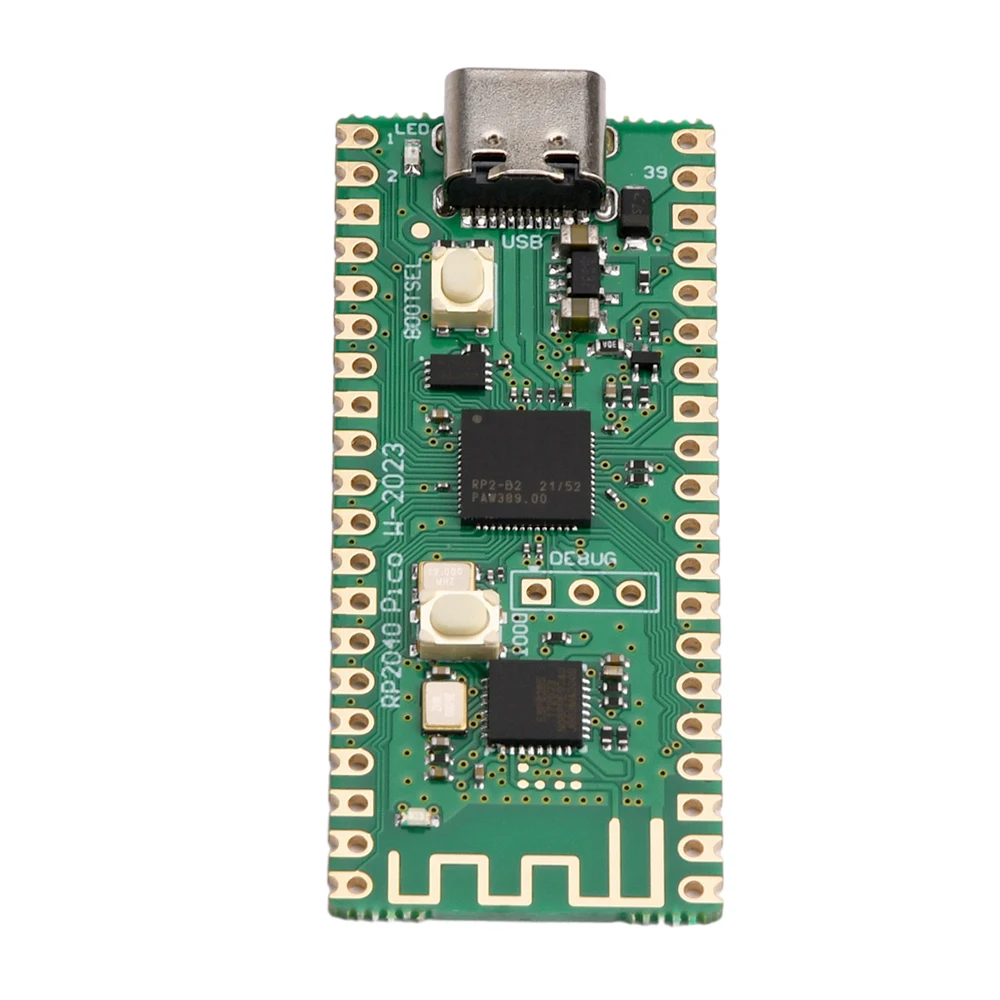

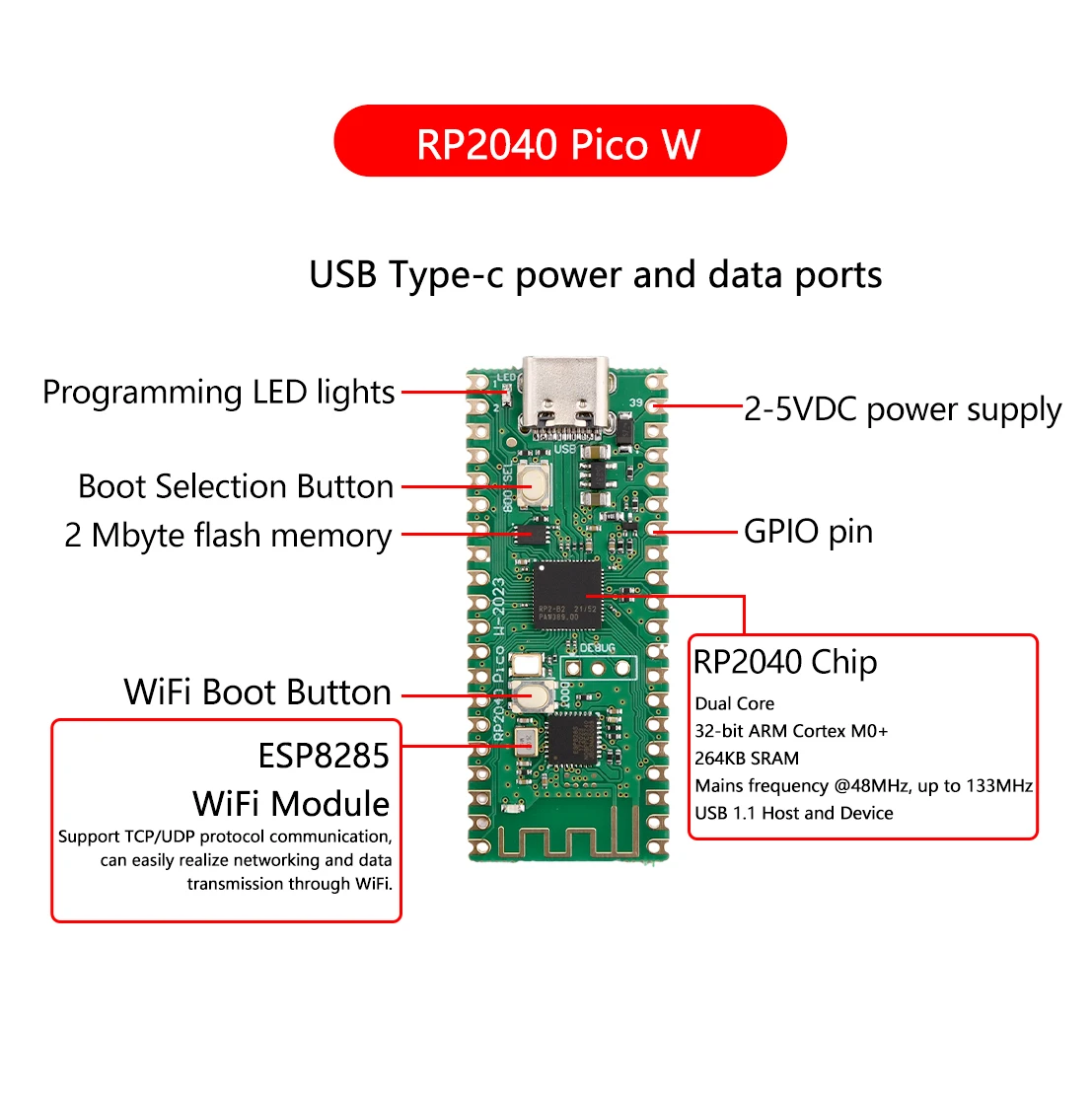

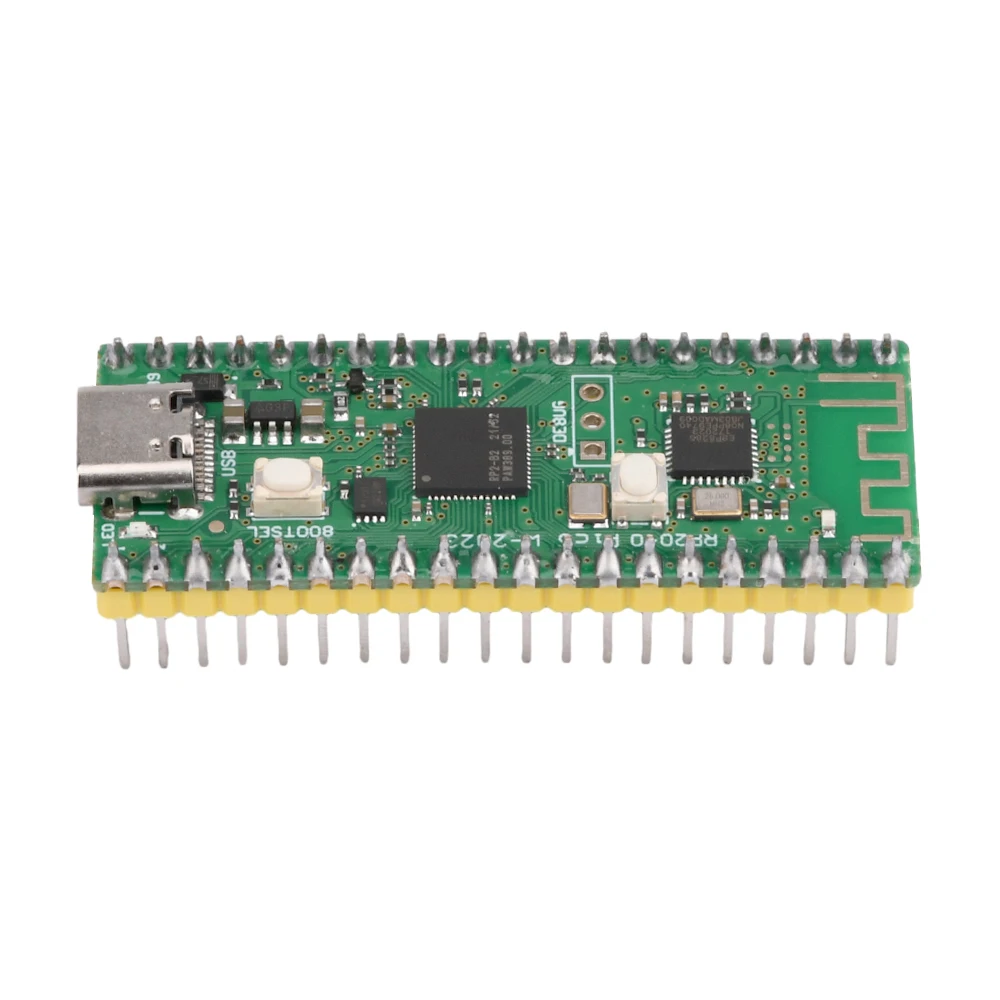

WIFI: On board WiFi
RP2040 Pico W has added a wireless WiFi module on top of RP2040 Pico, supporting TCP/UDP protocol communication, and can easily achieve networking through WiFi, making wireless network control and transmission very convenient
Size: 52 mm x 21 mm
Package include:
1*Development board
