Descripción
The module does not come with reverse connection protection, remember not to connect the wrong input positive or negative.
Input voltage range 2.8 ~ 4.5V, not 5V input.
Lithium batteries must be added to the protection board, the protection board continuous current of at least 5A or more.
This module can be single lithium battery power supply, multiple parallel power supply is also possible.
Product Description:

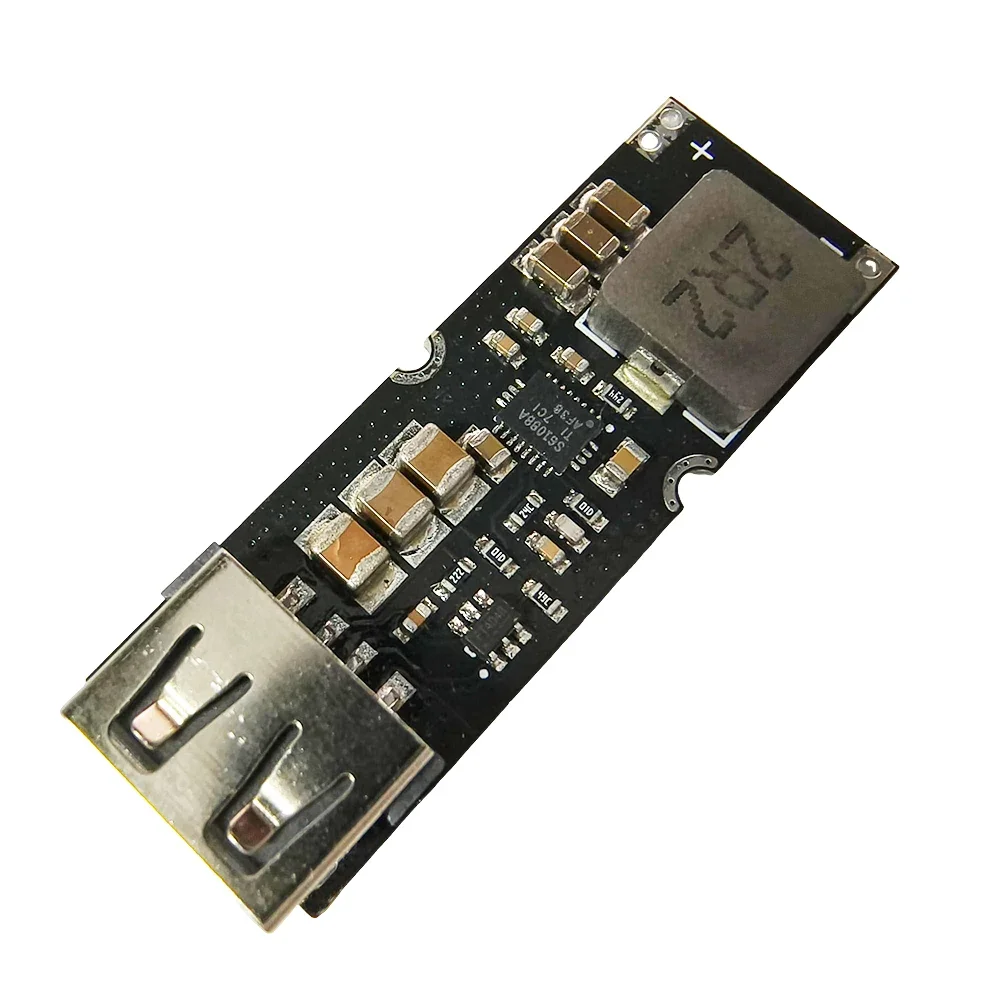

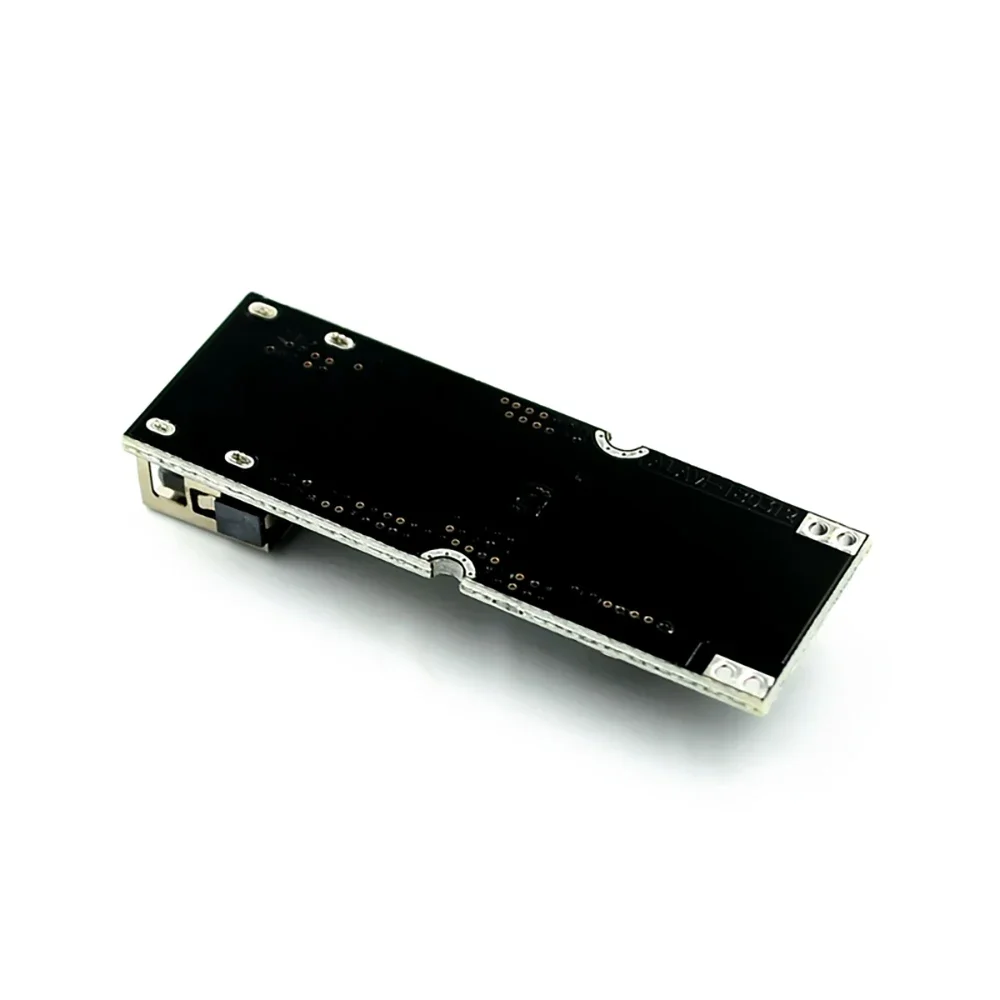

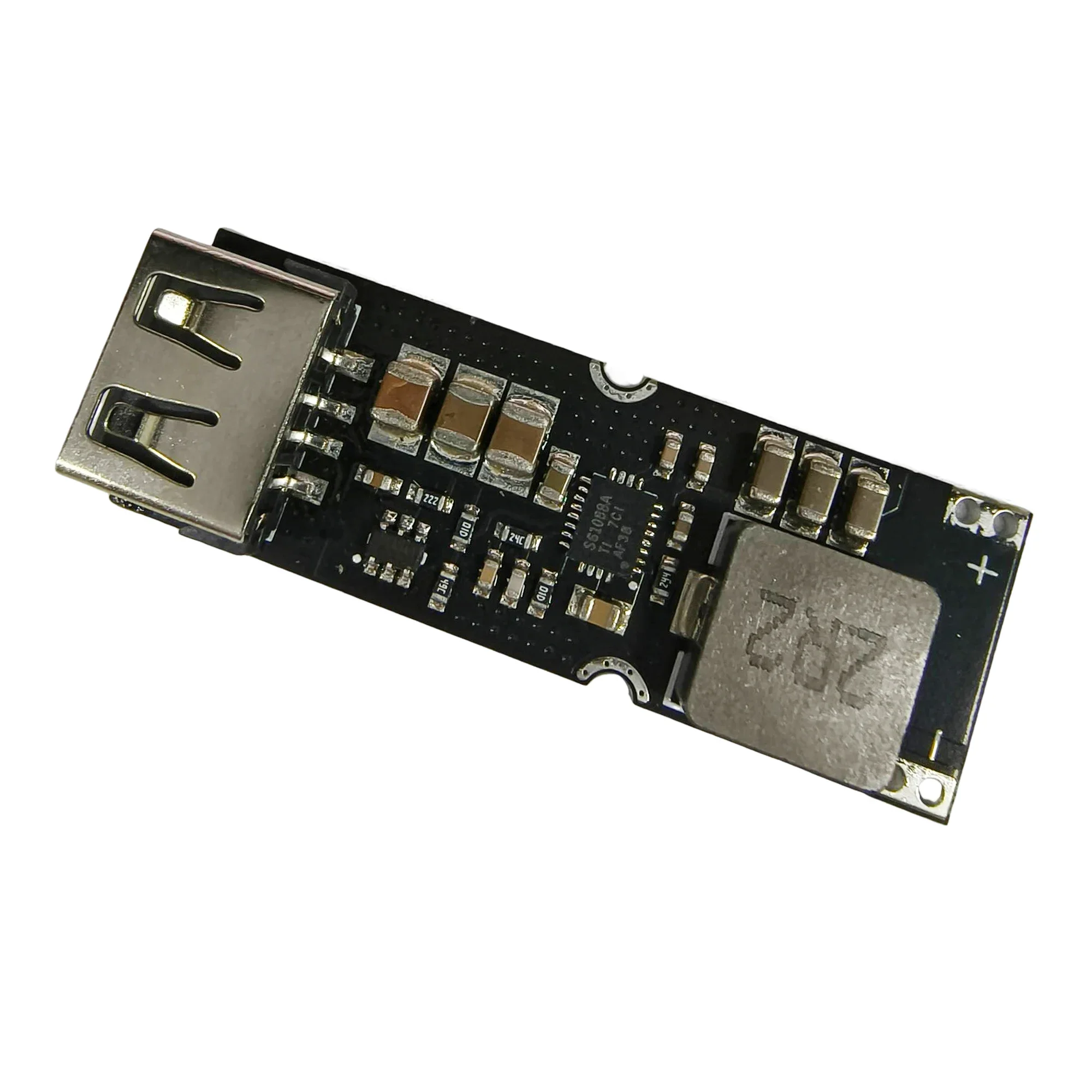

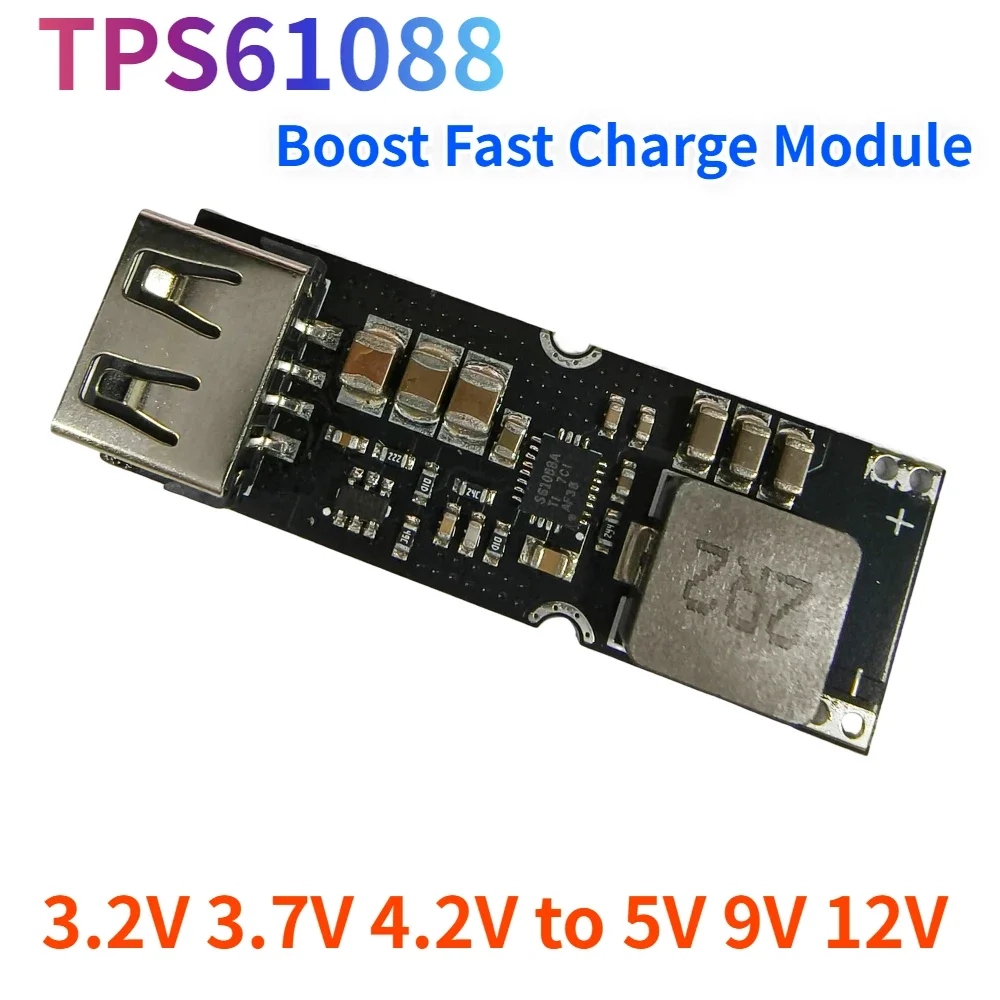

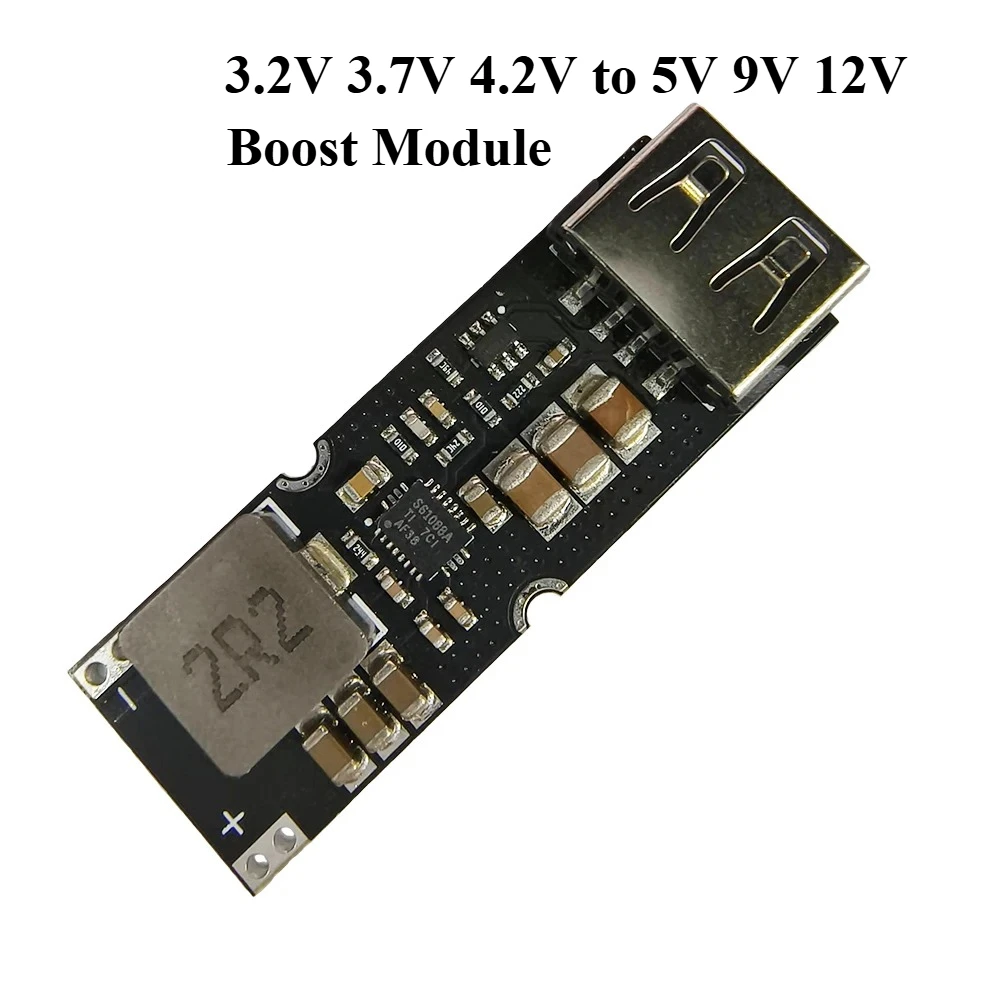

Name: single lithium battery boost fast charging power module
Main control chip: TPS61088A
Identification chip: FP6601Q
Input voltage: 2.8~4.5V, ideal for 3.7V lithium polymer batteries
Output voltage: 5V by default, between 4.5V～12V according to the protocol after fast charging is triggered.
Input rated current: 8A
Output current: 5V3A, 9V2A, 12V2A. output current is adaptive.
Output power: 24W.
Support protocols: QC2.0, QC3.0, Huawei FCP, DCP protocols
Efficiency up to 93%, 90% typical.
Input wiring method: solder wire, use thick wire as much as possible
Module size: 47.5(L)*16.5(W)*8(H)mm (including USB)
Module net weight: about 7 grams
Supplementary chip-related information:
The TYC FP6601Q chip integrates the Hesse fast charging protocol and Qualcomm QC2.0/3.0 USB interface fast charging protocol, which can provide fast charging for devices that support the FCP and QC2.0/3.0 protocols. In addition to supporting the USB BC1.2 standard, it also supports Apple and Samsung devices. The chip can automatically detect whether the currently connected device is a QC2.0/3.0 or FCP device, so as to automatically adjust the voltage.
Product features: 1, support FCP voltage and current output protocol. 2, Support Qualcomm QC2.0/3.0 classA 5V, 9V, 12V voltage output. 3, Automatic recognition of FCP and QC2.0/3.0 fast charging protocol. 4、Support China Telecom Enterprise YD/T 1591 protocol devices.
The TPS61088 is a high power density, fully-integrated boost converter with an 11mΩ power switch and a 13mΩ rectifier switch, providing a highly efficient, small footprint solution for portable systems. With a wide input voltage range of 2.7V to 12V, the TPS61088 supports applications utilizing single or two-cell lithium batteries. The device has a 10A switching current capability and is capable of delivering output voltages up to 12.6V.
The TPS61088 utilizes an adaptive constant off-time peak current control topology to regulate the output voltage. The TPS61088 operates in PWM mode under moderate to heavy load conditions. Under light load conditions, the device can select one of two operating modes via the MODE pin. One is the PFM mode to improve efficiency; the other is the forced PWM mode to avoid application problems caused by low switching frequency. The switching frequency in PWM mode can be adjusted from 200kHz to 2.2MHz by an external resistor. The TPS61088 also implements a programmable soft-start function and an adjustable peak switching current limit. In addition, the device provides 13.2V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection.
The TPS61088 is available in a 20-pin 4.50mm × 3.50mm VQFN package.
Product Application Description:
Input voltage range 2.8 ~ 4.5V, not 5V input.
Lithium batteries must be added to the protection board, the protection board continuous current of at least 5A or more.
This module can be single lithium battery power supply, multiple parallel power supply is also possible.
Product Description:
Name: single lithium battery boost fast charging power module
Main control chip: TPS61088A
Identification chip: FP6601Q
Input voltage: 2.8~4.5V, ideal for 3.7V lithium polymer batteries
Output voltage: 5V by default, between 4.5V～12V according to the protocol after fast charging is triggered.
Input rated current: 8A
Output current: 5V3A, 9V2A, 12V2A. output current is adaptive.
Output power: 24W.
Support protocols: QC2.0, QC3.0, Huawei FCP, DCP protocols
Efficiency up to 93%, 90% typical.
Input wiring method: solder wire, use thick wire as much as possible
Module size: 47.5(L)*16.5(W)*8(H)mm (including USB)
Module net weight: about 7 grams
Supplementary chip-related information:
The TYC FP6601Q chip integrates the Hesse fast charging protocol and Qualcomm QC2.0/3.0 USB interface fast charging protocol, which can provide fast charging for devices that support the FCP and QC2.0/3.0 protocols. In addition to supporting the USB BC1.2 standard, it also supports Apple and Samsung devices. The chip can automatically detect whether the currently connected device is a QC2.0/3.0 or FCP device, so as to automatically adjust the voltage.
Product features: 1, support FCP voltage and current output protocol. 2, Support Qualcomm QC2.0/3.0 classA 5V, 9V, 12V voltage output. 3, Automatic recognition of FCP and QC2.0/3.0 fast charging protocol. 4、Support China Telecom Enterprise YD/T 1591 protocol devices.
The TPS61088 is a high power density, fully-integrated boost converter with an 11mΩ power switch and a 13mΩ rectifier switch, providing a highly efficient, small footprint solution for portable systems. With a wide input voltage range of 2.7V to 12V, the TPS61088 supports applications utilizing single or two-cell lithium batteries. The device has a 10A switching current capability and is capable of delivering output voltages up to 12.6V.
The TPS61088 utilizes an adaptive constant off-time peak current control topology to regulate the output voltage. The TPS61088 operates in PWM mode under moderate to heavy load conditions. Under light load conditions, the device can select one of two operating modes via the MODE pin. One is the PFM mode to improve efficiency; the other is the forced PWM mode to avoid application problems caused by low switching frequency. The switching frequency in PWM mode can be adjusted from 200kHz to 2.2MHz by an external resistor. The TPS61088 also implements a programmable soft-start function and an adjustable peak switching current limit. In addition, the device provides 13.2V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection.
The TPS61088 is available in a 20-pin 4.50mm × 3.50mm VQFN package.
