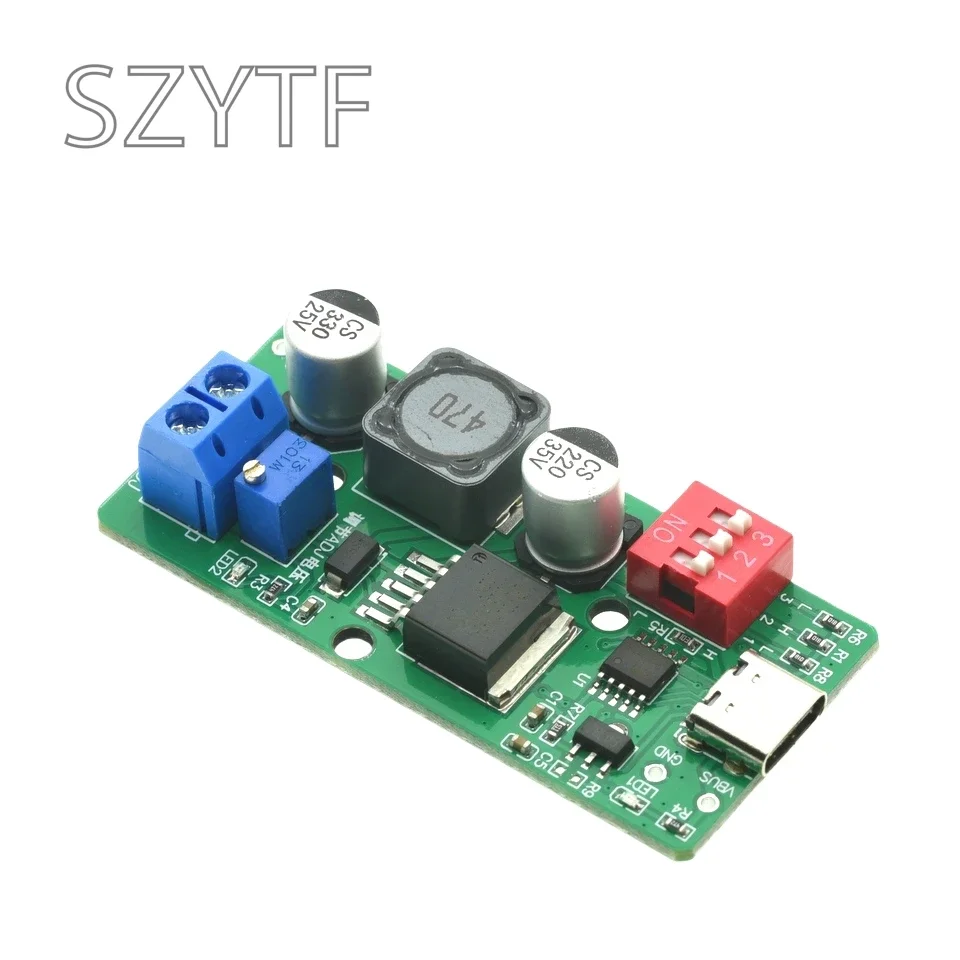

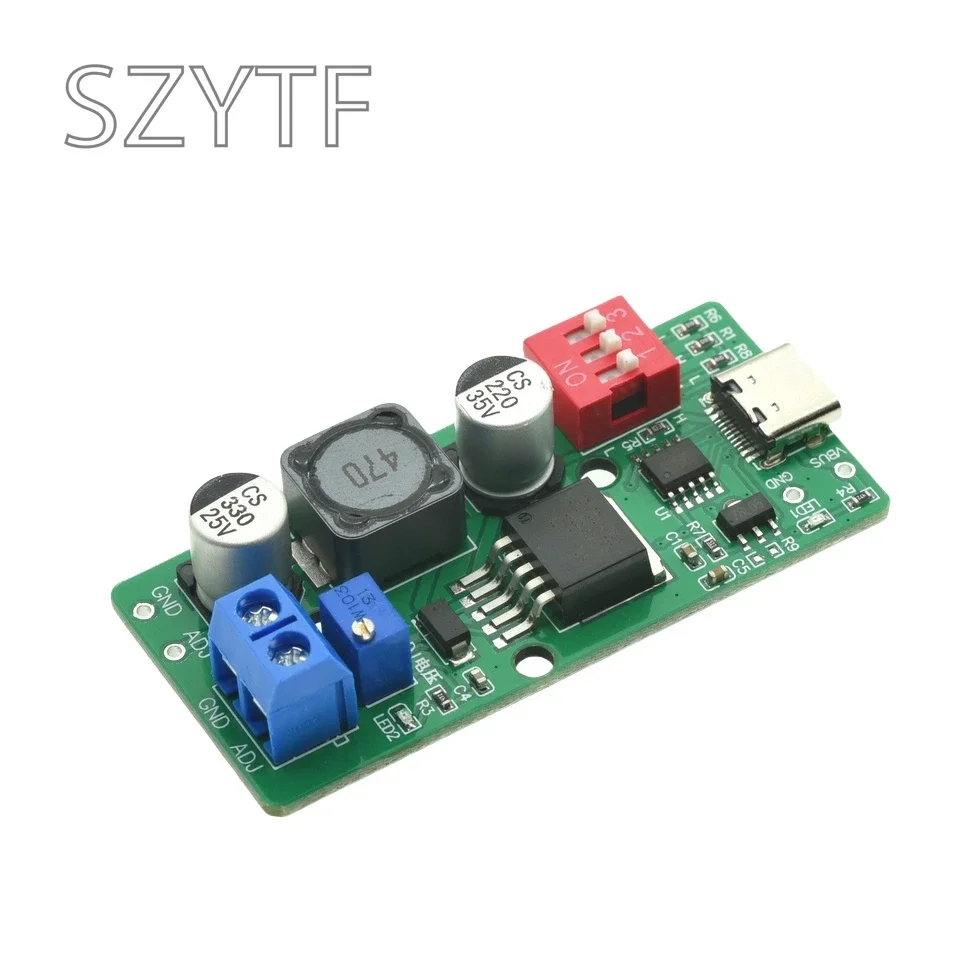

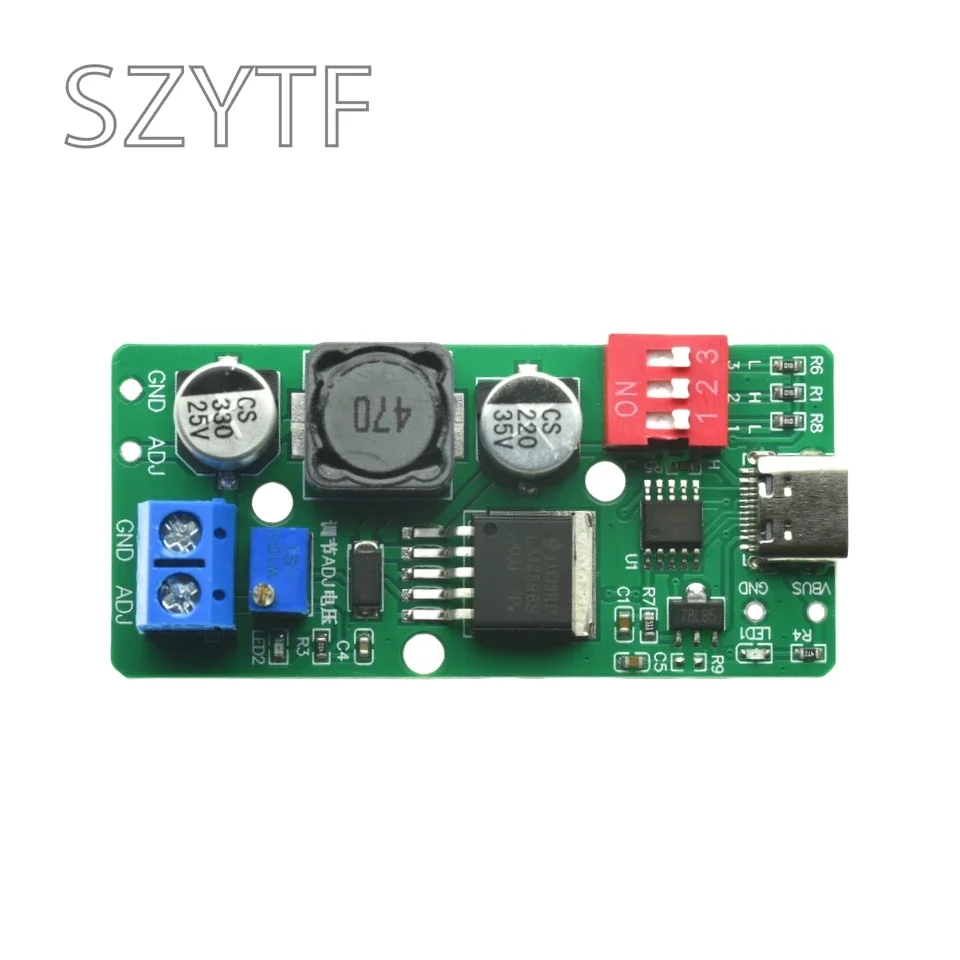

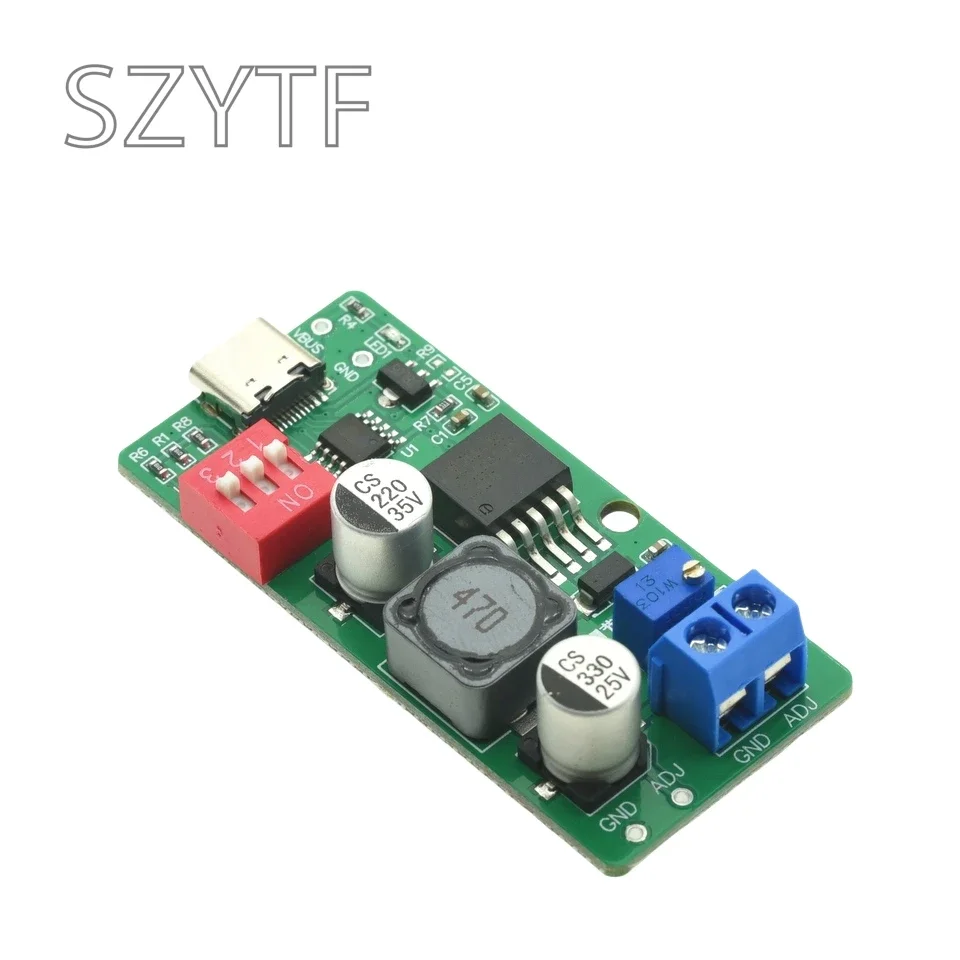

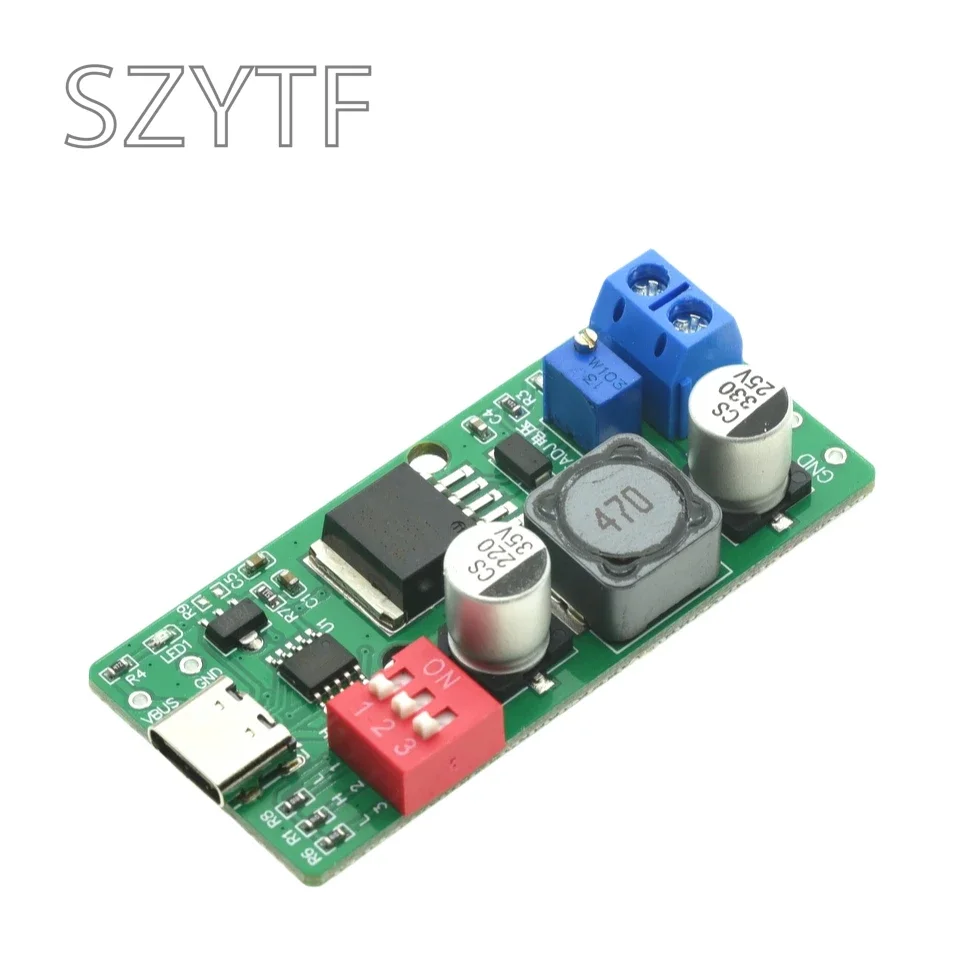

This PD decoy is a powerful power controller designed specifically for testing and developing the uSB PD protocol. It supports voltage VBUS output or ADJ adjustable voltage output of 1.8-18v, with a continuous current output of 1.5A. With good heat dissipation, the continuous current can reach 2A, and this deceiver has the characteristic of output voltage with terminal wiring, which is convenient for practical applications. Compared with traditional PD lures, this lurer has strong parameter adjustability and can be more flexibly controlled and managed in practical applications. In addition, the decoy is made of high-quality materials and components, ensuring its excellent performance and stability. After strict quality testing, its function and output are stable. For testing and developers who require uSB PD, this PD decoy is a very practical, high-performance, and easy-to-use device. In short, this PD decoy is a power controller with high precision, reliability, and stability, which can be widely used in the testing and development of USB PD protocol and other fields. It is an excellent power controller and testing equipment.
1.2 Support Protocol:
The CH224K single chip integrates multiple fast charging protocols such as USB and PD, supports boost fast charging protocols such as PD3.0/2.0, automatically detects VCONN and analog E-Mark chips, supports up to 100W power, has a built-in PD communication module, high integration, and streamlined peripherals.
1.3 Function of this product:
For example, luring the voltage of fast charging, power banks/chargers out and using them as DC power sources. Let the fast charging power bank output 9V/12V, adjust the required voltage through a potentiometer, and supply power to monitoring, routers, optical cats, fans, etc.
Note: The module can only be adjusted by voltage reduction. For example, if your fast charging power supply comes out with 12V, the maximum adjustable ADJ output voltage is 10V.
