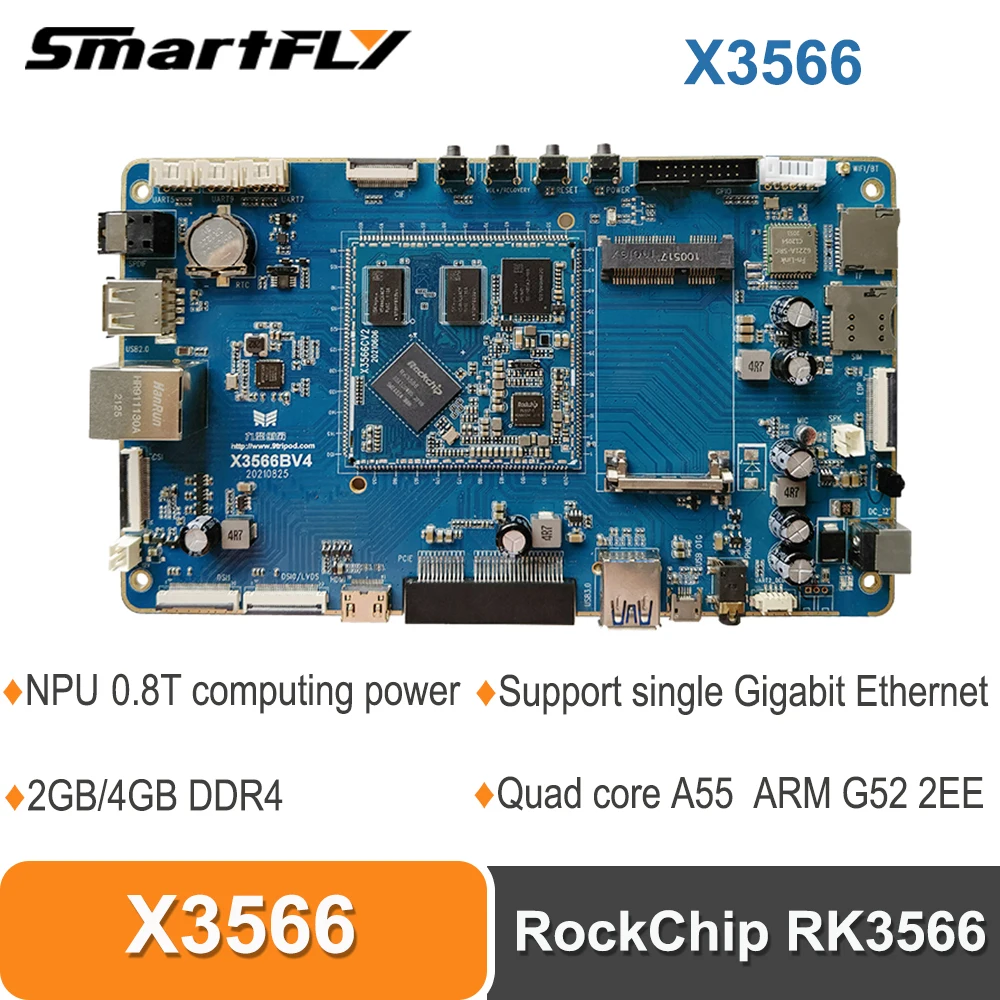

Placa de desarrollo Smartfly X3566 Rockchip RK3566 Quad-Core 64 bits A55 NPU 16GB eMMC 2GB/4GB DDR4 compatible con Android/Linux

Note：Please note the type what you want:

Bundle 1： 2G + 16G

Bundle 2： 4G + 16G

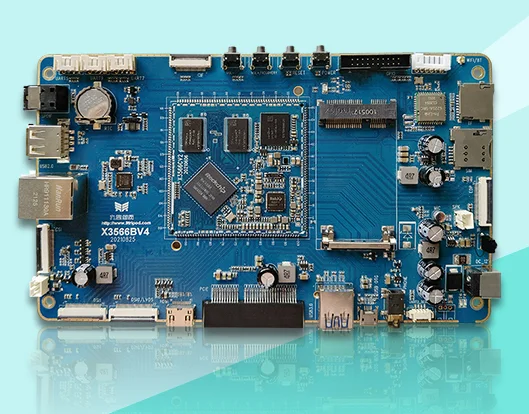

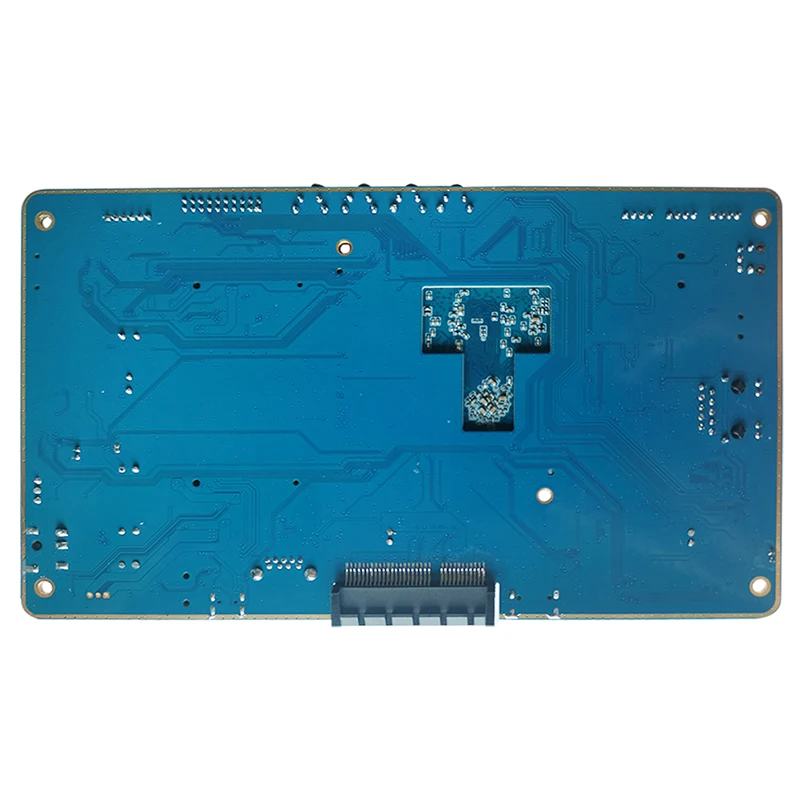

New Arrival/X3566 development board

Features

• Backlight stepless adjustment

• Support capacitive touch

• Onboard dual-band WIFI module

• Support RTC clock real-time saving

• Support Gigabit wired Ethernet YT8521

• Support MIPI camera interface

• Support standard PCIE bus interface

• Support USB mouse and keyboard

• The smallest size, only 55mm*55mm

• Lead up to 200PIN pins, including almost all the pins of the CPU

• Use RK817 PMU to ensure stable and reliable work

• Use dual-channel DDR4 design, support 1GB/2GB/4GB capacity

• Support Android/Linux operating system

• Supports Gigabit wired Ethernet

• The product is stable and reliable, after a large number of high and low temperature, repeated restart and other reliability experiments

The difference between RK3566 and RK3568 and RK3288

RK3566

RK3568

RK3288W

main frequency

1.8G

2G

1.6G

Architecture

Quad core A55

Quad core A55

Quad core A17

GPU

ARM G52 2EE

ARM G52 2EE

Mali-T764

craft

22nm

22nm

28nm

Memory

NPU

0.8T computing power

0.8T computing power

none

show

Support multi-screen simultaneous display

Support multi-screen same display and different display

Support multi-screen same display and different display

ink screen

Support TCON

Support TCON

not support

ISP

Support 8M

Support 8M , support HDR

Support 13M

USB interface

Support USB2.0/USB3.0

Support USB2.0/USB3.0

Support USB2.0

Ethernet

Support single Gigabit Ethernet

Support dual Gigabit Ethernet

Support single Gigabit Ethernet

HOURS

Support 2-way SATA

Support 3-way SATA

not support

PCIE

Support PCIE2.0

Support PCIE2.1/PCIE3.0

not support

The difference between RK3566 and PX30 and T507

RK3566

PX30

T507

main frequency

1.8G

1.3G

1.5G

Architecture

Quad core A55

Quad core A35

Quad core A53

GPU

ARM G52 2EE

Mali-G31 MP2

G31 MP2

craft

22nm

28nm

28nm

Memory

NPU

0.8T computing power

none

none

show

Support multi-screen simultaneous display

Support multi-screen same display and different display

Support multi-screen same display and different display

ink screen

Support TCON

not support

not support

ISP

Support 8M

Support 8M

Support 13M

USB interface

Support USB2.0/USB3.0

Support USB2.0

Support USB2.0

Ethernet

Support single Gigabit Ethernet

Support single channel Fast Ethernet

Supports both single-channel Gigabit Ethernet and single-channel Fast Ethernet

HOURS

Support 2-way SATA

not support

not support

PCIE

Support PCIE2.0

not support

not support

Chip price

$8

$7

$8

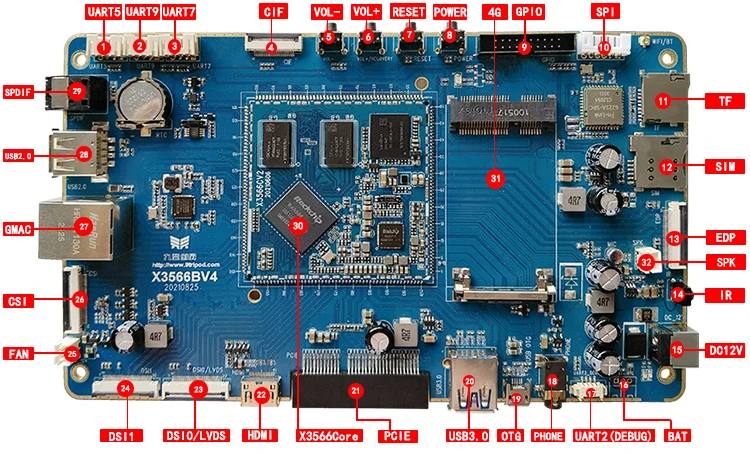

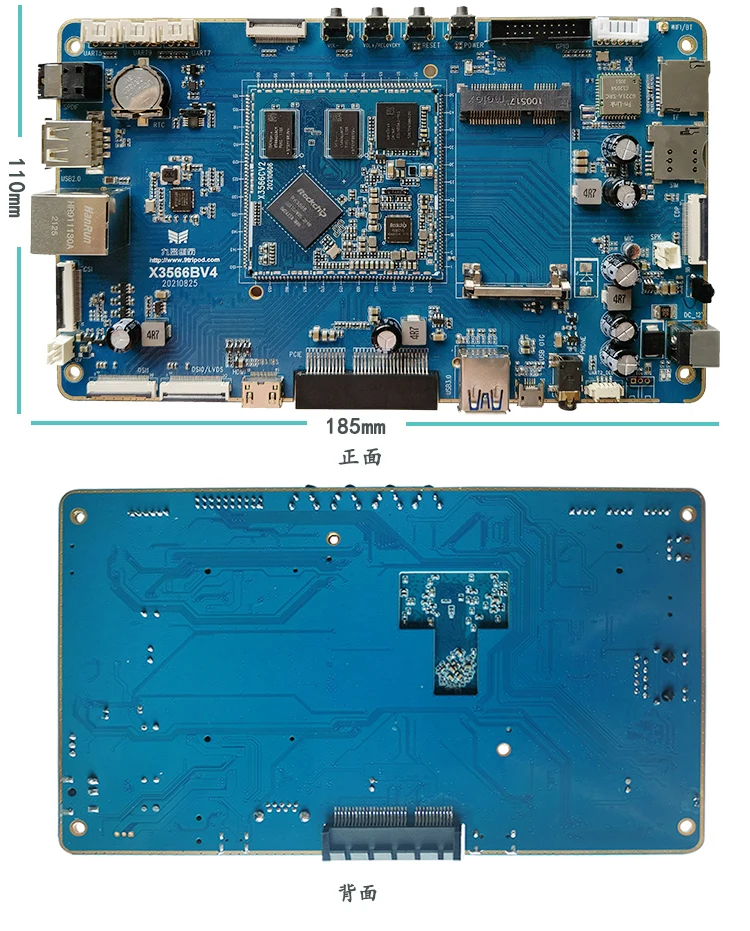

Introduction to hardware interface

label

name

illustrate

【1】

UART5

UART5, TTL level interface

【2】

UART9

UART9, TTL level interface

【3】

UART7

UART7, TTL level interface

【4】

CIF

Parallel camera interface

【5】

Independent keys

volume down

【6】

Independent keys

Volume Plus, used as Recovery key when upgrading

【7】

Independent keys

RESET

【8】

Independent keys

PWRKEY

【9】

GPIO

GPIO expansion interface

【10】

SPI

6PIN SPI PH socket

【11】

TF card

TF card holder

【12】

SIM card

4G module SIM card interface

【13】

display interface

EDP interface

【14】

Infrared receiver

HS0038 Infrared integrated receiver

【15】

DC socket

12V DC power input interface

【16】

ONE

3.7V single-cell lithium battery power supply interface

【17】

UART2

UART2, TTL level interface, default is debug serial port

【18】

headphone holder

headphone output

【19】

OTG

OTG download interface

【20】

USB3.0

USB HOST3.0 interface

【twenty one】

PCIE interface

PCIE bus interface, can be used for PCIE interface device expansion, such as WIFI6, SATA, serial port, Ethernet, etc.

【twenty two】

HDMI

HDMI output interface

【twenty three】

display interface

DSI0 or LVDS interface

【twenty four】

display interface

DSI1 interface

【25】

FAN

Radiator fan power connector

【26】

MIPI CSI

MIPI camera interface

【27】

GMAC

Gigabit Ethernet interface

【28】

HOST2.0

USB HOST2.0 interface

【29】

SPDIF

Optical output interface

【30】

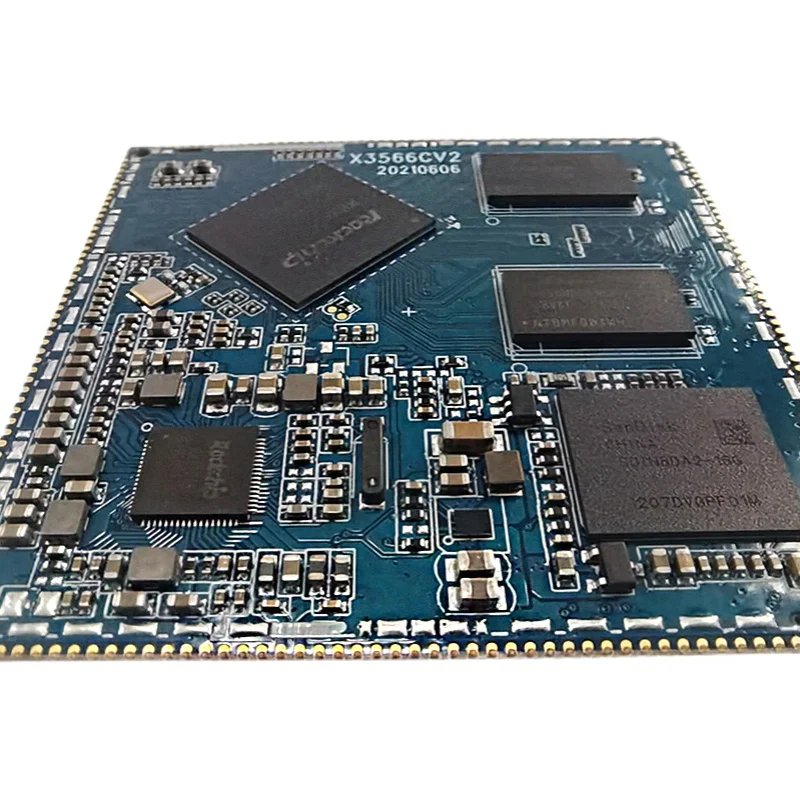

RK3566 core module

X3566 core board

【31】

4G wireless

Connect 4G wireless module

【32】

Speaker interface

External two-channel speakers

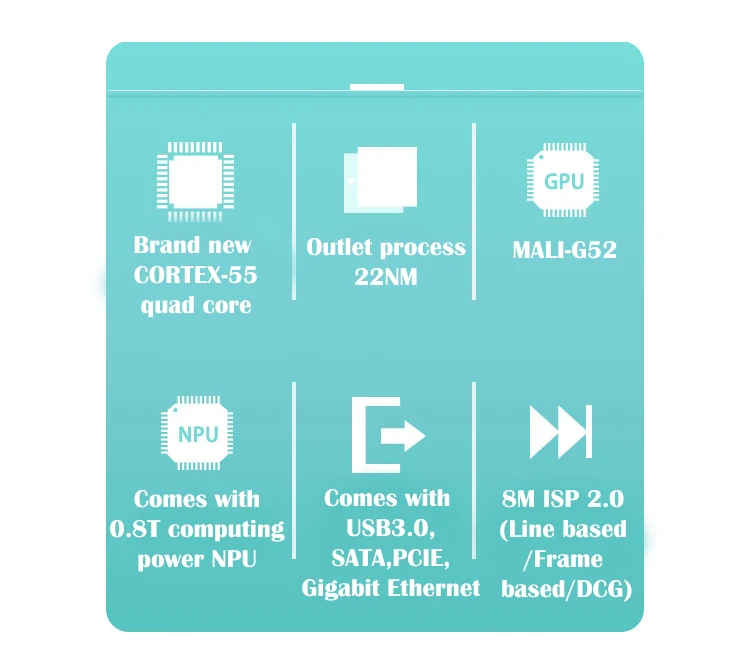

3566 chip advantage

System Configuration

CPU

RK3566

main frequency

Quad-core A55 (1.8GHz)

Memory

Standard 2GB, hardware compatible 4GB

memory

4GB/8GB/16GB emmc optional, standard 16GB

Power IC

Use RK817, support adapter, battery power supply

interface parameters

LCD interface

Support DSI/LVDS/EDP/HDMI interface output

Touch interface

capacitive touch

audio port

Support direct output of headphone speakers, support for recording and playback

SD card interface

2 SDIO output channels

emmc interface

On-board emmc interface, the pins are not led out separately

Ethernet interface

Support 1 channel Gigabit Ethernet

USB HOST2.0 interface

2-way HOST2.0

USB HOST3.0 interface

1 channel HOST3.0

OTG interface

1 OTG interface

UART interface

10 serial ports, support serial ports with flow control

PWM interface

16 PWM outputs

IIC interface

6-way IIC output

SPI interface

4 SPI outputs

ADC interface

2-channel ADC output (6 channels are not led out)

Camera interface

CSI/BT601/BT656/BT1120/RAW input

Electrical Characteristics

VBUS input voltage

5V/2A

VBAT input voltage

3.5 to 4.2V, 3.7V typical

The output voltage

VCC5V_MIDU output 5V, can supply power to the backplane

Operating temperature

-10~70 degrees

Storage temperature

-10~40 degrees

Structural parameters

Exterior

Stamp hole method

Core board size

55mm*55mm*3mm

pin spacing

1.0mm

Pin pad size

1.3mm*0.5mm

Number of pins

200PIN

ply

8 floors

Warpage

not more than 0.5%

X3566 development board driver support list

driver\system

linux4.19 + android11

linux4.19 + QT

7 inch MIPI screen (1024*600)

●

●

Backlight driver

●

●

PMIC driver (RK817)

●

●

capacitive touch

●

●

EMMC driver

●

●

SD card driver

●

●

Independent keys

●

●

ADC driver

●

●

switch machine

●

●

wake up from sleep

●

●

Two-way USB HOST2.0 driver

●

●

One USB HOST3.0 driver

●

●

One OTG driver

●

●

PCIE bus driver

●

●

fiber optic drive

●

●

RTC driver

●

●

audio

●

●

recording

●

●

Dual-band WIFI/BT4.0

●

●

GPS

●

●

CSI camera driver

●

●

USB port camera driver

●

●

serial port

●

●

HDMI2.0

●

●

Gigabit Ethernet

●

●

USB mouse and keyboard

●

●

uboot

●

●

development information

usermanual/operation manual

tools/testtools

source/source code

image/test image

Android/Linux+qt/Ubuntu/Debian test image

hardware/hardware information

x3566 cv2/x3566 core board schematic

x3566 bv4/x3566 backplane schematic and PCB diagram

x3566 LCD / x3566 LCD Control Board Schematic

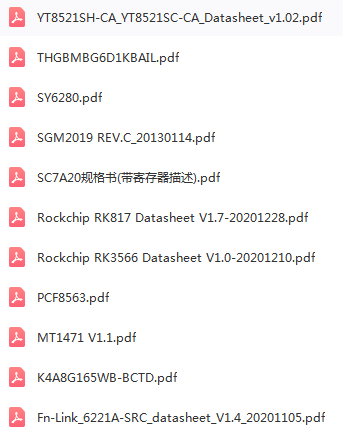

datasheet/chip manual

[Tech-support]

Wiki: https://youyeetoo.com/blog/

Forum: bbs.youyeetoo.com

ExpertSupport: [email protected]
