Descripción
motherboard chip
Integrated Chip Graphics Card/Sound Card/Network Card
Main chipset AMD X370
Chipset Description AMD X370 Chipset
Display chip Integrated AMD Radeon HD R series display chip
Audio chip Integrated Realtek ALC1220 8-channel audio chip
Network card chip Onboard Intel I211AT Gigabit network card
Processor Specifications
CPU Type AMD Ryzen/7th Generation A-Series/Athlon II/Athlon
CPU socket Socket AM4
CPU Description Support AM4 socket A series APU and Ryzen processor (Summit Ridge), digital power supply, support 95W water cooling
memory specification
Memory type 2×DDR4 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR4 3466+(OC)/3200(OC)/2933(OC)/2667/2400/2133MHz memory
storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot
Storage interface 1×M.2 interface, 4×SATA III interface

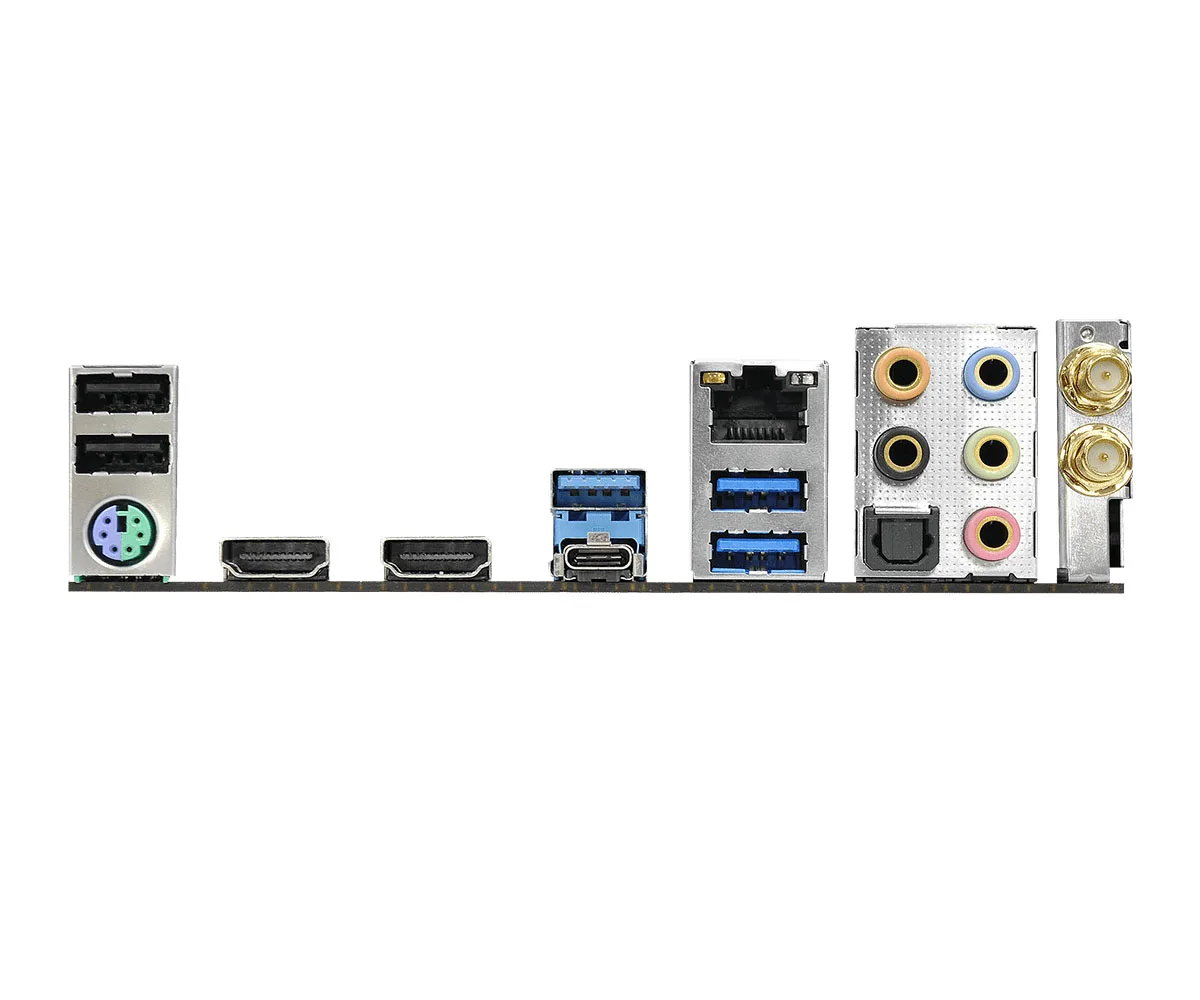

I/O interface
USB interface 1×USB3.1 Type-A interface, 1×USB3.1 Type-C interface, 4×USB3.1 Gen1 interface, 4×USB2.0 interface
Video interface 2×HDMI interface
Power interface One 8-pin, one 24-pin power interface
Other interfaces 1×RJ45 network interface, 1×optical fiber interface, 1×audio interface, 1×PS/2 keyboard and mouse universal interface
plate type
Motherboard board type Mini-ITX board type
Dimensions 17×17cm
