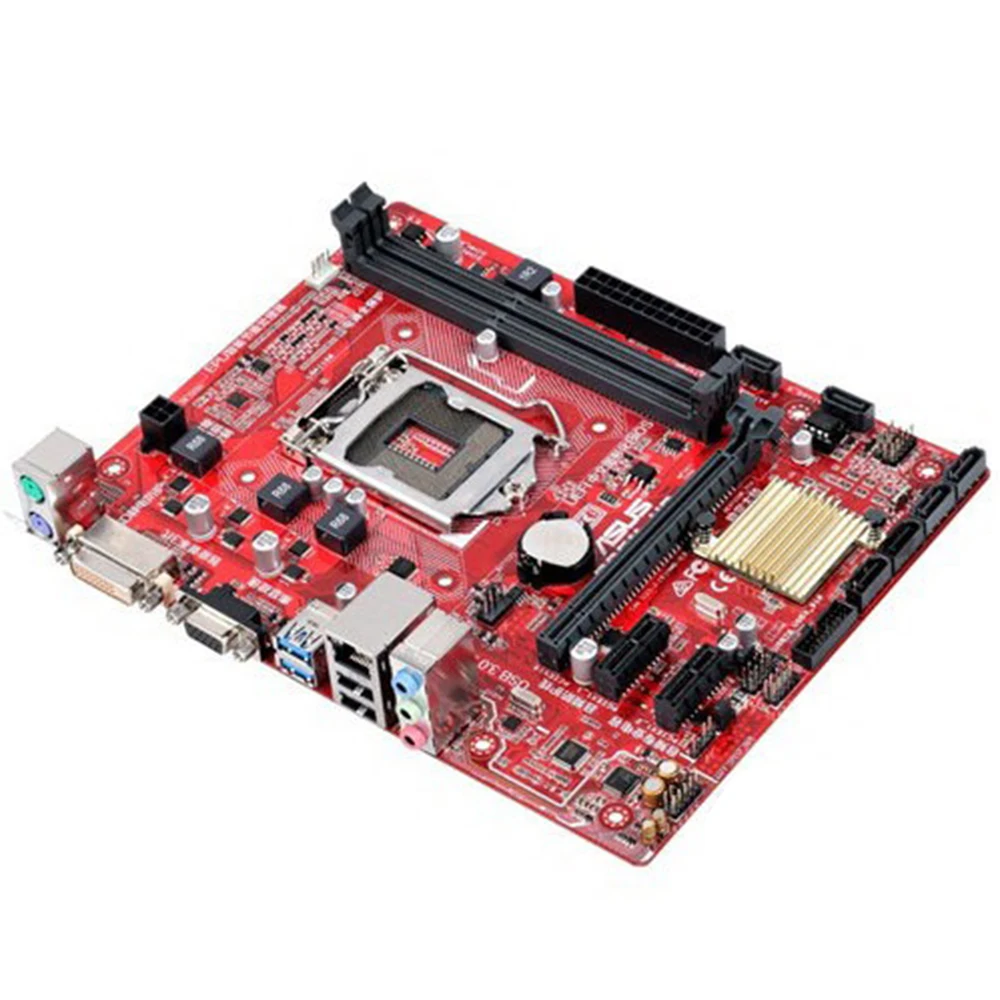

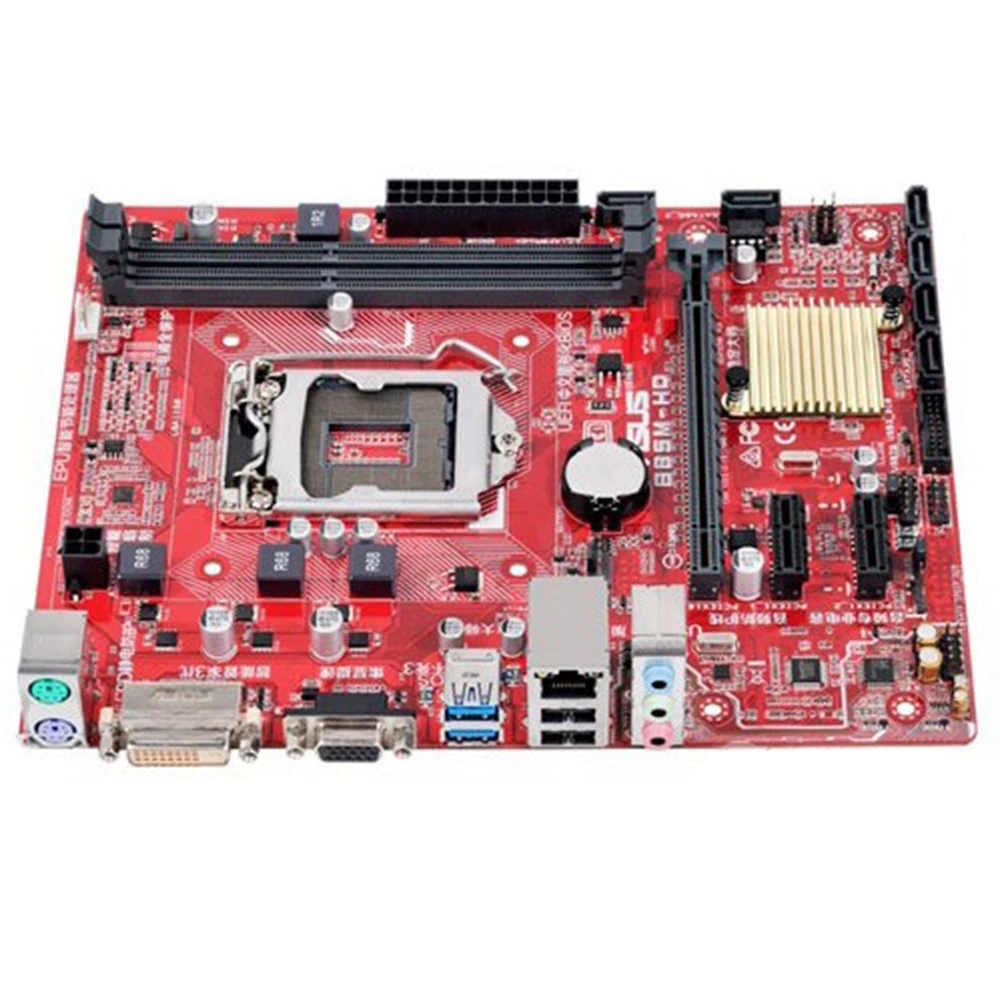

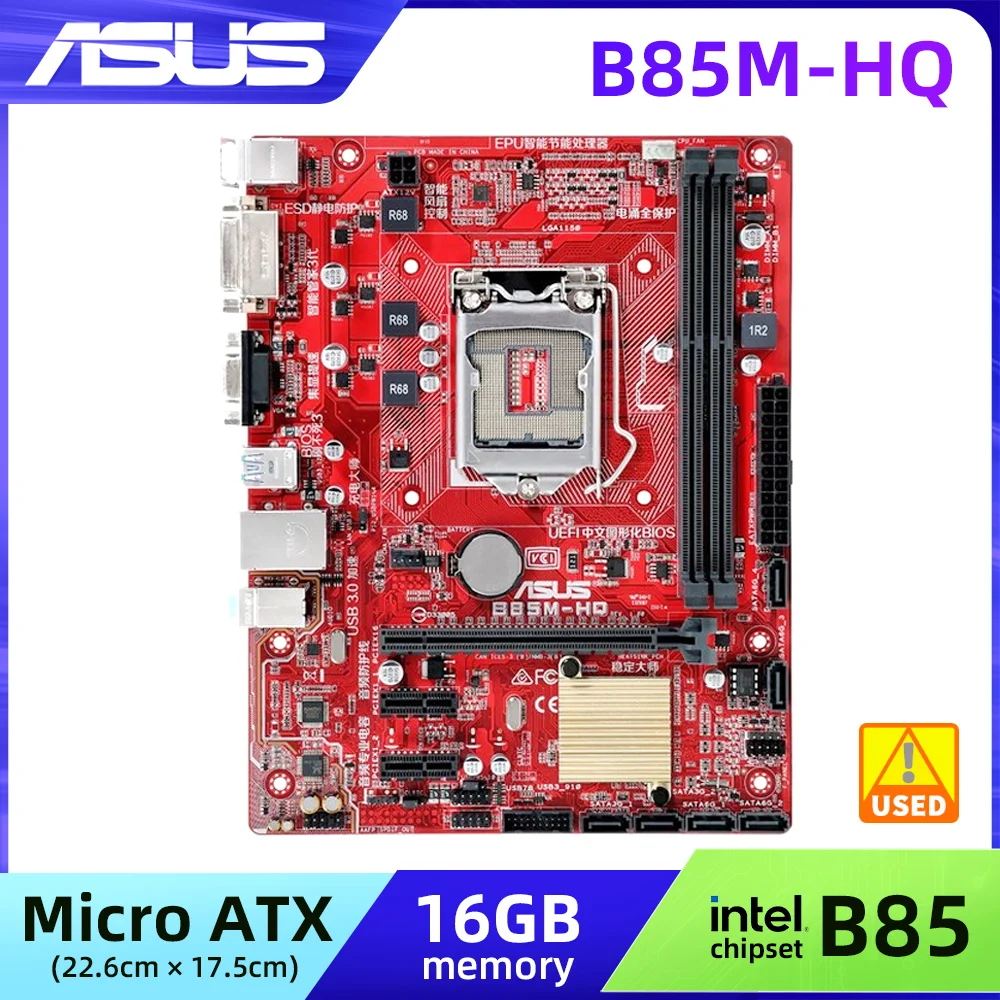

Placa base LGA1150 ASUS B85M-HQ, Intel B85, DDR3, 1600/1333/1066MHz, 16GB, PCI-E 3,0, 4 x SATA III, USB 3,0, VGA, Micro ATX
64,39 €
Enlace proporcionado por:
Bundle (Pack):
Chip placa base
Integrated Chip Sound Card/Network Card
Main Chipset Intel B85
Chipset Description Using Intel B85 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek RTL8111 Gigabit network card
Processor Specifications
CPU socket Socket 1150
CPU description Support Intel 22nm processor
memory specification
Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 1600/1333/1066MHz memory
storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 4×SATA III interface, 2×SATA II interface

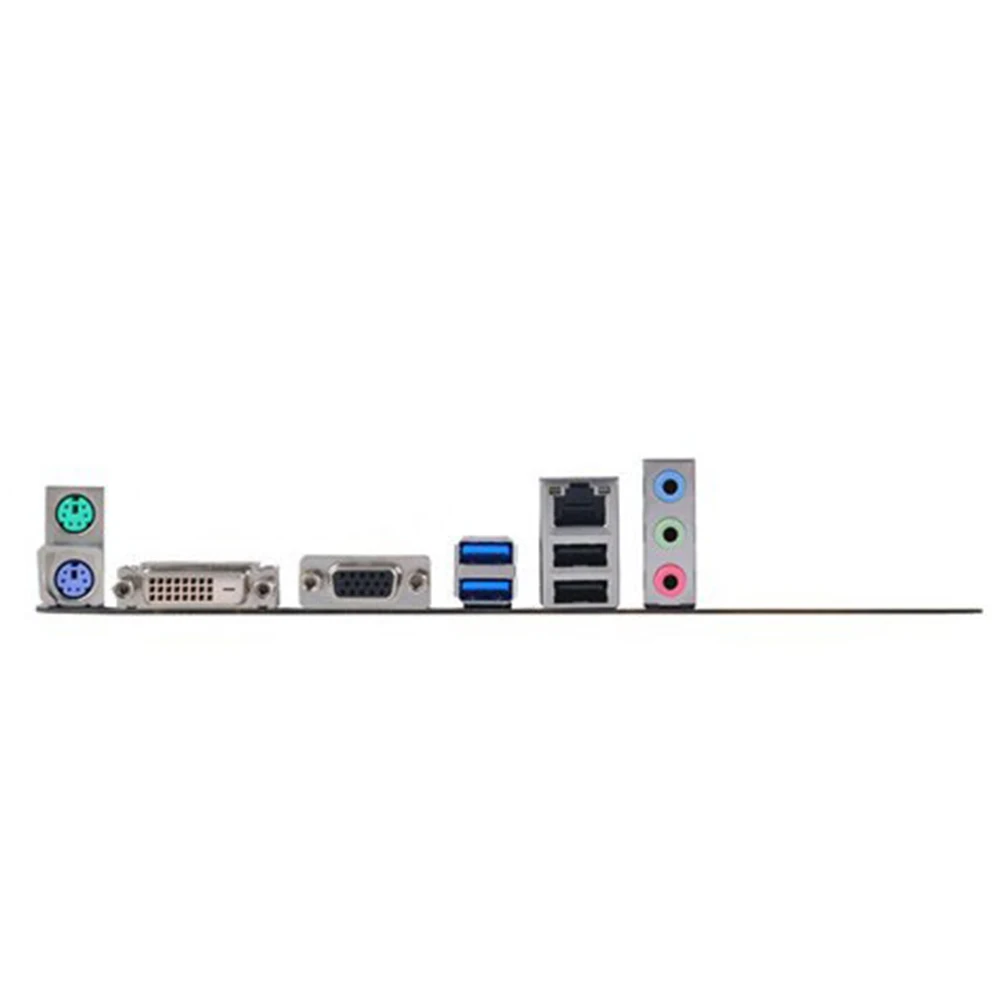

I/O interface
USB interface 6 x USB2.0 interface (4 built-in + 2 backplane), 4 x USB3.0 interface (2 built-in + 2 backplane)
Video interface 1×VGA interface, 1×DVI interface
Power interface One 4-pin, one 24-pin power interface
Other interfaces 1×RJ45 network interface, audio interface, 1×PS/2 mouse, 1×PS/2 keyboard interface
plate type
Motherboard form factor Micro ATX form factor
Dimensions 22.6×17.5cm
Comprar Placa base LGA1150 ASUS B85M-HQ, Intel B85, DDR3, 1600/1333/1066MHz, 16GB, PCI-E 3,0, 4 x SATA III, USB 3,0, VGA, Micro ATX
