Descripción
Motherboard chip
Integrated chip sound card / network card
Main chipset Intel Z97
Chipset description using Intel Z97 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC1150 8-channel audio chip
NIC chip Onboard Intel I218V Gigabit network card, Realtek RTL8111GR Gigabit network card
Processor specifications
CPU type Core i7 / i5 / i3 / Pentium / Celeron
CPU socket LGA 1150
Memory specifications
Memory type 4 × DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel 1866/1600 / 1333MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 3 × PCI-E X16 graphics slot, 3 × PCI-E X1 slot
Storage interface 6 × SATA III interface, 1 × SATA Express interface

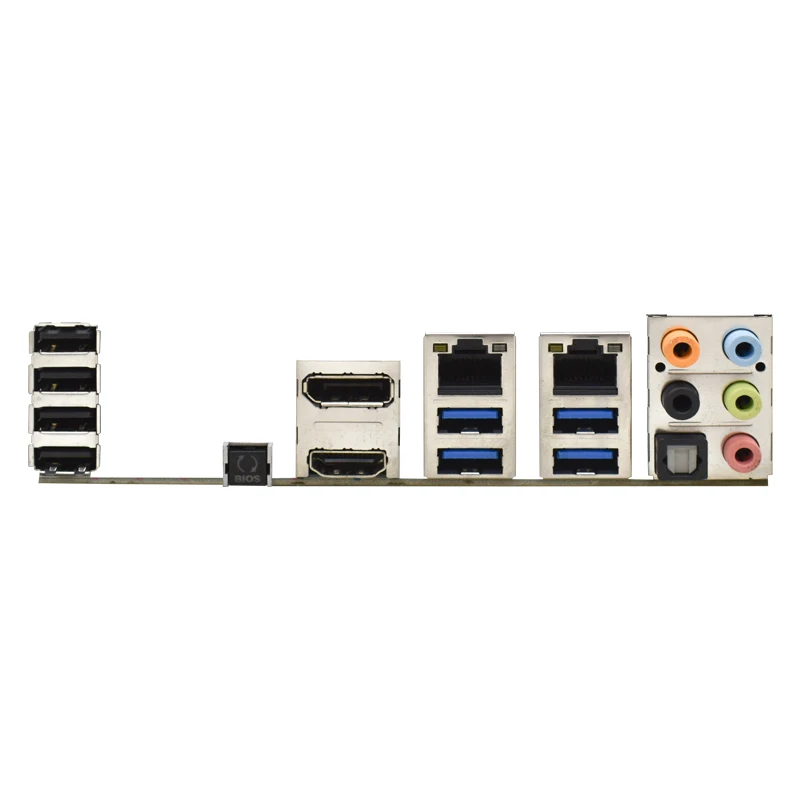

I / O interface
USB interface 6 × USB3.0 interface (2 built-in +4 backplane), 8 × USB2.0 interface (4 built-in +4 backplane)
Video interface 1 × Display Port interface, 1 × HDMI interface
Power connector: one 8-pin, one 24-pin power connector
Other interfaces 2 × RJ45 network interface, audio interface, 1 × optical interface
Plate type
Motherboard form factor ATX form factor
Dimensions 30.5 × 24.4cm
Software management
BIOS performance 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, multilingual BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My favorites, quick notes, history, F12 quick screenshots, F3 shortcut keys, memory SPD information
Other parameters
Multi-graphics technology supports NVIDIA SLI dual-channel crossfire technology
Support AMD CrossFireX hybrid crossfire technology
Power supply mode 8 + 2 phase
RAID function Support RAID 0, 1, 5, 10
