Descripción
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel X79
Chipset description Using Intel X79 chipset
Audio chip integrated Realtek ALC892 8-channel audio chip
Network card chip onboard Intel 82579V Gigabit network card
Processor specifications
CPU type Core i7
CPU socket LGA 2011
CPU description Support Intel 32nm processor
Memory specifications
Memory type 8×DDR3 DIMM
Maximum memory capacity 64GB
Memory description: Support four-channel DDR3 1866/1600/1333/1066MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 3 × PCI-E X16 graphics slot
2×PCI-E X1 slot
PCI slot 1 × PCI slot
Storage interface 4×SATA III interface; 4×SATA II interface

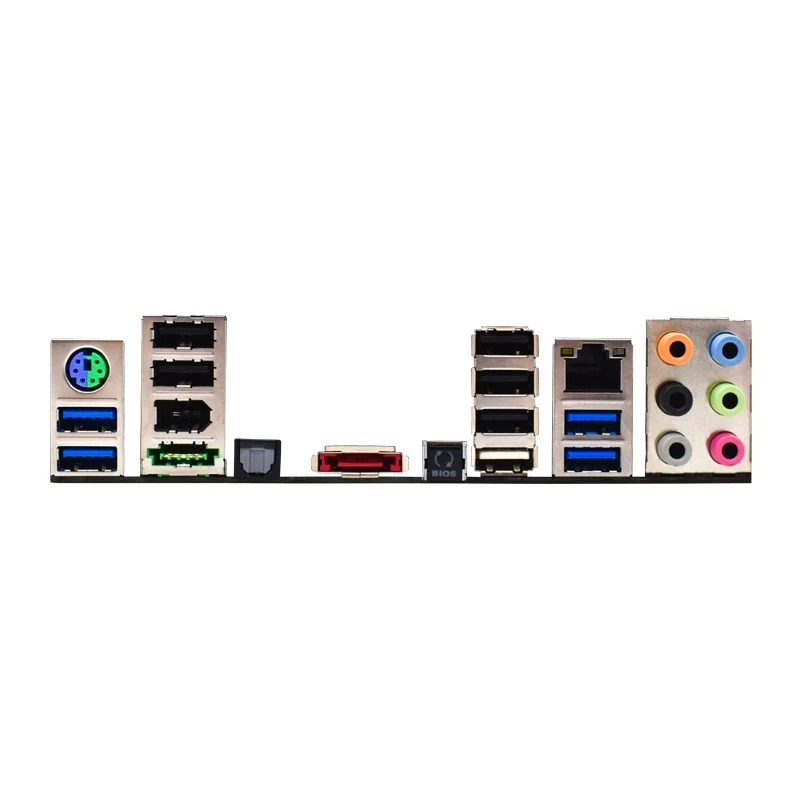

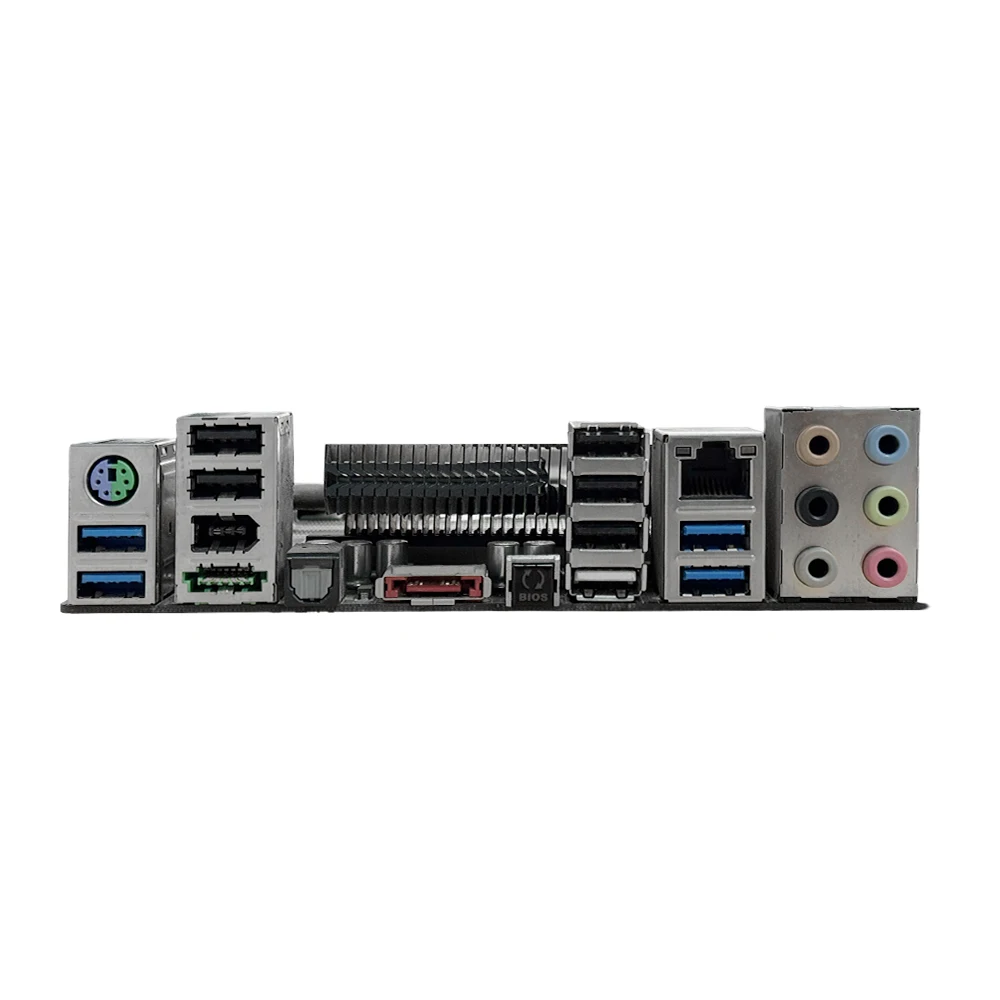

I/O interface
USB interface 6 × USB3.0 interface (2 built-in +4 backplane); 14 × USB2.0 interface (8 built-in +6 backplane)
Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, 1×eSATA interface, 1×optical interface, audio interface, PS/2 keyboard and mouse universal interface
Board type
Motherboard board type ATX board type
Dimensions 30.5×24.4cm
Software management
BIOS performance 64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Other parameters
Multi-graphics technology supports AMD Quad-GPU CrossFireX dual-card four-core crossfire technology
Support NVIDIA Quad-GPU SLI dual card four core crossfire technology
Power supply mode 8+2+2+2 phase
RAID function Support RAID 0, 1, 5, 10
