Descripción
The 52V is working perfectly. The materials used have also become more expensive, and it can perfectly drive 4-8 Euro speakers! Under the same power supply, the output power can be increased by more than 50%. TPA3255 is a high-performance Class D power amplifier chip, which has Class D efficiency and can bring true high-end sound quality circuits.
This device features advanced integrated feedback design and proprietary high-speed gate driver error correction function (PurePath)™ Ultra high definition. This technology enables the device to maintain ultra-low distortion throughout the entire audio frequency band while showcasing sound quality.
This device operates in AD mode and can drive up to 2 315W/4R loads and 2 150W (unshipped power)/8R loads at a THD of 1.5%. It also has a unique 2 VRMS analog input interface and supports seamless connection with high-performance DACs (such as TI's PCM5242).
In addition to excellent audio performance, TPA3255 also has two major advantages: high power efficiency and ultra-low power level idle loss (less than 2.5W). This can be achieved through an 85mR MOSFET and an optimized gate driver scheme.
This scheme can significantly reduce idle loss compared to traditional discrete implementation schemes.Due to the fact that materials may not be available at times, it is recommended to switch to a different brand before ensuring performance. Each upgrade may result in some changes
TPA3255 Ultimate Edition, HIFI Gall Taste Level; The bottom noise is imperceptible, with high efficiency and low heat generation.
Net weight:150 grams (0.15KG)
frequency response:20Hz to 20KHz
dynamic range:Greater than 100dB
SNR:Greater than 111dB
work efficiency:Greater than 90%
Output power:
315W/4Q distortion of 1.5%
185W/8Q distortion of 1.5%
260W/4Q distortion 1%
150W/8Q distortion of 1%
325 5 Drunk Strong Version Coming
There is no impact sound when the machine is turned on or off
Wired input background noise cannot be heard
Truly pure posterior bile flavor HIFI level amplifier board
Removing the digital flavor of the high frequency band of digital amplifiers
Clear and pure sound quality, high notes are clear and pleasant to the ear
The midrange is warm, mellow, and the bass is full and powerful. The overall listening experience is very comfortable
Silent fan with strong heat dissipation
Colour:Black
Material:ABS
Size:122.5x73.5x24.0MM
Package Contents:

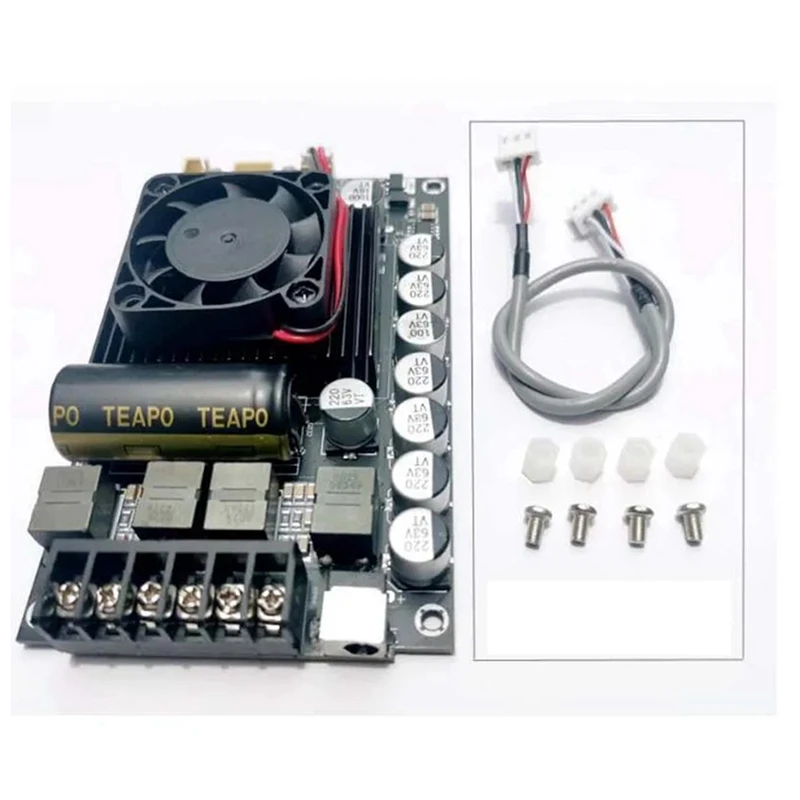

1 * HIFI digital amplifier board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
