Descripción

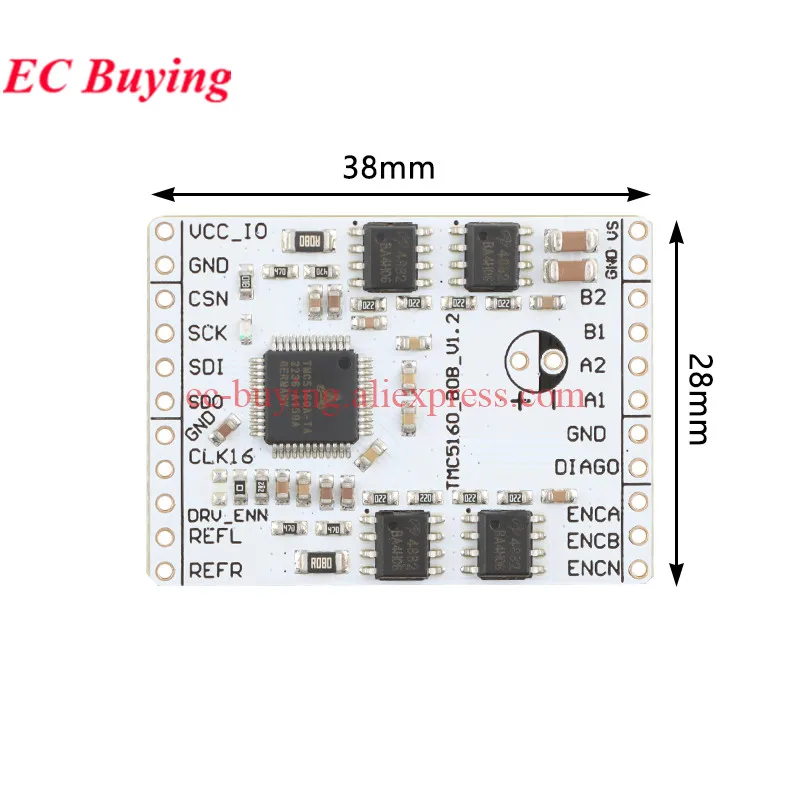

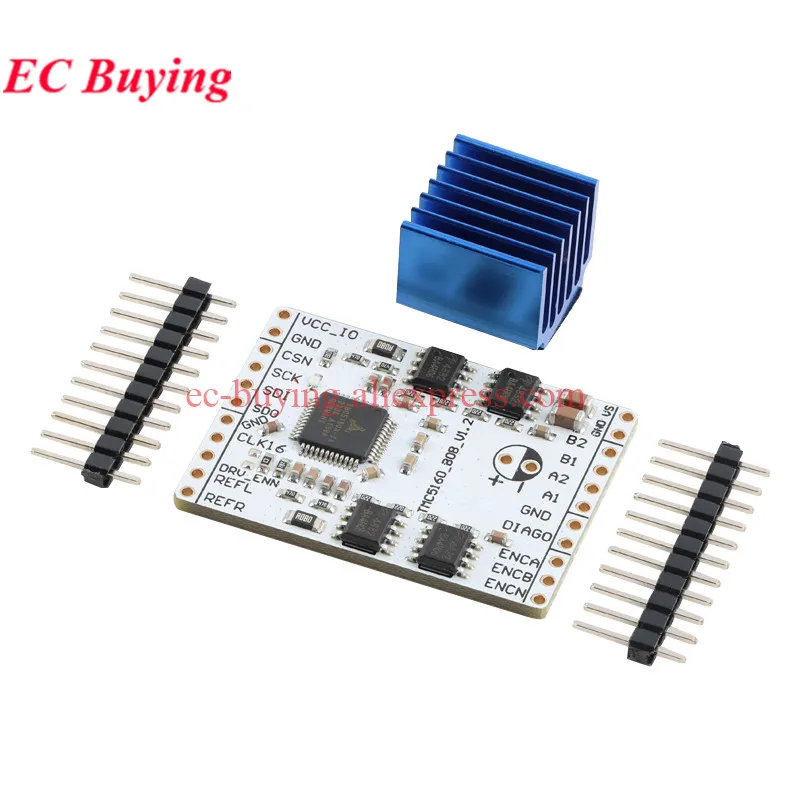

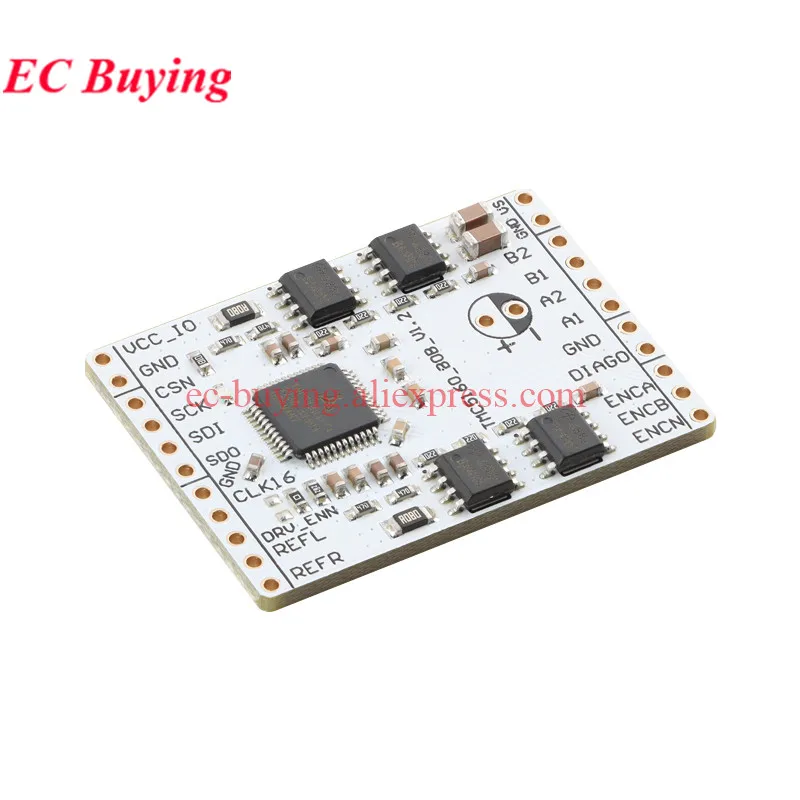

TMC5160-TA stepper controller
Supply voltage 9-36V (limited by the MOSFETs)
I phase,RMS up to 2.8A
Configuration & Control via SPI
S/D mode selectable via solder option
Use with optional lowESR ELCO, ca. 150uF
Introduction:
TMC5160 high-power stepping drive control IC, super quiet, anti-jitter, do not lose step
TMC5160 high-power stepper motor drive control chip, MOS tube, with silent drive StealthChop, anti-jitter SpreadCycle, blocking detection StallGuard2, torque dynamic adjustment DcStep, current dynamic adjustment CoolStep? Ramp generator, Ramp generator, etc
TMC5160 control/drive intelligent IC, make stepping motor performance more powerful
The TMC5160 extends the functions of MOSFETs chip series TMC2100, TMC2130 and TMC5130 to step motor with higher current.
This new single-axis stepper motor control driver IC with serial communication interface can be externally expanded MOSFETs, each coil motor current up to 20A, the maximum voltage of 60V DC
It is very simple to use, just need the target location. All stepper motor logic runs inside TMC5160 - when driving NEMA17 to NEMA34 and larger motors, no software is required, just hardware is used. Connected to the host microcontroller via the industry standard SPI or step/direction interface, TMC5160 performs all real-time position and speed step motion calculations. The TMC5160 also supports ABN encoder input
Supply voltage 9-36V (limited by the MOSFETs)
I phase,RMS up to 2.8A
Configuration & Control via SPI
S/D mode selectable via solder option
Use with optional lowESR ELCO, ca. 150uF
Introduction:
TMC5160 high-power stepping drive control IC, super quiet, anti-jitter, do not lose step
TMC5160 high-power stepper motor drive control chip, MOS tube, with silent drive StealthChop, anti-jitter SpreadCycle, blocking detection StallGuard2, torque dynamic adjustment DcStep, current dynamic adjustment CoolStep? Ramp generator, Ramp generator, etc
TMC5160 control/drive intelligent IC, make stepping motor performance more powerful
The TMC5160 extends the functions of MOSFETs chip series TMC2100, TMC2130 and TMC5130 to step motor with higher current.
This new single-axis stepper motor control driver IC with serial communication interface can be externally expanded MOSFETs, each coil motor current up to 20A, the maximum voltage of 60V DC
It is very simple to use, just need the target location. All stepper motor logic runs inside TMC5160 - when driving NEMA17 to NEMA34 and larger motors, no software is required, just hardware is used. Connected to the host microcontroller via the industry standard SPI or step/direction interface, TMC5160 performs all real-time position and speed step motion calculations. The TMC5160 also supports ABN encoder input
