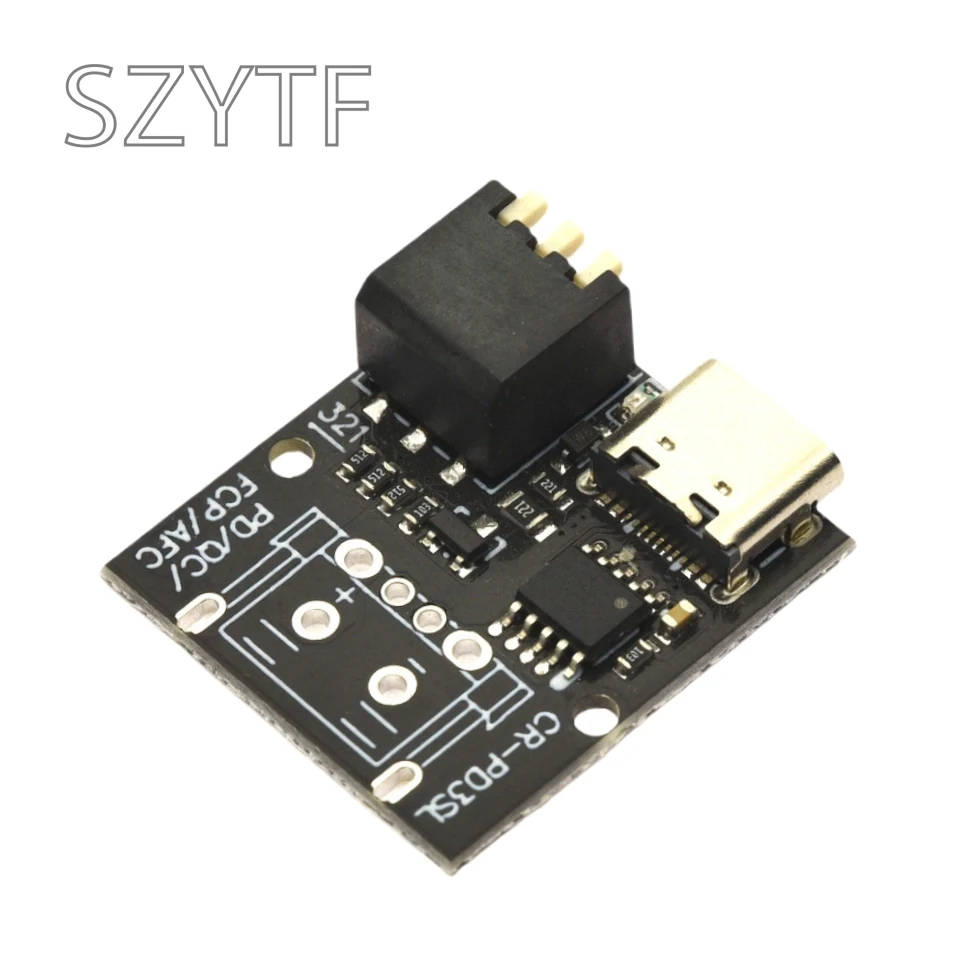

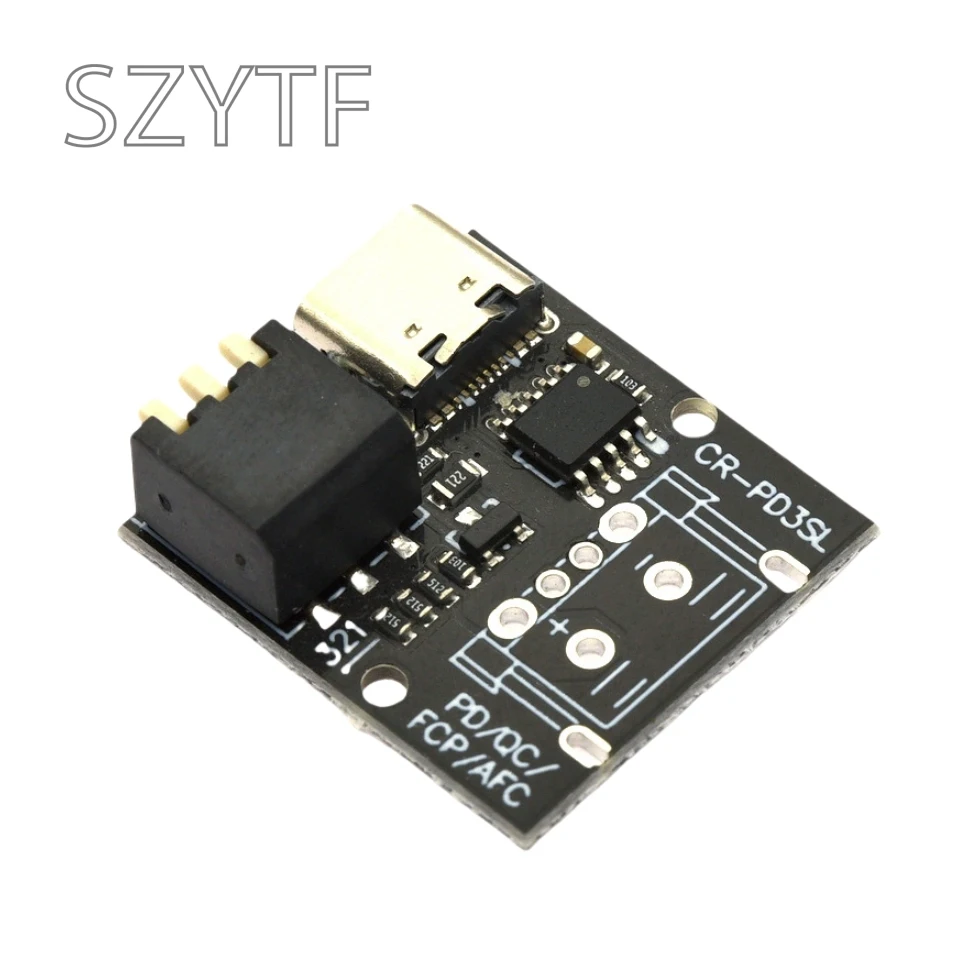

Adjustable dip switch
The dip switch can be freely adjusted
High current and multiple protocols
Support PD QC FCP AFC protocols
Supports voltages of 9V/12V/15V/20V
It can automatically reduce the voltage level according to the output capacity of the power supply voltage
A 20V decoder can successfully trick a power supply with a maximum output of 12V to output 12V.

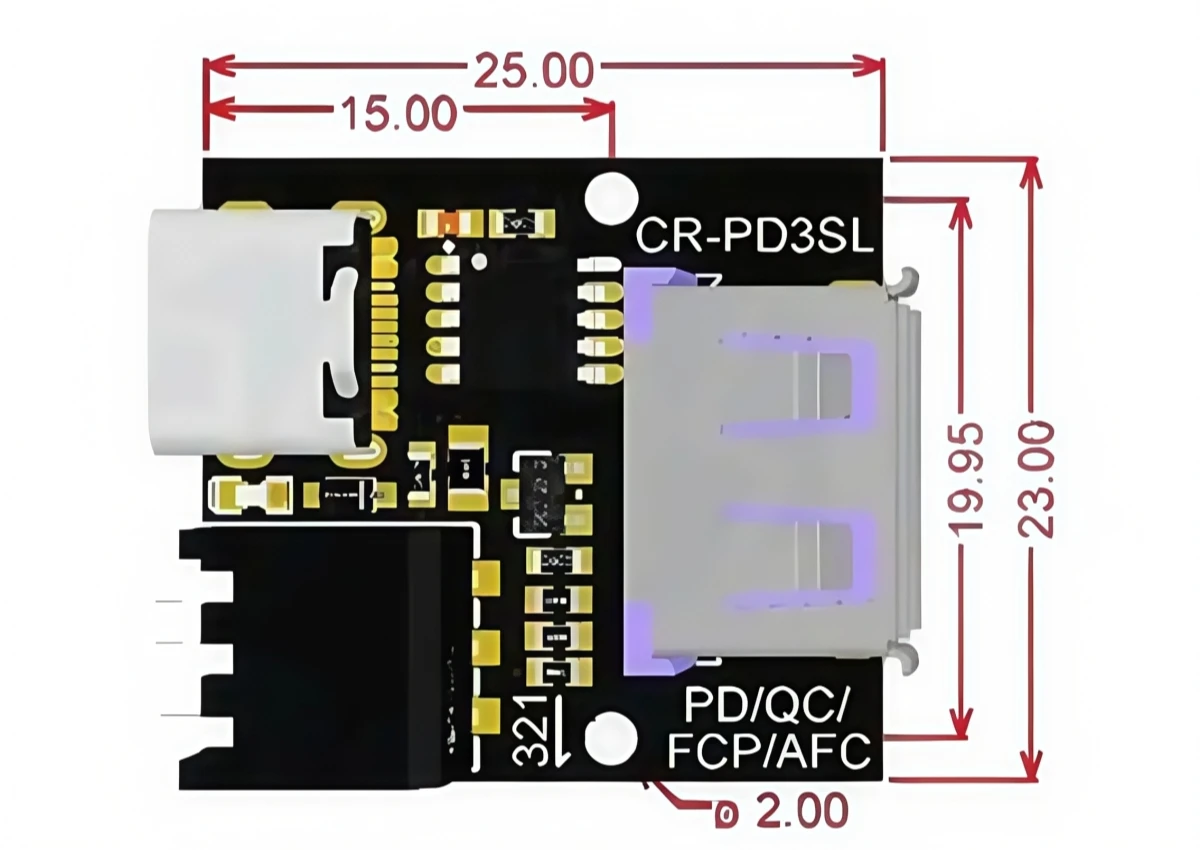

Product specification Size
The voltage is set through the side dip switch. As the side adjustment is convenient, it can be installed inside the casing. The board comes with installation screw holes, making it compact and practical.

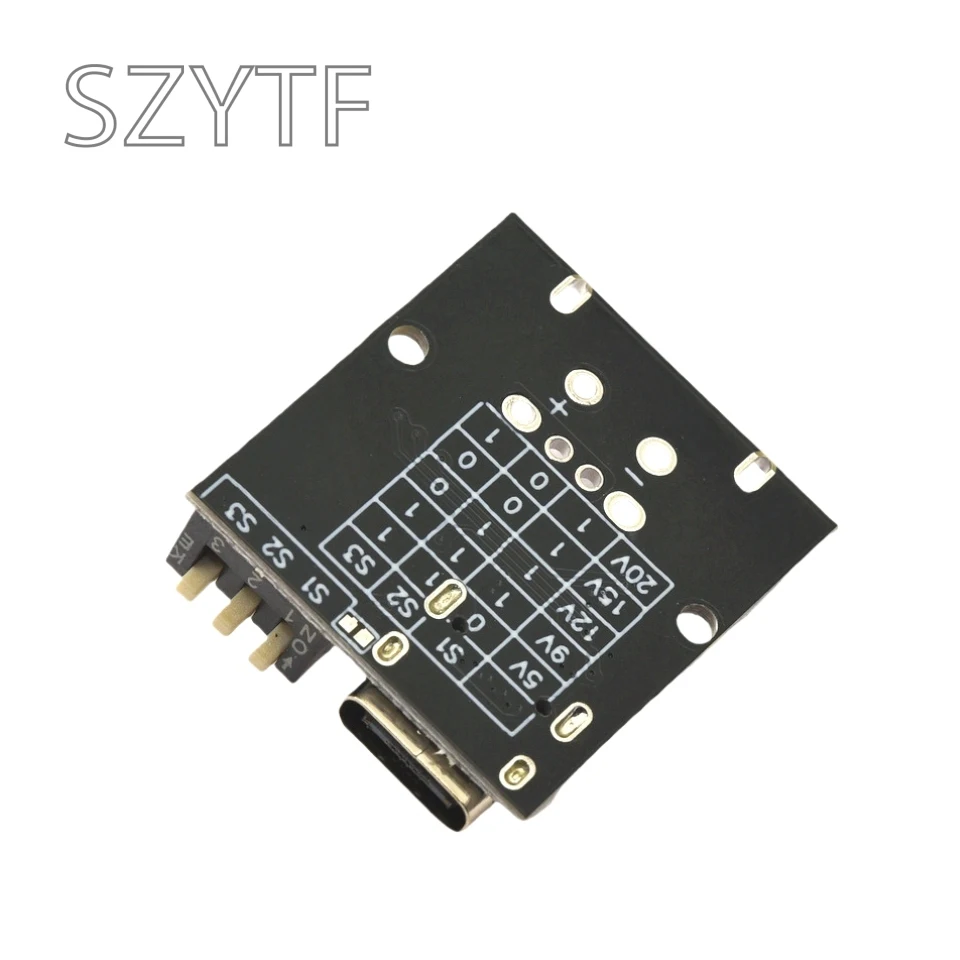

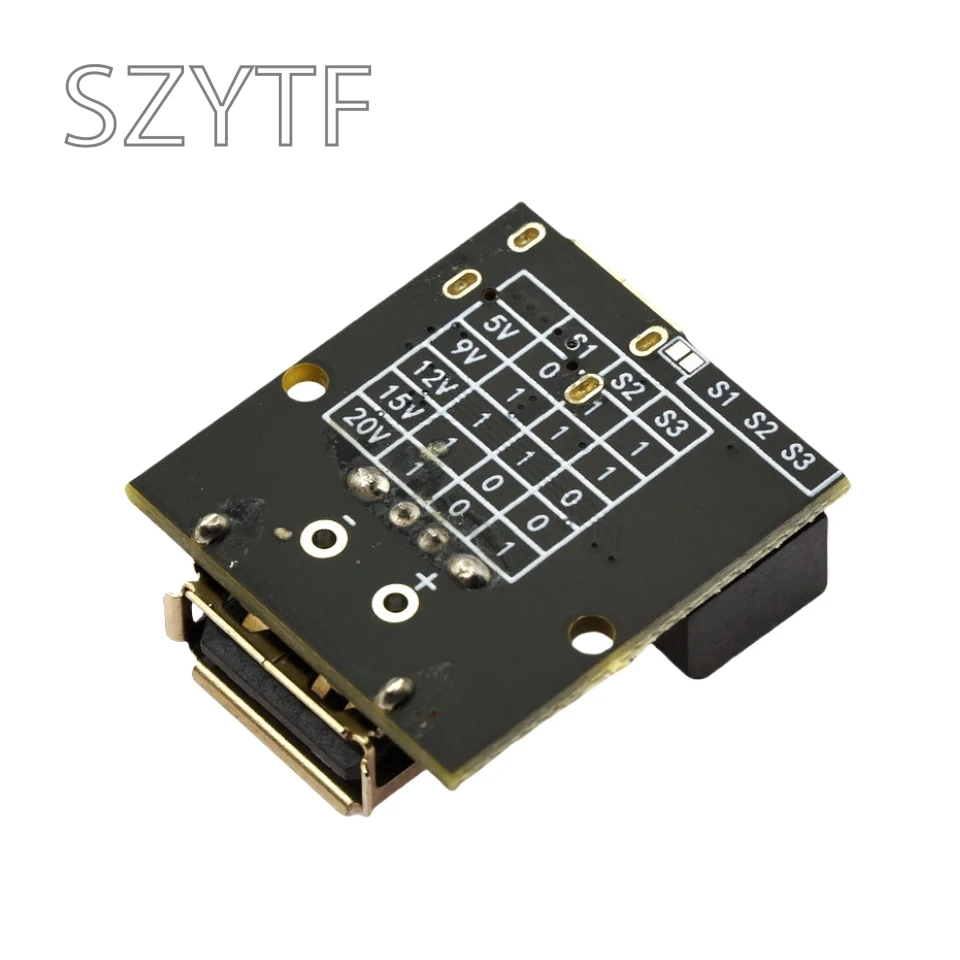

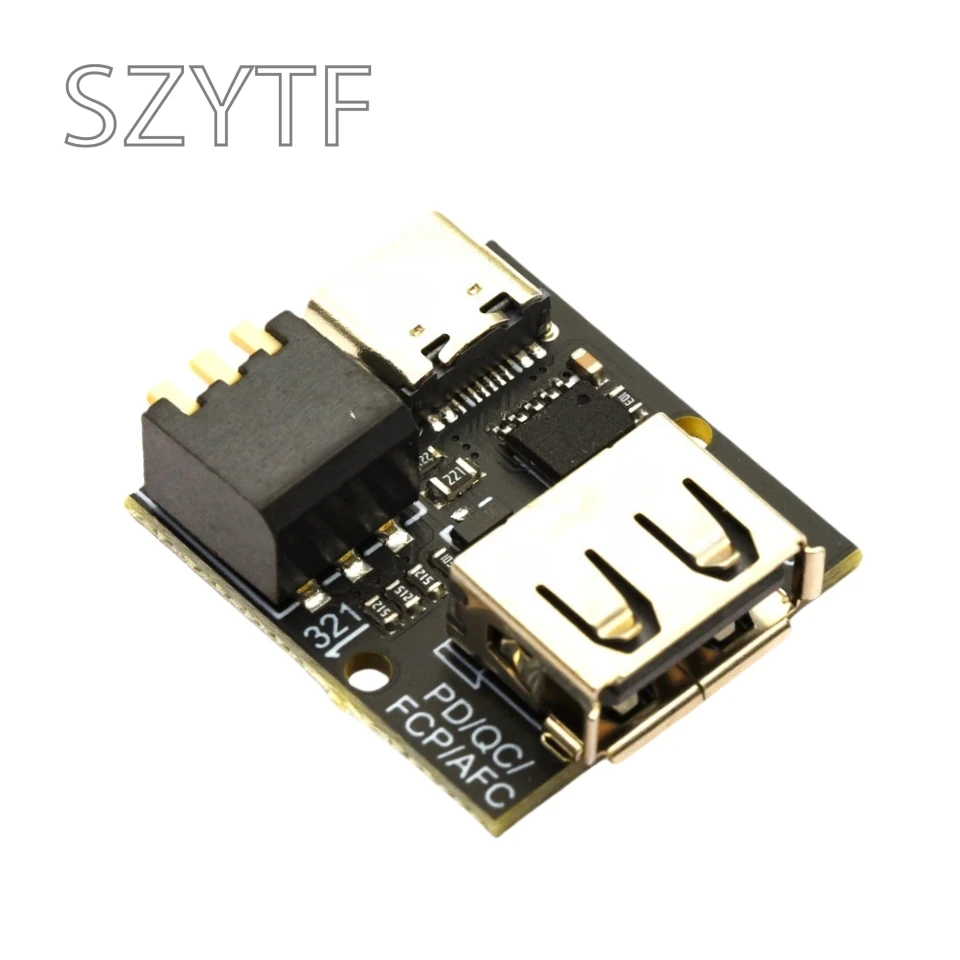

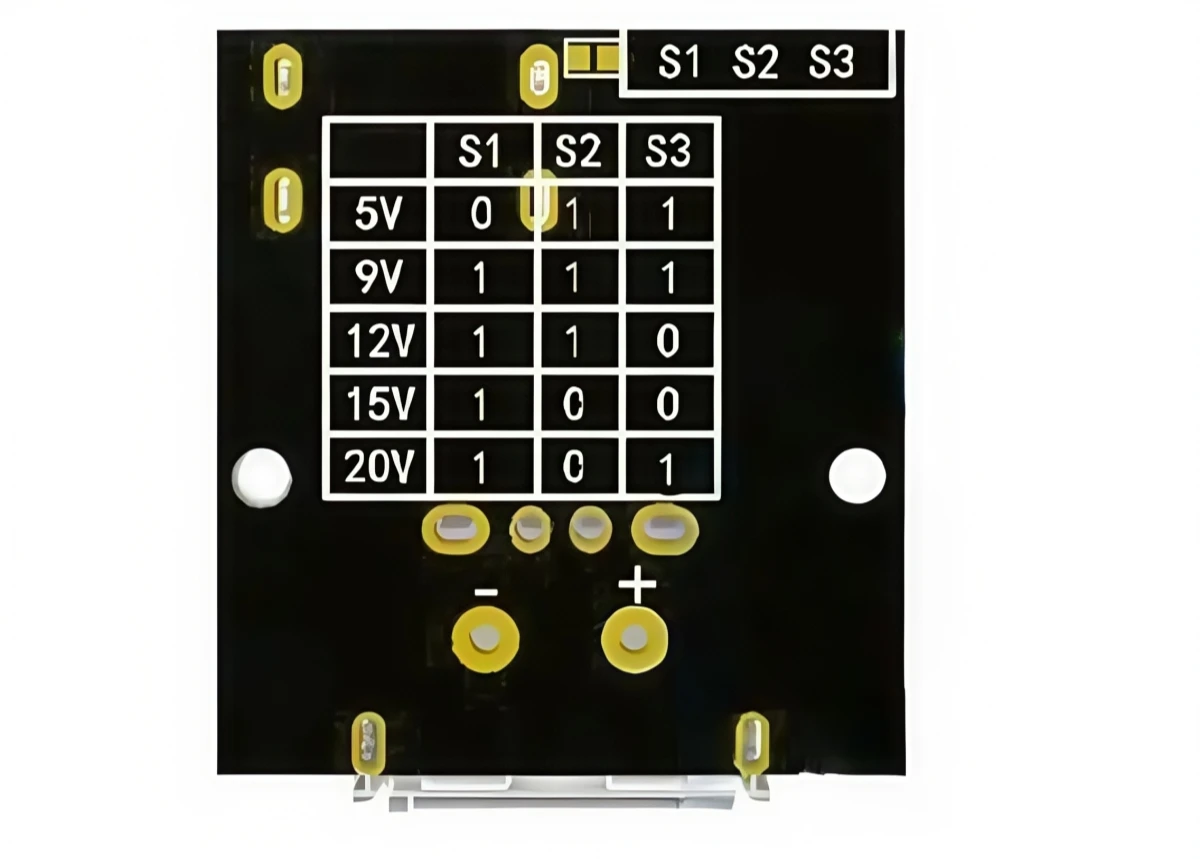

On the back of the corresponding voltage setting board, there is a setting table. Press it to set it to 1, otherwise it will set it to 0. The USB interface is for high current, and USB is optional.
