Product Description

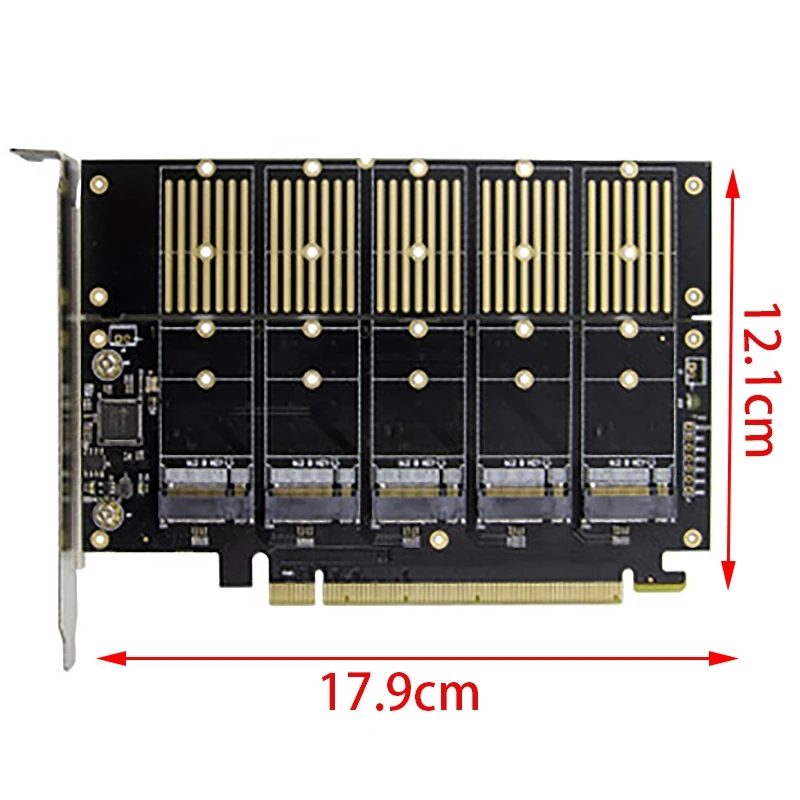

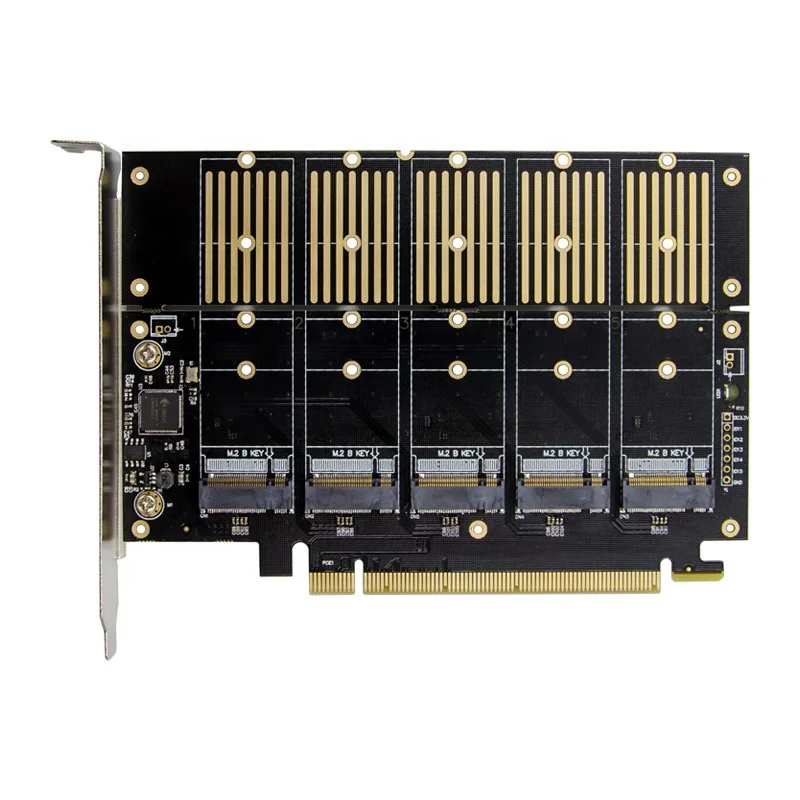

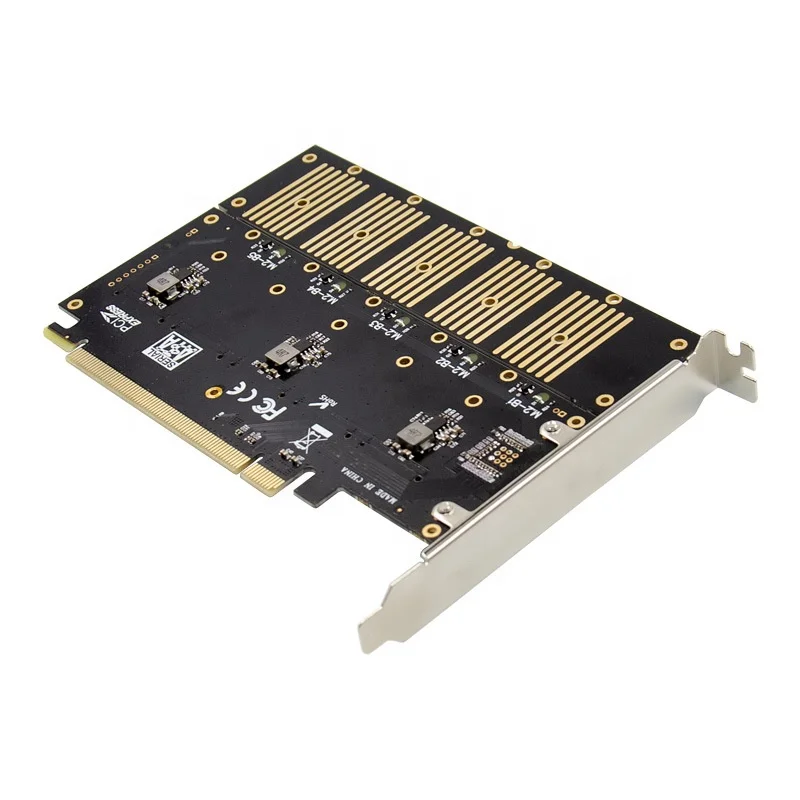

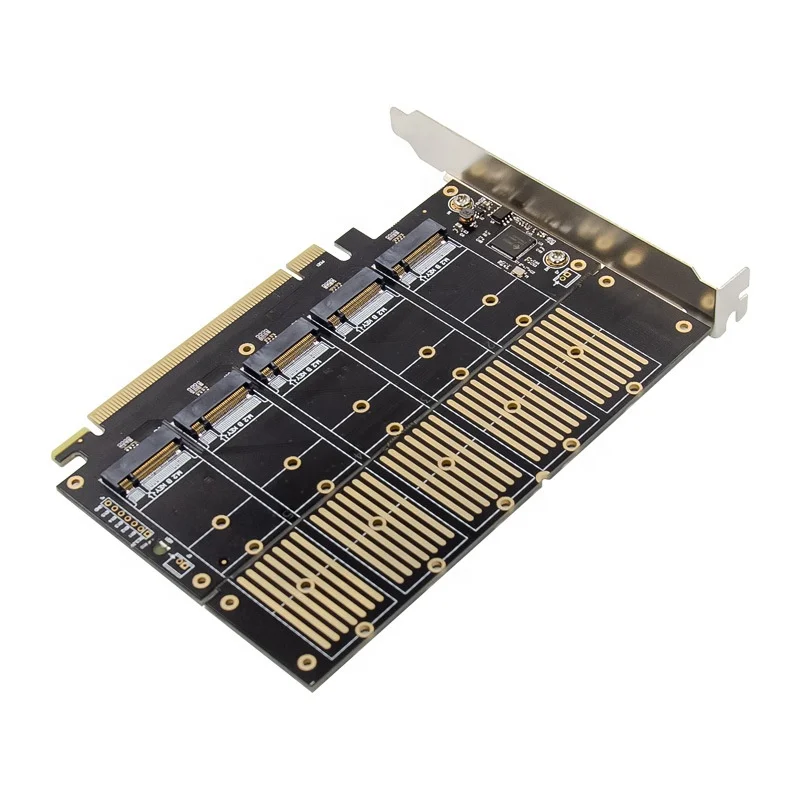

PCIe 5-Port M2 Key B SATA3.0 Expansion card SSD JMB585 PCIe SATA M.2 NVME PCIe Converter Card used new JMB585 chip solution, high speed and stable performance, it is committed to solving user's demand for massive data space, the high-speed expansion card achieves PCI Express Gen 3x2 line bandwidth, with five M.2 Key B SATA ports extending from the PC host to the PCI Express slot, each port with a transmission speed up to 6Gbps.it can be widely applied to personal computers and other big data storage devices.
Specification
Supports up to two lane of PCI Express
Complies with PCI Express Base Specification Revision 3.1a
PCI Express interface:X16
Supports PCIe Link layer power saving mode
Supports 5 M.2 Key B Port
Each M.2 Key B Port transmit speeds up to 6Gbps
Forthe SSD type M.2 "B + M Key" or "B Key"
Complies with M.2 Key B SSD Size :2230,2242,2260,2280
Support command-based and FIS-based of Port Multiplier
Complies with SATA Specification Revision 3.2
Supports AHCI mode and IDE programming interface
Supports Native Command Queue(NCQ)
Supports SATA Link Power saving mode(partial and slumber)
Supports SATA plug-in detection capable
Supports drive power control and staggered spin-up
Supports SATA Partial/Slumber power management state
Plug-and-Play Supported, no additional software installation or settings required
Supports Low profile bracket
Chipset: JMB585
Drivers support for Linux , Win7/ Win8/Win8.1 /win10, 32 or 64bit

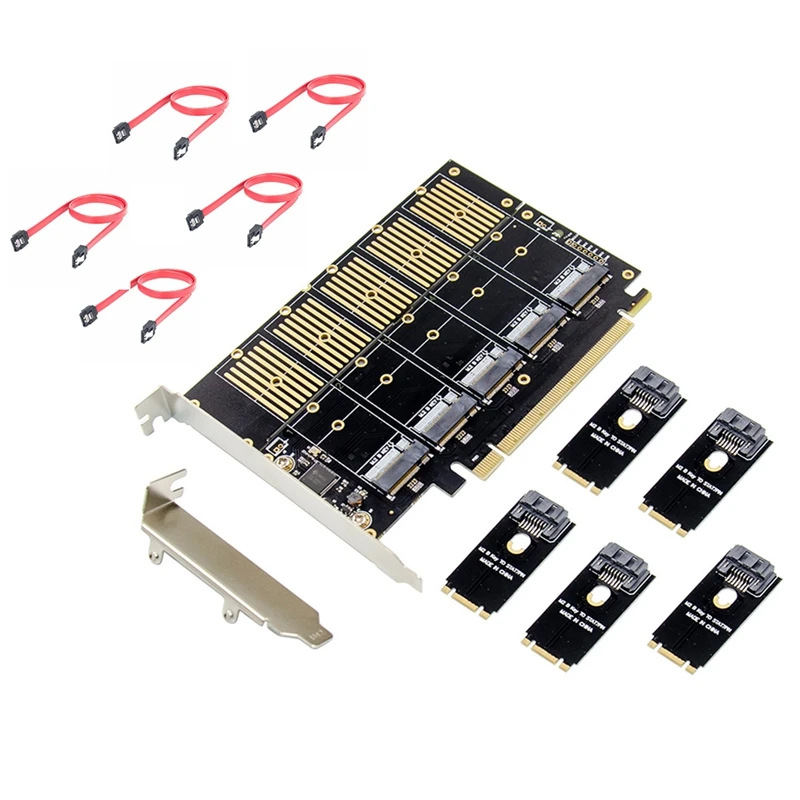

Package content

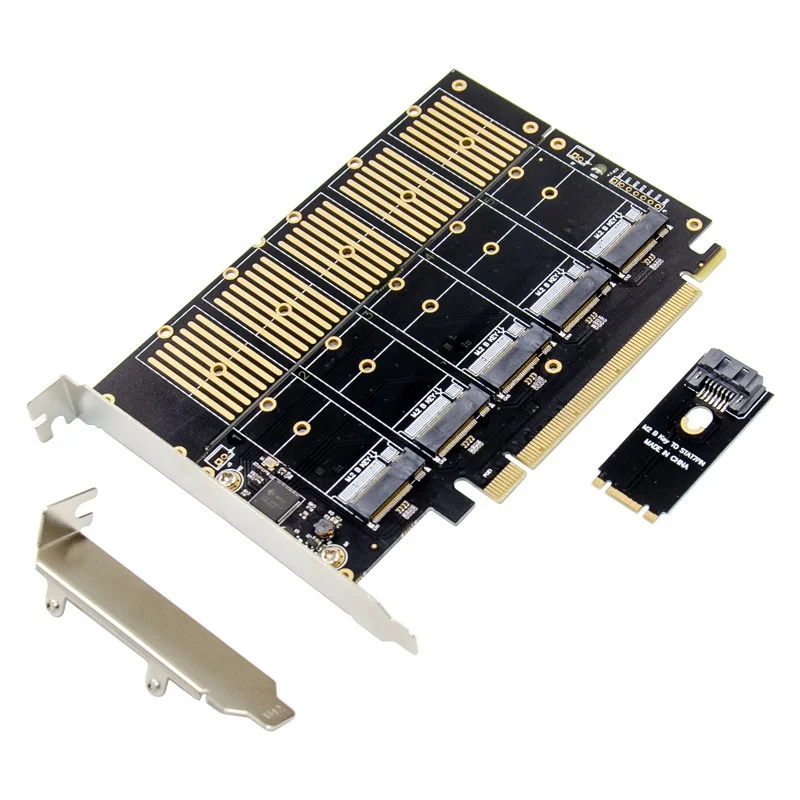

1 x PCIe JMB585 5-Port M.2 Key B SATA3.0 Expansion card
1 x Low profile bracket
5 x M.2 Key B to SATA Extend card
5 x SATA Cable
