Descripción

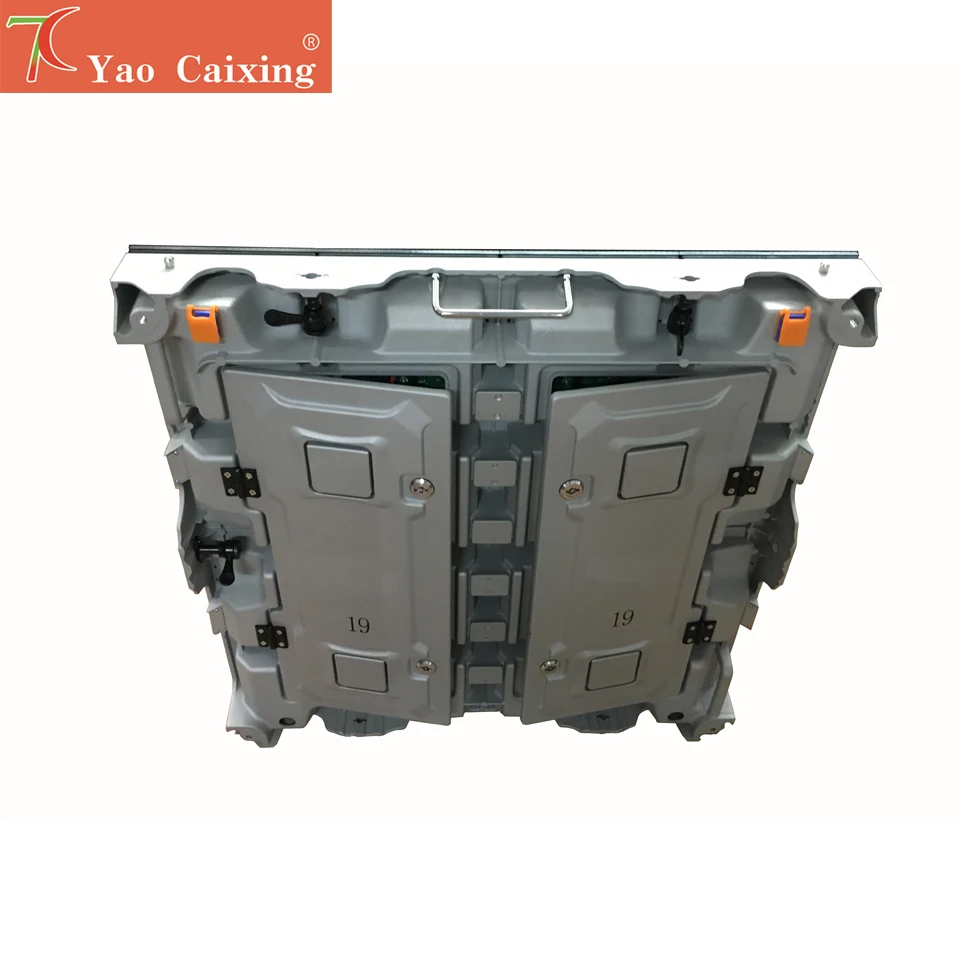

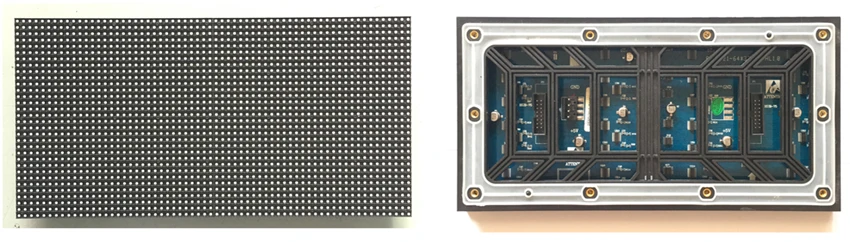

Module Back View
Cabinet Resolution
192(H)×192(W)
Pitch
4mm
Density
62.500 pixels/m²
LED Arrangement
SMD1921
Driver Mode
8scan(constant current drive)
Size
768mm×768mm
Mask
Pure Black mask-high contrast screen
Electricity Parameter
Optical Ratings
Brightness
≥5500cd/m²
View Angle
140 degree ( horizontal) 140degree(vertical)
View Distance
4m-250m
Gray Scale
8bits input, correction with 16bits
Display Color
16.7M
Brightness Adjustment
100 levels
Power Supply
Operation Power
AC100-240V 50-60HZ Switch-able
Cabinet Max Power Consumption
1200 w/m²
Average Power Consumption
600 w/m²
Control System
Correction Scale Level
16bits
Frame Update Frequency
60Hz
Screen Refresh Frequency
1920Hz
Gamma Correction
-5.0—5.0
Support Input
Composite Video, VGA, DVI, HDMI., SDI, HD_SDI
Control Distance
Ethernet cable 100m, optical fiber 5km
Support VGA Mode
1024×768,1280×1024,1600×1200,1920×1080
Color Temperature
5000-9300 adjustable
Brightness Correction
dot by dot, module by module, cabinet by cabinet
Reliability
Operating Temp.
-20℃ - +60℃ Celsius degree
Operating Humidity
10-95% RH
Operating Life
100,000 hours
MTBF
5000 hours
Continuous Working Time
≥72hours
Protection Level
IP65
Out of Control Pixel Rate
0.01%
Advantage:
- Save Money More cheaper than 512*512mm size screen each square meter.
- Save Weight More lighter than 512*512mm size screen each square meter.
- Save Time Assemble and disassemble screen faster
- Save Space Need less flight cases package
- Glue make the lamps waterproof
- Aluminum door stronger enough to protect modules,- Locks design make the screen safety
- Wooden box package for fixed installation(free package)- Movable suggest flight case package(extra charge)
Shenzhen YaoCaixing Electronic Co.,LTD is founded in 2008 which is located in the world display screen manufacturing center - Fuyong,SheZhen China.The cover area is about 20000square meters. We are specialized in the development,production,sales and services of the LED display and focus on providingcustomers with a full range of product solutions.It is a integrated operation service private enterprise in photoelectric LED display filed.
After several years of study and unremitting efforts,the company gathered a large number of talents and has accumulated rich experience,owned the firstclass automated production equipment and standard production workship,also established a systematic and professional display screen productionprocess and provide a powerful guarantee for the quanlity of the LED display to improve the the stability and product cost performance.
Main products:inside and outside LED DIP electronic display screen,LED SemiSMD full color,LED SMD full color screen ,householdsinside and outsidedouble-color,LED highway screen,LED large screen.And the production types are P1.2, P1.6, P1.8, P1.9, P2, PH2.5, PH3,PH4,PH5,PH6,PH7.62,PH8,PH10,PH16 etc.
Shipment
1. Check clearly order address .2. The images shown are not the actual item and are for your reference only. 3. We will choose to ship your item from our first available warehouse for fast delivery.
