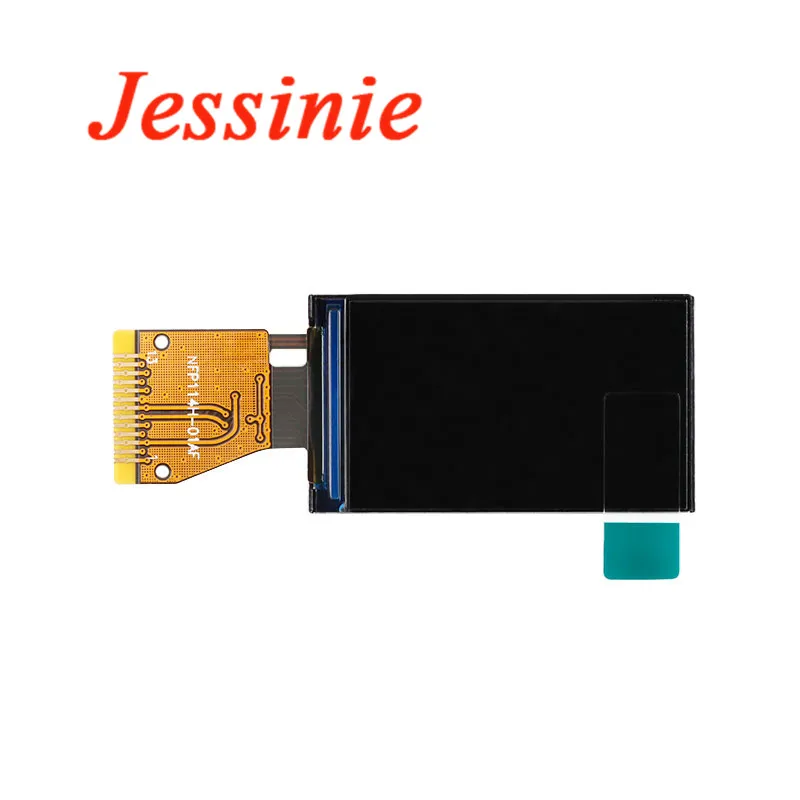

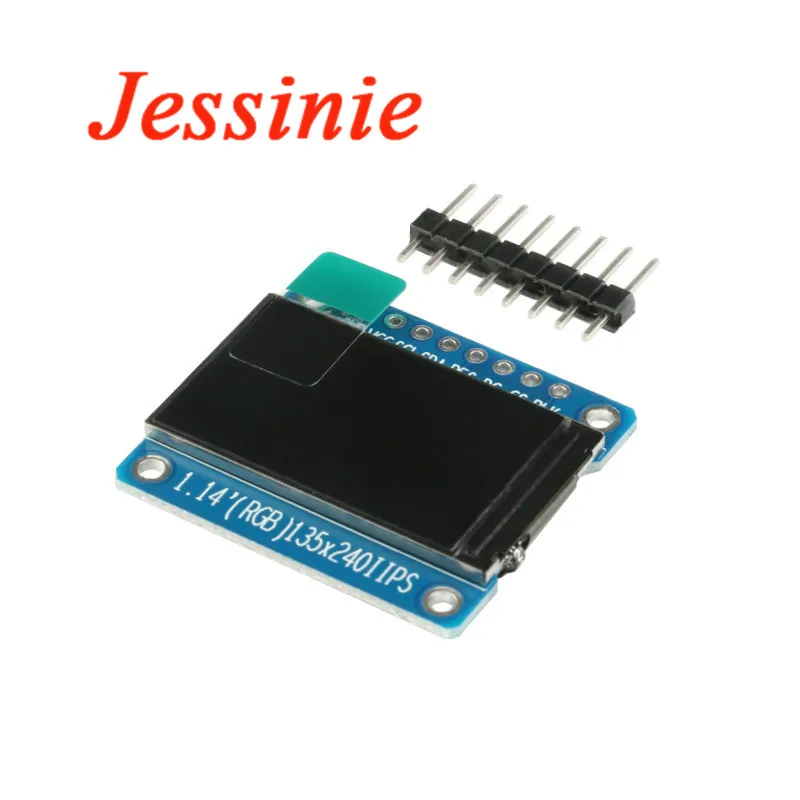

Pantalla TFT HD IPS a todo Color, módulo de pantalla LED LCD 1,14x1,14, 135 pulgadas, 240x135, unidad ST7789, interfaz SPI de 240 V, 8 y 13 pines

Name: Pantalla TFT HD IPS a todo Color, módulo de pantalla LED LCD 1,14x1,14, 135 pulgadas, 240x135, unidad ST7789, interfaz SPI de 240 V, 8 y 13 pines
Brand: Jessinie
SKU: 390002
Price: 1.71 EUR
Availability: InStock
Rating: 4.0 (3 reviews)

3 opiniones

En Stock

1,71 €

~~2,28 €~~ -75.00%

Comprar ahora

Con la garantía de

Color

78 unidades vendidas

Última actualización: 2026-01-29T23:55:15.788Z

Descripción

BLK: LCD backlight control, the default can be left floating, low level to turn off the backlight

Size: 1.14 inch
Material HD IPS color screen, color is more vivid than ordinary TFT LCD
Resolution: 135* 240 display direction can be adjusted, horizontal screen vertical screen can be
Control chip: ST7789
Display area: 14.864 (H) x 24.912 (V) mm

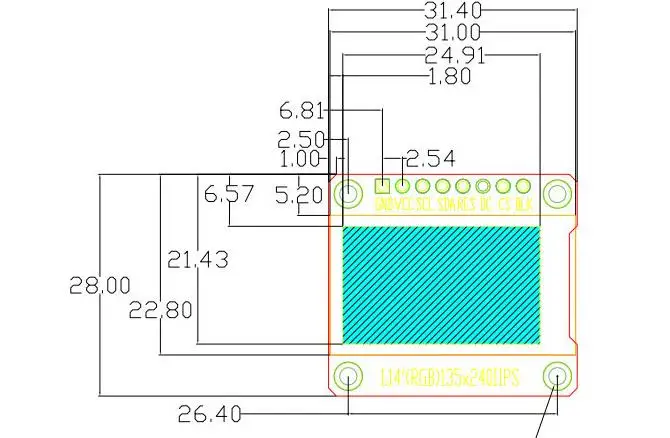

Physical size: 28 (H) x 31.4 (V) mm
Interface type: 4-wire SPI interface
Number of pins: 8PIN (the pin is not soldered)
Viewing direction: full view
Working temperature: -20~70 degree

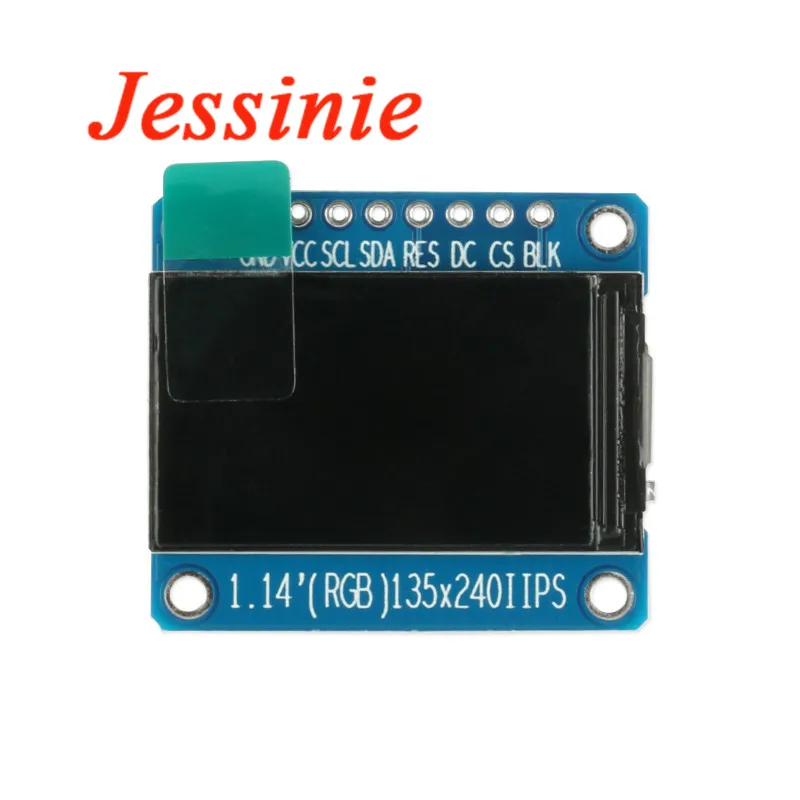

Interface Definition:

GND: power ground
VCC: Power supply is 3.3V
SCL: SPI clock line
SDA: SPI data line
RES: display reset pin
DC: SPI data / command selection pin
CS: SPI data chip select, active low
BLK: LCD backlight control, the default can be left floating, low level to turn off the backlight
