Descripción
Our Advantage
1.CCC,CE&Rohs,ISO9000,FC
2.Life span:more than 100000h
3.Excellent after-sales services with free repair whole life
4.MOQ: 1set 2.88x0.96m(0.96x0.96mx3pcs) P5 outdoor front maintenance screen
5.Our package type:wooden box
6.Prompt delivery: 14 working days after get deposit
Specification
Module Parameter
Size
160mm(H)×160mm(H) or 160mm(H)×320mm(H)
Module Resolution
32(H)×32(W) or 32(H)×64(W)
Pitch
5mm
Density
40.000 pixels/m²
LED Lamps
SMD2727(Customizable Nationstar lamp)
Driver IC
Chipone2037
Module Refresh
4800hz
Mask
Pure Black mask-high contrast screen
Cabinet Parameter
Cabinet Resolution
576(H)×192(W)
Cabinet Size
960mm(H)×2880mm(W)
Cabinet Weight
90kg
Driver Mode
Dynamic 1/8scan ,
constant current driving
Cabinet Power
≤2700w
Cabinet Thickness
≤175mm+5mm
Electricity Parameter
Optical Ratings
Brightness Of White Balance
≥5500cd/m²
View Angle
140 degree ( horizontal)
140degree(vertical)
View Distance
4m-50m
Gray Scale
65536
Display Color
3-in-1 RGB
Brightness Adjustment
100 levels
Power Supply
Operation Power
AC100-240V 50-60HZ Switch-able
Maxim Power Consumption
1000 w/m²
Average Power Consumption
600 w/m²
Control System
Correction Scale Level
16bits
Screen Refresh Frequency
960Hz
Gamma Correction
-5.0—5.0
Support Input
WIFI,USB,Serial Port
Control Distance
Ethernet cable 100m, optical fiber 5km
Support VGA Mode
Not support
Color Temperature
5000-9300 adjustable
Brightness Correction
dot by dot, module by module, cabinet by cabinet
Reliability
Temperature
Storage:-35℃-+80℃ ;
Operation :-25℃-+45℃
Humidity
Storage:10-70% RH ;
Operation:10--60% RH
Operating Life
≥100,000 hours
MTBF
≥10.000 hours
Continuous Working Time
≥48 hours
Protection Level
IP65
Out of Control Pixel Rate
0.03%
Product specifications are for reference only and subject to change without prior notice;
Please contact sales for details
At the same time, we can design according to customer requirements and production.
Pictures

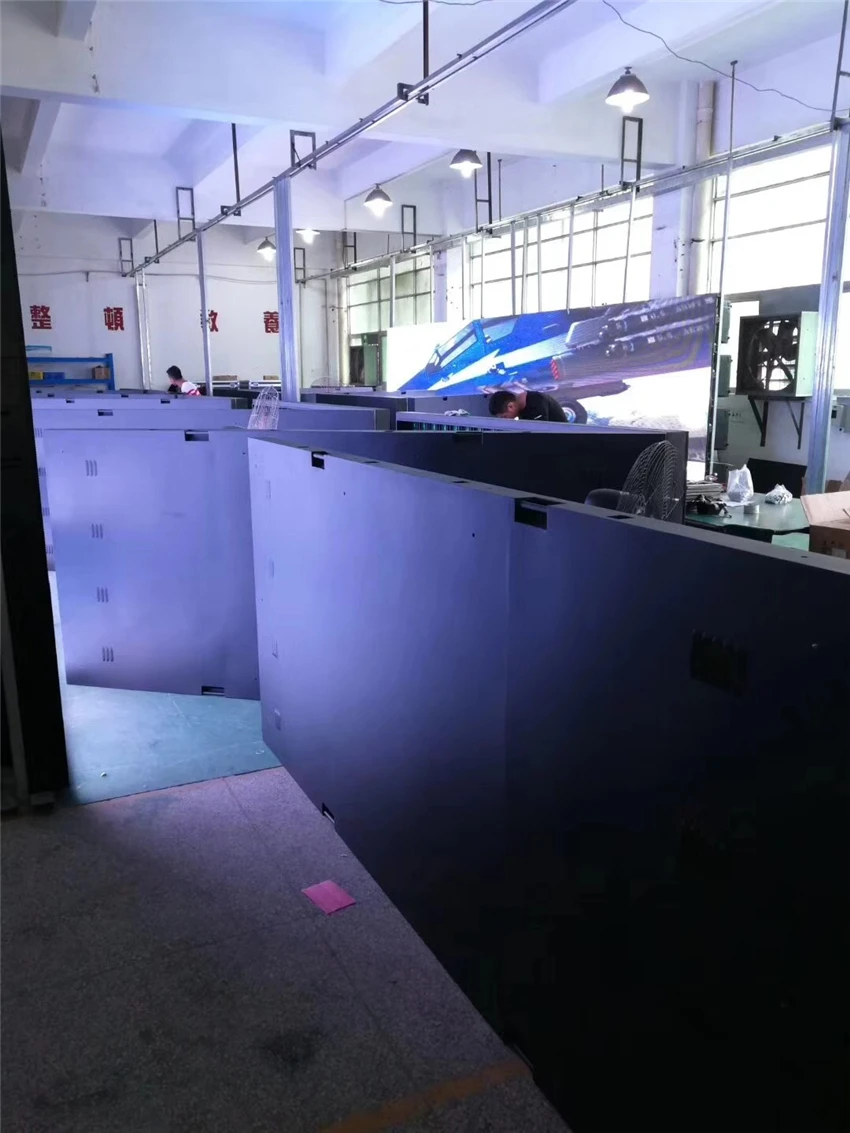

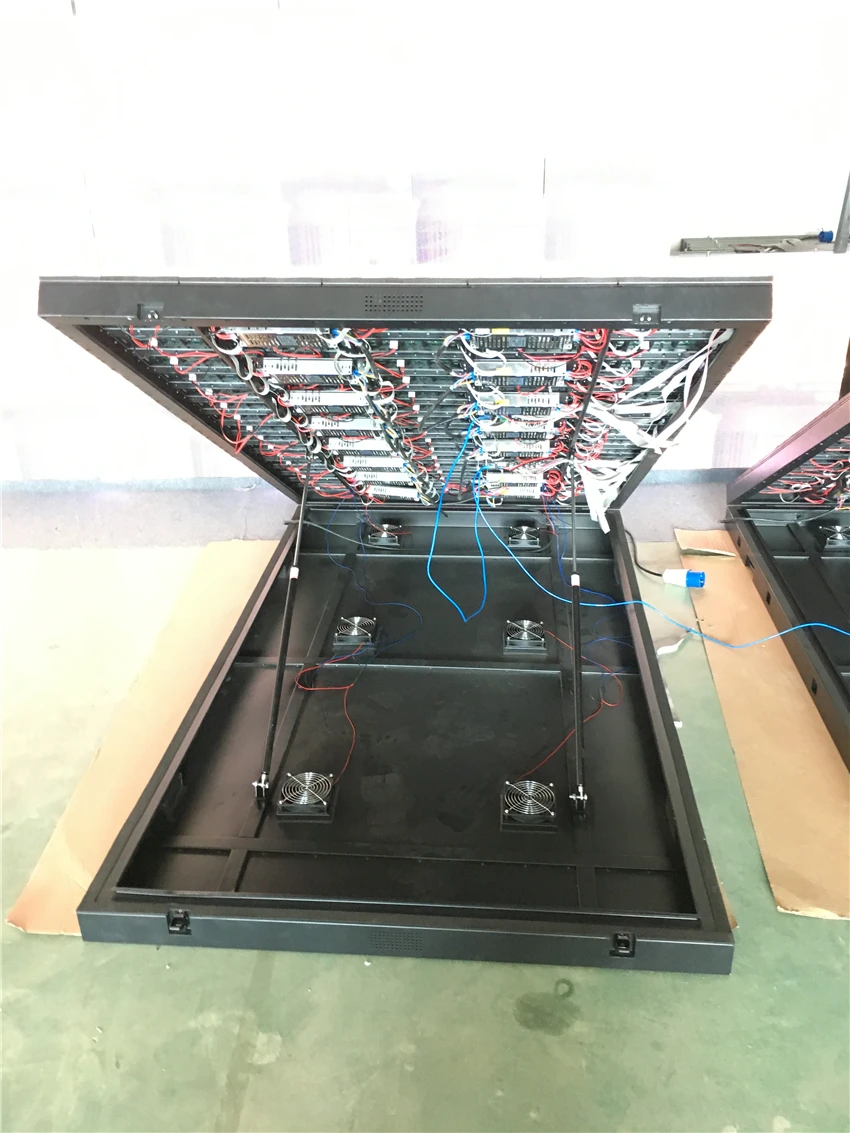

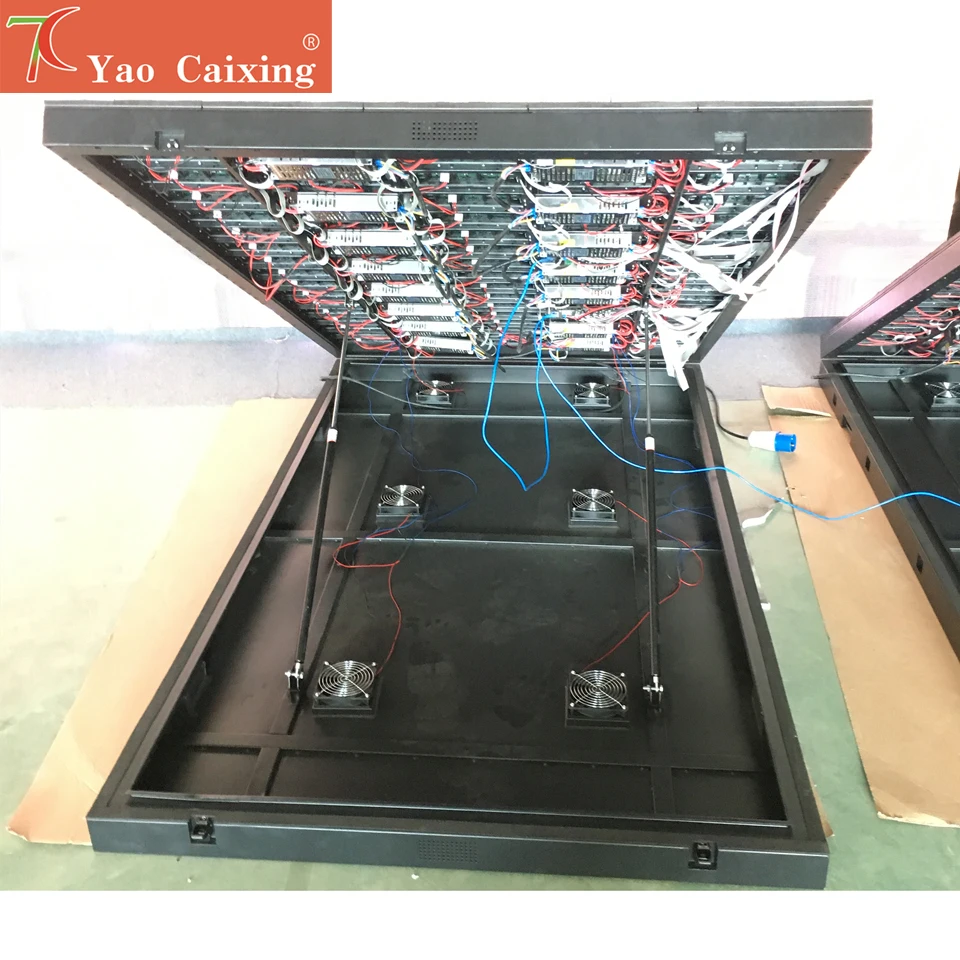

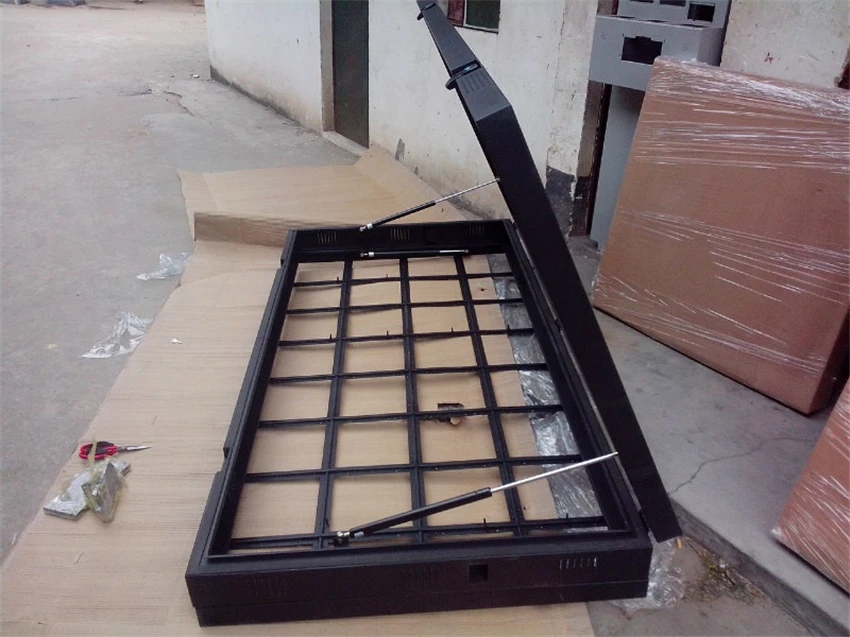

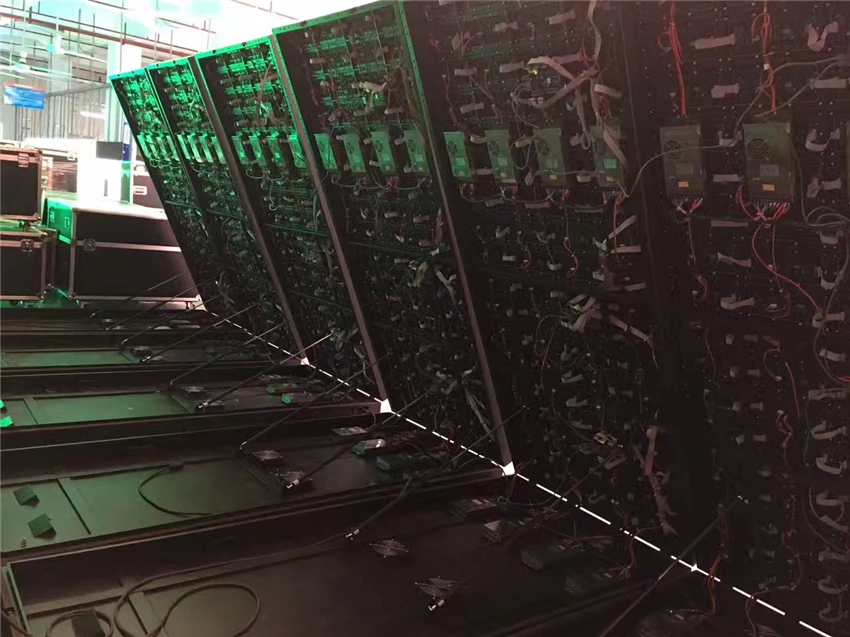

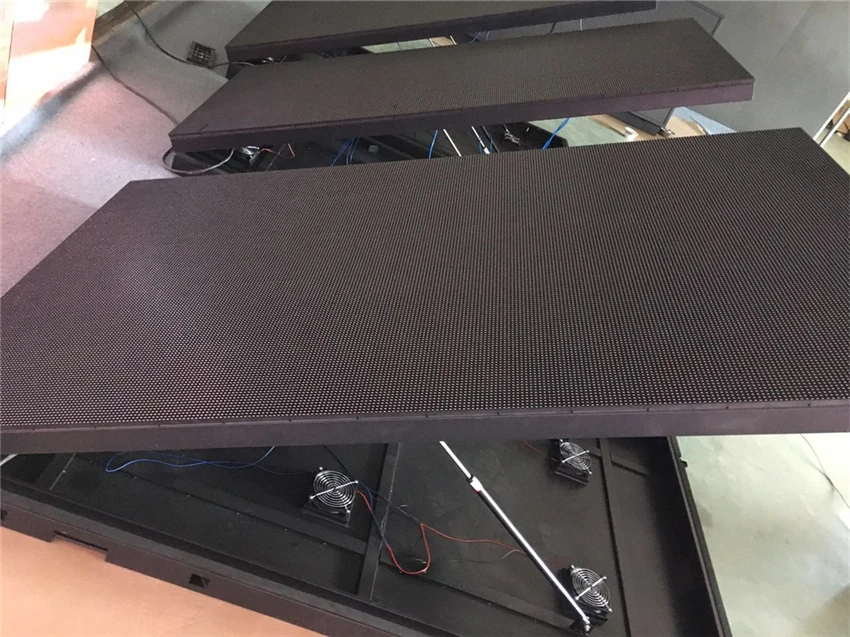

There are three kinds metal cabinet screen: Waterproof , Front maintenance and simple cabinet- Simple cabinet IP43, without door on background.
-Wooden box package
- We only ship to confirmed order addresses. Order address need match your Shipping address. - The images shown are not the actual item and are for your reference only.
- We will choose to ship your item from our first available warehouse for fast delivery.
