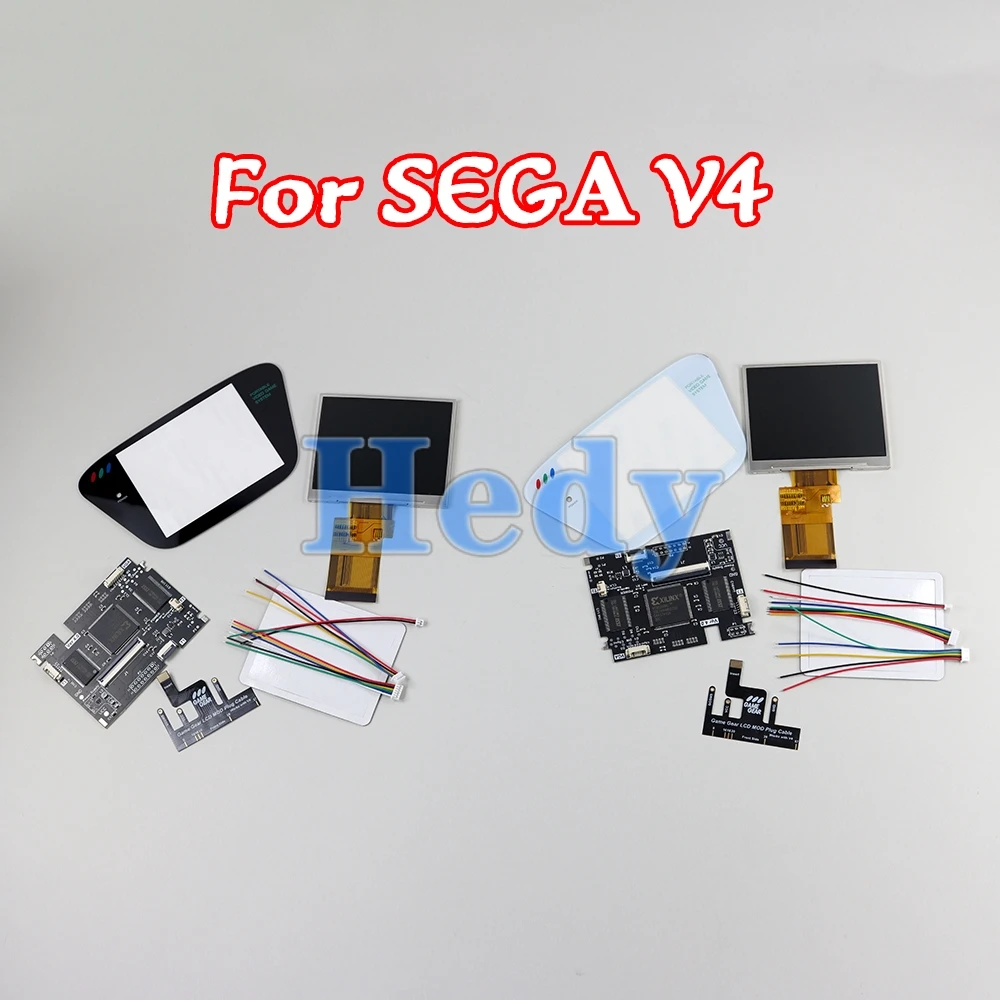

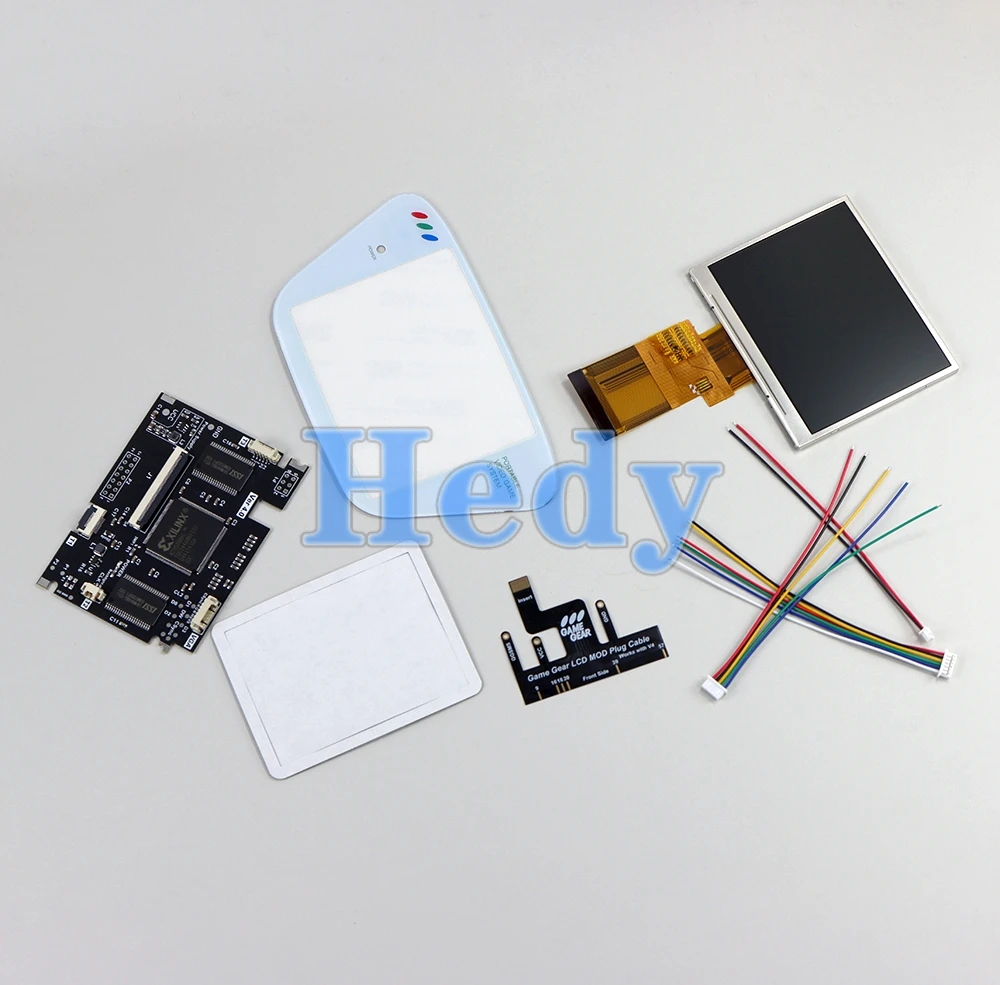

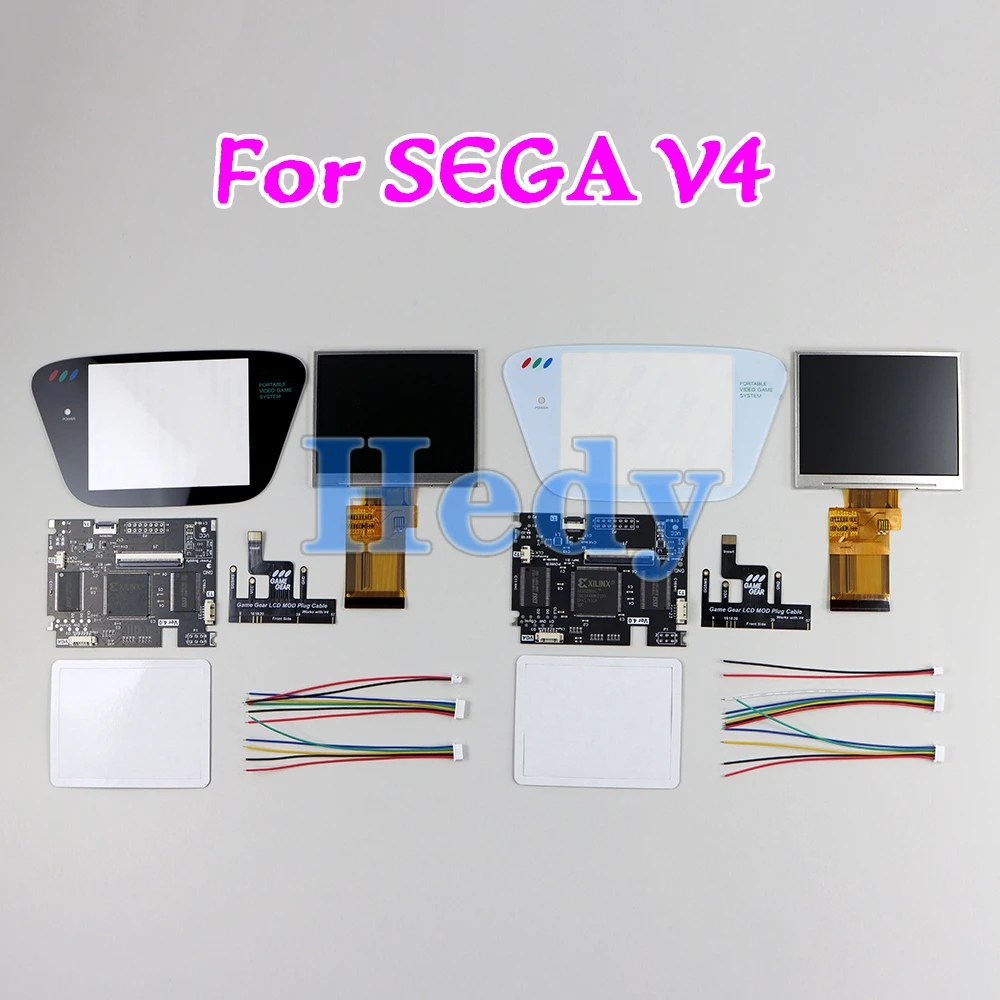

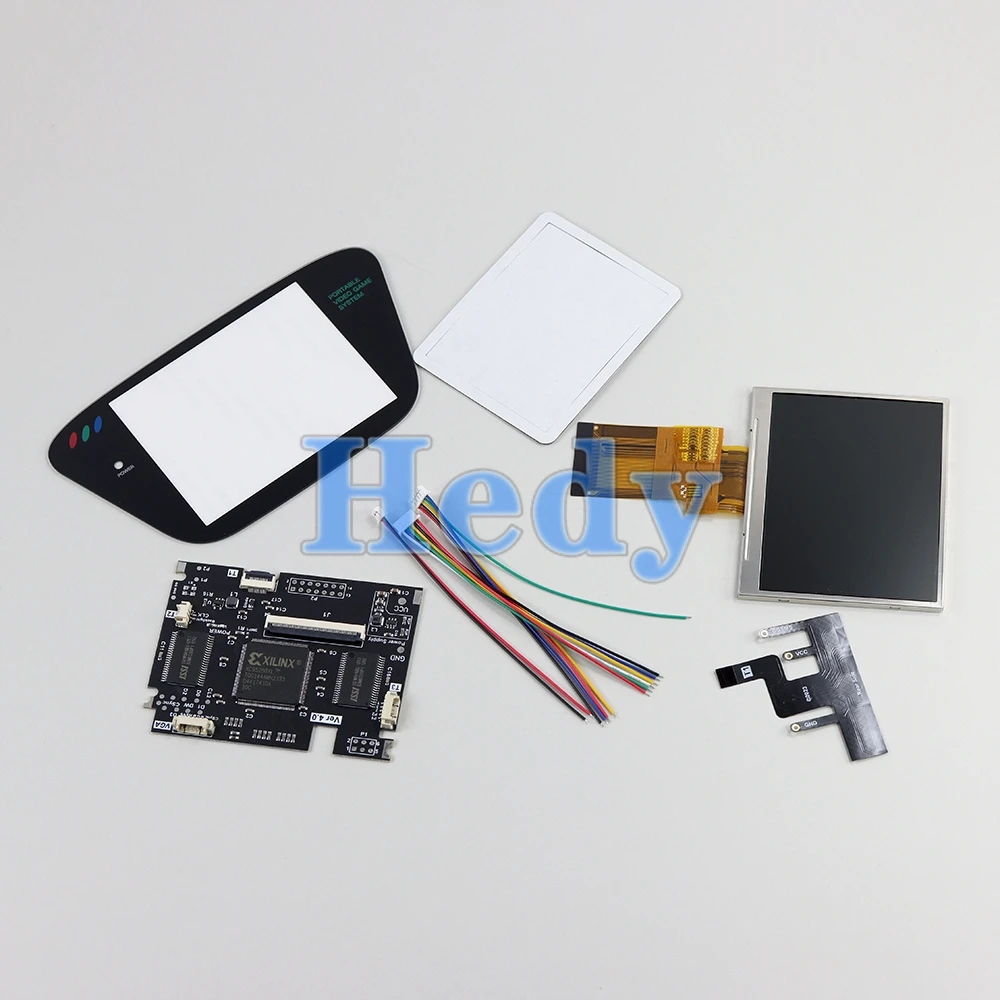

Highlight Full Display V4 LCD Screen Glass For SEGA Game Gear GG V4.0 Adjustable Brightness Support VGA Output Mod
Note：This product does not support VGA output. If you need this function, please purchase accessories and modify it byyourself. Ourstore does not support.
Product Description：

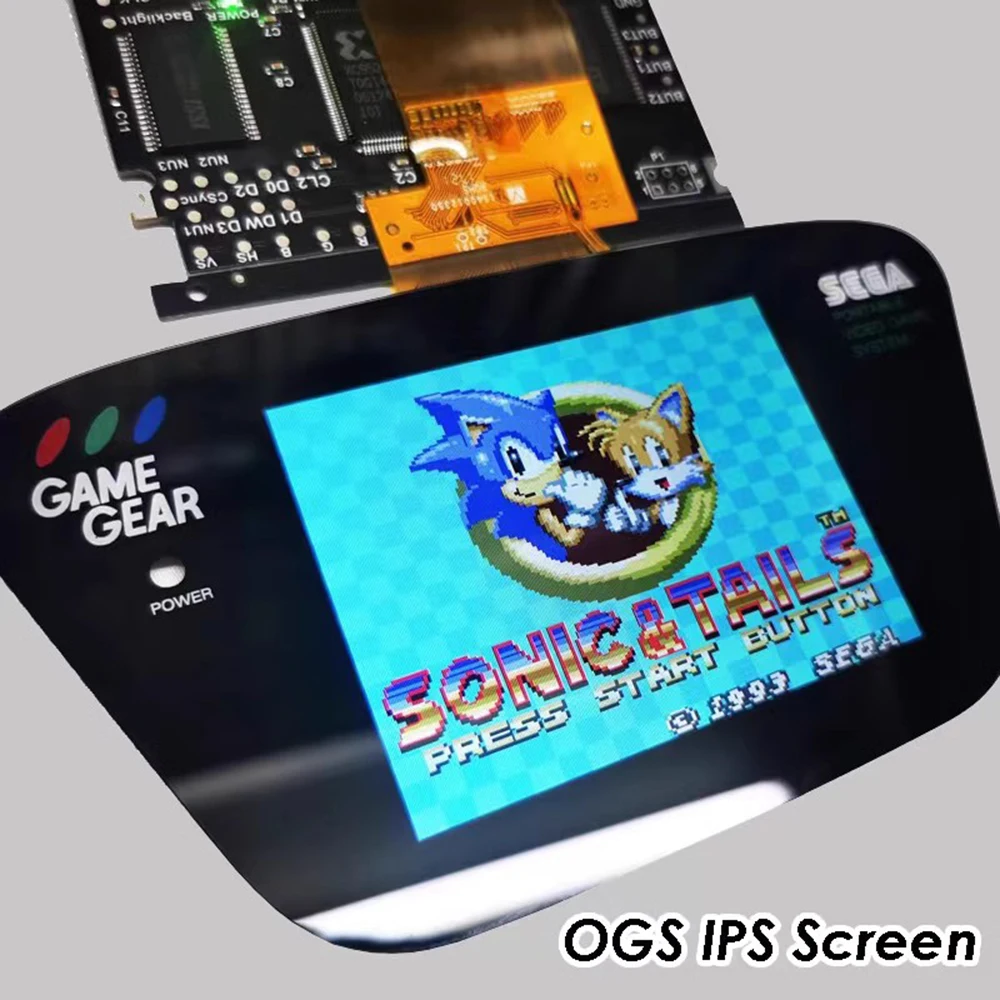

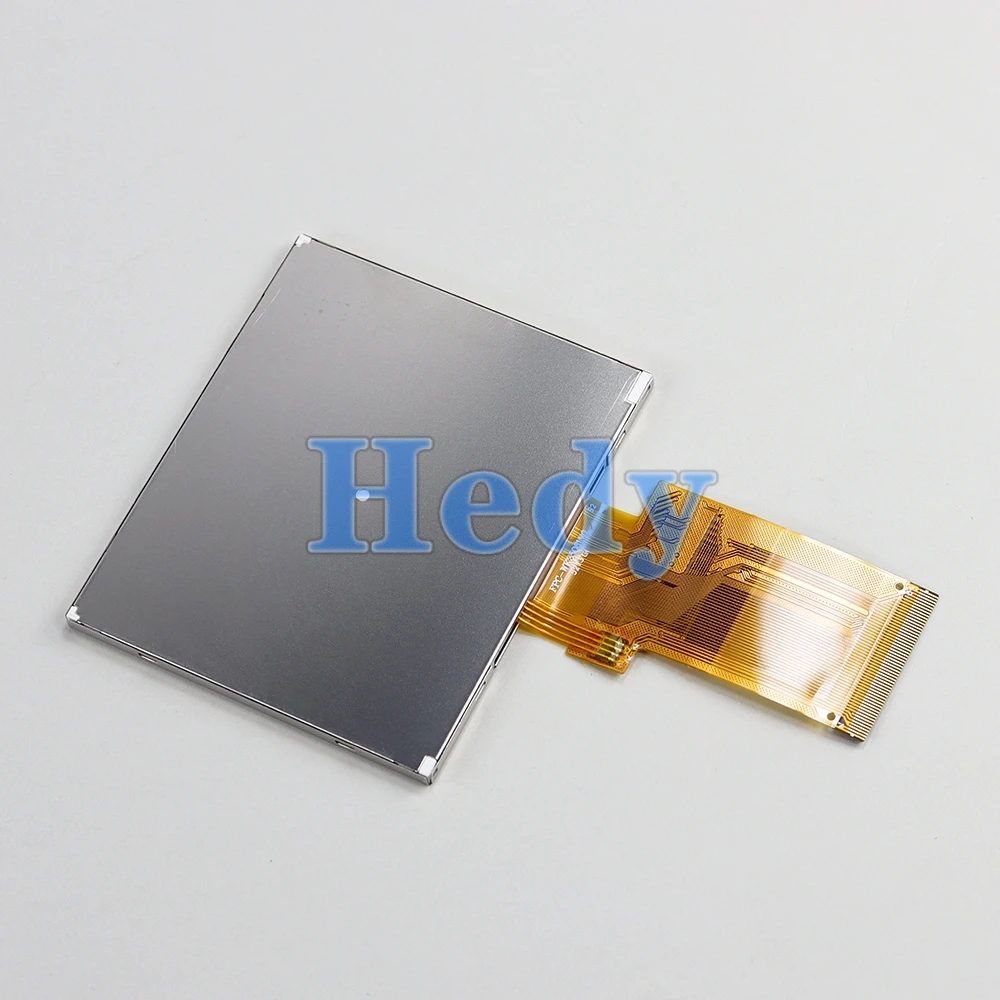

1. Item: V4 OGS IPS LCD Full Screen for SEGA Game Gear GG
2. Screen Size: 3.5 inch
3. Screen Resolution: 320*240
4. Support for: SEGA Game Gear GG
Feature:

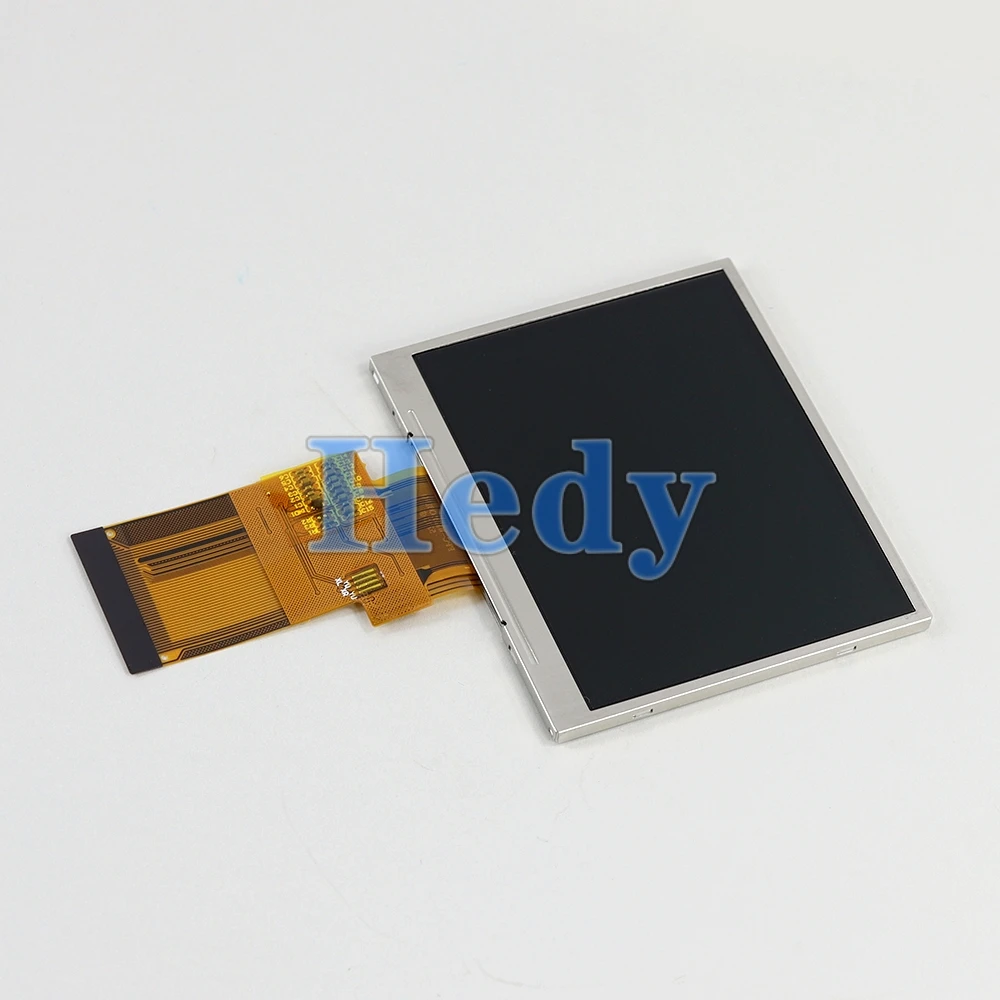

1. 3.5inch a-Si IPS LCD liquid crystal screen, 320*240 resolution, point-to-point full-screen display, high refresh rate, bright colors
2.Support Sega single chip motherboard and dual chip motherboard:
Single chip motherboard:
* ASIC PCB revisions 837-9130 / 837-9024 / 837- 8560
Two-chip motherboard:
* ASIC PCB revisions 837-7996 / 837-7719-01 VA0
3.Note:Can not support Majesco Game Gear VA4 / VA5
V4 Version Advantage:

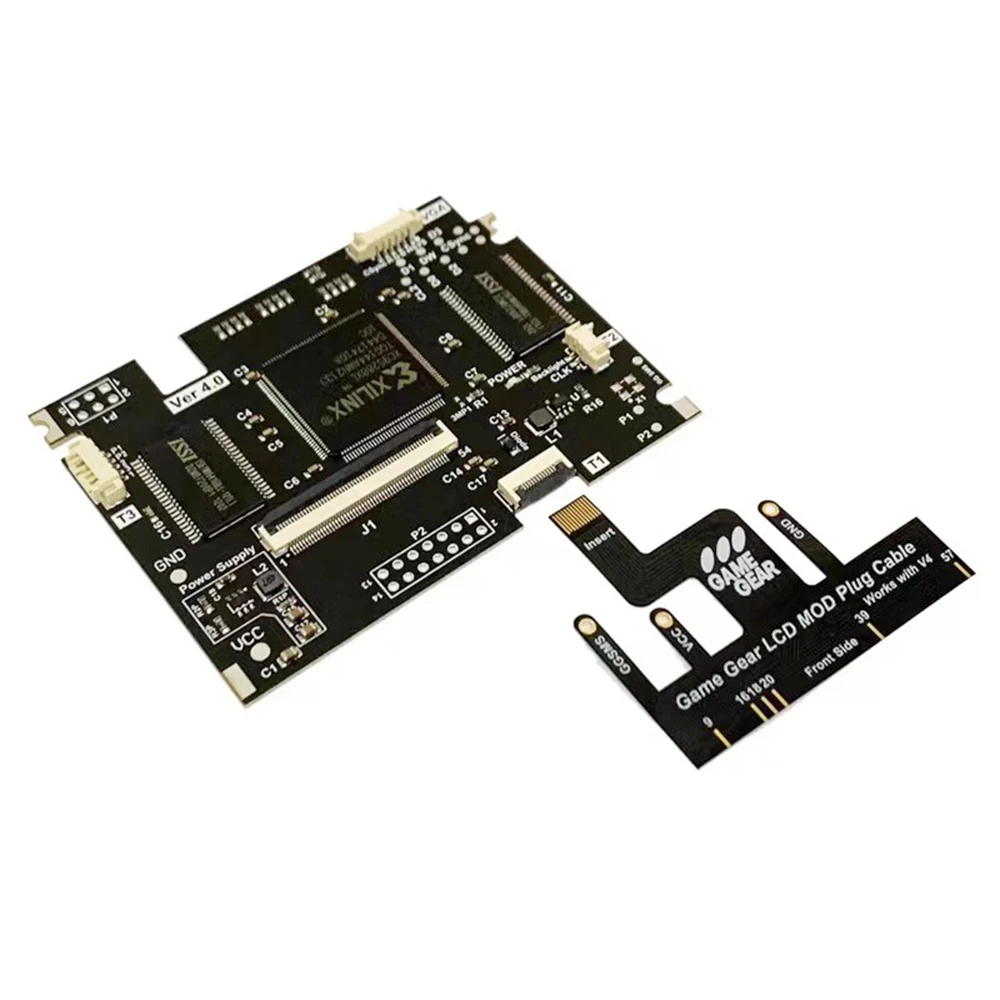

① The model of SRAM cache chip has been changed from IS61WV6416-10TI to IS61LV6416-8TI, it is more power-saving, faster and has solved the image tearing.
② The power supply is improved to AMS1117 3.3, the maximum load is 1.0A, and the operation is more stable.
③ Replacement of backlight drive circuit to reduce power consumption.
④ Welding marks are newly added to optimize the position of welding points, making welding easier.

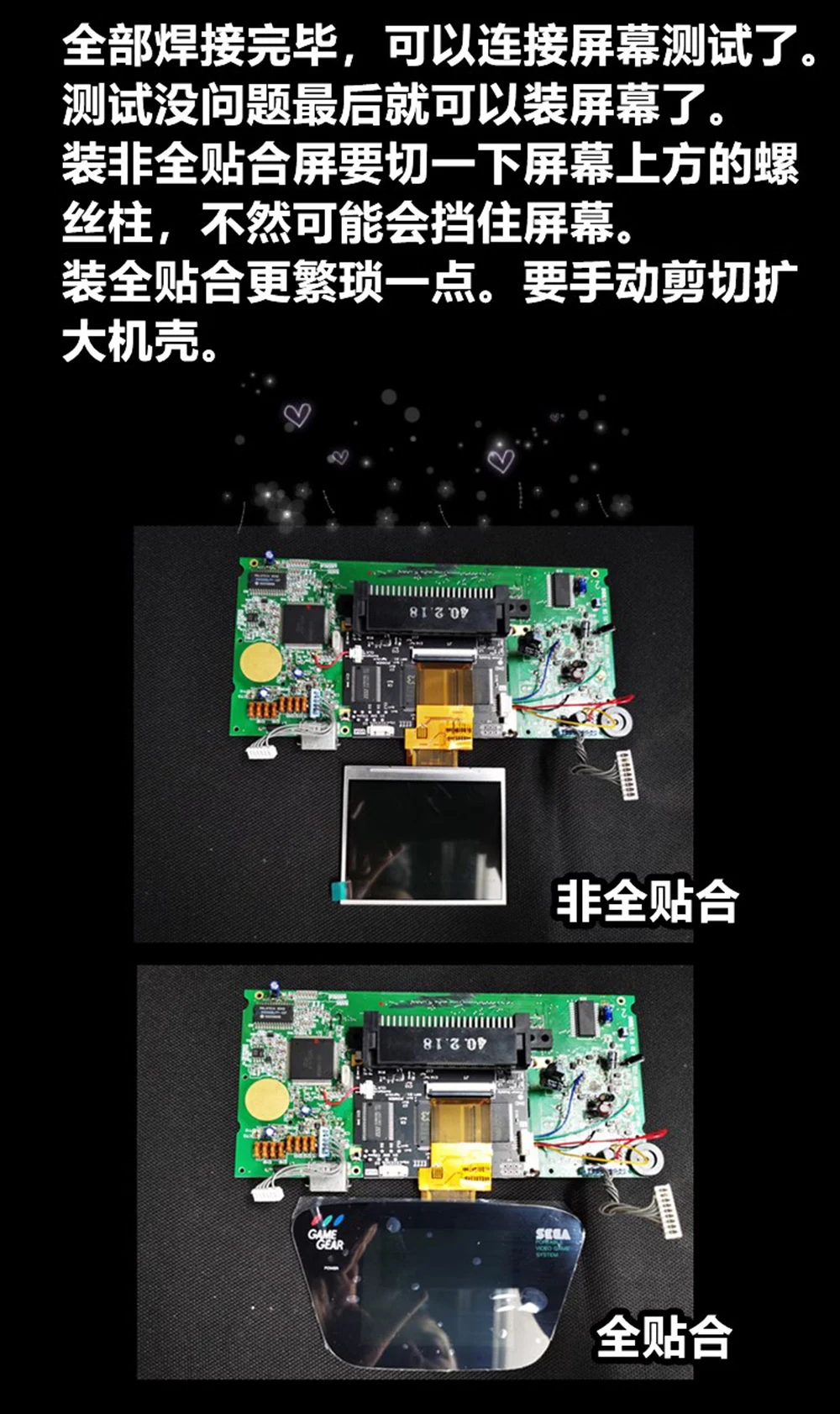

Note:This product needs to be soldered and needs to use the electric soldering iron.If you need the detailed installation tutorial, please contact us~
