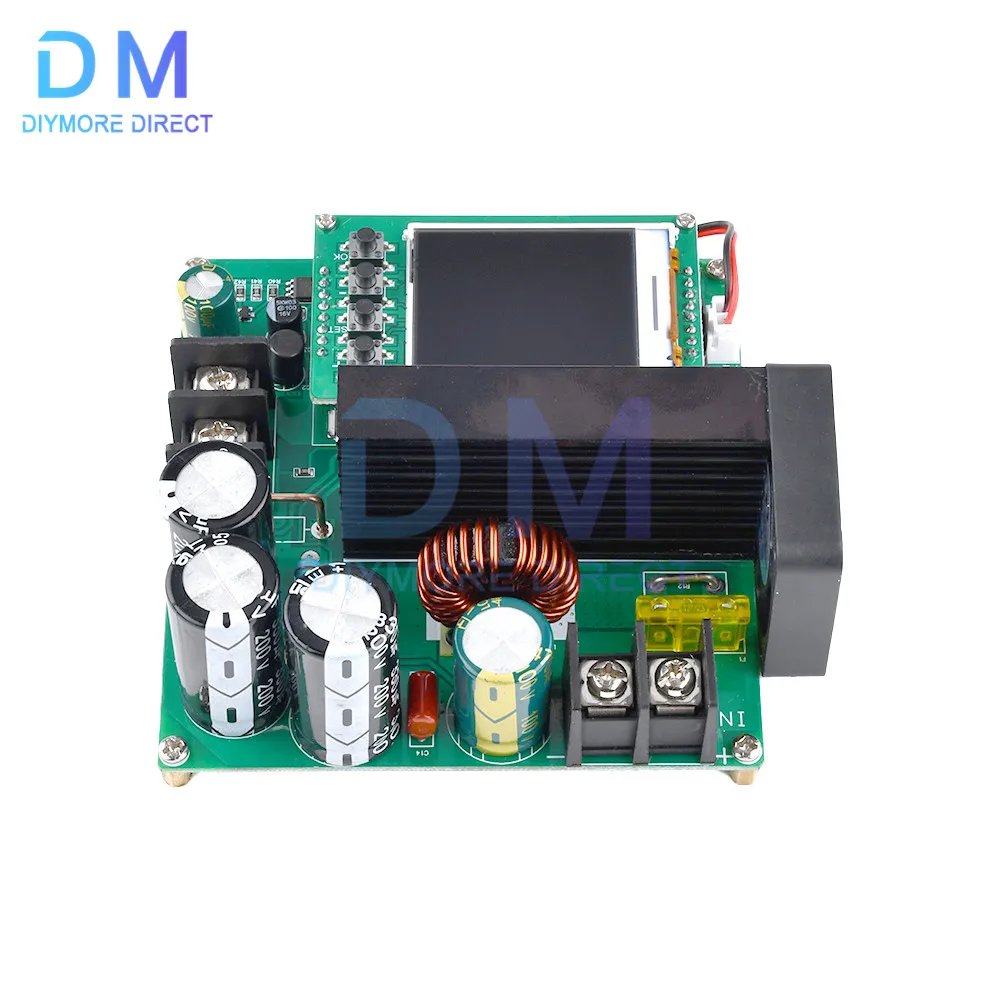

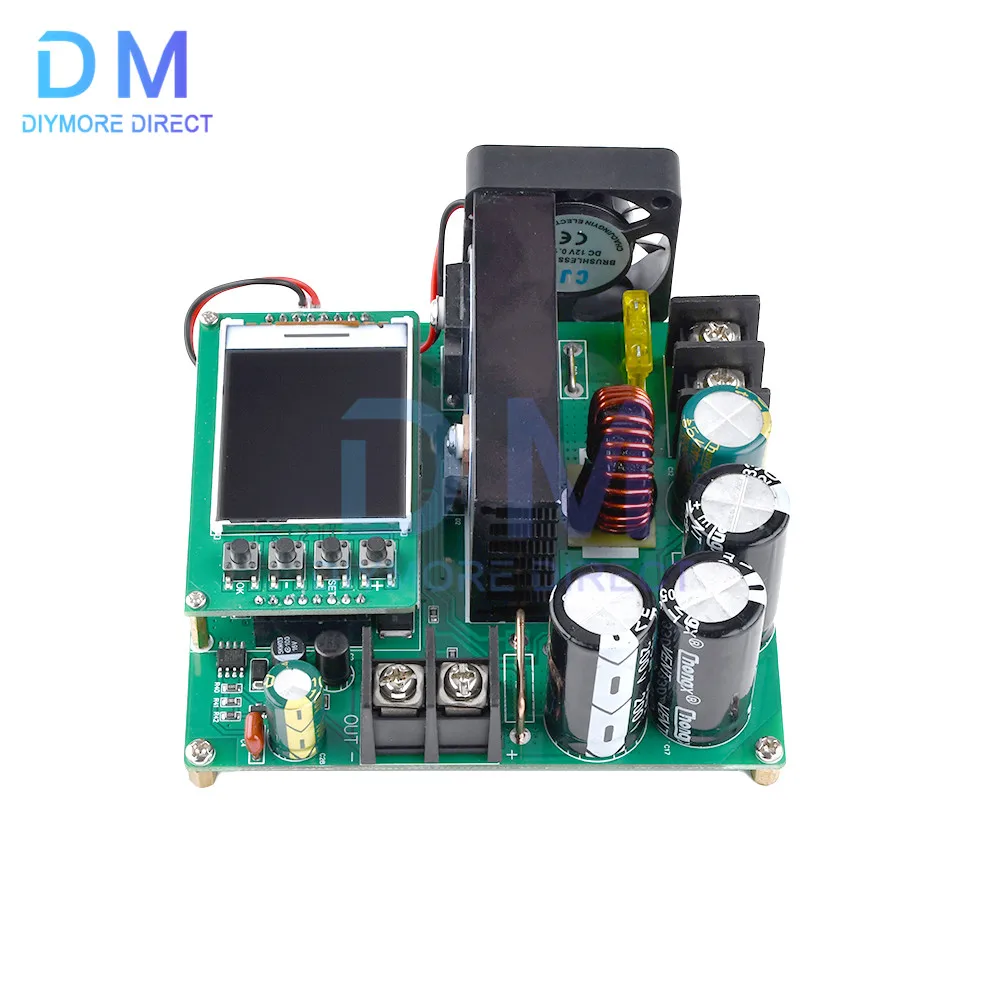

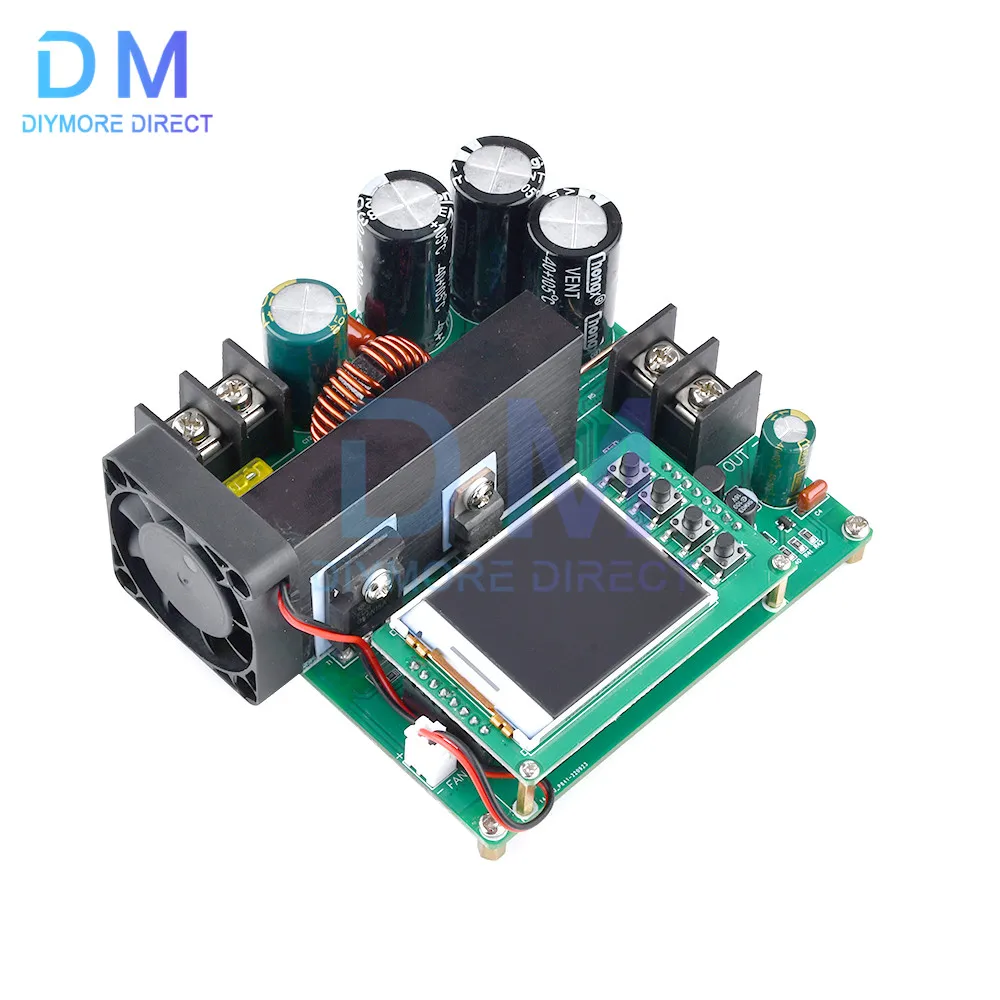

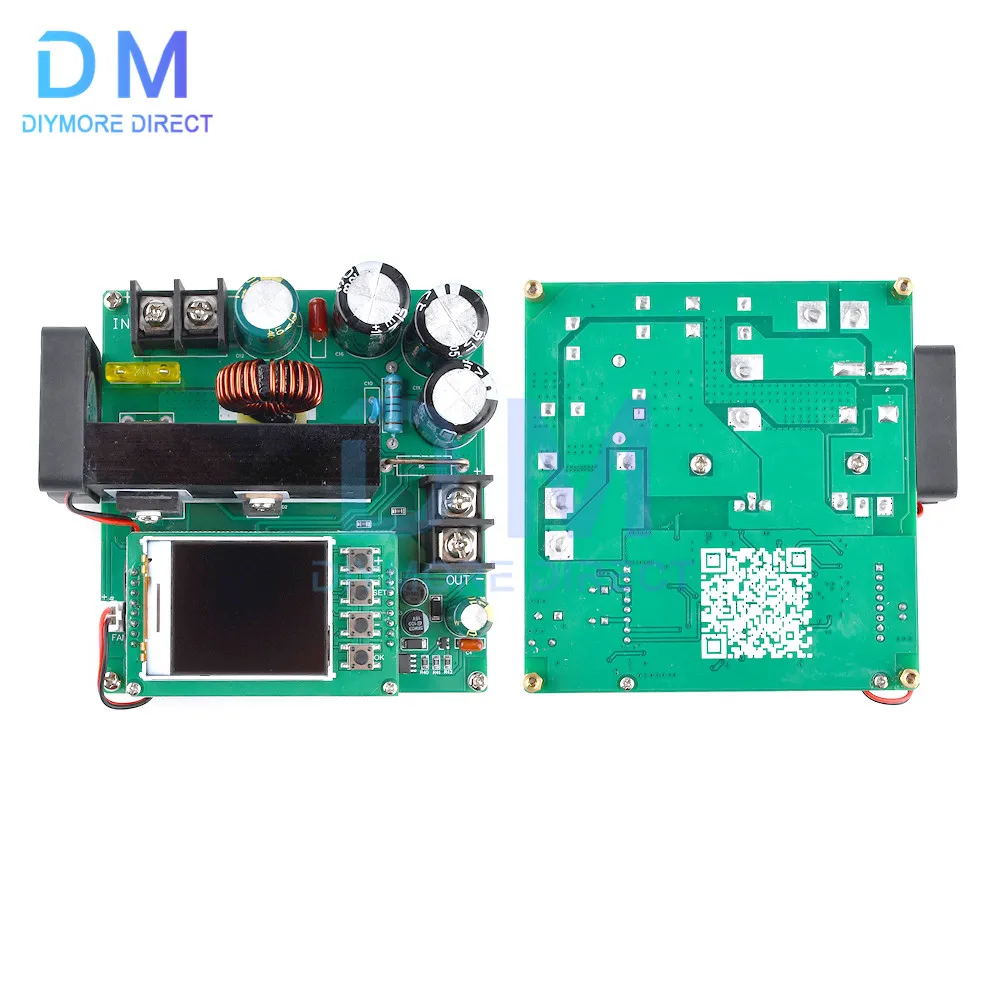

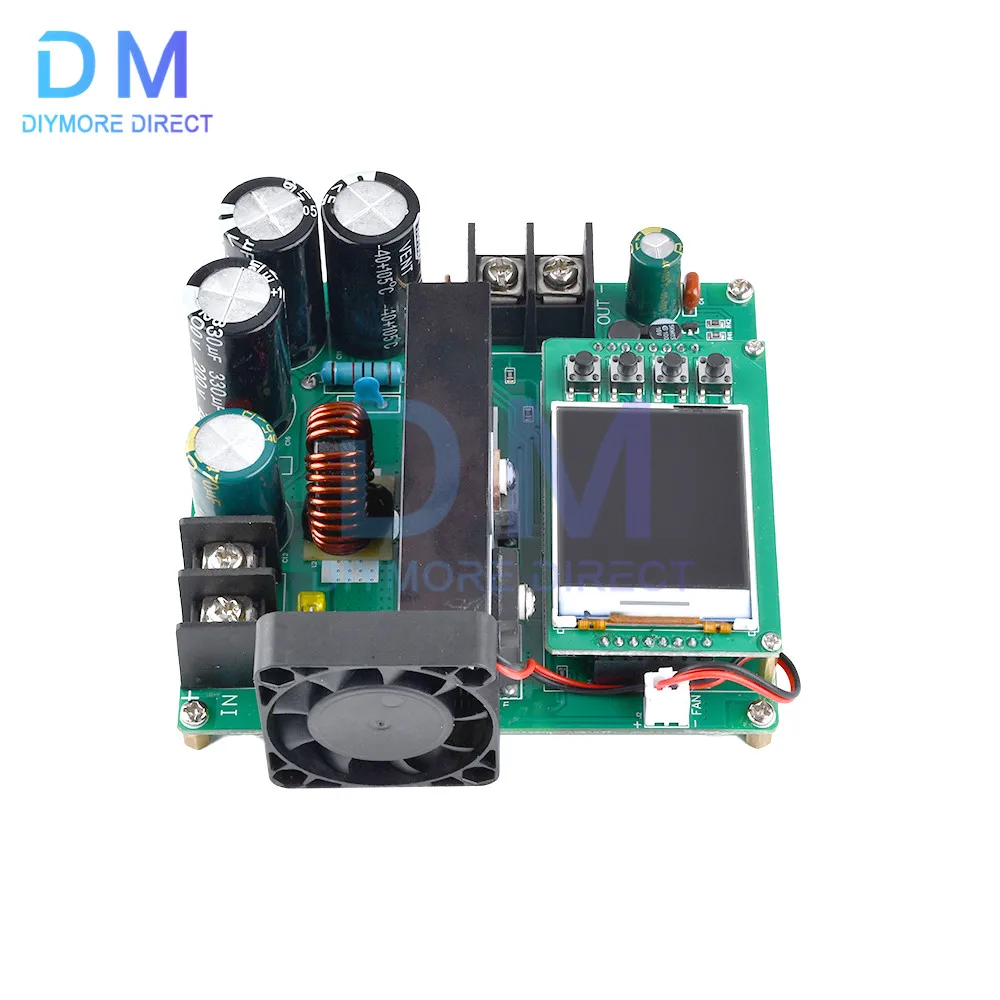

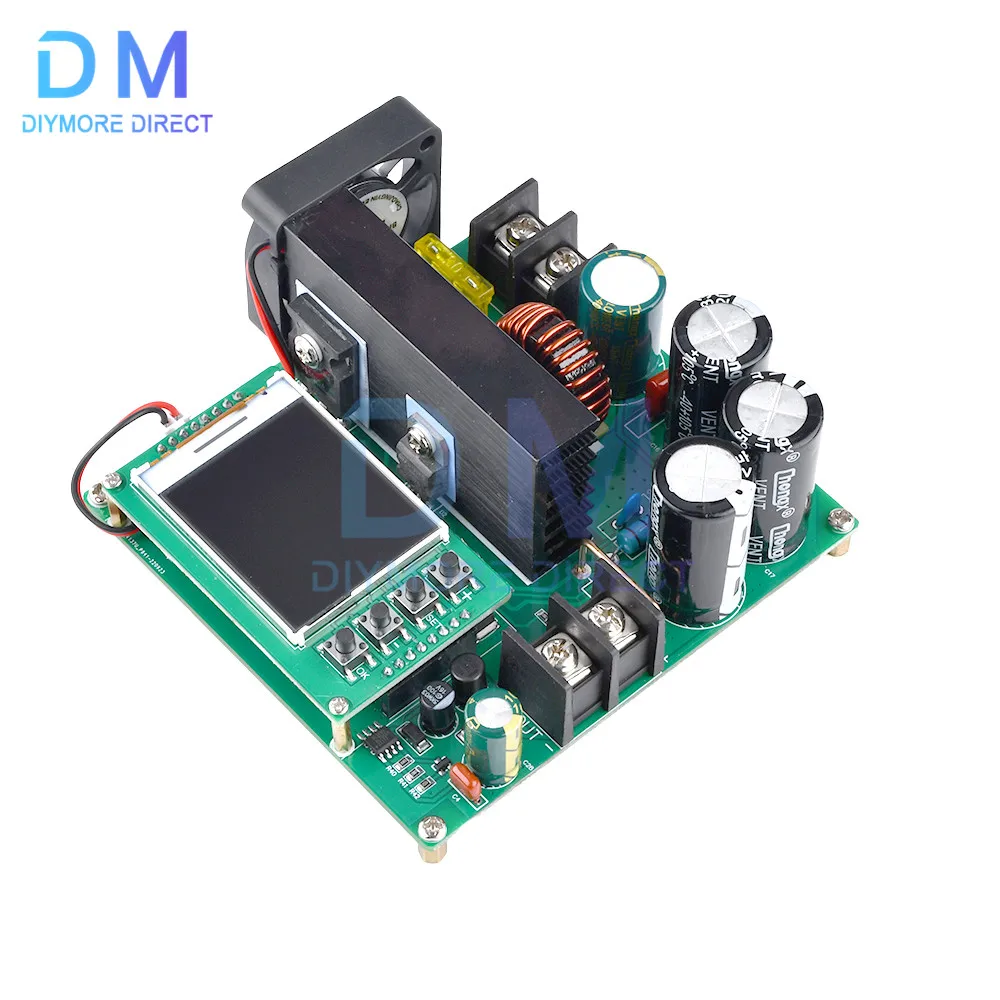

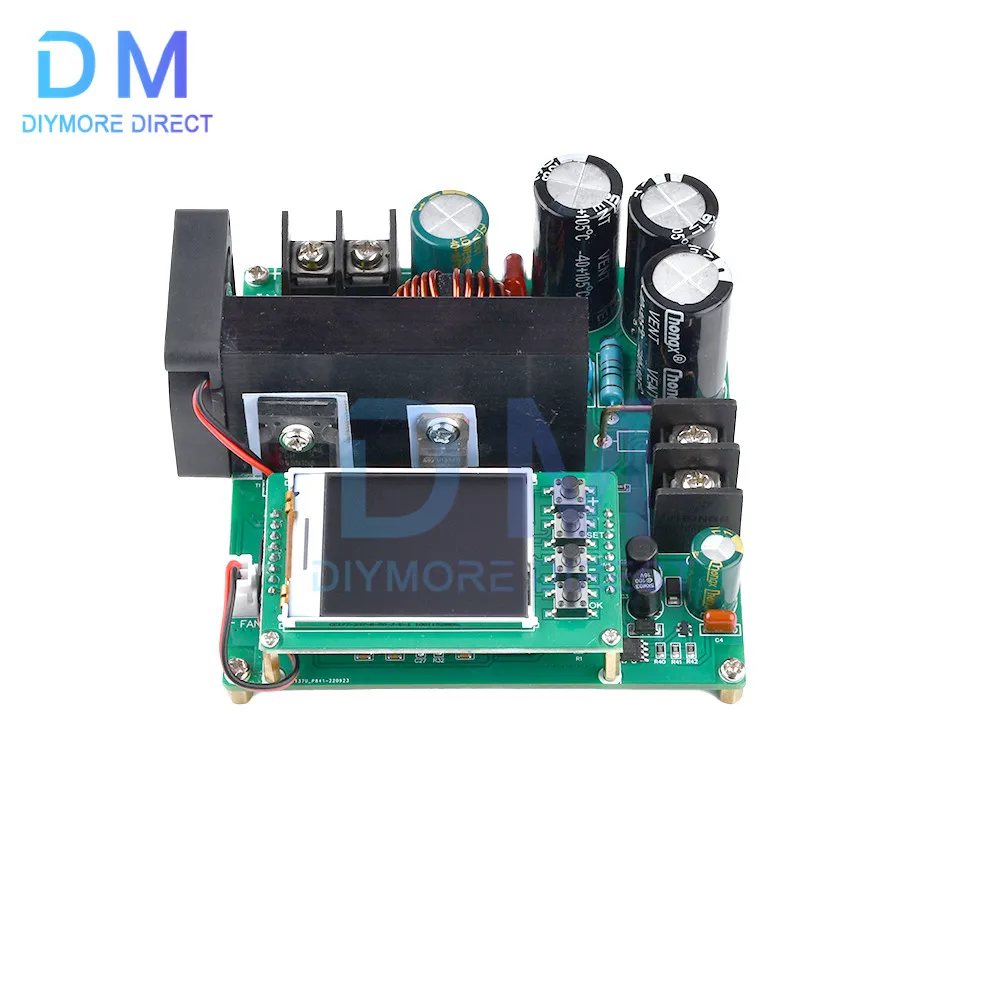

Pantalla LCD CNC de 900W y 15A, módulo de aumento de corriente constante, CC CV, entrada de 8-60V

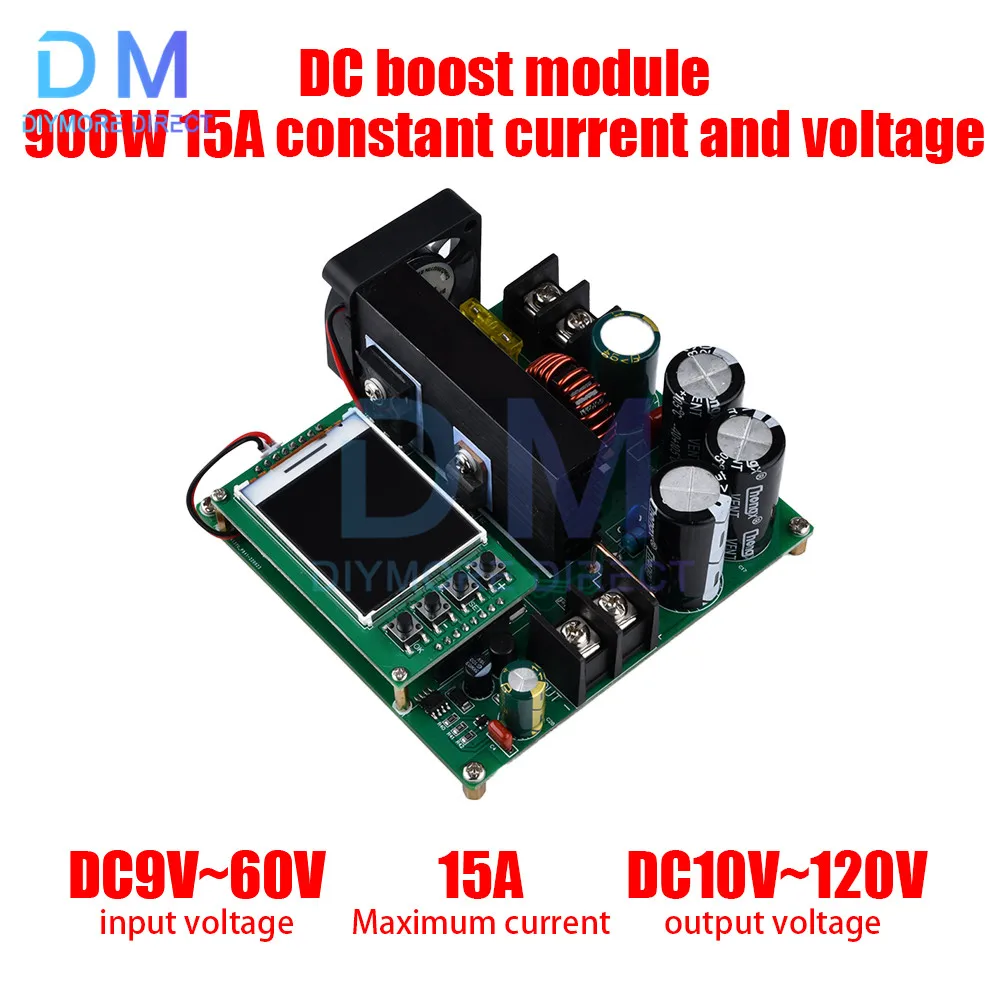

900W 15A CNC LCD Display Constant Current Constant Voltage DC Boost Module CC CV Step Up Module Board DC 8-60V Input

Product features.

Output current: 0~15A

Conversion efficiency: 85%

Active heat dissipation Continuous operation with input fan

Digital control + color screen display

Can be stored in groups: 10 groups

Technical parameters.

Input voltage (U-IN): DC9V~60V

Input current: 0~15A

Output voltage (U-OUT): 10V~120V

Output current: 0~15A

Conversion efficiency: 85%

Operating frequency: 150KHZ

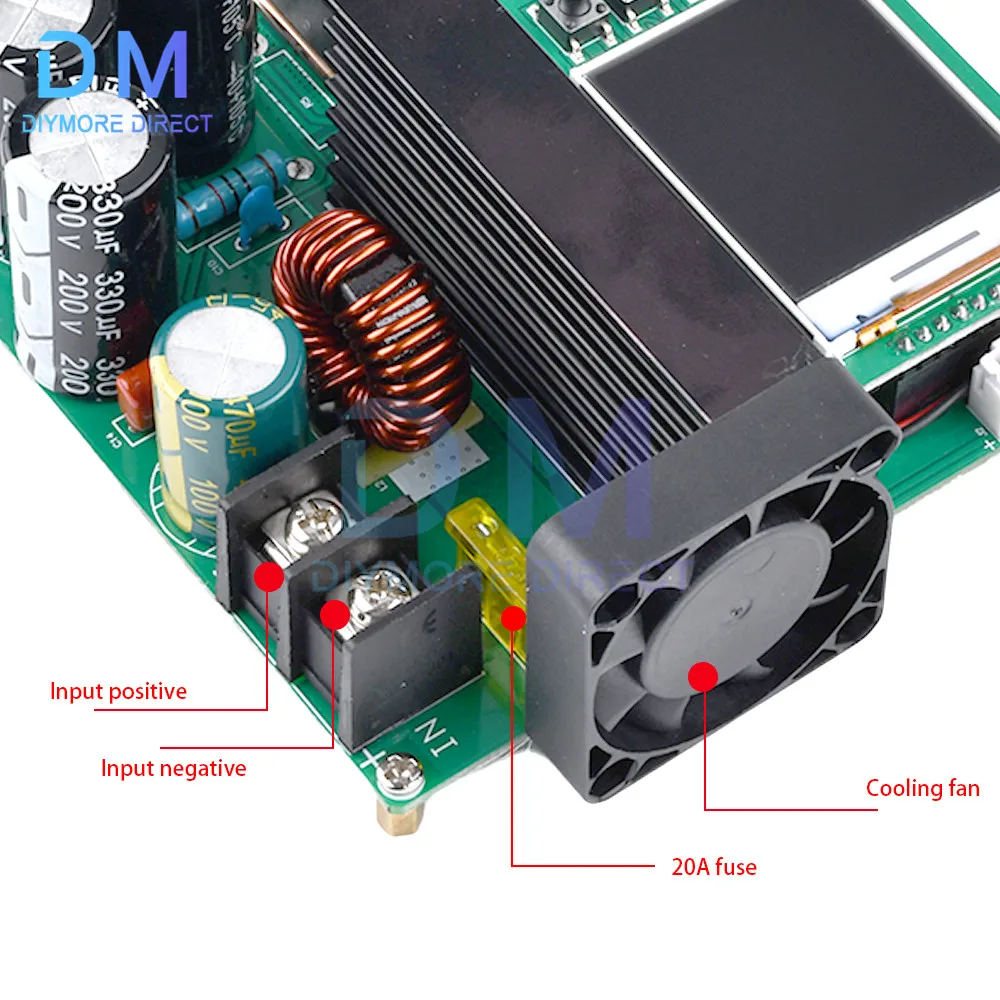

Short circuit protection: 20A fuse (non-self-recovery)

Operating temperature: -40℃~85℃

Heat dissipation mode: active heat dissipation connected to the input fan continuous operation

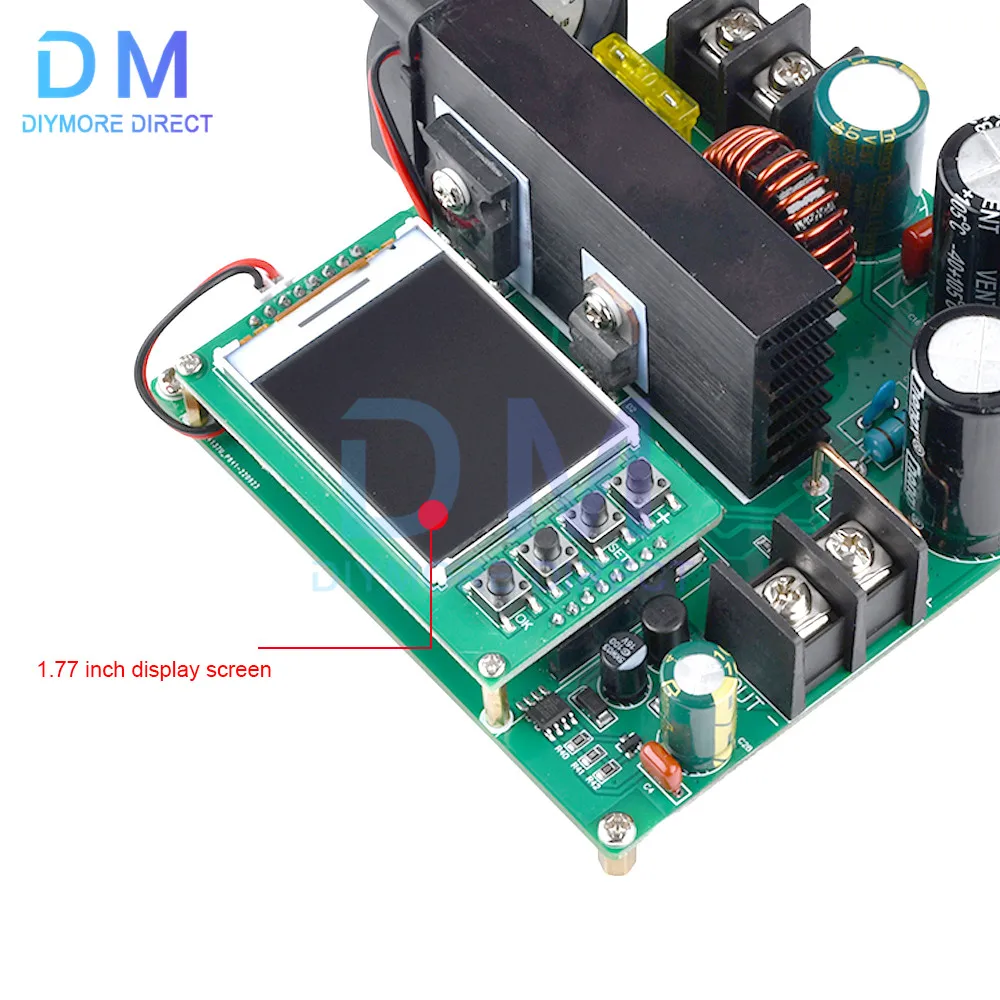

Control mode: CNC + color screen display

Voltage adjustment display: 009.0V~120.0V

Current adjustment display: 00.01A~15.00A

Output ripple: ≤50mV

Storage group: 10 groups

Standby power consumption: less than 150mA (measured when input 12V)

Weight: 235g (net weight) 280g (including packaging)

Size: 110mm×105mm×48mm (product)

Packaging size: 90mm × 110mm × 120mm (static bag + carton packaging)

Attention.

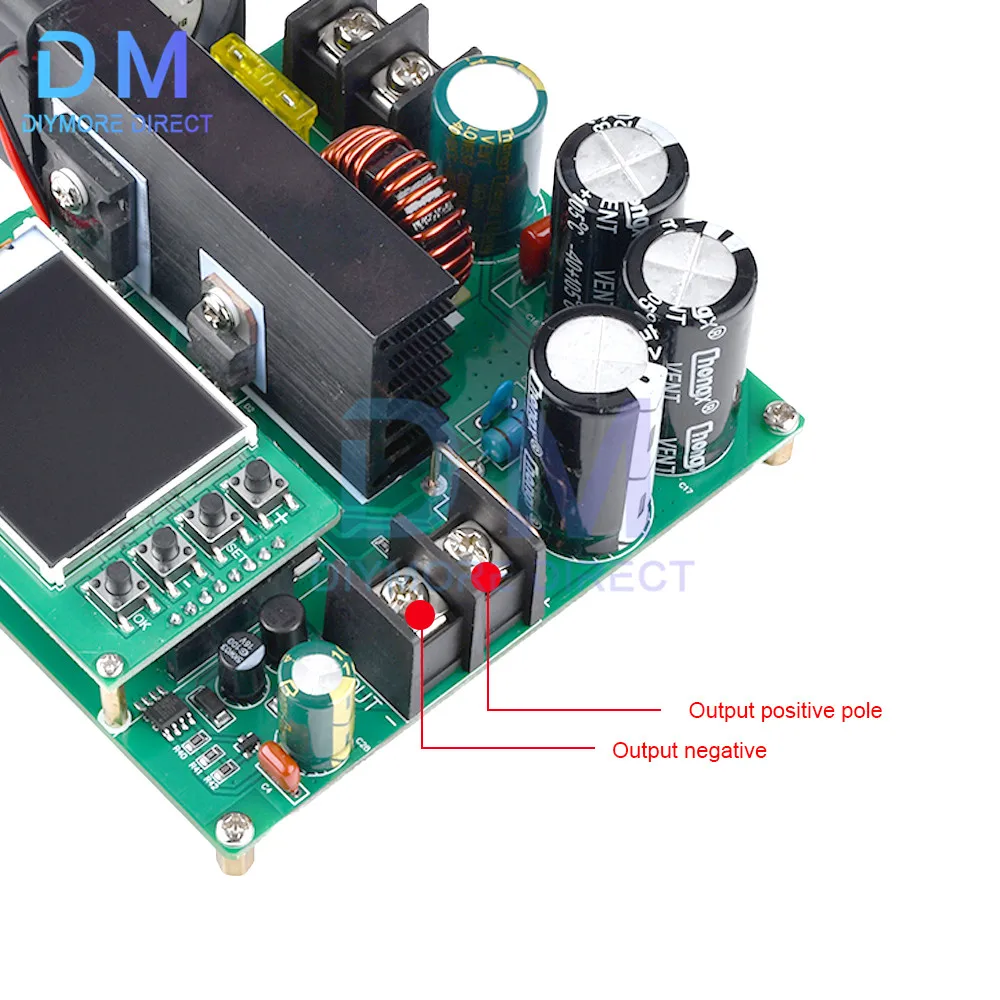

After connecting the input, the output always has electricity output, the voltage is equal to the real-time output voltage shown in the interface

Shipping list.

DC boost module X1
