P4/P5/P6/P8/P10 gabinete de aluminio impermeable al aire libre 1R1G1B pantalla de señales led a todo color smd matriz de puntos pantalla de pared de vídeo digital

Our Advantage

1.CCC,CE&Rohs,ISO9000,FC,

2.Life span:more than 100000h

3.Excellent after-sales services with free repair whole life

4.MOQ: 1pcs 960*960mm die-casting aluminum cabinet screen.

5.Our package type:wooden case or flight case (extra charge)

6.Prompt delivery: 14 working days after get deposit.

Specification

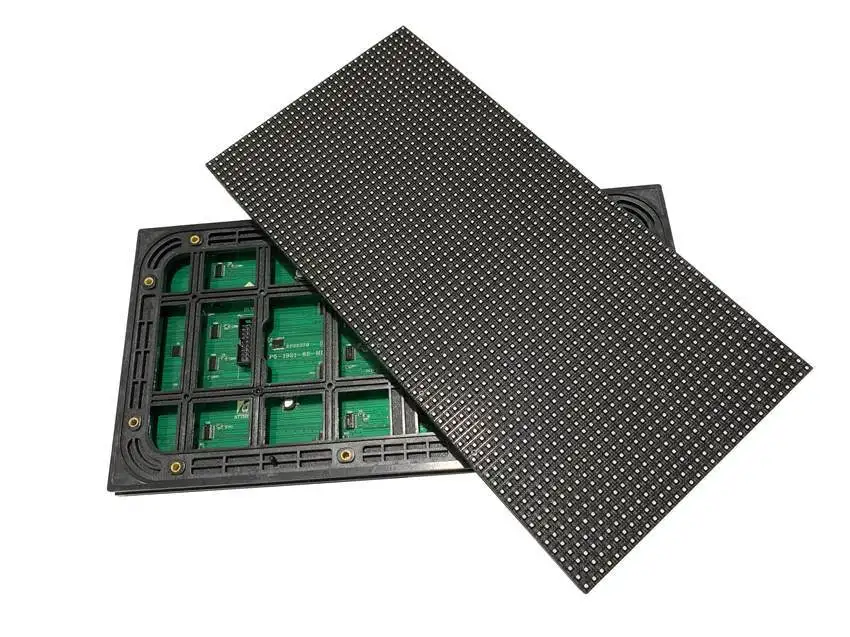

Module Parameter

Size

160mm(H)×320mm(H)

Module Resolution

32(H)×64(W)

Pitch

5mm

Density

40.000 pixels/m²

LED Lamps

SMD1921(Customizable Nationstar lamp)

Driver IC

Standard

Module Refresh

4880hz

Mask

Pure Black mask-high contrast screen

Cabinet Parameter

Cabinet Resolution

192(H)×192(W)

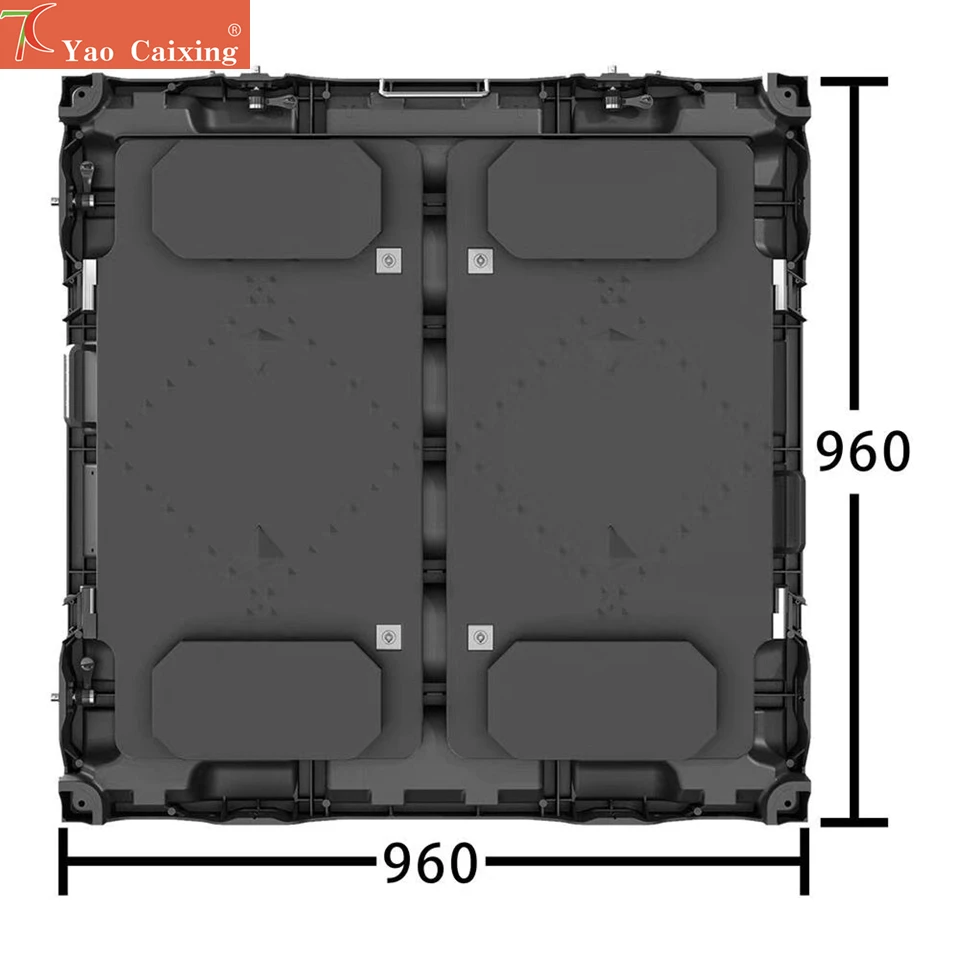

Cabinet Size

960mm(H)×960mm(W)

Cabinet Weight

28kg

Driver Mode

Dynamic 1/8scan , constant current driving

Cabinet Power

≤900w

Cabinet Thickness

≤105mm+3mm

Electricity Parameter

Optical Ratings

Brightness Of White Balance

≥5500cd/m²

View Angle

140 degree ( horizontal)

140degree(vertical)

View Distance

4m-200m

Gray Scale

65536

Display Color

3-in-1 RGB

Brightness Adjustment

100 levels

Power Supply

Operation Power

AC100-240V 50-60HZ Switch-able

Maxim Power Consumption

900 w/m²

Average Power Consumption

400 w/m²

Control System

Correction Scale Level

16bits

Screen Refresh Frequency

1920Hz

Gamma Correction

-5.0—5.0

Support Input

HDMI,DVI,VGA,RJ45,USB,Serial Port

Control Distance

Ethernet cable 100m, optical fiber 5km

Support VGA Mode

800×600,1024×768,1280×1024,1600×1200,1920×1080

Color Temperature

5000-9300 adjustable

Brightness Correction

dot by dot, module by module, cabinet by cabinet

Reliability

Temperature

Storage:-35℃-+80℃ ;

Operation :-25℃-+45℃

Humidity

Storage:10-70% RH ;

Operation:10--60% RH

Operating Life

≥100,000 hours

MTBF

≥10.000 hours

Continuous Working Time

≥48 hours

Protection Level

IP67

Out of Control Pixel Rate

0.03%

Product specifications are for reference only and subject to change without prior notice;

Please contact sales for details

At the same time, we can design according to customer requirements and production.

Shenzhen YaoCaixing Electronic Co.,LTD is founded in 2008 which is located in the world display screen manufacturing center - Fuyong,SheZhen China.The cover area is about 20000square meters. We are specialized in the development,production,sales and services of the LED display and focus on providingcustomers with a full range of product solutions.It is a integrated operation service private enterprise in photoelectric LED display filed.

After several years of study and unremitting efforts,the company gathered a large number of talents and has accumulated rich experience,owned the firstclass automated production equipment and standard production workship,also established a systematic and professional display screen productionprocess and provide a powerful guarantee for the quantity of the LED display to improve the the stability and product cost performance.

Main products:inside and outside LED DIP electronic display screen,LED SemiSMD full color,LED SMD full color screen ,households inside and outsidedouble-color,LED highway screen,LED large screen.And the production types areP2,PH2.5,PH3,PH4,PH5,PH6,PH7.62,PH8,PH10,PH16,PH20,etc.
