500mtr 1000M 2000M OTDR launch cable box metal housing FC SC UPC MM 50/125um Bare fiber OTDR Dead Zone Eliminator ELINK 500M
Brief Introduction:
Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in many different configurations and fiber lengths
Features:
Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
Compound Latch for positive seal and easy opening with locking feature.
Nonmetal construction will not dent, corrode, or conduce electricity
Water and dust prove allowing the unit to be taken into almost any environment
Case can house up to 1,000 meters of fiber
Auto Purge Valve for changes in altitude and temperature
Specifications
Mechanical Environmental Characteristics
Material
Metal
Color
Black Green
Packaging
Rugged,hard-shell transit case
Storage Temperature
-40 ~ +85°C
Operating temperature
-40 ~ +85°C
Humidity
0~95% (no condensing)
Fiber & Connector Characteristics
Fiber Types
G652D
Typical Loss
1dB@1310 for 500 meters
Connector Type
SC/LC/FC/ST
Polish
PC,UPC,APC
Return Loss
UPC=50dB,APC=60dB,PC=35dB
Repeatability(dB)
=0.2(1000 times)
Exchangeability(dB)
=0.2

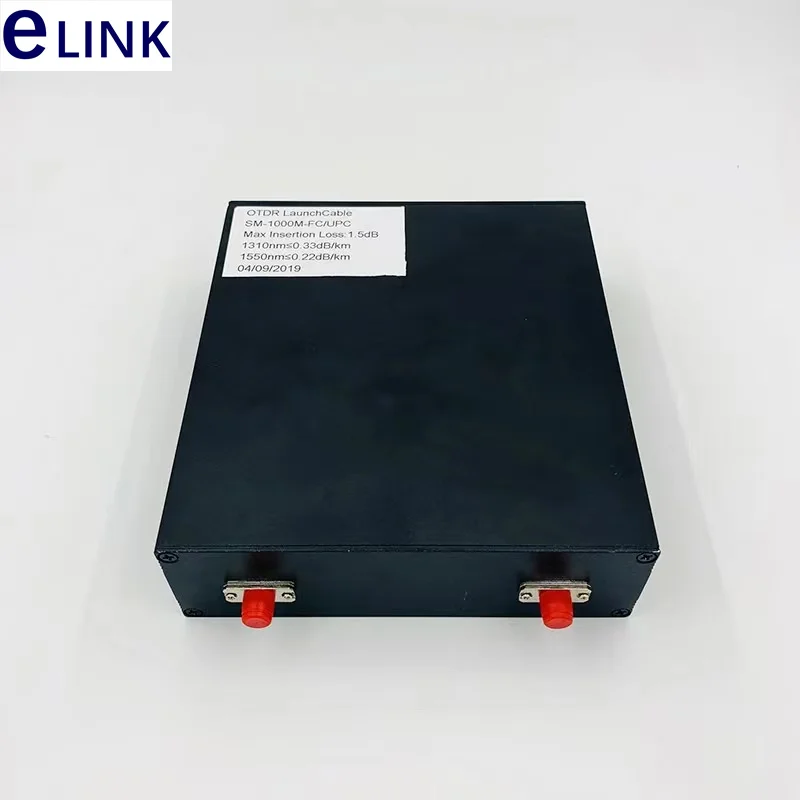

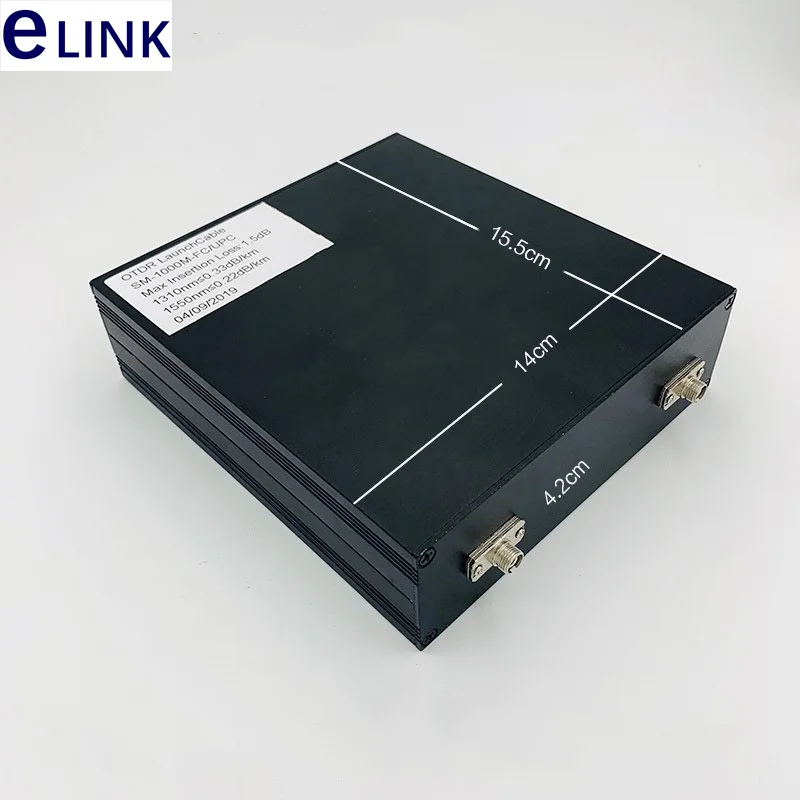

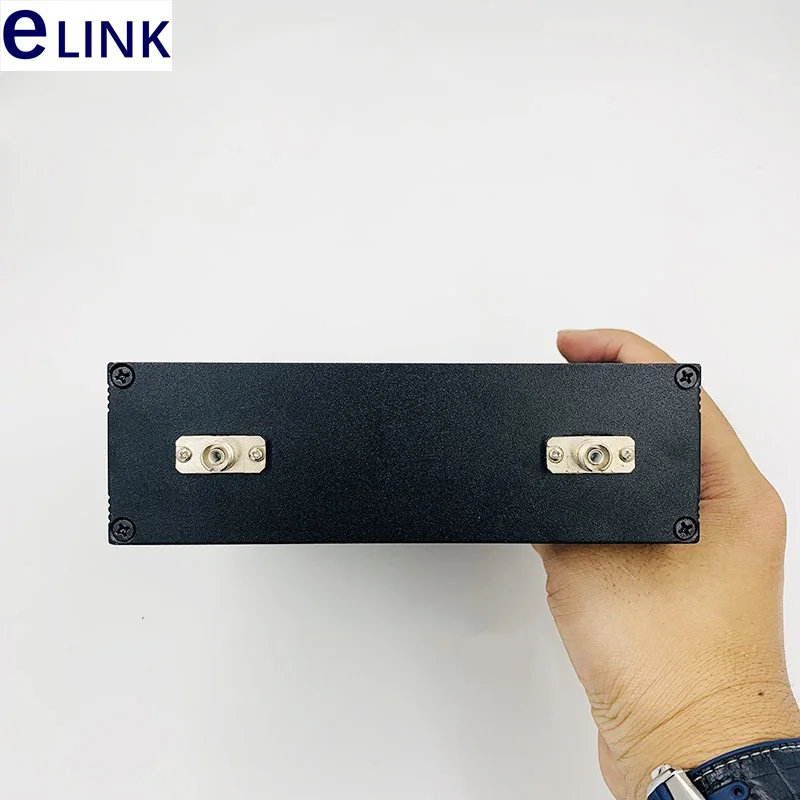

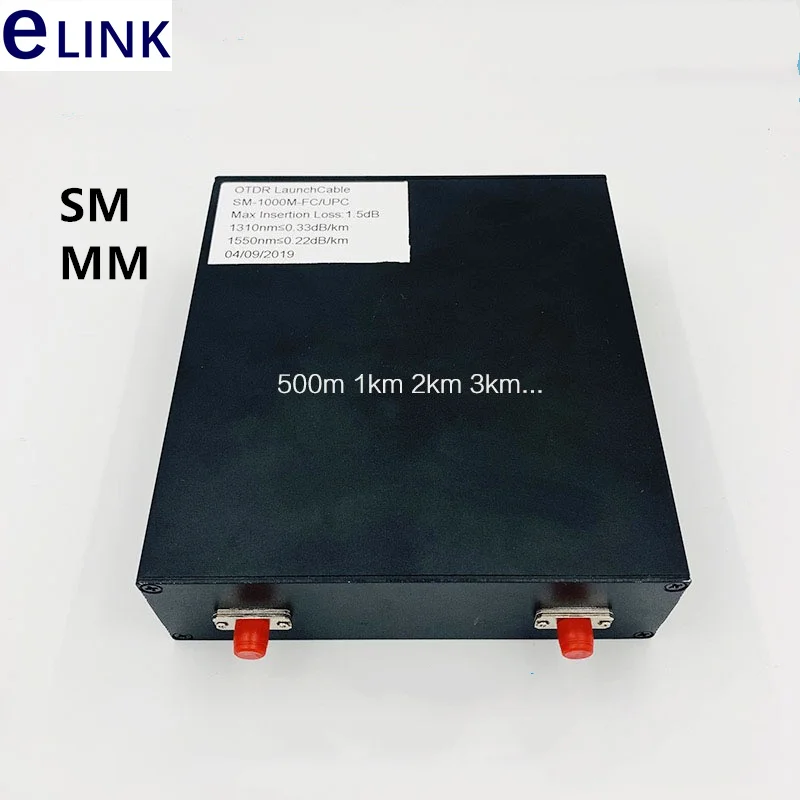

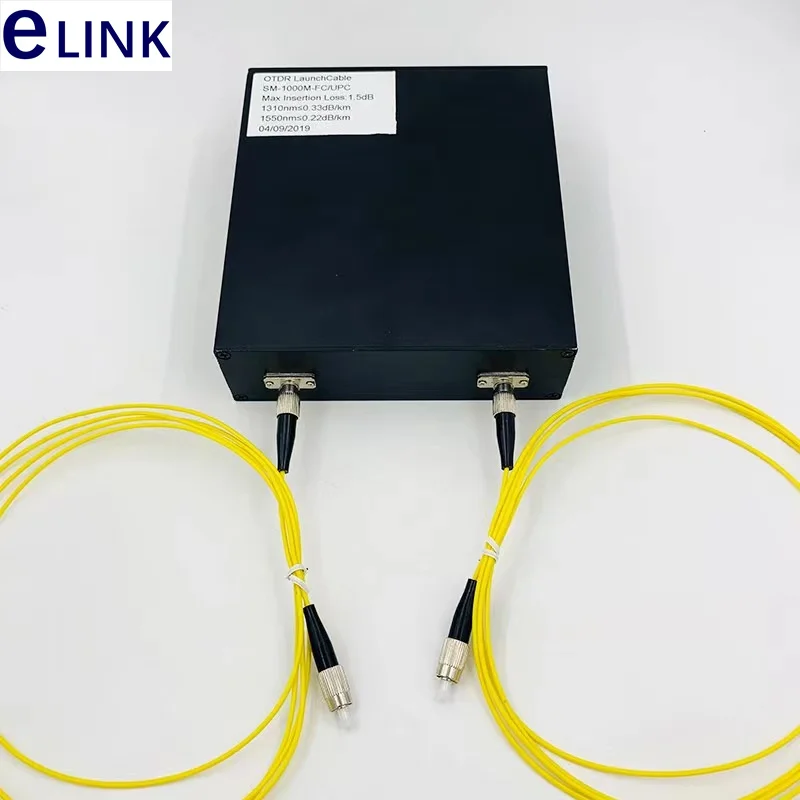

Product Show:
