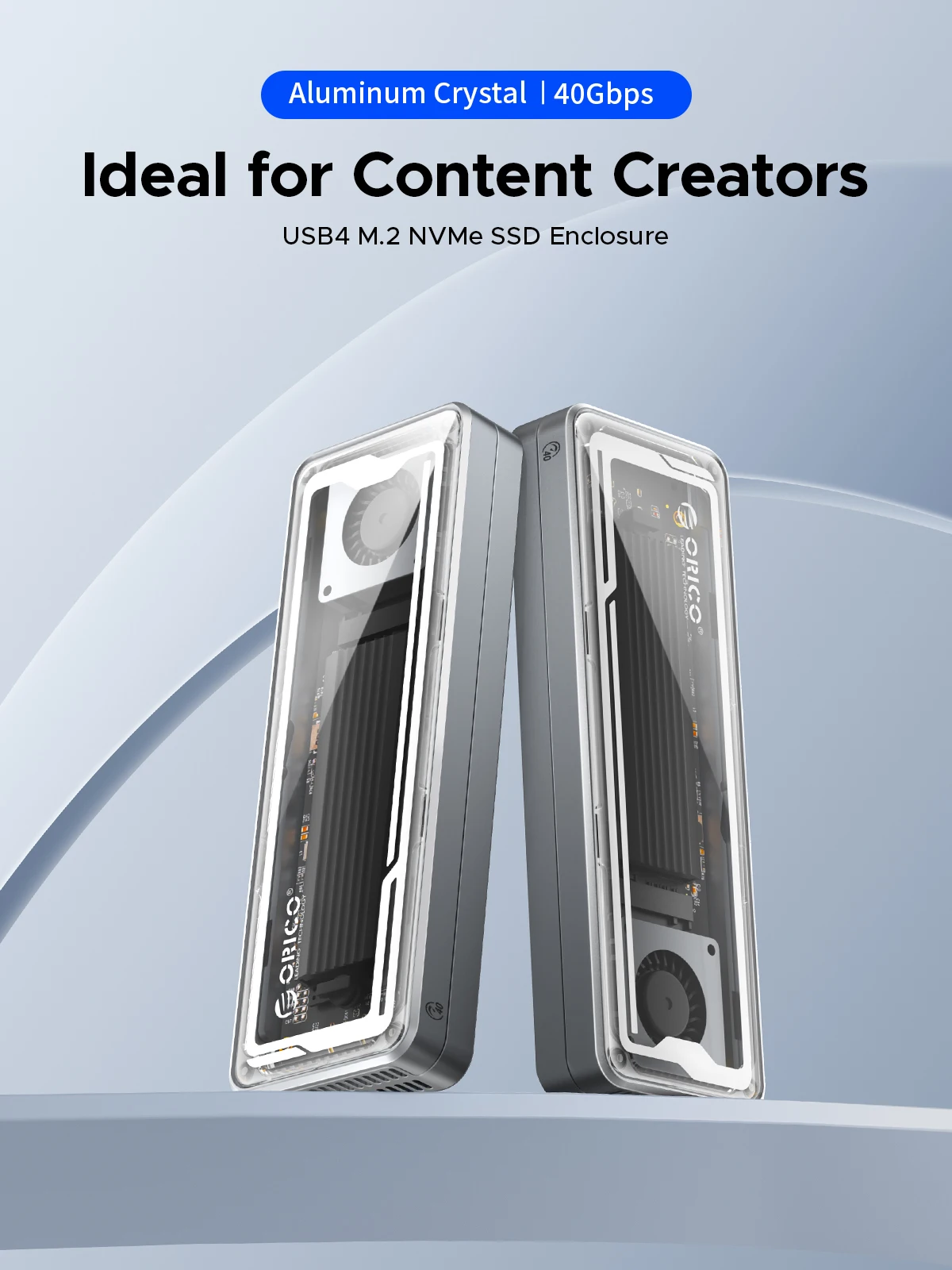

True Transparent USB4 SSD Enclosure with Cooling Fan Support 8TB Capacity 40Gbps
Whether you are a designer, business traveler, photographer, videographer, or content creator, ORICO USB4 Enclosures allows you to confidently deal with large amounts of video, images, files, and digital data quickly and with ease. Expand your digital storage, making your work and life easier and more efficient.

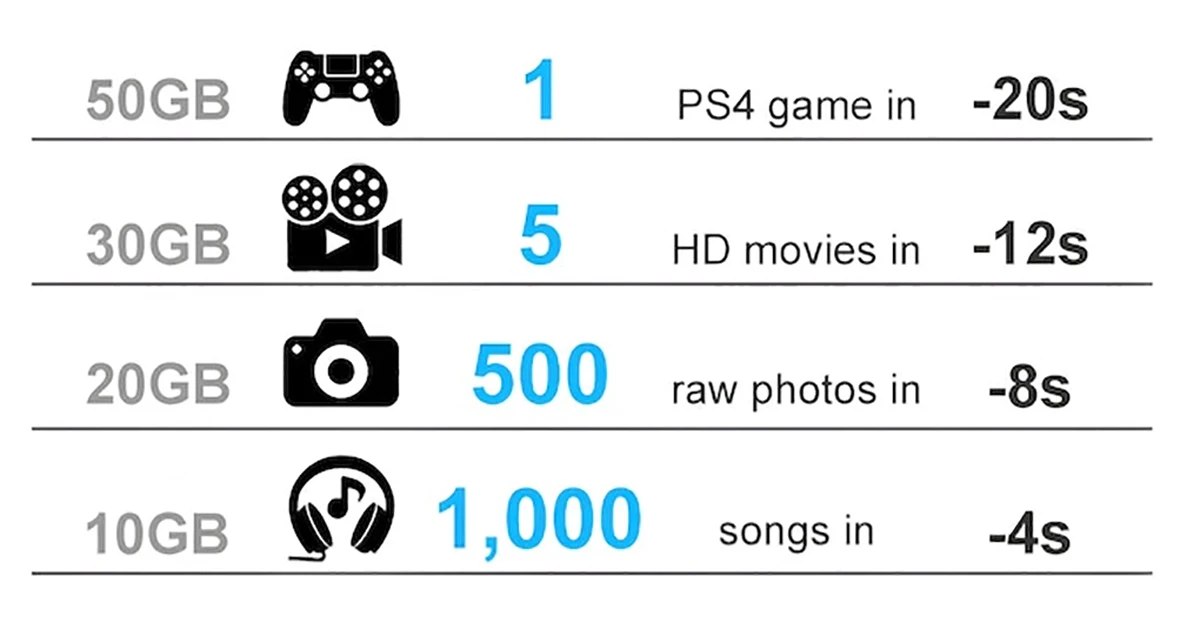

40Gbps Ultra Speed,Max 3.8GB/s Read and 3.1GB/s Write Speed
With USB4 Type C output interface, it supports the maximum transmission speed up to 40Gbps. The measured maximum continuous read speed can reach 3700MB/s, and the continuous write can reach 3100MB/s.(NOTE: Speed will be affected by ssd and computer performance)

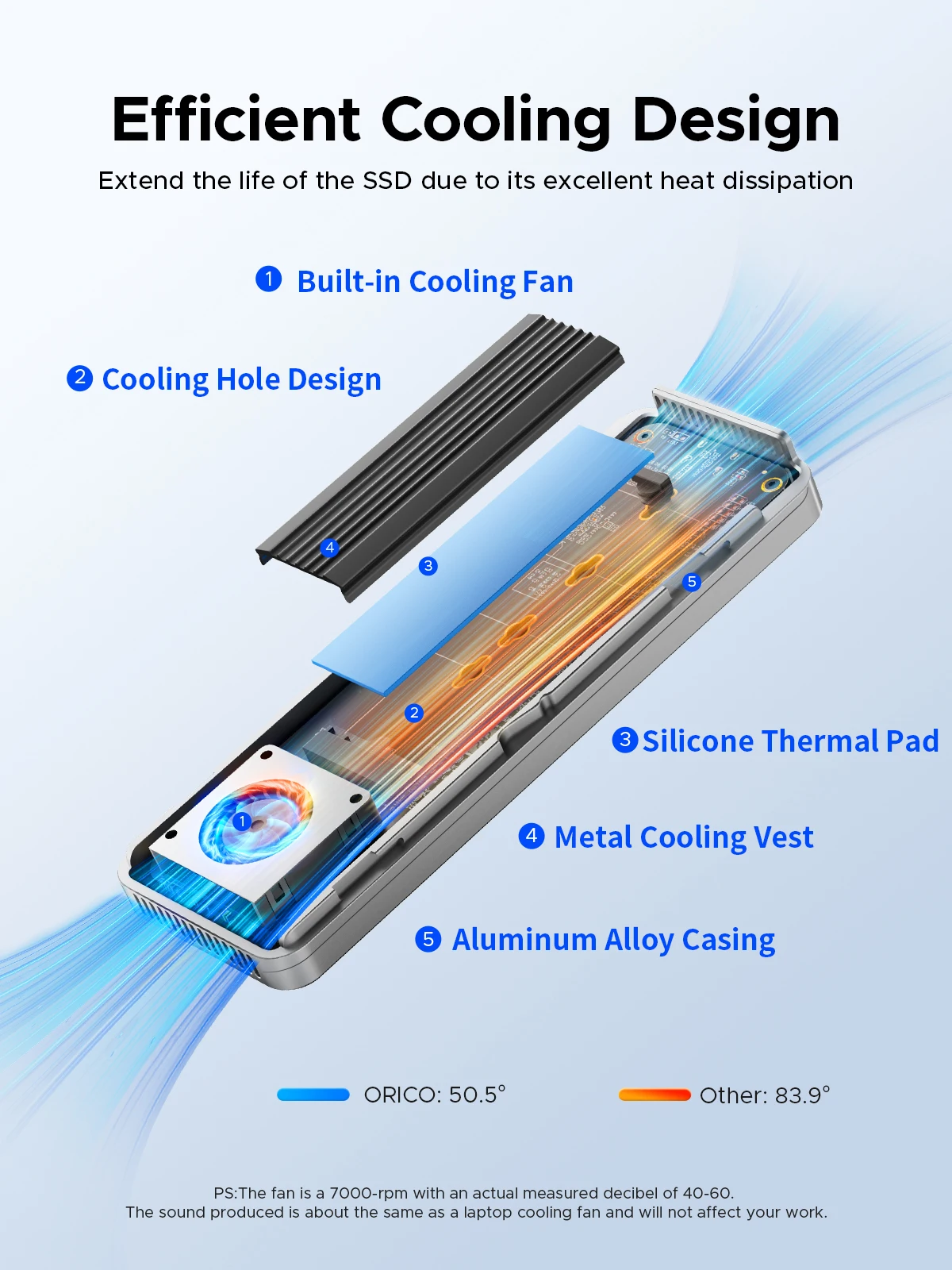

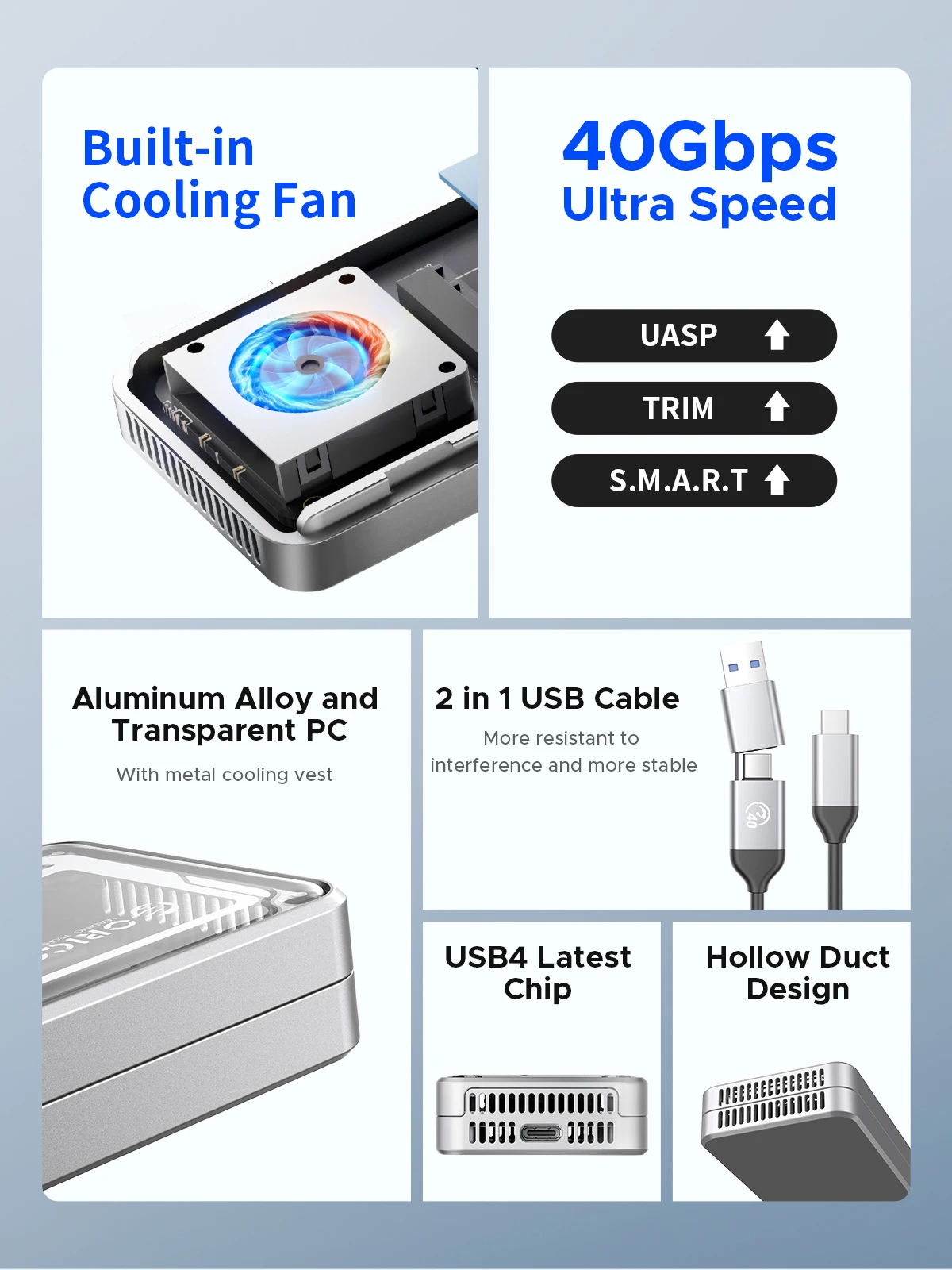

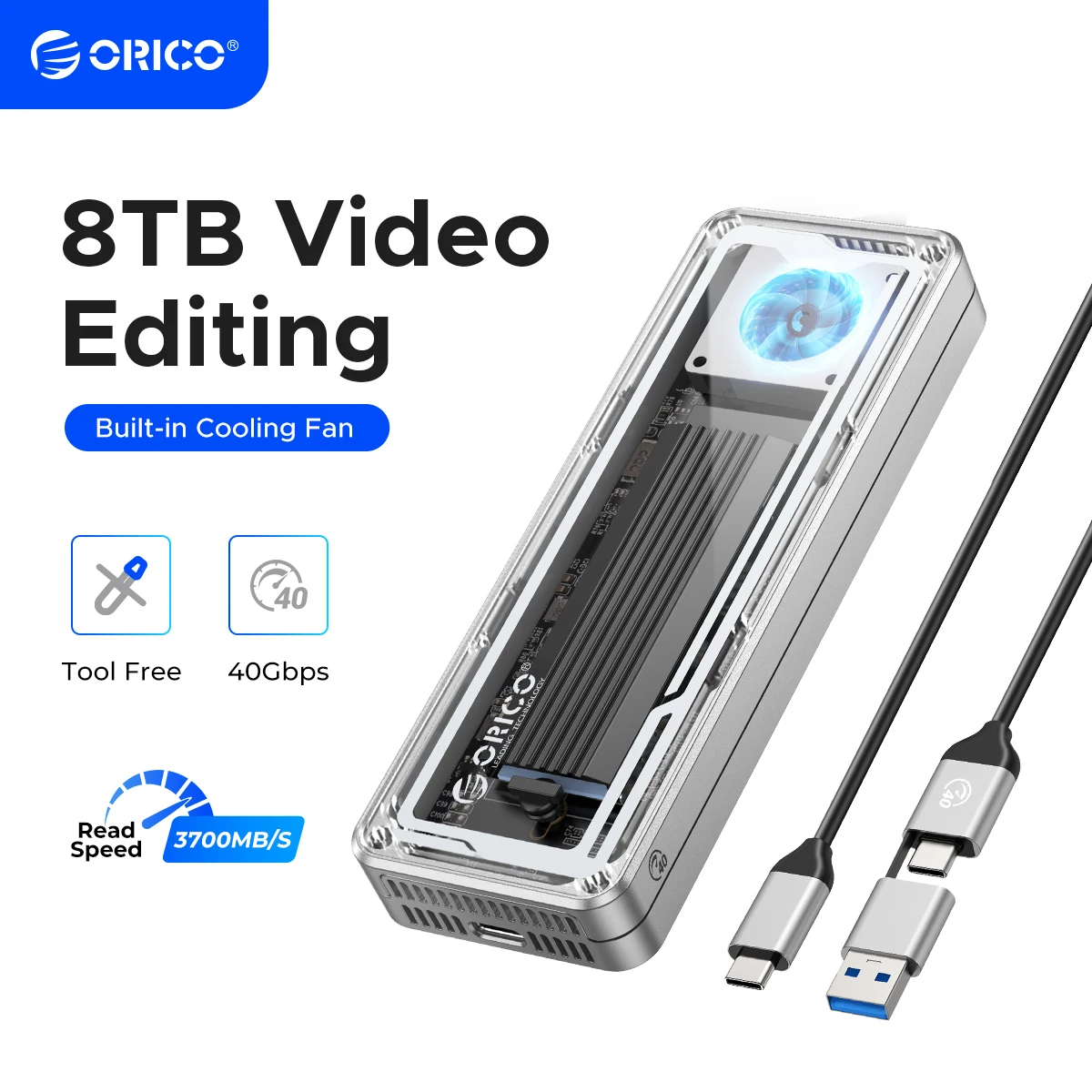

Multiple Heat Dissipation,Built-in cooling fan
SSDs can run really hot while transferring large amounts of data at high speed. built-in cooling fan and aluminum alloy shell with its generous heat sinks dissipates heat efficiently from the SSD, while an impact-resistant hard shell case shields the heat from the user while protecting the aluminum shell from bumps and scratches. This design ensures excellent durability and stability while ensuring that exterior low temperature even when transferring large amounts of data at high speed.(NOTE:The fan is a 7000-rpm with an actual measured decibel of 40-60. The sound produced is about the same as a laptop cooling fan and will not affect your work.）
Supports 8TB Max

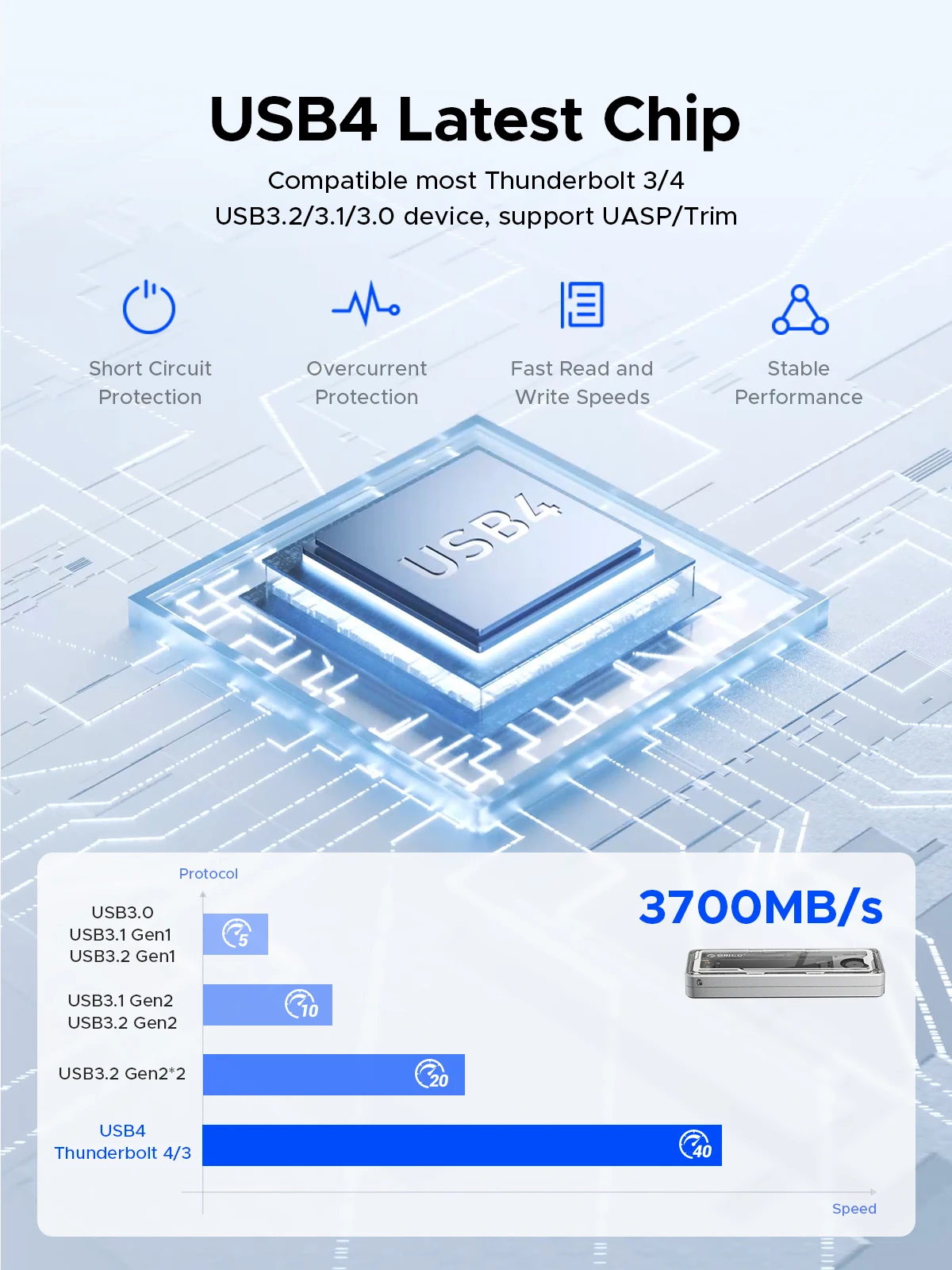

Expand your digital storage, large memory makes use more comfortable, if your job often requires data transmission, or you enjoy playing games or watching movies, then a large memory hard drive case is very suitable for youUSB4 Latest ASM2464PD Chip
Compatible most Thunderbolt 3/4/USB4/USB3.2/3.1/3.0 device,support UASP/Trim.
Suitable for Gaming, Video Editing, Research, Design,Mac
Providing more capacity for backup for PC ,Mac mini and laptop, but also for smart TV, smart router and PS4 etc.2 In 1 USB Cable
40Gbps data transmission and PD100w fast charging.NOTE:The included USB cable has 2 output ports, USB C to A (10Gbps/QC15W) and USB C to C (40Gbps/PD100W)

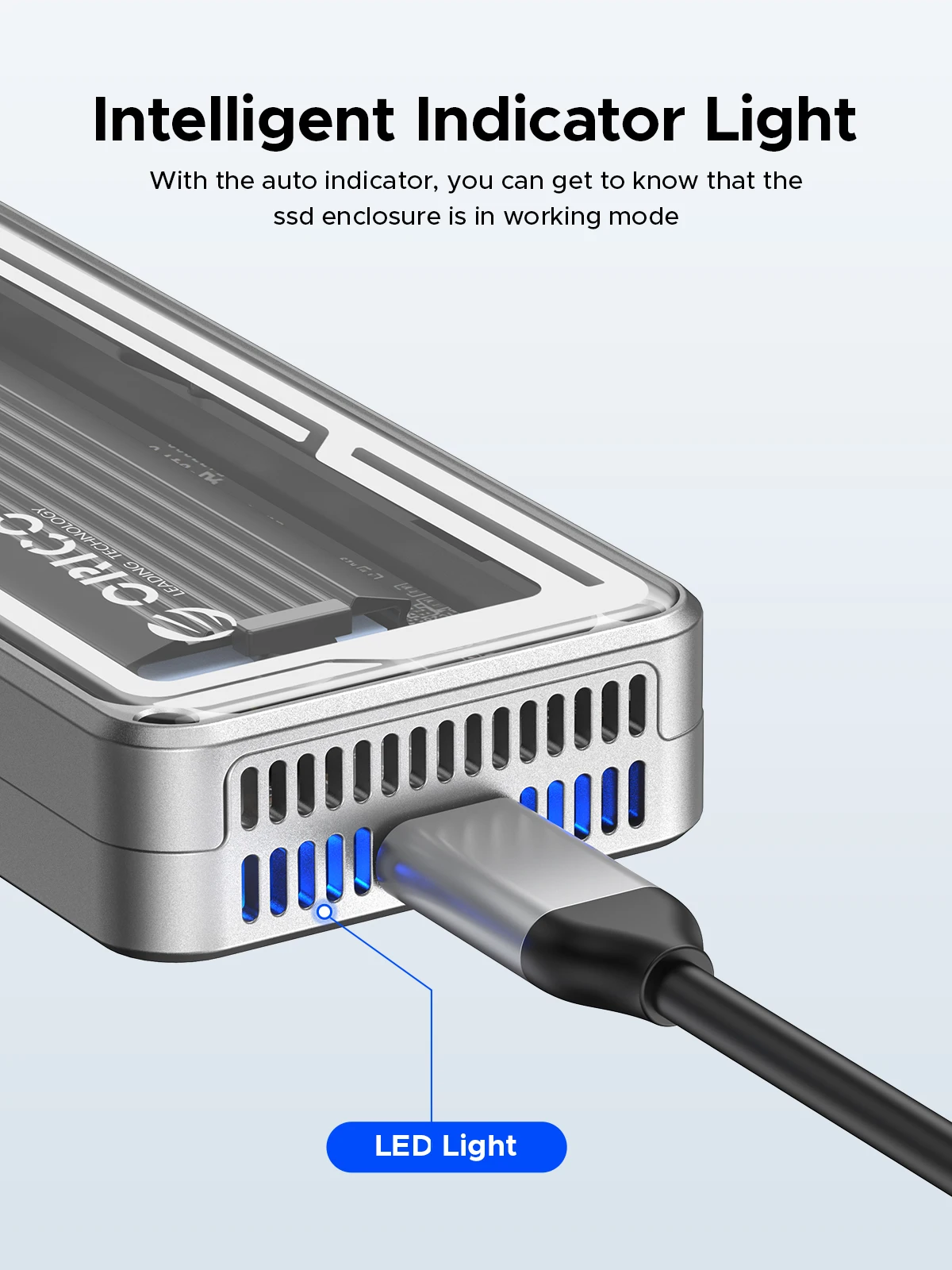

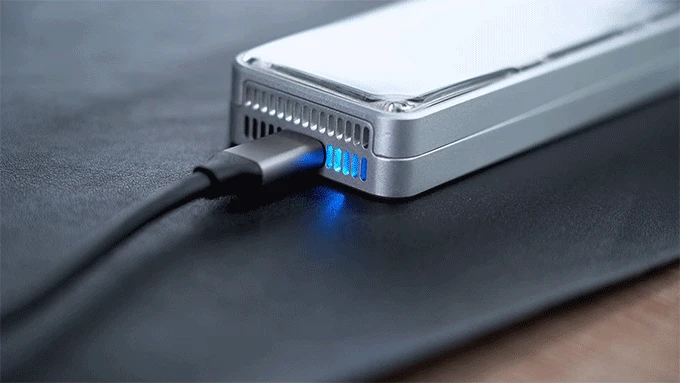

Intelligent Indicator Light
With the auto indicator,you can get to know that the ssd enclosure is in working mode.

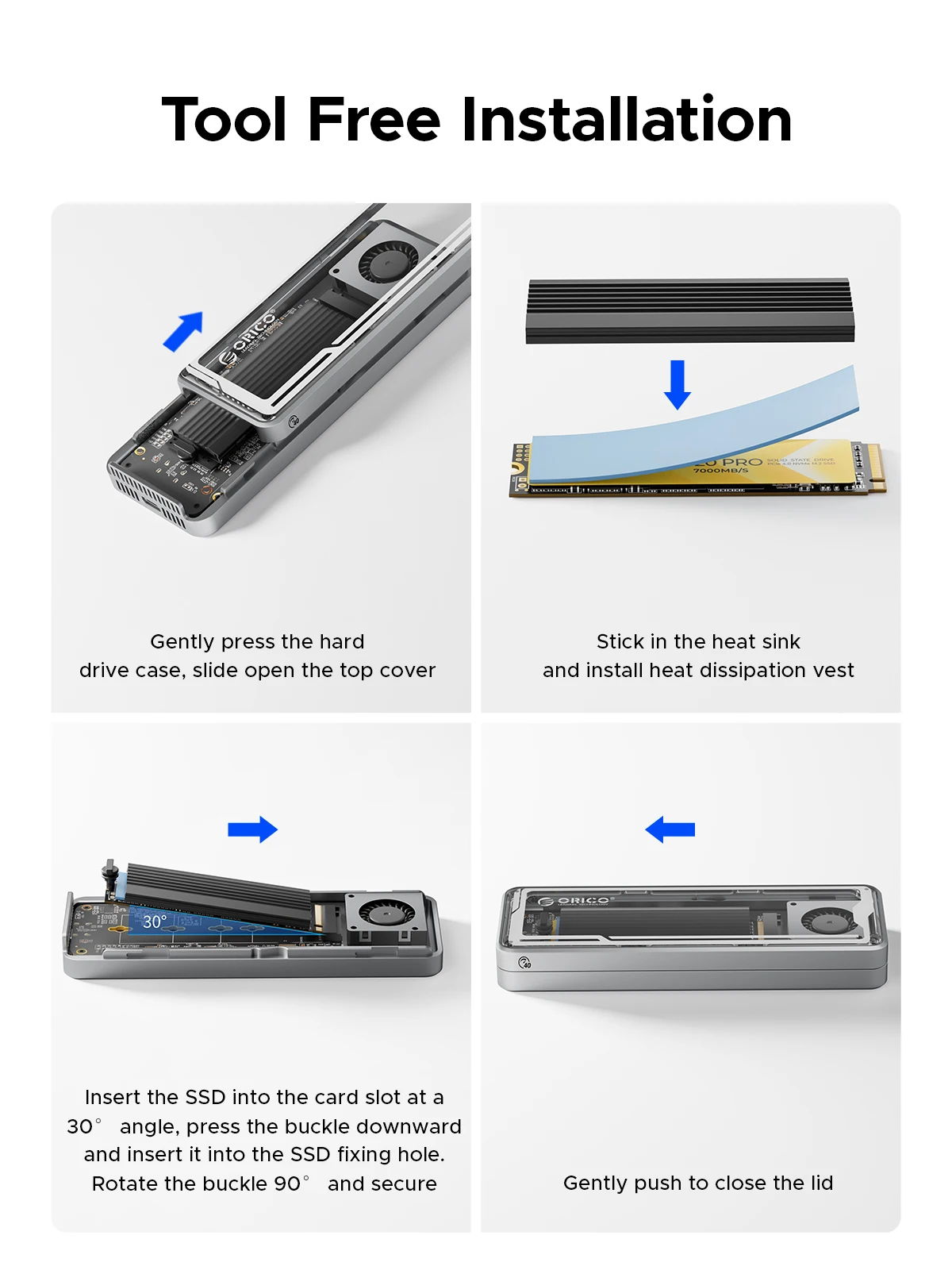

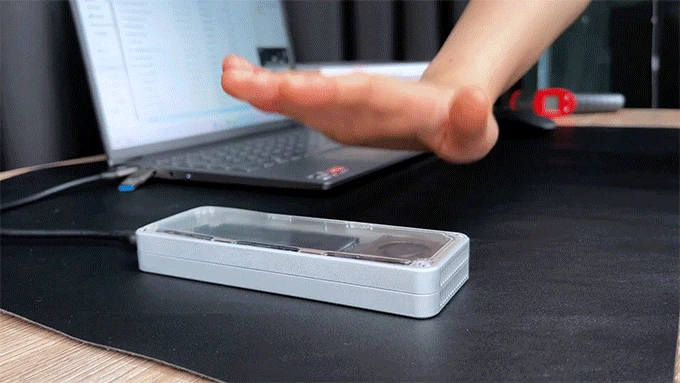

Tool Free Installation
Convenient and quick, easy to operate.

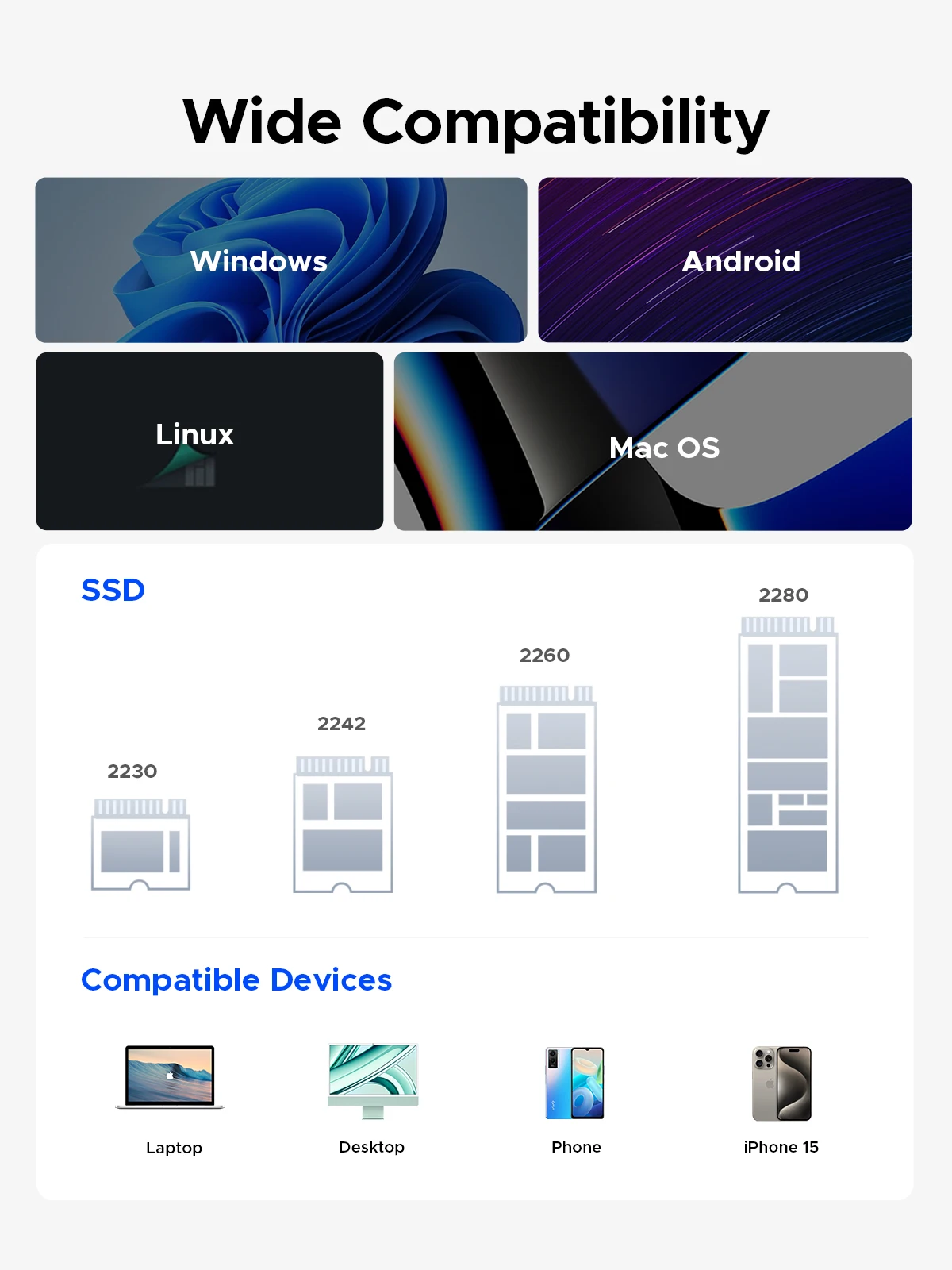

Wide Compatibility
Compatible with NVMe SSD in sizes 2230/2242/2260/2280.such as M.2 NVMe M Key SSD.included the latest PCIe Gen 4x4 SSD.
Physical Display
Question:What are the normal temperature and the sound level of the cooling fan?
Answer:The normal operating temperature range of the M.2 solid-state drive is 0-70°C. To ensure good heat dissipation, the product is equipped with a high-speed fan that rotates at 7000 RPM, with a measured sound level of 40-60 decibels. The generated sound is similar in size to the cooling fans in your laptop and desktop computer.
Question:Why are there prompts when using a Mac?
Note: Whenever a Mac system unplugs the hard drive enclosure while the computer is on, it is considered forcibly unplugging a device from the PCIE port, which leads to the increase in the unsafe shutdown count prompt. To avoid this issue, only unplug the device after shutting down the computer. Windows systems do not encounter this situation.
Question:Why is the device using Thunderbolt not recognized?
Question:Unable to fit the heat pad with the top cover?
Answer:This product features 40Gbps high-speed transmission, where the front aluminum heat sink serves as auxiliary cooling, with 80% of the cooling being done by the turbine fan. The airflow outlet and inlet of the product need to form front-to-back convection cooling. Therefore, there should be a gap between the thermal grease on the front of the hard drive and the top aluminum plate to create a convection channel. Additionally, the thermal grease has high friction, so if it fits tightly with the top cover aluminum plate, the sliding cover design will make it difficult to install and open the top cover.
Question:Why is the speed not as fast as advertised?
1. Use PCI-E 3.0 or PCI-E 4.0 NVMe SSD.
2. Make sure your input device's USB-C port is USB4 or Thunderbolt 4.
3. Make sure all of them support USB4 or Thunderbolt 4 if you use intermediate devices and cables.
Question:How to format an SSD?

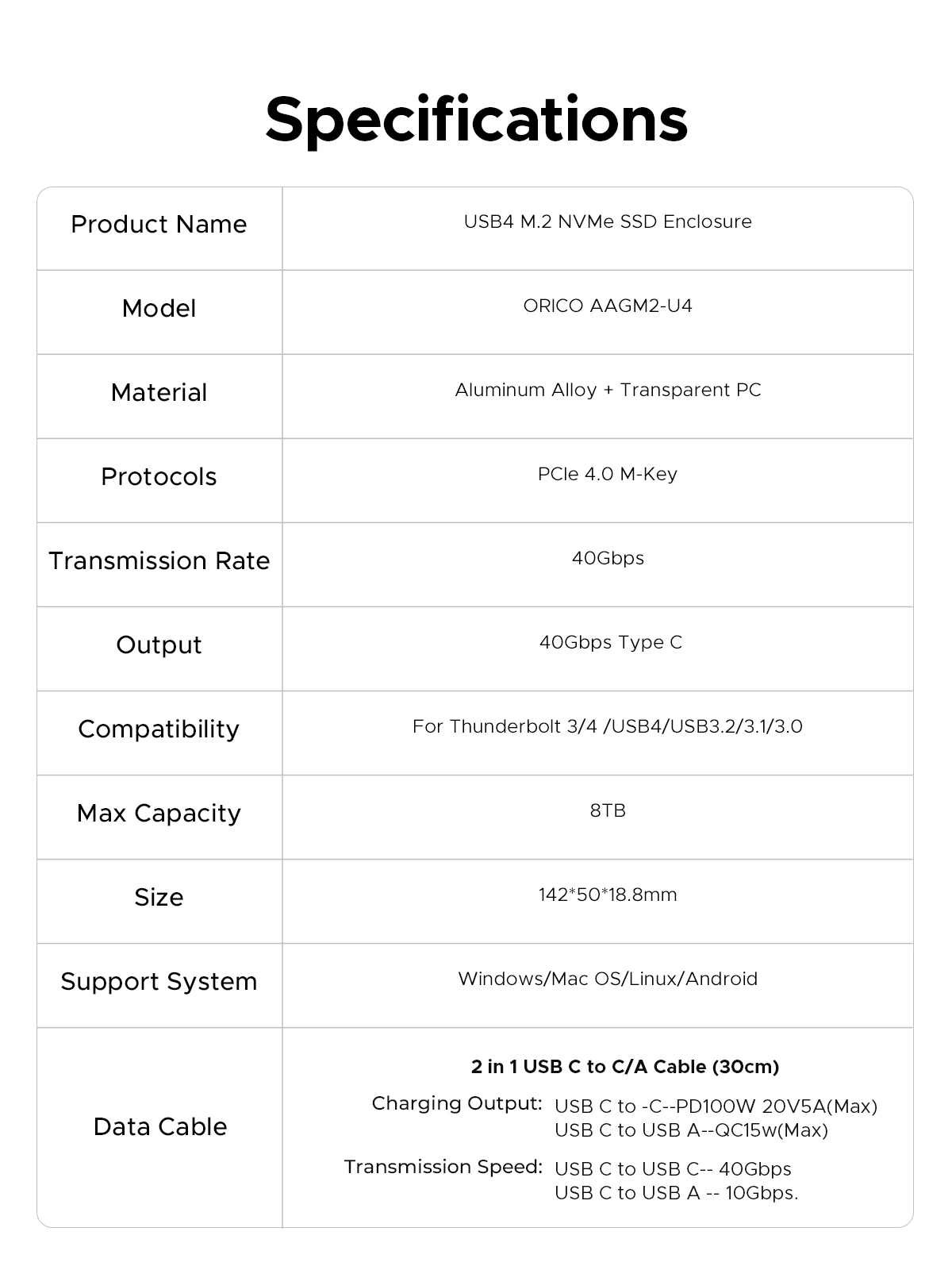

Item
Basic Version
Upgraded Metal Version
USB4
Fully Transparent
USB4
Transparent New Upgrade
Products
Transmission Speed
6 / 10Gbps
6 / 10Gbps
40Gbps
40Gbps
Capacity
4TB
4TB
4TB
8TB
Compatibility
M Key / (B+M) Key / B Key
M Key / (B+M) Key / B Key
M Key
M Key
Support
SSD: 2280/2260/2242/2230
System : Windows, Mac OS, Linux ,Android
Support UASP & Trim
