This product has shipping restrictions for certain countries. It cannot be shipped to the following regions: the United States, Canada, and Mexico.Advanced mmWave Sensing:The included LD2450 mmWave sensor boasts an impressive range of 5-6 meters, making it perfect for small to medium sized spaces.
Multi-target Tracking:Track up to 3 different targets simultaneously with near real-time information about distance, approach angle, speed and X & Y co-ordinates!
Dynamic Zones & Analytics:Customize detection zones from Home Assistant, allowing you to detect where a target is located.
Ambient Light Sensing:Equipped with a light sensor to gauge room darkness, making your automation even more responsive to environmental changes.
Bluetooth Proxy for Home Assistant:Extend Home Assistant's Bluetooth range with!
Powered by ESP32 &:Easy integration with Home Assistant.
Versatile Development Board:Compatible with 5+ different mmWave sensors, this is a developer’s playground for sensor testing.
Parameter
Description
MCU
ESP32-WROOM-32E
Flash
4MB
mmWave Sensor
HLK-LD2450: 24GHz ISM 1T2R
Light Sensor
BH1750
Charging Interface
USB Type-C
Firmware Update
Support OTA
Dimensions
50×50×66 mm

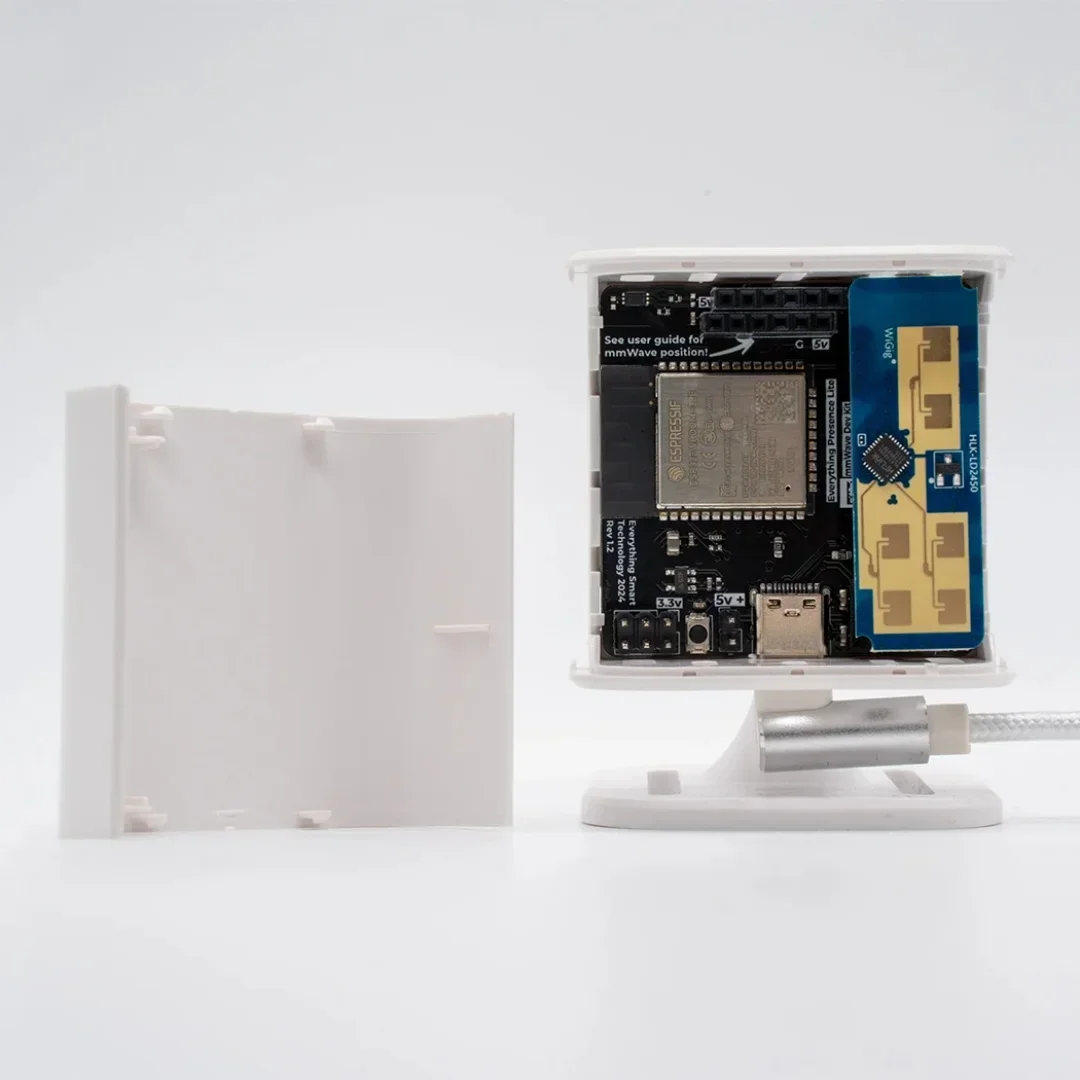

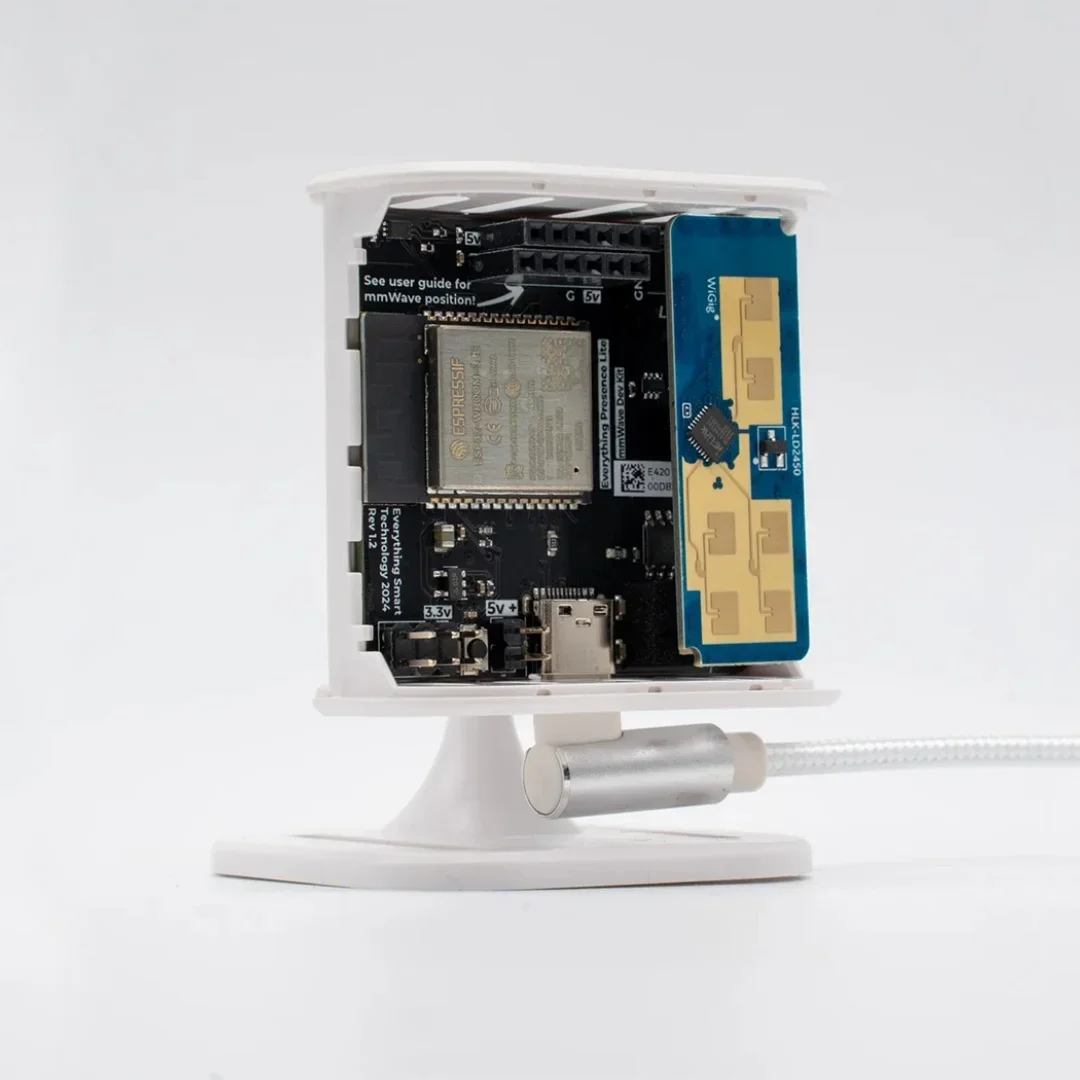

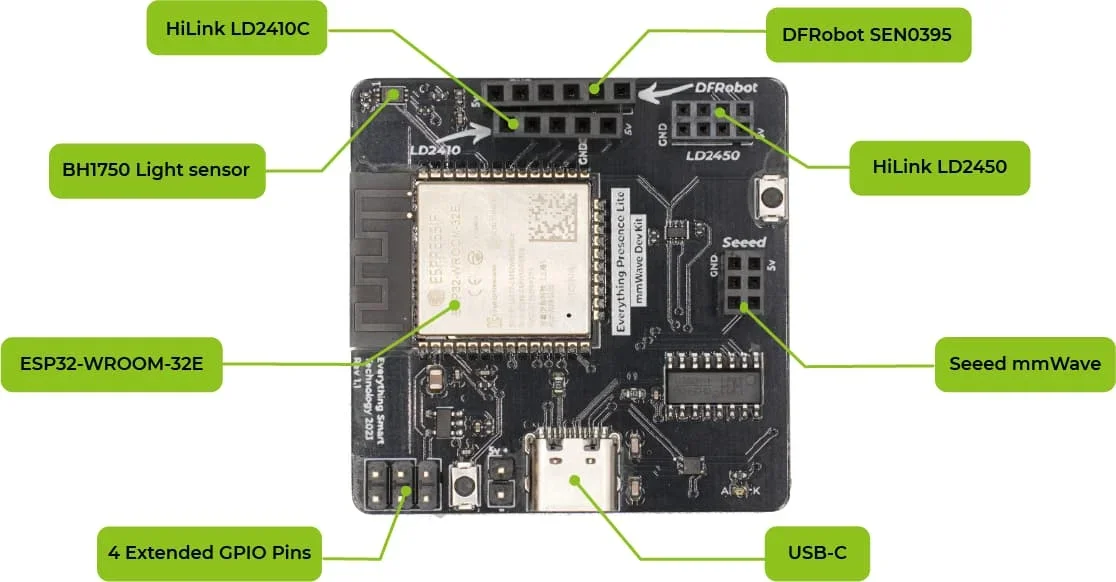

The Lite board serves as the core PCB of this device, featuring an ESP32-WROOM-32E module that provides both Wi-Fi connectivity and sensor processing capabilities. Key components are clearly labeled on the board as shown below.
Custom Your Own Case

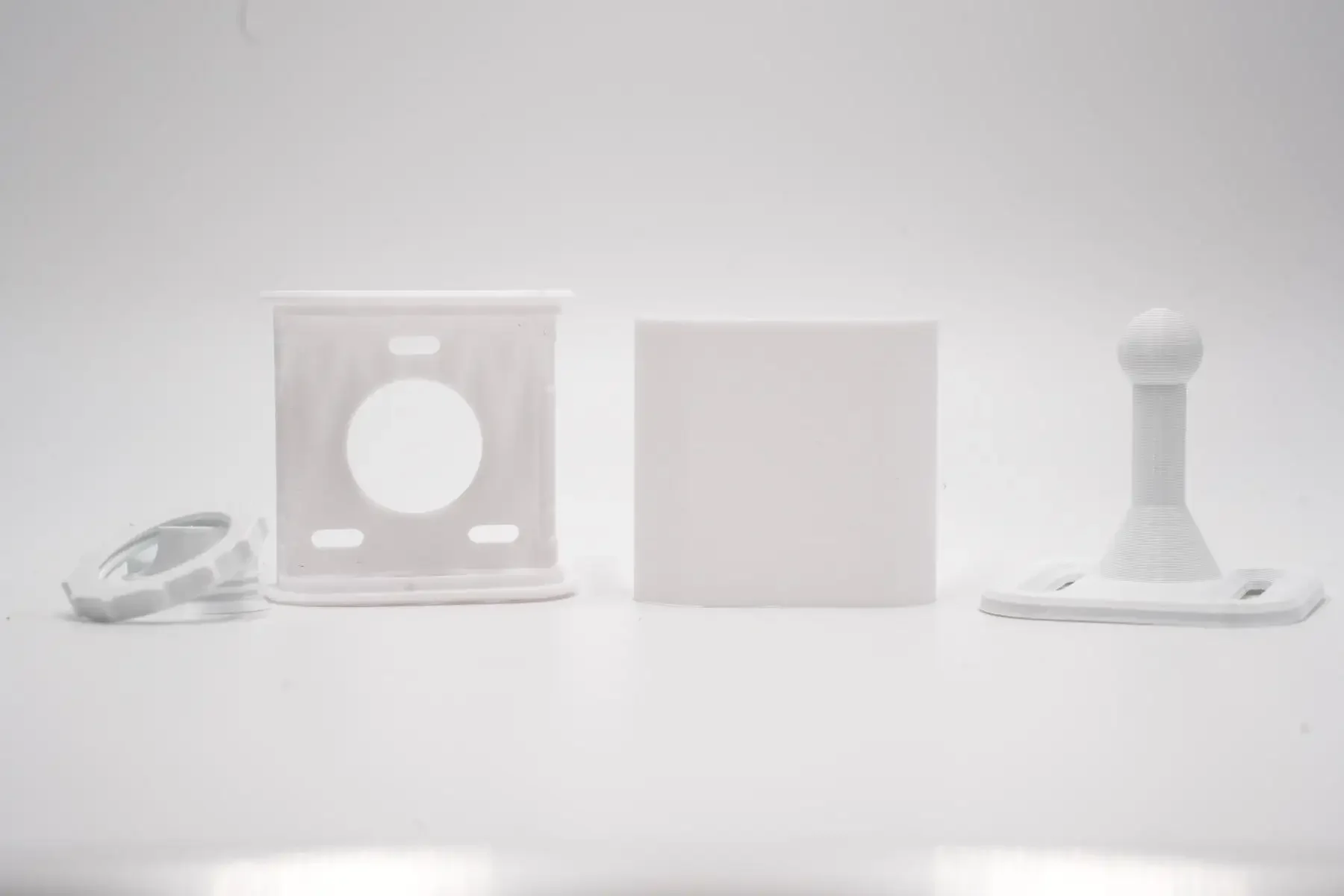

The device comes in an injection-molded white case. For those who prefer customization, STL files for all case components (Front, Back, Stand, Ball Joint, and Locking Ring) arefor remix and 3D printing.
HumanPresenceDetection
Intelligent Lighting Automation
Home Security Zone Monitoring
Energy-Efficient HVAC Control
Elderly Fall Detection & Safety
Interactive Home Theater Setup

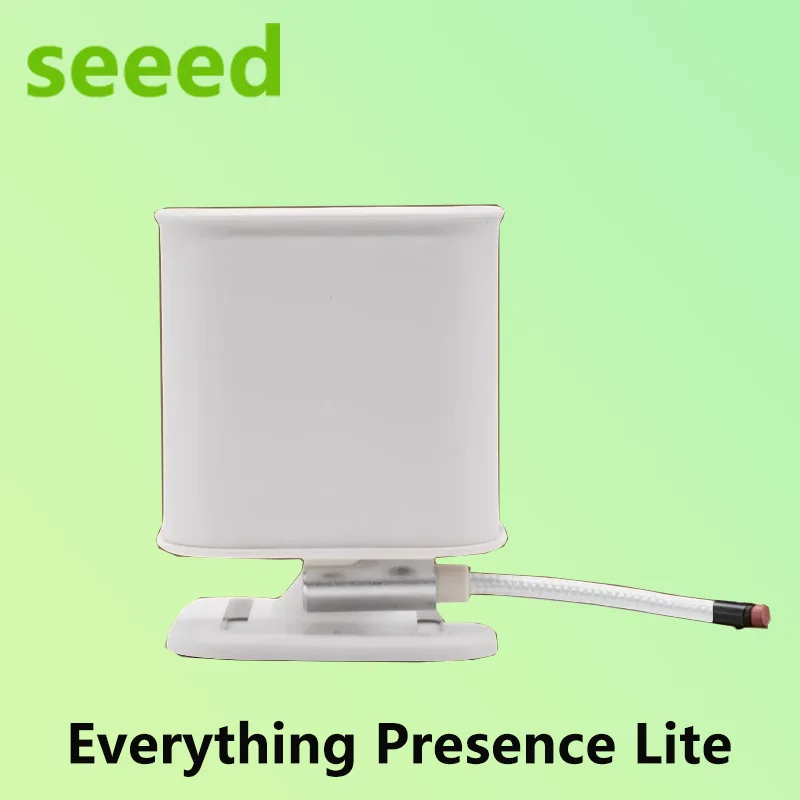

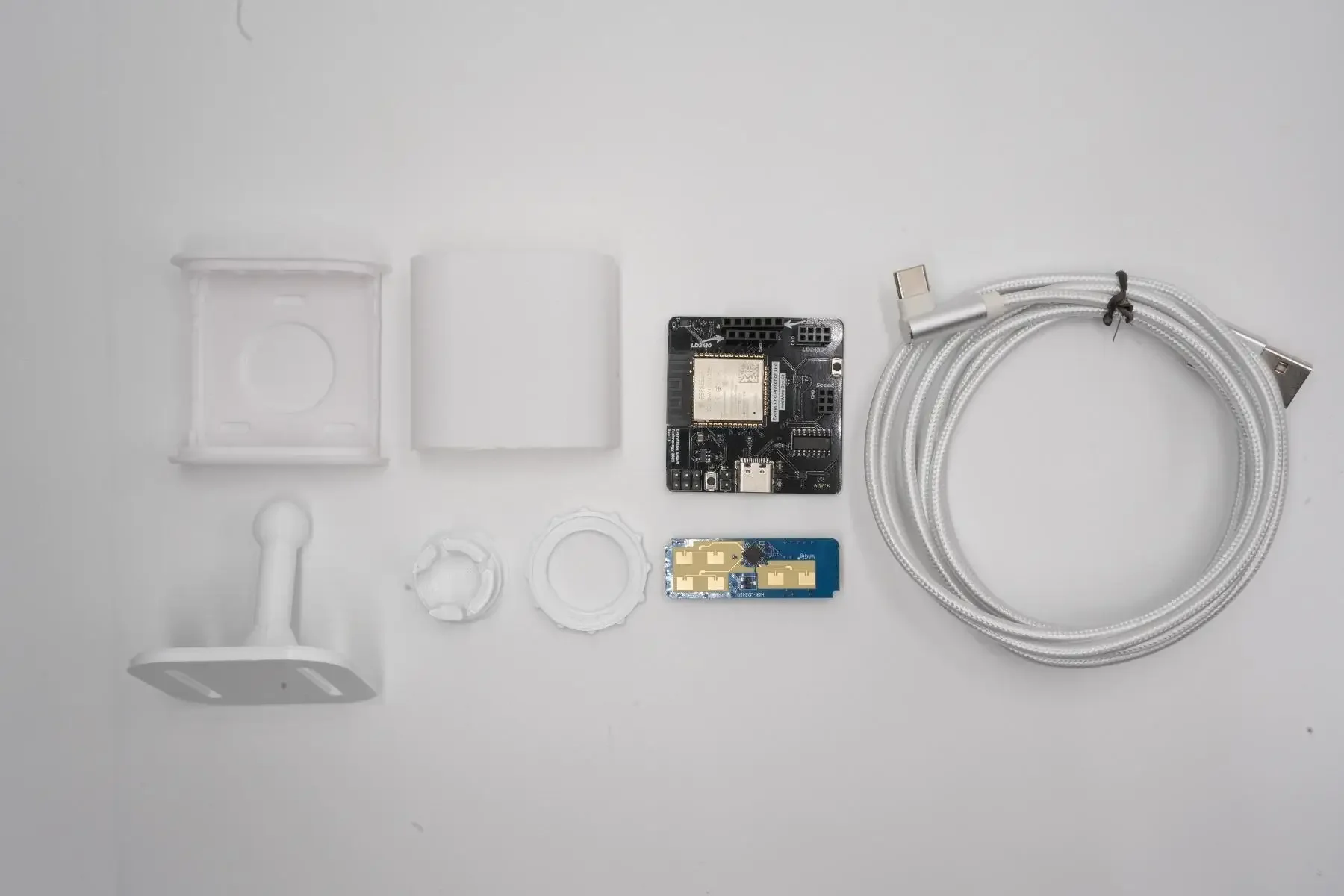

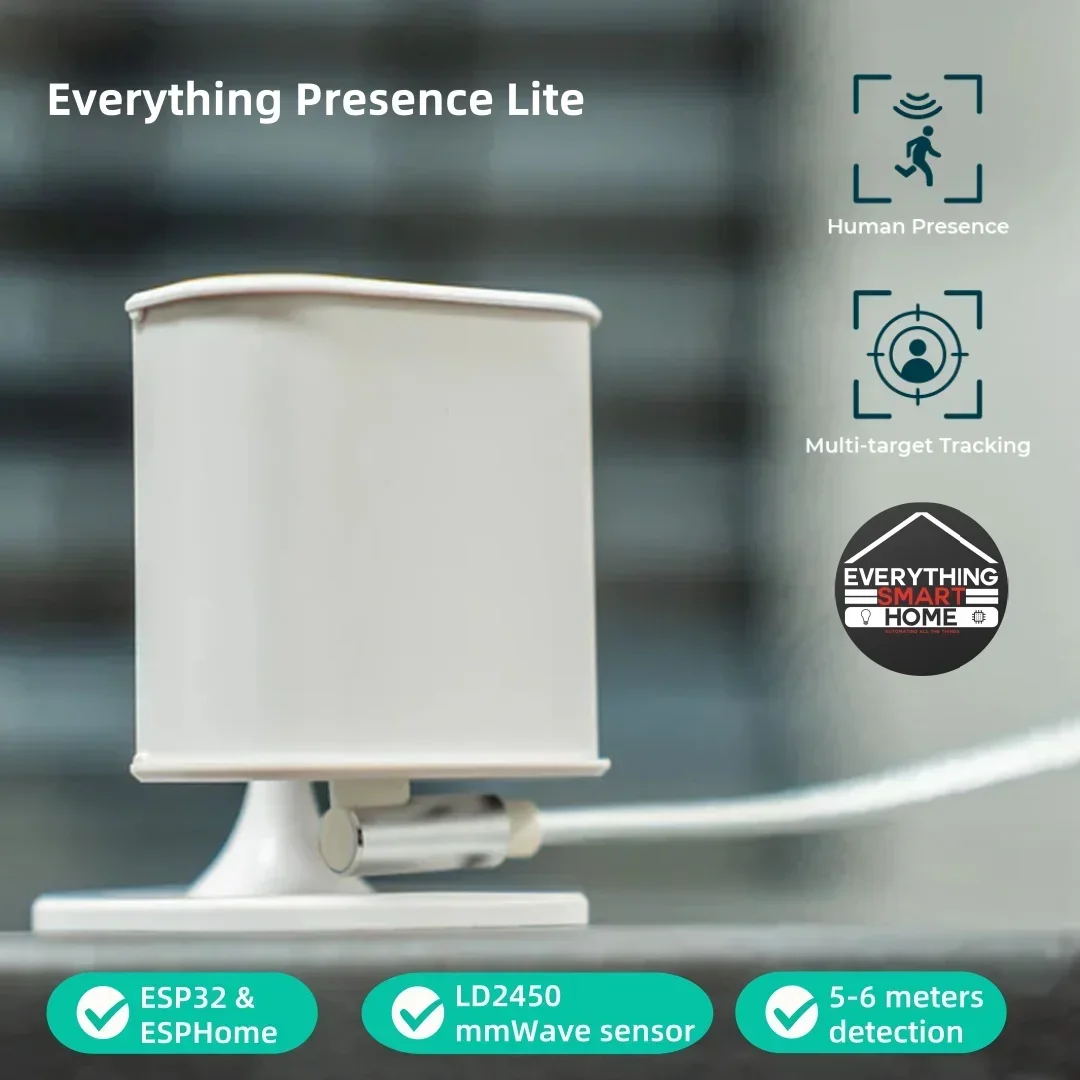

Everything Presence Lite - Fully assembled
×1
Right Angle Braided USB-C Cable in White
×1
