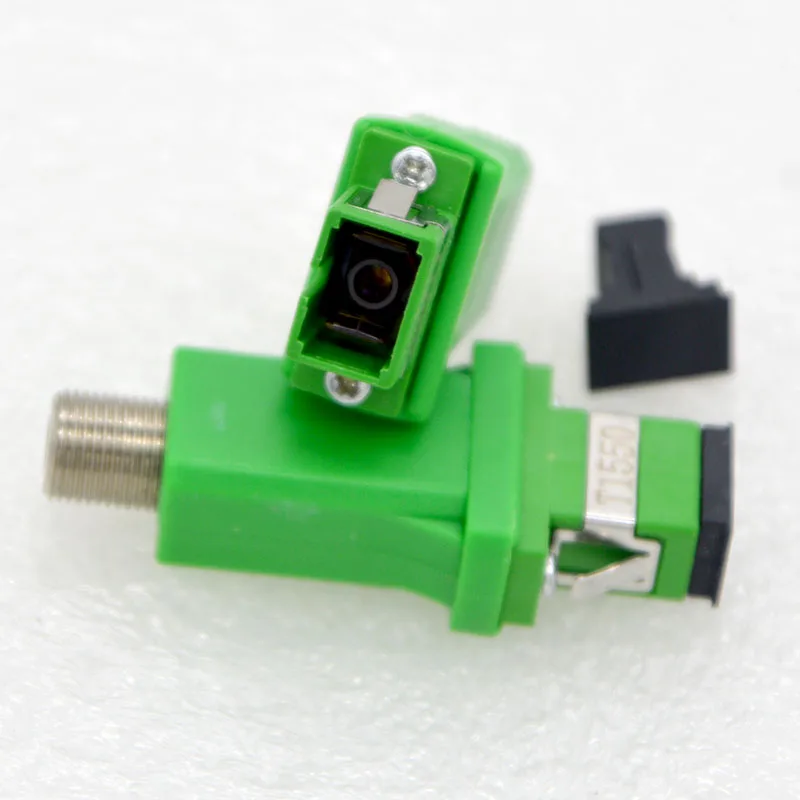

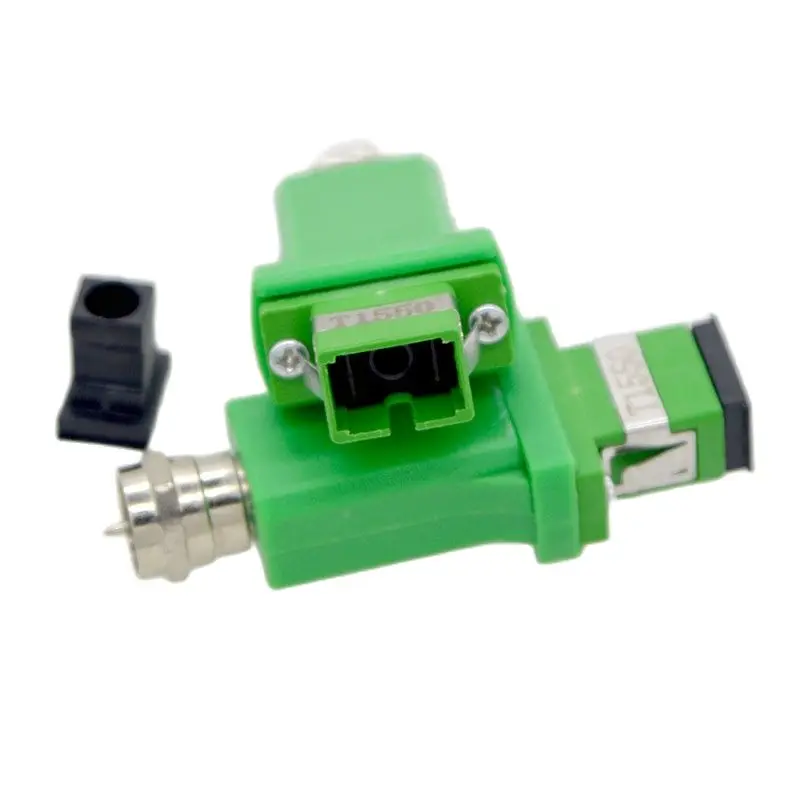

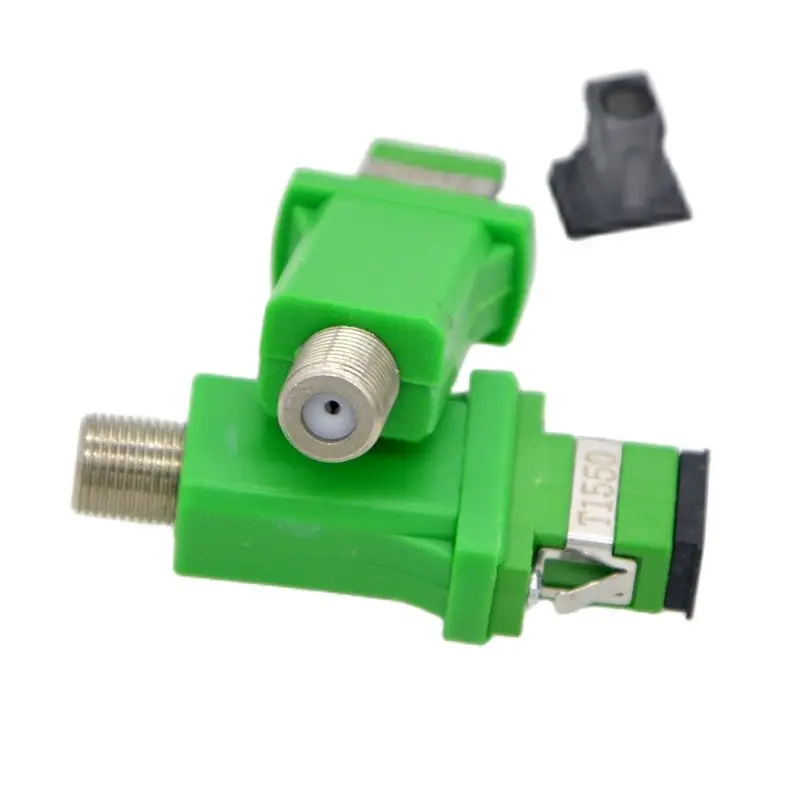

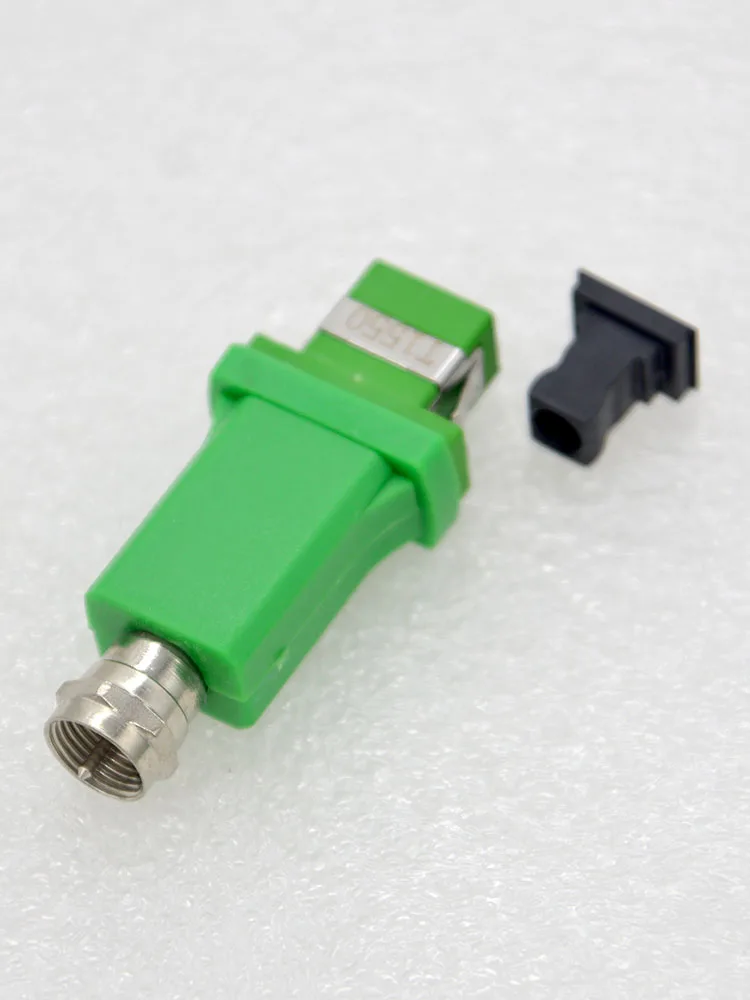

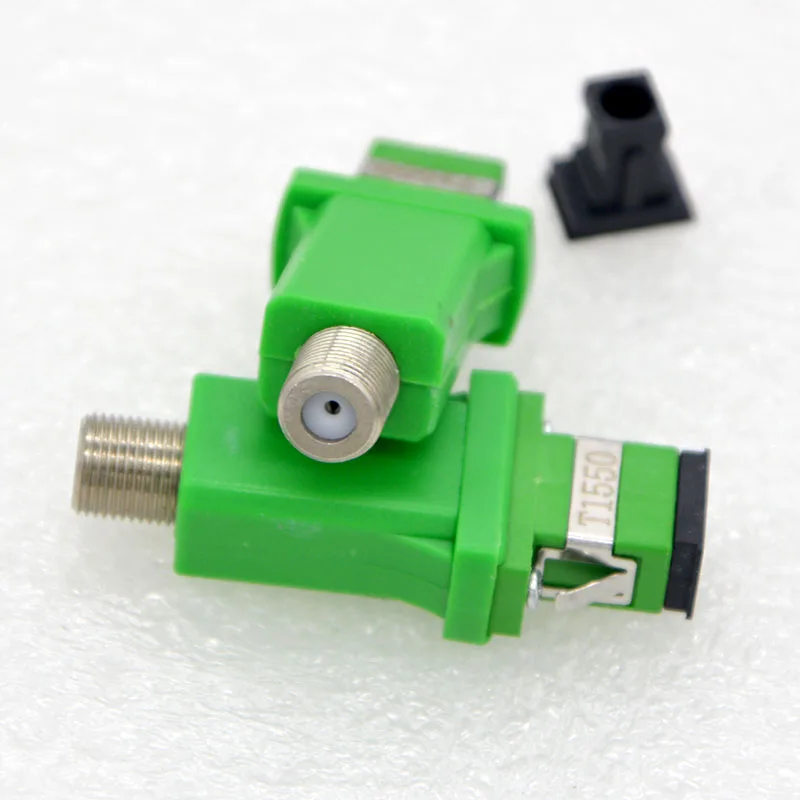

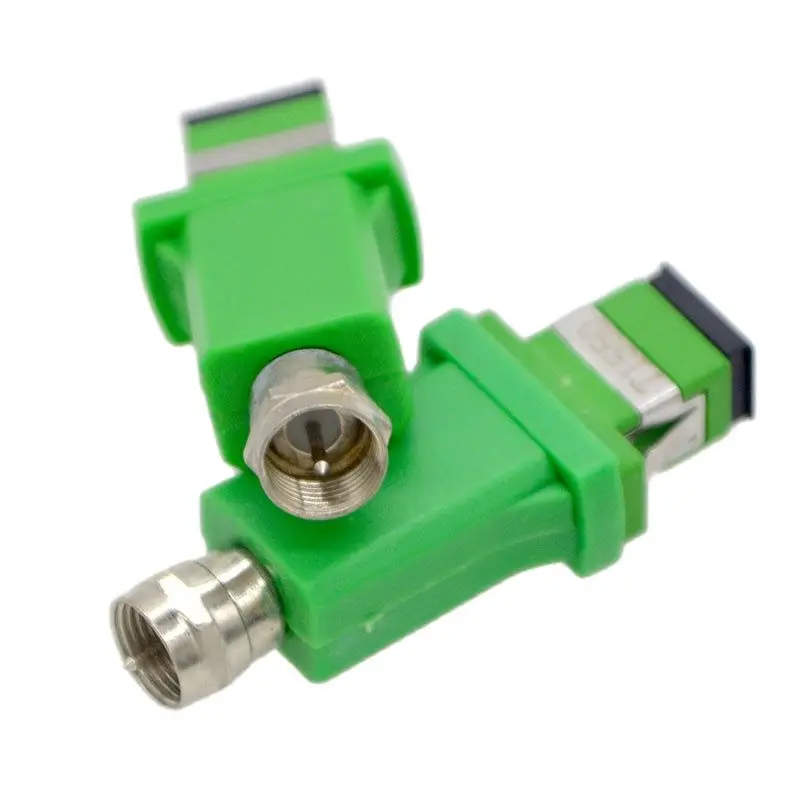

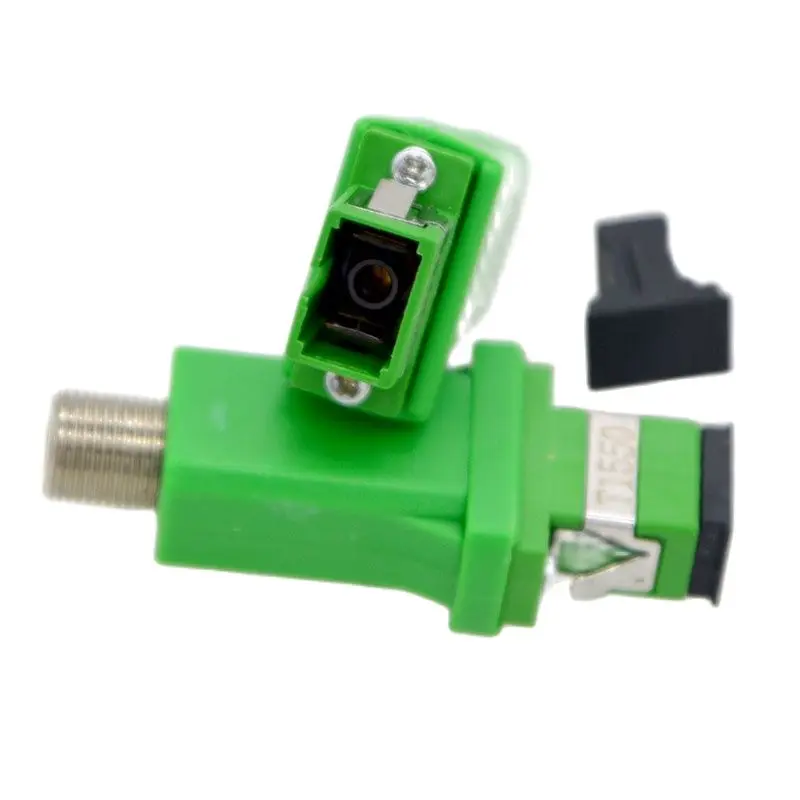

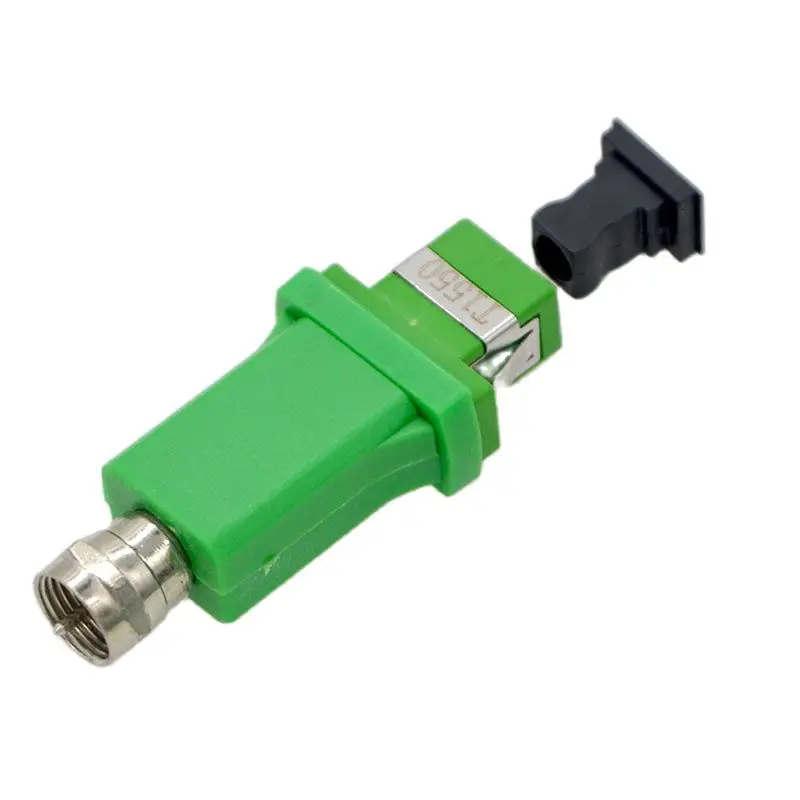

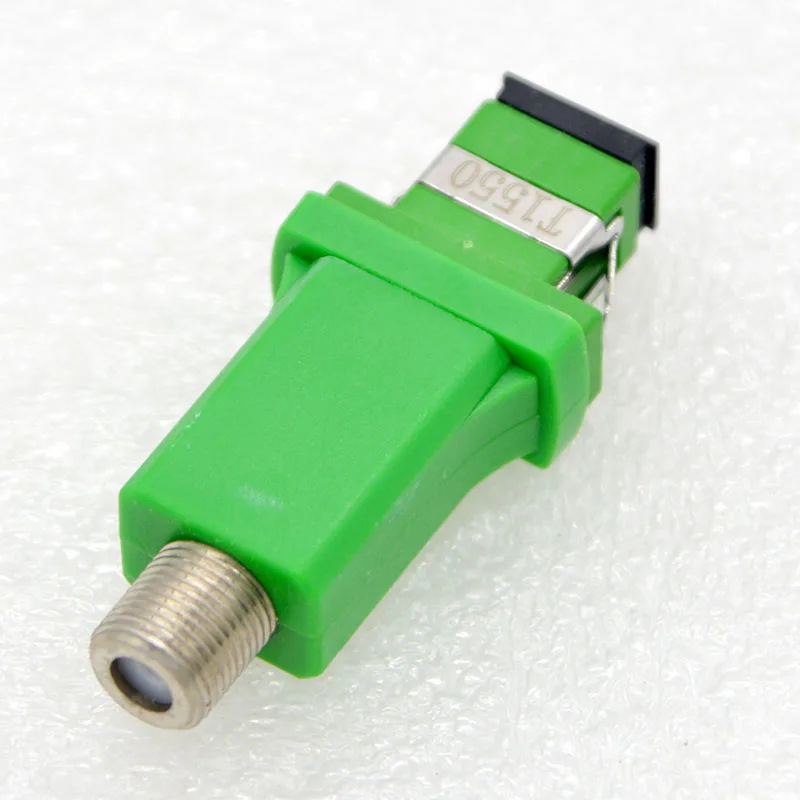

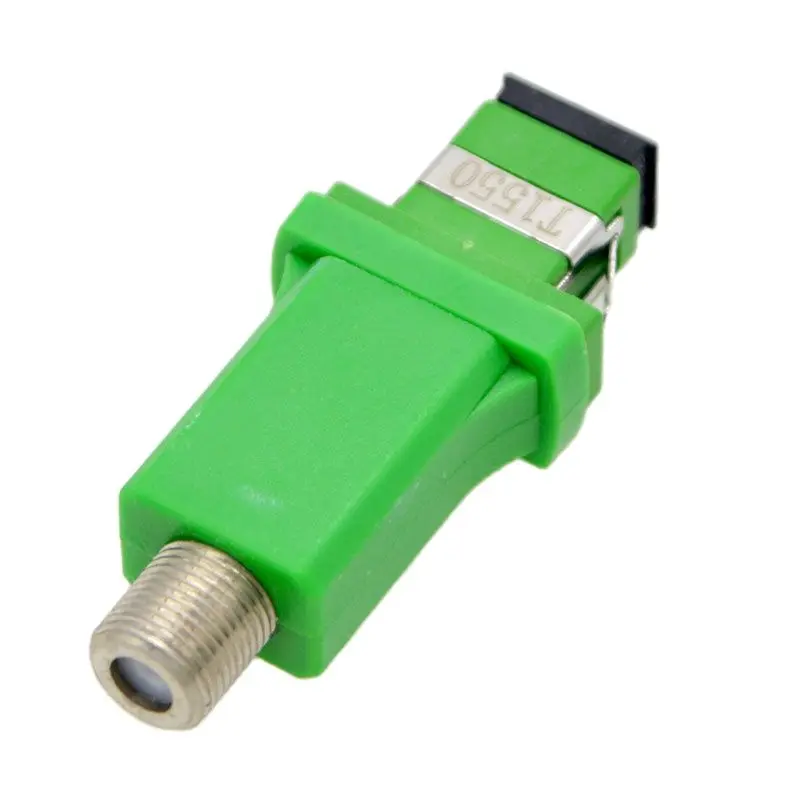

NEW SC APC 1550nm FTTH Mini Node Passive Optical Receiver Fiber Adapter CATV Opto-Signal SC/PC Fiber Connector Special Sale
With filter, suitable for multiplexed signal input, only responds to 1550 wavelength signal, with FC/apc and Sc/apc input and metric head/inch head output connectors

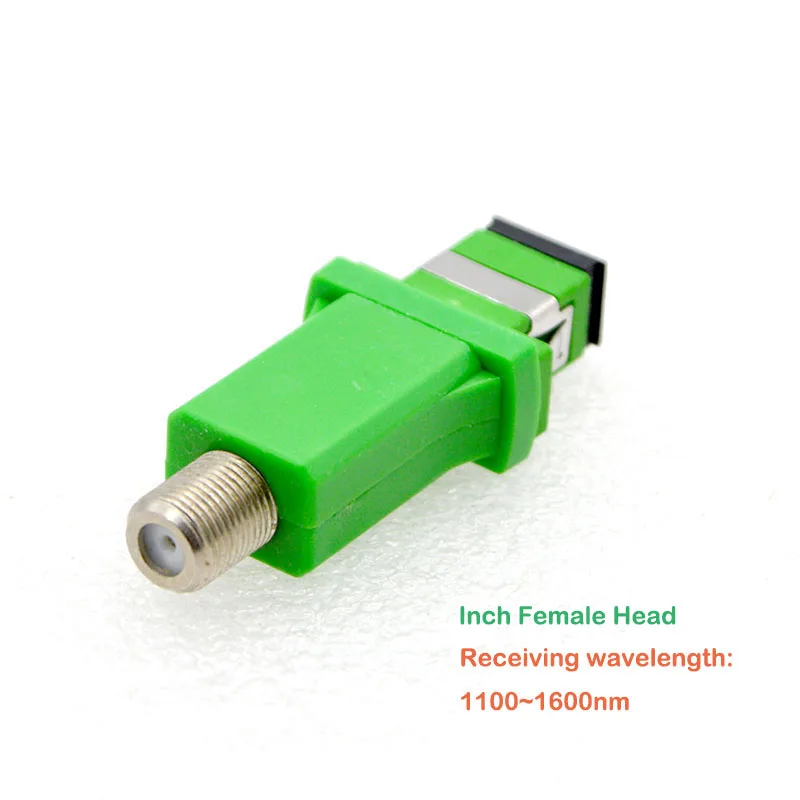

Receiving optical wavelength: 1100nm ~ 1600nm (single wavelength 1550nm)
Receiving optical power range: 0 ~ 16dB
Working bandwidth: 40 ~ 860MHz / 1000MHz
RF Flatness: ± 0.75db
RF impedance: 75 Ω

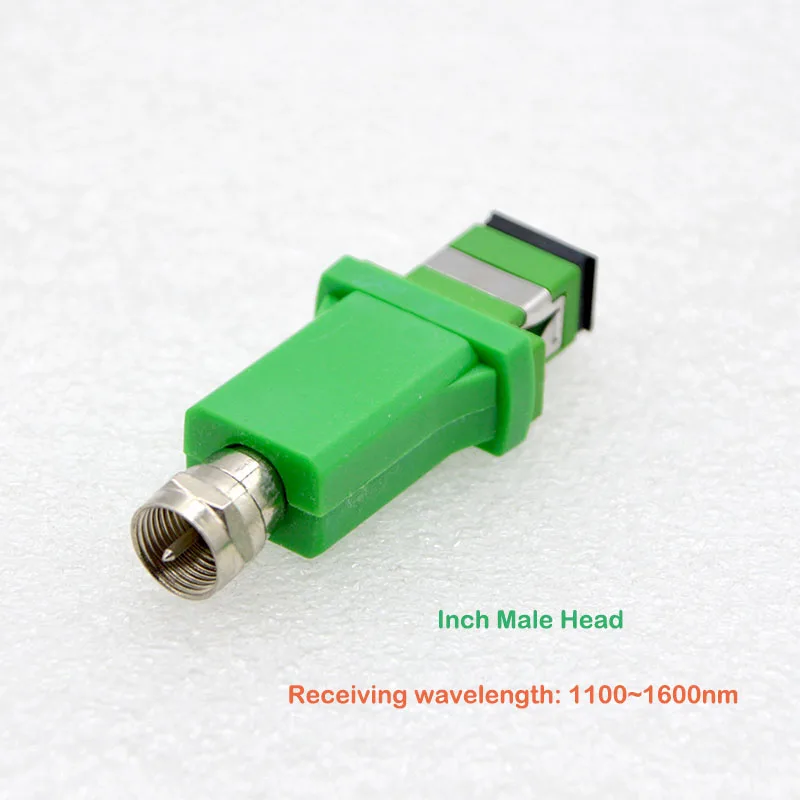

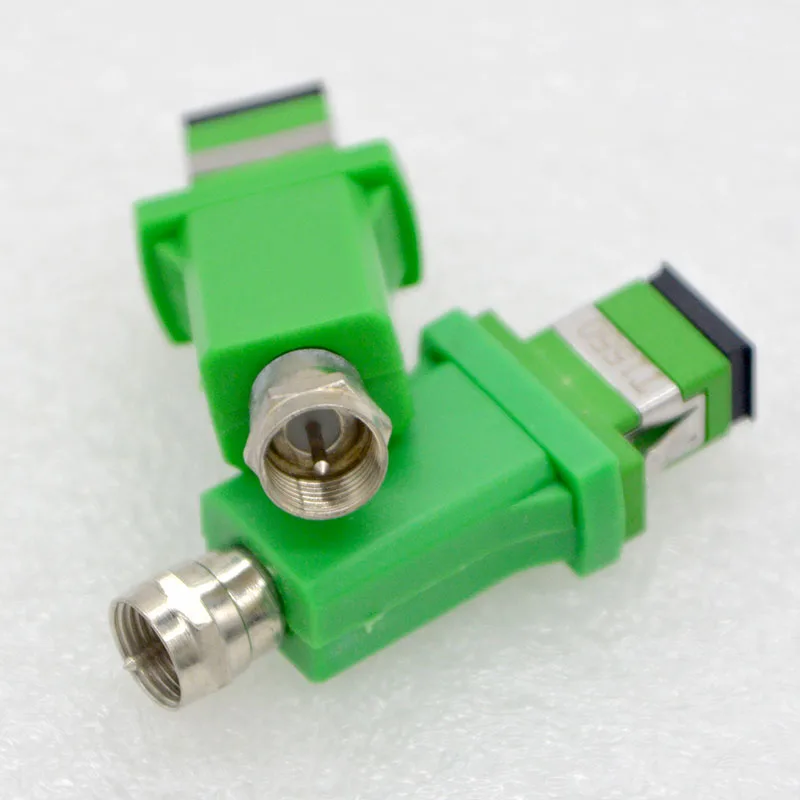

RF output interface type: male, female (metric or English Optional)
Output level:
69dbuv (0dbm reception) mer: 39, BER: 1.0e-9
58dbuv (6dbm reception) mer: 38, BER: 1.0e-9
49dbuv (10dBm reception) mer: 31, BER: 1.0e-7
45dbuv (12dbm reception) mer: 27, BER: 1.0e-7
(optical test conditions: optical input level: 80dbuv, mer: 38, BER: 1.0e-9)
RF output reflection loss: ≥ 16dB (10-550mhz), ≥ 14 (550-1000mhz)
Input light reflection loss: ≥ 45dB
Optical connector type: SC / APC
C/N: 51dB
C/CTB:≥65Dbc
C/CSO:≥62dB
(test conditions shall be in accordance with GT / t184-200.)
Sensitivity: - 17dB
Operating temperature range: - 20 ℃ ~ + 60 ℃
Maximum operating relative humidity: maximum 95% non condensing
Optical fiber interface: SC / APC, SC / UPC, FC / APC
Working relative humidity: maximum 10% ~ 95% non condensing
Boundary dimension: 58mm × 24mm × 13mm
