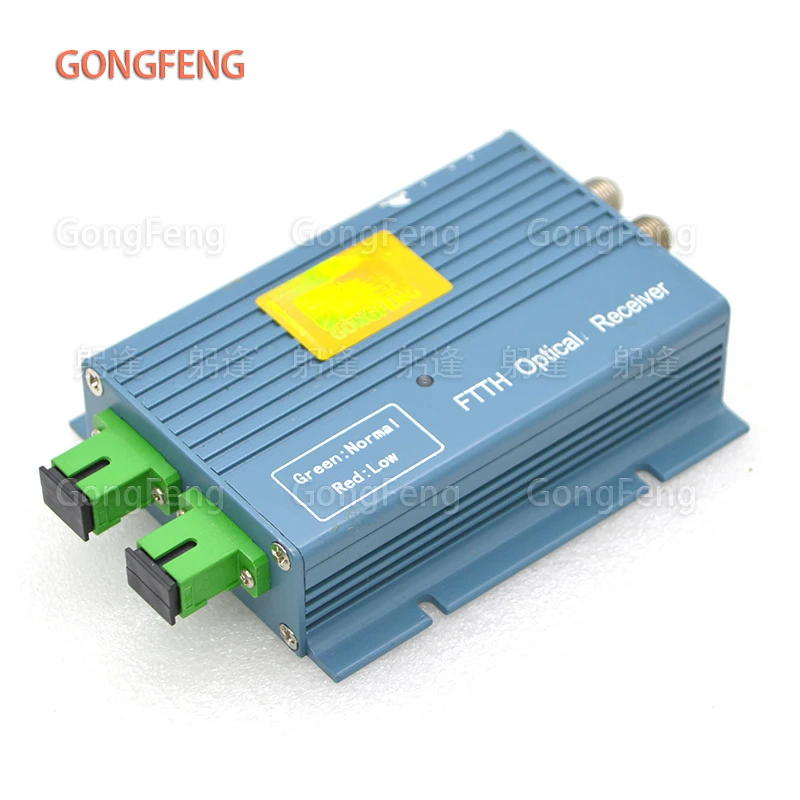

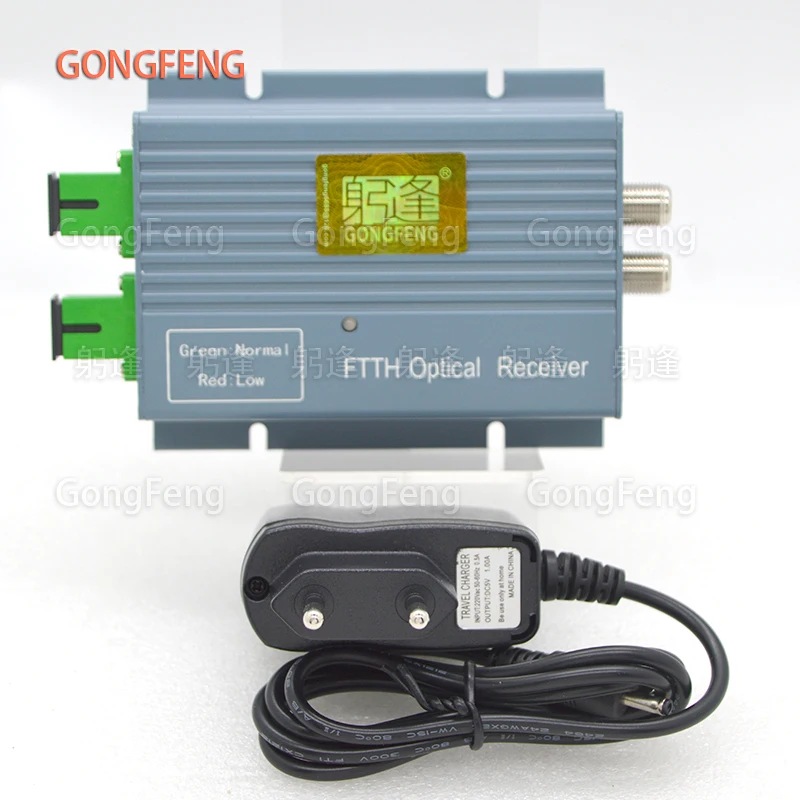

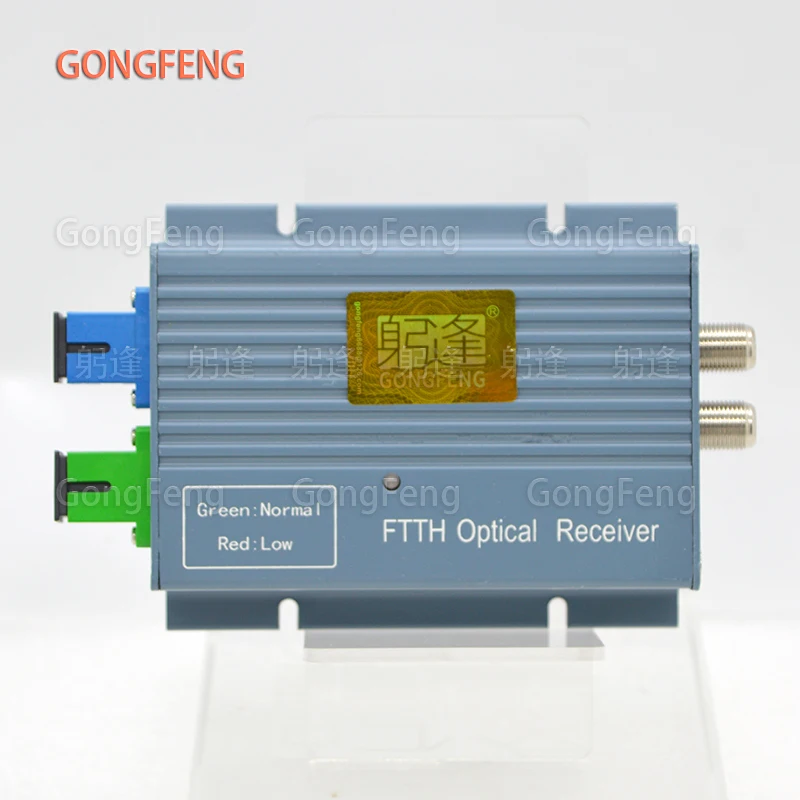

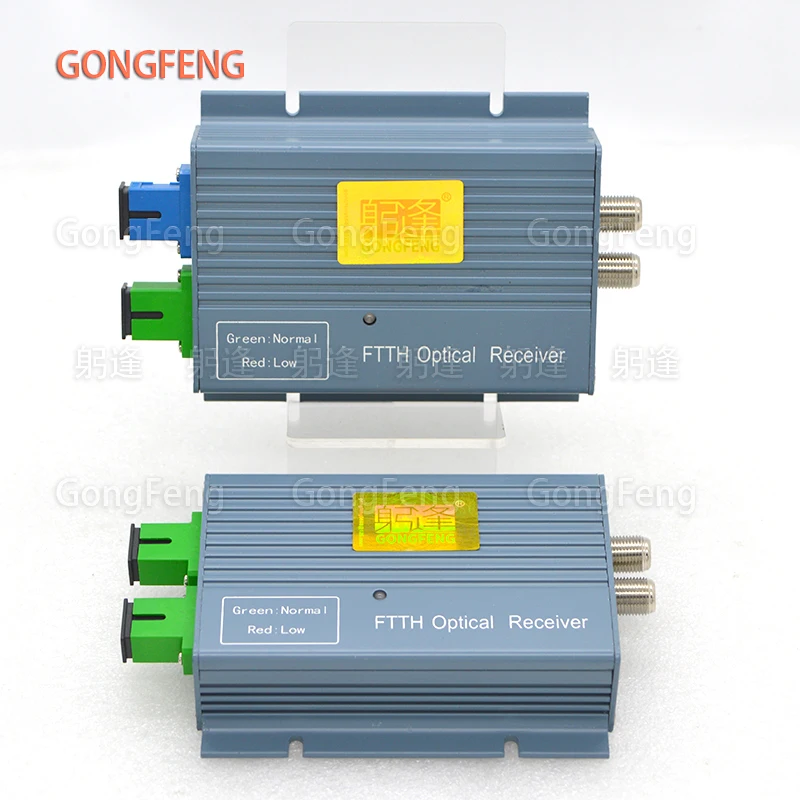

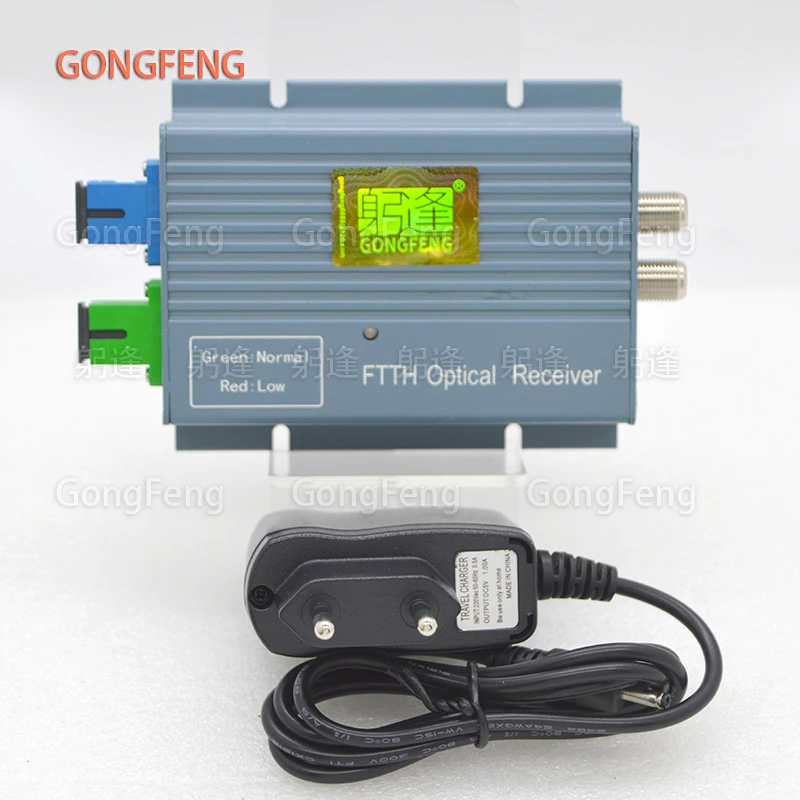

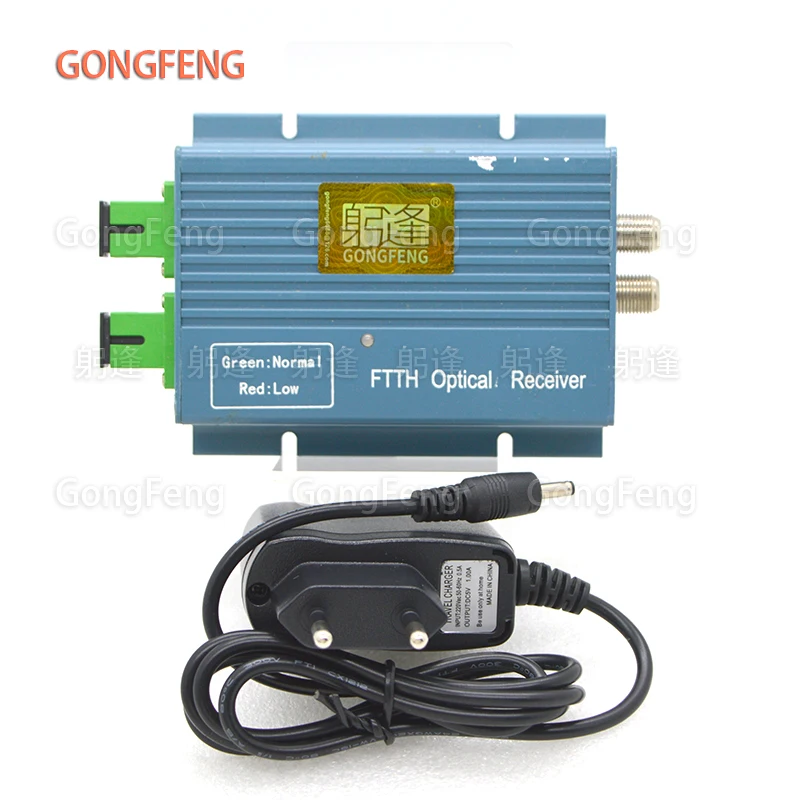

Nuevo receptor óptico FTTH Node CATV WDM AGC 2RF salida 80dBuV equipo de transmisión de fibra óptica para red GEPON al por mayor

New FTTH Node CATV Optical Receiver WDM AGC 2RF Output 80dBuV Fiber Optic Transmission Equipment For GEPON Network Wholesale

Model: GF-WDM

Receiver output level: 80 (dBuv)

Wavelength: 1100-1600 (nm)

Input optical power: - 18 ~ + 2 (dBm)

RF output impedance : 75（Ω）

Output reflection loss : 45（dB）

Power consumption: 0.5 (W)

Weight: 400 (g)

Ftth-1000m optically controlled receiver

Input: - 15dBm ~ + 2dBm

2RF Output: 65 ~ 80dBμV(±1dB μ V)

Applicable to: GEPON Network

Red: ＜ - 9dBm;

Green: ＞ - 9dBm

Orange: ＞ + 2dBm

performance parameter

AGC control range: - 10 ~ 0 dBm

Optical emission loss: ＞ 45dB

Light receiving wavelength: 1100 ~ 1600nm

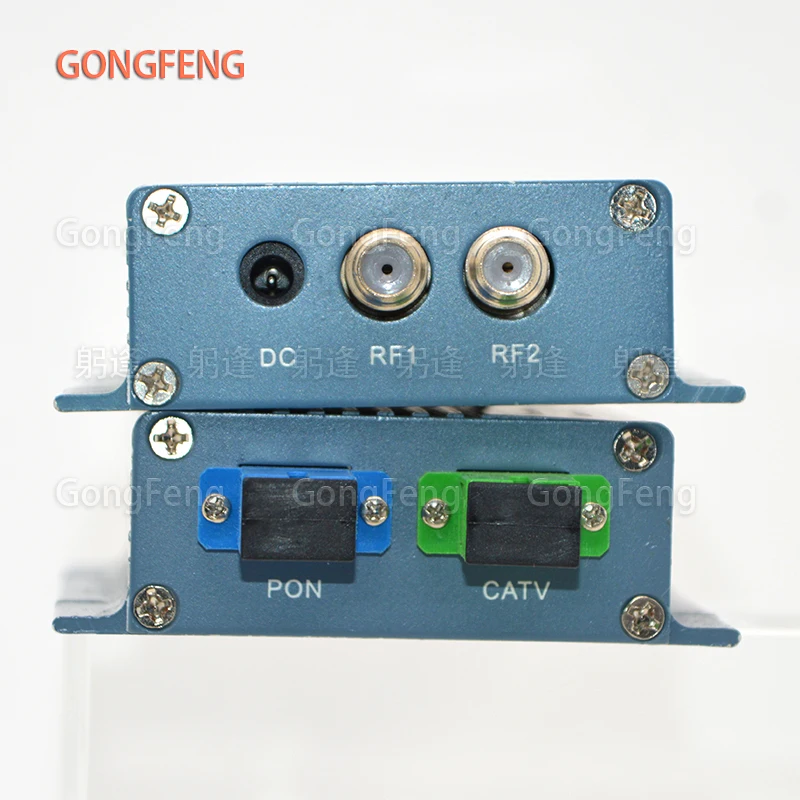

Optical connector type : SC/APC/UPC ,SC/APC/APC

Carrier noise ratio (C / N): ≥ 50dB

Carrier combined third-order beat ratio (C / CTB): ≥ 65dB

Carrier combined second-order beat ratio (C / CSO): ≥ 63dB

Frequency range: 45 ~ 100MHz

In band Flatness: ± 0.5 (45 ~ 550MHz); ±0.75(550~750/862/1000MHz)

Output level: 65 ~ 82db μ V（±1dB μ V）

WDM wavelength: 1550 / 1490 / 1310nm
